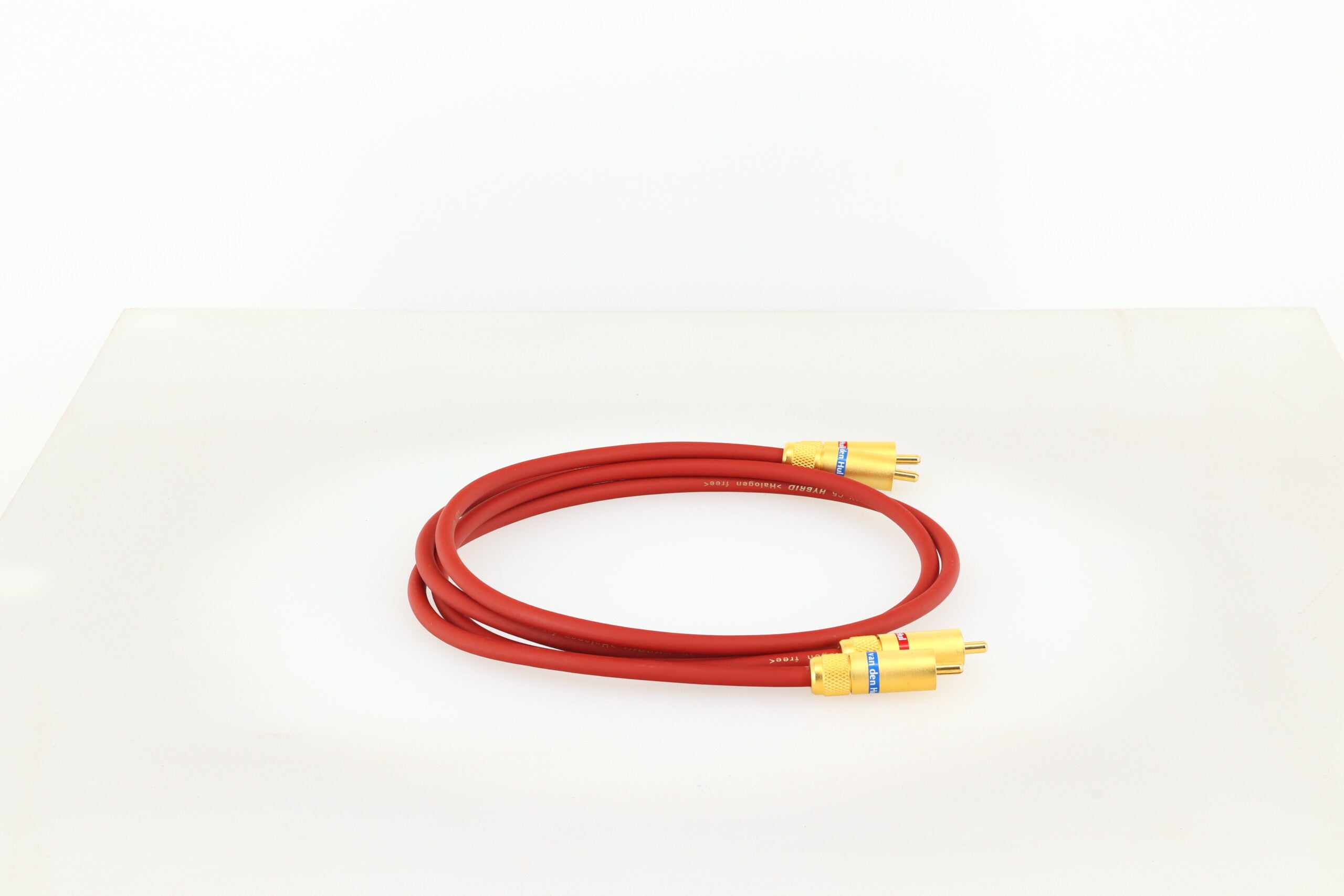

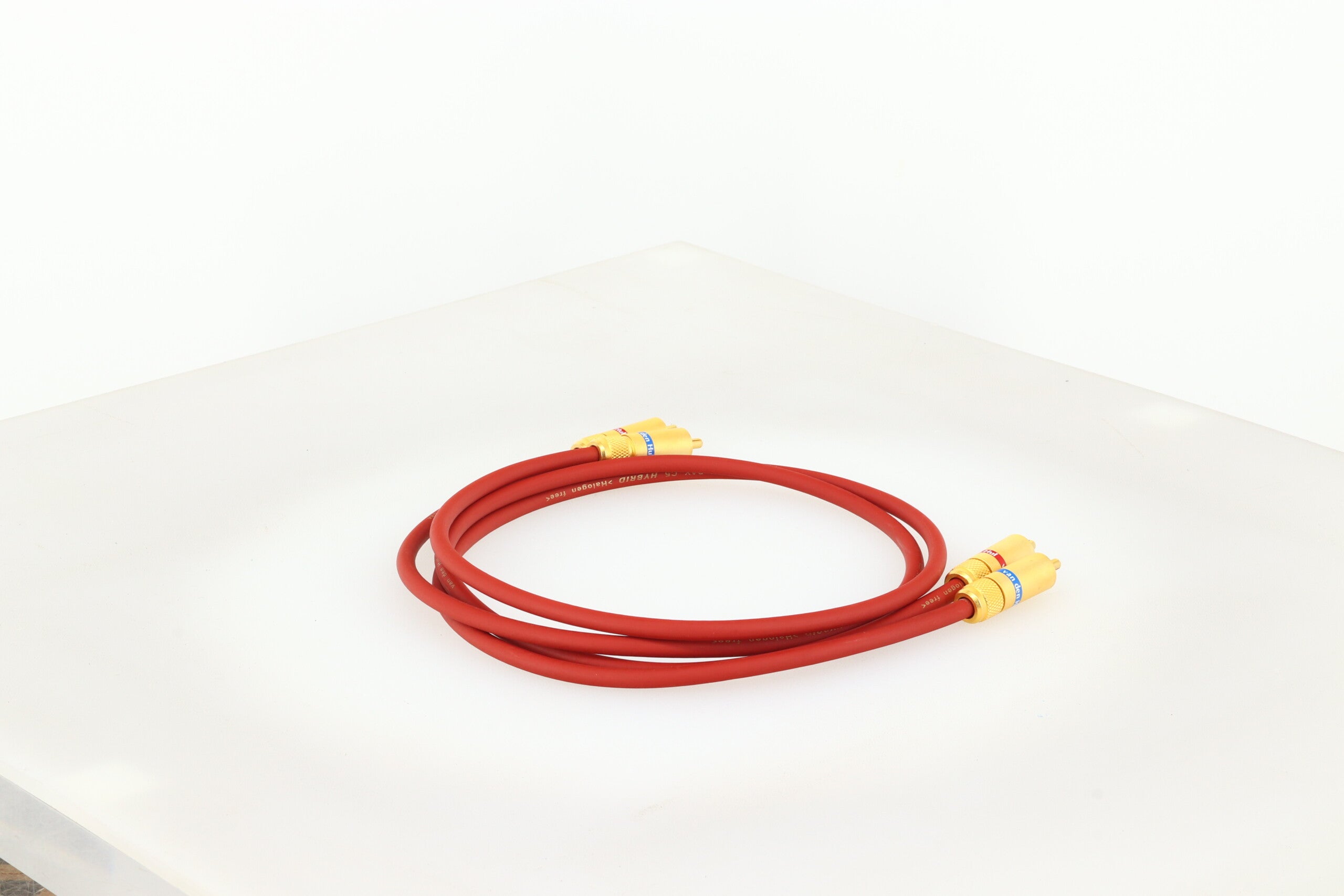

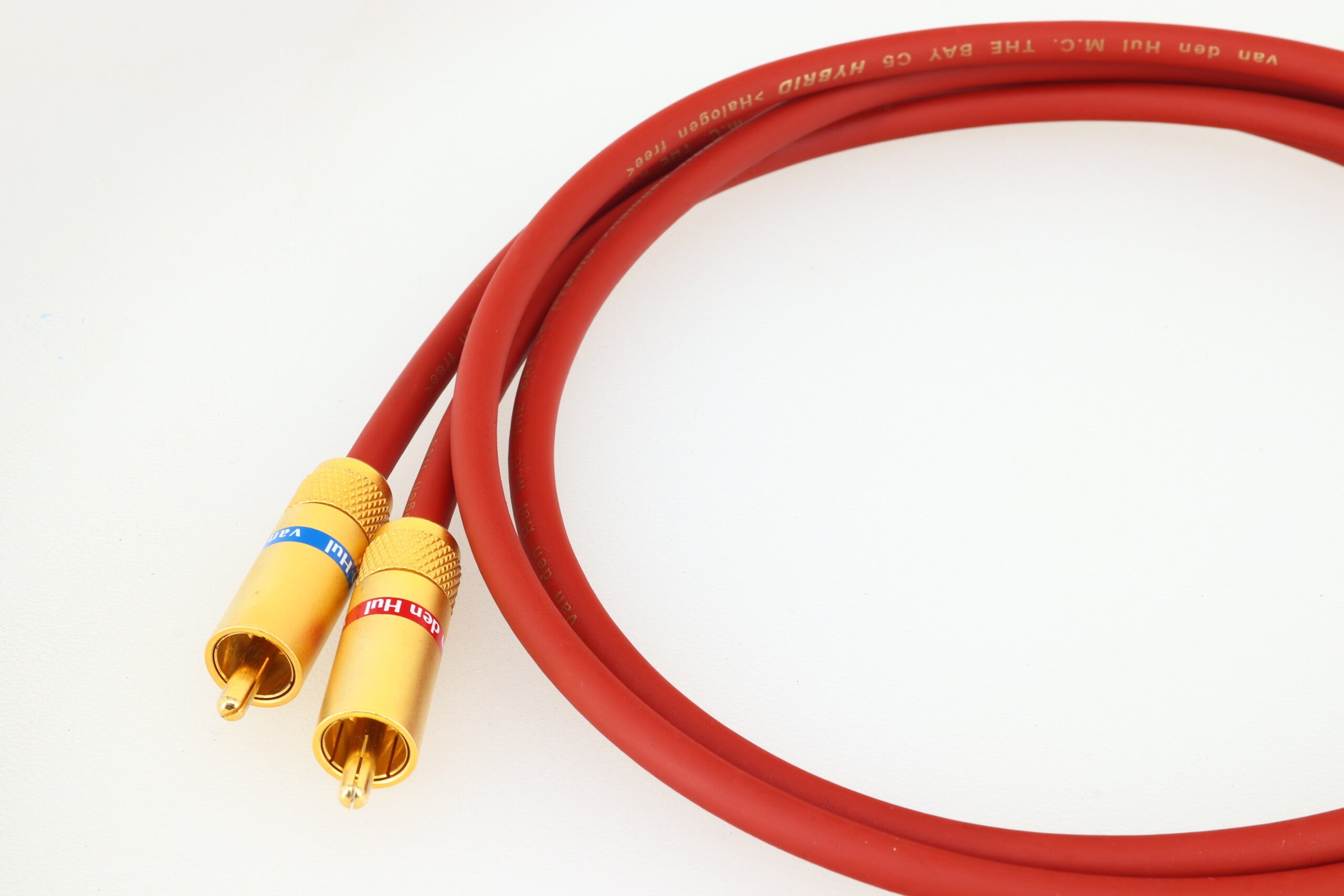

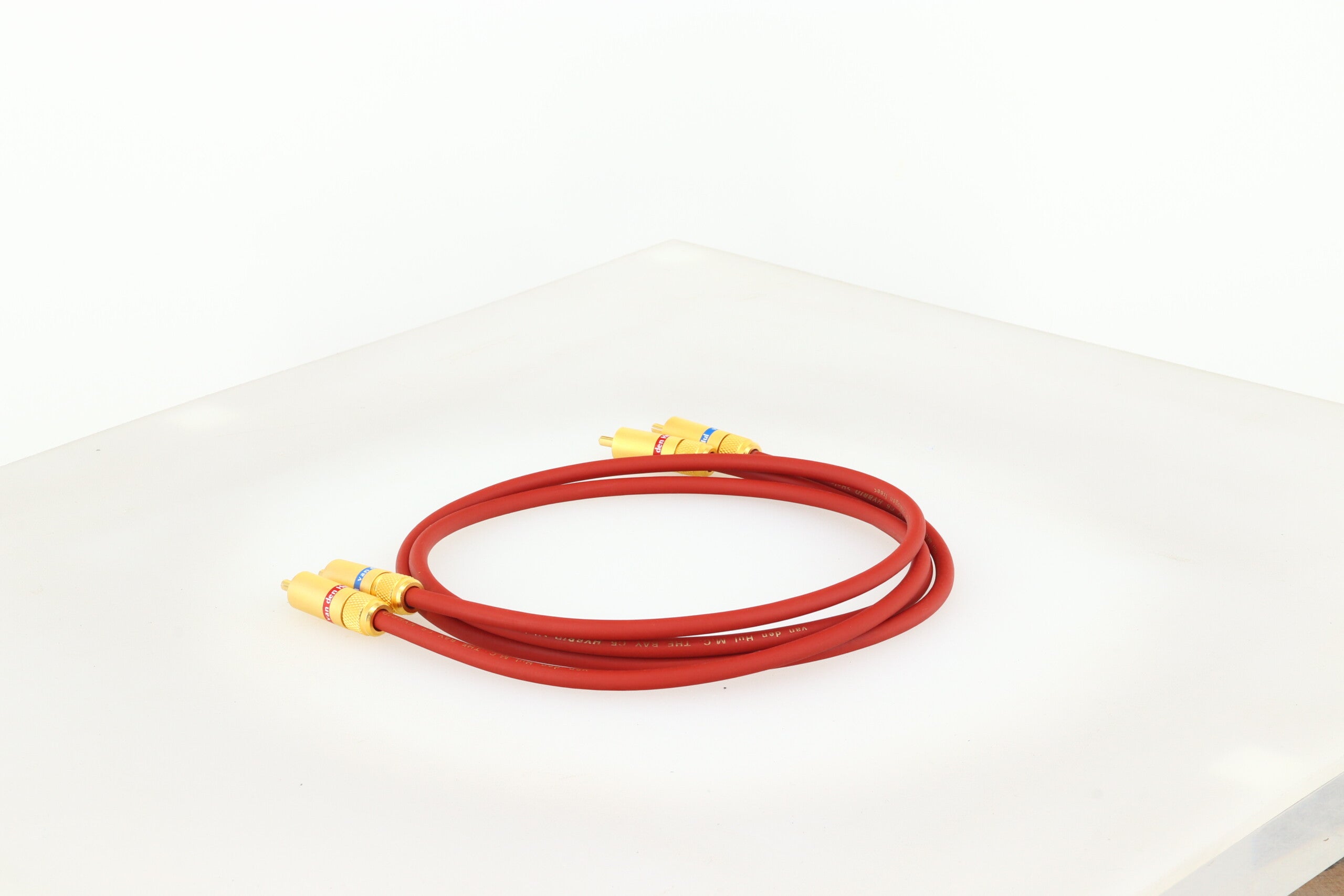

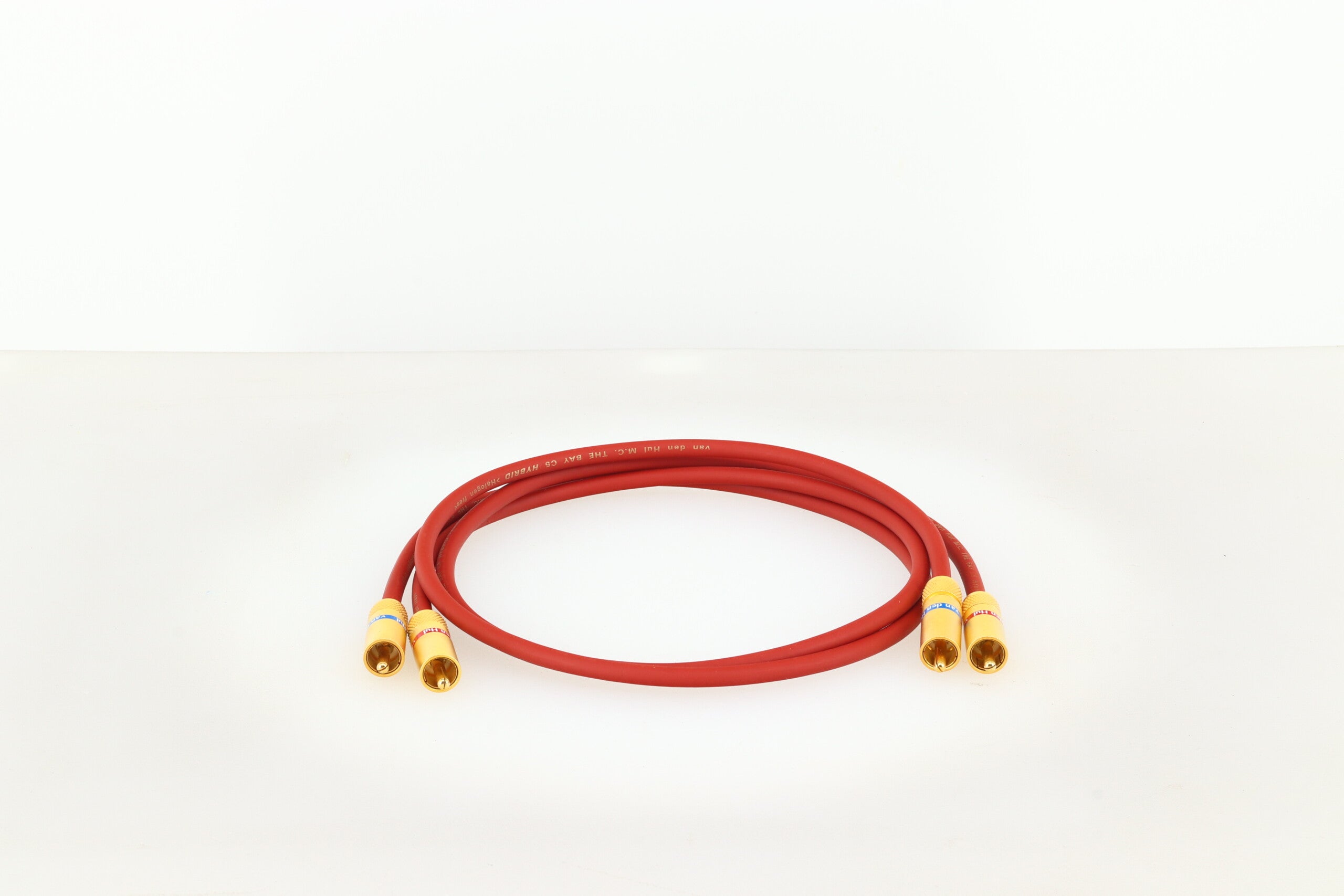

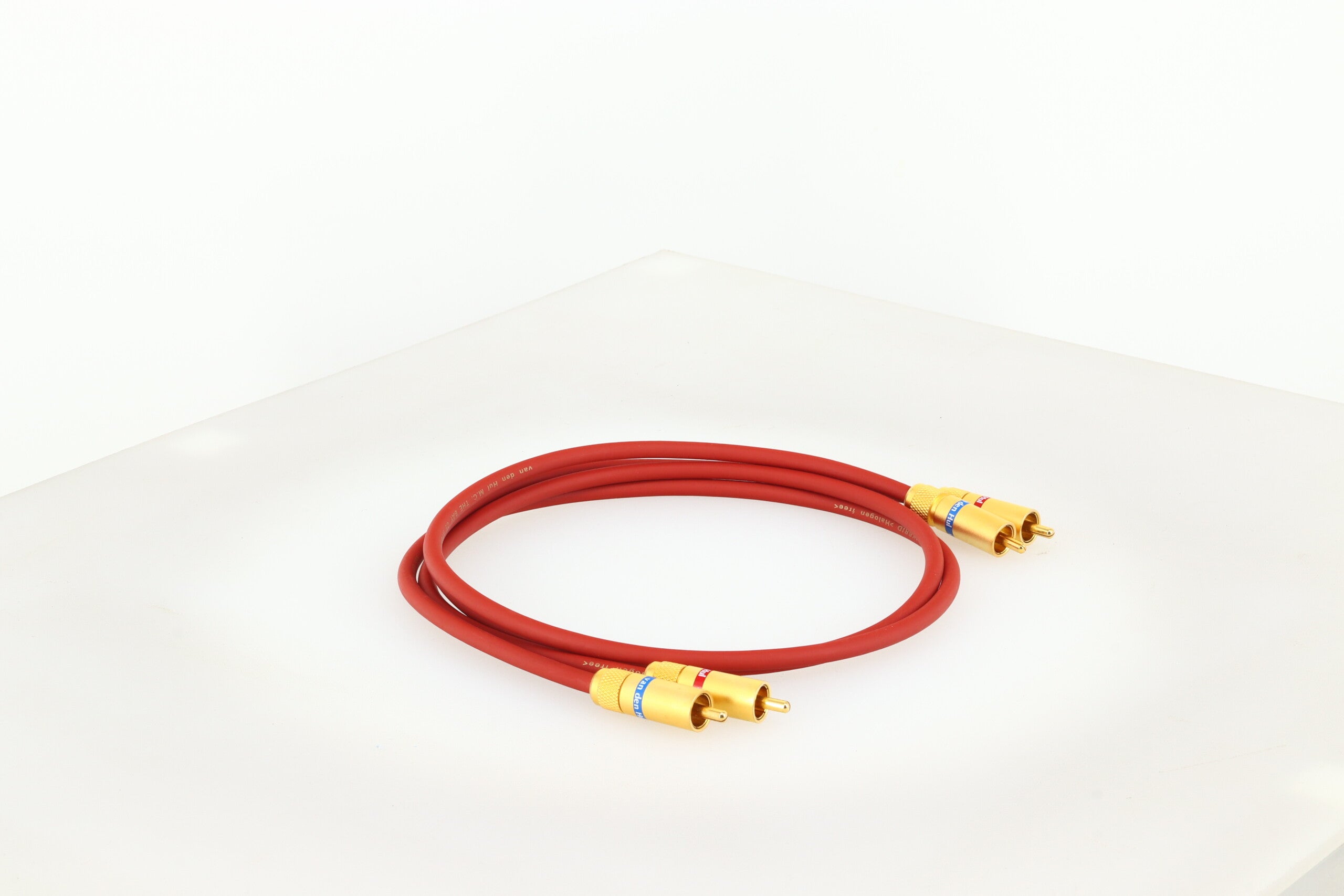

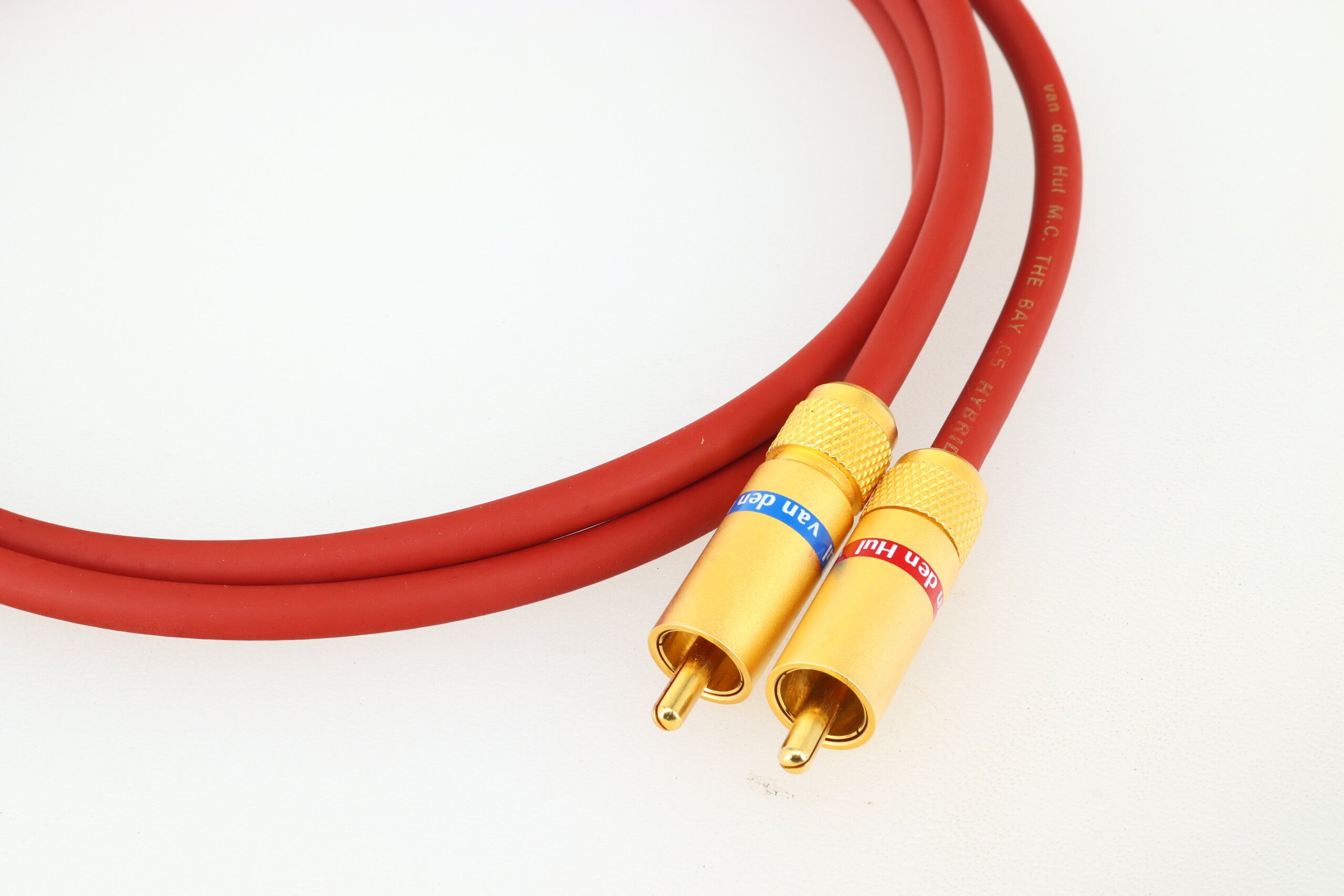

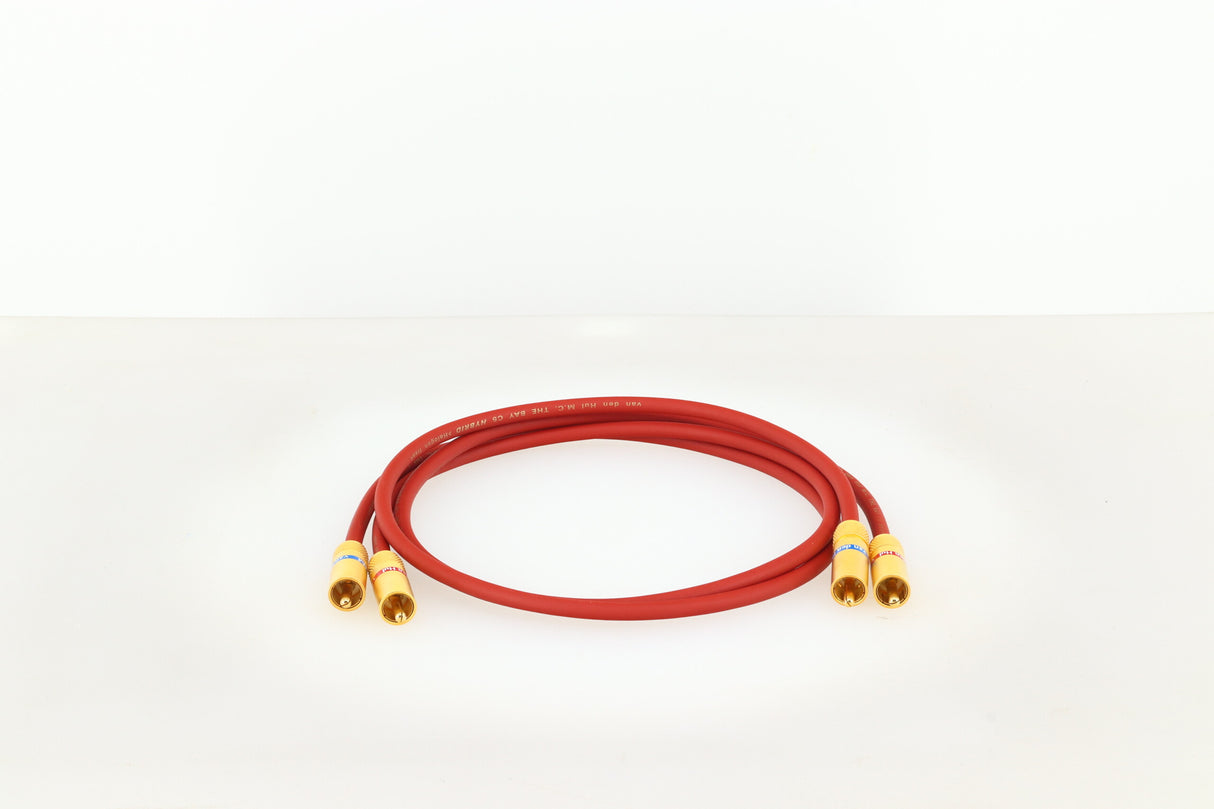

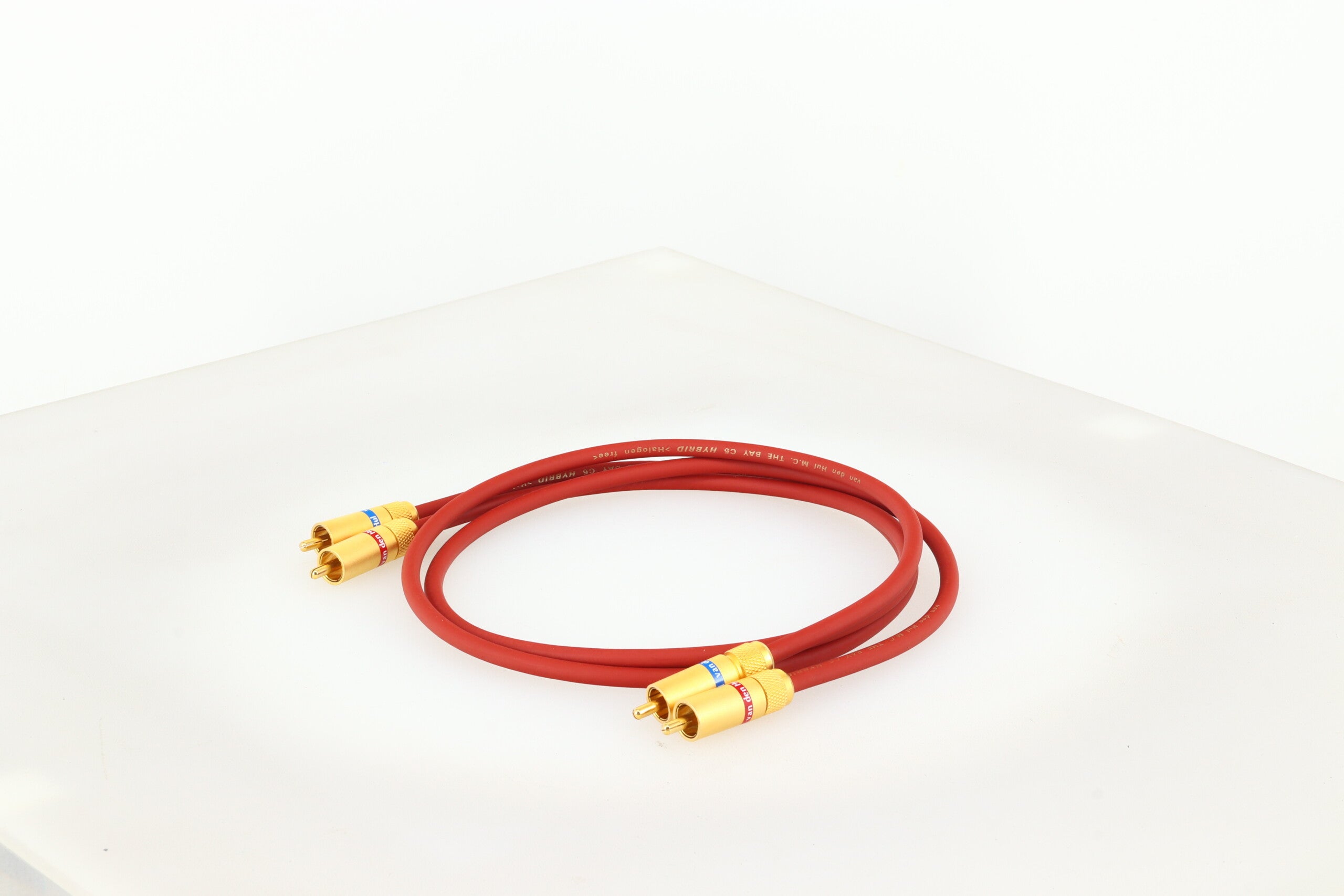

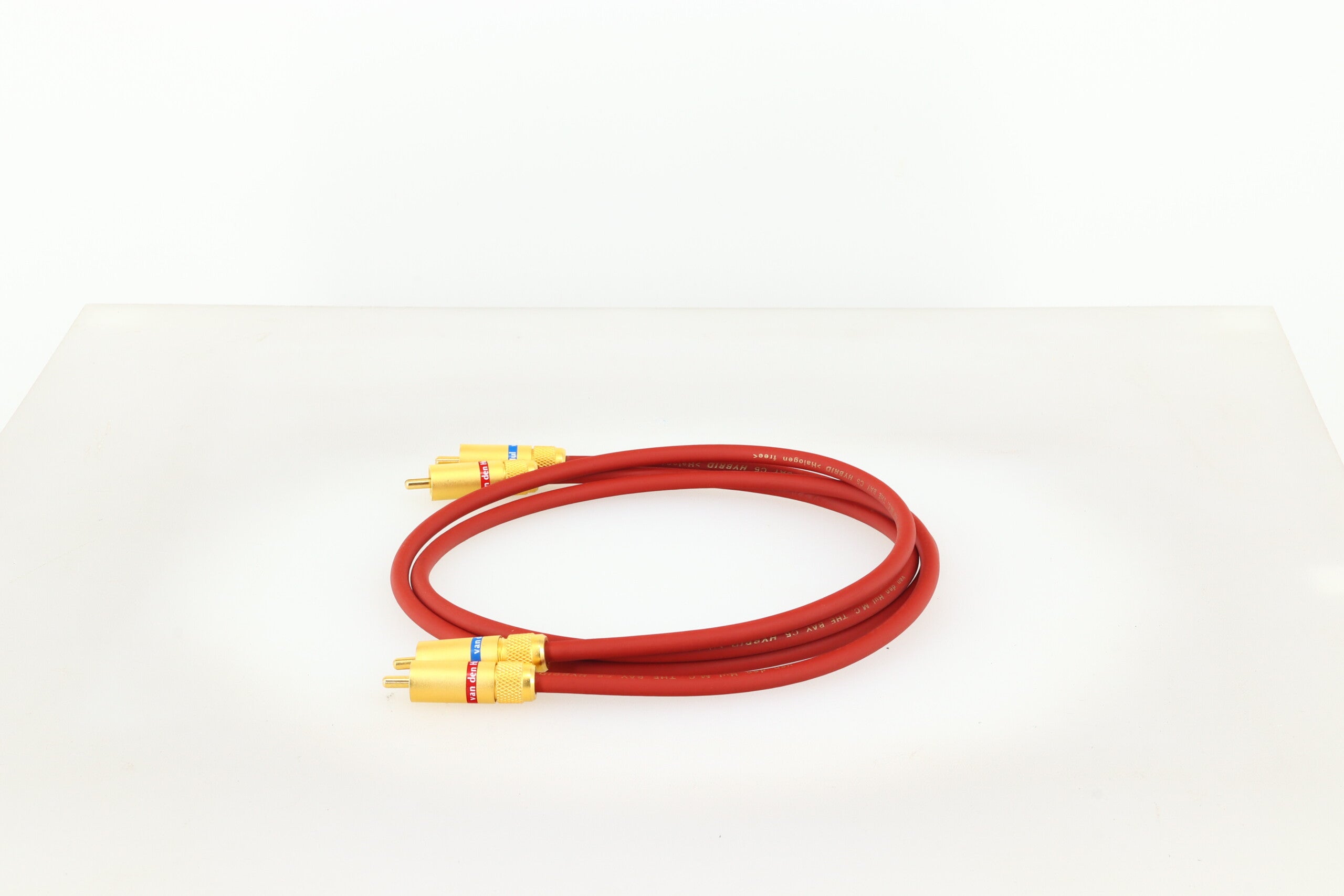

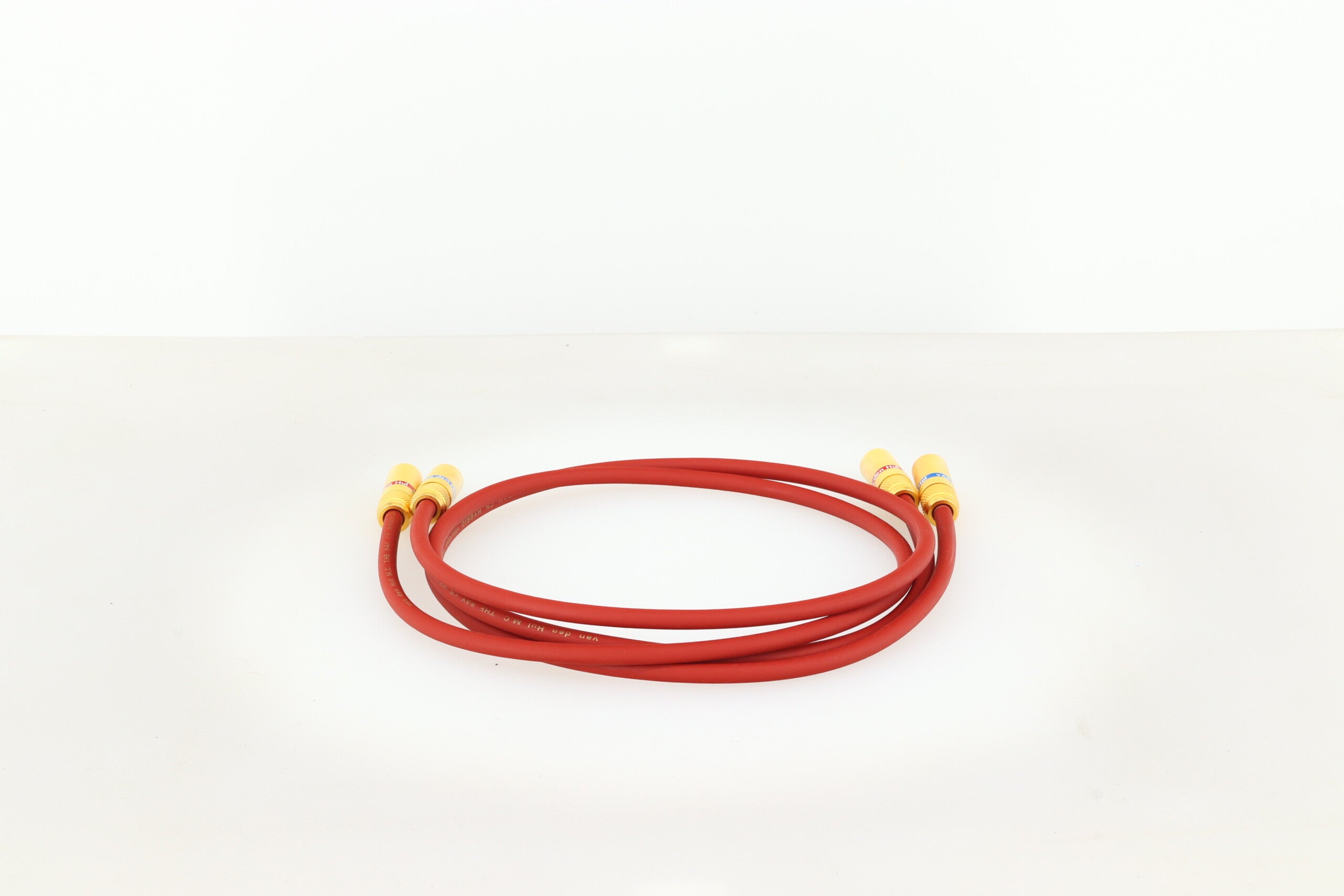

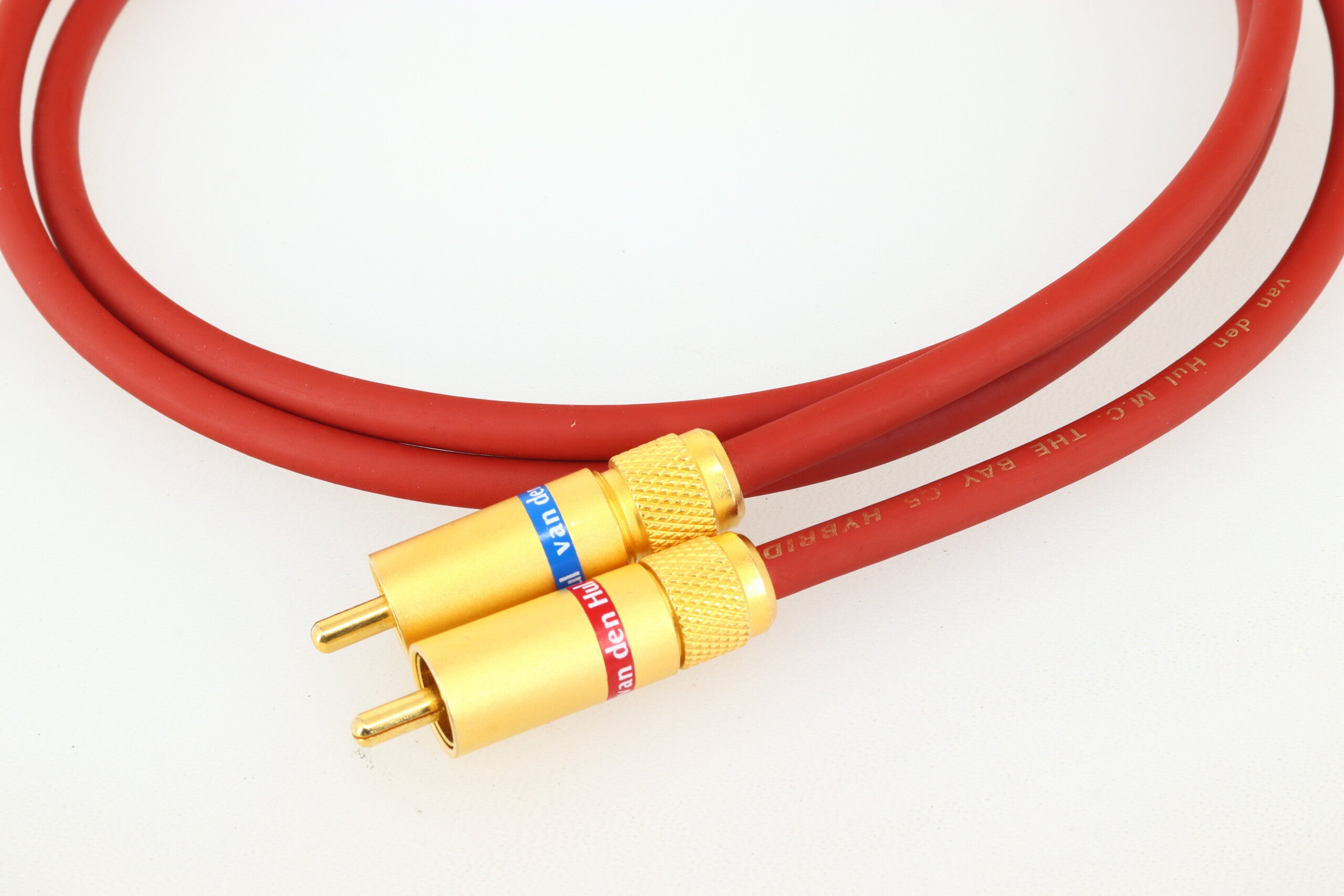

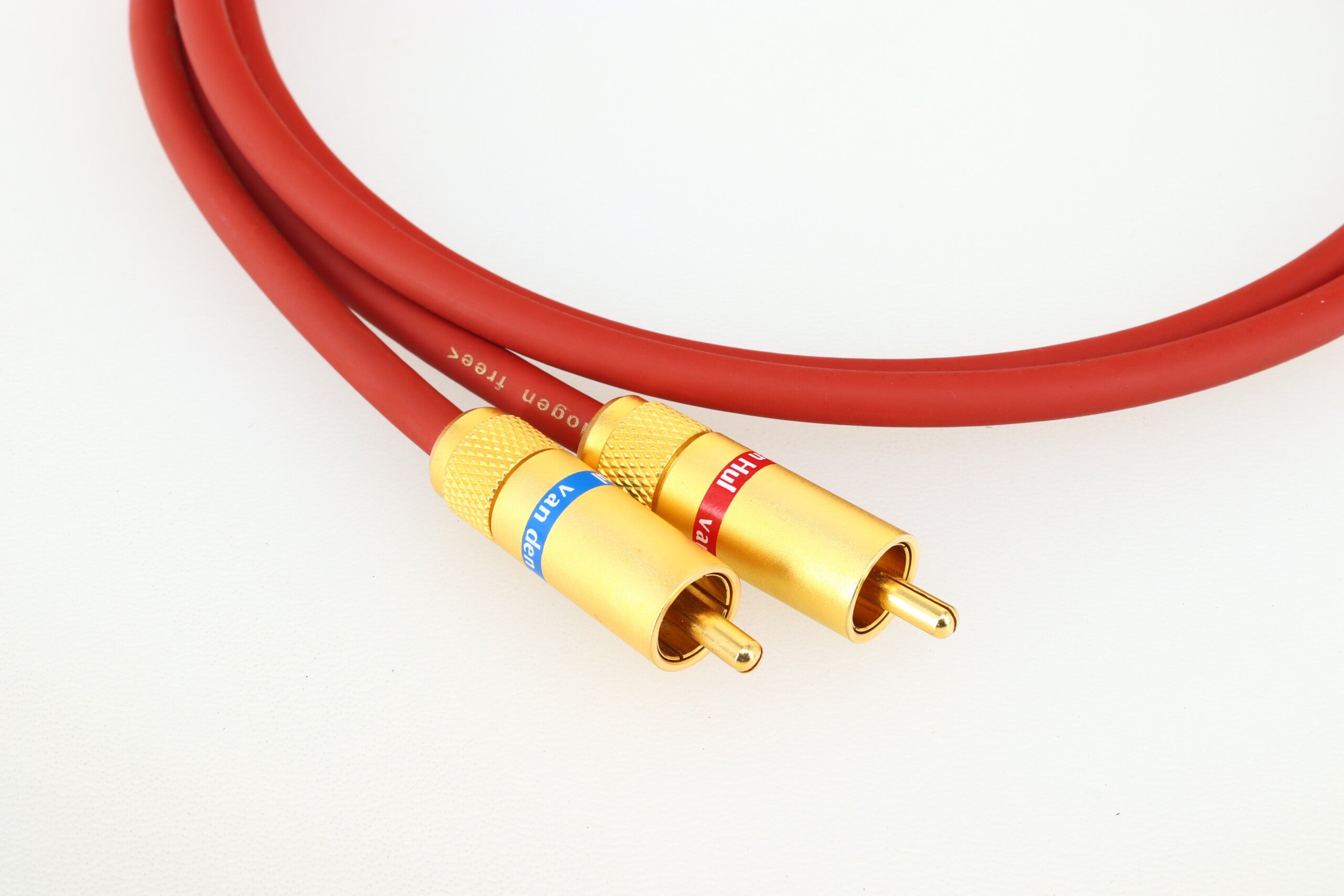

Van den Hul M.C. The Bay C5 Hybrid Interconnect RCA-RCA 0.8m Pair

Here we have a good quality budget interconnect cable from Van Den Hul. It is 0.8 metres in length and comes in very good condition.
Van Den Hul Say….
Low-priced and exhibiting an excellent price-to-performance ratio The Bay C5 Hybrid has been specially designed for general-purpose and car hi-fi interlink applications.
The Bay C5 Hybrid however is also perfectly suited for internal (pre)amplifier and mixing console wiring applications and as an unbalanced patch bay interconnect. The design combination of superior transmission quality, a low conductor capacitance, and a very high screening factor together with high mechanical flexibility and long durability, though not easy to manage, successfully has been achieved.
The high-quality conductor material used in this cable is large crystal OFC with a dense silver coating. The Bay C5 Hybrid furthermore has been fully equipped with Linear Structured Carbon® (LSC) saturated layers which are standard in our more expensive cable products. These layers dramatically improve transparency and imaging; by electrically bridging any metal crystal defects a stable conductivity at the lowest signal levels is obtained.
The coaxial construction is made with a centre conductor consisting of 40 x 0.12 mm. strands exhibiting an effective cross-section area of 0.452 mm² (AWG 20.6) and a resistance of 3.8 Ohm/100 meter.
The centre conductor is coated with a layer of LSC and is insulated with foamed polyethene.
The cable capacitance is 110 pF/m.
The double screen is made of a 16 x 6 x 0.12 mm. stranded braid underneath a Linear Structured Carbon® saturated layer to further close the cable against HF signals and to dramatically improve the signal quality.
The total resistance of the screen is 1.6 Ohm/100 meter.
The external 5.2 mm. diameter jacket is made of red coloured Hulliflex® 4, a material with superior properties compared to e.g. PVC; Hulliflex® gives The Bay C5 Hybrid a very long life span without any ageing effects.
Specifications:
Type Of Cable: Analogue interconnect – unbalanced
Available Versions: RCA
Jacket Colour: Red
Product Range: Entry-level
Conductor Material: Solid core, Silver plated OFC
Conductor Diameter: 0.76 mm
Shielding: Double shielded, One LSC saturated
Cable Diameter: 5.2 mm
Resistance: 0.016 Ω/m (screen), 0.038 Ω/m (conductor)
Capacitance: 110 pF/m
