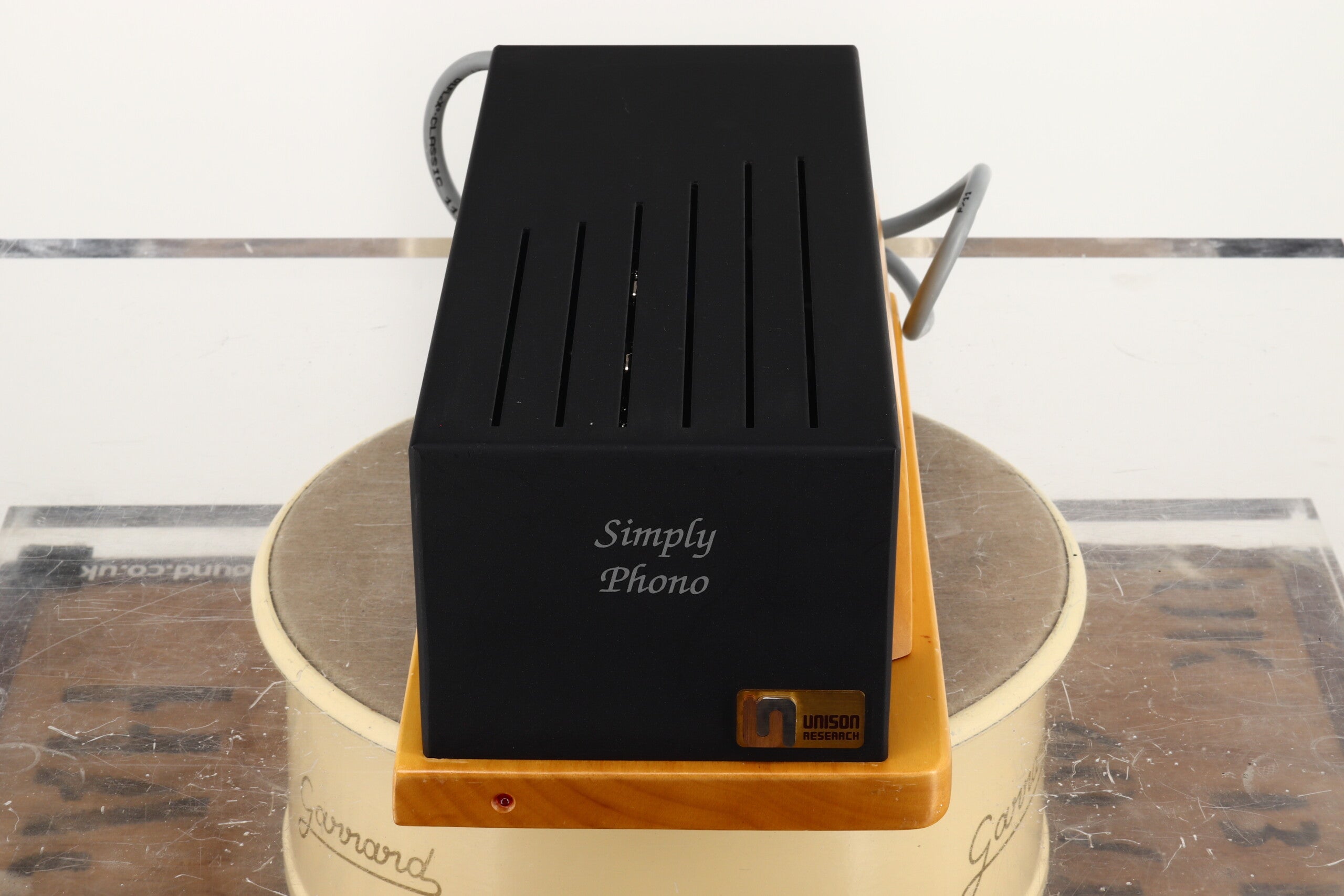

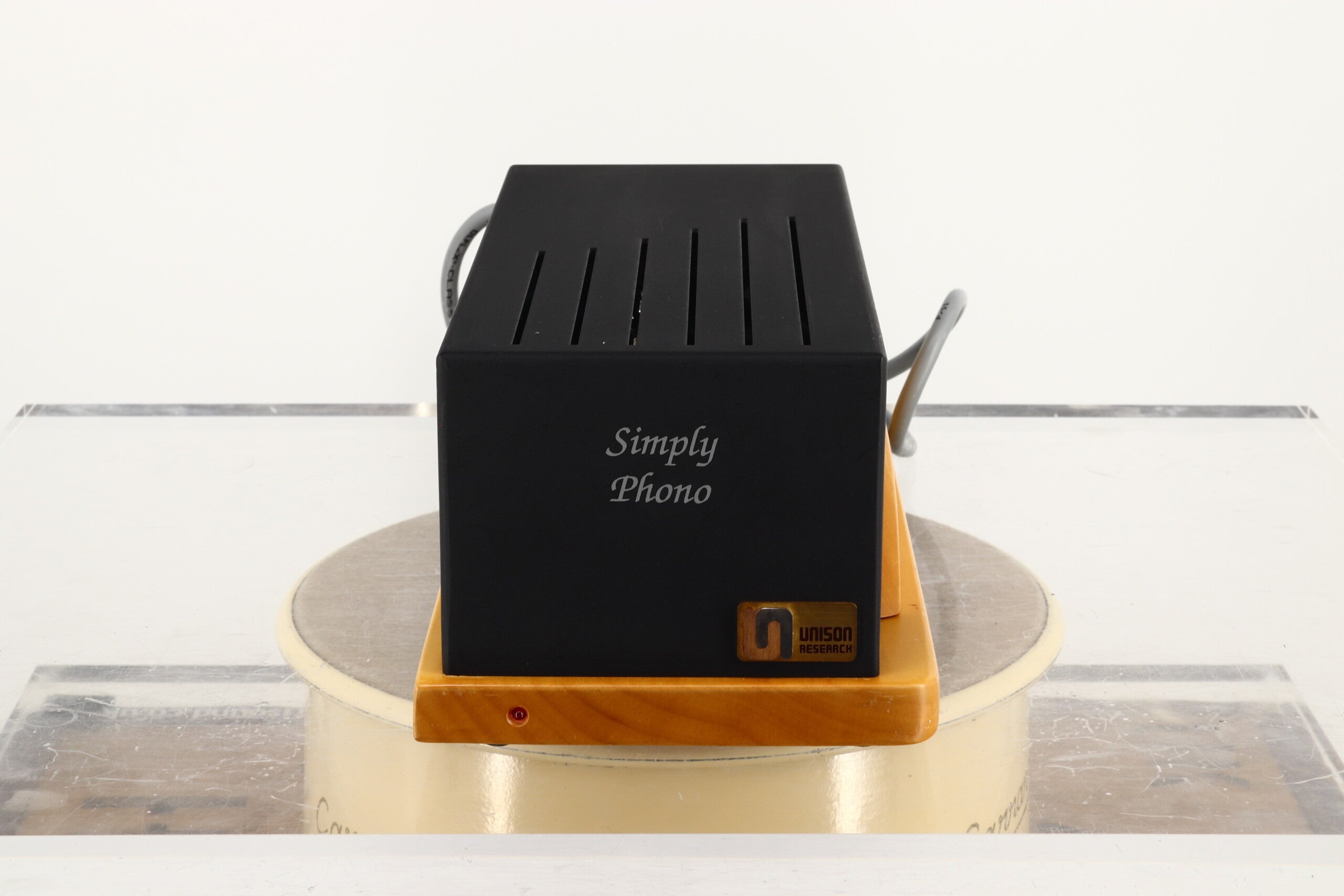

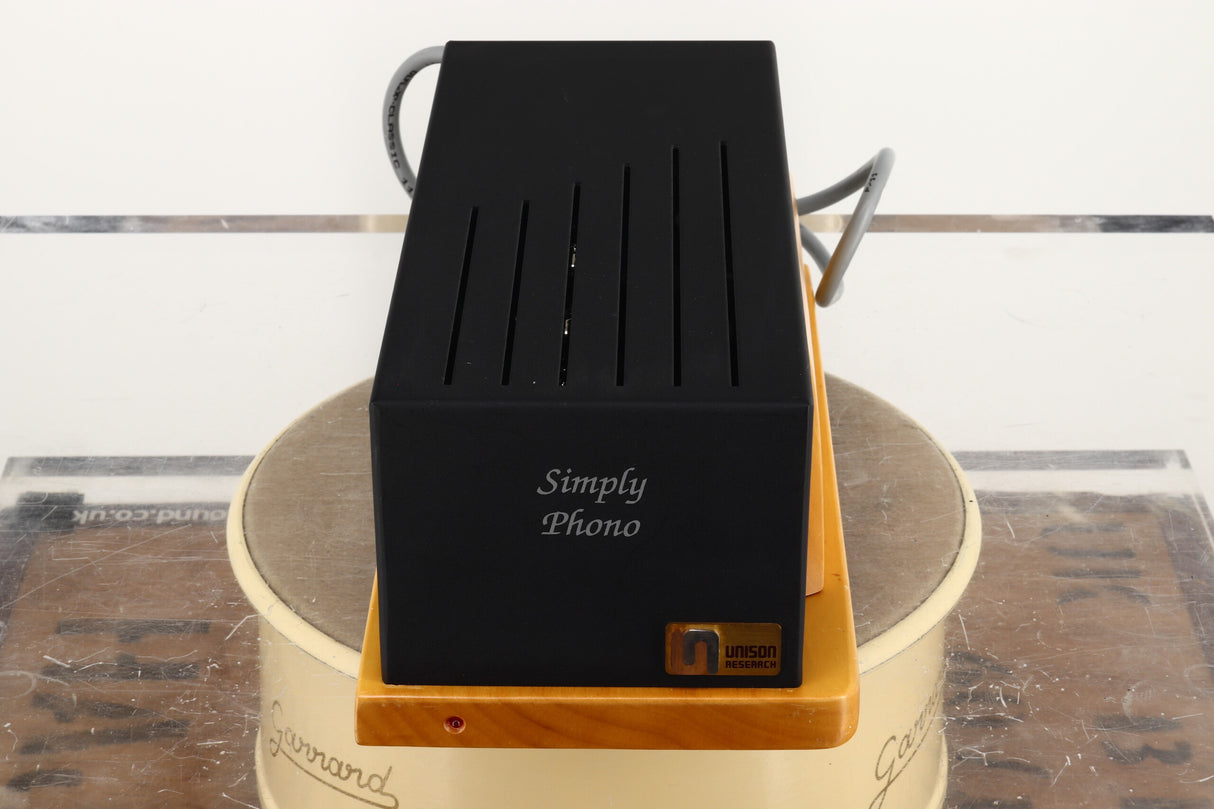

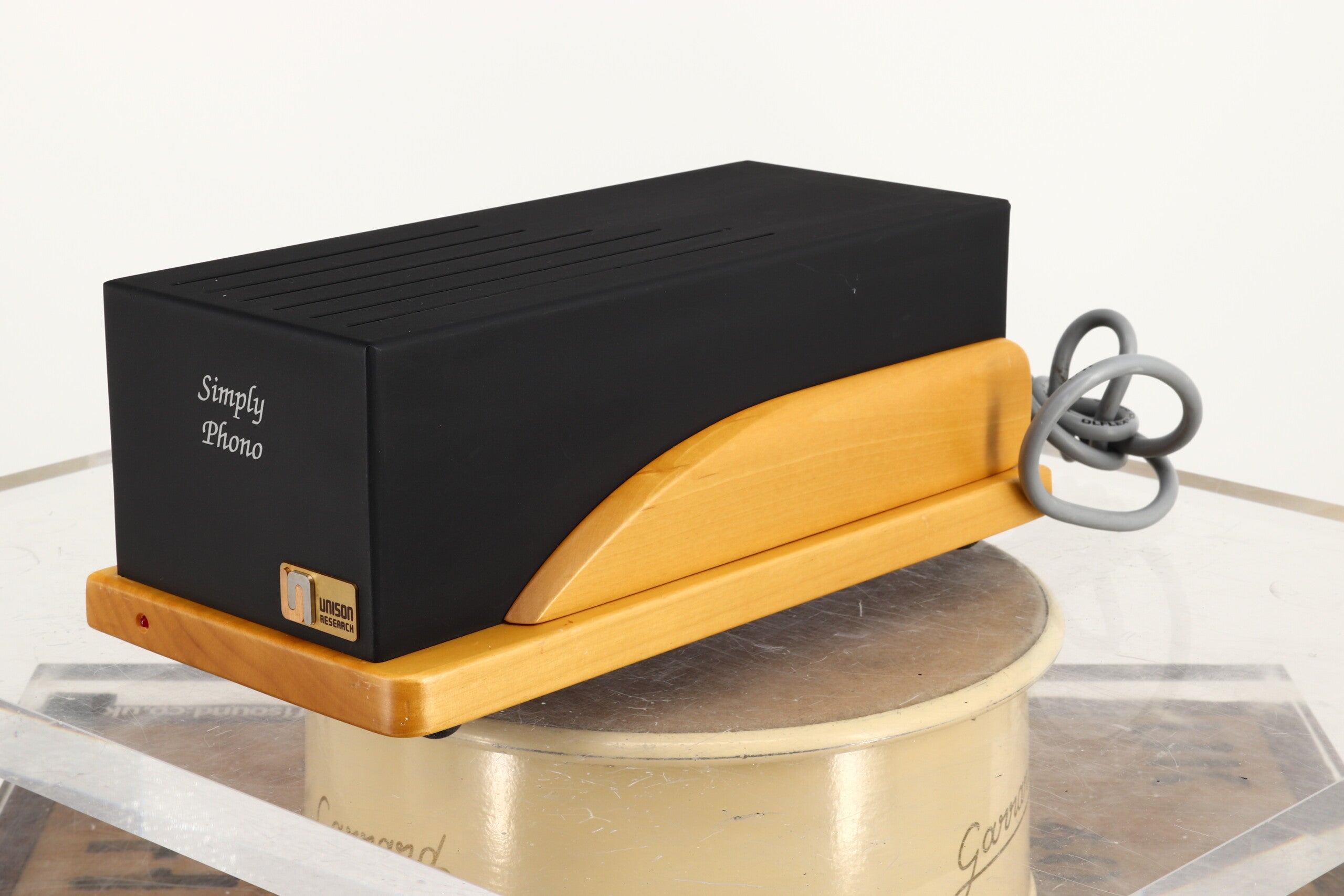

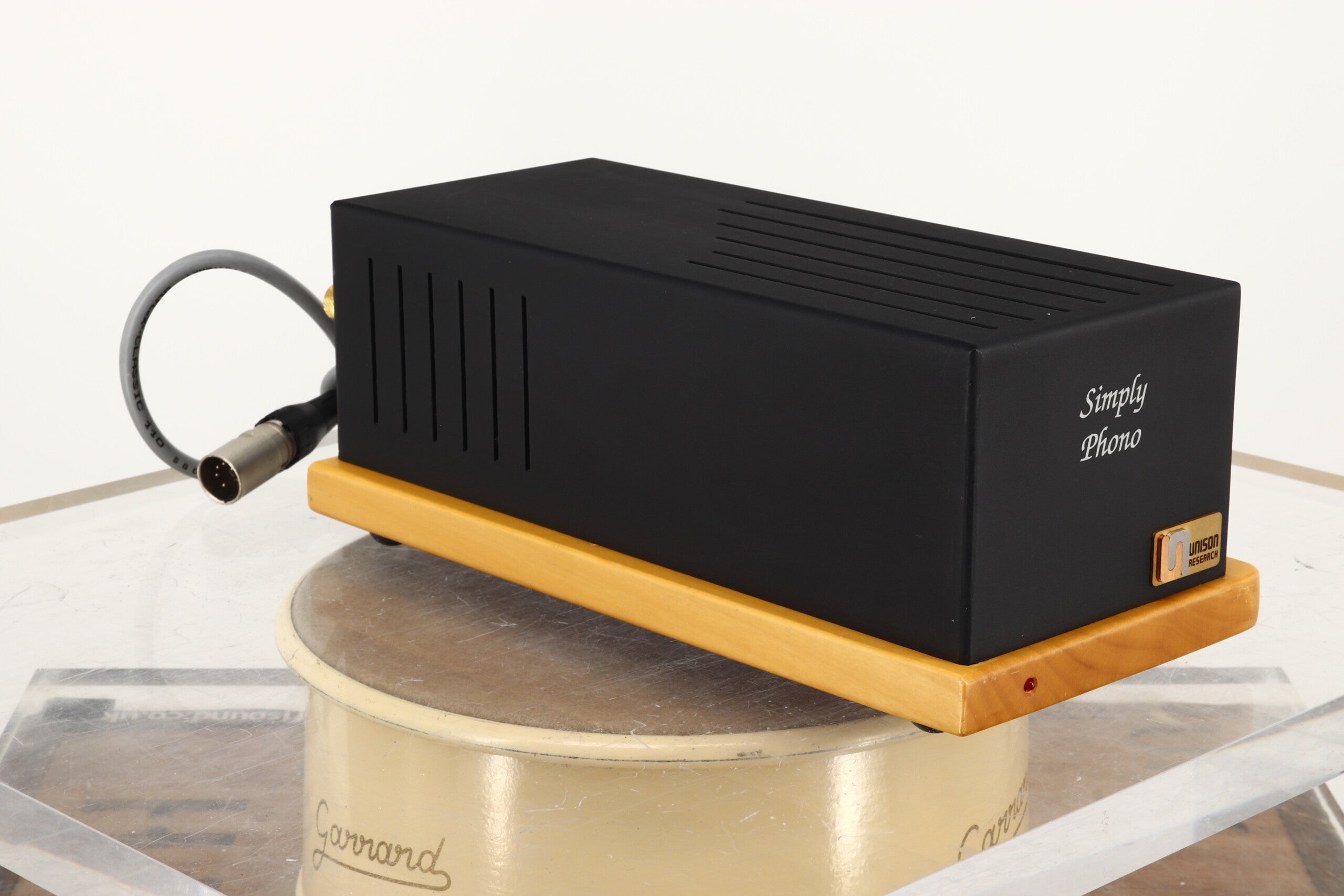

Unison Research Simply Phono Valve PhonoStage With PSU

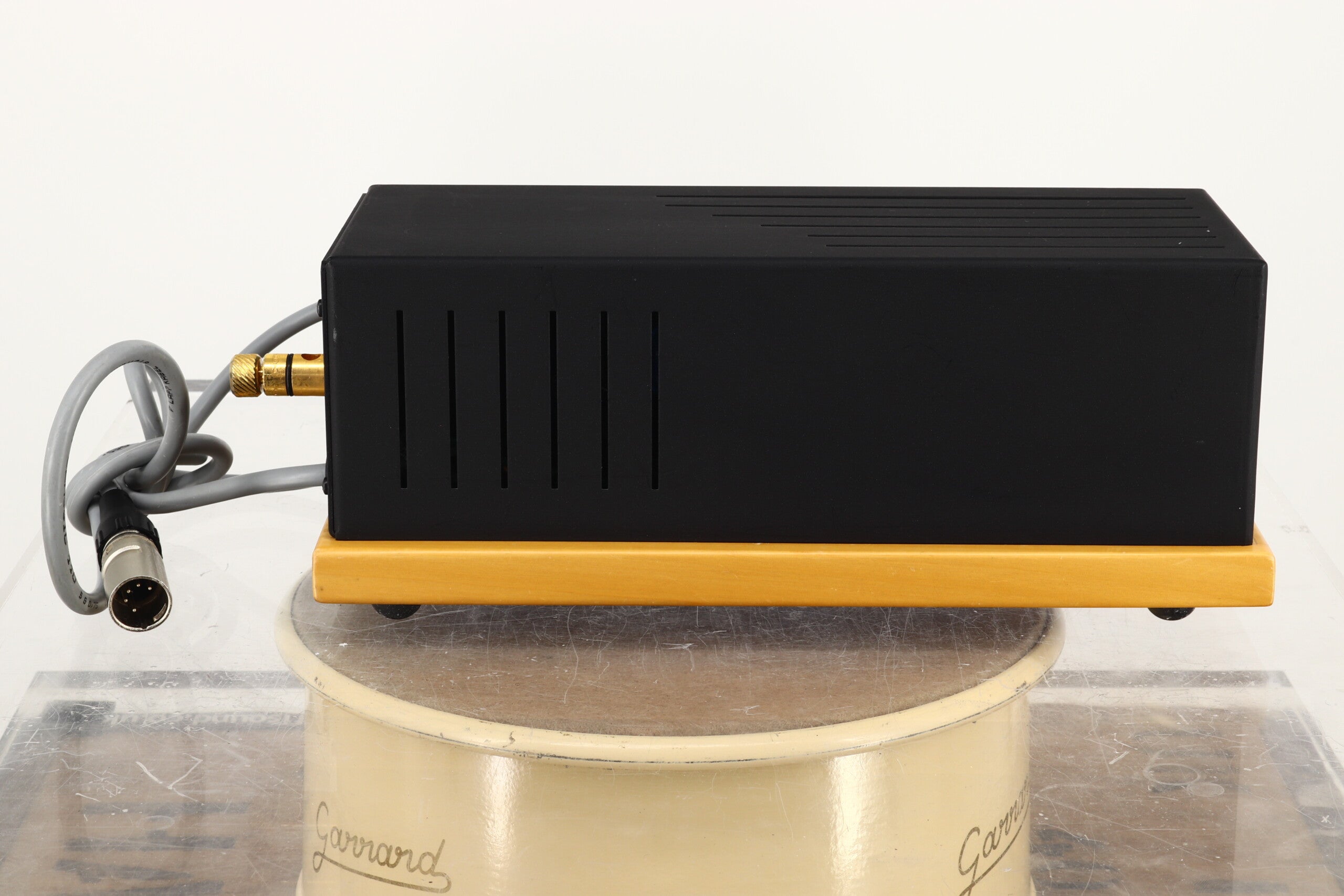

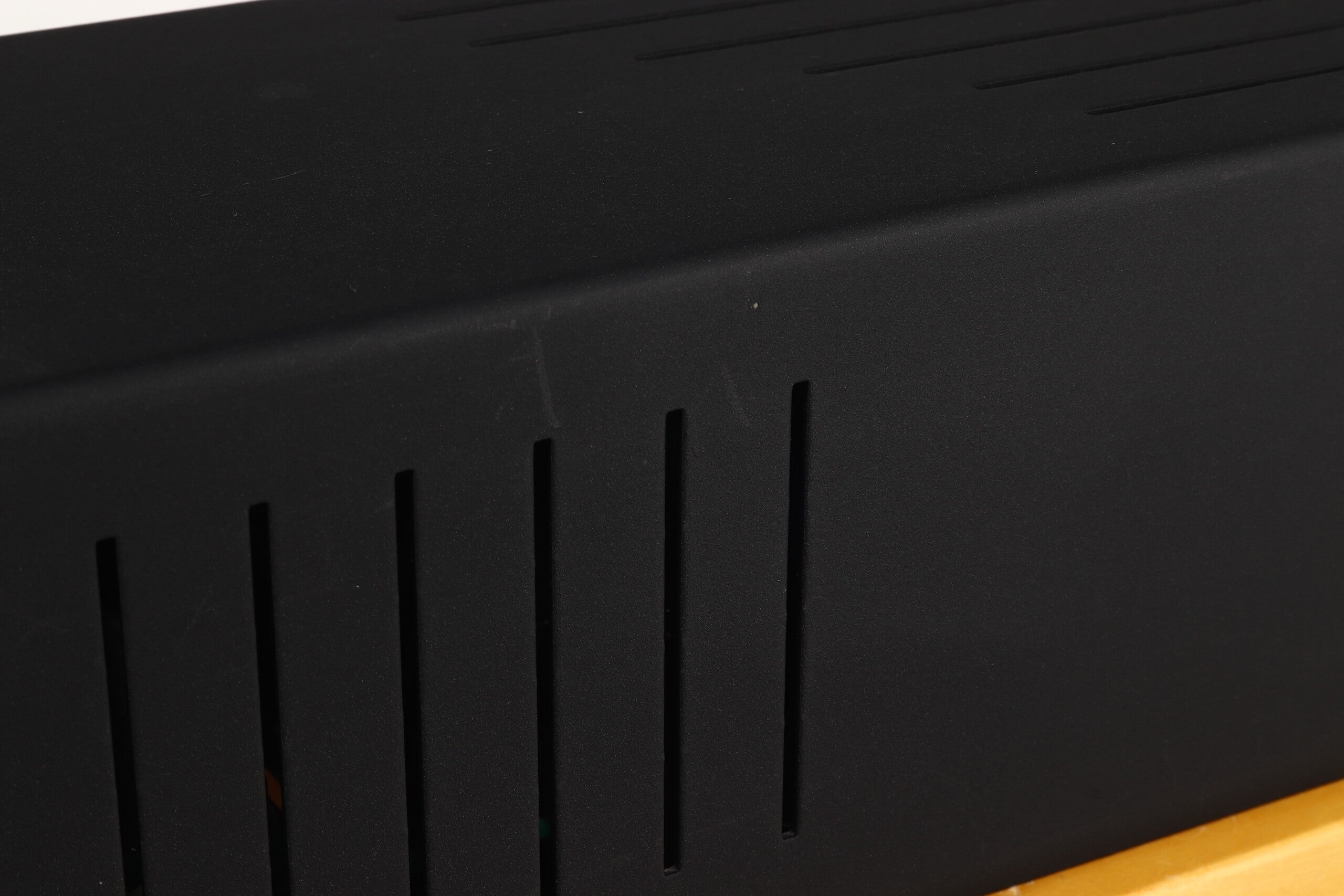

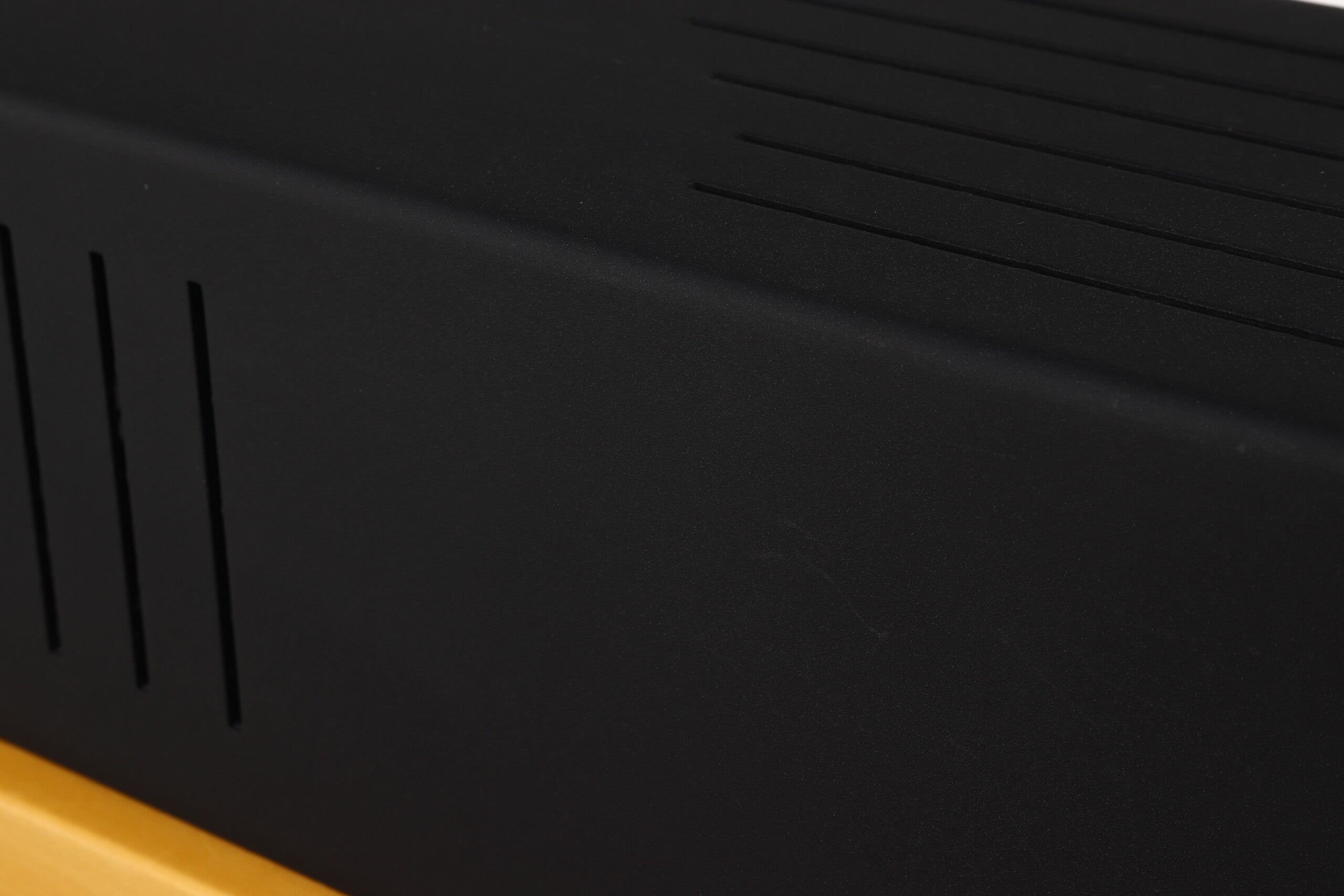

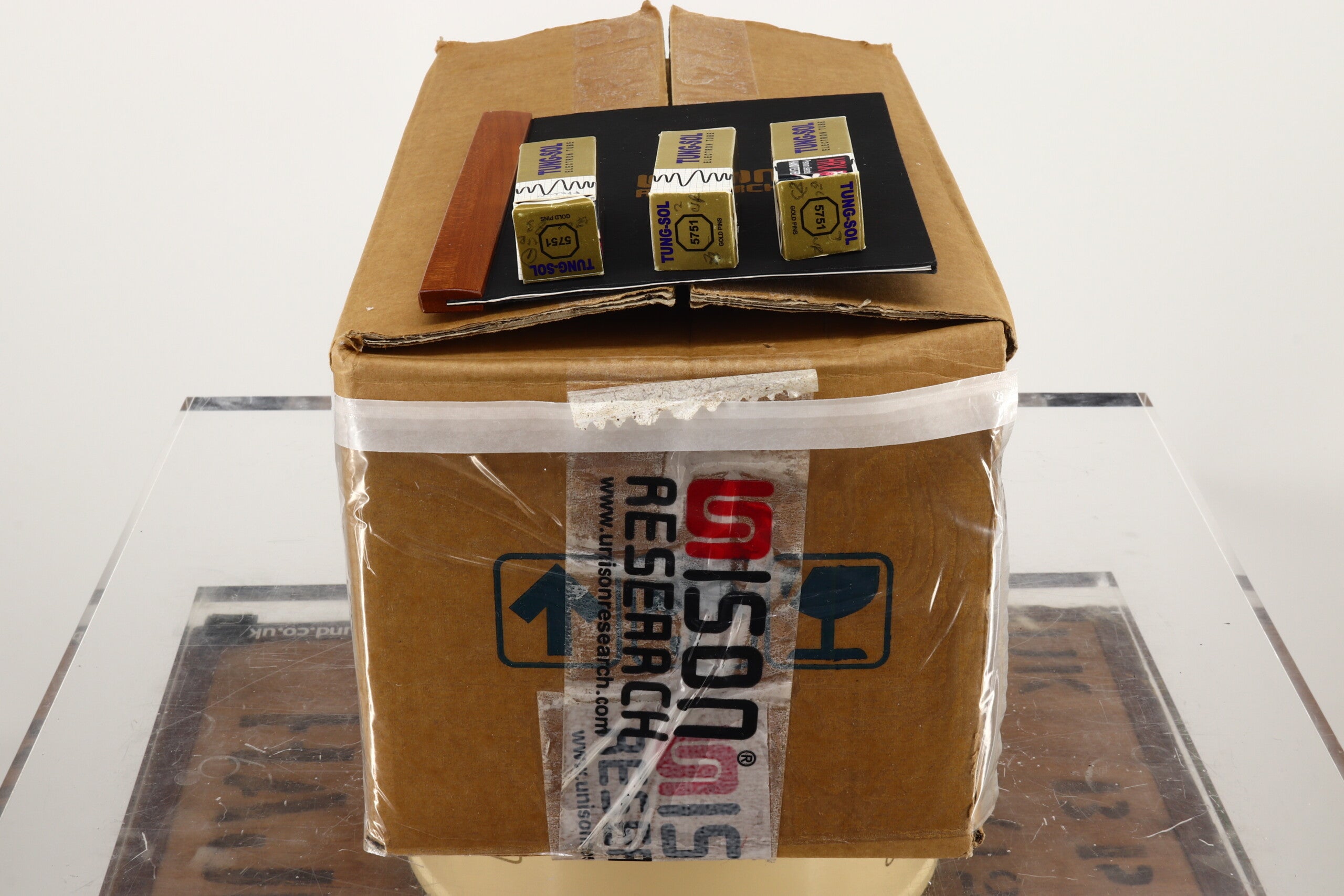

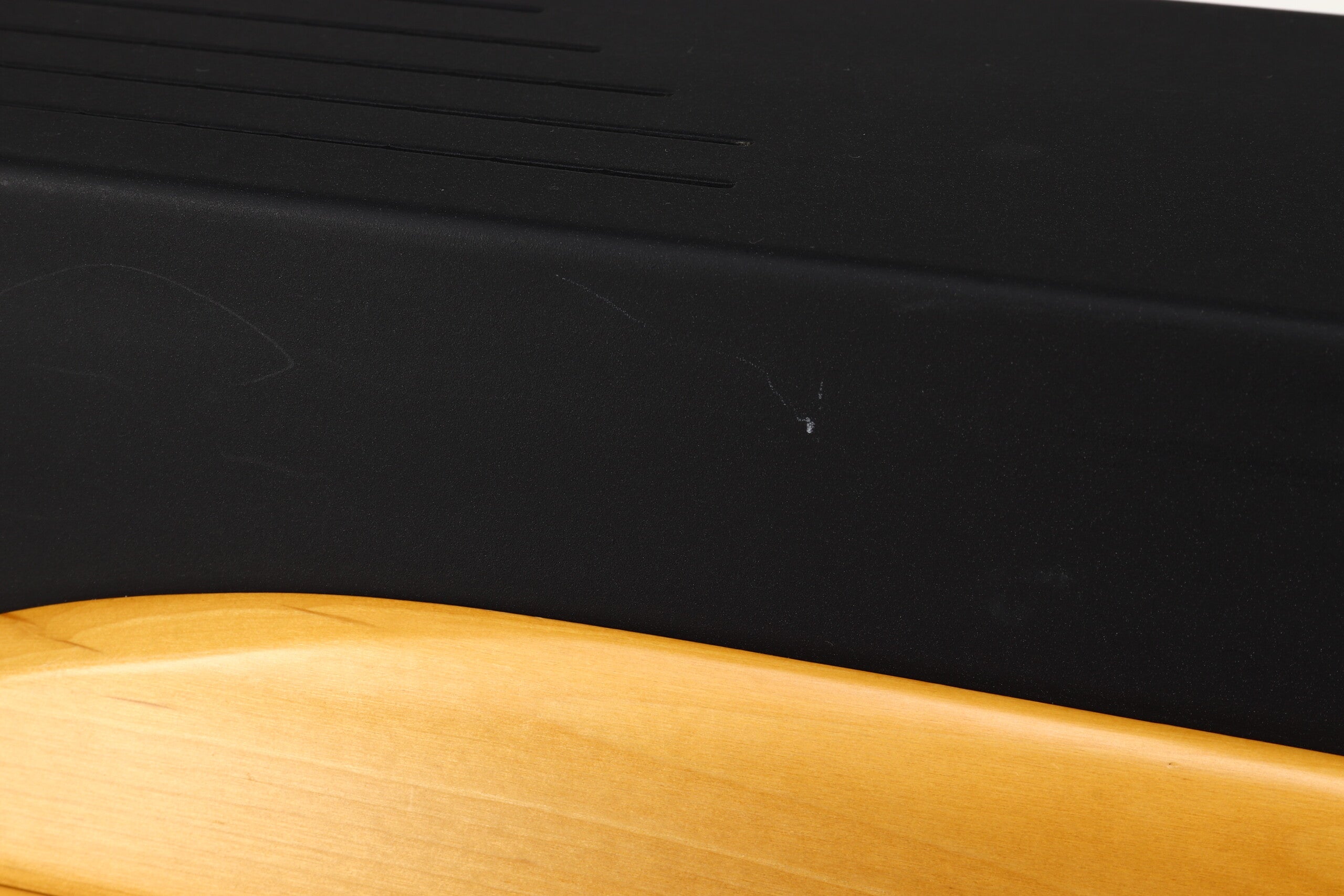

Here we have a classic valve phono stage from Italian company Unison Research. It is in good fully working condition, noting a few marks and blemishes mainly to the PSU – please see photographs. It comes supplied in original packaging along with valves, manual, mains cable plus of course our usual 3 month warranty.
Unison Research Say….
As the vinyl hi-fi market continues to grow from strength-to-strength, Unison Research have decided to bring their expert valve knowledge to one of the often over-looked aspects of vinyl playback, phono pre-amplification. Phono stages are essential for taking the low output from a turntable and amplifying it to Line level, so modern amplifiers can deliver an optimised sound signal to your speakers. Sharing its name and appearance with an older model from the Unison Research range, the new Simply Phono boasts enhanced circuitry and an improved layout to deliver first-class audio.
The Simply Phono is an all-tube phono pre-amplifier. It employs four ECC83 (12AX7) double triodes, arranged so the first two tubes act in parallel as a maximum gain stage, implementing a particular configuration called “ionic bias”, in order to improve performance. The RIAA equalization network is a completely passive solution, and premium components have been selected throughout to deliver truly high-end characteristics.
The Simply Phono can accommodate both Moving Magnet (MM) and mid-to-high output Moving Coil (MC) cartridges, and features switchable impedance settings for optimum load matching. Due to its high-end specifications, the Simply Phono is a great addition to systems built around Unison Research's valve amplifiers as well as other non-Unison Research designs.
Features:
Pure Class A valve phono stage
Four ECC83 tubes used
MM and mid-high output MC cartridge compatible
Switchable impedance settings

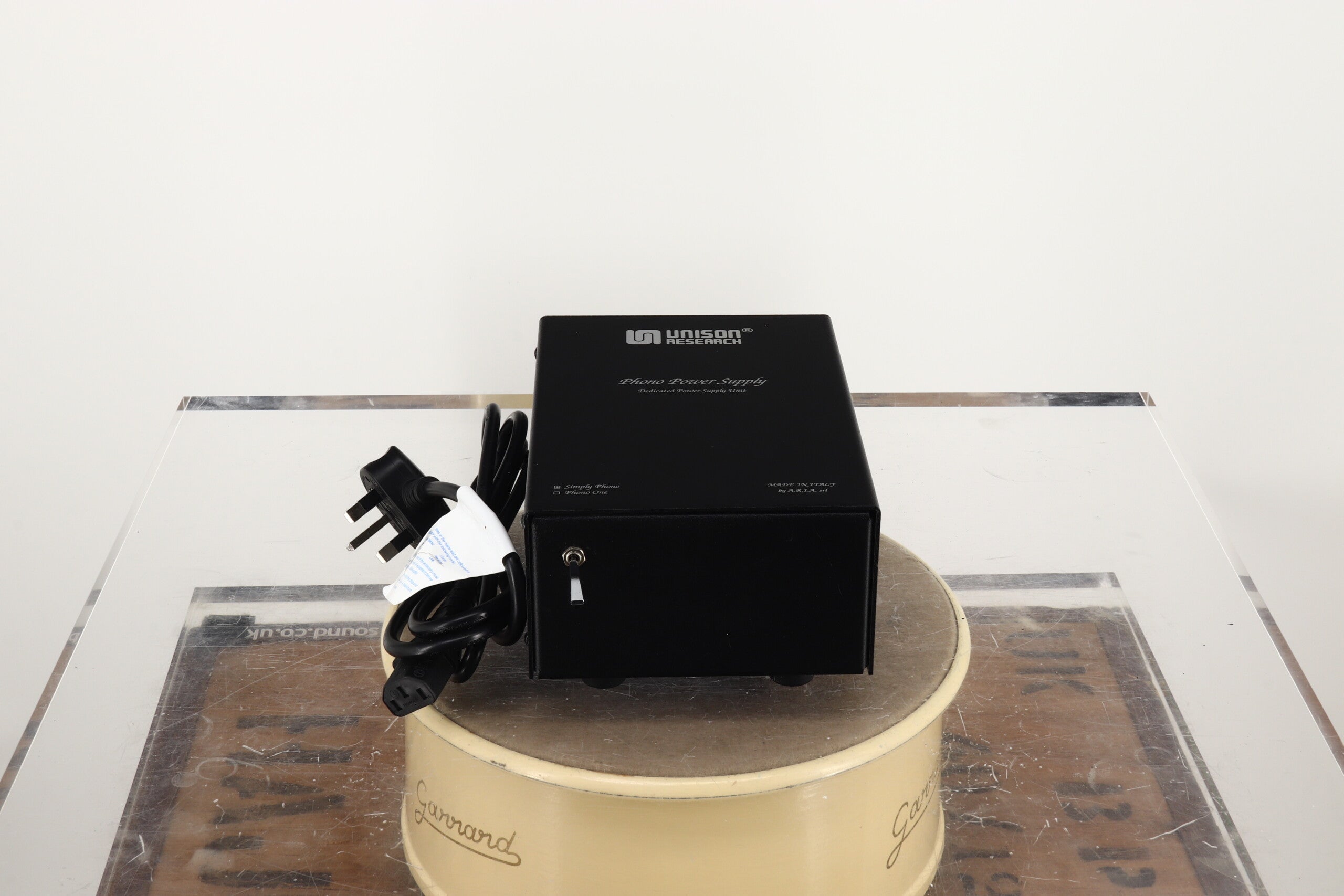

Improved external power supply included as standard
Excellent complement to the valve amplifier range

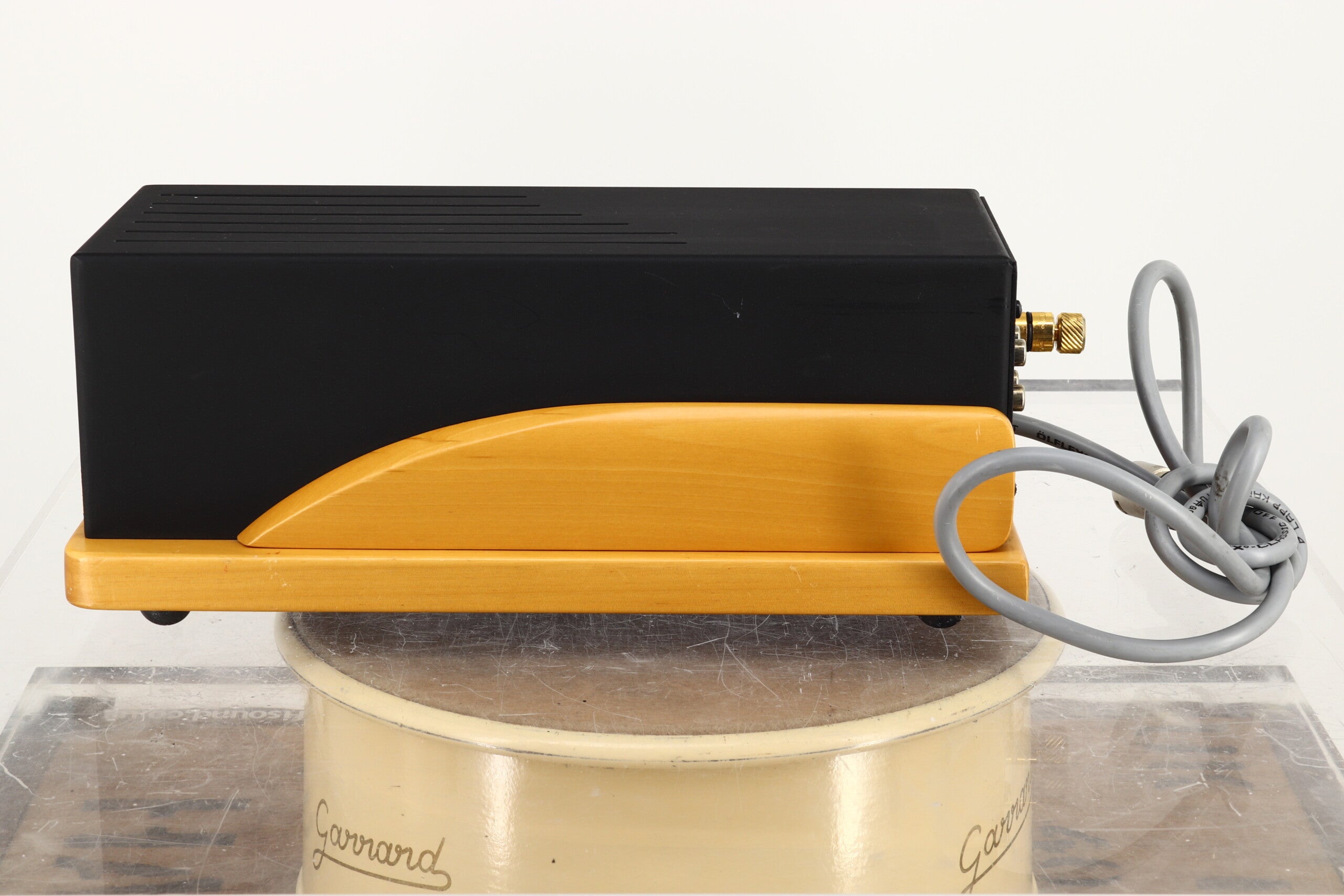

High-quality Cherry Wood base
Specifications:
Type: Pure Class A Valve Phono Stage
RIAA: Passive ±0.2dB (20Hz / 20kHz)
Output Impedance: 800Ω
Outputs: 1x Line (RCA pair)
Gain: 52dB
THD: 0.4% @ 1V output
Signal-to-Noise Ratio: -72dB
Inputs: 1x RCA Pair (MM or MC)

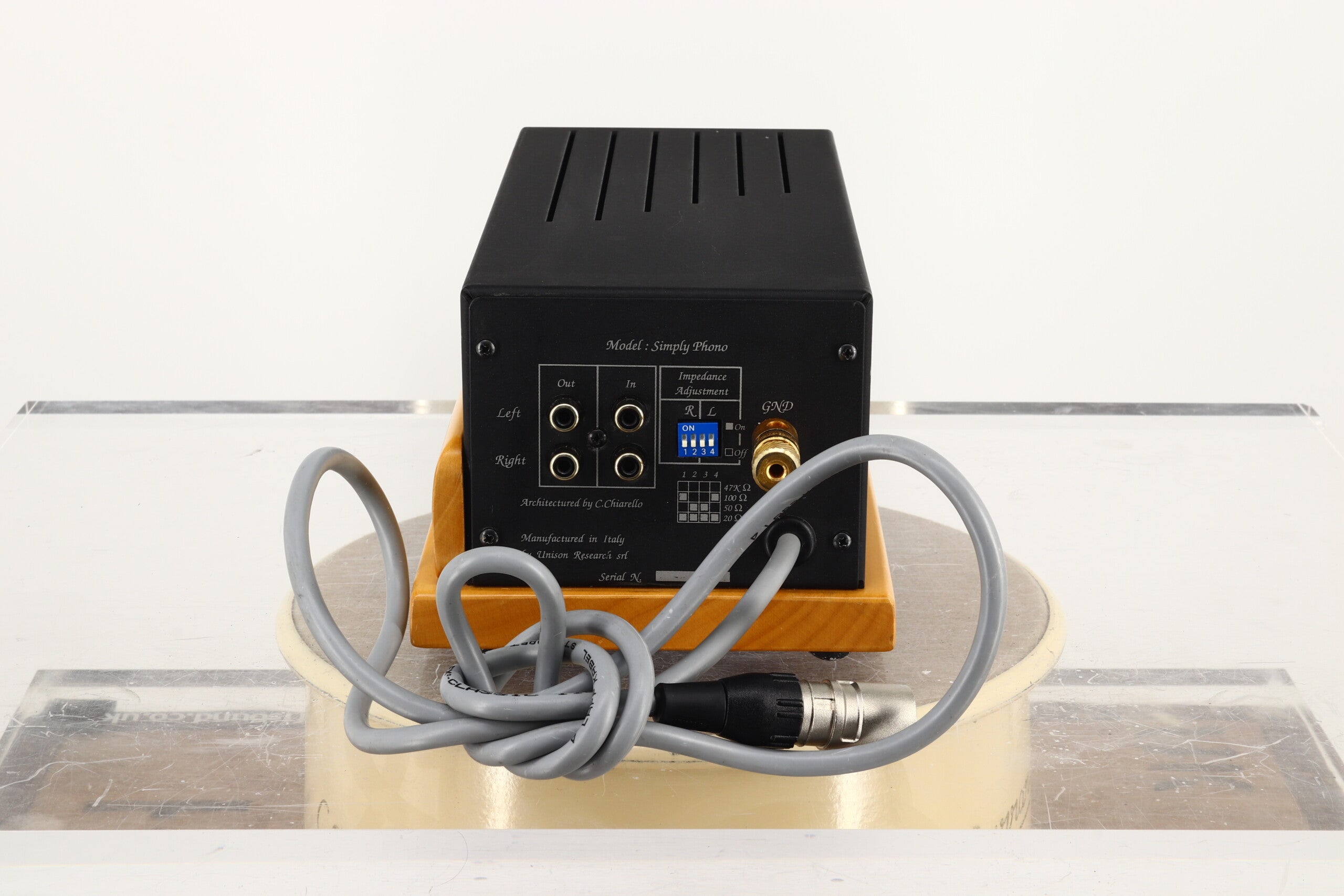

Input Impedance: Switchable - 47kΩ / 100Ω / 50Ω / 22Ω / 100pF capacitance
Feedback Factor: 0dB
Valves: 4x ECC83 (12AX7)
Power Supply: External
Dimensions: 140 x 105 x 290 mm
Weight: 3kg (incl. PSU)
