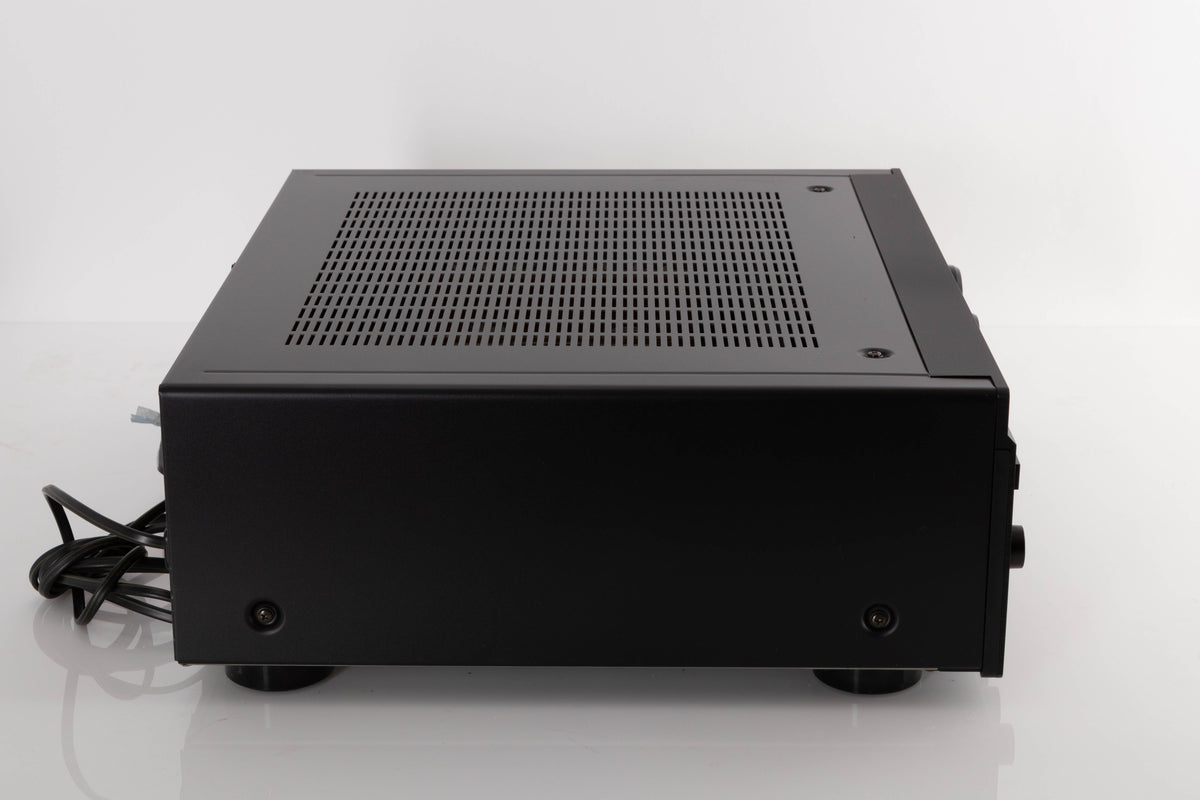

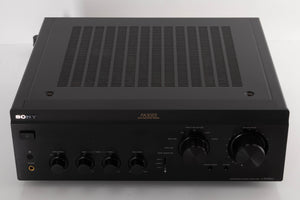

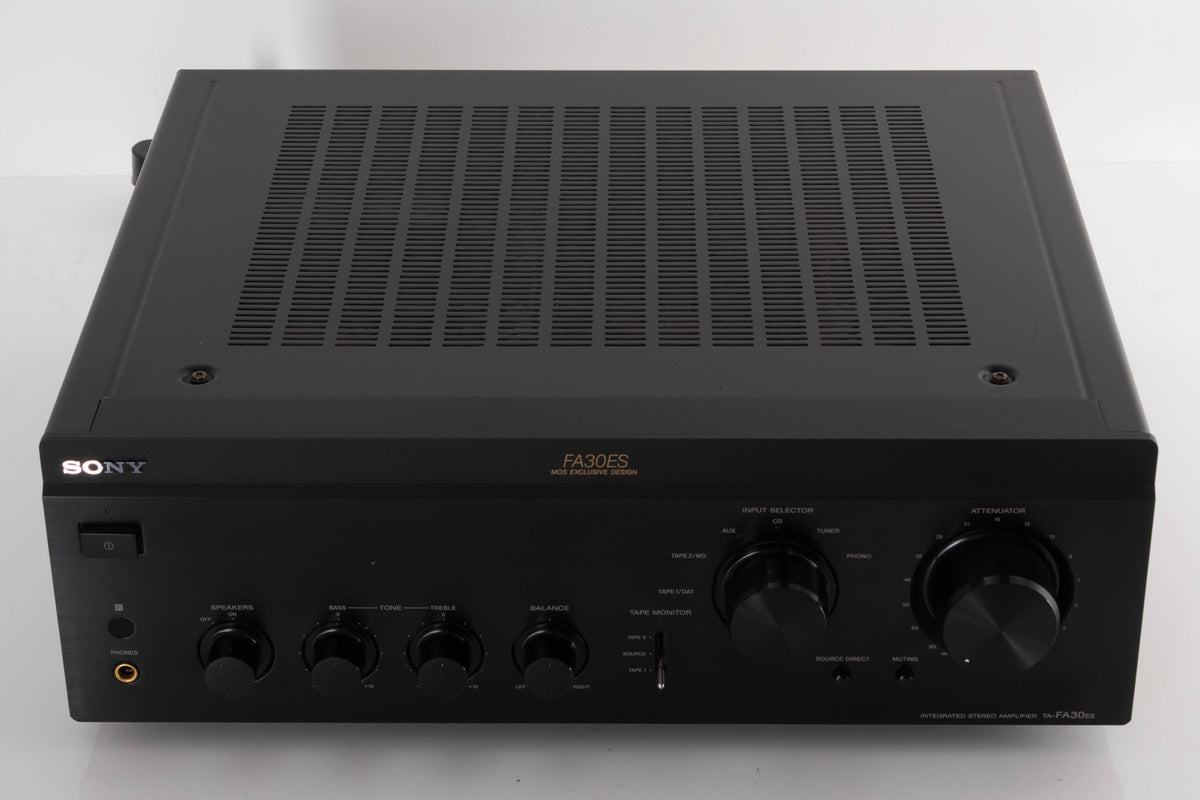

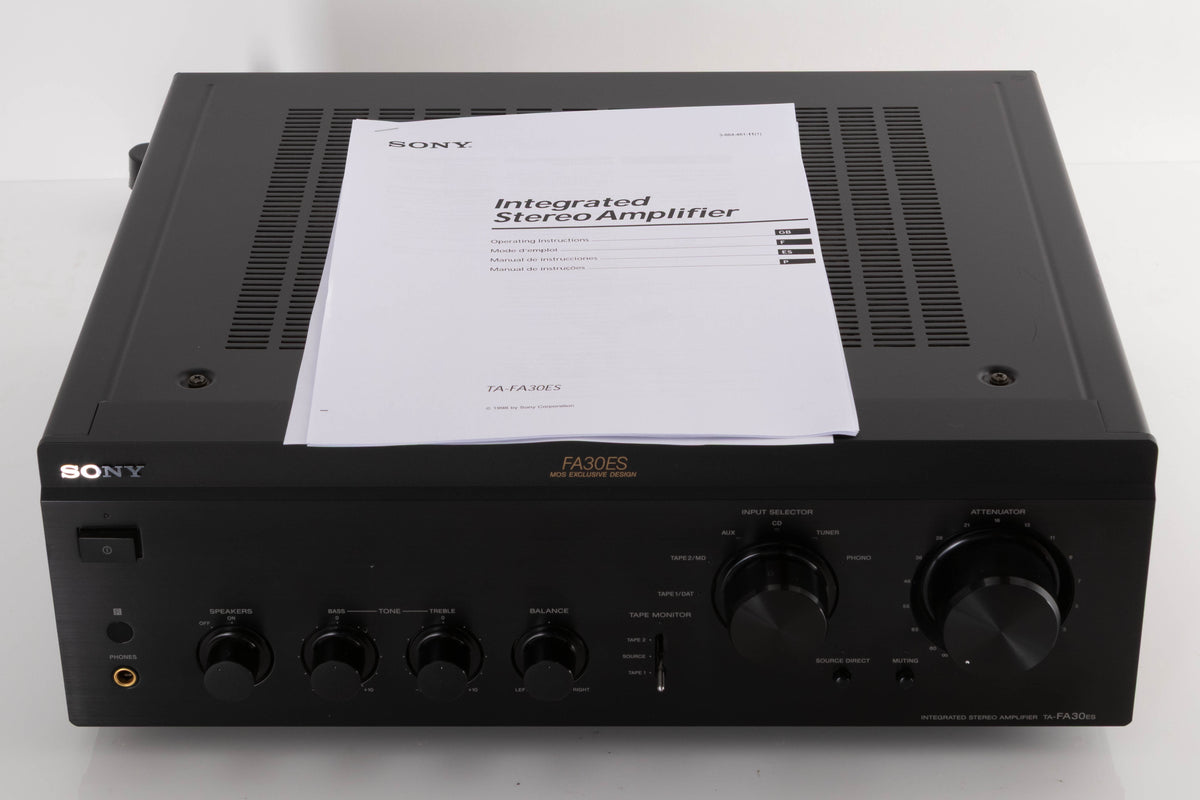

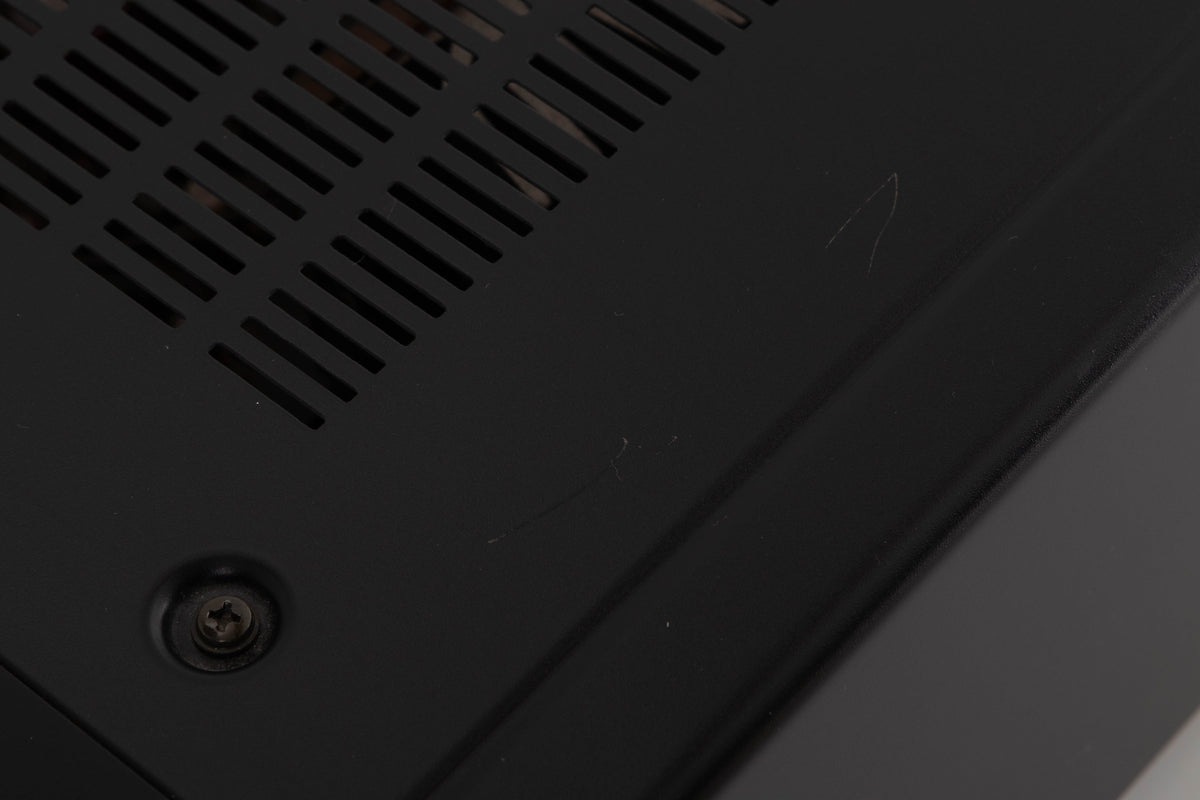

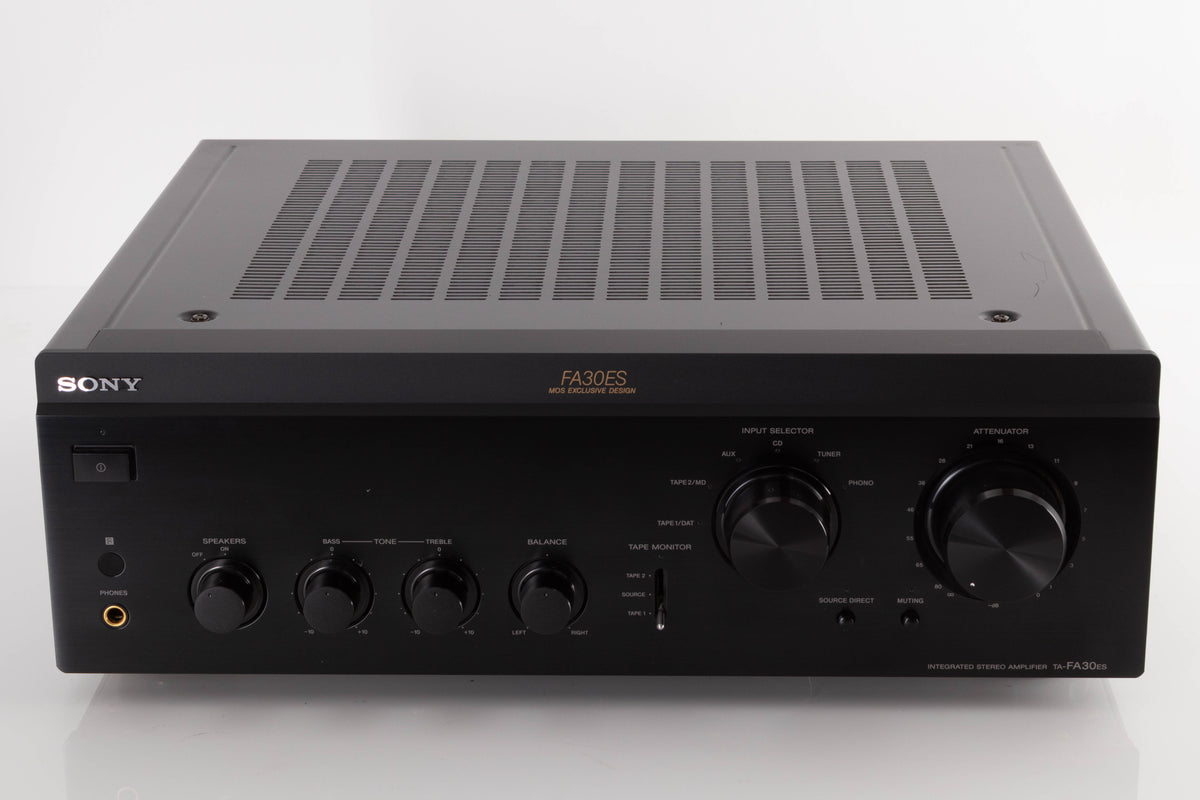

Sony TA-FA30ES Integrated Amplifier - Black

System
Power Amplifier: Pure-complementary SEPP MOS FET power amplifier with all stages directly coupled
Preamplifier: Low-noise, high-gain equalizer amplifier
Power Section: Large-capacity power supply advanced STD
Rated Output:
80 W into 8 Ω; 120 W into 4 Ω
Speakers Impedance: 4 to 16 Ω
Output Bandwidth: 10 Hz to 100 kHz
(at 40 W output, and high-frequency distortion rate of 0.08%)
Total Harmonic Distortion: 0.008% (at 8 Ω, 10 W output)
Damping Factor: 100 (8 Ω, 1 kHz)
Intermodulation Distortion: 0.008% (8 Ω) (60 Hz : 7 kHz = 4 : 1)
Throughrate: 125 V/msec, 250 V/msec (Inside)
Residual Noise: Less than 100 mV (network A)
Equalizer Deviation: Phono MM: 20 Hz to 20 kHz, ± 0.5 dB
Frequency Response:
Tuner, CD, Aux, Tape 1/DAT, Tape 2/MD: 7 Hz to 100 kHz + 0/- 3 dB
Signal to Noise Ratio:
Phono: MC: 78 dB (0.5 mV); MM: 95 dB (5 mV)
Tuner, CD, Aux, Tape 1/DAT, Tape2/MD: 105 dB
Inputs
Input Sensitivity And Impedance:
Phono: MC: 0.17 mV, 100 ohms; MM: 2.5 mV, 50 kΩ
Tuner, CD, Aux, Tape 1/DAT, Tape 2/MD: 150 mV, 20 kΩ
Maximum Input Capability: (1 kHz)
Phono: MC: 9 mV; MM: 150 mV

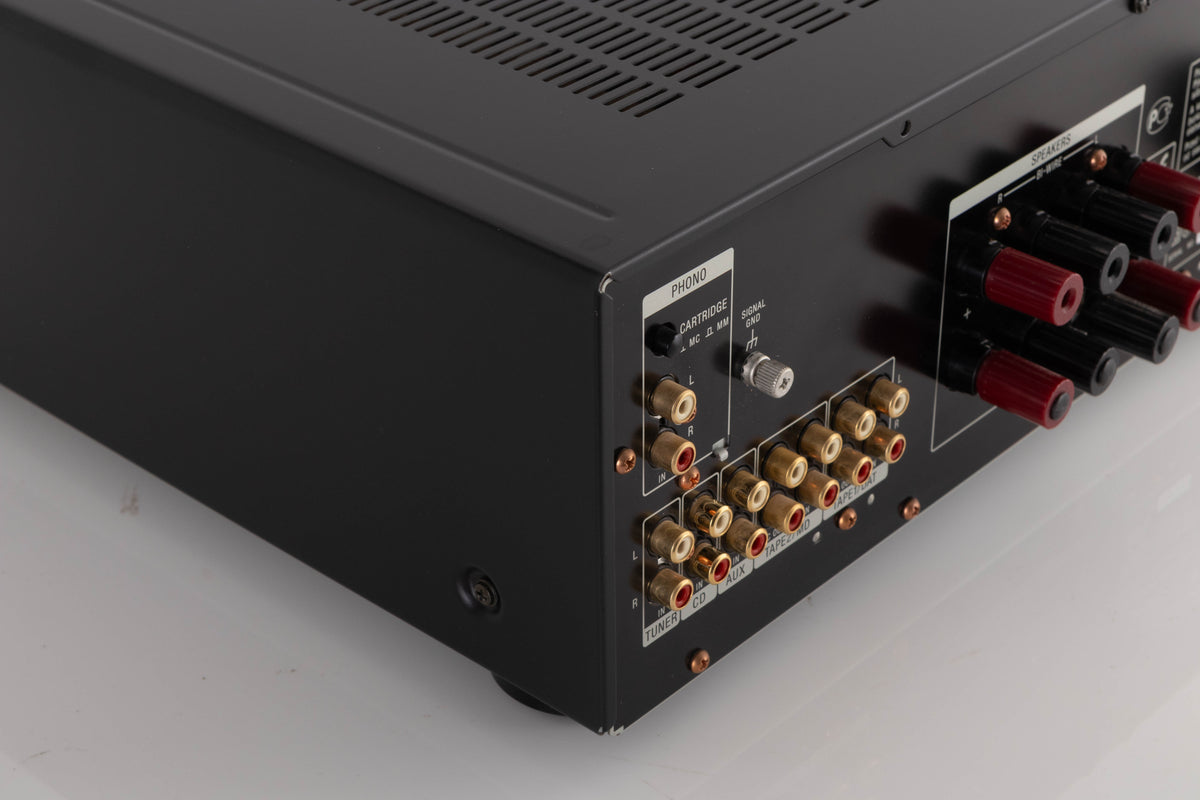

Outputs
Output Level/Impedance:
REC Out 1, 2: 150 mV, 1 kΩ; Phones: 10 mW (at 8 Ω)

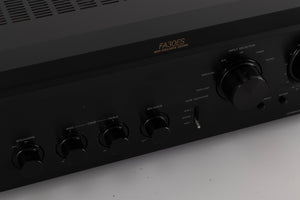

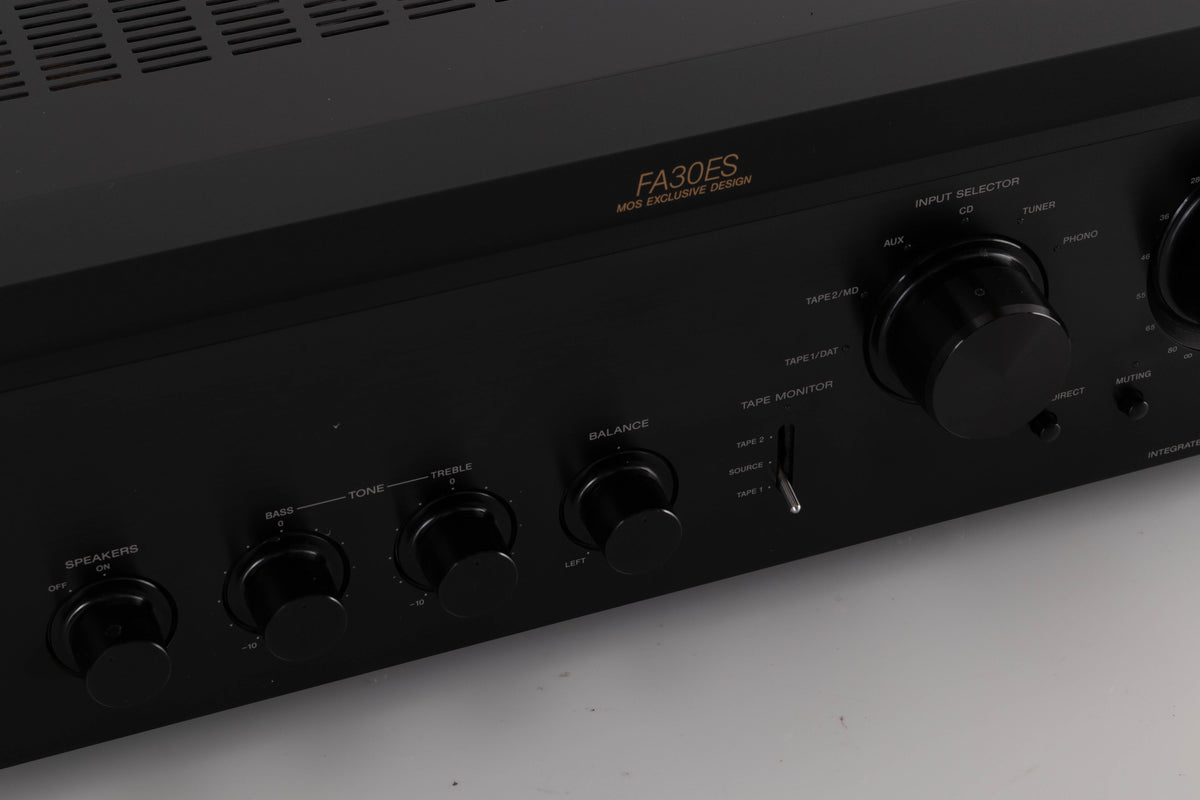

Tone Controls:
Bass (100 Hz): ± 7 dB; Treble (10 kHz): ± 7 dB
General
Power Requirements: 230 V AC, 50/60 Hz
Power Consumption: 220 W
Dimensions: 430 (W) x 415 (D) x 150 (H) mm
Weight: 11.0 kg
