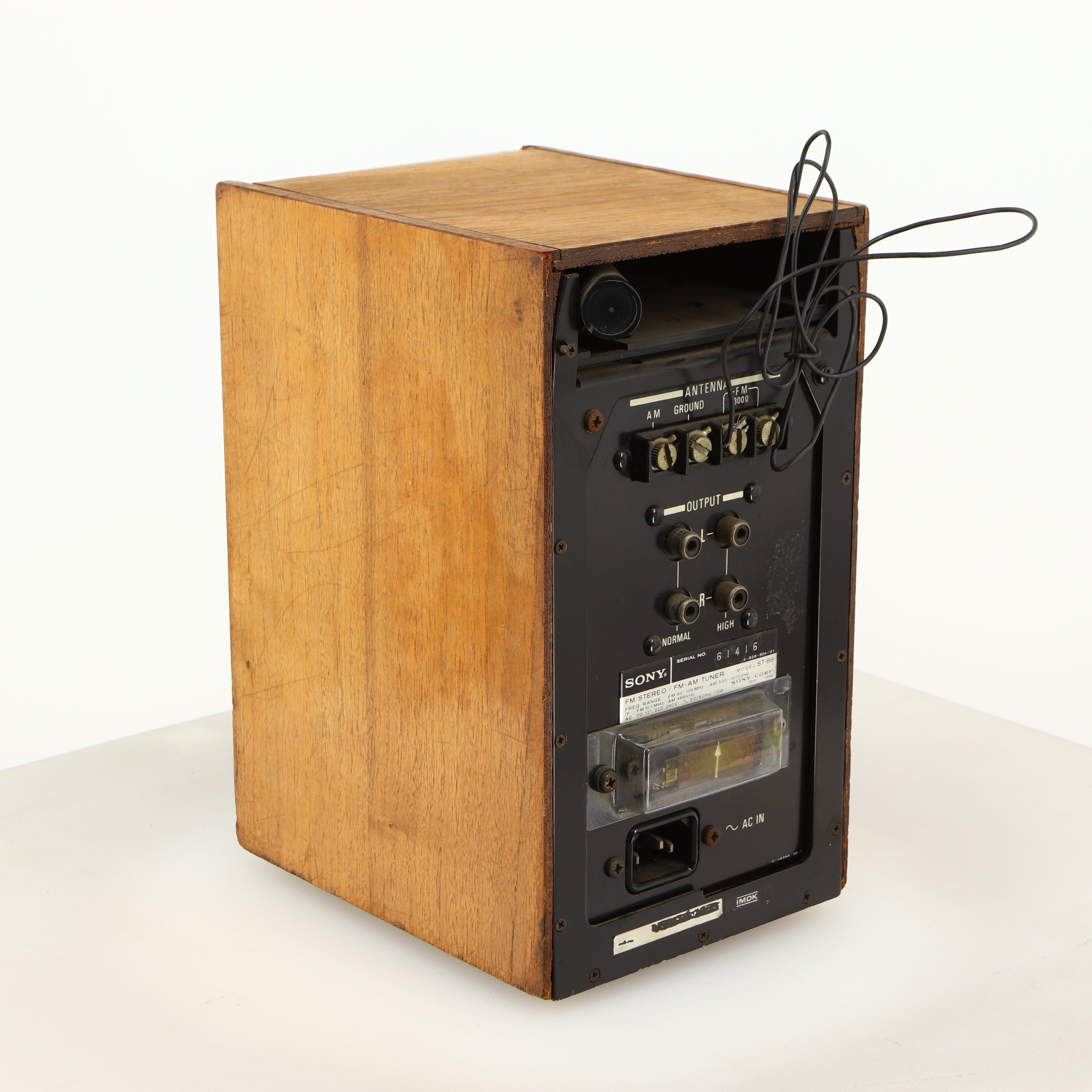

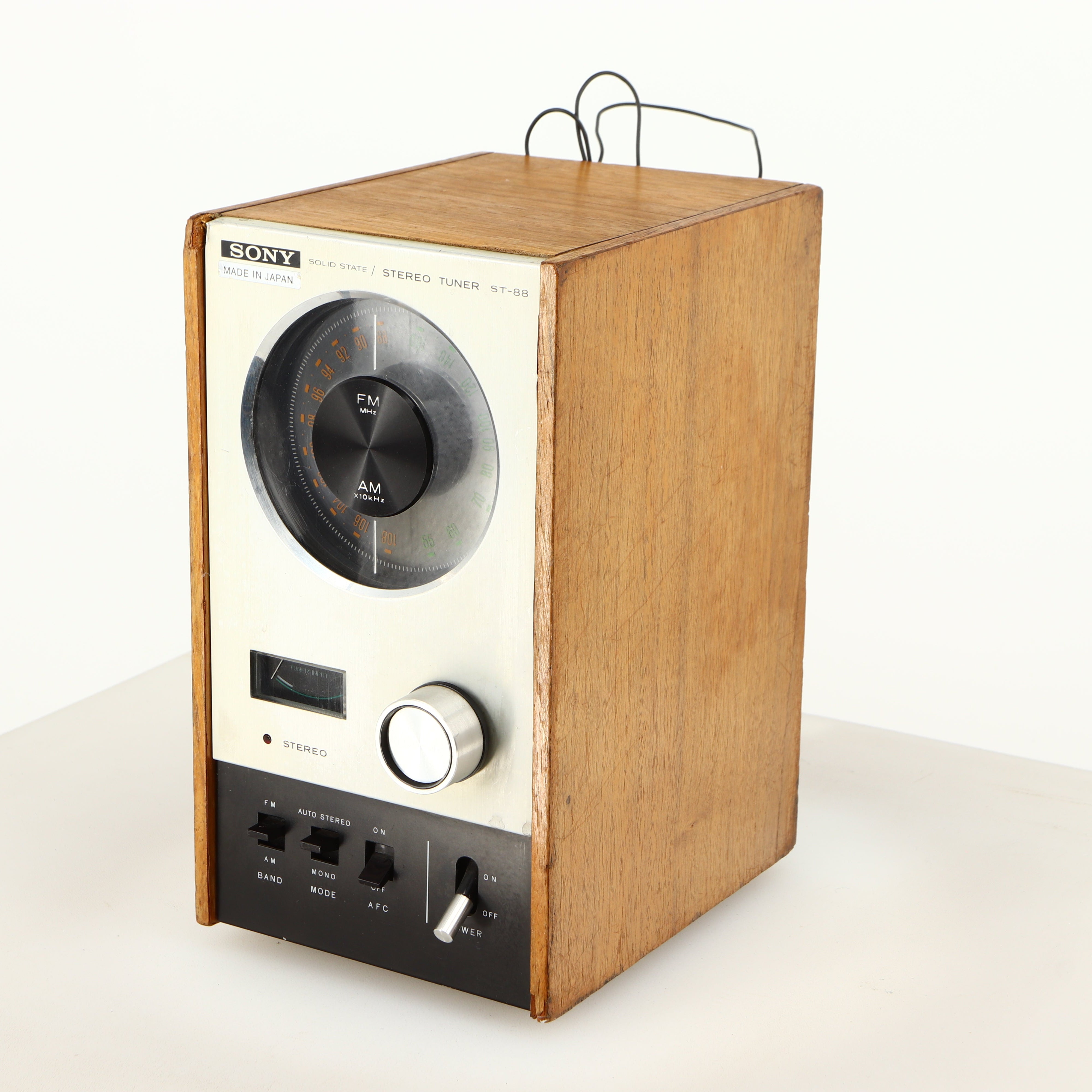

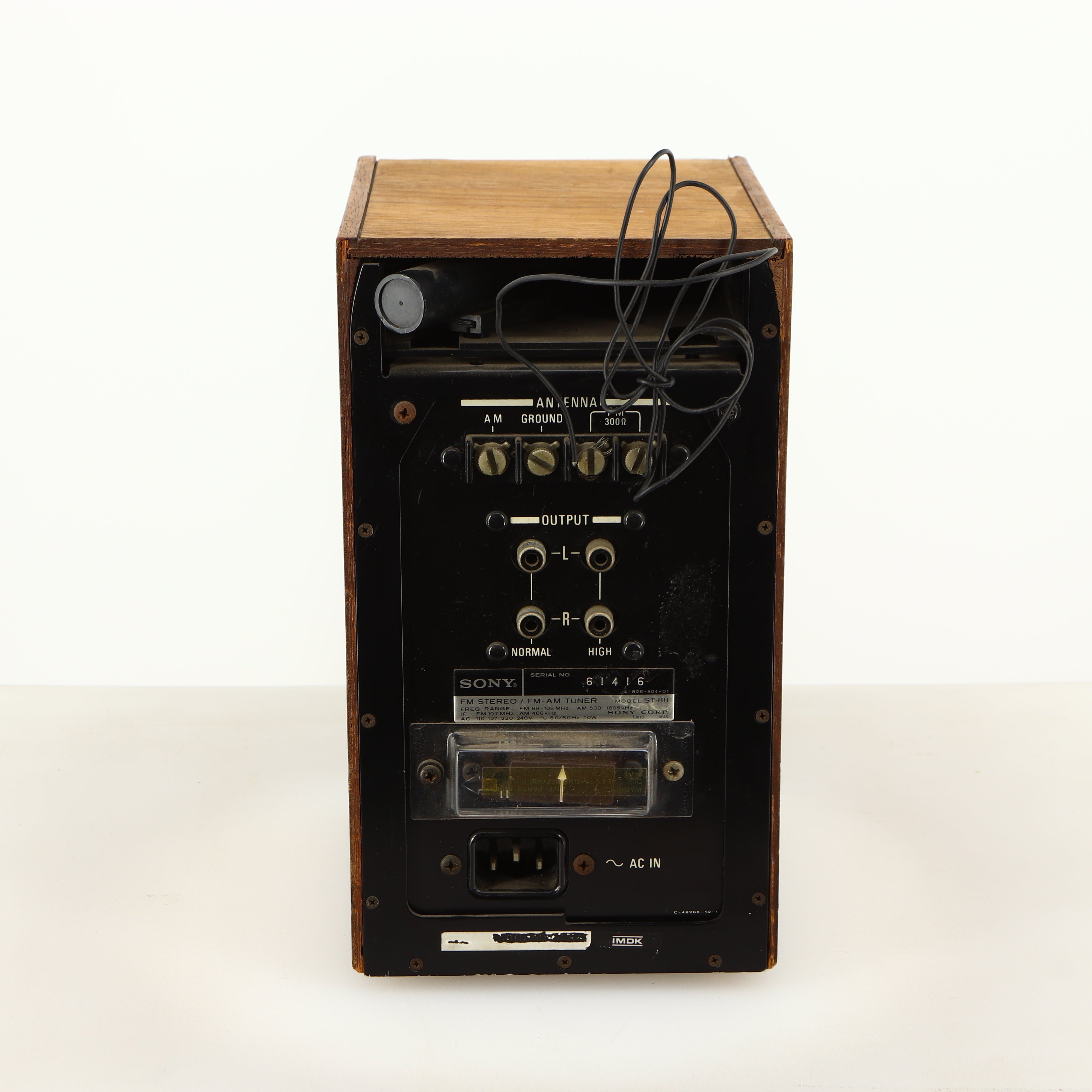

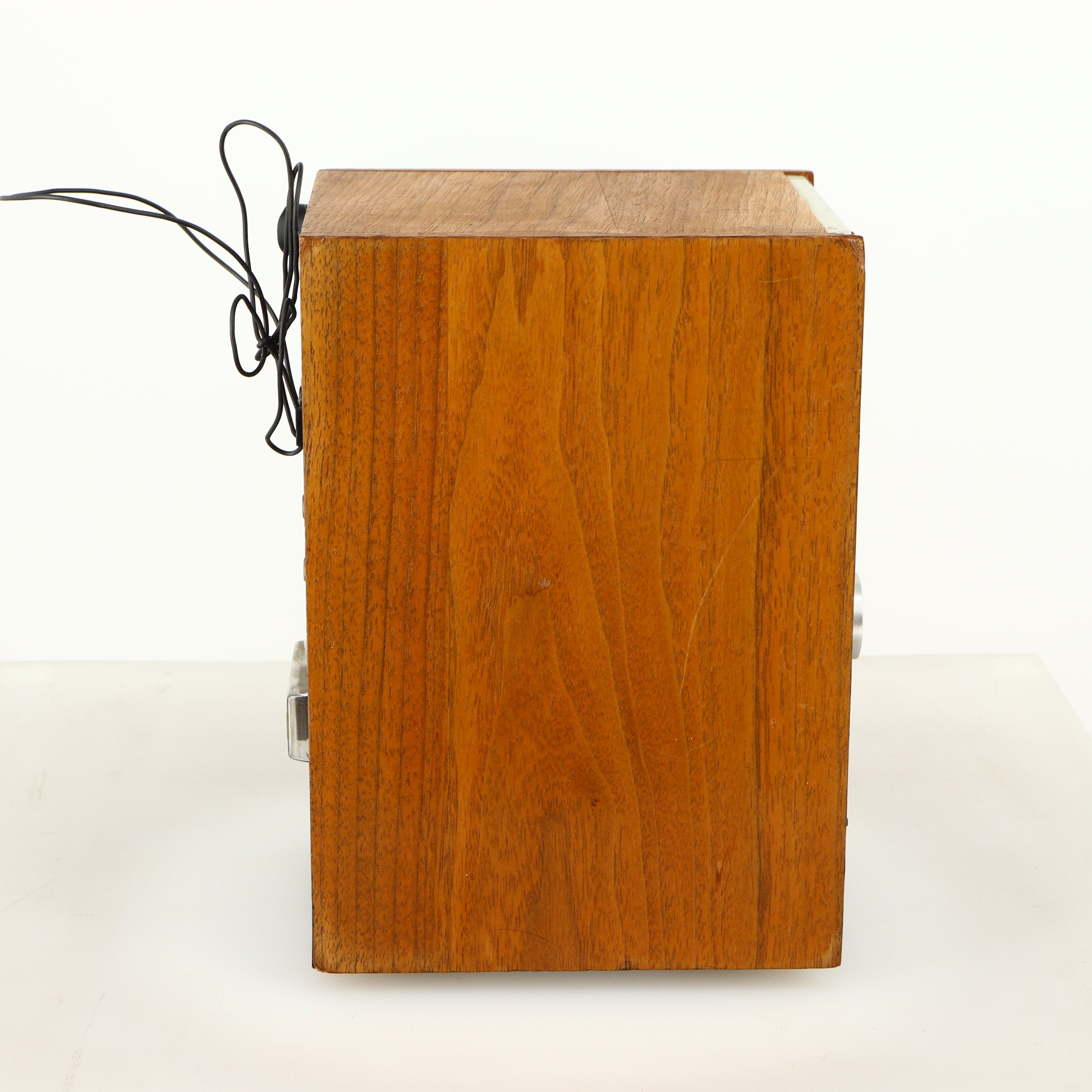

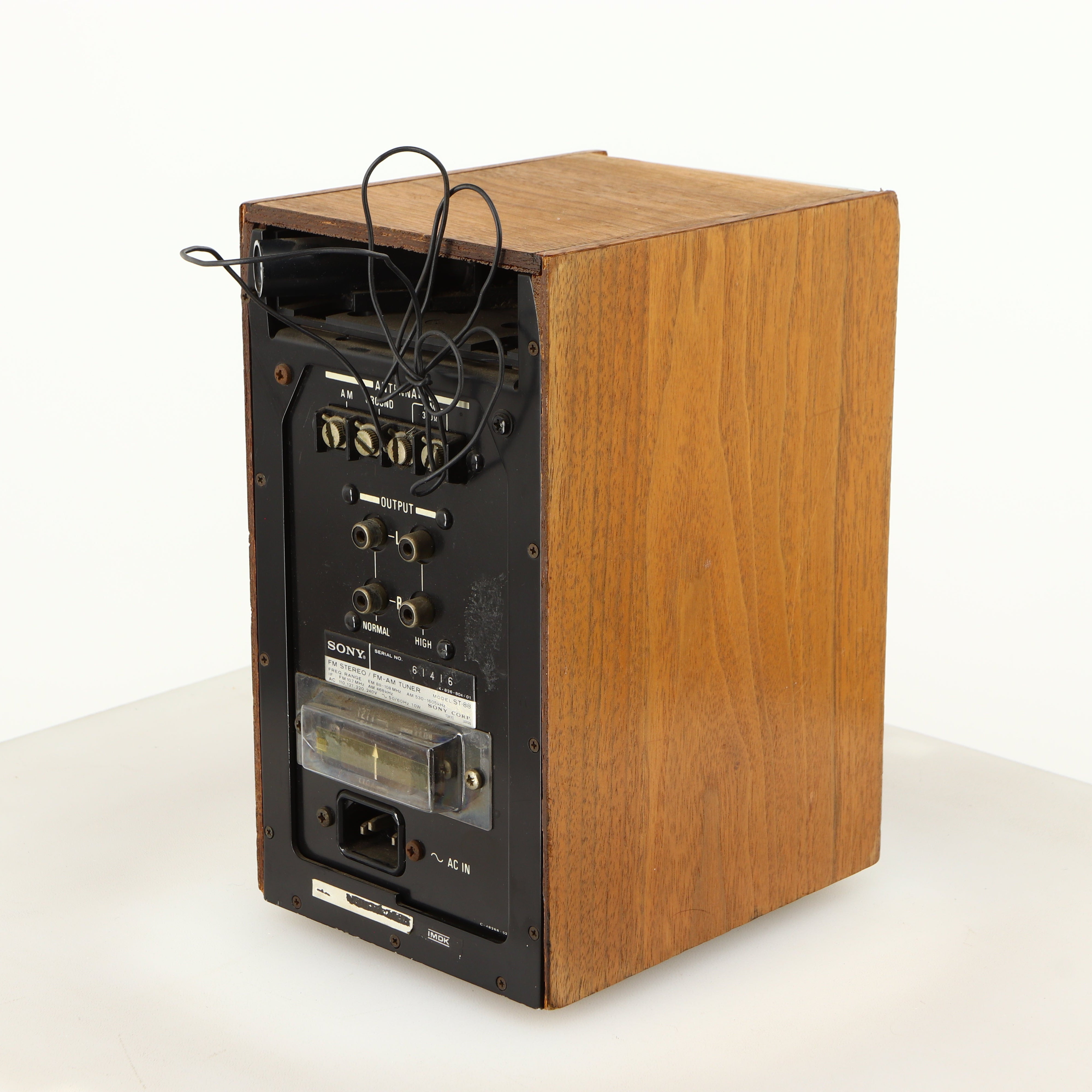

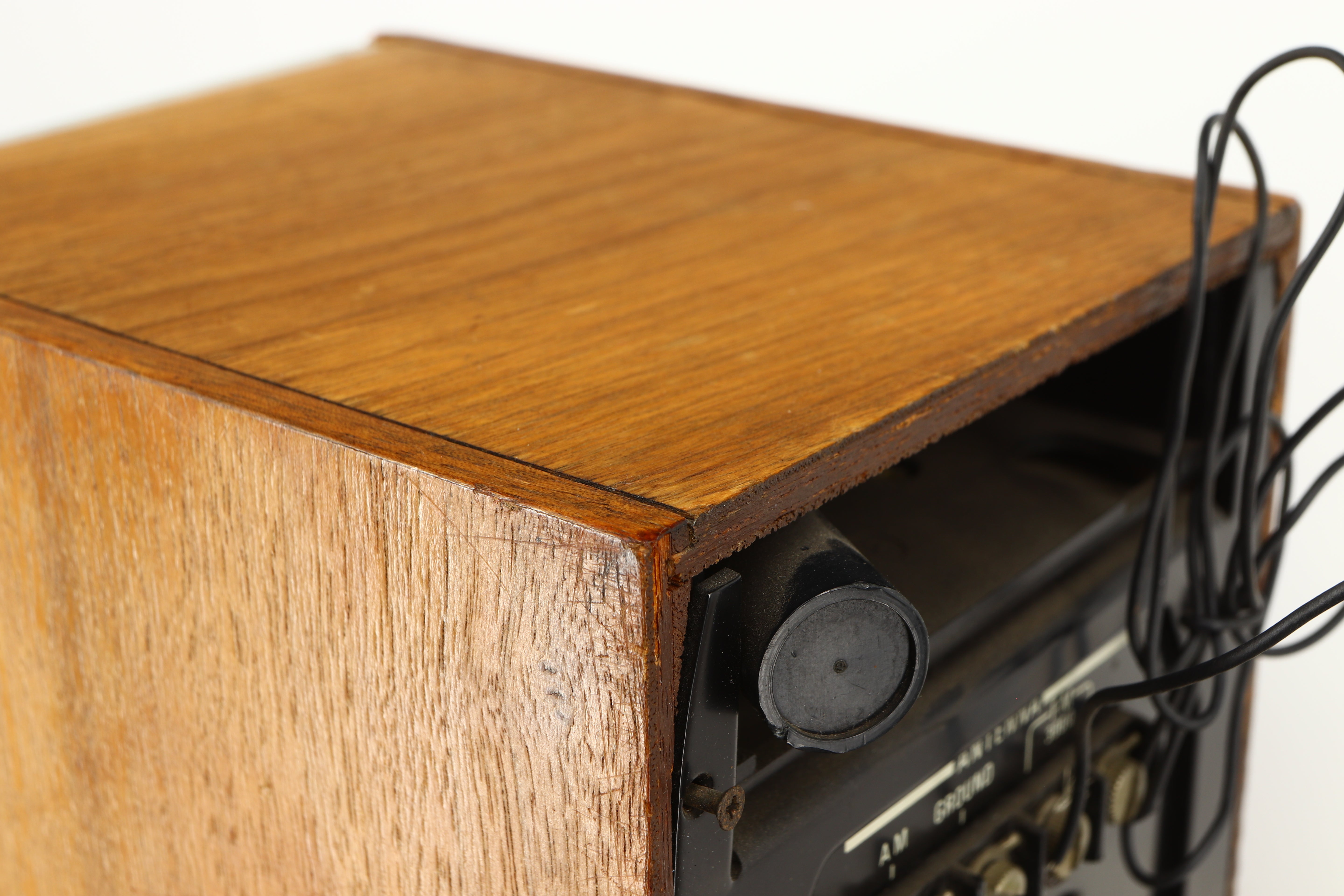

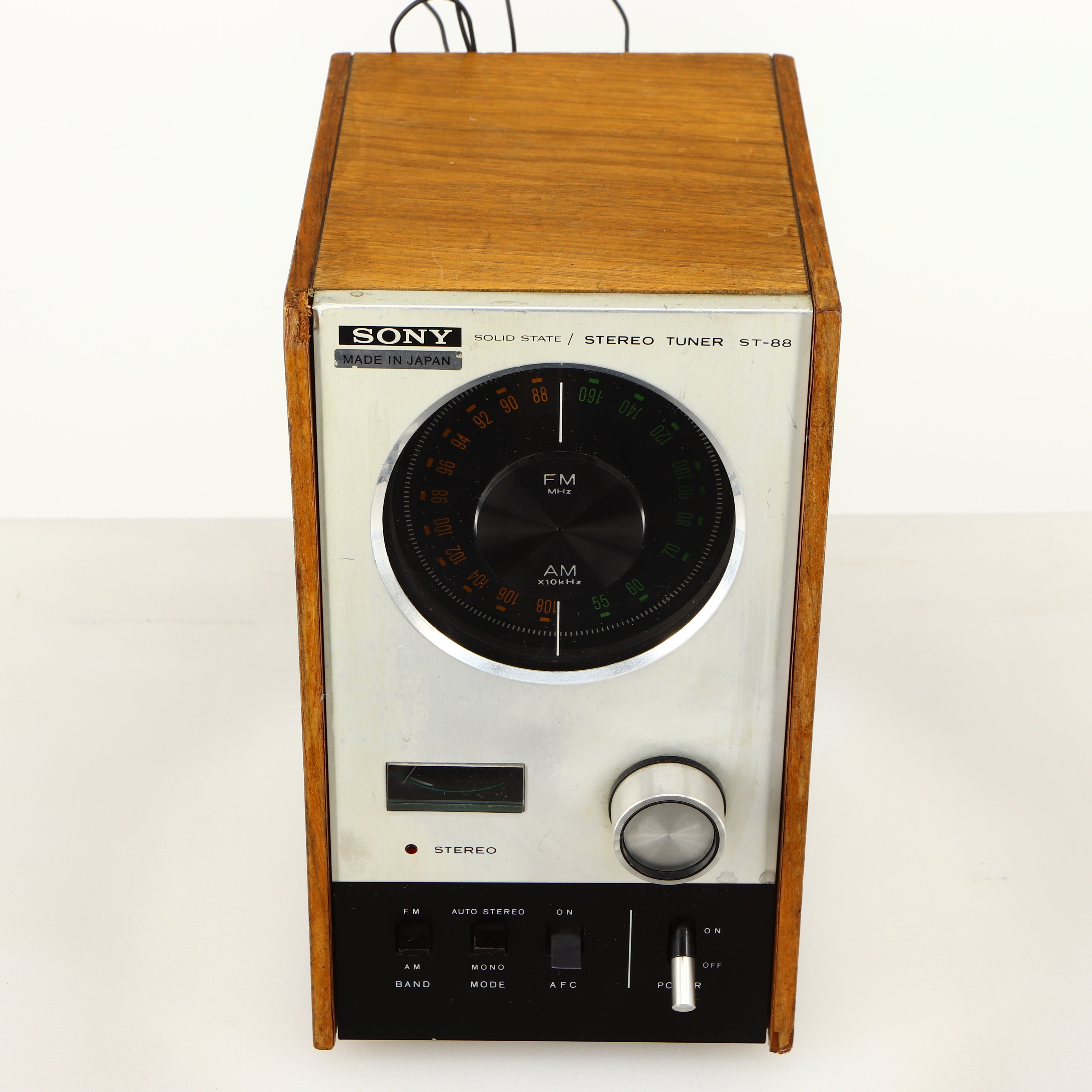

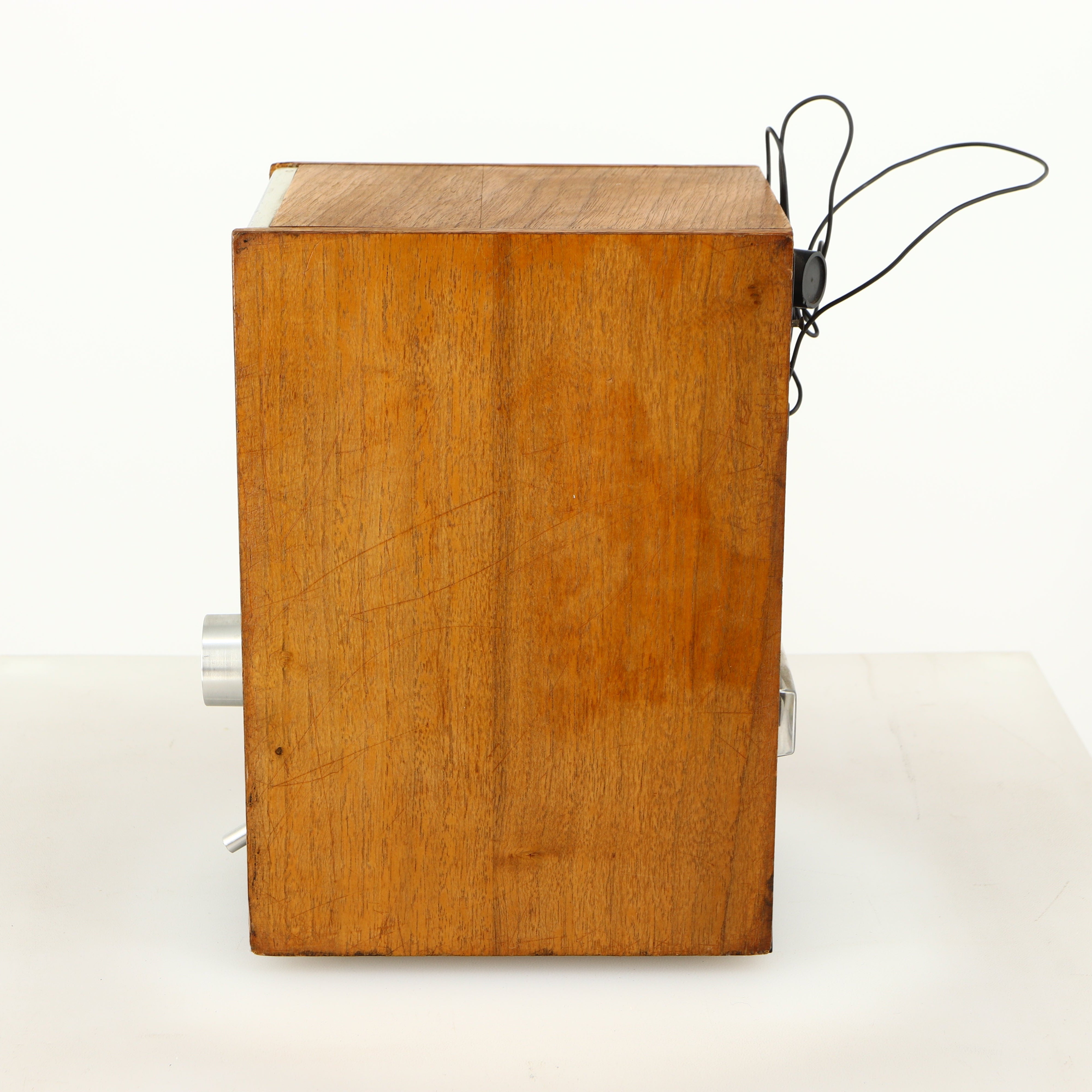

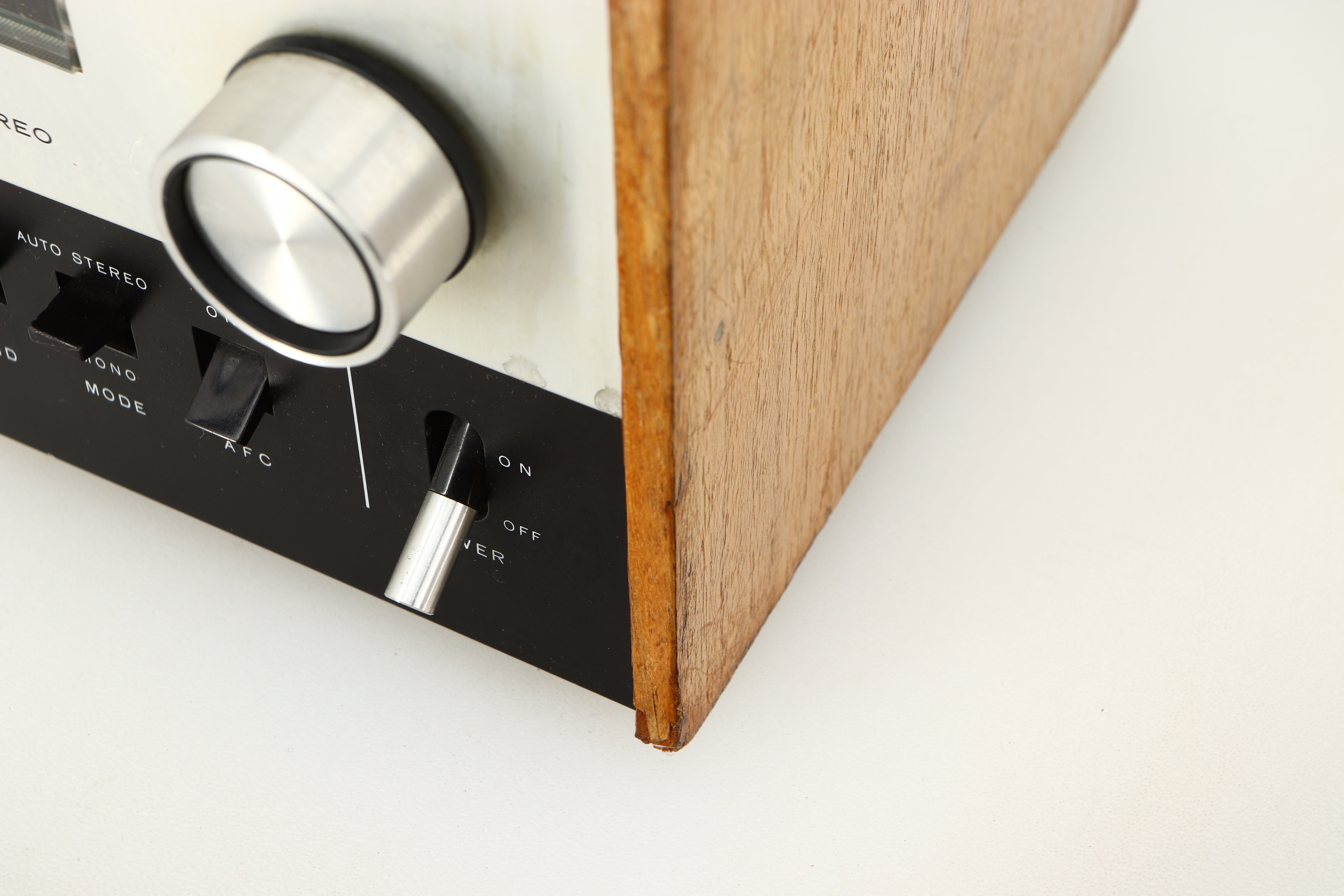

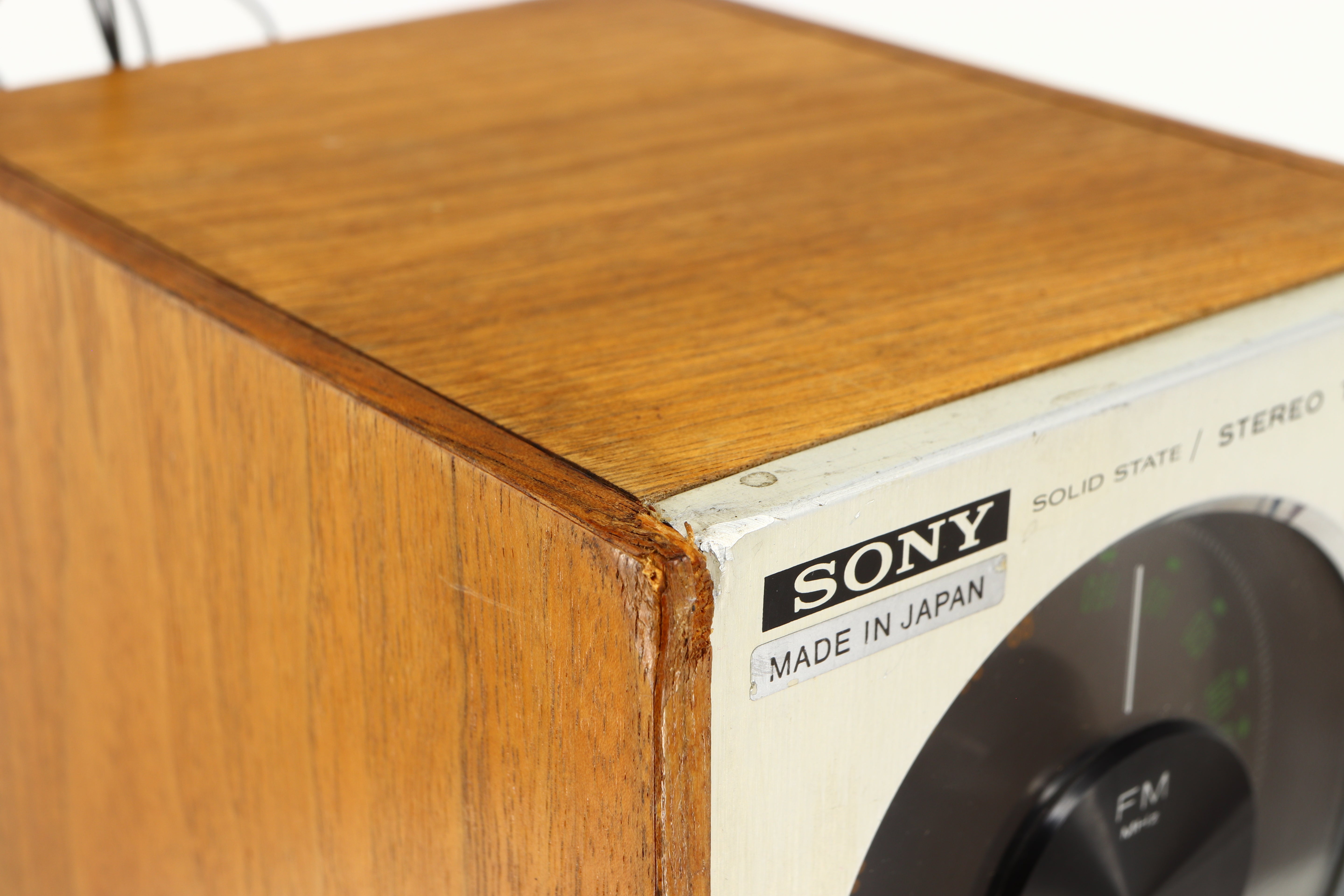

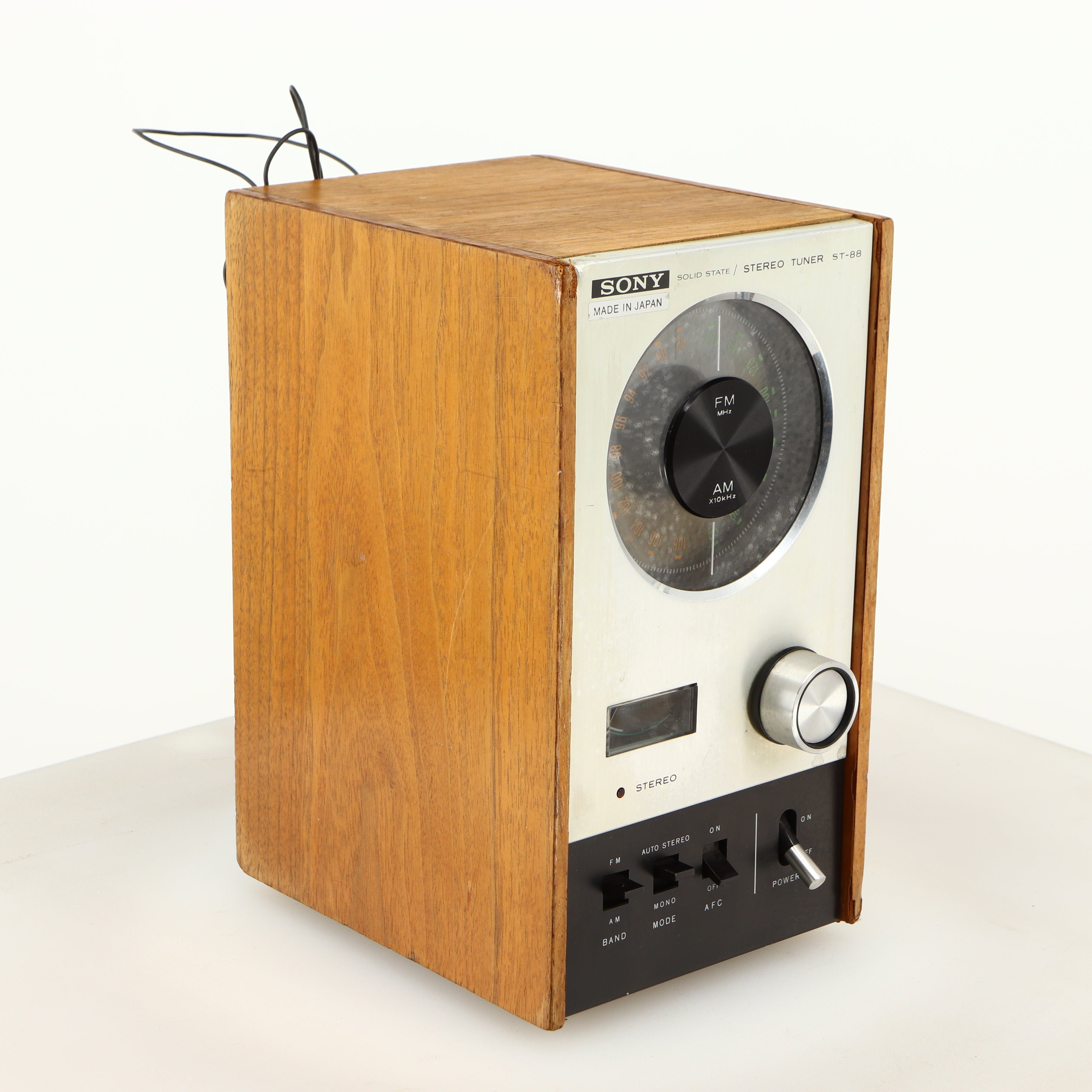

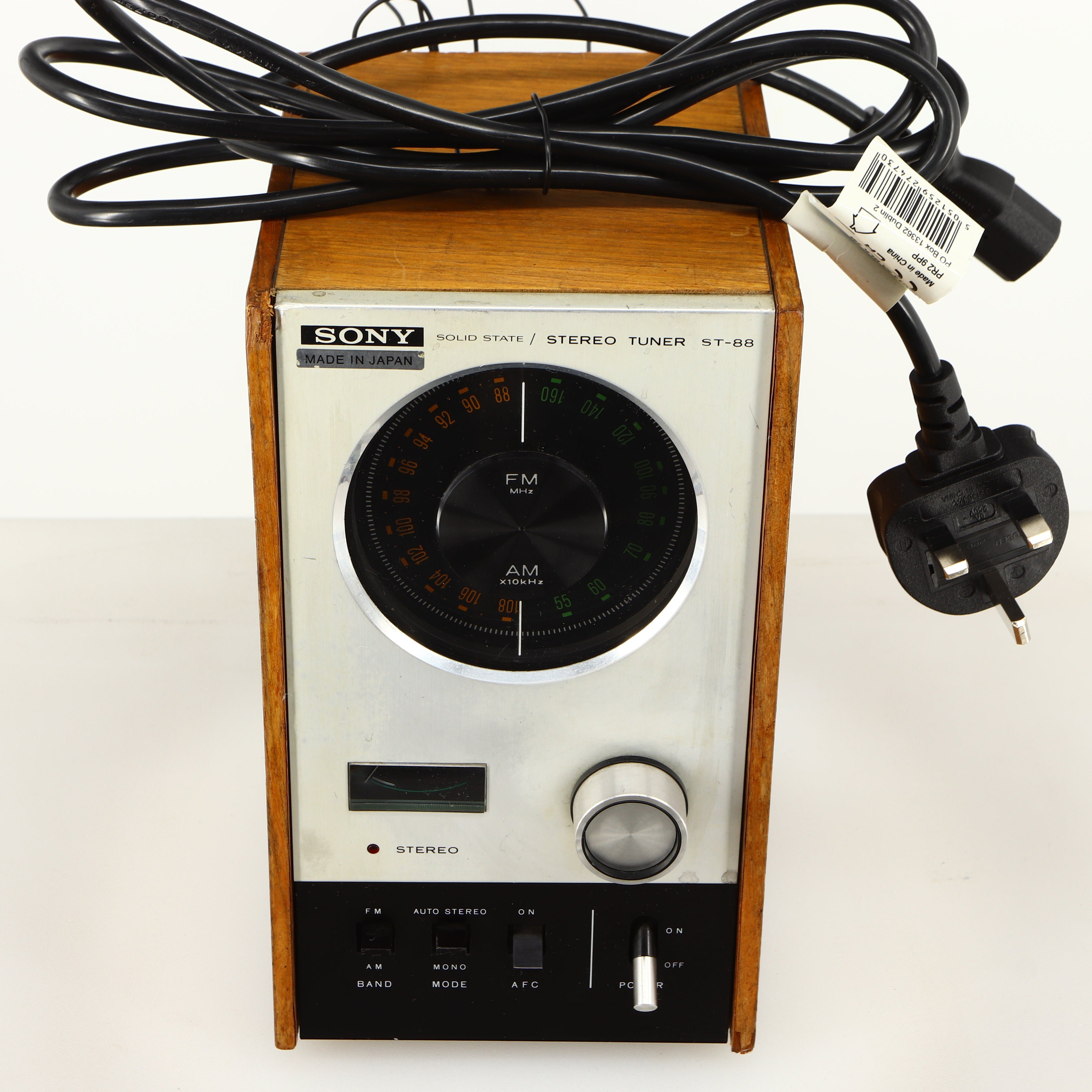

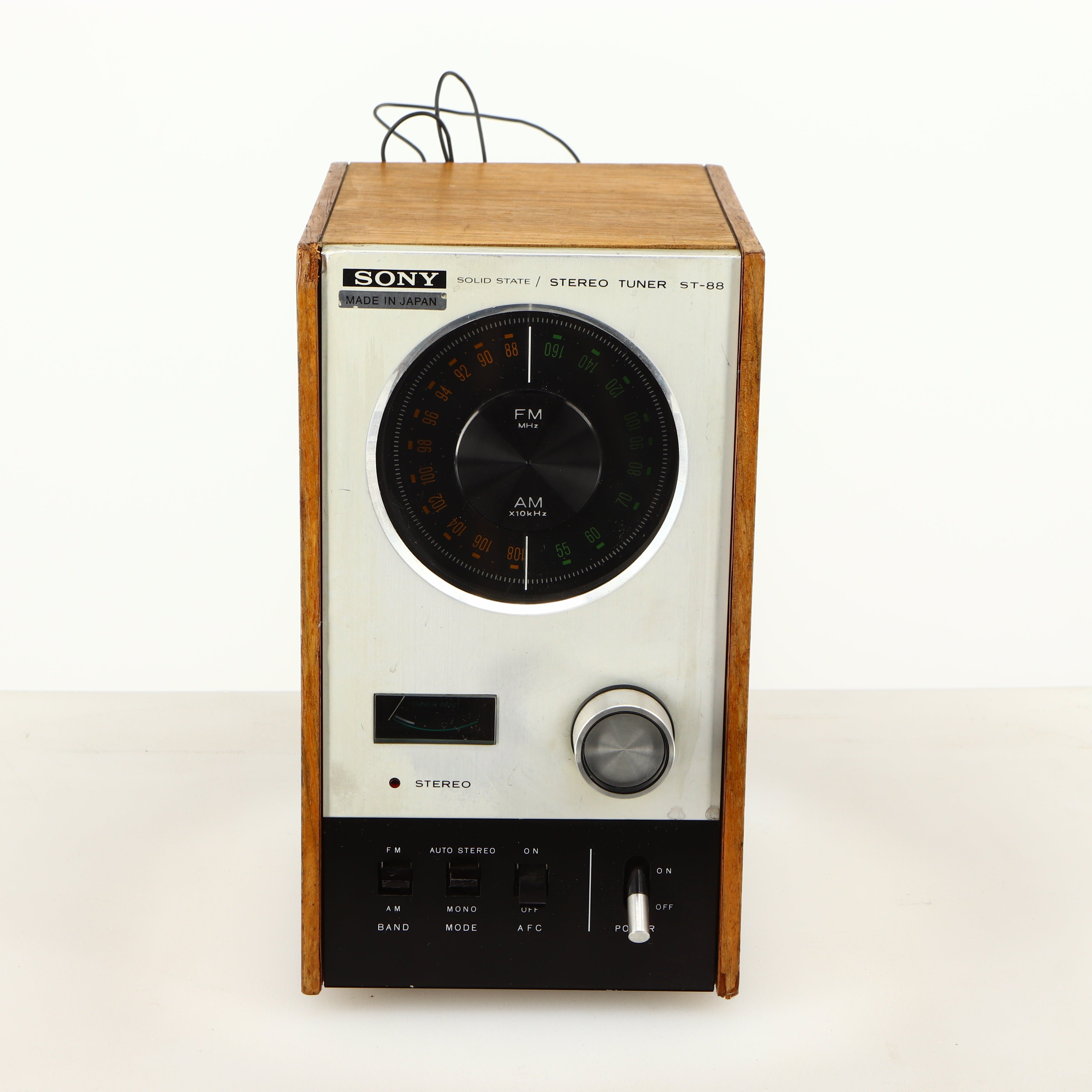

Sony ST-88 Tuner

A compactly designed stereo tuner whose performance matches that of more costly and larger tuners.

Features

• VHF/MW
• AFC control
• Capture ratio 2.5 dB
• Flywheel operation for smooth tuning
• Input meter

FM Section:
Tuning Range: VHF 87.5 - 108 MHz
Sensitivity: 1.7 µV S/N 30 dB
Signal to Noise Ratio: 65 dB
Capture Ratio: 2.5 dB, IHF
Selectivity: 50 dB
Image Rejection: 45 dB
IF Rejection: 90 dB
Spurious Rejection: 75 dB
AM Suppression: 45 dB
Frequency Response: 30 Hz - 15 kHz, ± 2 dB
Aerial Terminals: 300 Ω balanced
Harmonic Distortion @ 400 Hz, 100% modulation: Monaural 0.5%; Stereo 0.8%
Stereo Separation: 35 dB @ 400 Hz
AM Section:
Tuning Range: MW 530 - 1,605 kHz (566 - 187 m)
Sensitivity: MW 48 dB/m built in aerial; 100 µV external aerial
Signal to Noise Ratio: 50 dB @ 50 mV/m
Image Rejection: 40 dB @ 1,000 kHz
IF Rejection: 30 dB @ 1,000 kHz
Harmonic Distortion: 0.8% @ 50 mV/m
Aerial Terminals: Built-in ferrite bar aerial; external aerial terminal
General:
Circuit System: FM Stereo, FM/AM superheterodyne tuner
Output Level: High 1.5 V (3.3 kΩ) 100% mod; Normal 750 mV (4.5 kΩ) 100% mod
Power Requirements: AC 110, 127, 220 and 240V, 50/60 Hz
Power Consumption: 10 W
Dimensions: 128 (W) x 232 (H) x 210 (D) mm
Weight: 2.7 kg
