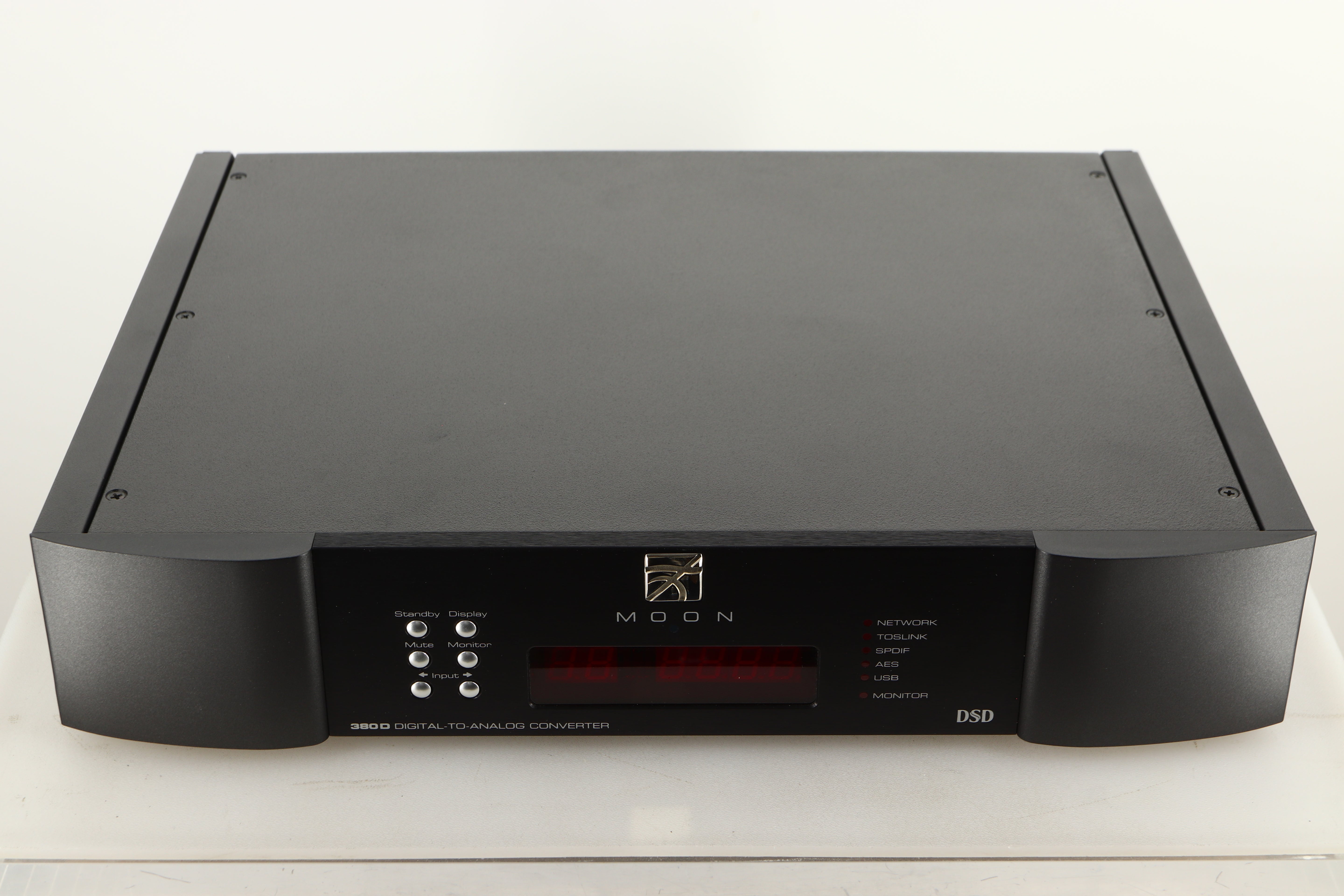

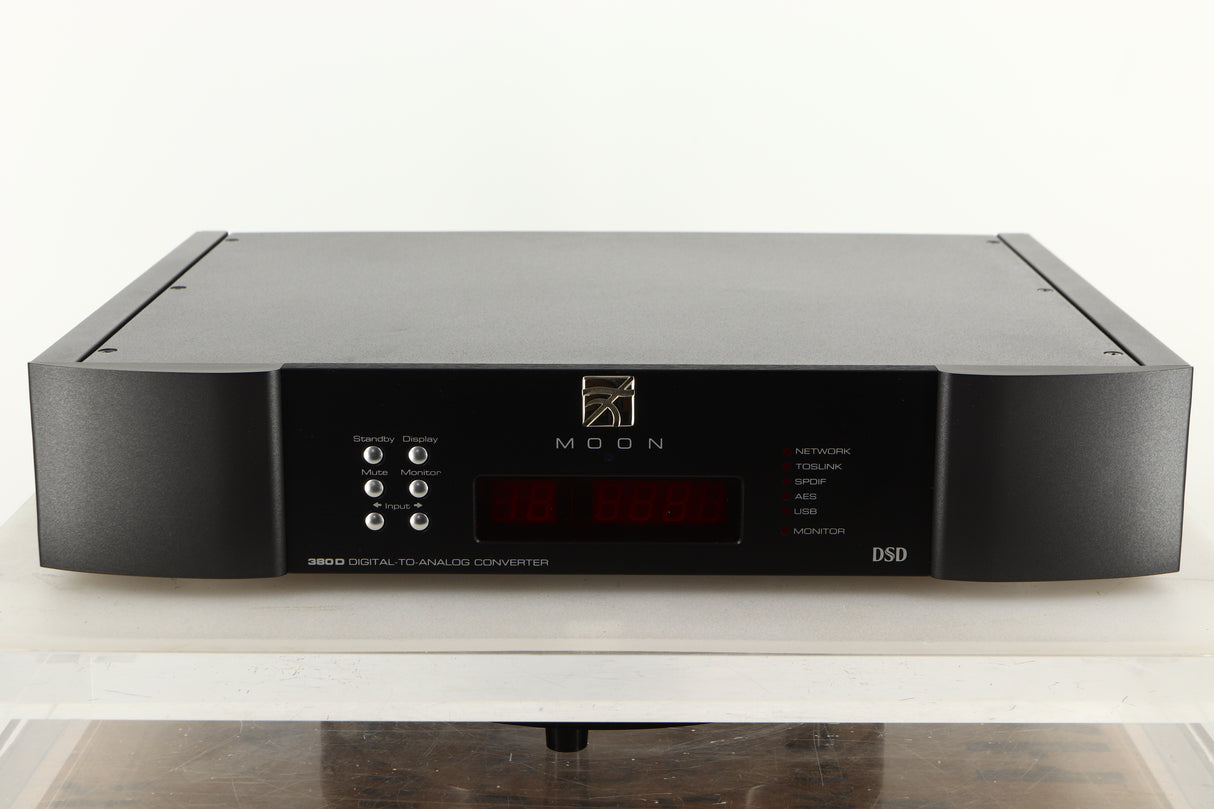

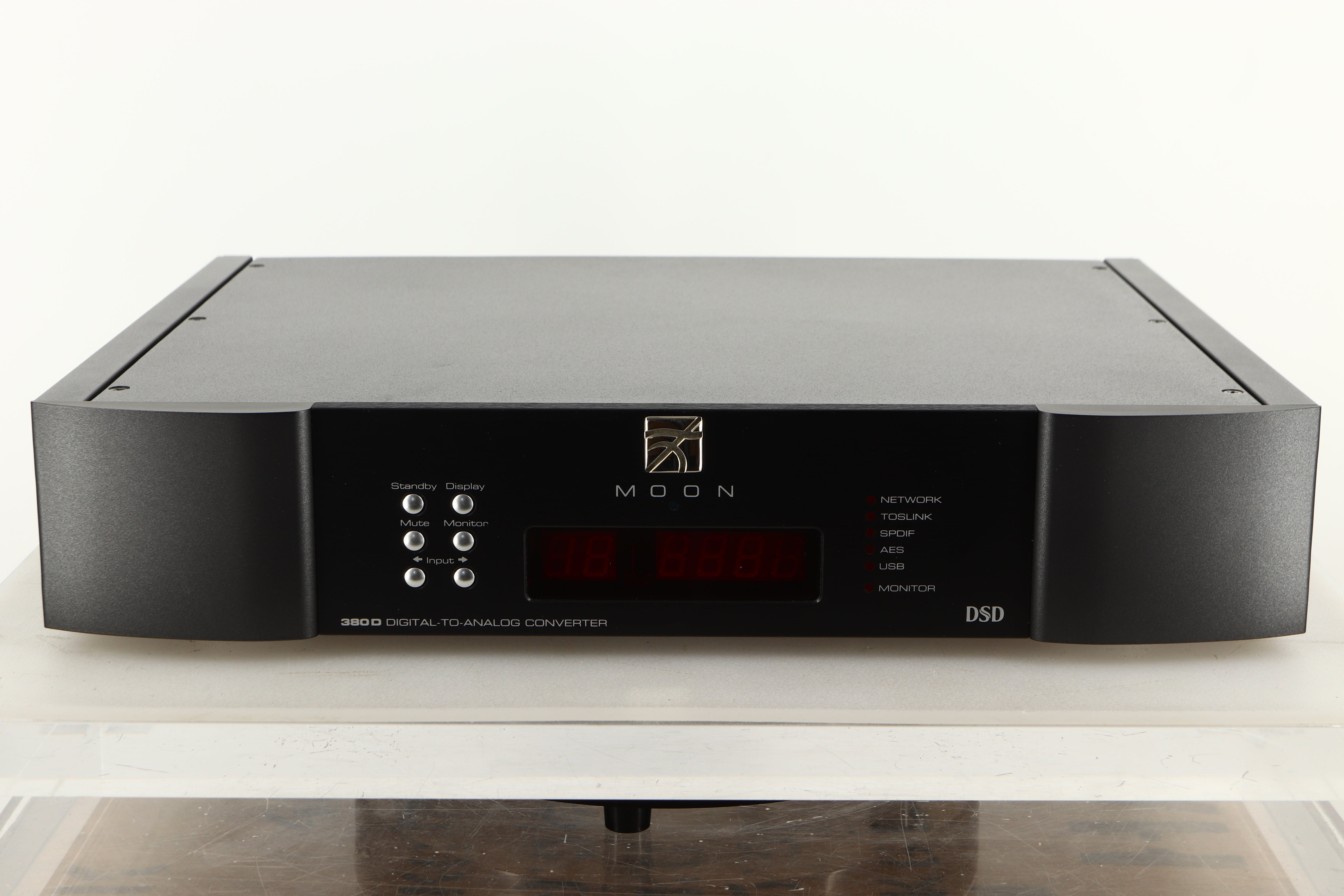

Moon by SimAudio Neo 380D Streaming DSD DAC - Black

The Neo 380D establishes a new standard for high-end, high-performance digital playback. A direct descendent of the evolution Series 650D, the Neo 380D is not only incredibly flexible, but is also ready for the future. Using the latest technologies, the 380D is actually more dynamic than the human ear can perceive. It will recover and deliver to you, musical detail you that previously thought was simply not there.
Fitted with virtually every kind of digital input you will ever need, the Neo 380D also includes our MiND (MOON intelligent Network Device) streaming technology. For those individuals whose music comes purely from digital sources, an optional balanced preamplifier section with its own volume control is offered, allowing for direct connectivity of the Neo 380D to a power amplifier. This effectively minimizes the number of required components to achieve high-performance music playback.

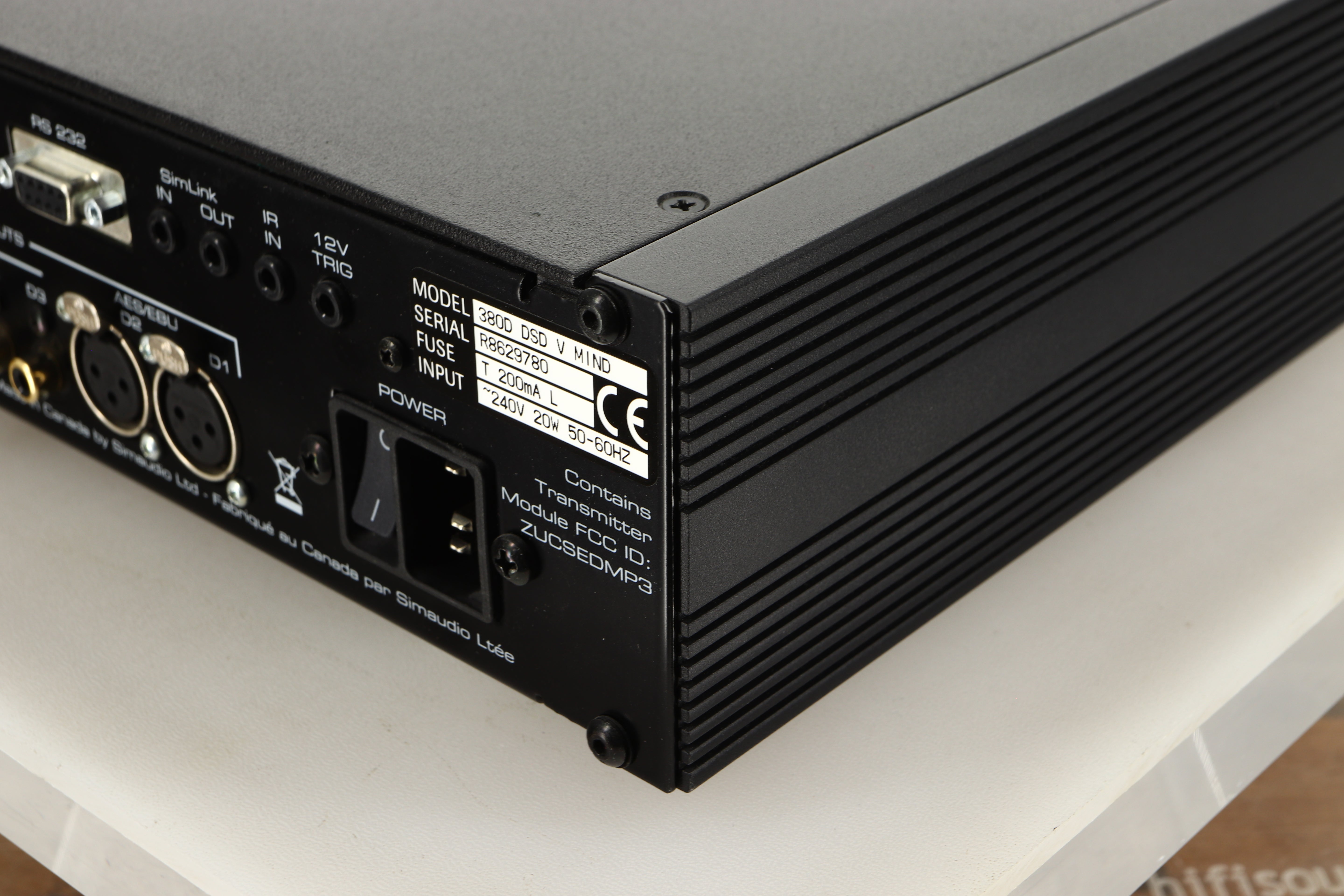

Of course, key features you’d expect in a Moon Neo Series product are present such as SimLink™, RS-232 and IR ports for custom-install environments.

Features

• Fully asynchronous DAC supports native DSD64, DSD128 and DSD256 (USB only) and PCM up to 384kHz (32-bit on USB only).

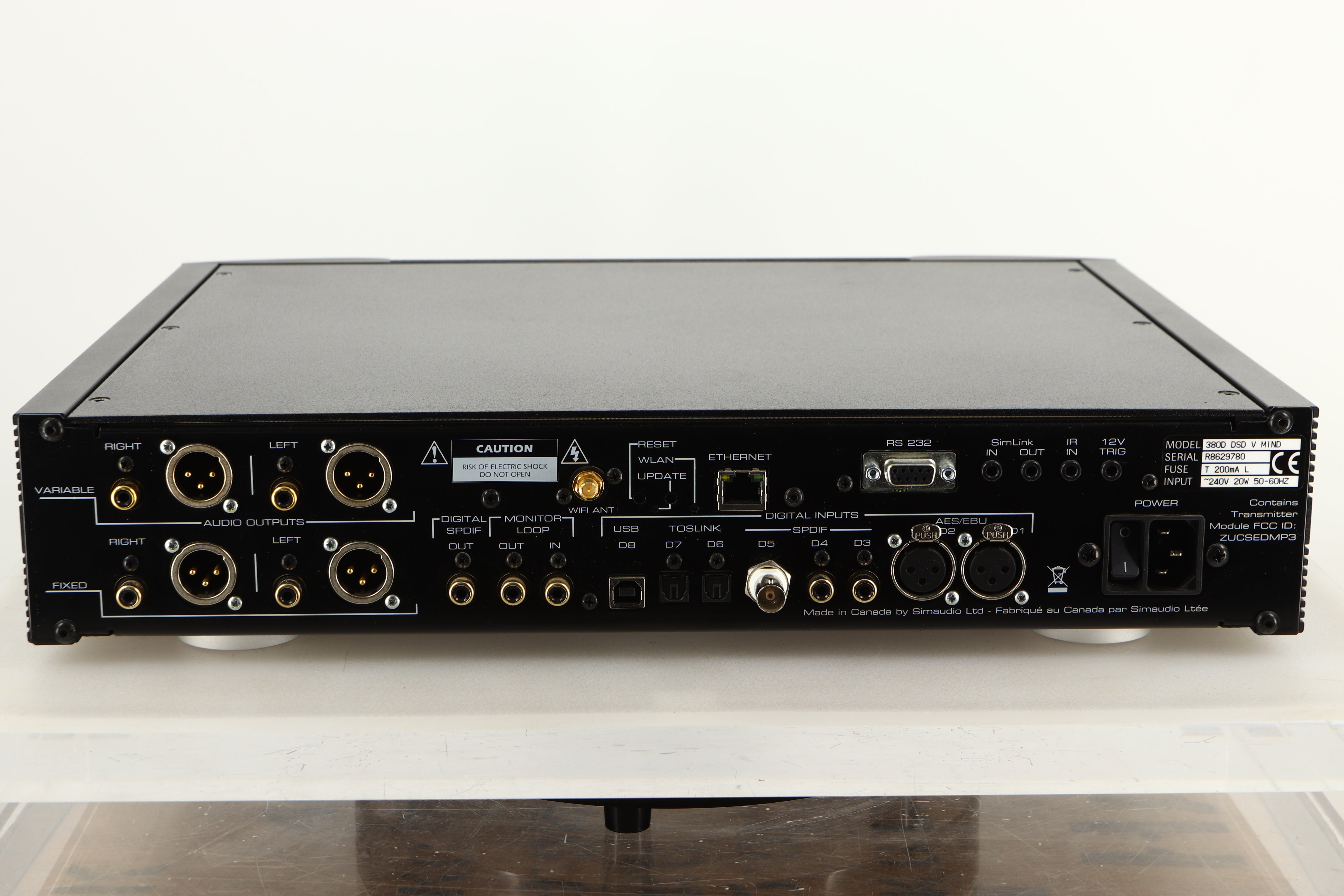

• 8 digital inputs (AES/EBU x 2, S/PDIF x 3, TOSlink x 2 and USB x 1) allowing for a connection to virtually any digital source, along with one S/PDIF digital output.
• Full digital monitor loop on S/PDIF to accommodate external devices such as a room correction component.
• Our own “Dual Jitter Control System” produces a virtually jitter-free digital signal for ultra-low distortion, ensuring compatibility with any connected digital device.

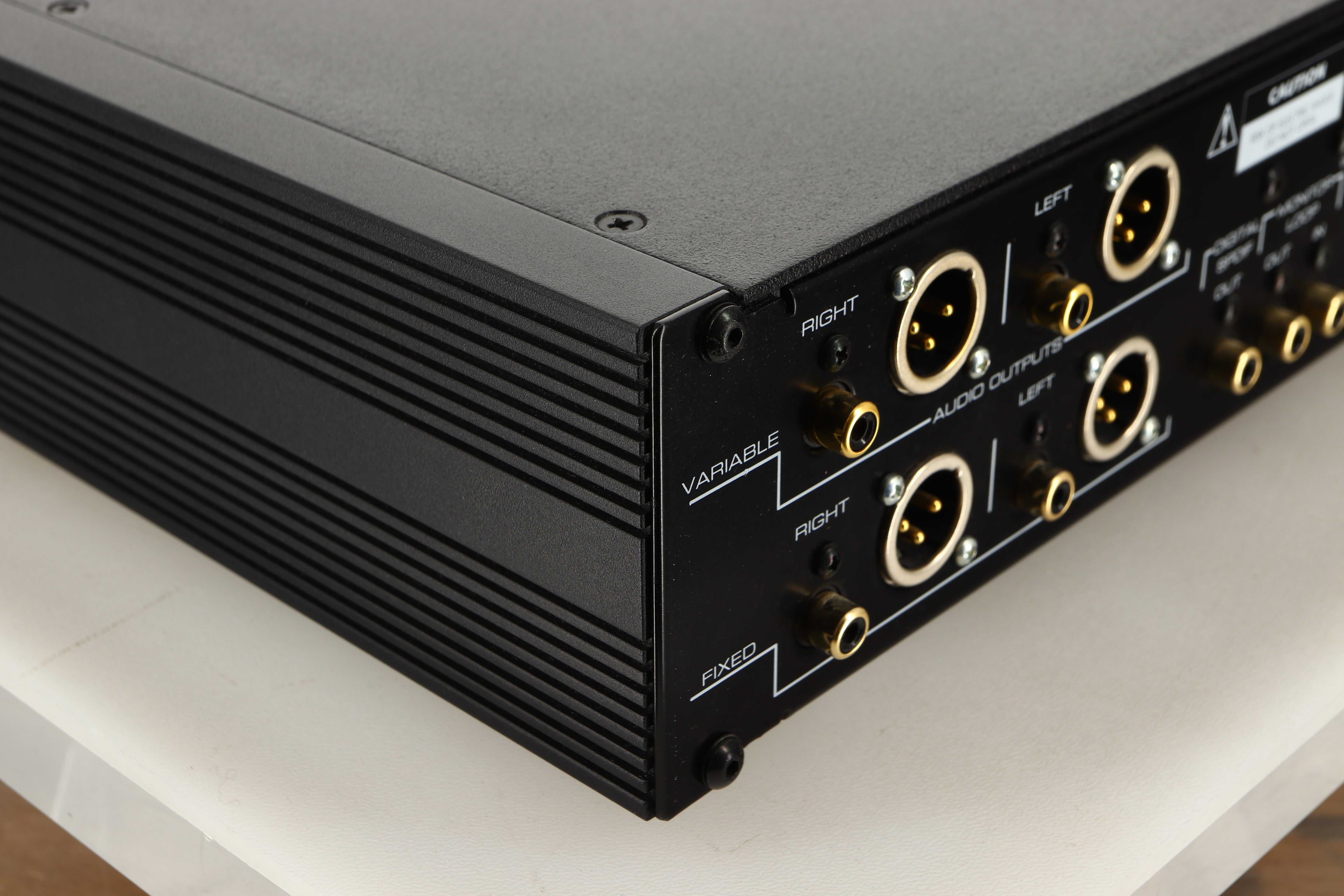

• The analogue stage is a fully balanced differential circuit for increased dynamic range and headroom, higher resolution, as well as improved signal-to-noise ratio.

Frequency Response (full range): 2 Hz - 100 kHz + 0/- 3 dB
Total Harmonic Distortion: 0.001% @ 1 kHz, 0 dBfs (A-weighted)
Dynamic Range: 120 dB
Signal-to-Noise Ratio: 120 dB @ full output
Channel Separation: 116 dB
Intrinsic Jitter: 1 picosecond RMS
Analog Output: 2.0 Volts @ 0 dBfs
Analog Output Impedance: 100 Ω
PCM Bit-Depth Range: 16 - 32 bits
PCM Sampling Frequency Rates: 44.1 - 384 kHz
DSD Sample Rates: DSD 64, DSD 128 & DSD 256
Dimensions: 429 (W) x 333 (D) x 86 (H) mm
Weight: 7.5 kg
