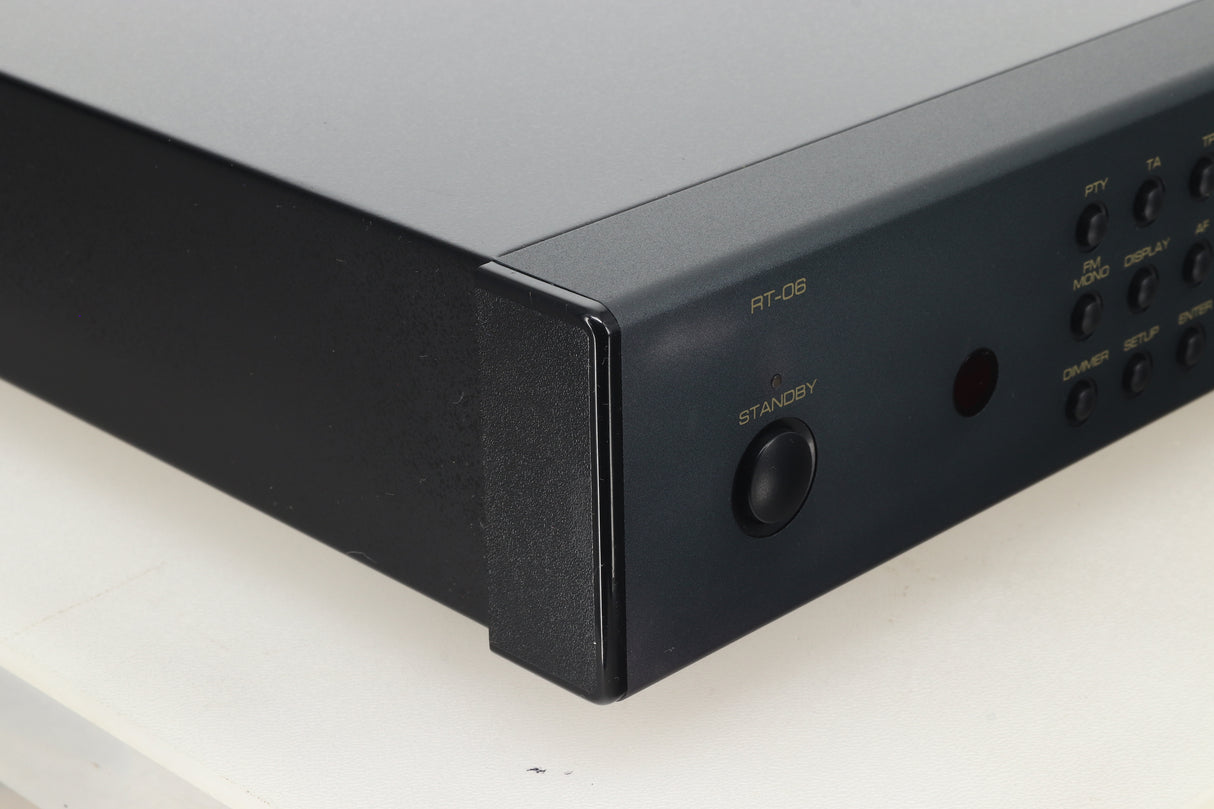

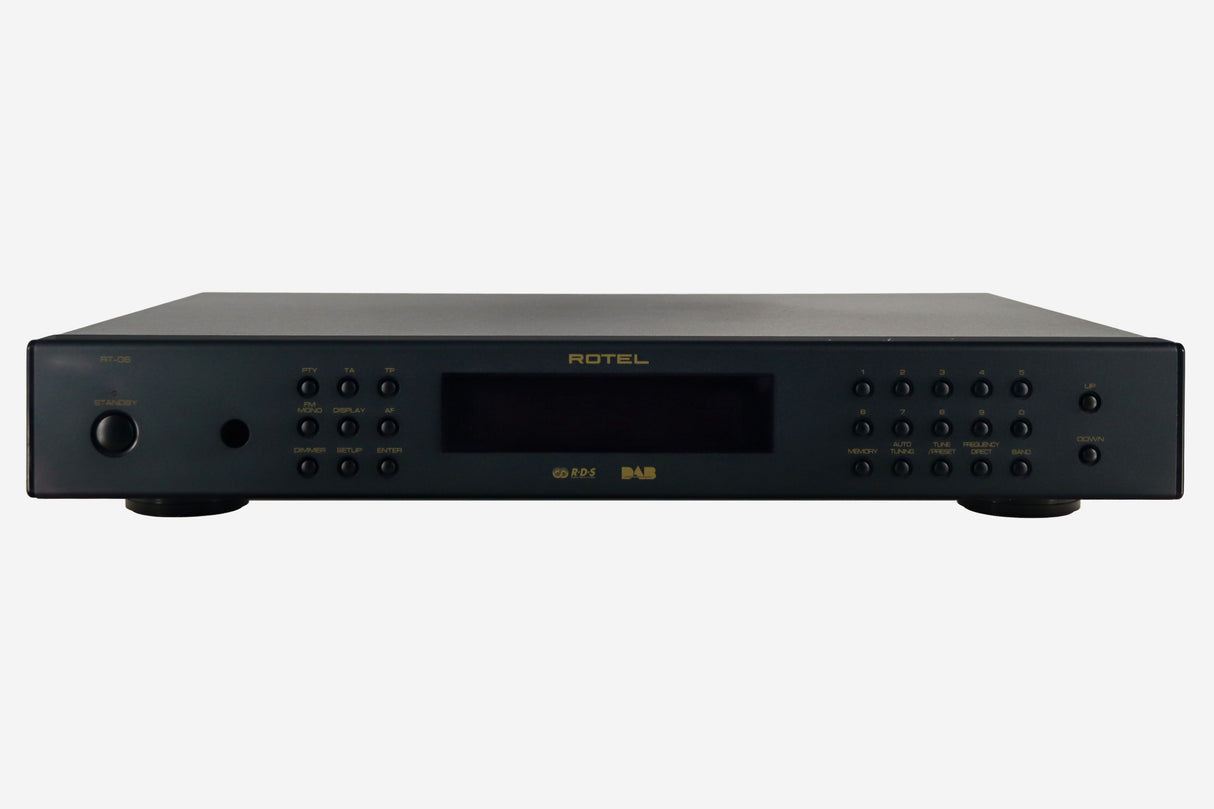

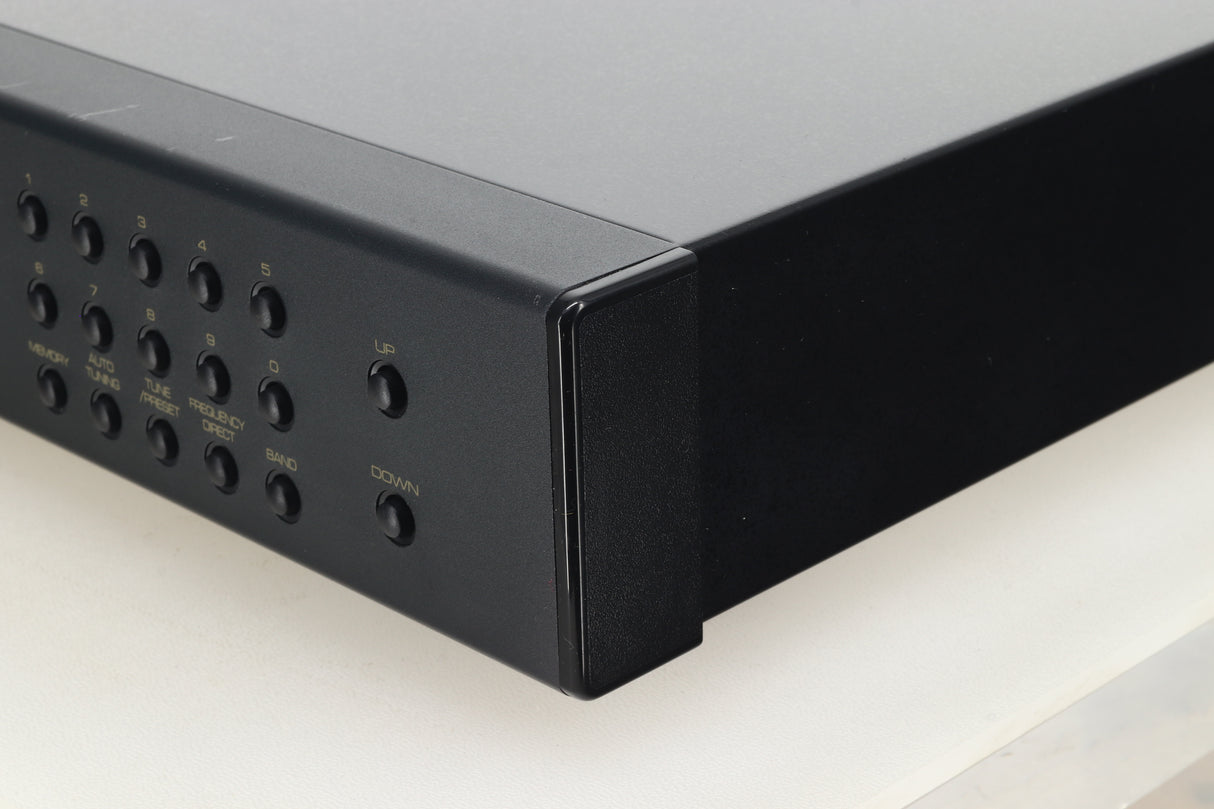

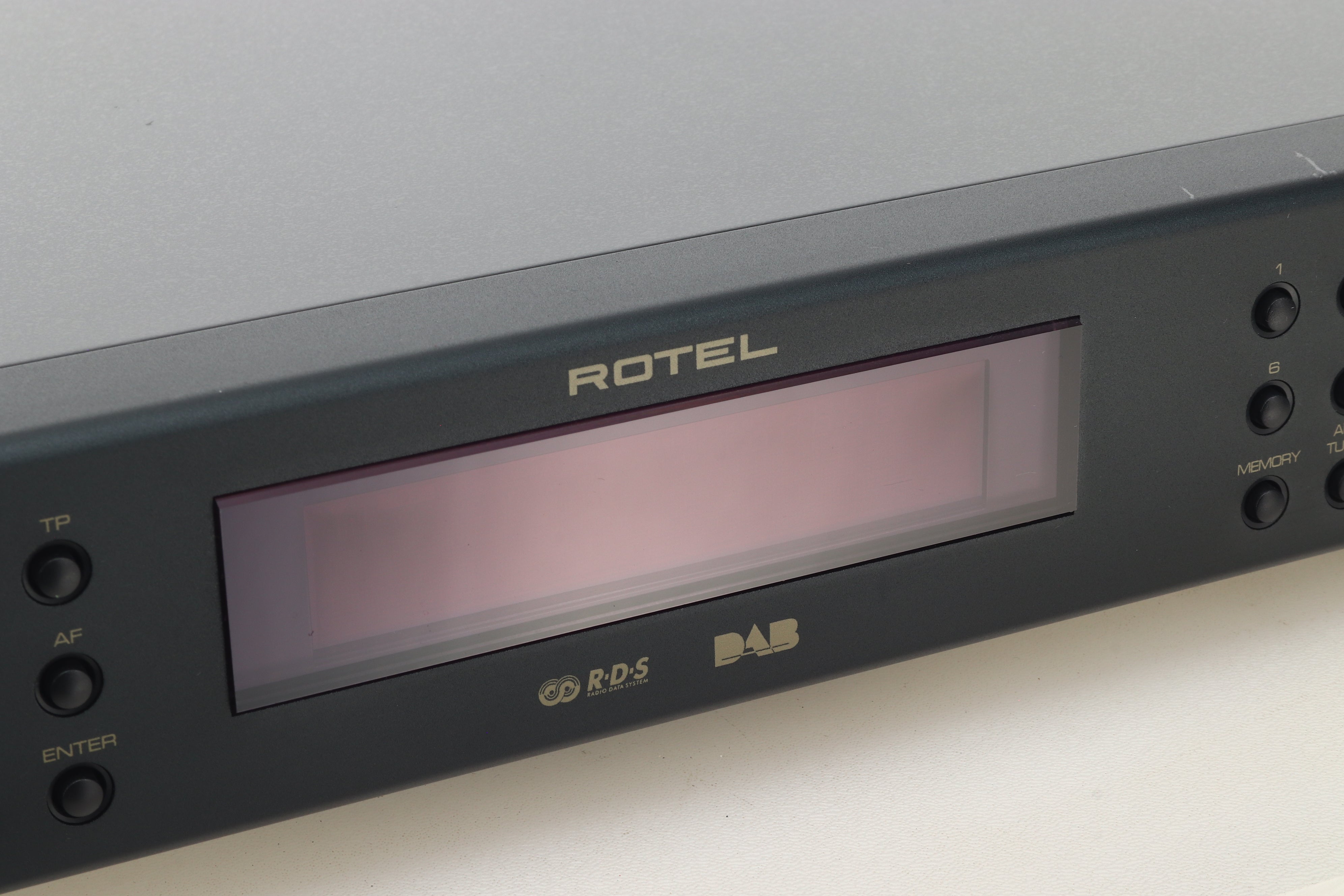

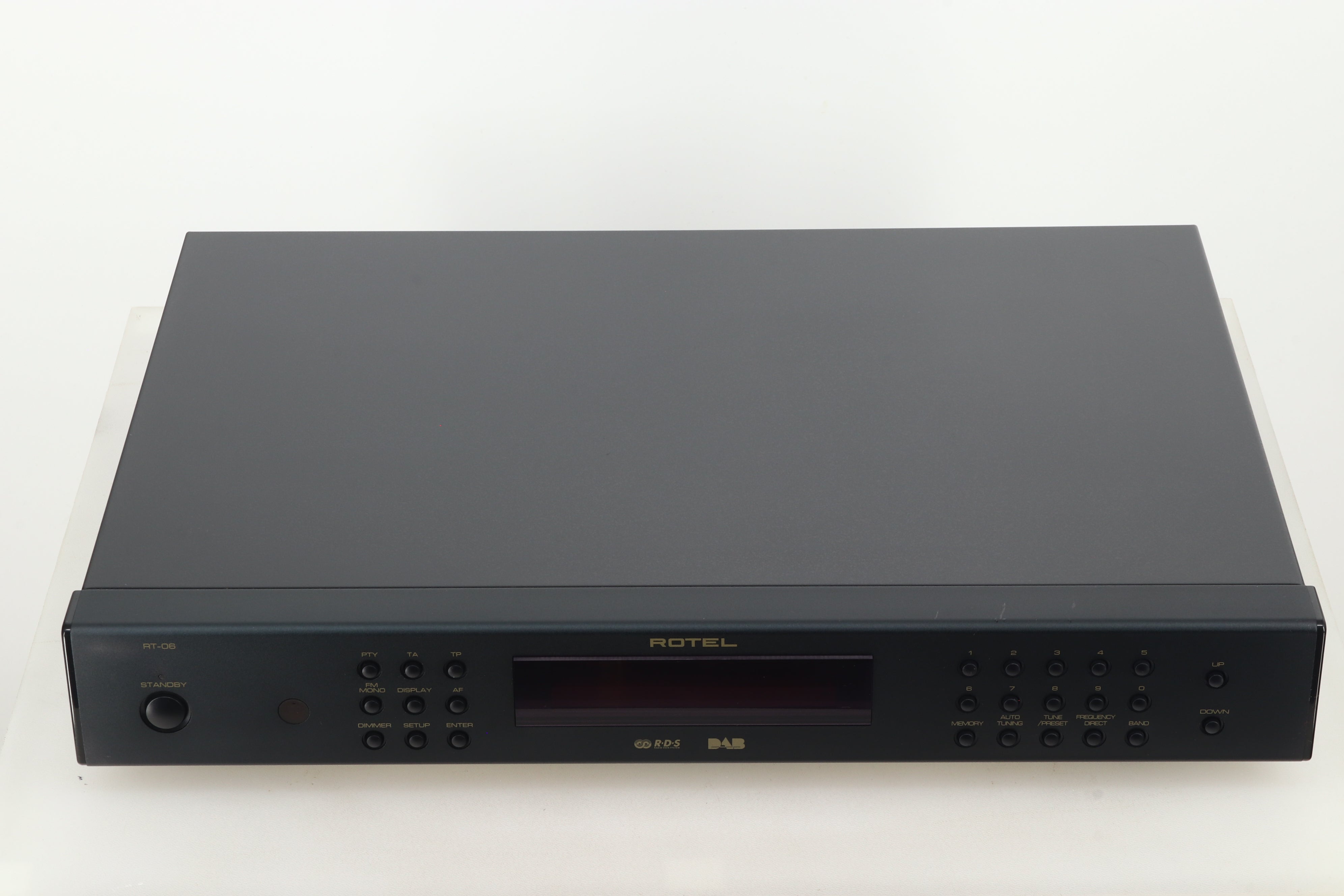

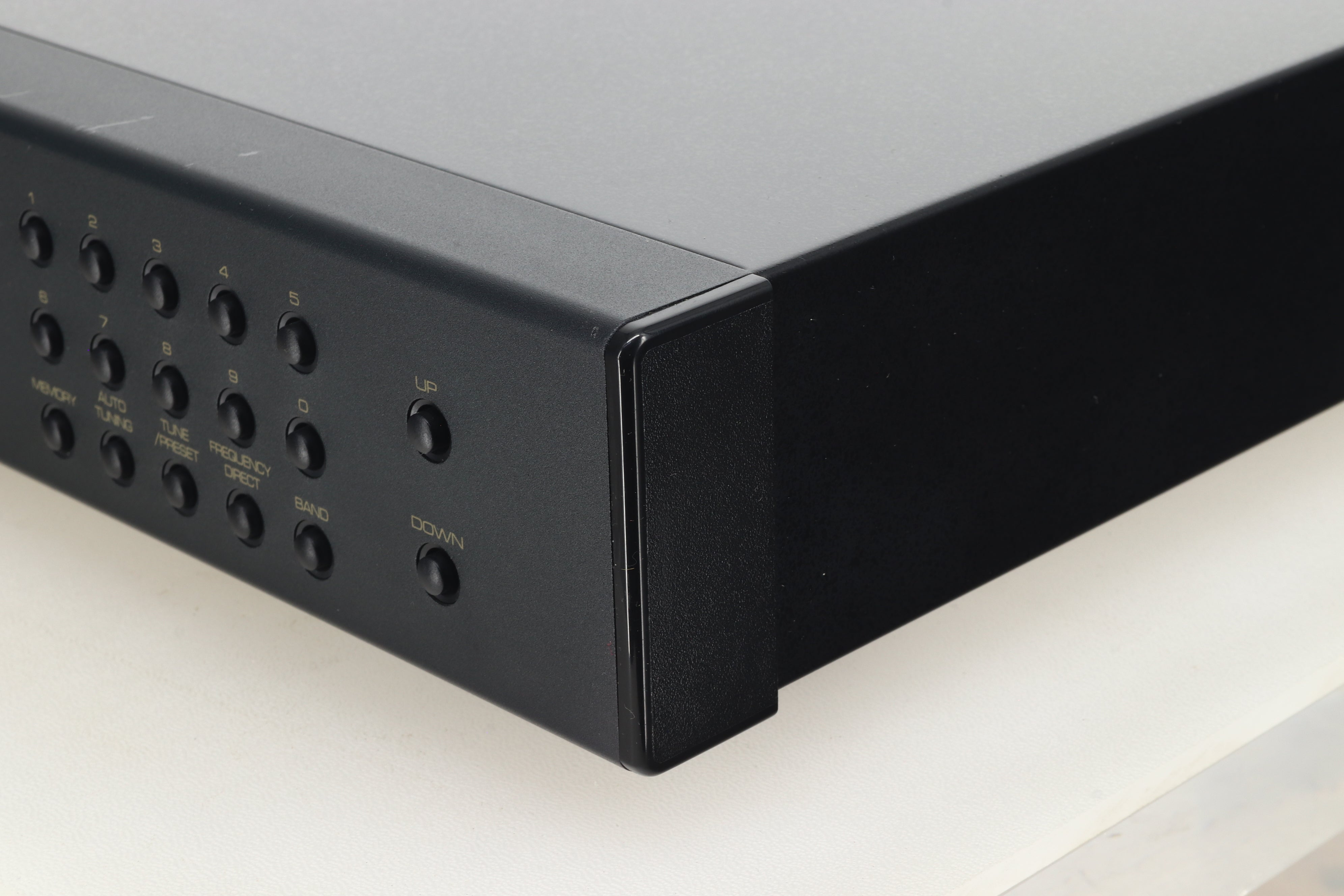

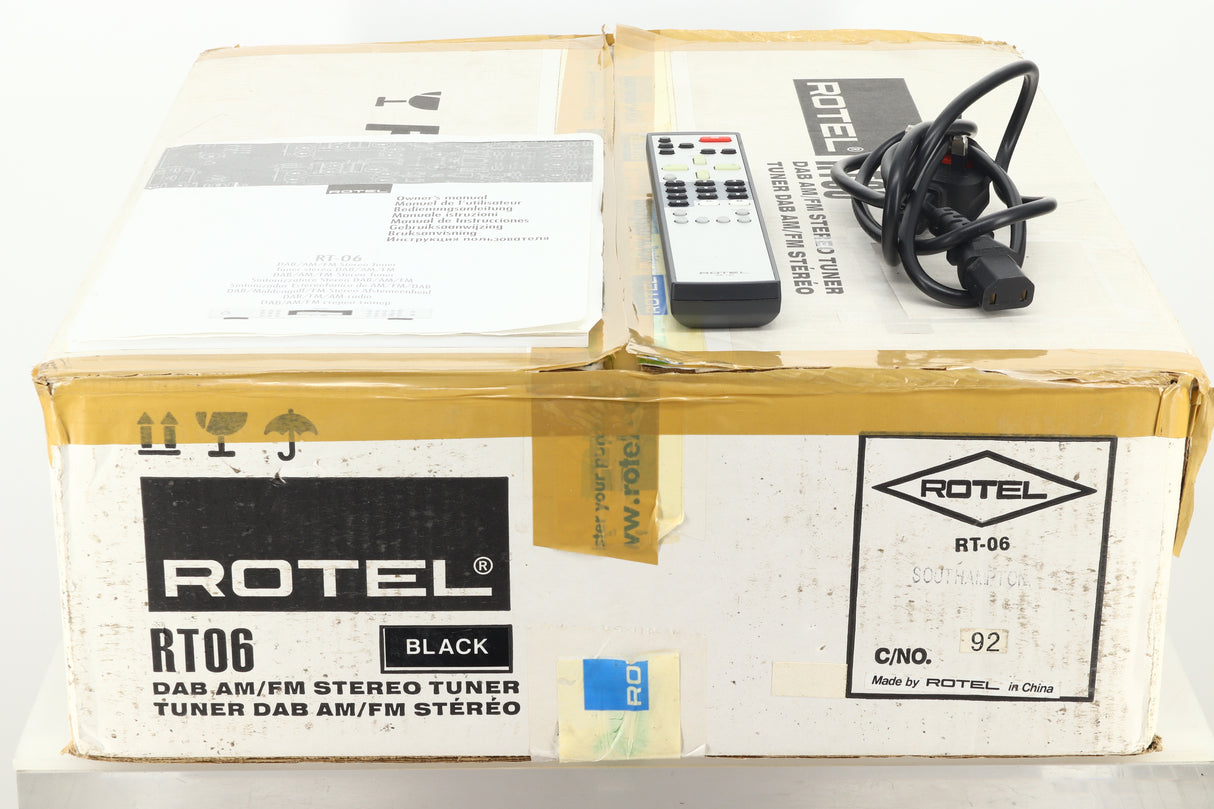

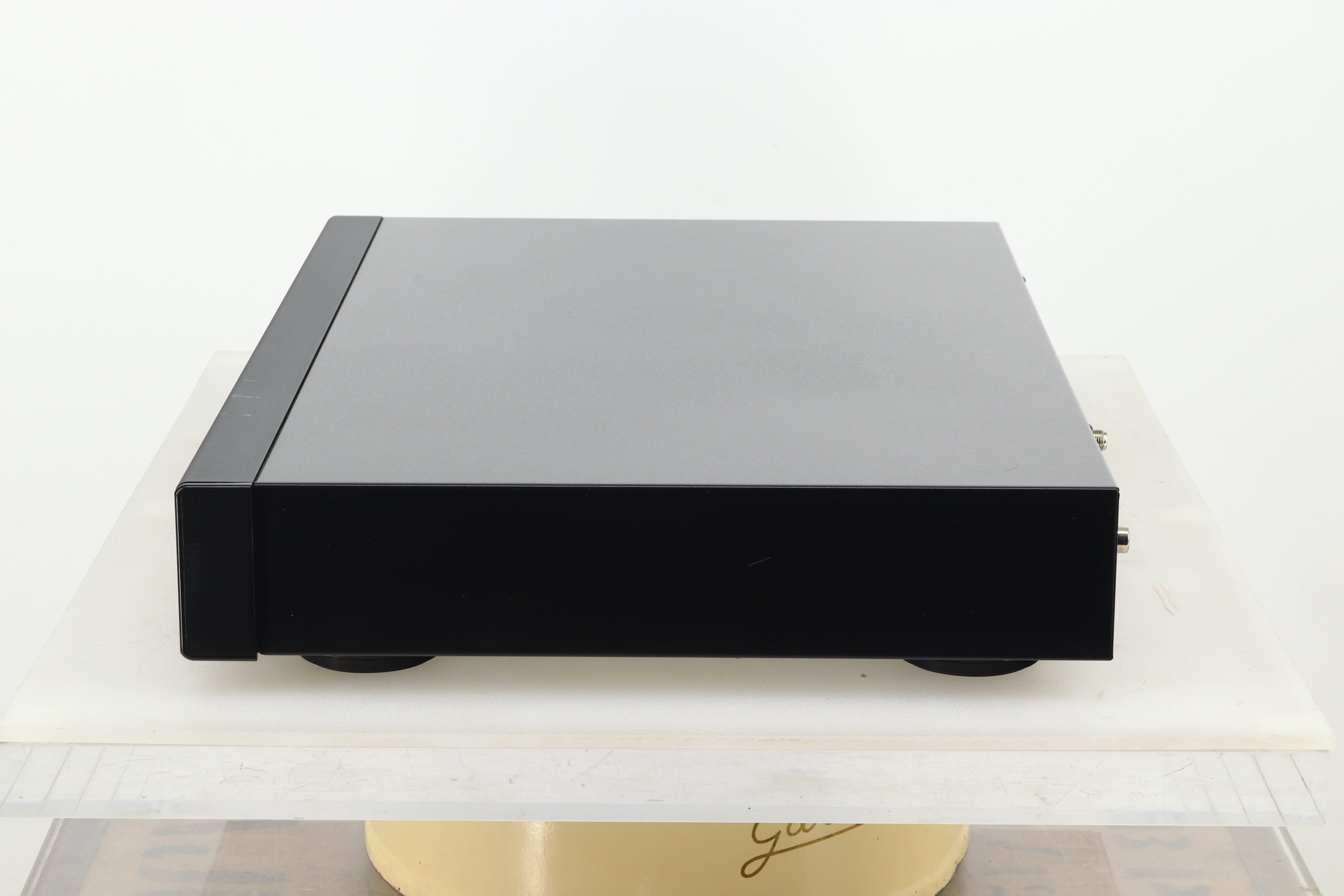

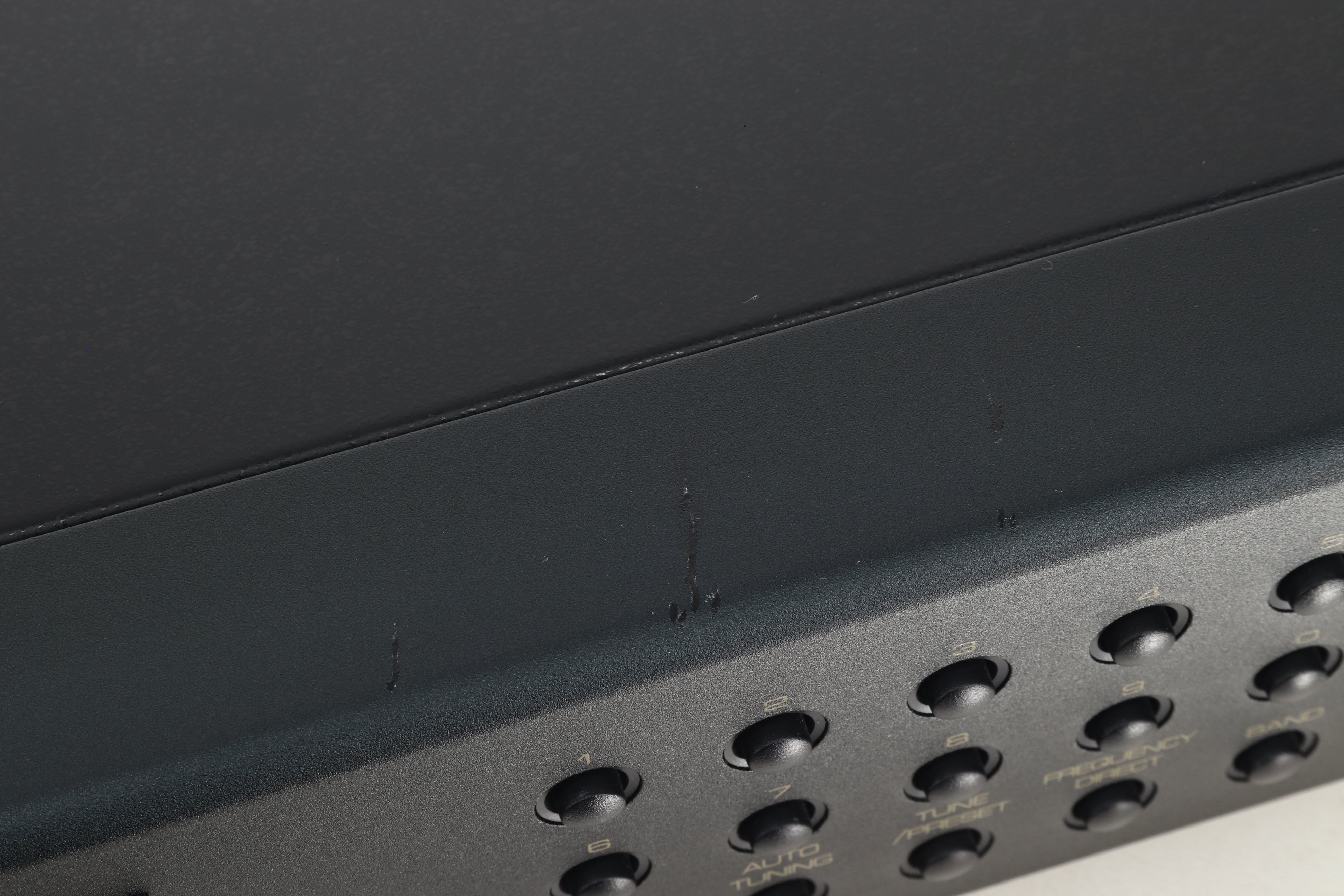

Rotel RT-06 DAB/FM Tuner - Black

The RT-06 DAB tuner offers the latest in Digital Audio Broadcasting (DAB) as well as RDS FM and AM analogue wavebands. It features independent signal paths and power supplies for both the digital and analogue sections, therefore maximising all broadcast performances.

Features

Separate analogue output stages for DAB and RDS FM/AM
Independent internal analogue and digital power supplies
Short signal path routing
30 pre-set memory
12V trigger power control

FM Tuner:
Usable Sensitivity: 14.2 dBf
50 dB Quieting Sensitivity: 20.2 dBf (mono); 45.3 dBf (stereo)
Signal to Noise Ratio (at 65 dBf): 73 dBf (mono); 70 dBf (stereo)
Harmonic Distortion (at 65 dBf): 0.2% (mono); 0.3% (stereo)
Frequency Response: 10 Hz - 15 kHz, ± 3 dB
Capture Ratio: 2.0 dB
Alternate Channel Selectivity: 47 dB (± 400 kHz)
Spurious Response Ratio: 90 dB
Image Rejection Ratio: 80 dB
IF Rejection Ratio: 80 dB
AM Suppression Ratio: 55 dB
Stereo Separation (100 Hz/1 kHz/10 kHz): 40 dB/45 dB/35 dB
Output Level: 1 V

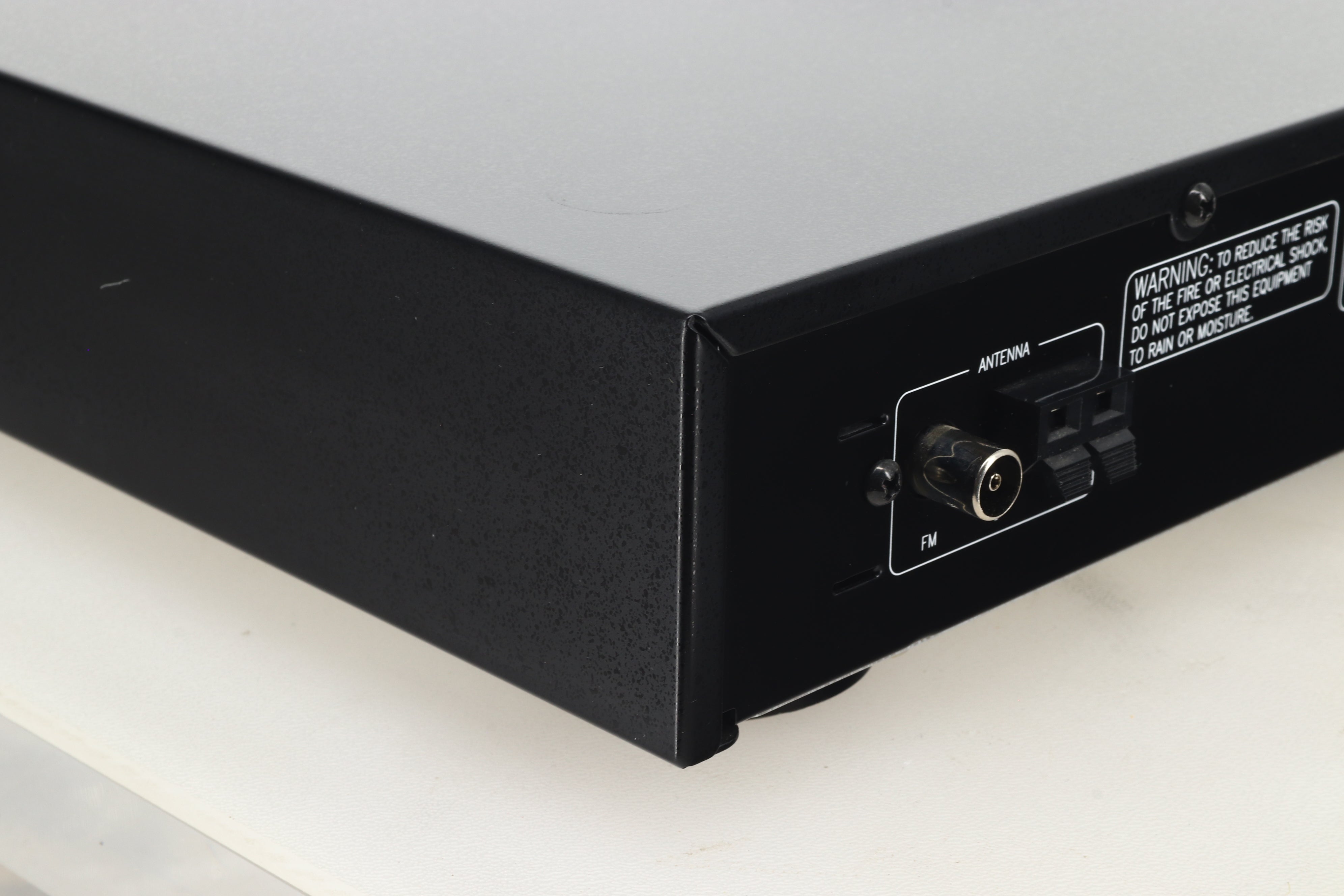

Antenna Input: 75 ohms unbalanced
AM Tuner:
Usable Sensitivity: 500 mV/m
Selectivity: 25 dB
Harmonic Distortion: 0.5%
Image Rejection Ratio: 45 dB
Signal to Noise Ratio: 40 dB
Output level: 500 mV
Antenna Input: Loop Antenna
DAB Tuner:
Sensitivity: - 96 dBm
Tuning Range: Band III (174 - 240 MHz)
Audio Data Rate: 224 Kbps (Max)
Frequency Response: 20 - 20 kHz
Analog Output: 2.0 V at 0 dB FS
Antenna Output: 50 ohms F connector
Digital Output: S/PDIF Coaxial/Optical
Format/Sample Rate: PCM/48 kHz
Power Consumption: 15 watts (normal); 5 watts (standby)
Power Requirements: 230 volts, 50 Hz
Dimensions: 437 (W) x 319 (D) x 72 (H) mm
Weight: 3.9 kg
