Rotel A11 MkII Integrated Amplifier

The A11 MkII Integrated Amplifier offers an ideal combination of power and connectivity for the music lover seeking to elevate their listening experience.
Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A11 MkII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into demanding loudspeakers.
Exclusive Rotel power supply innovations and critical circuit layout provide physical and electrical separation to lower the noise floor and increase musical dynamics. The A11 MkII’s multi-tap transformer delivers power to sensitive low-voltage circuits and the high current amplifier output stage independently, isolating the signal path from noise and reducing unwanted distortion. This sound-first design supports fast transients and delivers an expressive, open musical performance.

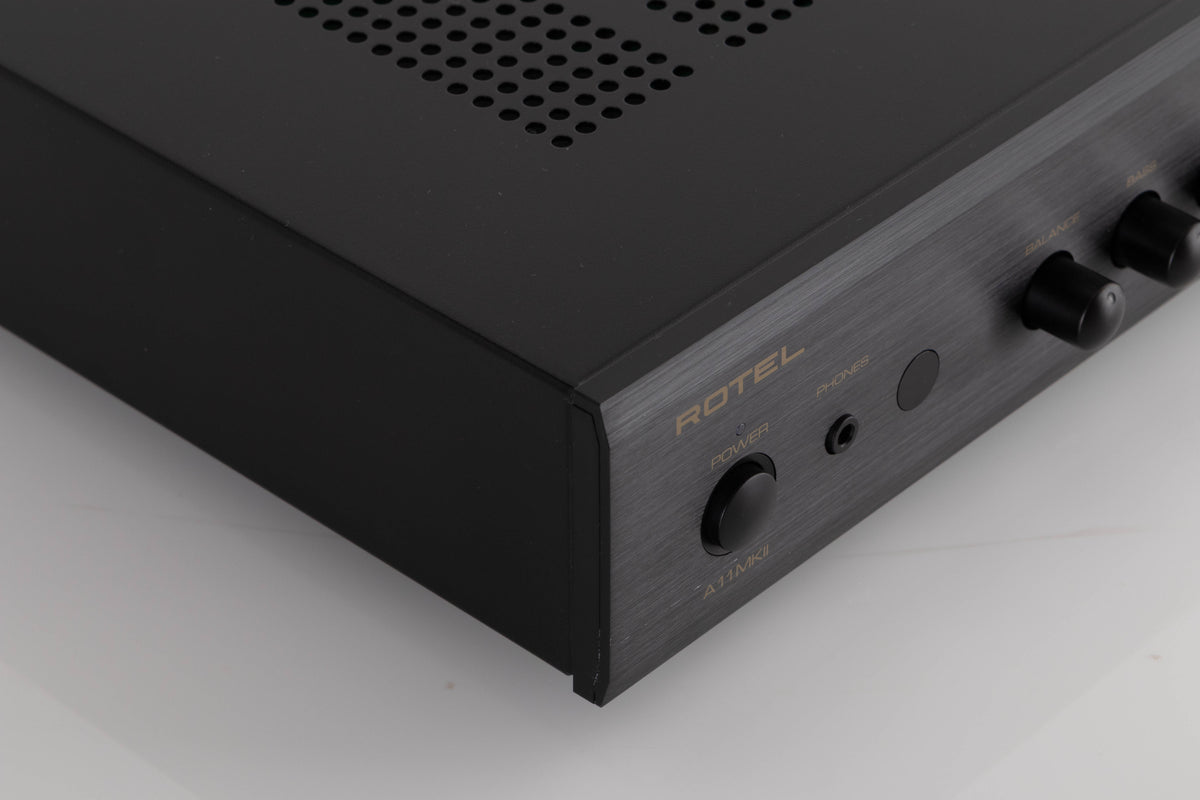

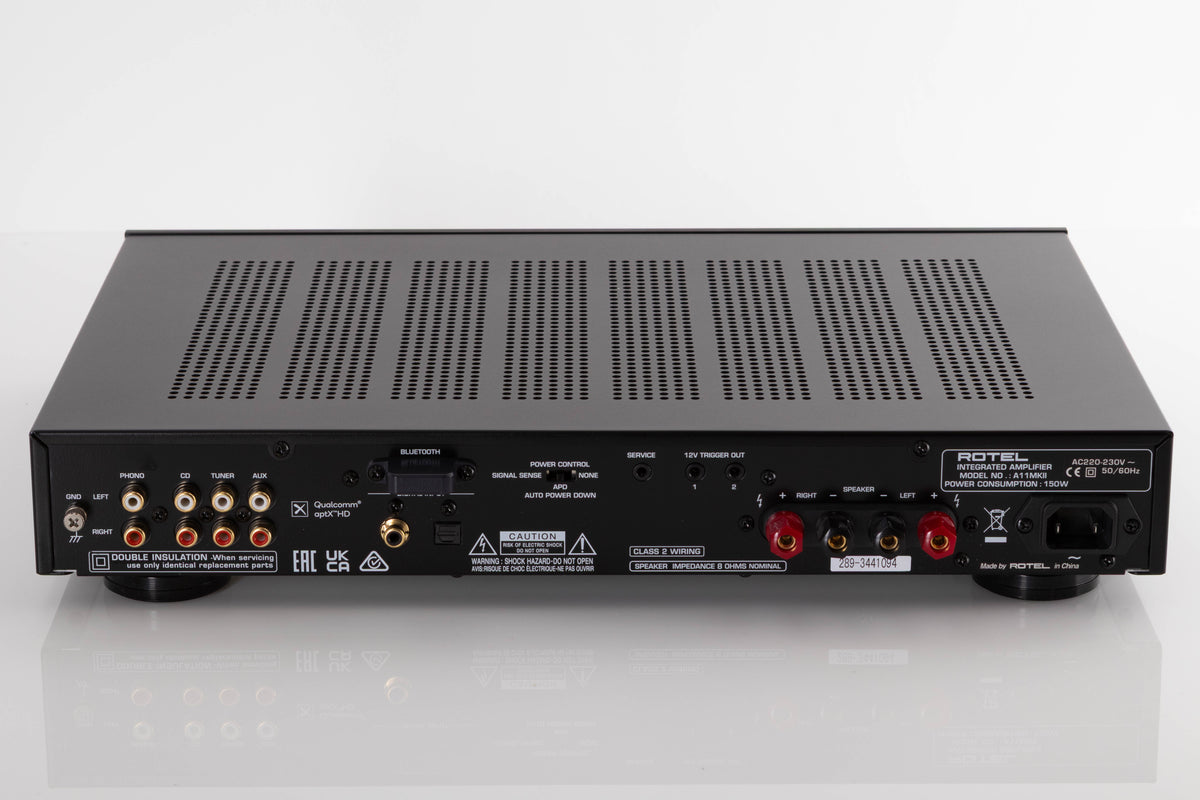

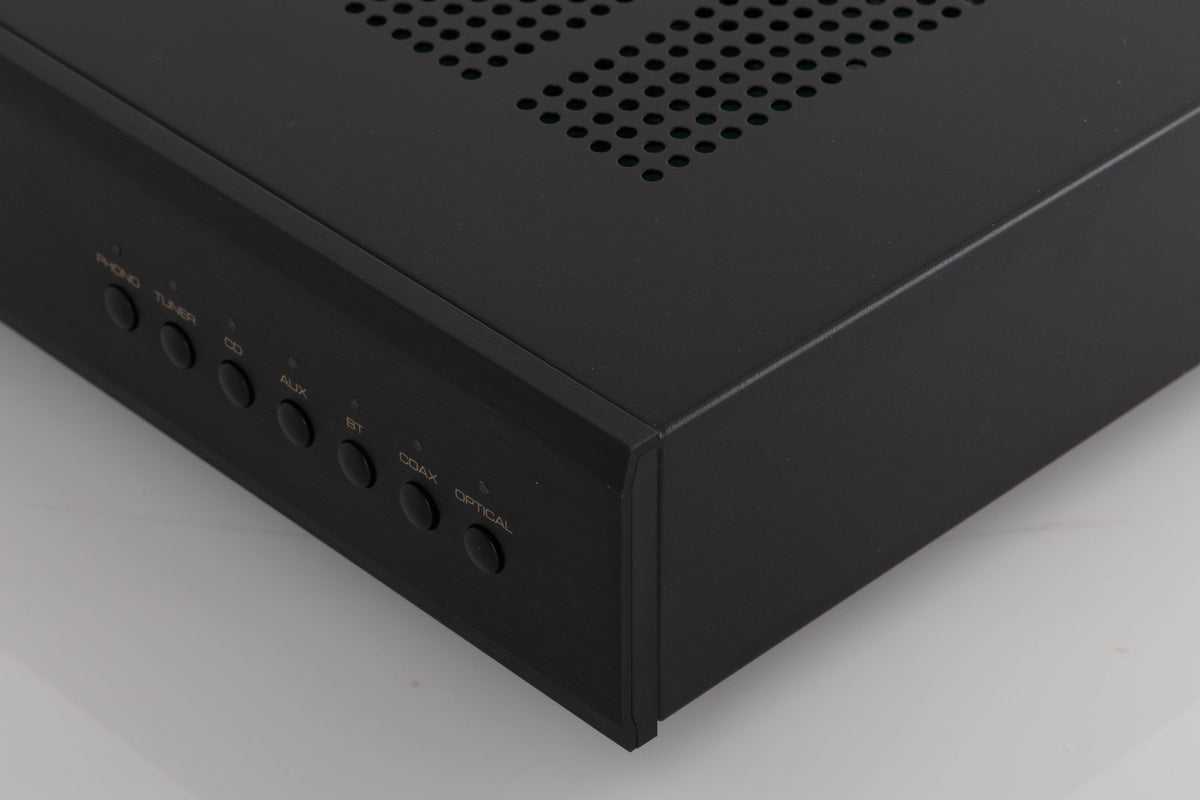

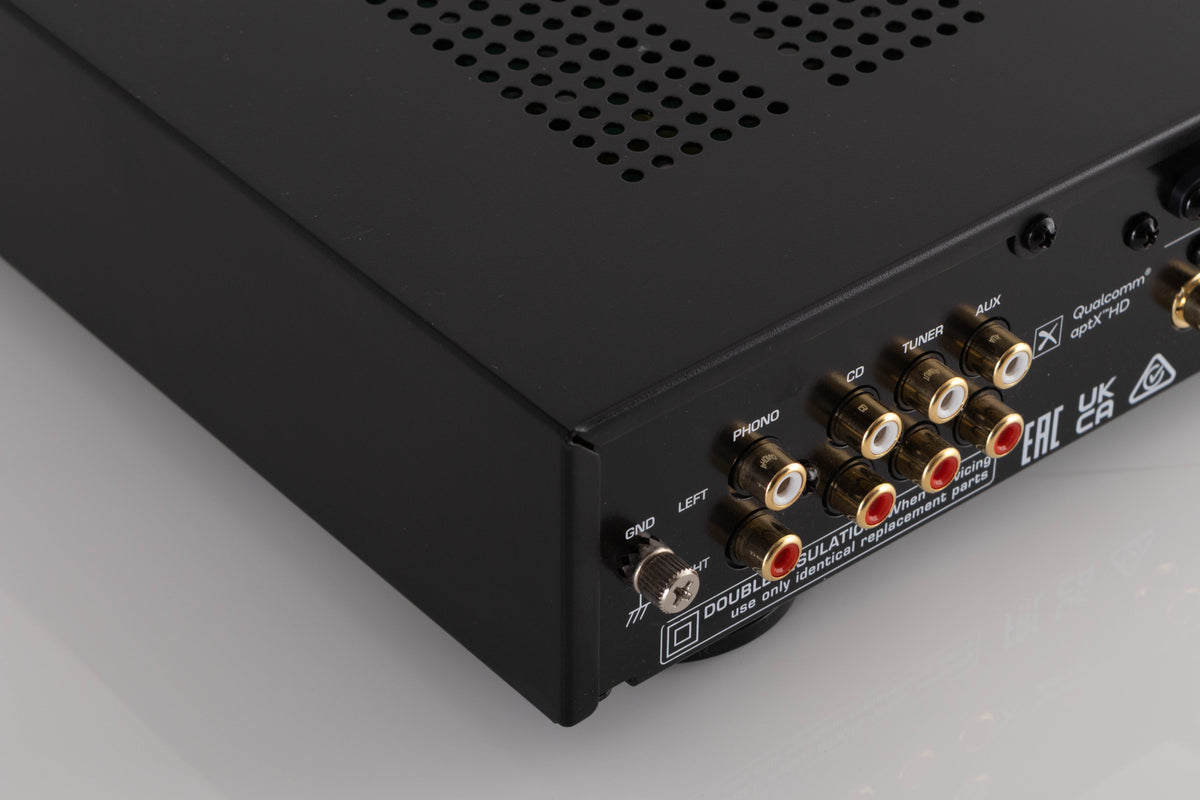

Both analogue and digital sources are welcome, with three line-level RCA inputs, coaxial and optical digital inputs, a Moving Magnet Phono stage, and aptX™ HD Bluetooth. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

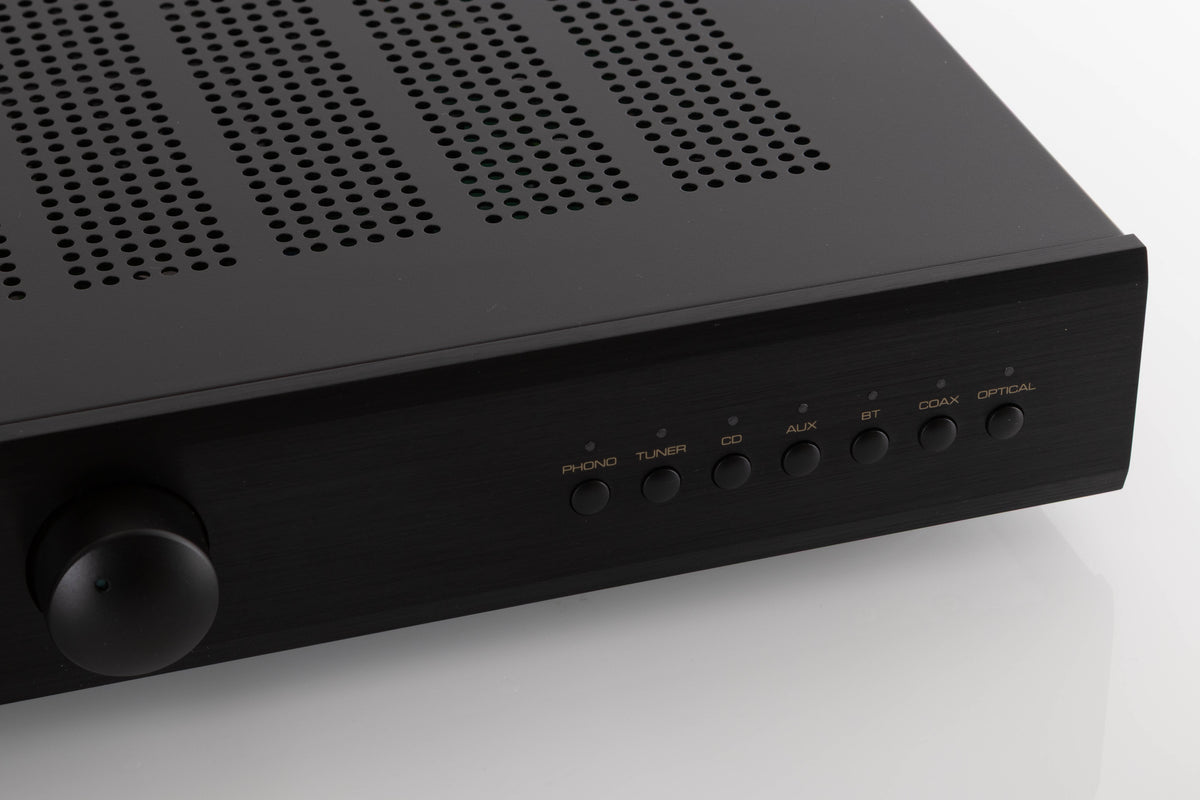

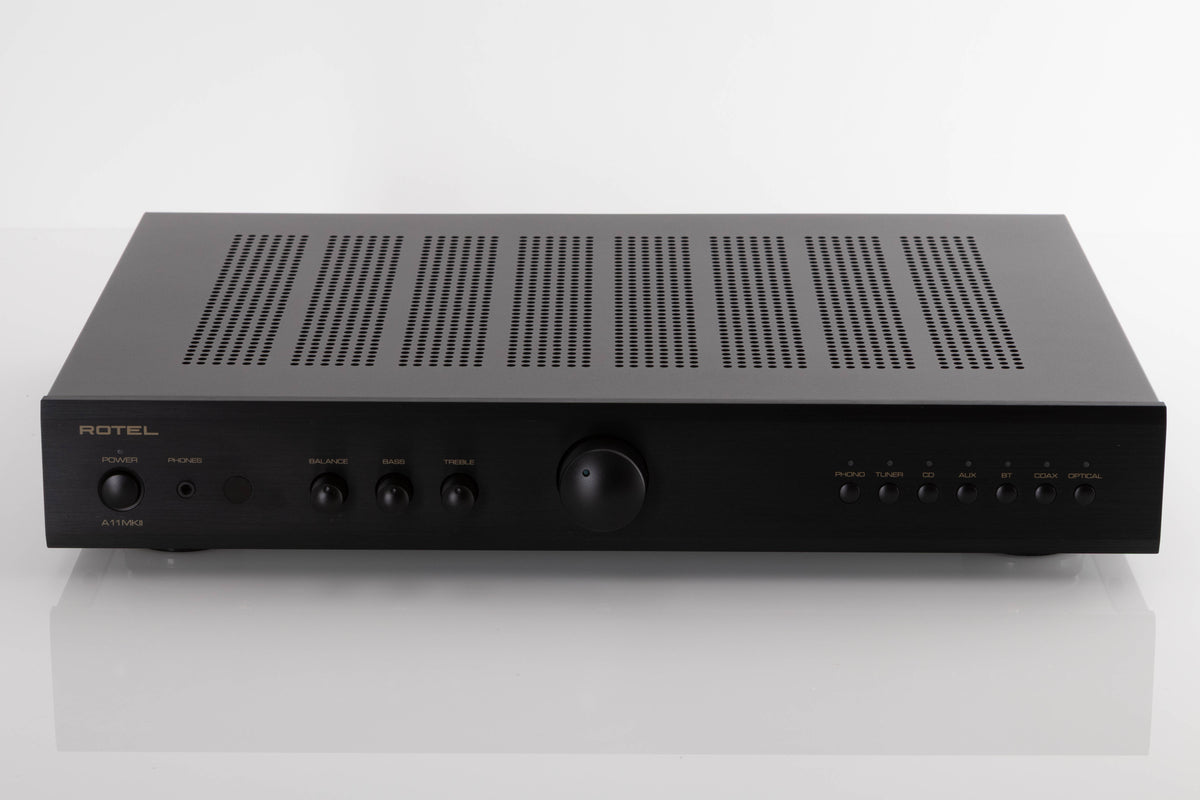

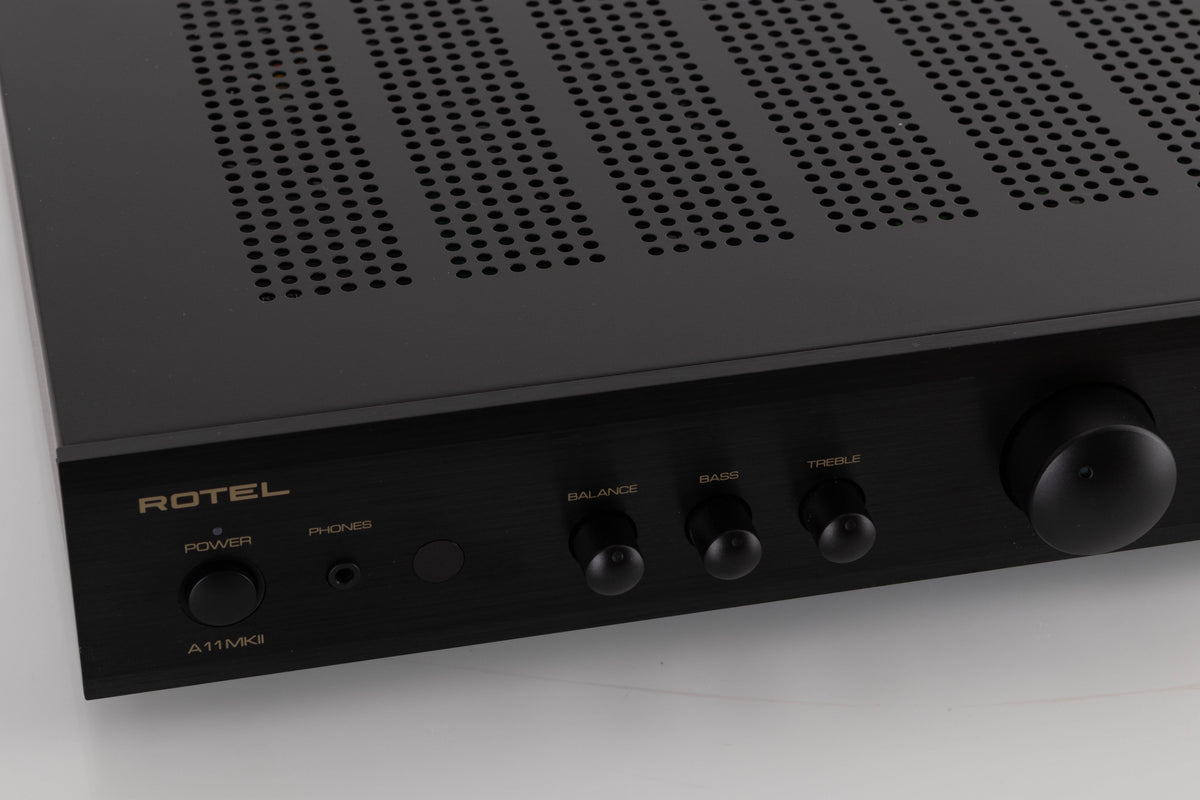

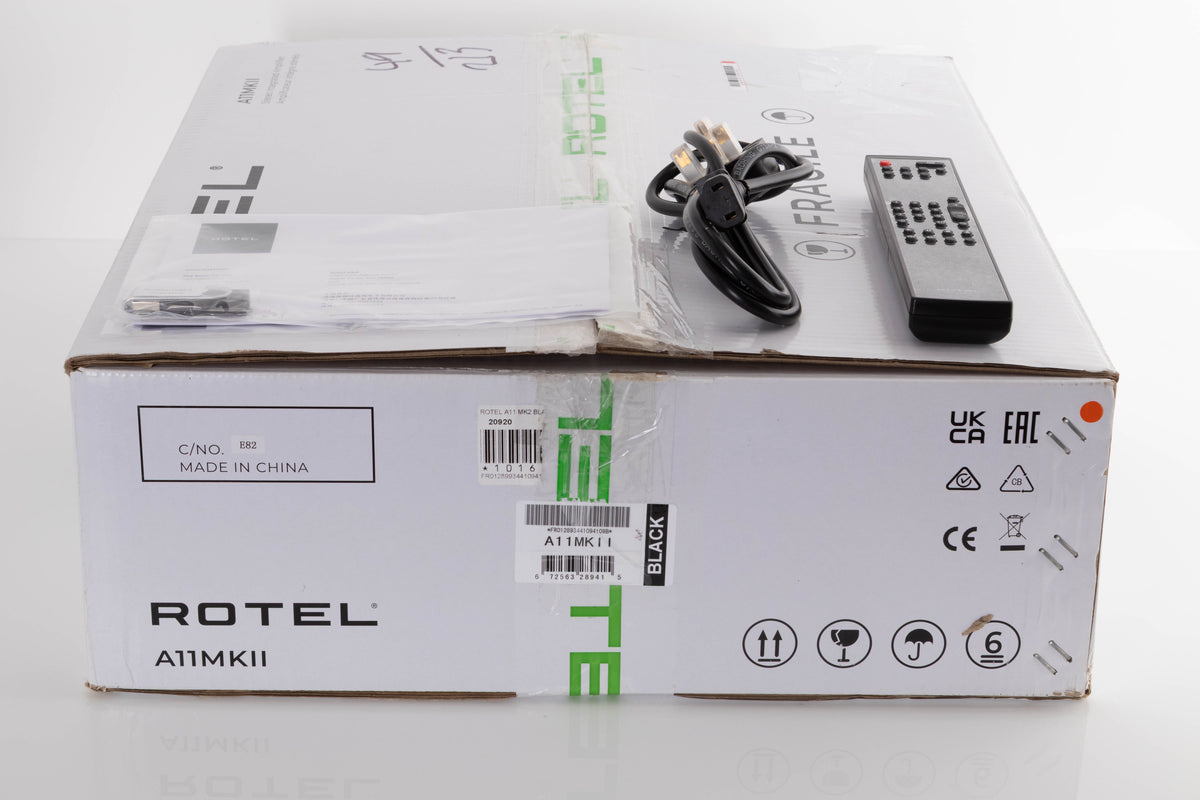

The intuitive front panel layout includes Bass, Treble, and Balance rotary controls and source input selection ensuring the A11 MkII is personal and a pleasure to operate up close. The included IR remote drives a motorized analogue volume controller for ease of use at the listening position.

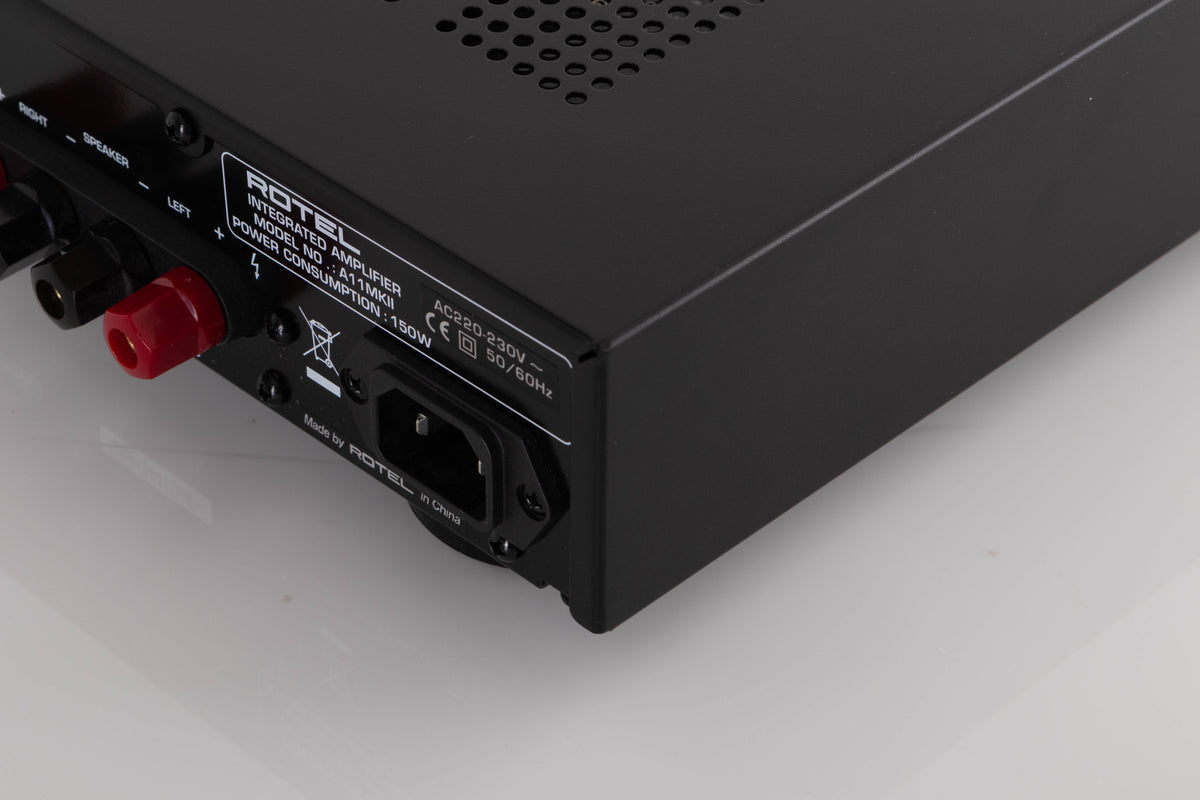

User friendly features such as a detachable IEC power cord, two 12V trigger outputs, heavy 5-way speaker binding posts, and signal sensing auto power on/off functions ensure compatibility with any installation.

ABOUT ROTEL
Our story began over 60 years ago. Over the decades, we have received hundreds of awards for our products and satisfied hundreds of thousands of people who take their entertainment seriously - like you.
Rotel was founded by a family whose passionate interest in music led them to manufacture high-fidelity components of uncompromising quality. Through the years, that passion has remained undiminished and the family goal of providing exceptional value for audiophiles and music lovers, regardless of their budget, is shared by all Rotel employees.
Rotel’s engineers work as a close team, listening to, and fine tuning, each new product until it reaches their exacting musical standards. They are free to choose components from around the world in order to make that product the best they can. You are likely to find capacitors from the United Kingdom and Germany, semiconductors from Japan or the United States, while toroidal power transformers are manufactured in Rotel’s own factory.
We all have concerns about our environment. And, as more and more electronics are produced it is especially important for a manufacturer to do all it can to engineer products that have a minimum impact on the environment.
At Rotel, we are proud to do our part. We have reduced the lead content in our products by using special lead-free ROHS solder and components. Our engineers continually strive to improve power supply efficiency without compromise to quality. When in standby mode Rotel products use minimal power to meet global Standby Power Consumption requirements.
The Rotel factory is also doing their part to help the environment through constant improvements to product assembly methods for a cleaner and greener manufacturing processes.

Power Output: 50 Watts (8 Ohms); 62 Watts (4 Ohms)
Total Harmonic Distortion: < 0.03%
Intermodulation Distortion: < 0.03% (60 Hz : 7 kHz, 4:1)
Frequency Response:
Phono Input: 20 Hz - 20 kHz, - 0.5 dB, + 0.3 dB
Line Level Inputs: 10 Hz - 100 kHz, - 0.5 dB, + 0.05 dB
Damping Factor: 120 (20 Hz - 20 kHz, 8 Ohms)
Input Sensitivity / Impedance:
Phono Input: 1.6 mV / 43 kΩ
Line Level Inputs: 130 mV / 45 kΩ
Input Overload:
Phono Input: 50 mV
Line Level Inputs: 4 V
Tone Controls - Bass / Treble: ± 6 dB at 100 Hz / 10 kHz
Signal to Noise Ratio (IHF “A” weighted):
Phono Input: 85 dB
Line Level Inputs: 90 dB (Max)
Line Level Inputs: 95 dB (Min)
Digital Section:
Frequency Response: 20 Hz - 20 kHz, - 0.15 dB, + 0 dB
Input Sensitivity / Impedance: - 20 dBfs / 75 Ohms
Digital Inputs: SPDIF LPCM (up to 24-bit/192 kHz)
Digital to Analog Converter:
Texas Instruments: PCM5102A, 384 kHz 32-bit
Power Requirements: 230 V, 50 Hz
Power Consumption: 150 W; < 0.5 W (Standby)
Dimensions: 430 (W) x 347 (D) x 73 (H) mm
Weight: 6.8 kg
