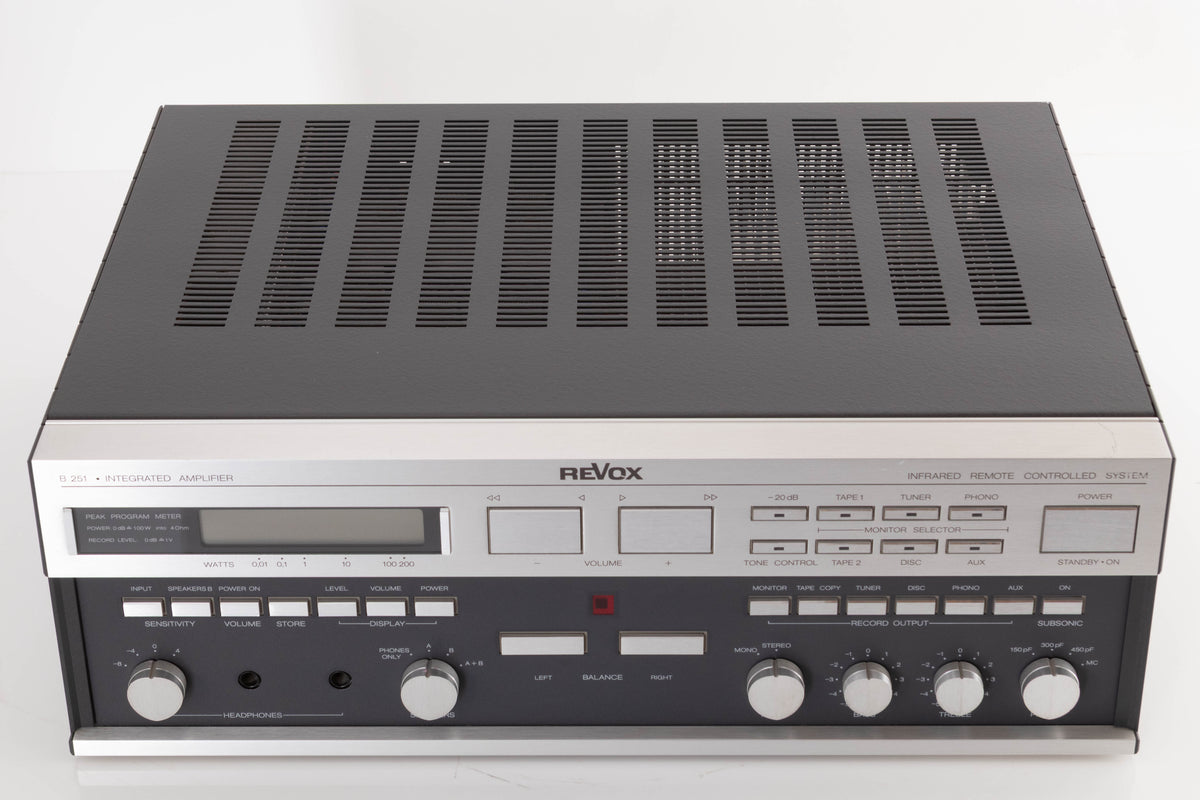

Revox B251 Integrated Amplifier

With the new B251 programmable integrated amplifier from REVOX, the future of audio technology has already become present.

Amplifier Power As It Should Be
The 300-watt music output per channel ensures effective distortion-free playback. Even in very large rooms.
The B251 has the dynamics of a PCM device. It is powered by a switched power supply with a high degree of efficiency. Even under the most extreme conditions, this high-frequency transformer ensures a hum-free transmission.

Sensitivity Of The Inputs
One of the most beautiful features is the finely differentiated tuning of the seven sound sources. The selected sensitivities can be stored individually: when switching from one sound source to the other, there are no volume gradients.
In addition to inputs for tuners and two tape recorders, there is a phono input with selectable input capacity. In addition, a retrofittable moving-coil or moving magnet input, an auxiliary input (AUX), an input for the compact disc device. All inputs are characterized by excellent crosstalk. Two separate signal paths allow the recording of any sound source on tape while listening to another over loudspeakers.

The Other Advantages
A new feature of the REVOX amplifier is the exclusive quiescent current control. Takeover distortions are avoided while at the same time a very fast rise time (2 μs) is achieved. This is of crucial importance, especially with regard to the digital compact disc.
A special feature is the external voltage ratio of 80 dB, which is already achieved at 50 mW output power; which, by the way, underlines the PCM suitability. Two speaker groups as well as the headphones can be operated at different volumes. Exerts taken from translated Revox Brochure

Music Power
2 x 150 W into 8 Ohms
2 x 300 W into 4 Ohms
Sinus
2 x 100 W into 8 Ohms
2 x 150 W into 4 Ohms
Continuous sine wave power
2 x 100 W into 4 Ohms, both channels driven
Damping factor
100 at 1 kHz/8 Ohms
Inputs Sensitivity/Impedance
TUNER: 160 mV … 2.3 V, nominally 500 mV/47 kOhms
AUX: 160 mV … 2.3 V, nominally 500 mV/47 kOhms
C-DISC: 160 mV … 2.3 V, nominally 500 mV/47 kOhms
TAPE 1: 160 mV … 2.3 V, nominally 500 mV/47 kOhms
TAPE 2: 160 mV … 2.3 V, nominally 500 mV/47 kOhms
EXT. FILTER: nominally 700 mV/47 kOhms
PHONO MC: 100 µV … 12 mV, nominally 300 µV/100 Ohms
PHONO MM: 16 mV … 23 mV, nominally 5 mV/47 kOhms/68 pF 400 pF
Outputs Level/Permissible Load
TAPE 1: 100 mV … 1.7 V, nominally 500 mV/>10 kOhms
TAPE 2: 100 mV … L7 V, nominally 500 mV/>10 kOhms
TAPE COPY: nominally 500 mV/>10 kOhms
EXT. FILTER: nominally 700 mV/>10 kOhms
HEADPHONES (2 x): 15 V max. (at 100 W/4 Ohms),
adjustable in 4 steps, + 4, 0, - 4, - 8
Tone Control
Bass: 30 Hz/+ 12 dB ... - 12 dB; Treble: 15 kHz/+ 7 dB ... - 7 dB
Subsonic Filter
18 Hz, 18 dB/Octave (assignable to each program source)
Signal to Noise Ratio, Linear
96 dB relative to nominal power output 80 dB at 50 mW
(High level inputs, referred to 500 mV, 10 kOhms termination)
75 dB relative to nominal power output 75 dB at 50 mW
equivalent noise voltage at the input - 124 dBv
(Phono MM input, referred to 5 mV, 1 kOhm termination)
Crosstalk between inputs
90 dB (at 10 kHz)
Channel Separation
75 dB (at 1 kHz)
Frequency Response
20 Hz - 20 kHz, + 0 / - 0.2 dB
Phono RIAA Equalization
± 0.3 dB (4 time constants)
Total Harmonic Distortion
0.01% at nominal power output; 0.01% at 50 mW (at 10 kHz)
Power Consumption
650 W (Max)
Options
PHONO MC-Input
Dimensions
450 (W) x 332 (D) x 153 (H) mm
Weight
8.5 kg
