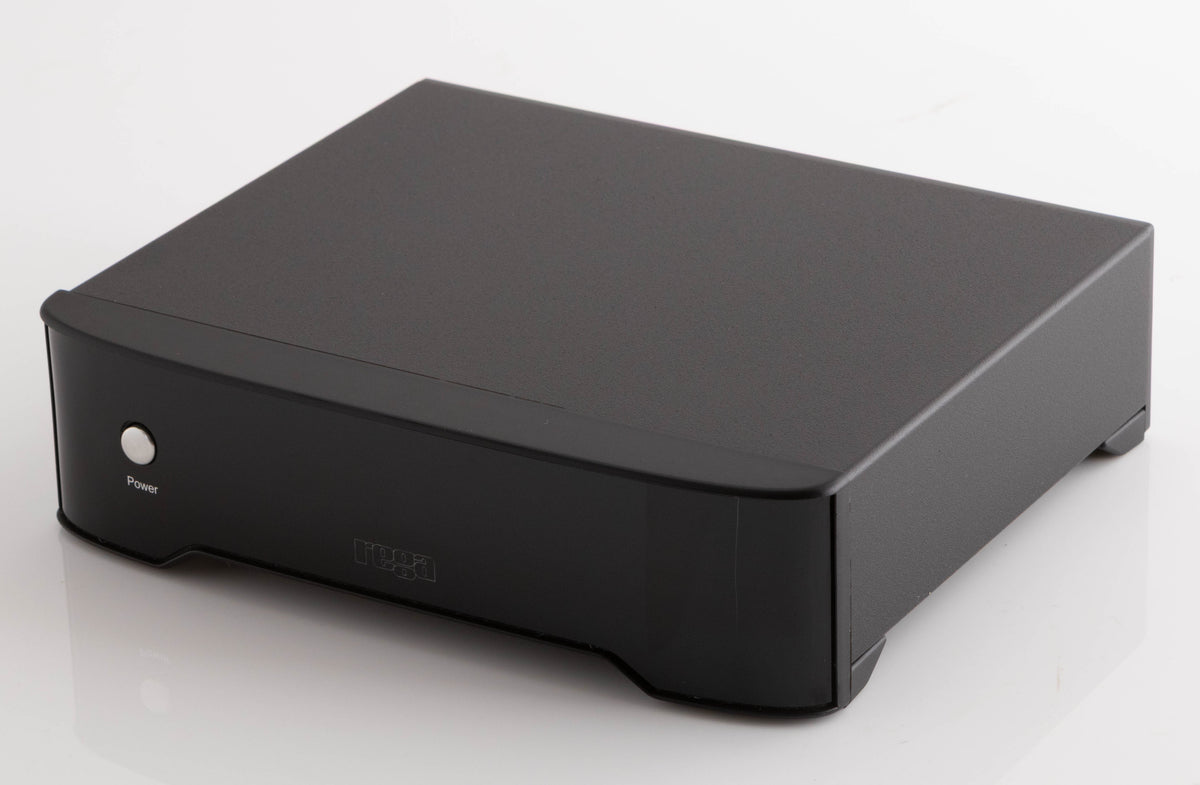

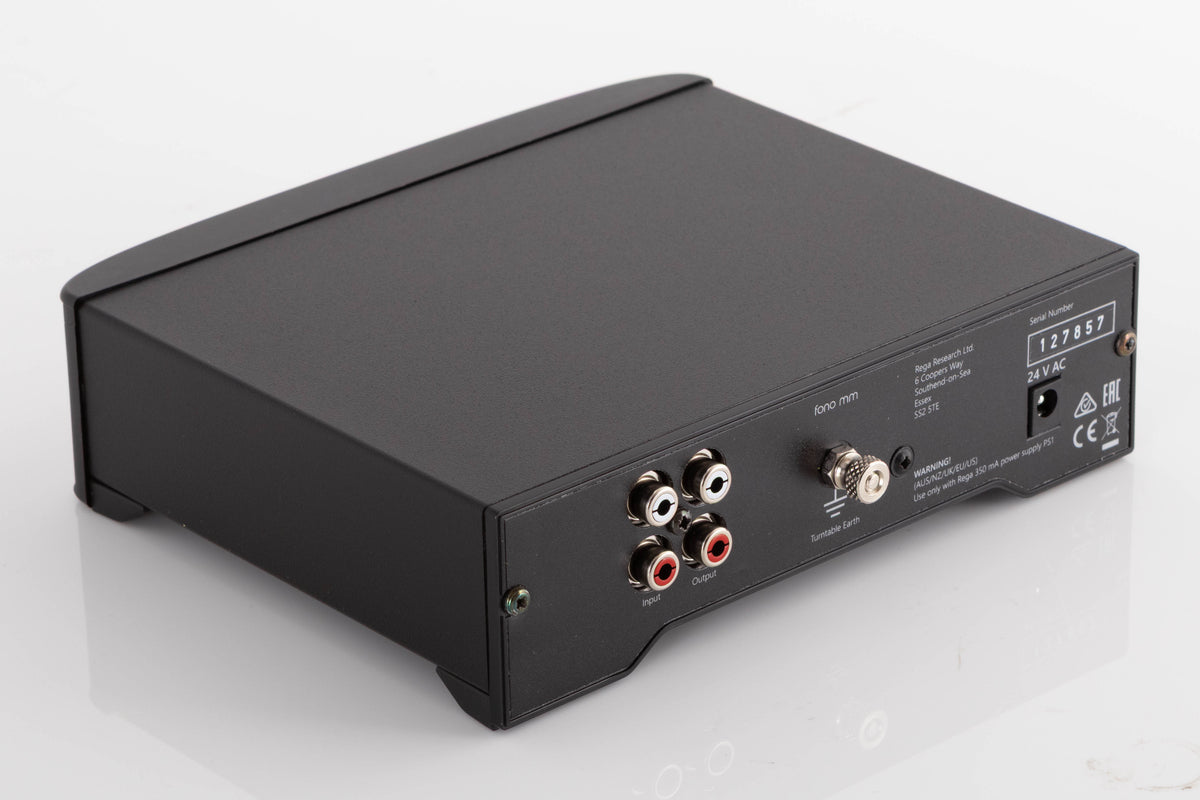

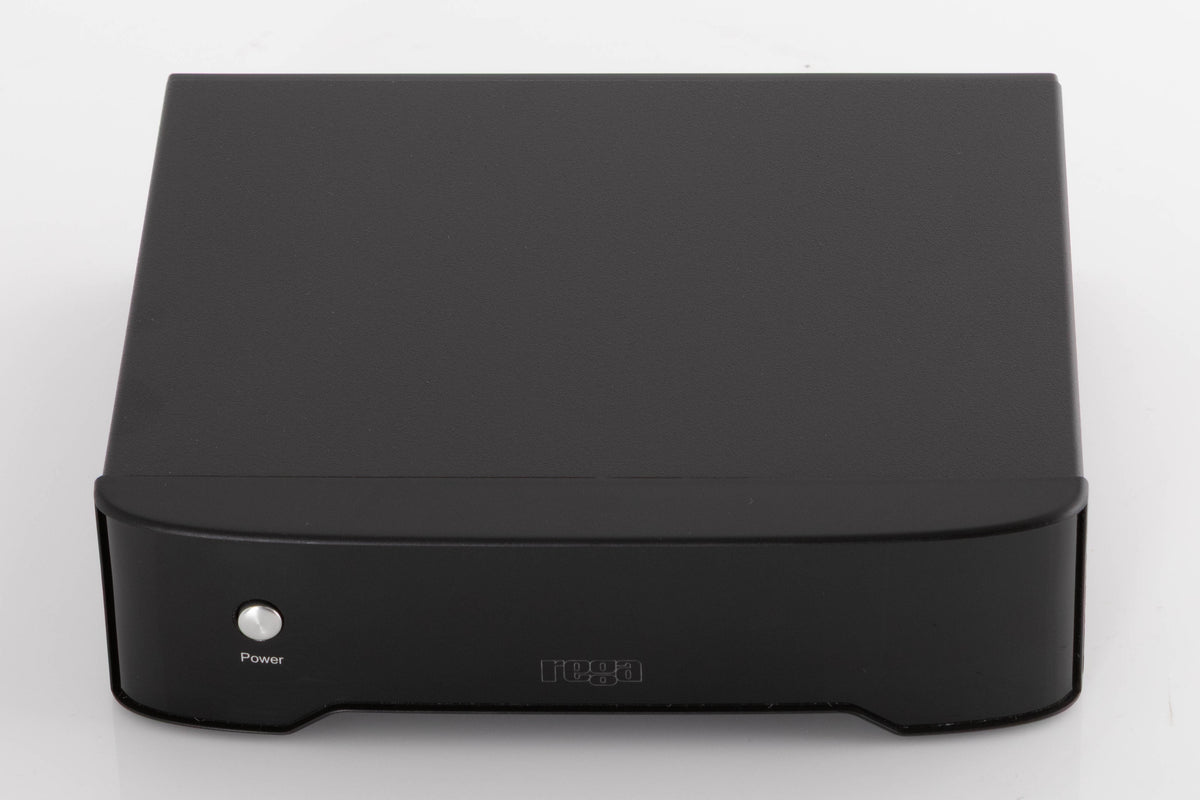

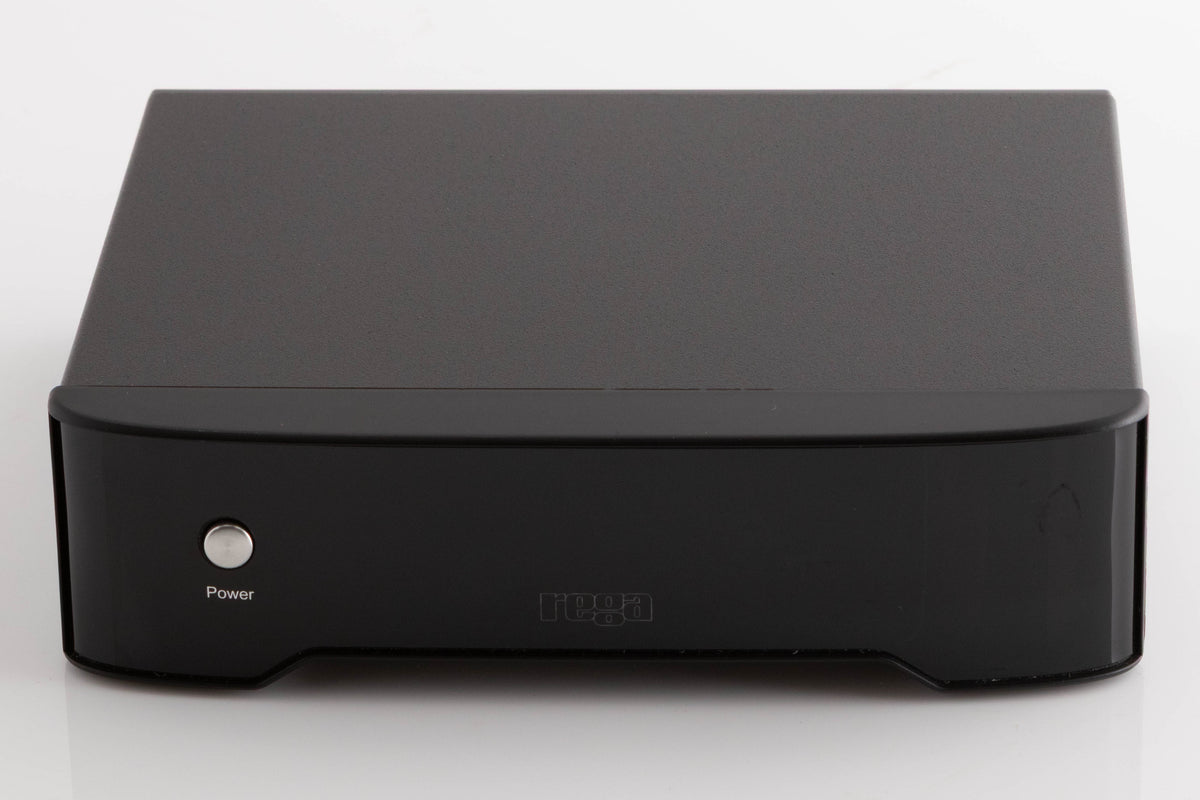

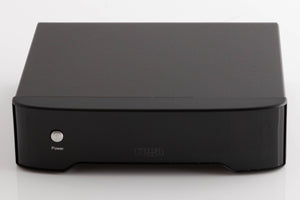

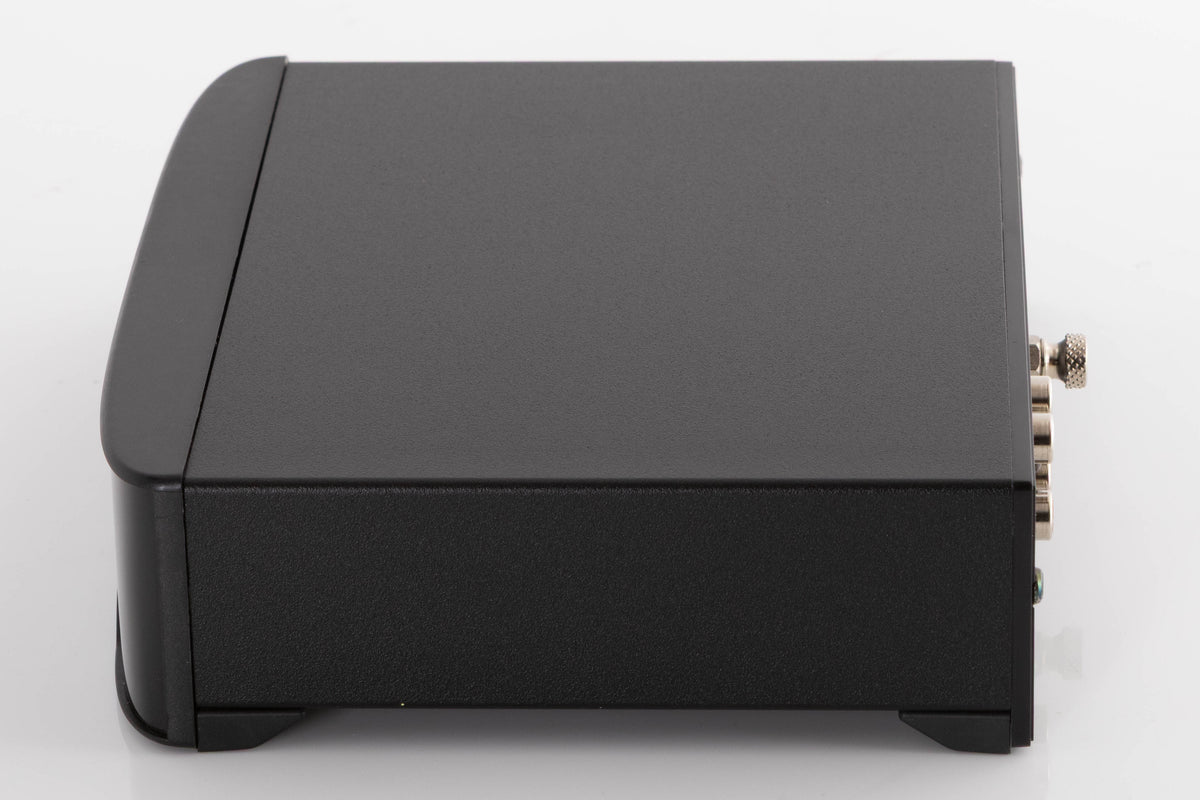

Rega fono MM Phonostage

The Fono MM has been designed to be effective, easy to use, and above all, to reproduce music. The Fono MM uses a fully discrete, cascaded, complementary amplifier input stage. This configuration has been proven to work well with moving magnet cartridges. The RIAA equalization has been split into two stages to minimise interaction. Polyester capacitors have been used in the signal path and polypropylene capacitors are used in the RIAA equalization circuits.
The aesthetic design of the Fono MM was as important as the quality of its electrical capabilities, so it benefits from the same aluminium case as the Rega TTPSU and Fono MC amplifier, giving it a design which offers a familiar feel and moreover brings it in line with its illustrious bigger brothers. The Fono disk stage is designed to amplify the signal from a moving magnet cartridge to a level which can feed into a 200 mV line level input on a standard hi-fi amplifier.
Features

• Dedicated Moving Magnet stage
• Simple connectivity and operation
• Custom case design
• Two stage RIAA Equalization

Input Sensitivity: 1.7 mV for 200 mV Output
Input Loading: 47 kΩ in parallel with 100 pF
Maximum Input Level: 60 mV at 1 kHz
Gain: 41.4 dB at 1 kHz
Output Impedance: 200 Ω
Recommended Minimum Output Load Resistance: 5 kΩ
Frequency response: 15 Hz (- 3 dB) to 100 kHz (- 0.2 dB)
RIAA Accuracy: Better than ± 0.2 dB 100 Hz to 100 kHz
Power Requirements: 24 V AC at 80 mA maximum
