Quad Revela 1 Standmount Speakers - Walnut

The QUAD Revela Series is a striking new speaker series from QUAD - the originators of ‘The Closest Approach To The Original Sound’.
The Revela 1 and Revela 2 harness highly evolved versions of classic QUAD technologies that can be traced back to 1949 and QUAD’s first speaker system, the Corner Ribbon. These technologies, elevated to breathtaking new heights using modern materials and advanced contemporary design, have delivered two new models that are easy to accommodate and utterly beguiling to hear.
The Revela 1 is a standmount speaker with a two-way driver configuration and dimensions of 395 x 246 x 386mm (H x W x D). The Revela 2 is a three-way floorstander with the same cabinet width and depth (although the plinth is a little wider/deeper) and a height of 962mm. Both models are available in luxuriously lacquered black or walnut finish options, the latter featuring a striking combination of wood veneer interlinked with piano black.

Natural Highs

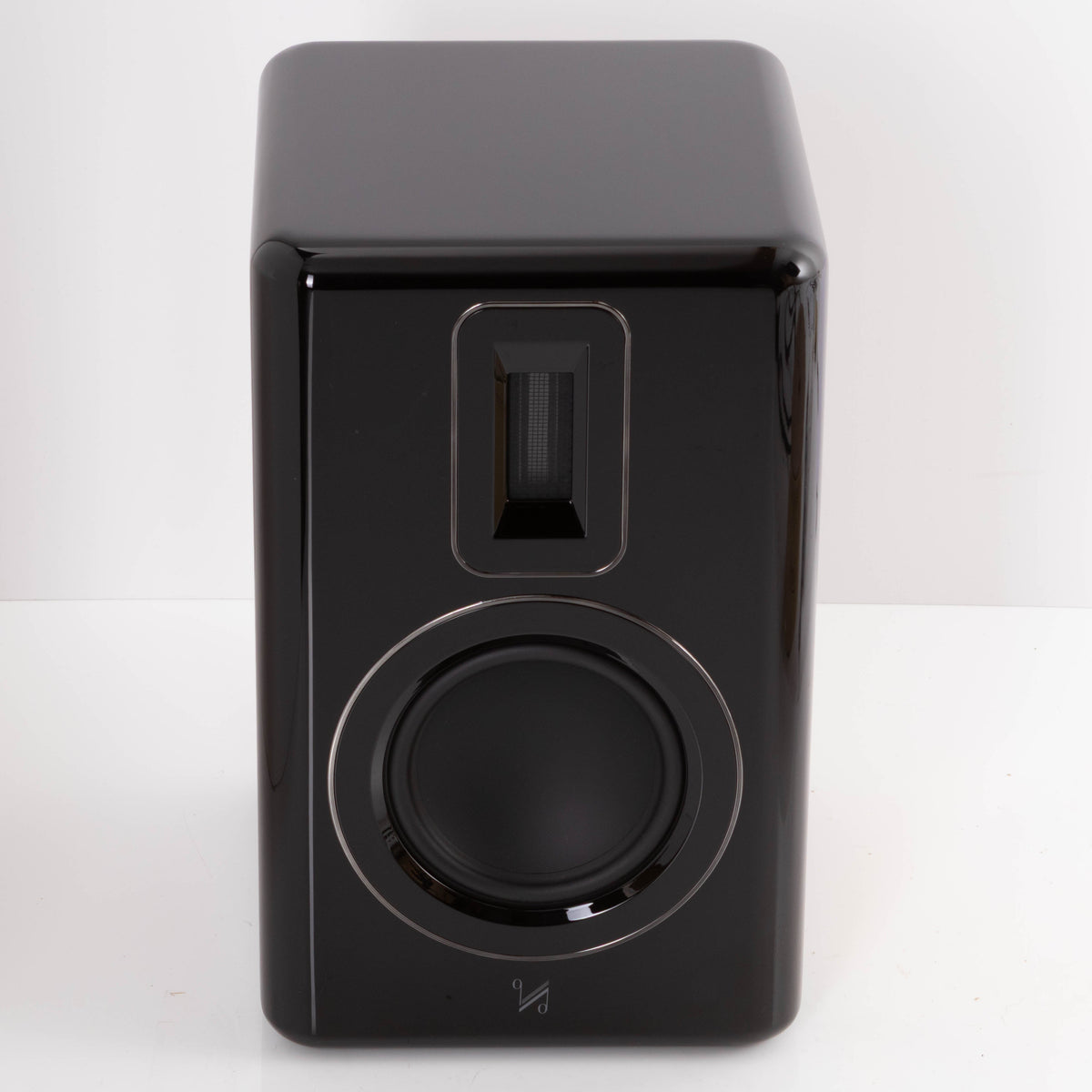

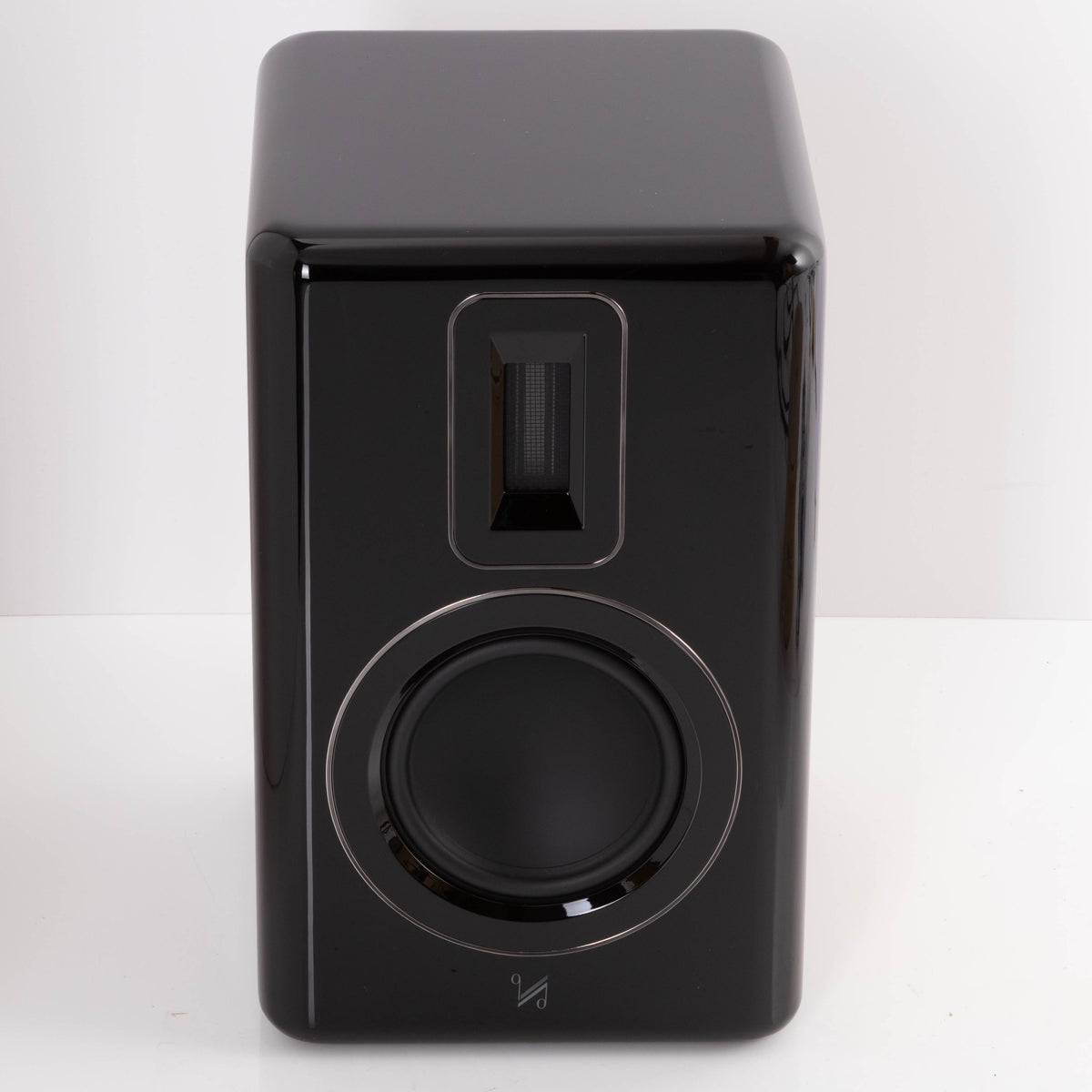

A critical component of both Revela models is the new QUAD True Ribbon high-frequency driver. With its origin stretching back more than 70 years, QUAD’s ribbon driver has evolved over many product generations. This new version took four years to develop and is unquestionably the finest iteration yet.
The Revela’s True Ribbon driver delivers effortlessly extended high frequencies that are audibly superior not only to those supplied by typical dome tweeters, but also other planar driver types that are not ‘true ribbons’. It works by positioning a ribbon of thin aluminium foil in a high-strength magnetic field, through which the audio signal flows from the amplifier.
The advantage of this ‘true ribbon’ design is that the diaphragm is fully energised by the audio signal and does not suffer from the breakup modes and resonances encountered in domes and other planar types. Being driven evenly over the whole radiating surface and having a mass that is typically one-tenth that of a dome means that the precision and transient response of the ribbon to the audio signal from the amplifier yields a remarkably clean, detailed and pure output. The ribbon responds to the most subtle waveforms and correctly relays the harmonics of instruments and vocals in recordings to provide a realistic sense of space, depth and air.

The Big Reveal
QUAD’s engineers have developed a new material for the Revela speakers’ mid/bass diaphragms - a unique formulation of wood pulp and artificial fibres named ‘Reveal’ because of its natural, transparent and detailed output. By adding artificial fibres - like para-aramids - to the pulp, the Reveal diaphragm is further damped and strengthened, providing superior bass control and smoothing upper-midrange resonances.
The Reveal diaphragm is incorporated into a driver built on a cast chassis and fitted with a high-power magnet and voice coils to achieve high sensitivity. The Revela 1 features a single 165mm mid/bass driver, whereas the Revela 2 dedicates two 165mm drivers to bass frequencies with a 150 mm unit handling the midrange.

Boxing Clever

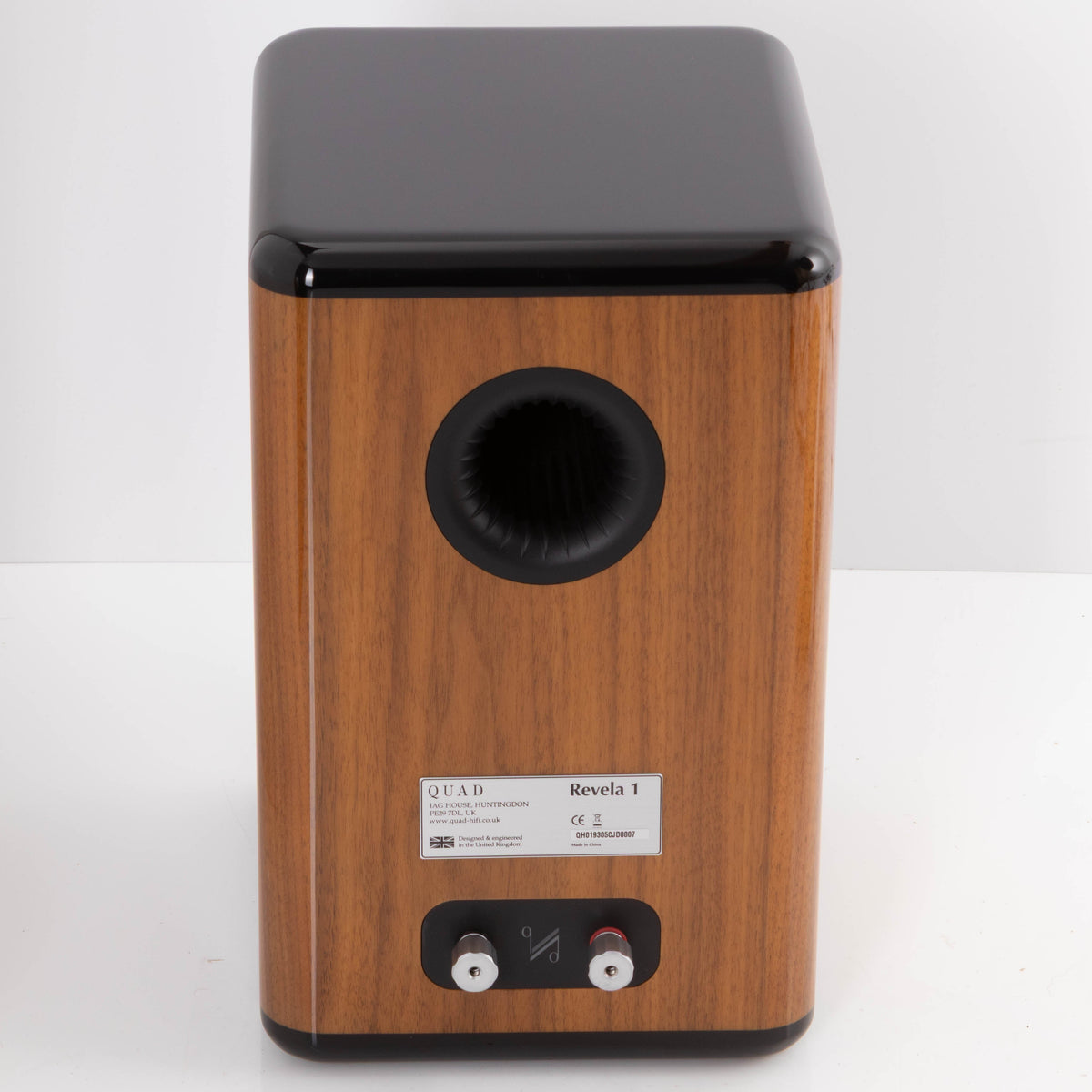

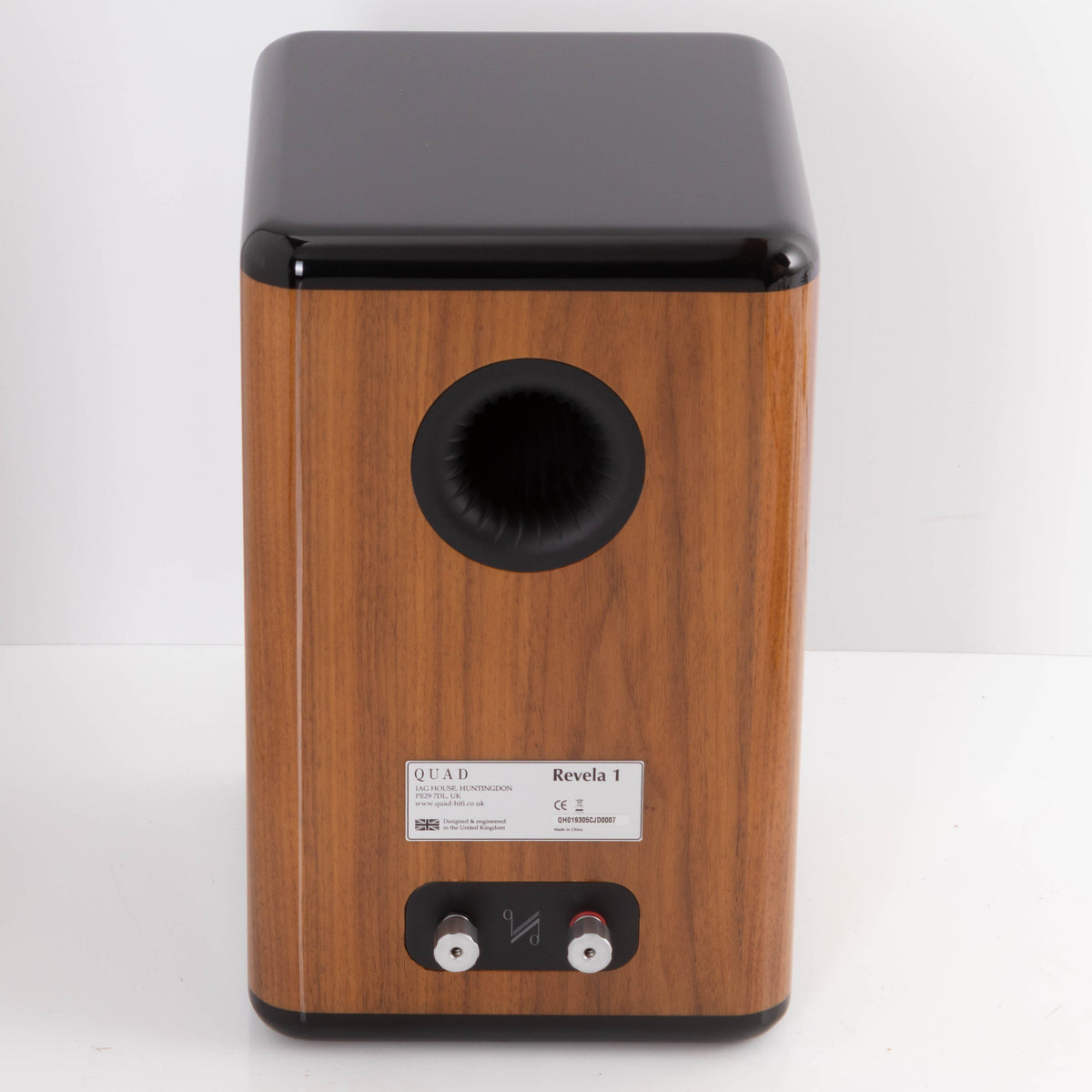

The Revela speakers’ cabinets utilise optimally stressed and braced panels with generously radiused edges to reduce unwanted diffraction effects. Around the back, bass reflex ports (the Revela 1 has one, the Revela 2 has two) include longitudinal splines that help smooth airflow and increase the efficiency of the reflex system for deep, powerful bass performance.

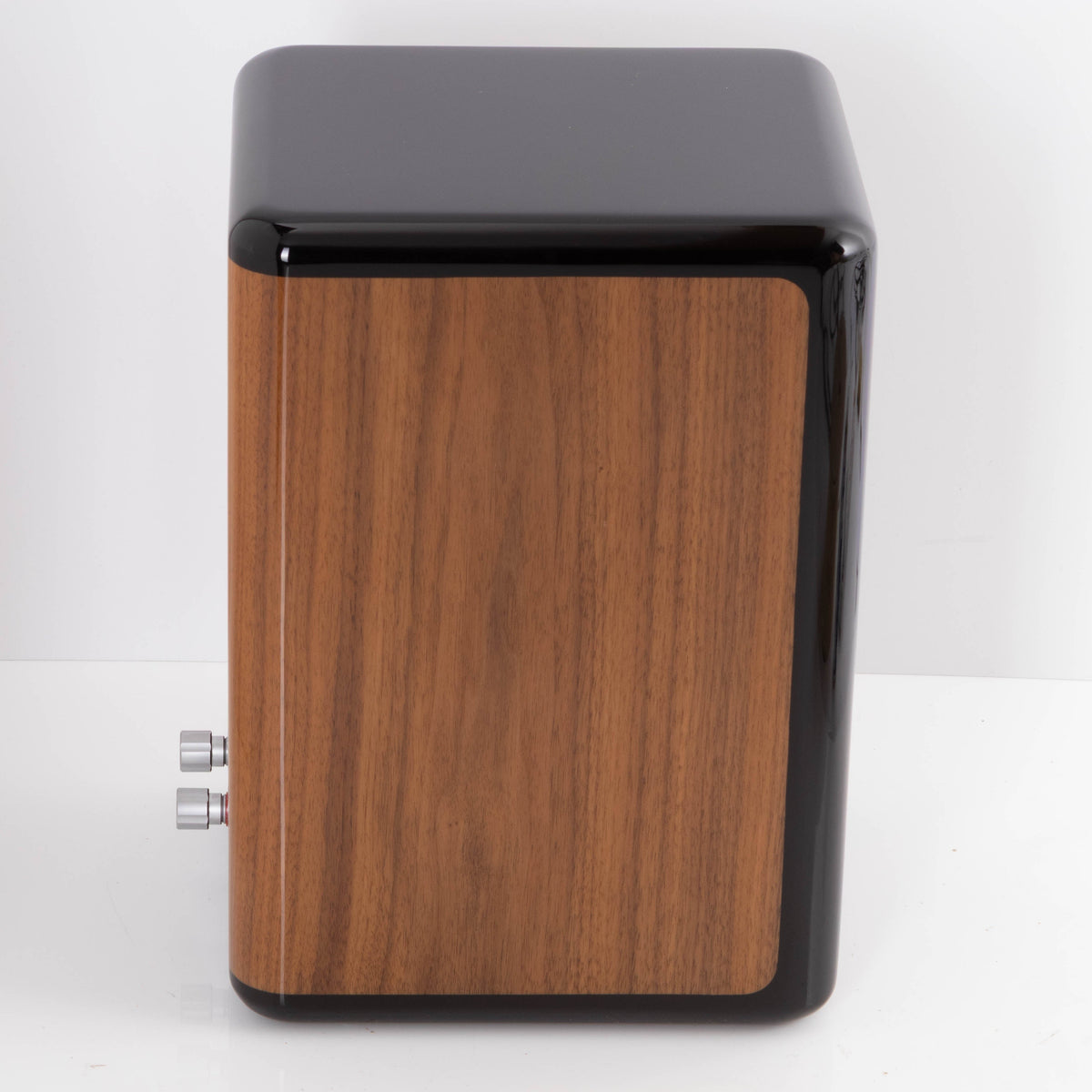

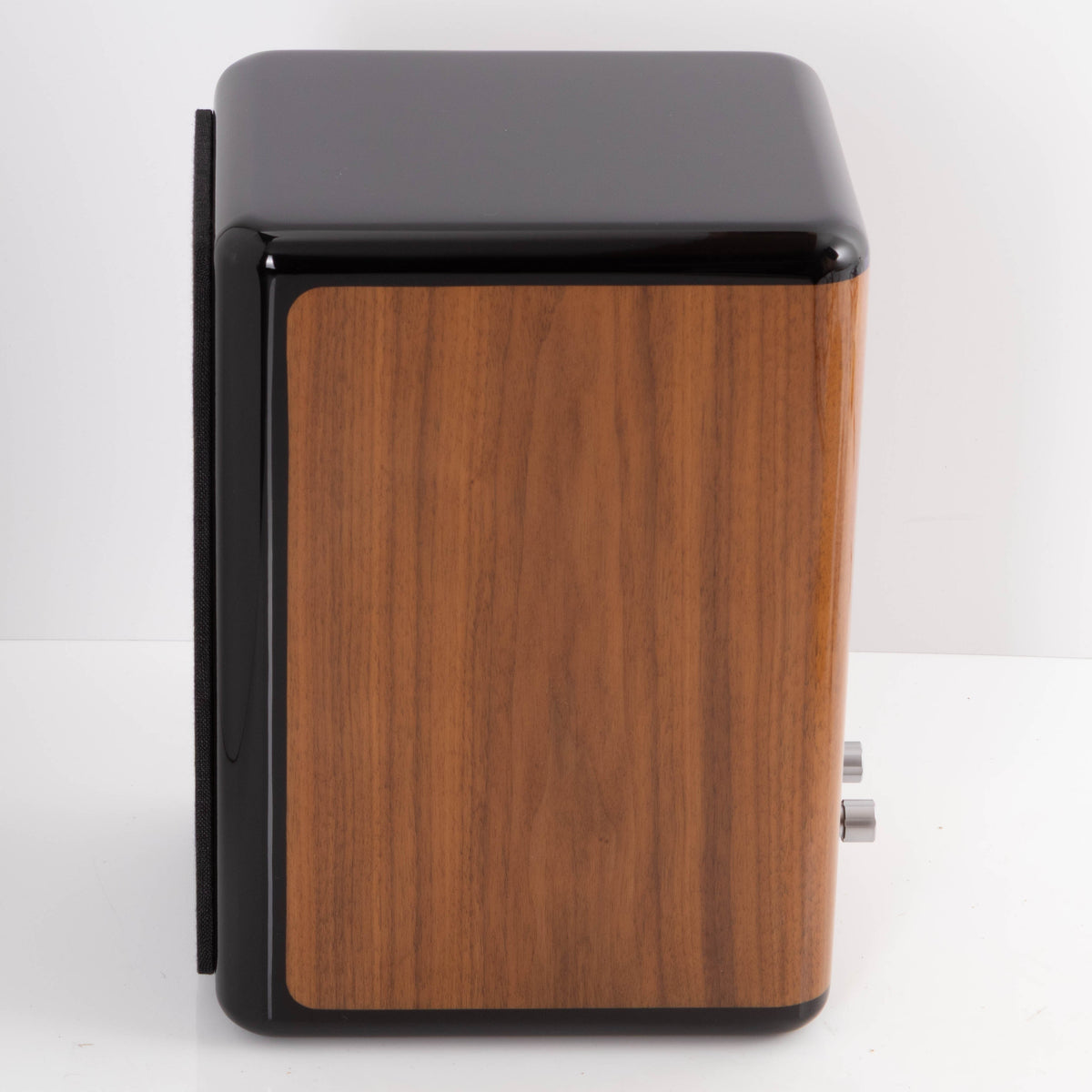

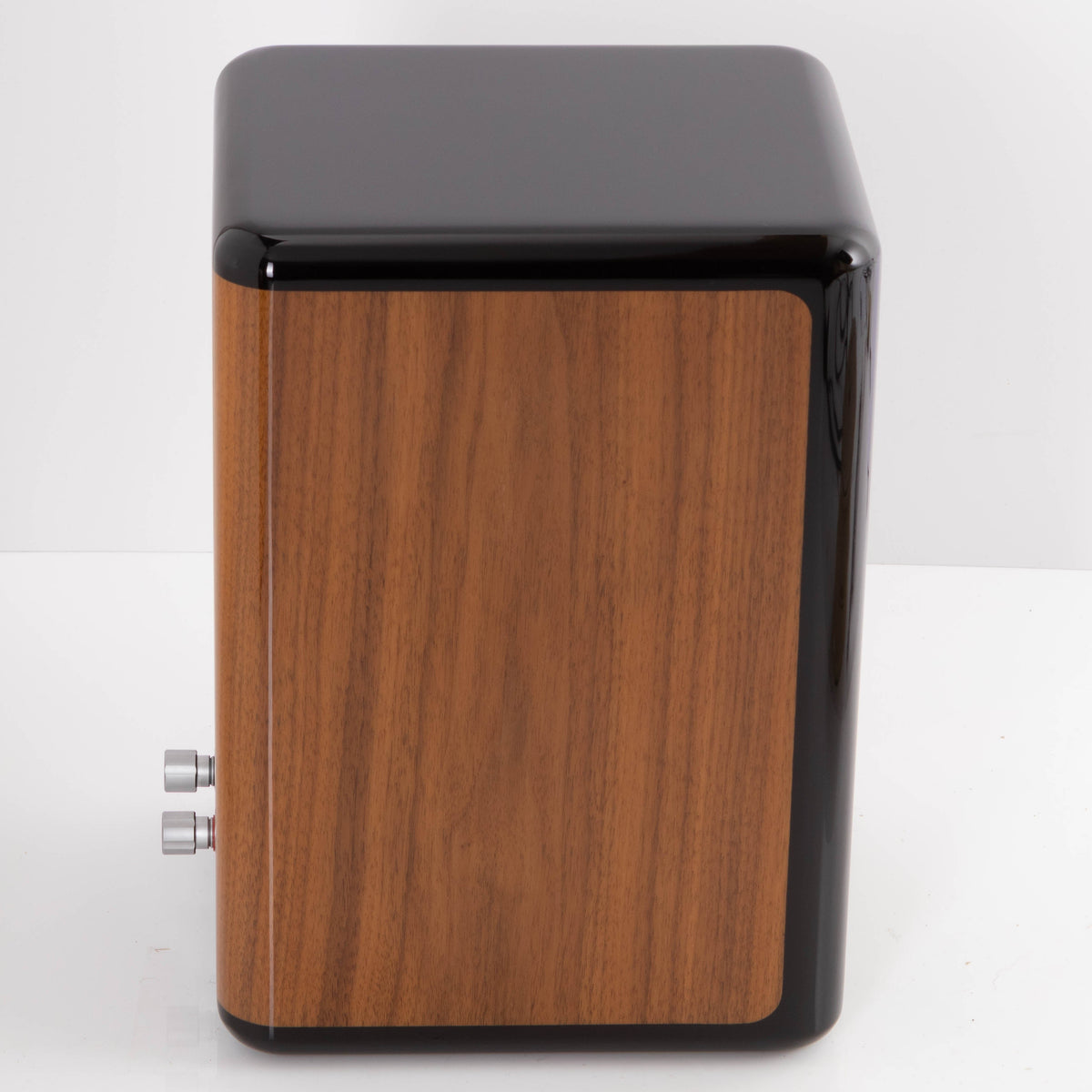

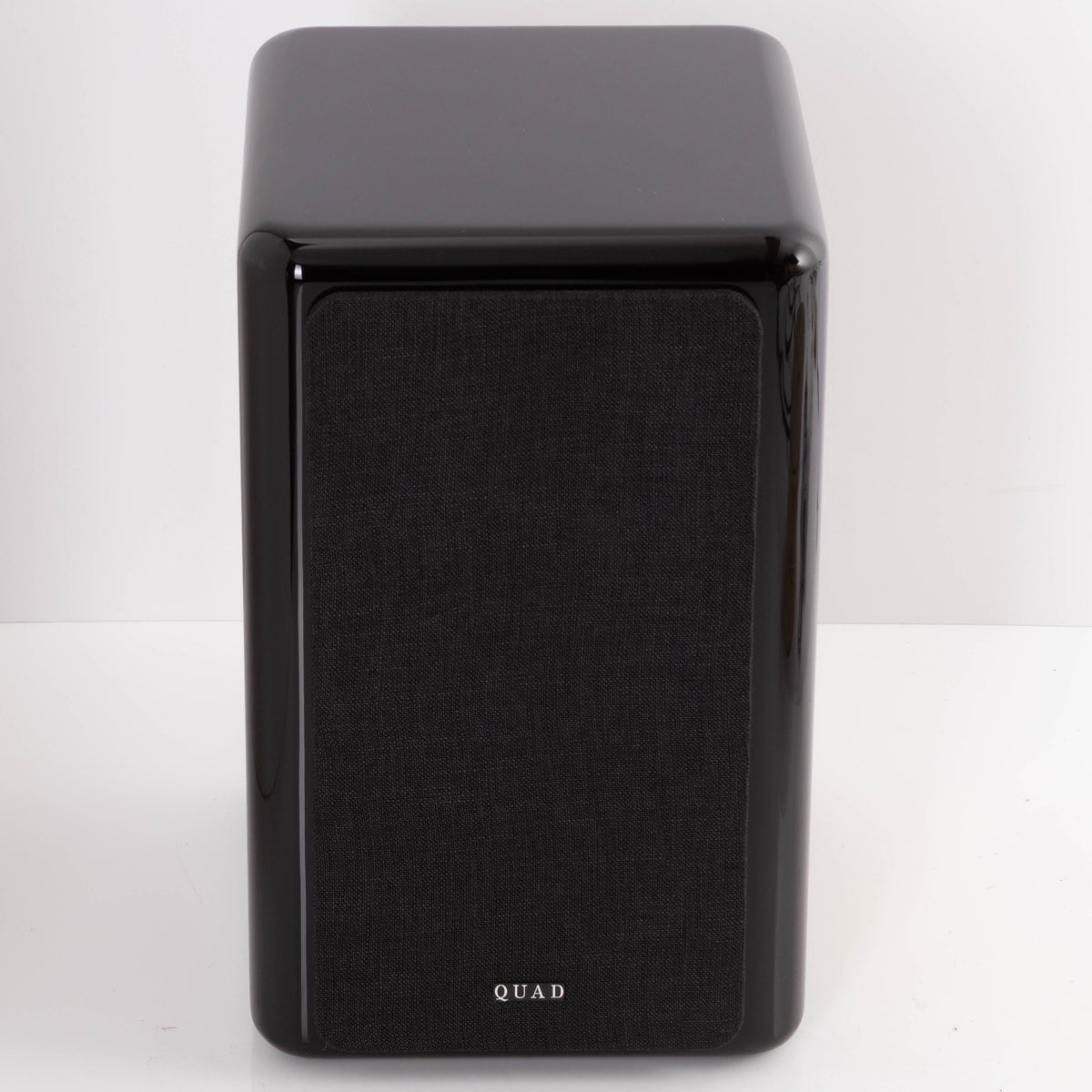

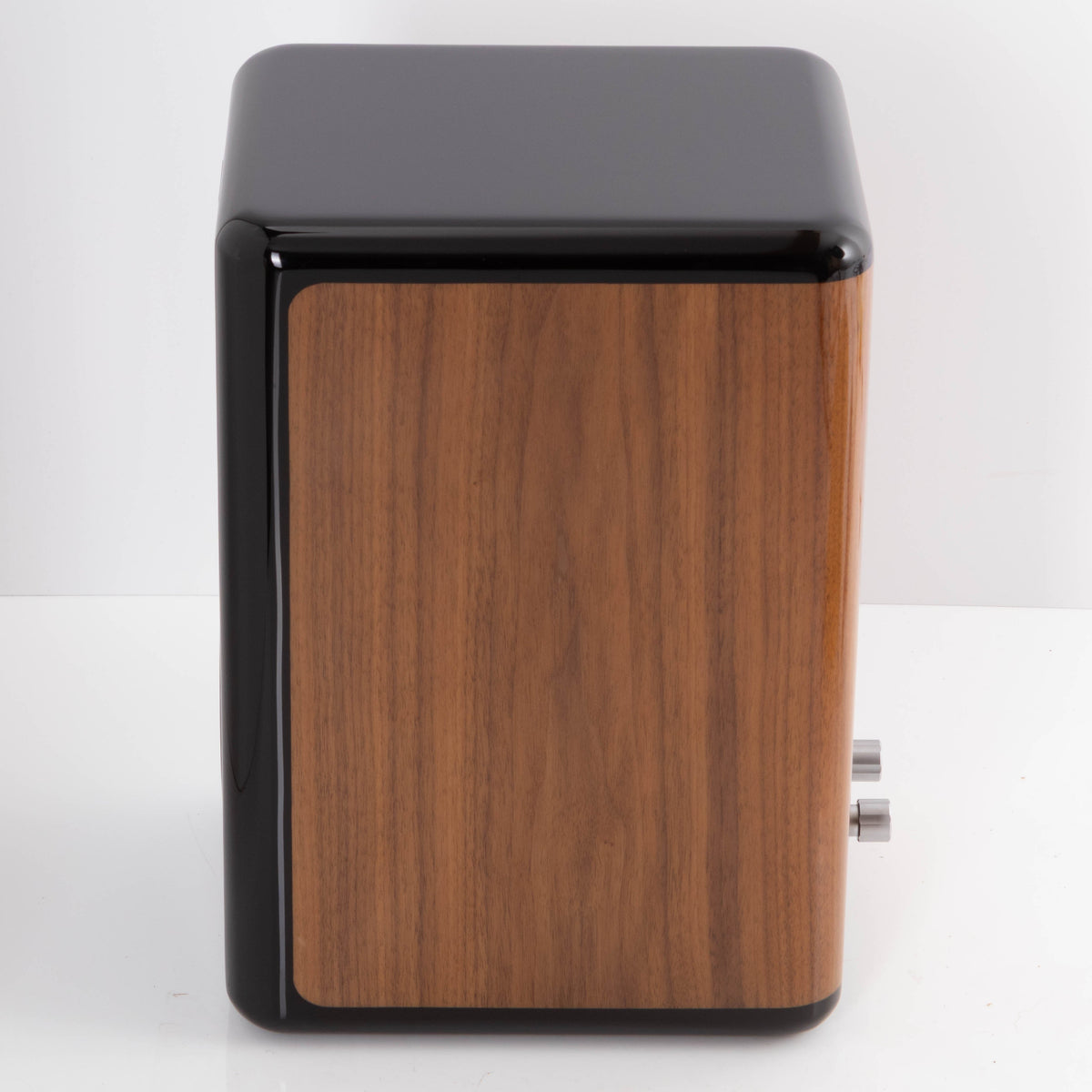

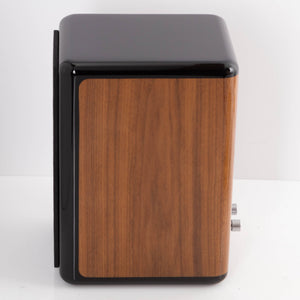

For the all-black finish option, multiple layers of lacquer are applied over deep black veneer to provide a lustrous finish, protect the cabinet and help damp unwanted acoustic radiation. The walnut finish option maintains the piano black front baffle, top and base, and adds interlocked wood veneer on the sides and rear, again generously lacquered.

REVELA 1 Standmount Speakers
The Revela 1 is a classic bookshelf/stand-mount monitor equipped with a 6.5” woofer and offered with an optional custom-engineered stand of equally striking design. The stand is finished in the same high-gloss paint standards as the speaker and provides the perfect mounting option and display solution for the stand-mount offering in the series.
QUAD’s Director of Acoustics, Peter Comeau, has furthered his ground-breaking engineering work in further developing this Ribbon HF with over four years of research to bring a new level of musical delicacy, smoothness and ‘hear-through’ performance, thus revealing beautiful details of your music collection with a truly breath-taking performance.

Reveal™
The advanced ‘True Ribbon’ unit is married to equally high-performance bass and midrange drivers. Again, subject to many years of research, development, testing and continuous innovation, the mid and bass drivers feature a new advanced fibre composition, aptly labelled ‘Reveal™’. Refined for seamless integration with the ‘True Ribbon’ HF, the smooth diaphragm drivers were purpose selected based on their rigidity and excellent self-damping properties. This new diaphragm, combined with a new, specially developed custom rubber surround, for a greater excursion and a new high-power motor system, means that the result is a superb bass performance, with power, depth, speed and articulation in abundance. And, of course, putting it all together is a phase-compensated Acoustic Butterworth crossover resulting from not only Computer-Aided Design but also hundreds of hours of critical listening tests using all types and flavours of music to achieve perfection.

Polished to Perfection
The Revela series continues QUAD’s industrial design evolution, sported in the models of recent years – such as the Vena and Artera series. The Revela series cabinets are skilfully hand-finished to a quality far exceeding that of relative competitors in this class. The Revela series is available in options of a polished real-wood veneer and seamless polished-paint finish or a simple and uber-classy ‘all-black’ glossy paint finish. In either finish, the Revela cabinets are a sight to behold! The precision-fitted baffle is seamlessly joined, also with a polished finish, for a presentation of the highest order. More than just a genuinely stunning furniture-quality piece of craftsmanship, the cabinet is internally braced, using a purpose-engineered structure connected to the cabinet panels in a manner that dissipates unwanted vibrations and resonances, thus maintaining structural rigidity, even under the most strenuous of performances. More than just a photobook-quality design!

Free-flowing Purity
Adding to the highly effective innovations in QUAD Revela, the port tube design is precisely positioned with the optimum diameter and flaring to prevent longitudinal resonances from colouring the speaker’s performance. The low and midrange frequencies can perform with a free-flowing purity and no unintended resonance or boominess – giving you the full dynamics of your music.
A serious statement piece from QUAD, the Revela series is the culmination of more than four years of development. It offers advanced technology, beautiful looks and breath-taking performance, all combined masterfully for ‘The Closest Approach To The Original Sound’.

General Description: Bookshelf
Enclosure Type: Bass reflex
Transducer Complement: 2-way
Bass Driver: 165mm advanced fibre cone
Treble Driver: 27 x 60mm true ribbon
Sensitivity: 86 dB (2.83 V @ 1 m)
Recommended Amplifier Power: 30 - 120 W
Peak Power Handling: 120 W
Peak SPL: 102 dB
Nominal Impedance: 6 Ω
Minimum Impedance: 4.1 Ω
Frequency Response: 54 Hz - 24 kHz (± 3 dB)
Bass Extension: 40 Hz (- 6 dB)
Crossover Frequency: 2.9 kHz
Cabinet Volume: 17.6 litres
Dimensions: 395 (H) x 246 (W) x 312 (W) mm
Weight: 24.6 kg
