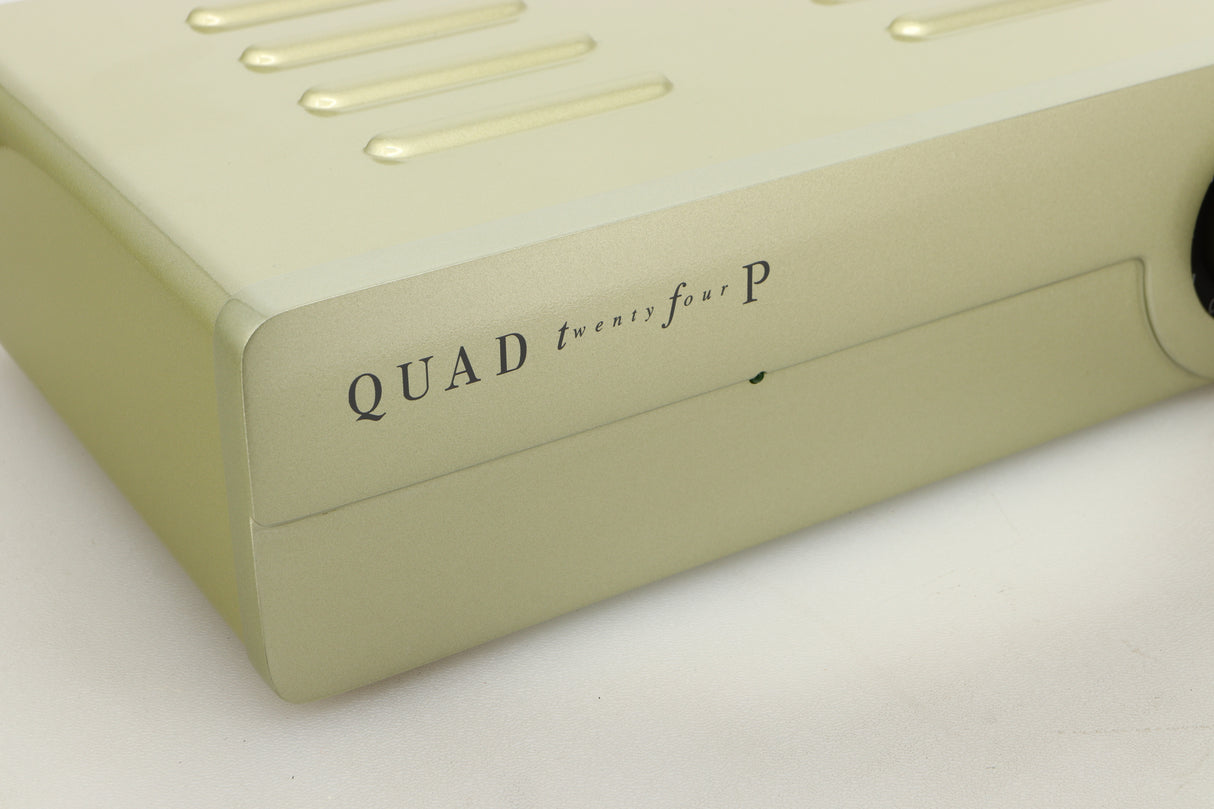

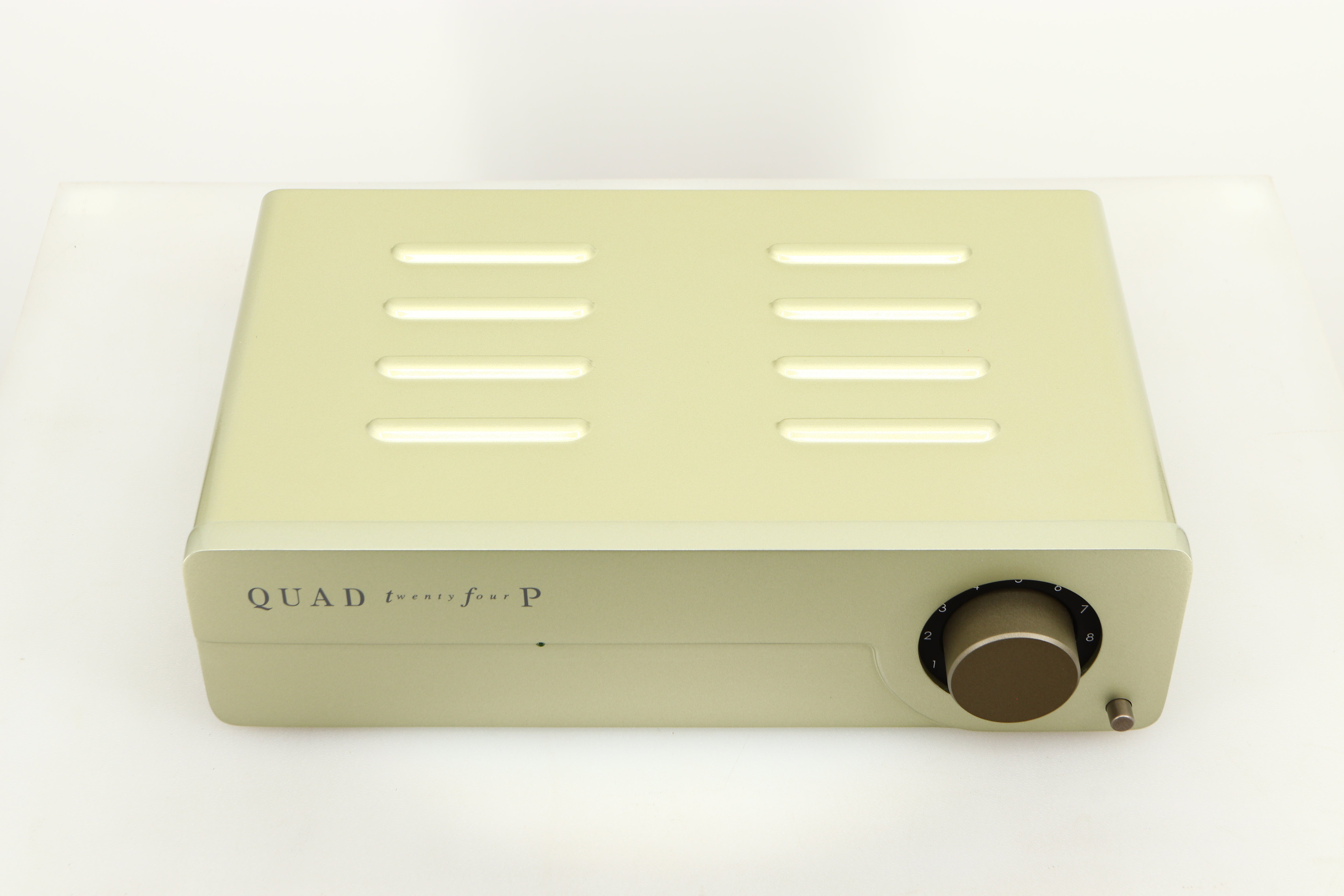

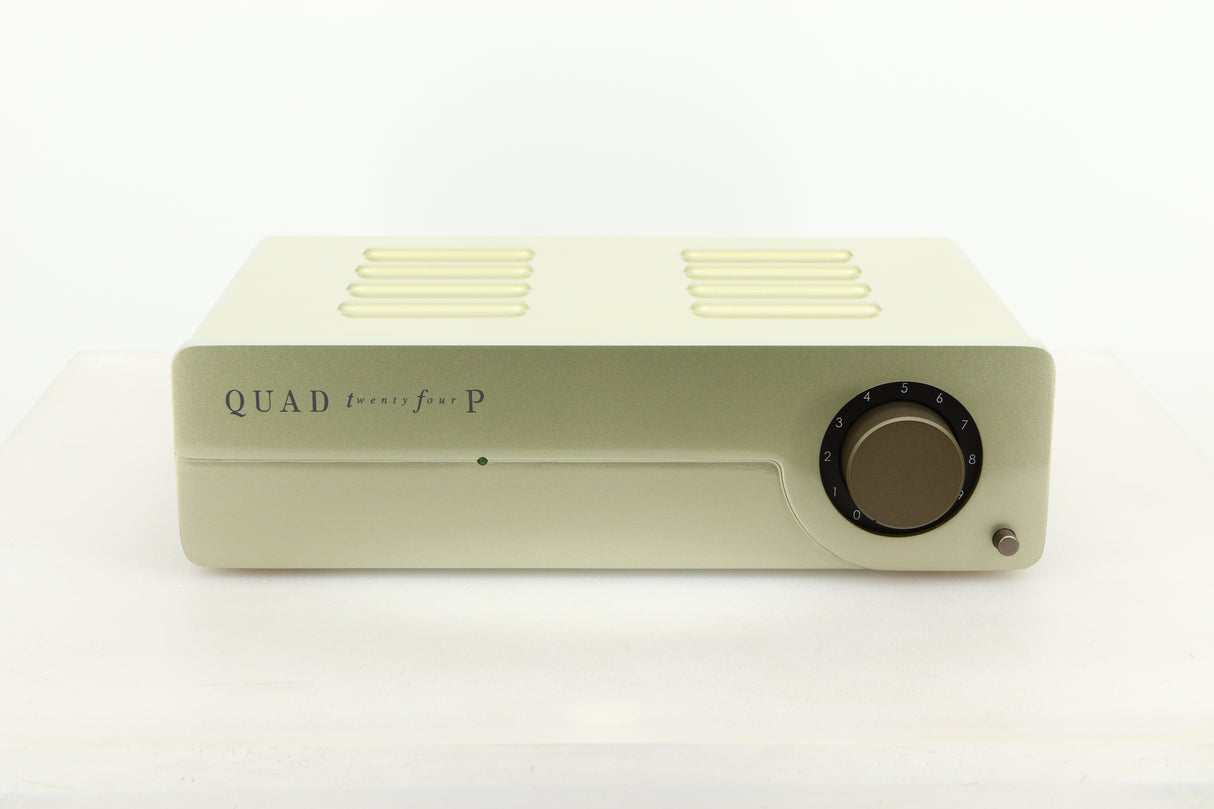

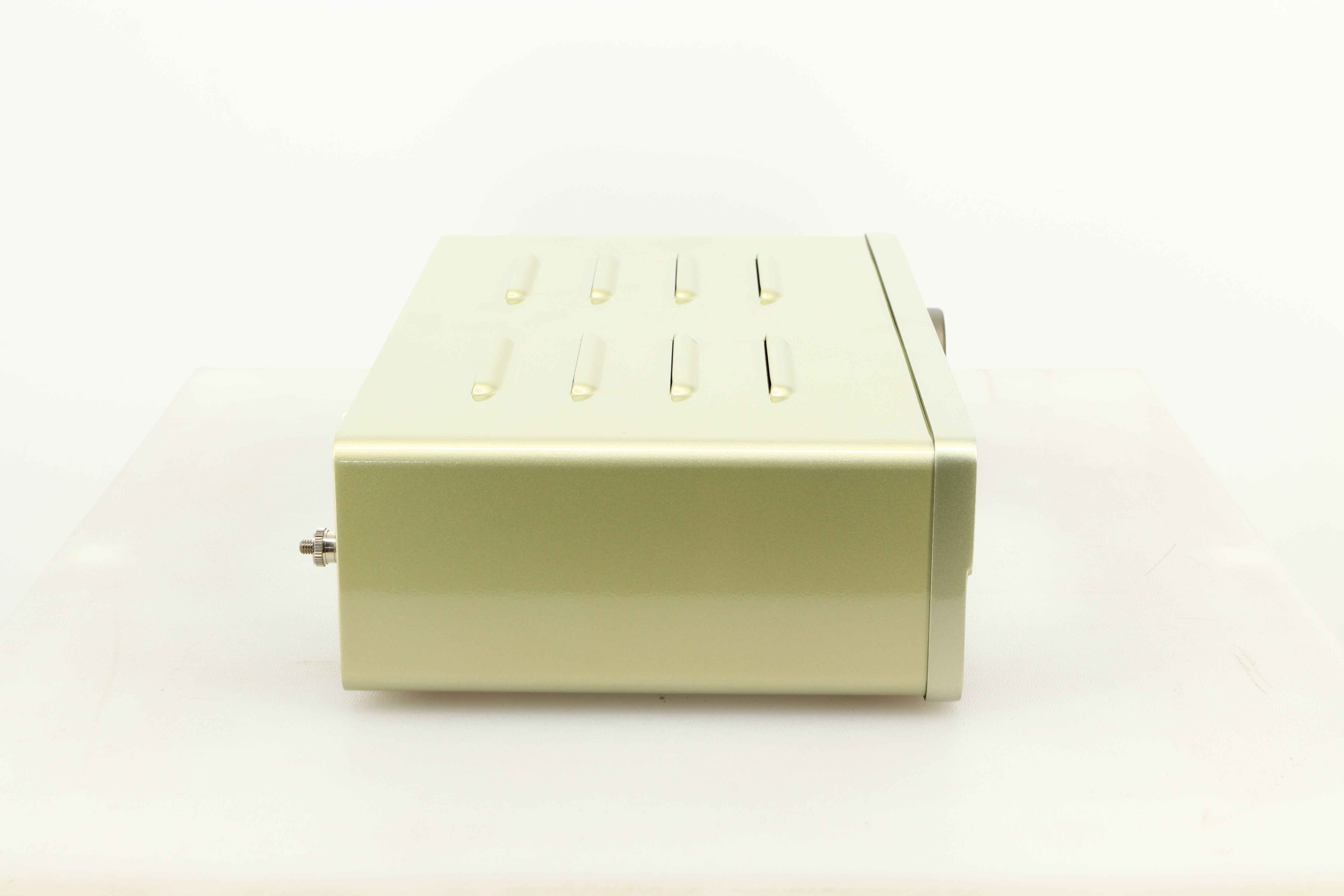

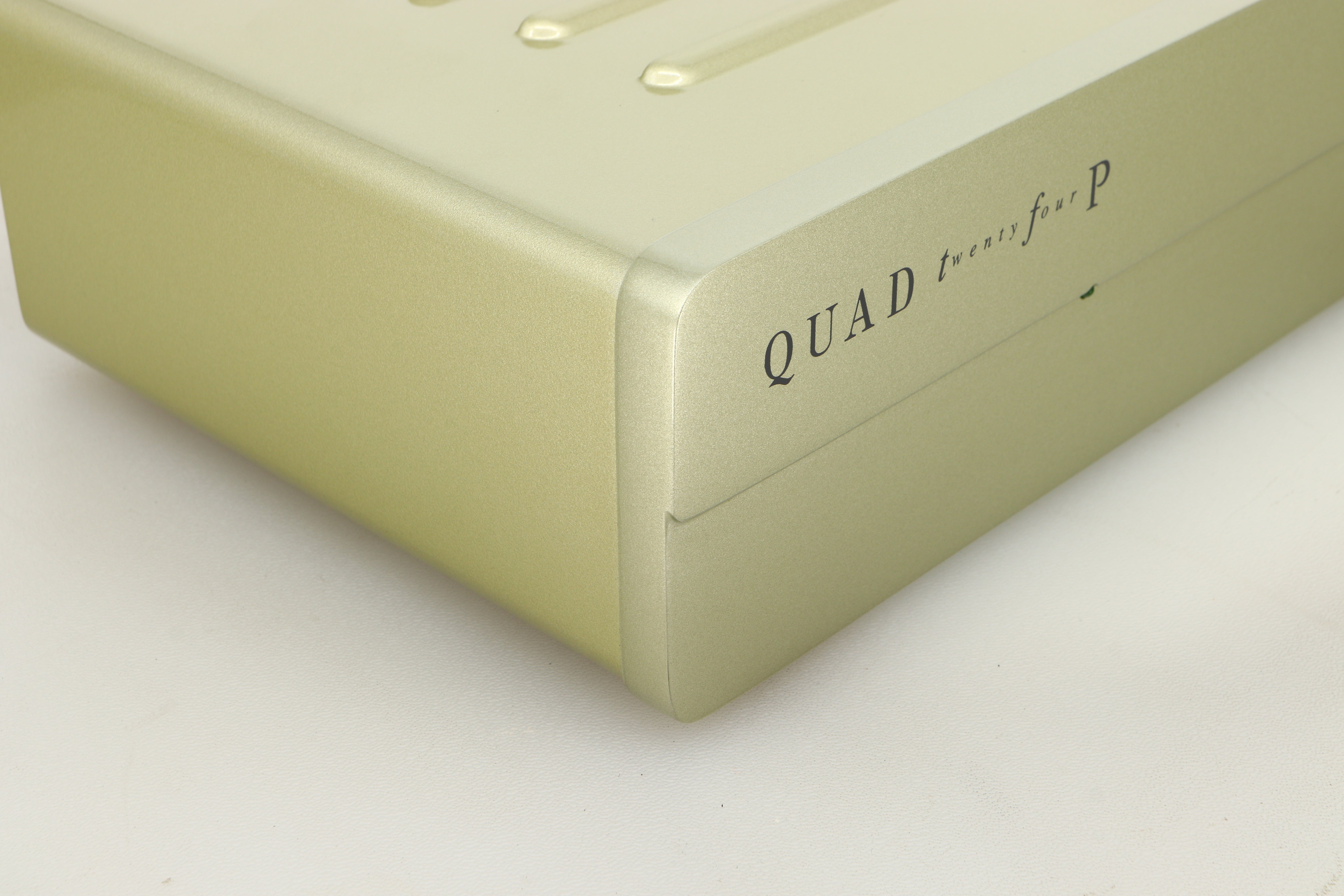

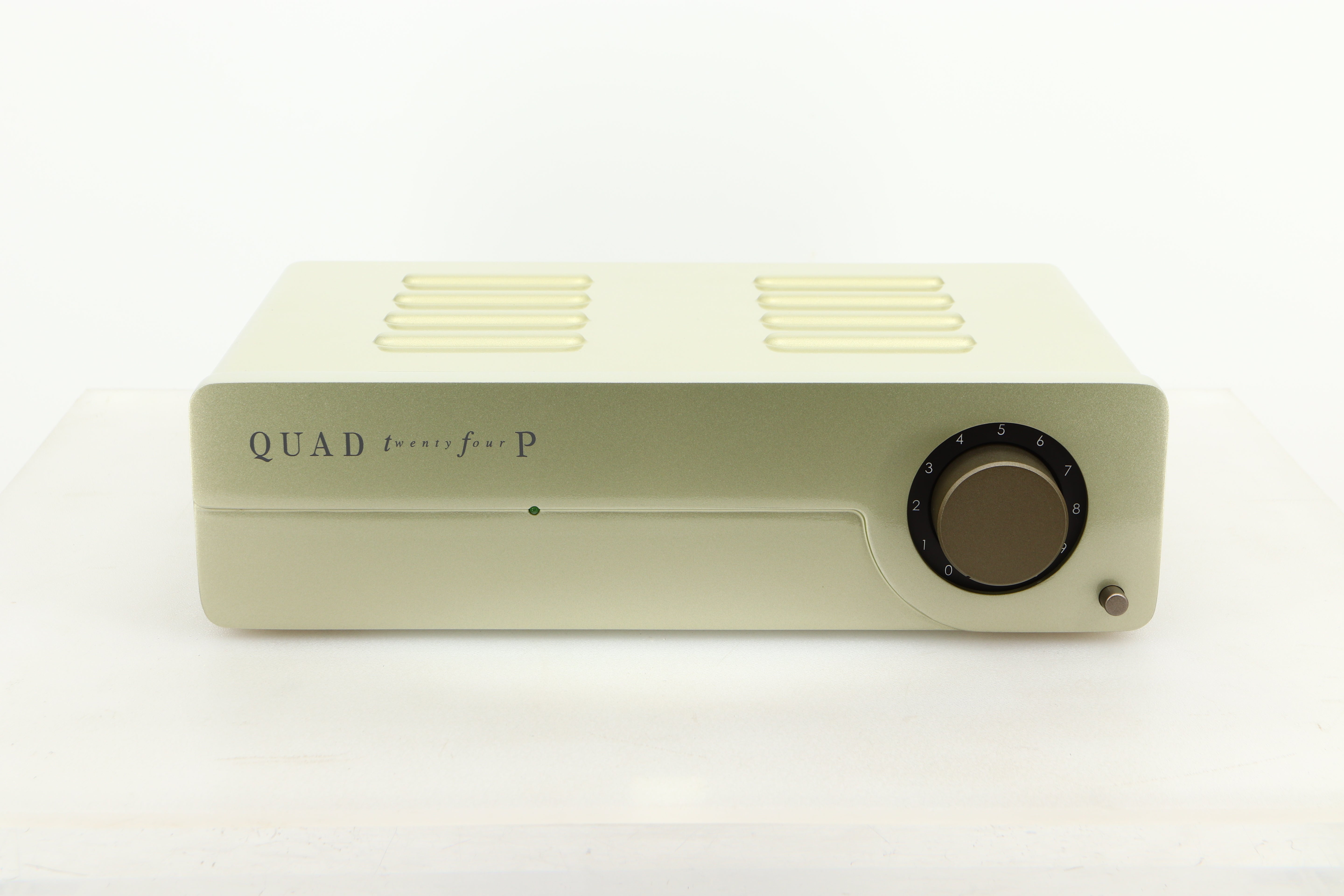

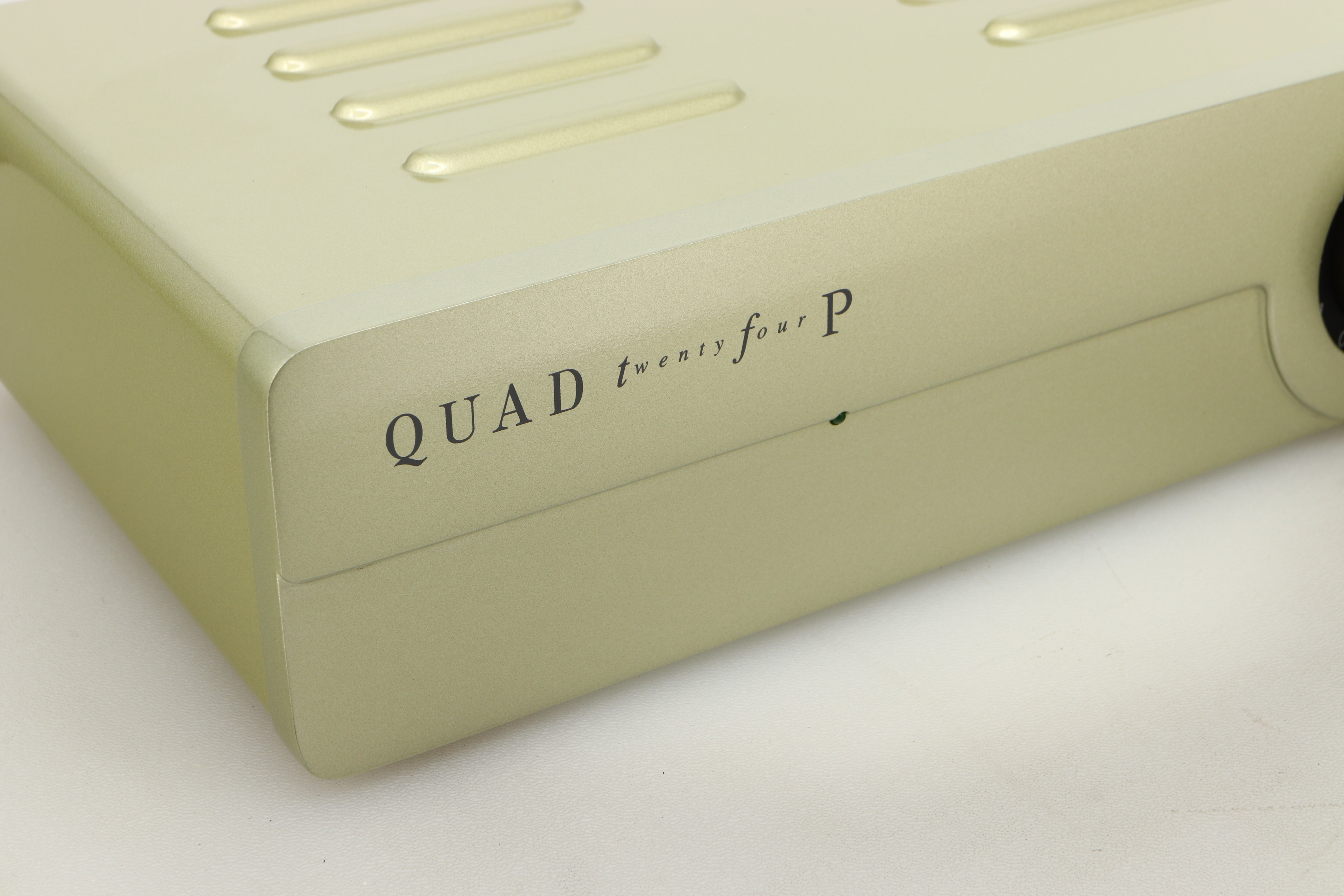

Quad QC Twenty Four P Phonostage

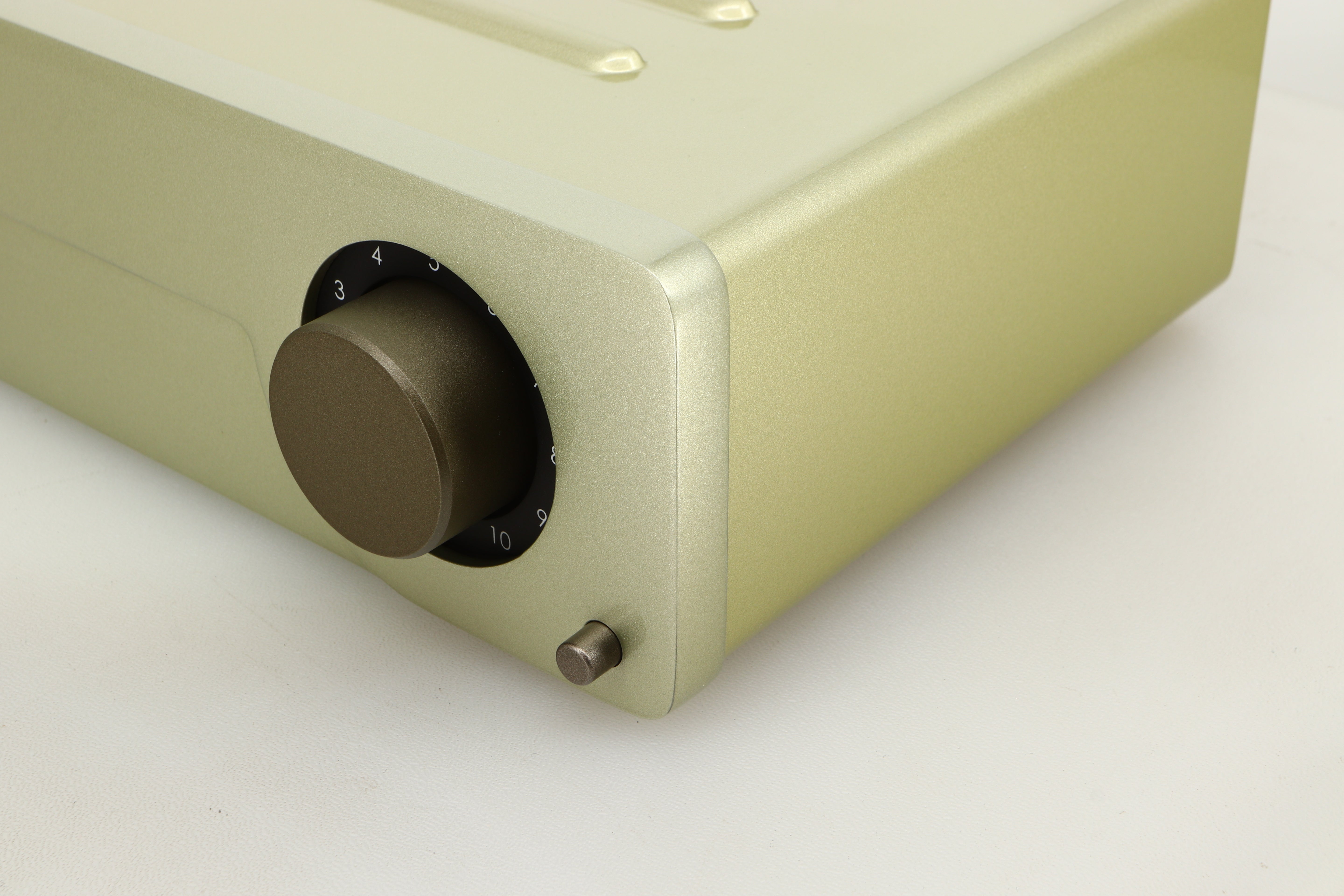

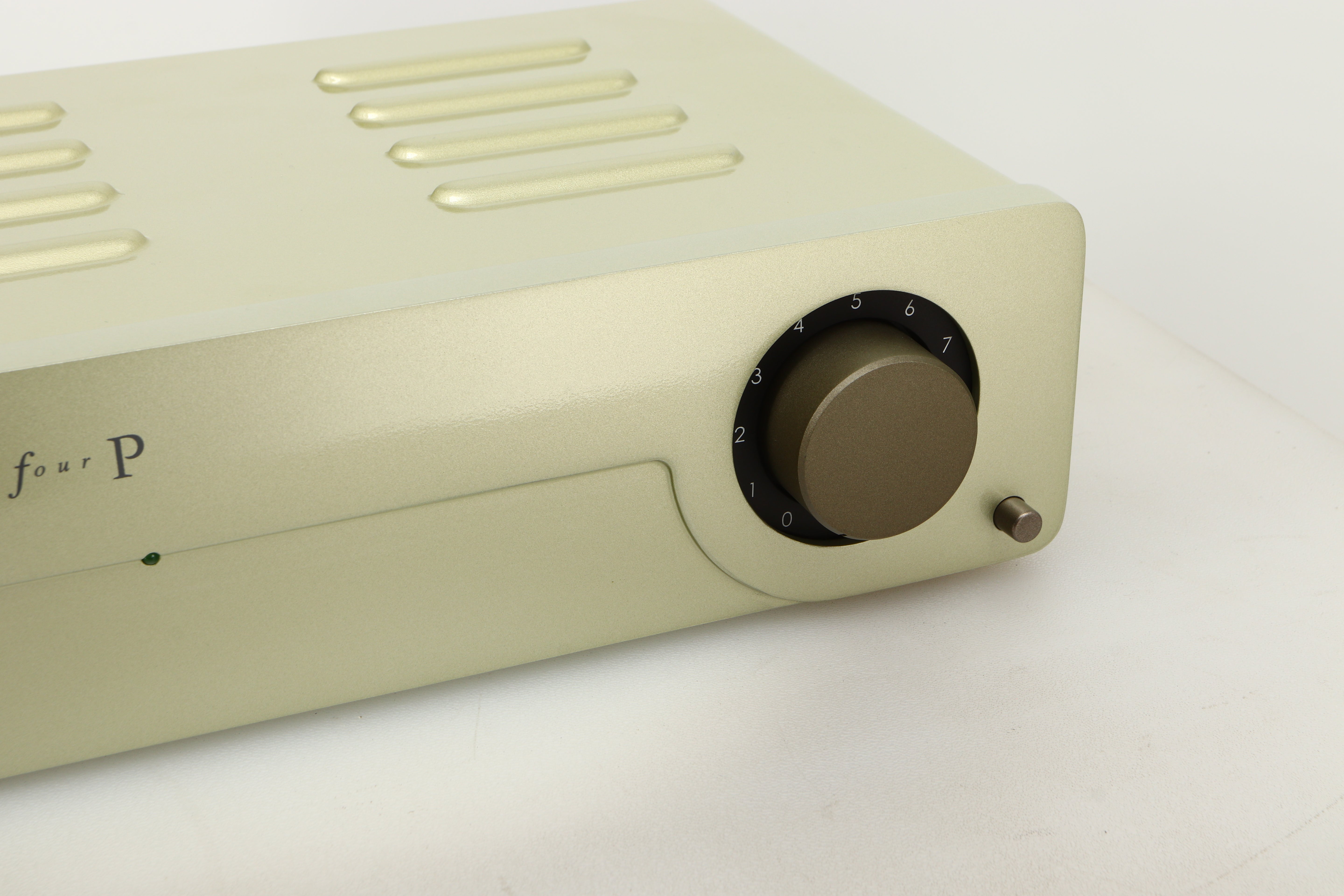

With the analogue purist in mind the Twenty Four P has a moving magnet / moving coil toggle switch and direct / variable level control over volumes for use with all kinds of amplification. Unlike the power amplifiers, the QUAD pre amplifiers utilise a completely new design. Together with transformers designed by one of the world’s leading authorities and relay input switching the musical signal is preserved in its purest form – pursuant to the philosophy of the theoretical perfect amplifier which as Peter Walker himself stated, is ‘a straight wire with gain’.

Valve Complement 4 x 6111
Total Harmonic Distortion <0.08% (A-weighted)
Frequency Response (RIAA/IEC equalisation) 20Hz - 20kHz (+/-0.5dB)
Hum and Noise (mm position,input shorted) Better than 60dB
Input Impedance
Moving Magnet 47k½
Moving Coil 10½
Stage Gain
High Sensitivity 1.3mV (MM)/130µV (MC)
Medium Sensitivity 2.6mV (MM) / 260µV (MC)
Low Sensitivity 5.2mV (MM) / 520µV (MC)
Nominal Output Level(ref 5.2mV, MM, Low) 1.0V

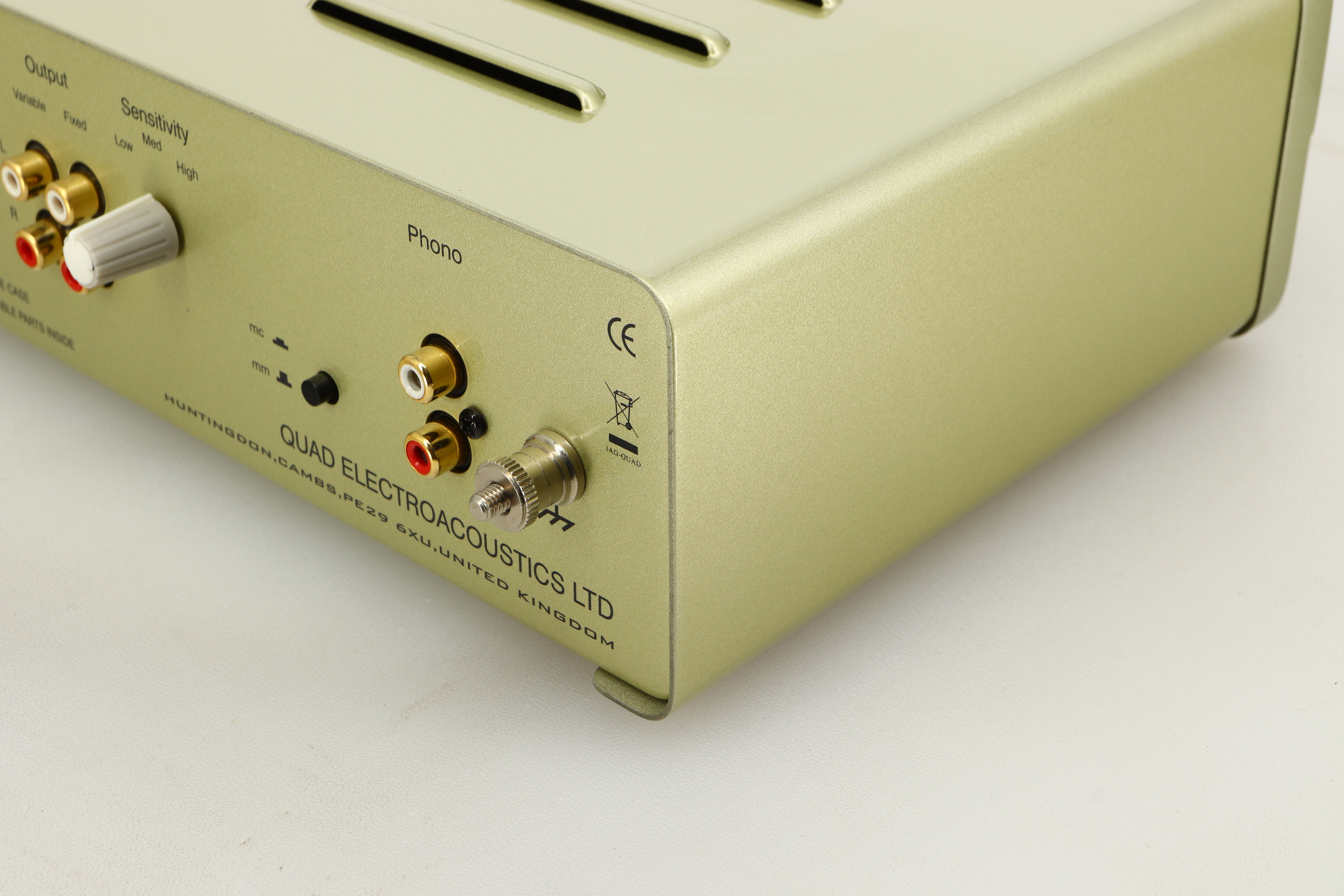

Inputs Selectable MM/MC cartridge

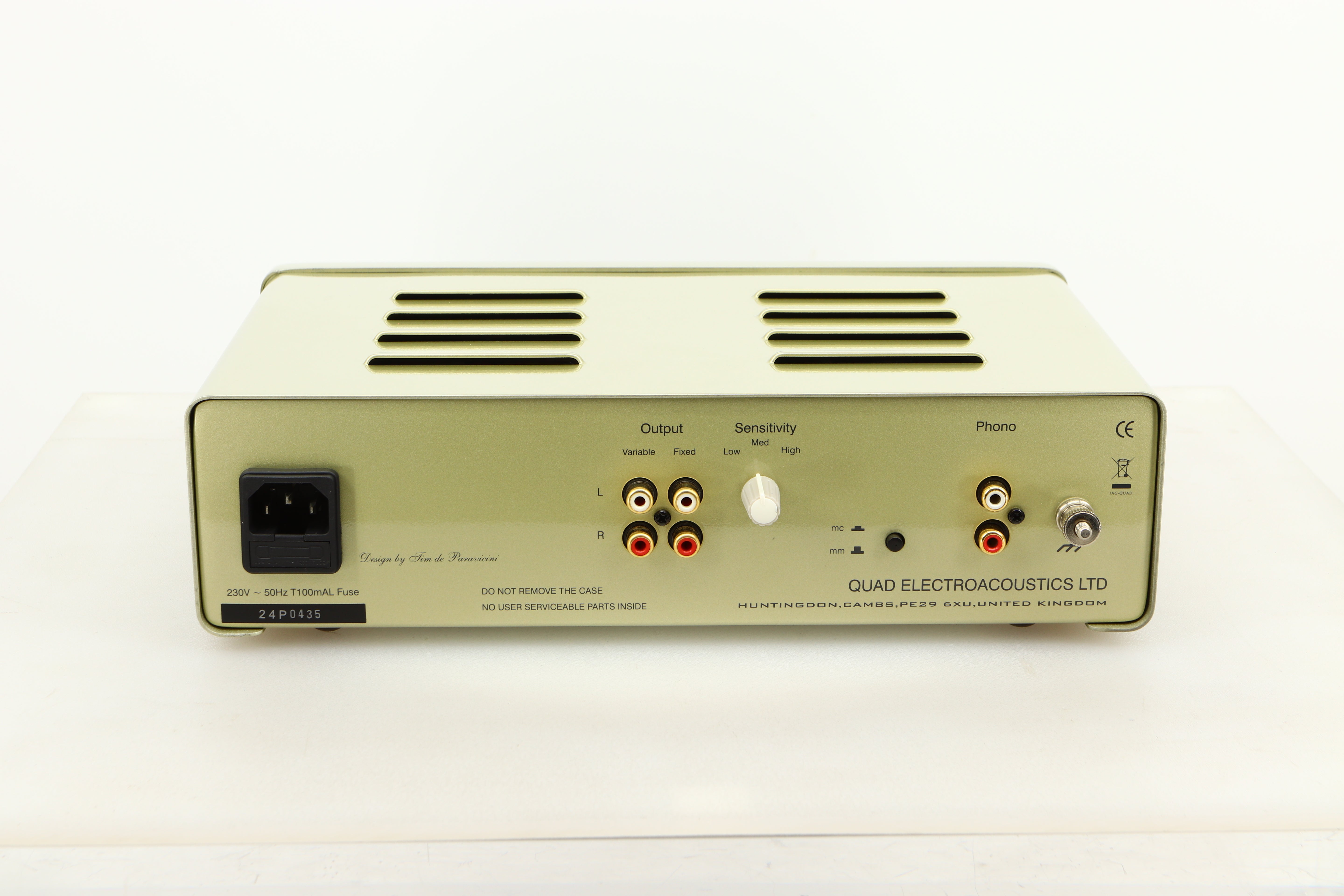

Outputs 1 x Fixed line level, 1 x Variable line level
Power Consumption 15VA maximum
Dimensions (H x W x D) 90 x 220 x 300mm
