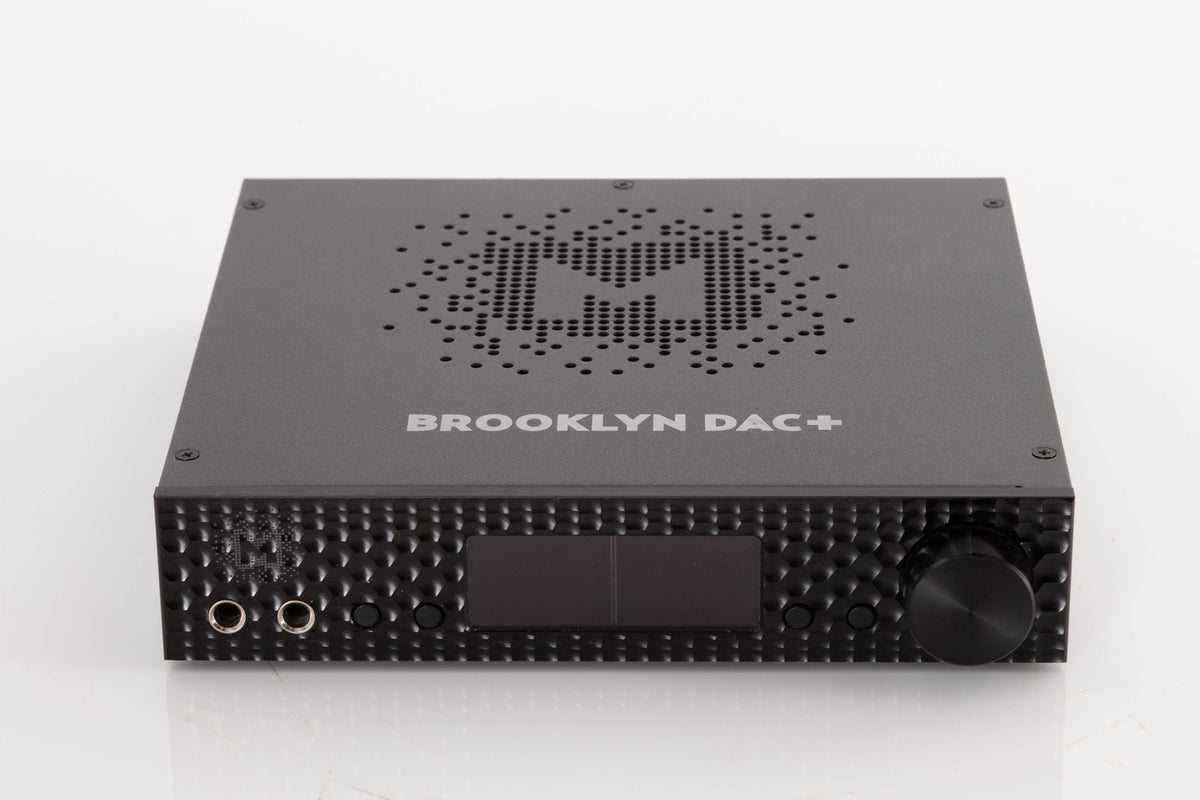

Mytek Brooklyn DAC+ Digital Analogue Converter / MCRU Power Supply

Over 20 years of experience in building mastering grade converters and other audio equipment has been utilized to create this digital to analogue converter. Its sophisticated audio path is designed to deliver bit perfect, high quality, transparent sound to your speakers and headphones. The Brooklyn DAC+ will play:
PCM up to 32-bit / 384 kHz
DSD64, DSD128, DSD256
MQA master quality files off online streaming services
Vinyl records utilizing its precision M/C, M/M phono preamplifier
Any other digital source equipped with TOSlink, SPDIF, AES or DSD SDIF out
Any other analogue source plugged into analogue input
The Brooklyn DAC+ has been optimized for highest performance under Windows, Mac OS and Linux. Based on a newly developed Mytek Hi-Speed USB (USB2) Audio Class 2 32-bit/384 kHz Integer Interface, the Brooklyn DAC+ provides very low latencies as well as extreme stability.
Although the Brooklyn DAC+ looks similar to its predecessor (Brooklyn DAC) it has been completely redesigned inside. All changes:
New state-of-the-art DA chip with more filters available
Redesigned analogue circuits (separate for left and right channel)
New balanced headphone amp with high quality analogue volume control chip built-in
Optimized clock section
Guarantee pristine, transparent and very musical sound!

Features

• Conversion: up to 384 k, 32-bit PCM, native DSD up to DSD256, DXD, 130 dB Dynamic Range
• Analog outputs: RCA, balanced XLR, simultaneous
• Headphone outputs: Reference High Current, High transient balanced Headphone Amp, 500 mA, 6 Watts, dual headphone jacks, designed to drive hard to drive headphones.
• Built-in Attenuator: Choice of 1 dB step analogue attenuator, separate for main out and headphones, 1 dB step digital 32 bit attenuator and purist relay bypass.
• AES/EBU Input: PCM up to 24-bit / 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 38 kHz, DSD64 DSD128 (DoP)
• 2x SPDIF Coaxial Input: PCM up to 24-bit / 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, DSD64
• DSD128 (DoP)
• SPDIF Optical Input: PCM up to 24-bit / 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, DSD64 (DoP)
• SDIF3 DSD Input: DSD64, DSD128, DSD256 (natively)
• Mytek proprietary USB Audio Class 2, up to 32-bit/384 k, DSD256, also accepts digital AES, SPDIF and TOSlink inputs. This USB interface also allows stacking of multiple Mytek units for multichannel operation
• Mytek Femtoclock 0.82 ps internal jitter, Wordclock Input and Output (allows stacking multiple units for multichannel operation, includes mch DSD)
• Built-in Analog Preamp: Line level input or Precision Phono M/M, M/C input, relay controlled.
• Choice of Transparent Analog or Digital stepped volume control with „Bypass” option for the purest signal path.
• Built in certified hardware Hi-Res MQA decoder
• High definition metering with simultaneous RMS and peak indication
• Five digital inputs are fitted (1x USB, 1x AES/EBU, 2x SPDIF coaxial and 1x SPDIF Optical) which allow a wide range of digital sources to be connected.
• Trigger control allows the Brooklyn DAC+ easily to be integrated with other HiFi devices.

Analogue -

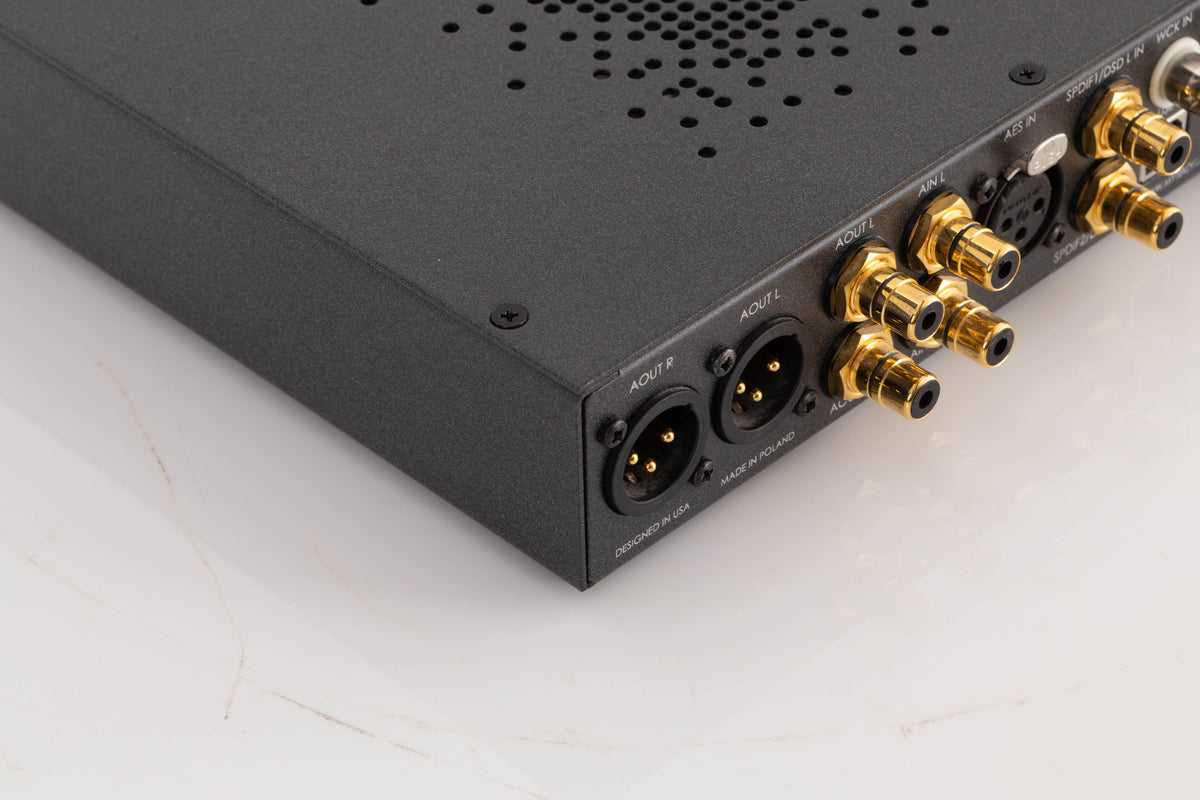

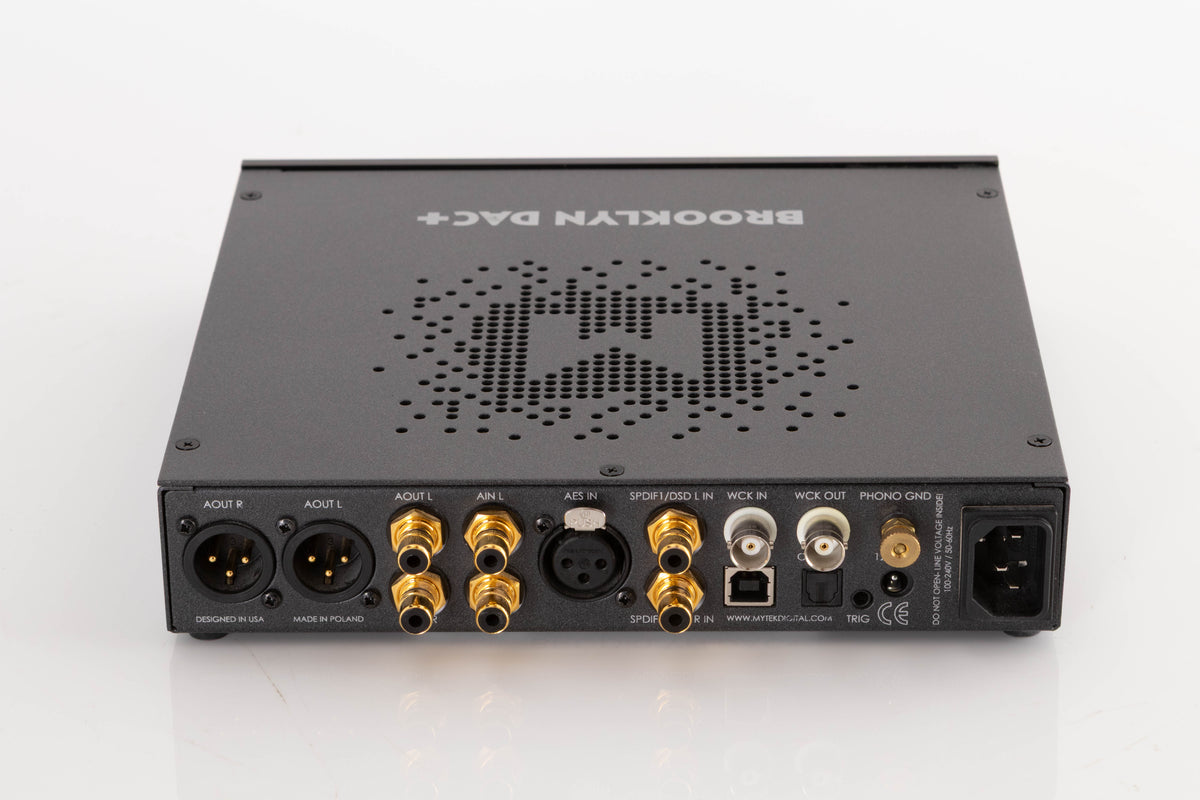

Analog Outputs Connectors: 2 XLR balanced outputs, 2 RCA unbalanced outputs
Resolution DA: PCM 32-bit / DSD up to 256 (11.2 MHz)
PCM Sample Rate: 44.1 / 48 / 88.2 / 96 / 176,4 / 192 / 384 kHz
Dynamic Range: 130 dB
Output Impedance: 75 Ohm
Headphone Amp: more than 500 mA, 6 Watts
High Current, High Slew Rate ultra-low distortion, balanced
Built-in Analog Preamp: Line level input or Phono M/M, M/C input, relay controlled
Digital -
Computer Audio I/O: 2.0 Hi-Speed, data stream up to 480 M-Bits/384 kHz, Type B, driverless
AES/EBU Input: XLR, PCM up to 24-Bits / 384 kHz, DSD up to x 128 (DoP)
S/PDIF Optical Input: up to 176 kHz, DSD x 64, single wire
S/PDIF Coaxial Input 1 & 2: PCM up to 24-Bits / 384 kHz, DSD up to x128 (DoP), single wire
SDIF DSD Input: DSD up to x256 (natively)
Word Clock I/O: BNC
Clock: Mytek Femtoclock Generator ™ 0.82ps internal jitter, Wordclock Input and Output (allows stacking multiple units for multichannel operation, includes mch DSD)
General -
Firmware: upgradable via USB Control panel, updates available online, periodic feature upgrades
Power Supply: Internal switching PSU, 100 - 240 V AC

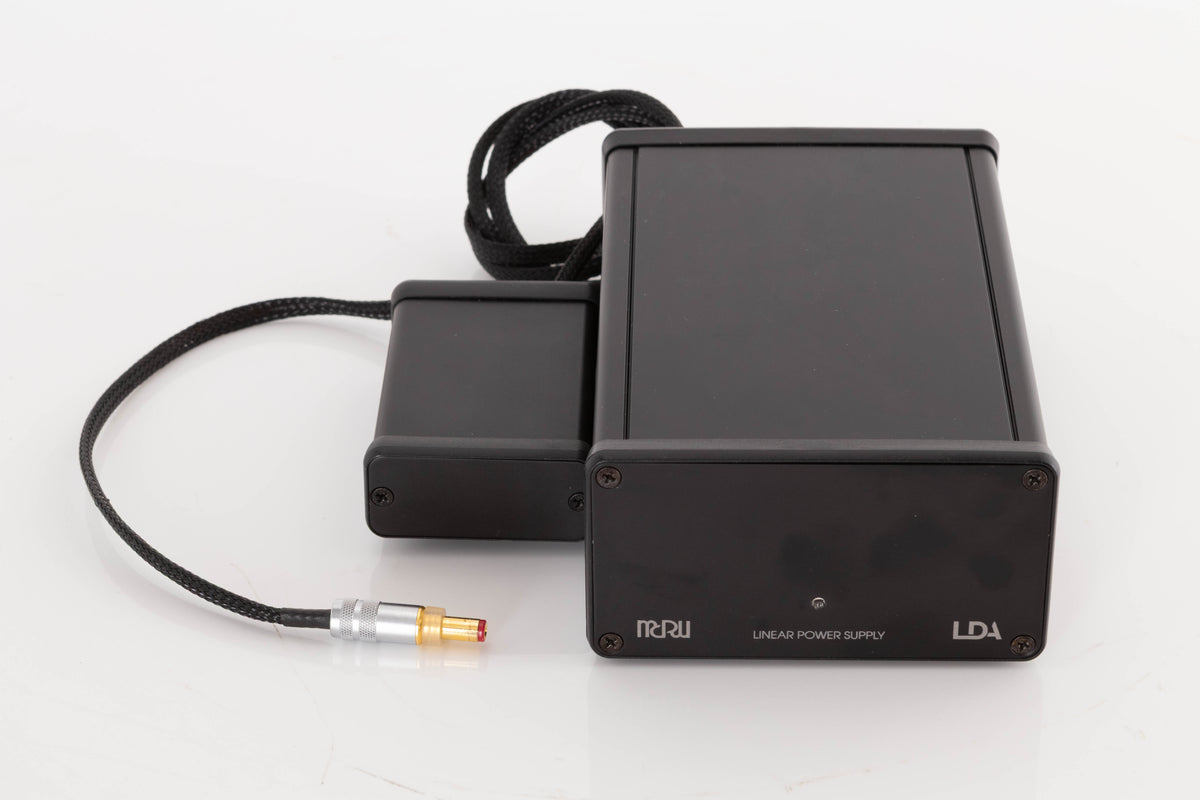

External power supply: 12 V, 4 - 6A / connector dimensions: 5.5 mm / 2.5 mm (inner pin)
Brooklyn DAC+ power consumption:
No load: 19 VA at 230 VAC, 15 Ohm load per channel
Full scale sine: 24 VA at 230 VAC
No load: 11 W at 12 VDC, 15 Ohm load per channel
Full scale sine: 17 W at 12 VDC
Dimensions: 218 (W) x 206 (D) x 44 (H) mm
Weight: 1.6 kg
