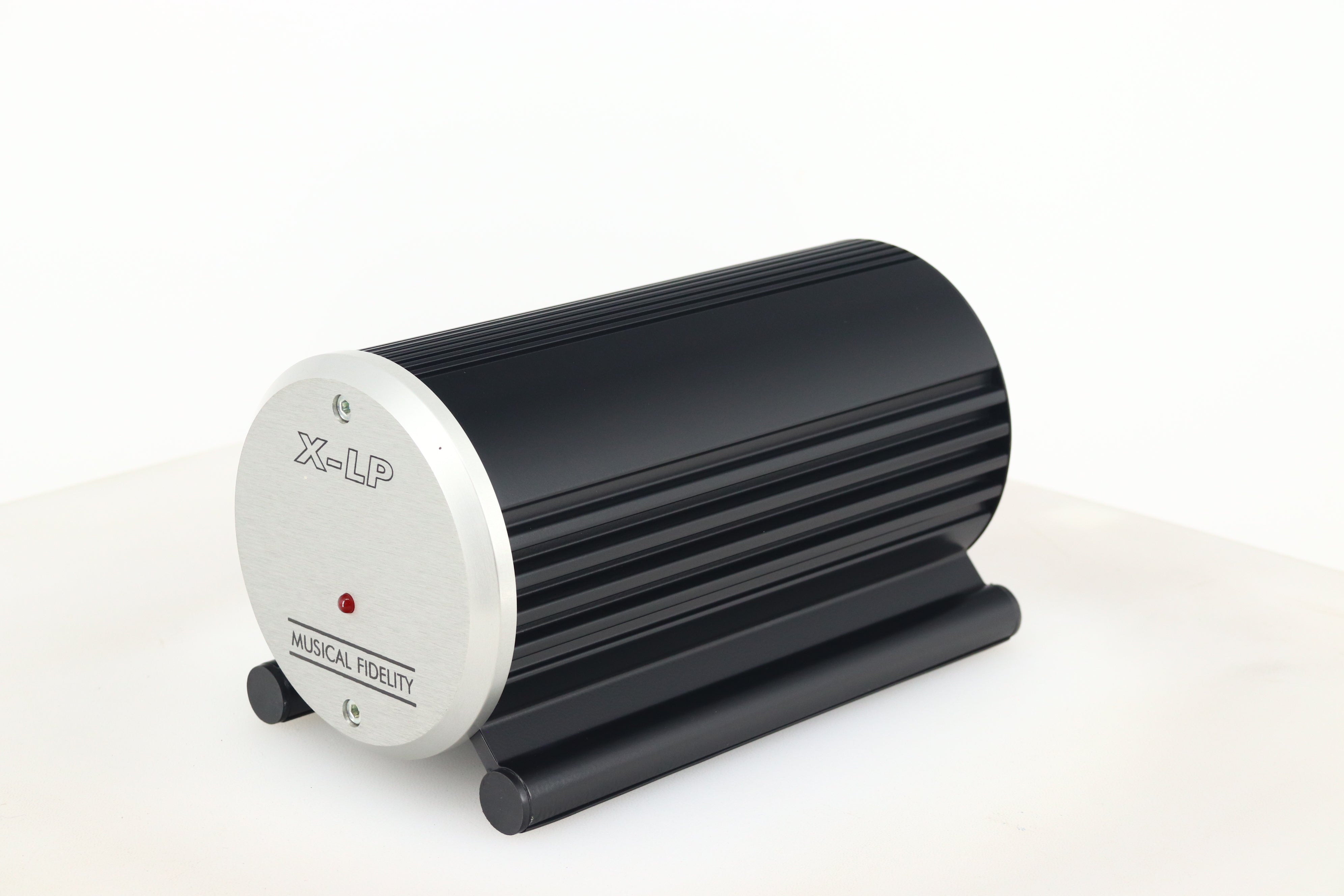

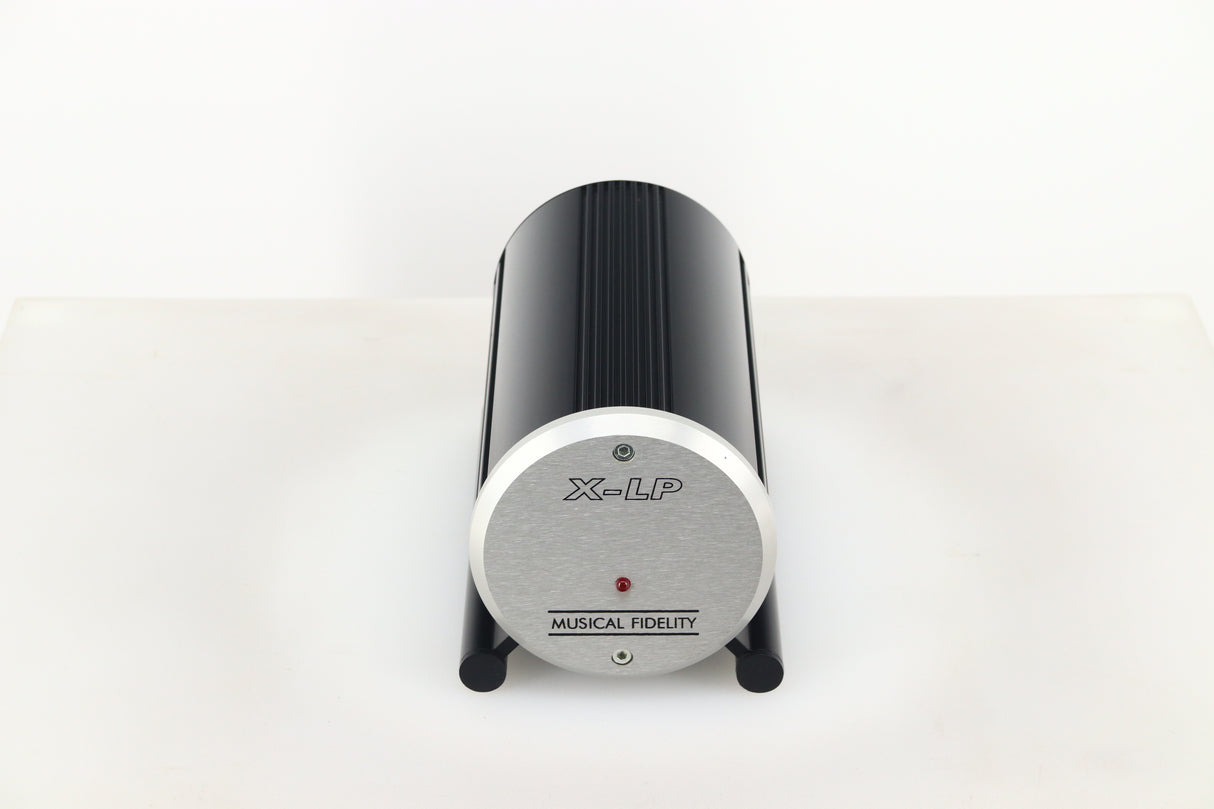

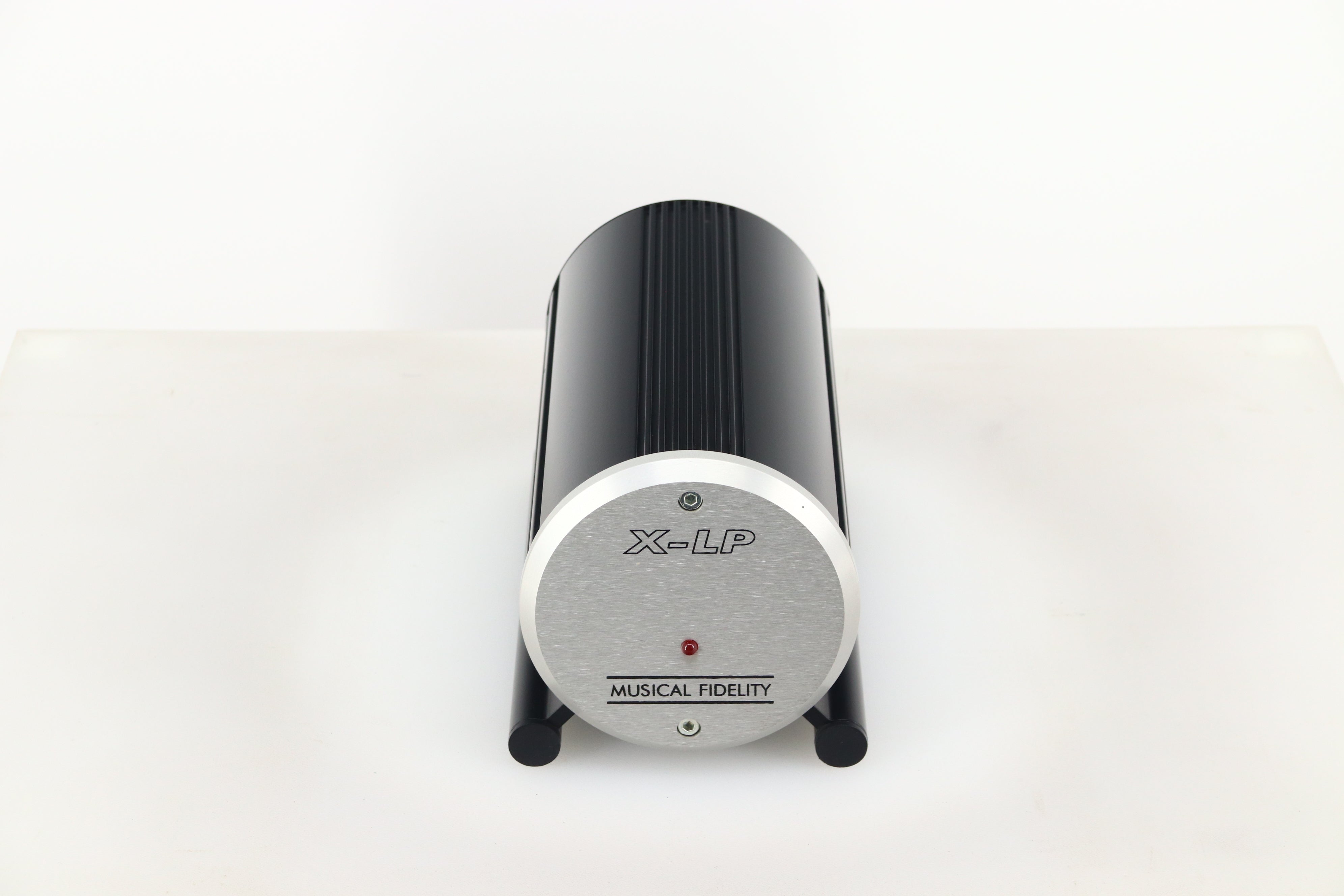

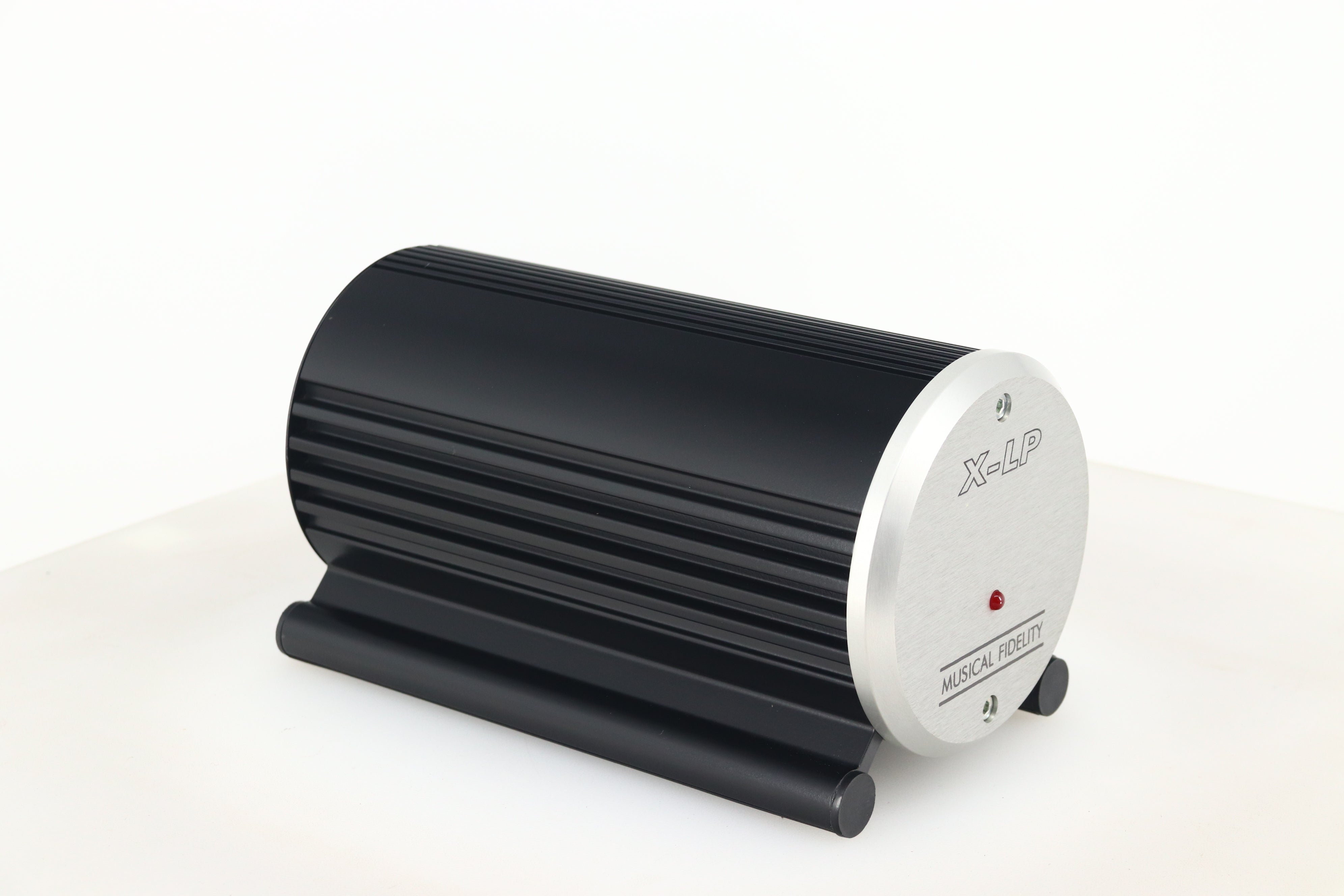

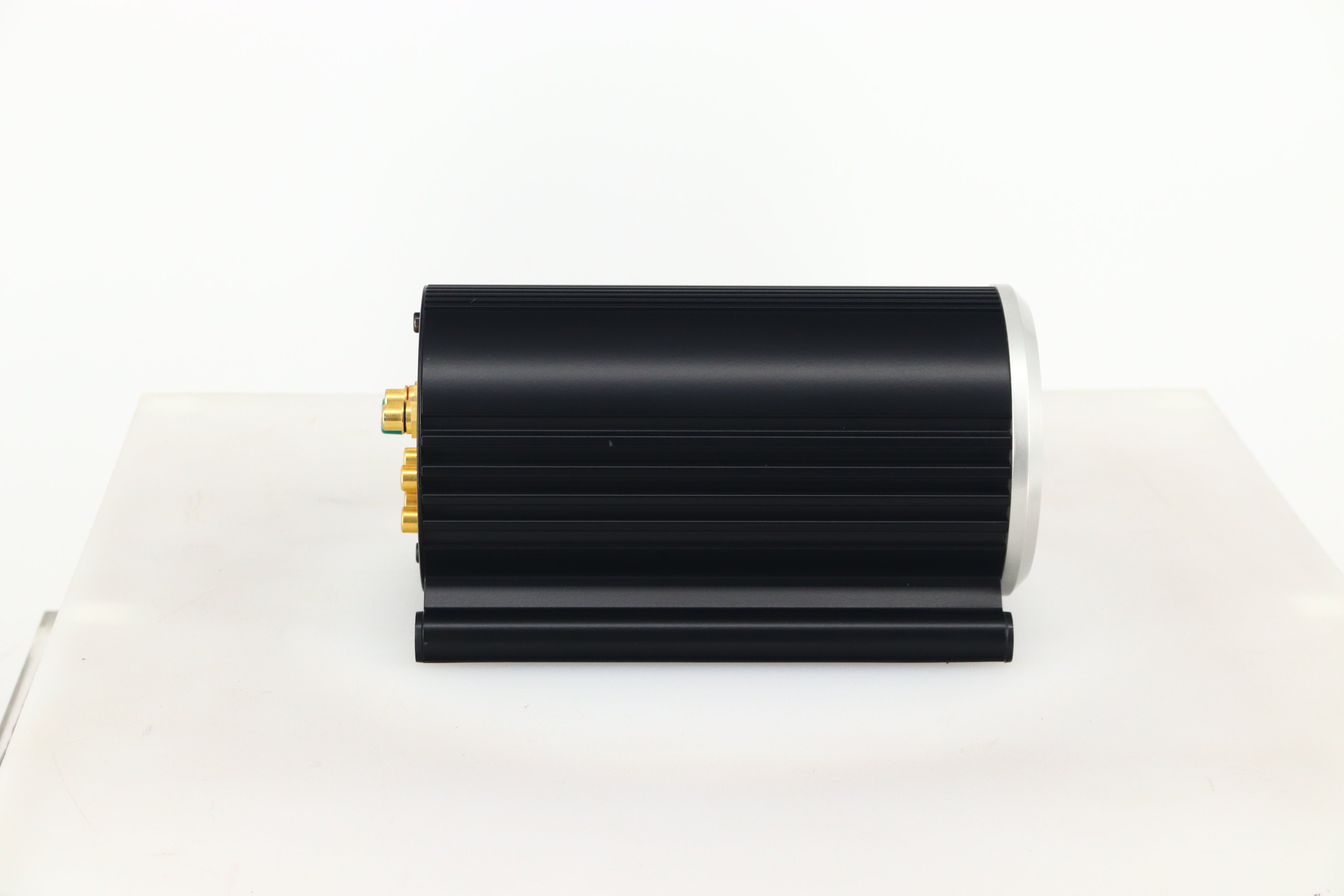

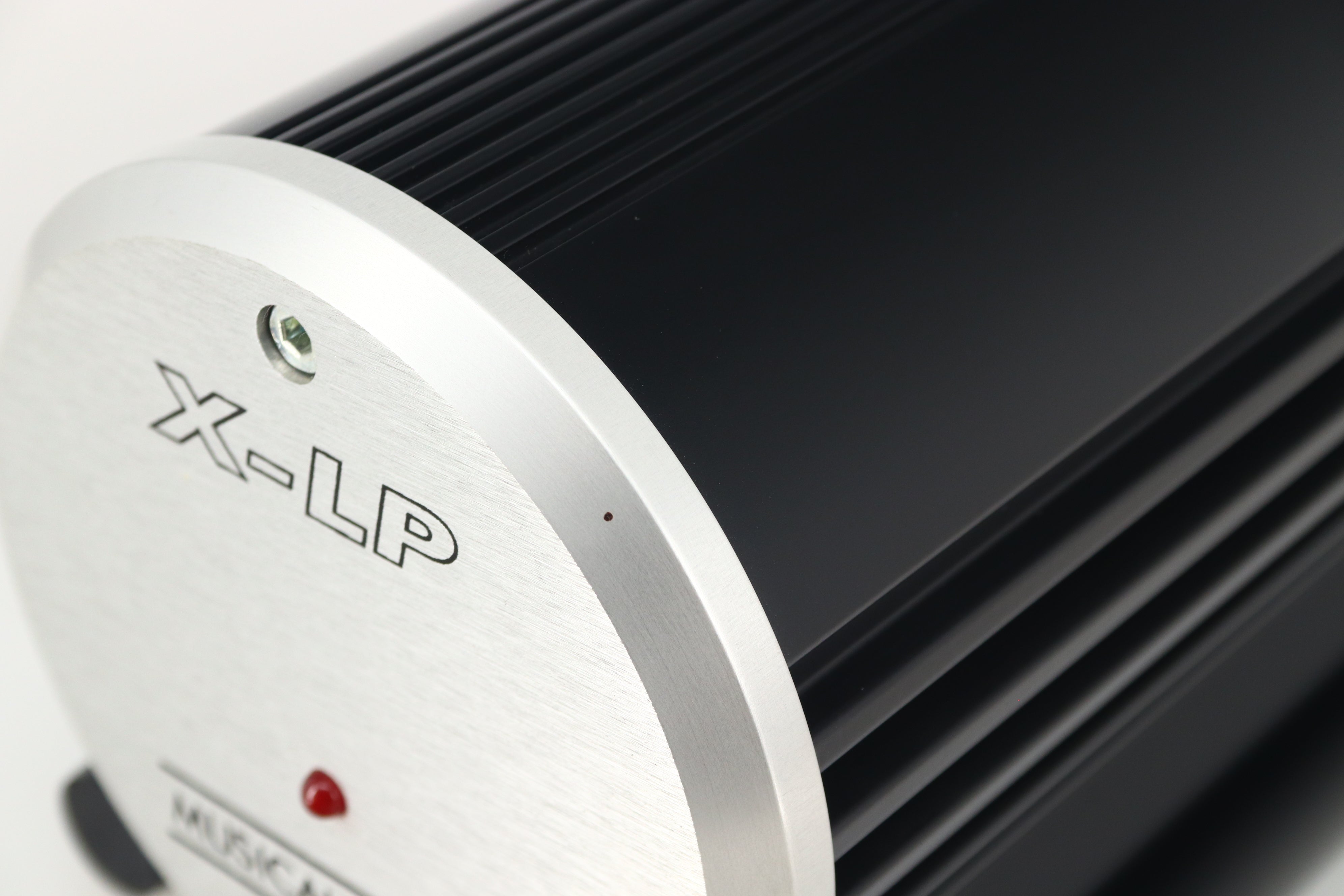

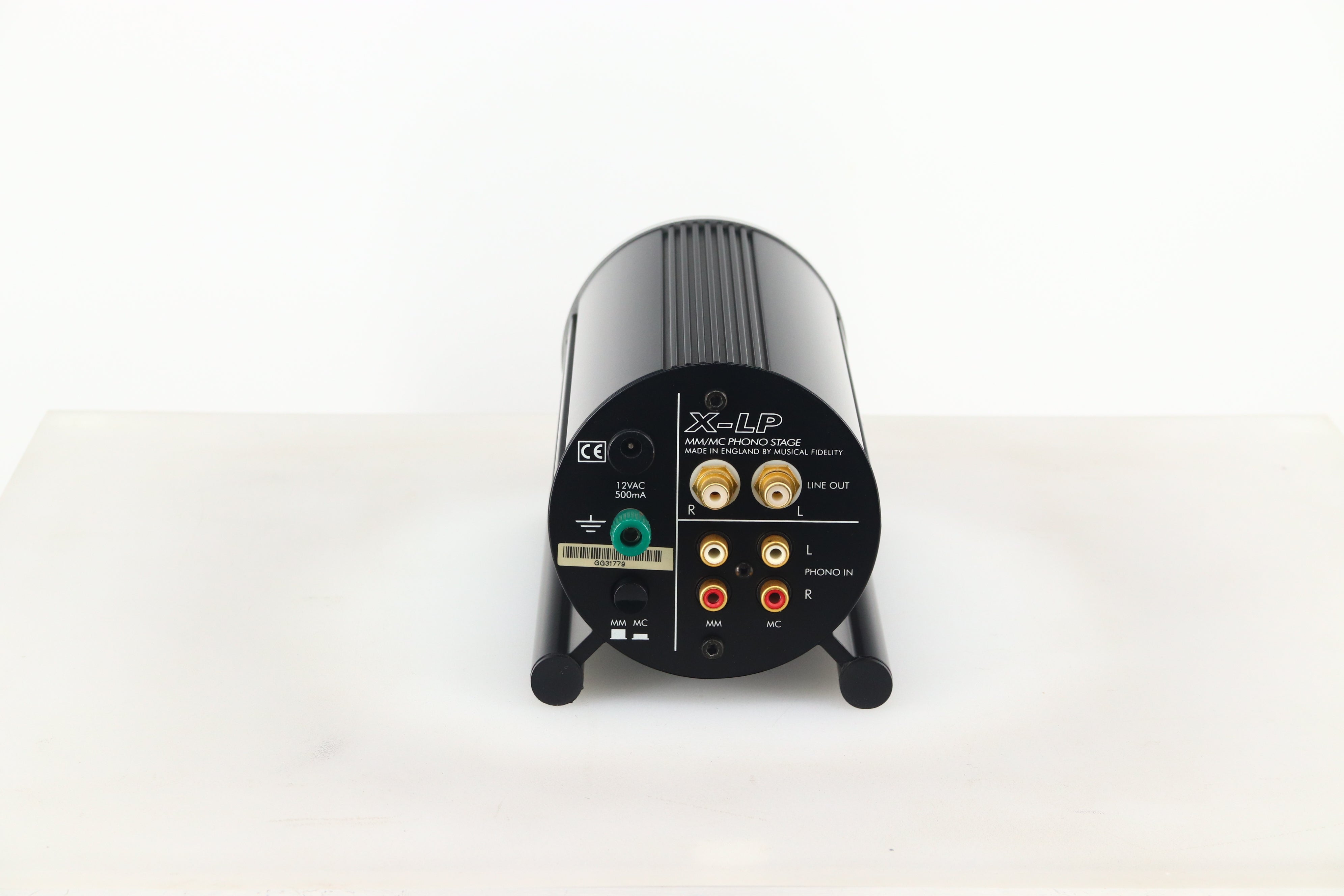

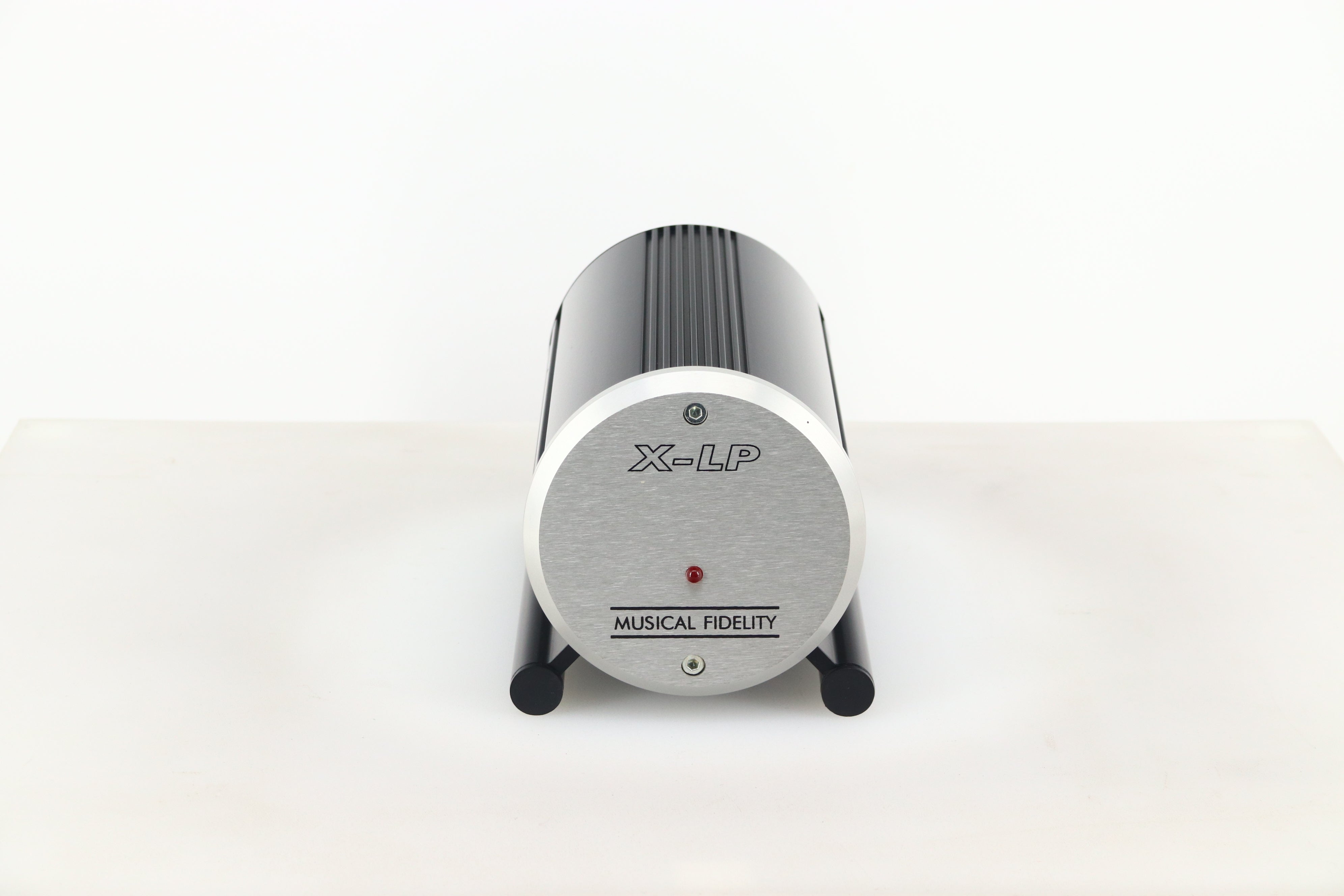

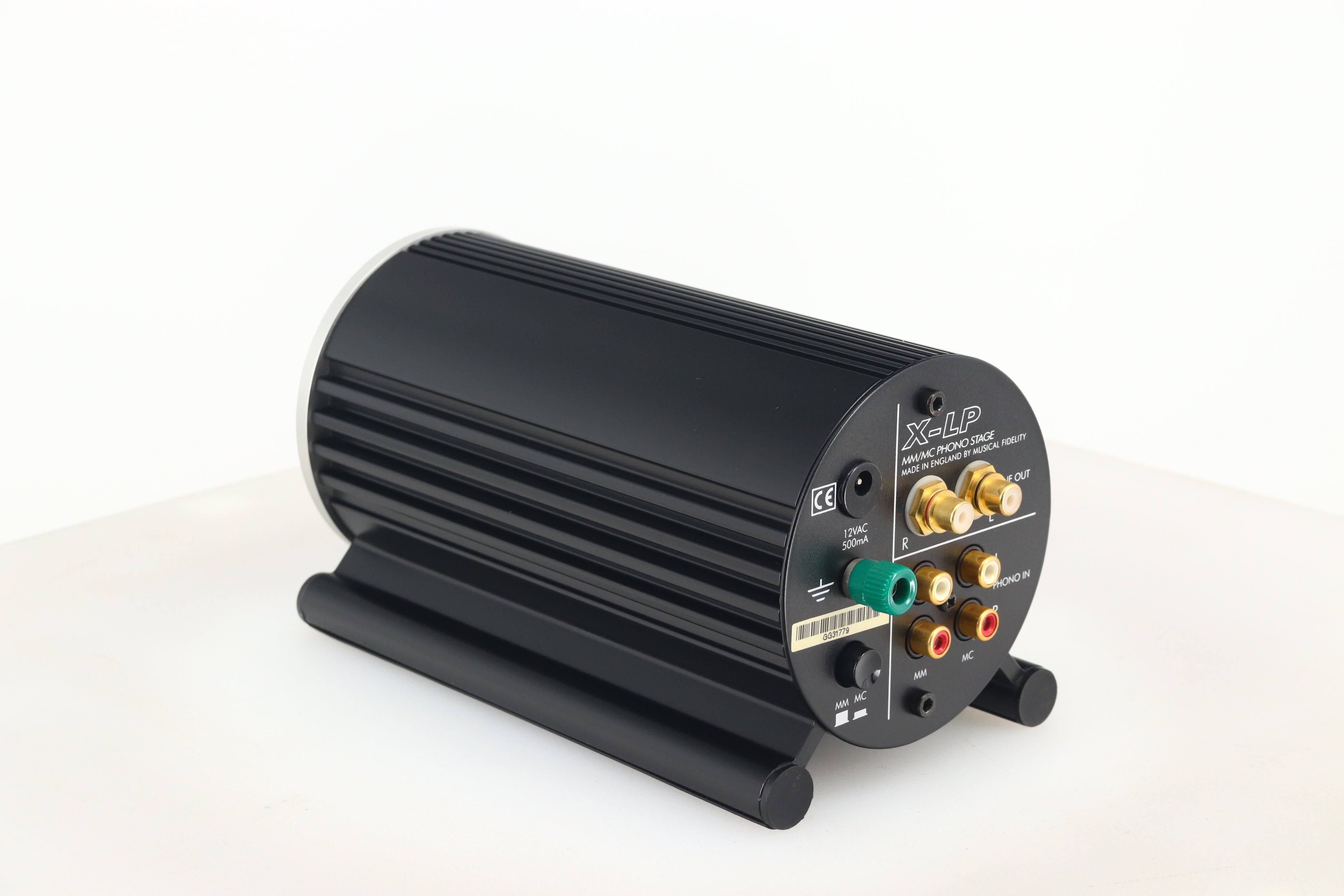

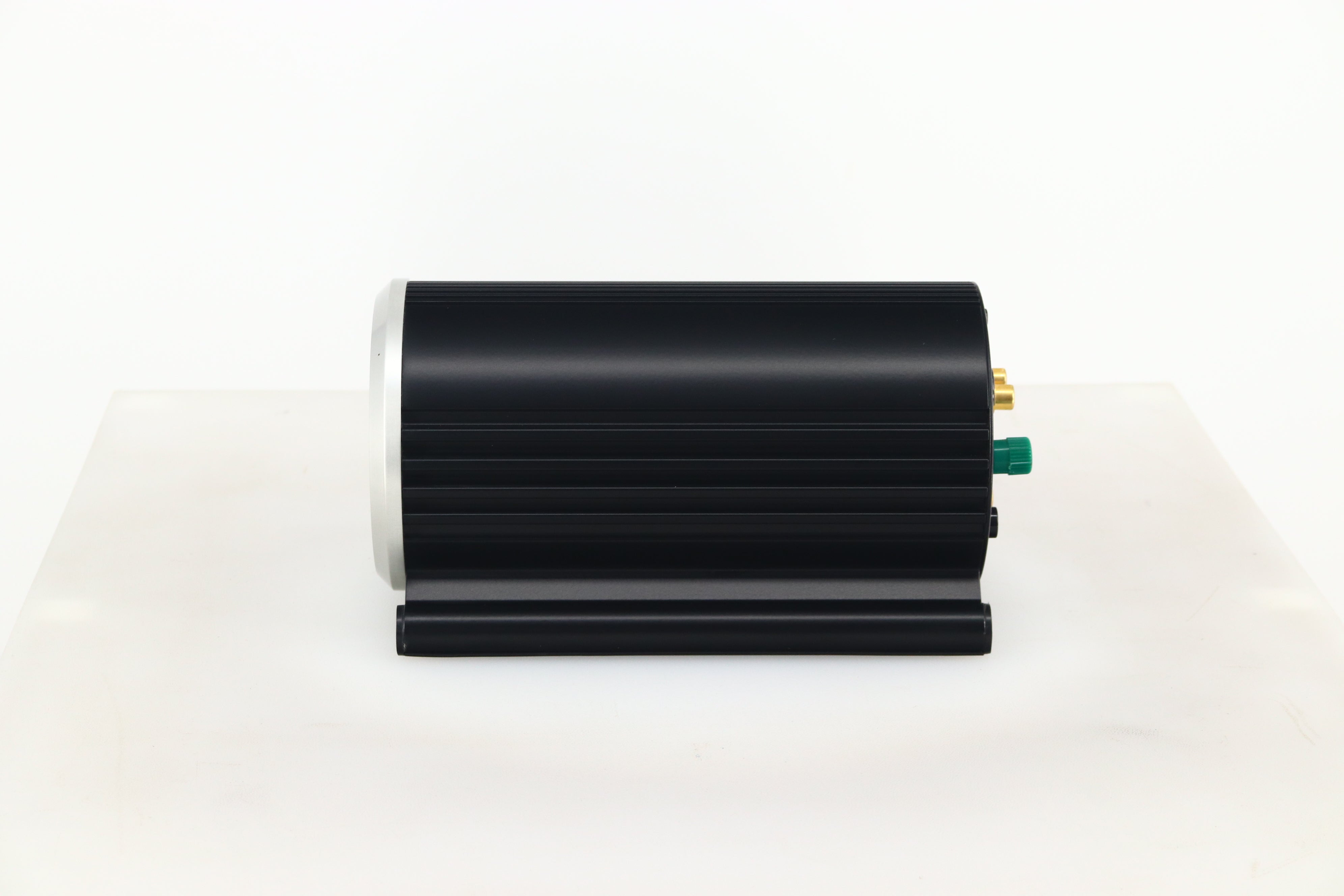

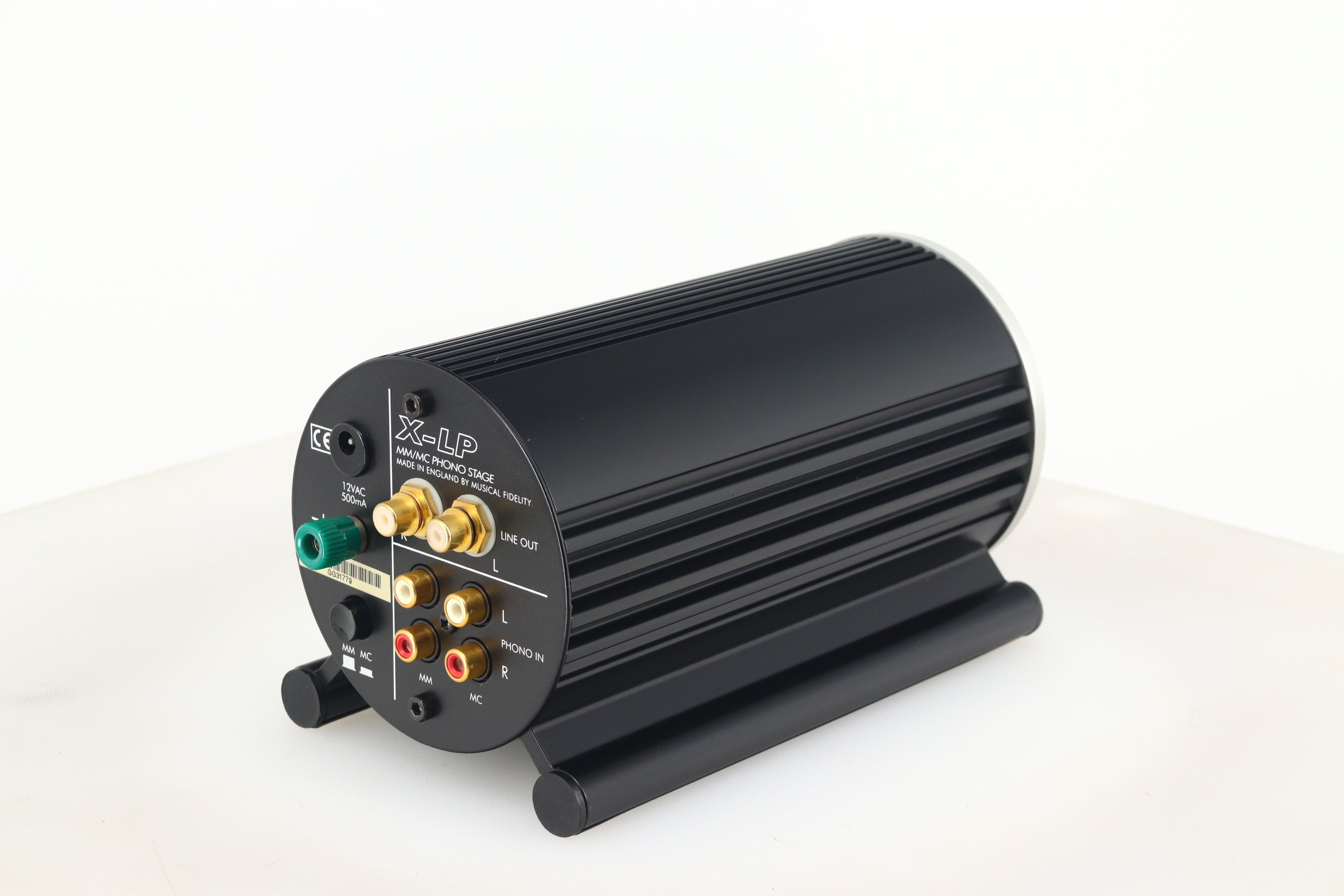

Musical Fidelity X-LP Phonostage

Separate dedicated MM and MC inputs allow use of either cartridge type into the optimum termination impedance for the best possible results.
Wide overload margin gives extended headroom and allows effortless handling of transients and dynamics.
Sophisticated PCB layout with very close attention given to optimising circuit layout, the result of 15 years’ experience with phono means low noise, low distortion and accurate RJAA to give a dynamic crystalline sound.
Very low noise circuits for maximum available dynamic range and low level detail resolution.

MM input
Sensitivity: 3 mV
Input impedance: 47 kΩ
THD: < 0.01% @ 1 kHz, 350 mV out
Input overload margin: 27 dB
S/N ratio: > 75 dB unweighted; > 80 dB “A” weighted
MC input
Sensitivity: 350 mV
Input impedance: 100 Ω
THD: < 0.01% @ 1 kHz, 350 mV out
Input overload margin: 27 dB
S/N ratio: > 65 dB unweighted; > 72 dB “A” weighted
General
RIAA accuracy: 20 Hz - 20 kHz ± 0.5 dB

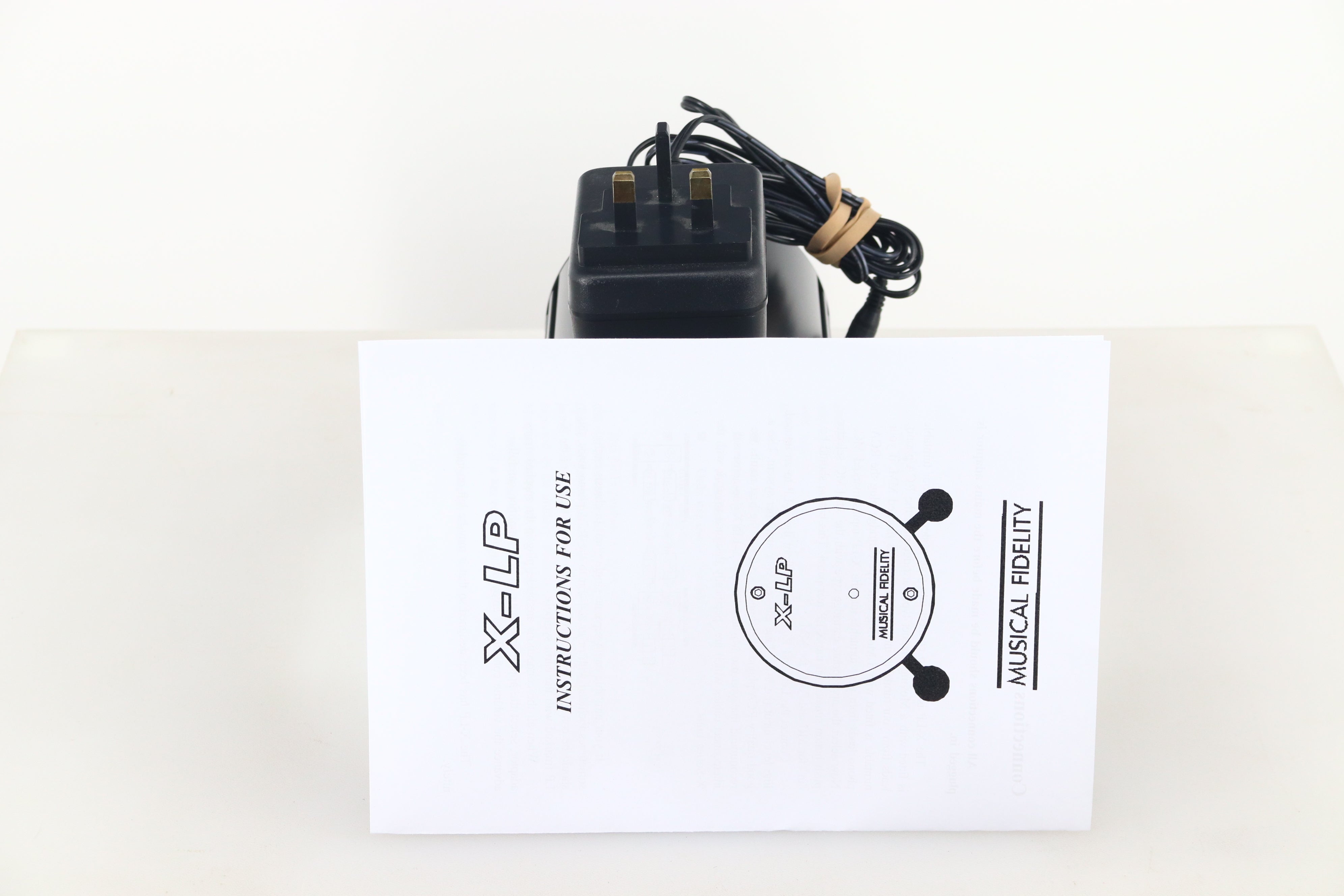

Power requirement: 12 V AC 500 mA (via mains adaptor supplied)
Dimensions: 110 (W) x 220 (D) x 110 (H) mm (including feet)
Weight: 1.3 kg
