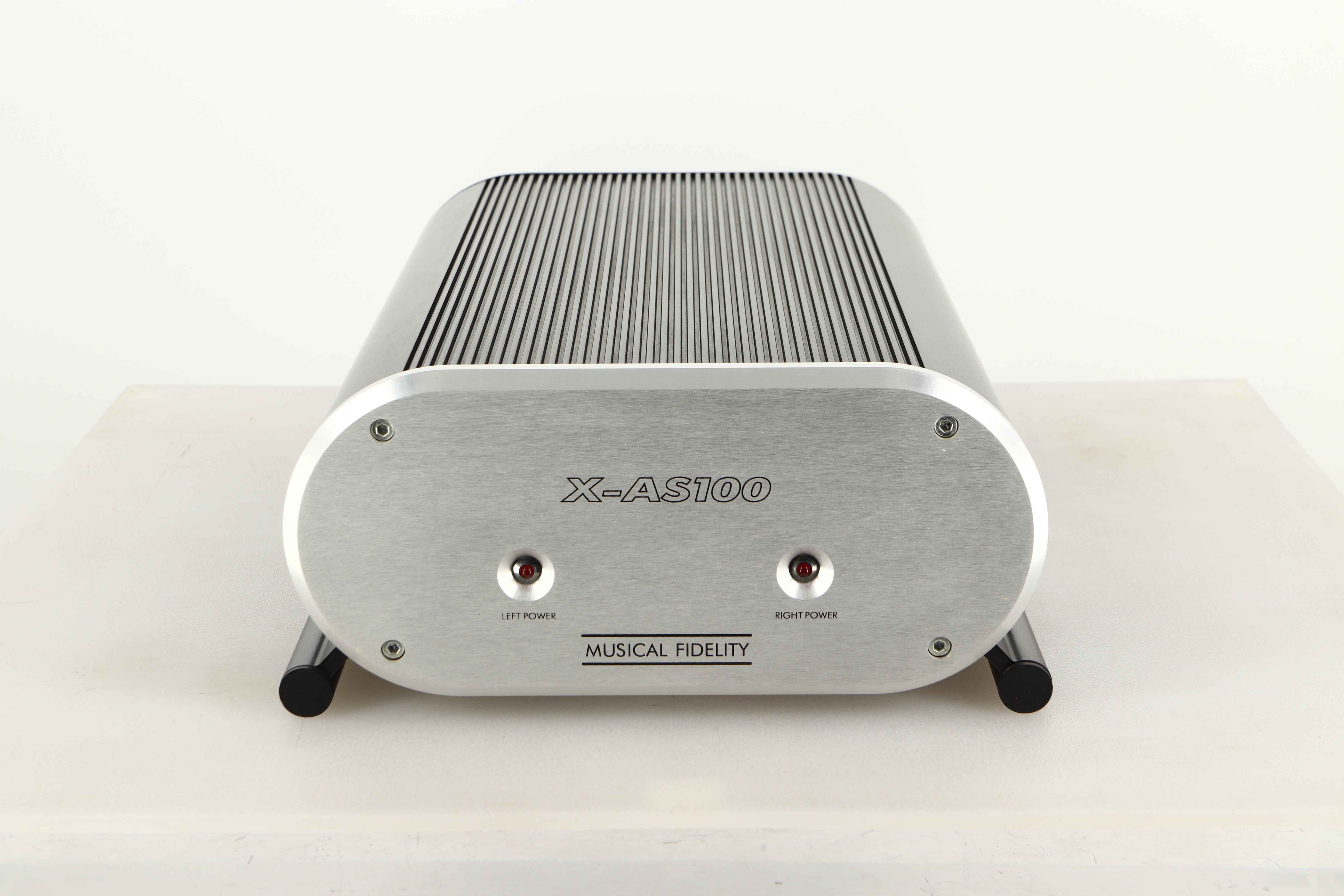

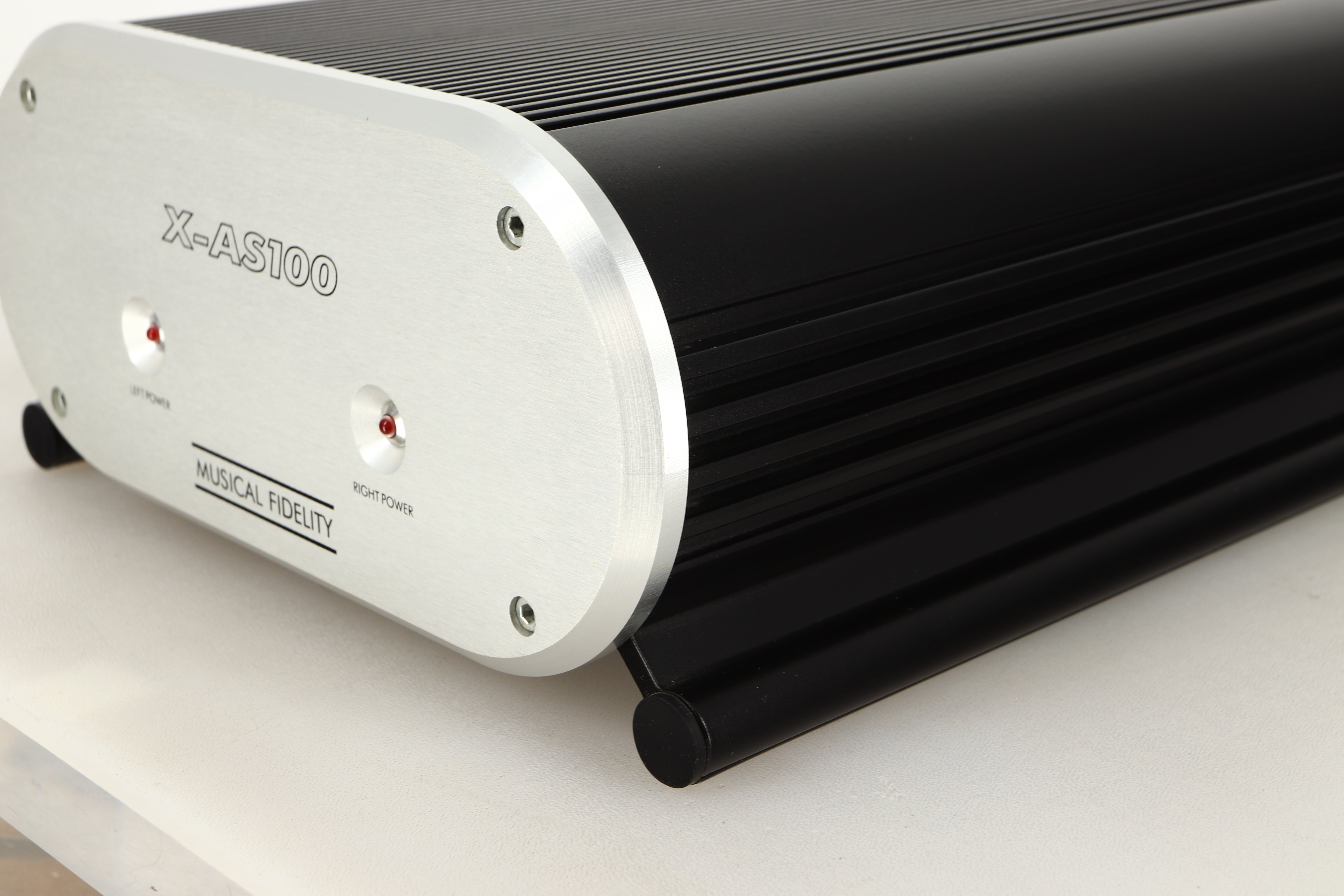

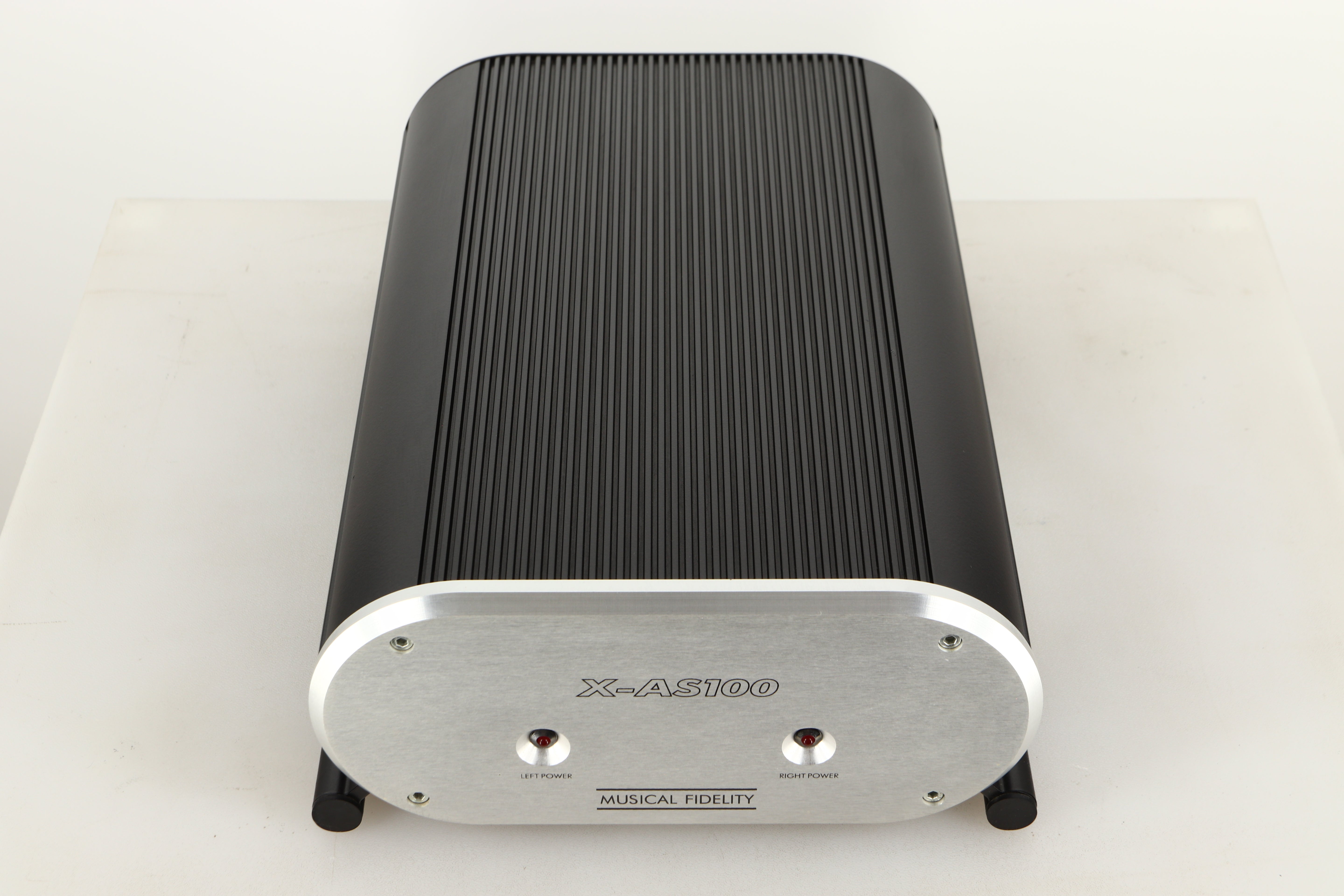

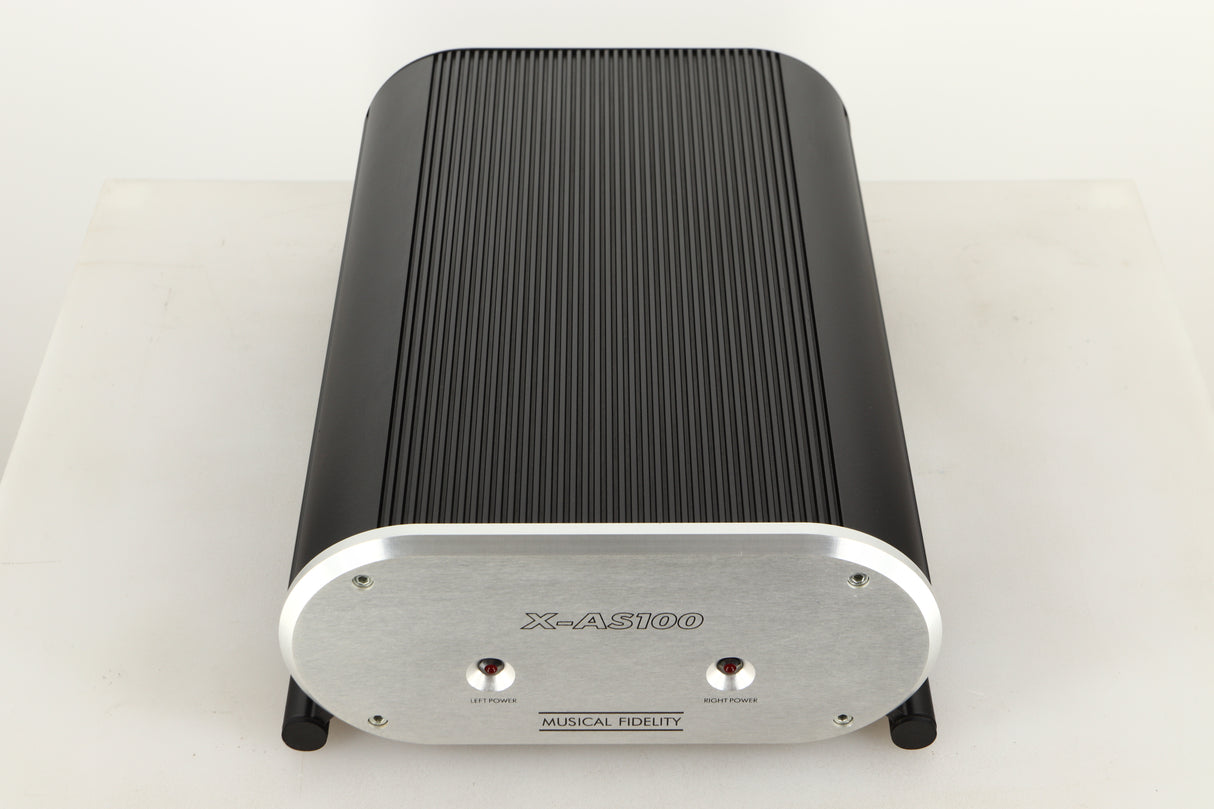

Musical Fidelity X-AS100 Power Amplifier

Aesthetically and electronically the X-AS100 matches perfectly with the X-P100 Preamplifier, X-RAY CD player and X-PLORA tuner. Together, they form one of the finest hi-fi systems available.

Features & Benefits

• 100 watts per channel into 8 ohms - Massive headroom gives excellent dynamics and a clean, unfatiguing sound at all volumes.
• Same gain as X-A50s and X-A200s - Allows the X-AS100 to be used in passive bi-amping systems with X-A50 or X-A200.
• Three pairs of very high current bipolar power transistors per unit - Very high peak current delivery of 35 Amps gives excellent load driving ability and solid bass control.

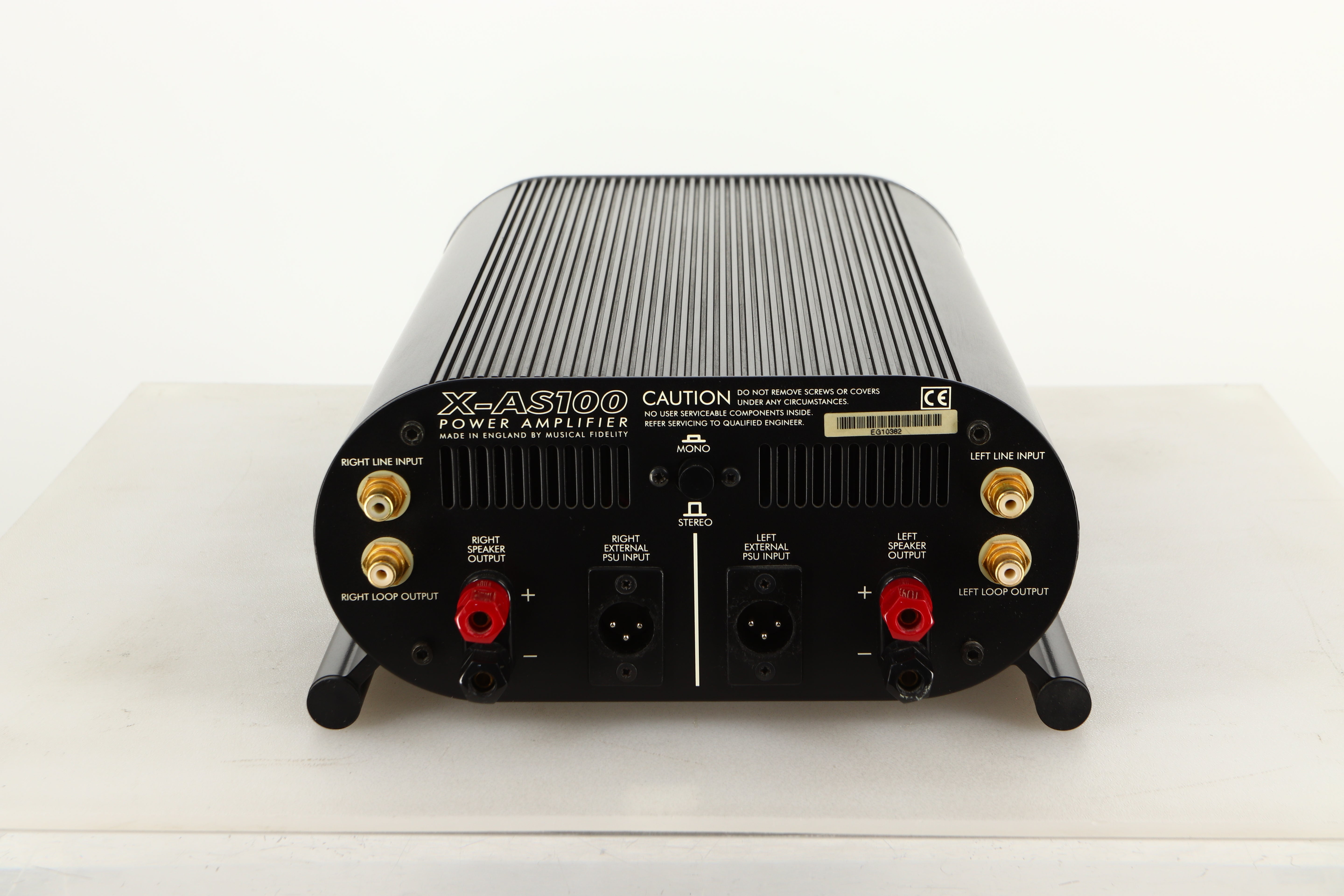

• 'Mono' button - By 'mono-ing' the X-AS100 and joining the speaker connections, the X-AS100 can be turned into a 100 watt, 60 amp monobloc. This allows a second unit to be added, for a stereo pair. This simple upgrade path gives even greater dynamic control. Alternatively, two X-AS100s can be 'mono-ed' easily for passive bi-amping.

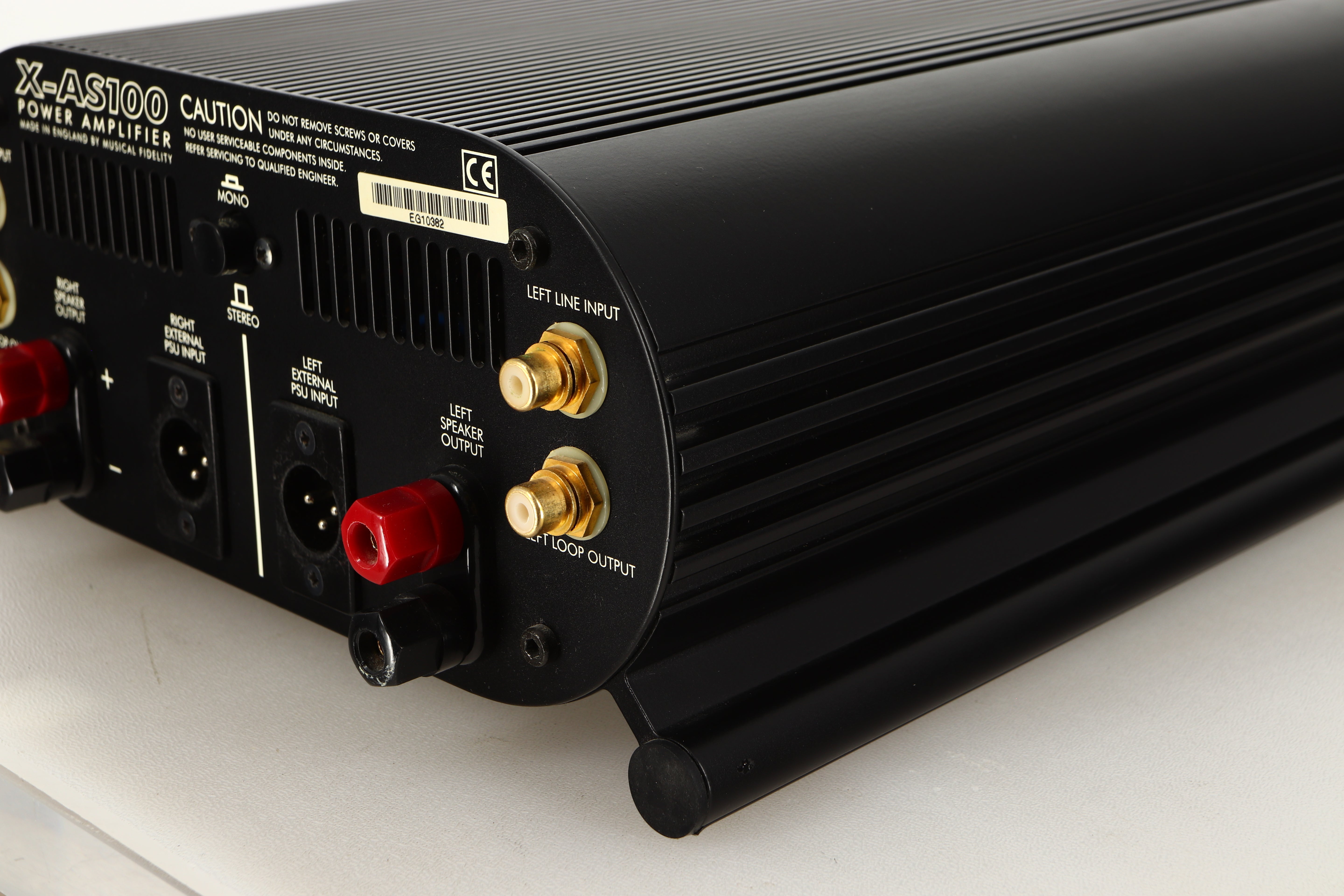

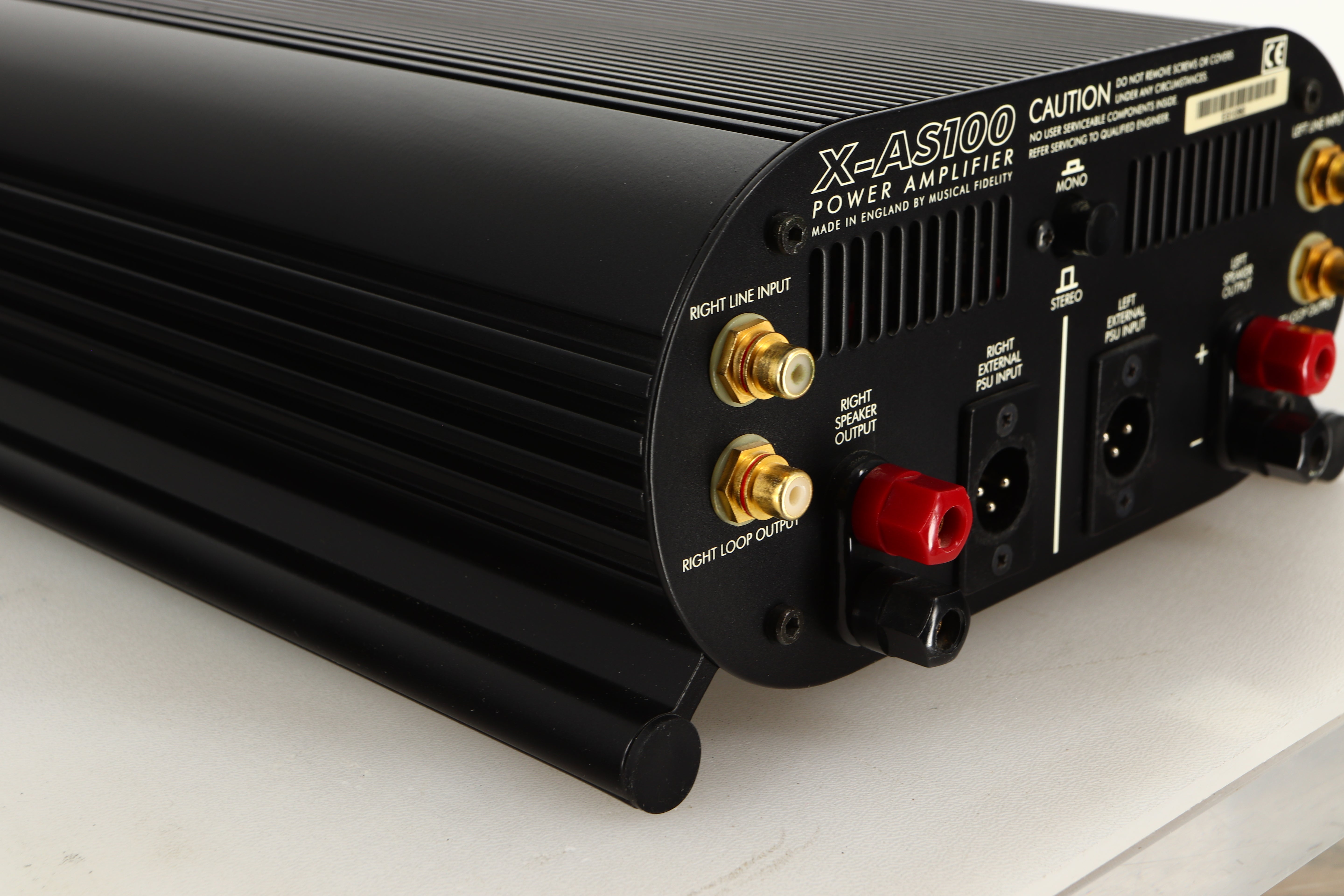

• Loop out facility - Allows easy 'daisy chaining' of X-AS100s for bi- or tri-amping or home cinema use with existing setup.
• Dual mono construction - Internal separation of left and right channel electronics with separate transformer secondaries and power supplies for each channel gives faultless sound-staging and imaging properties.

Power Output: 100 watts per channel, 8 Ω
Total Harmonic Distortion:
< 0.005% at 1 kHz
< 0.04% 20 Hz - 20 kHz unweighted
< 0.003% 20 Hz - 20 kHz 'A' weighted
Frequency Response: 900 mV
Input Sensitivity: 10 Hz - 70 kHz, + 1 dB
Signal to Noise Ratio:
> 106 dB unweighted (ref 100 W)
> 117 dB ‘A’ weighted (ref 100 W)
> 86 dB unweighted (ref 1 W)
> 97 dB 'A' weighted (ref 1 W)
Channel Separation: > 90 dB 20 Hz - 20 kHz
Power Consumption: 450 Watts (maximum)
Dimensions: 230 (W) x 330 (D) x 110 (H) mm
