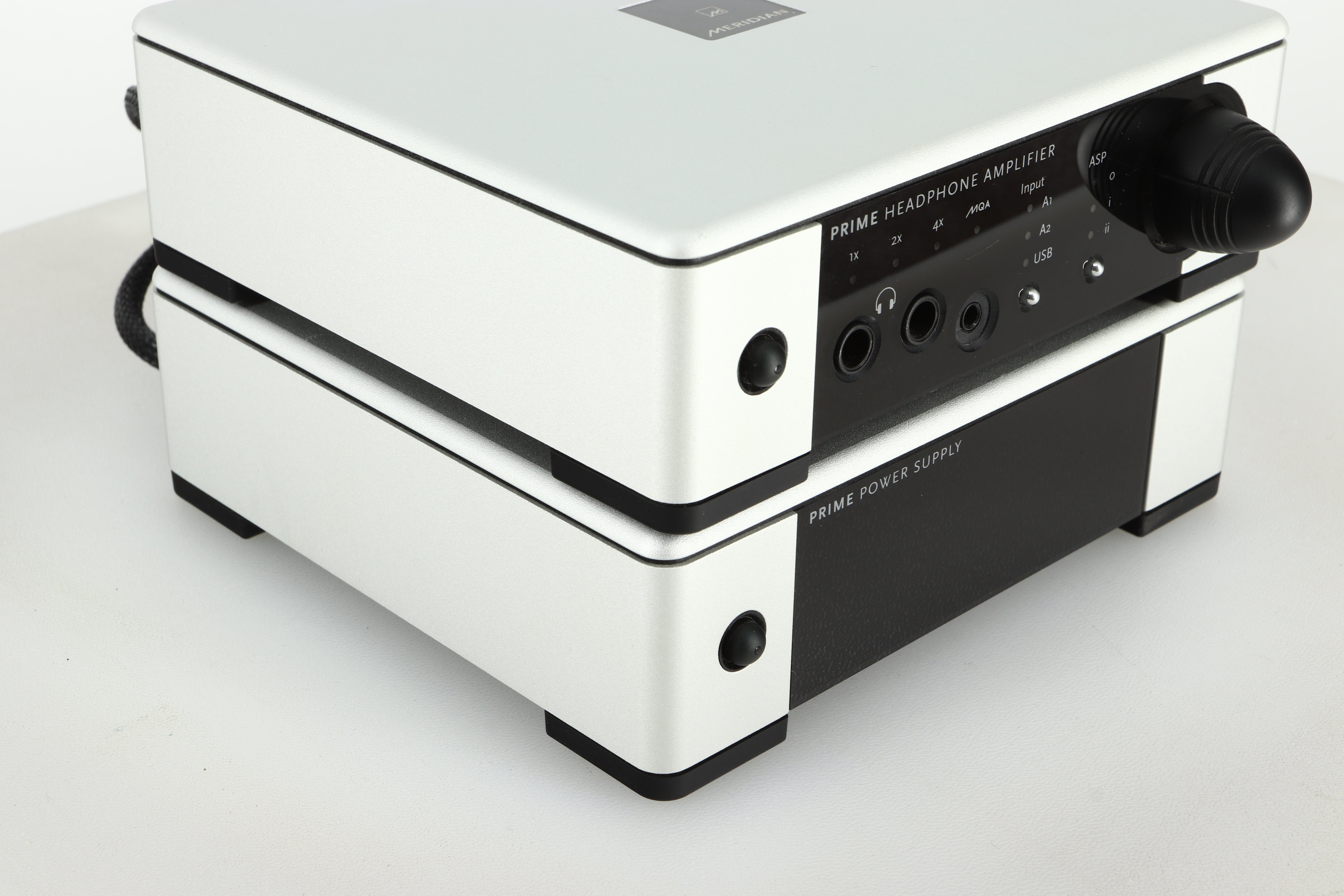

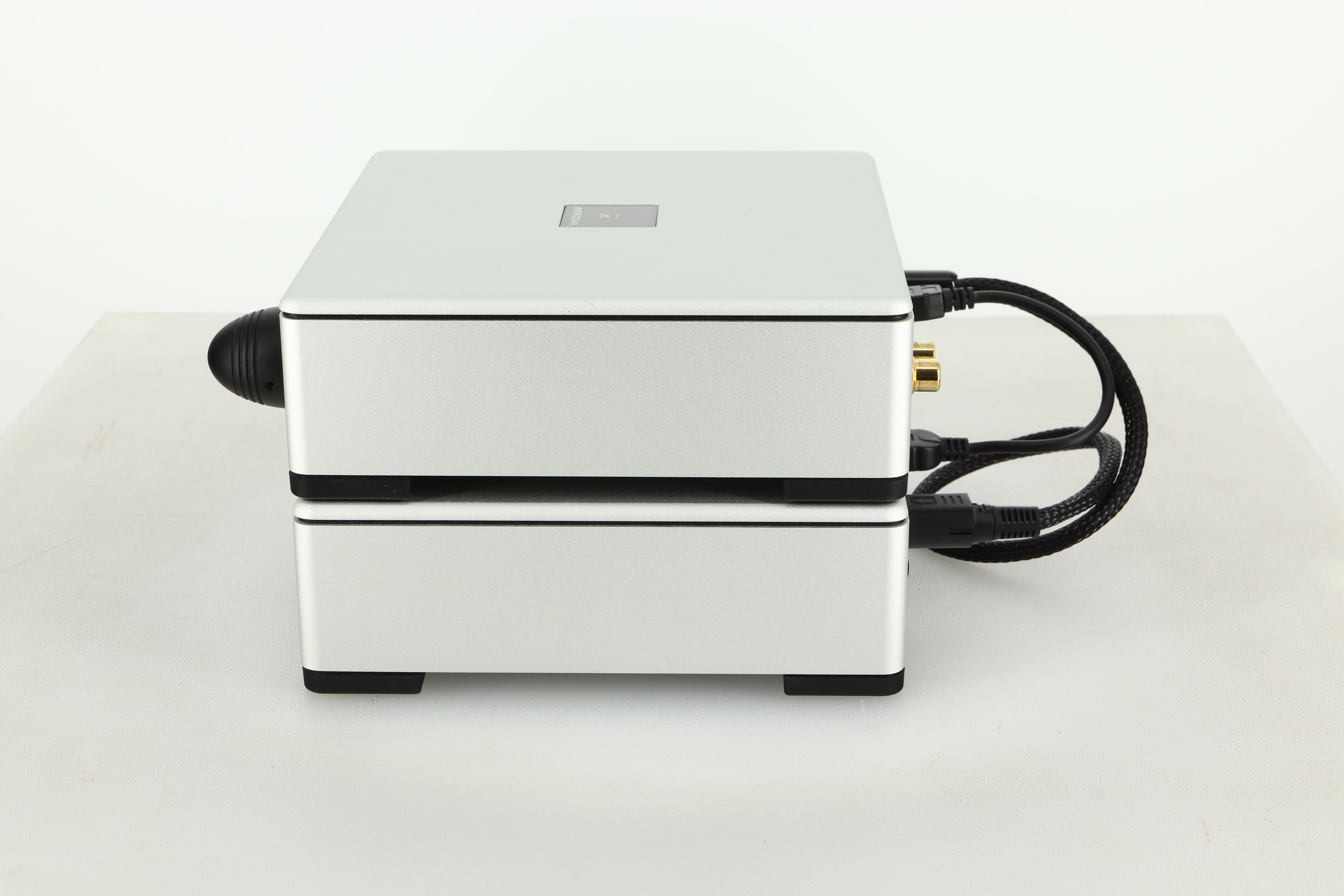

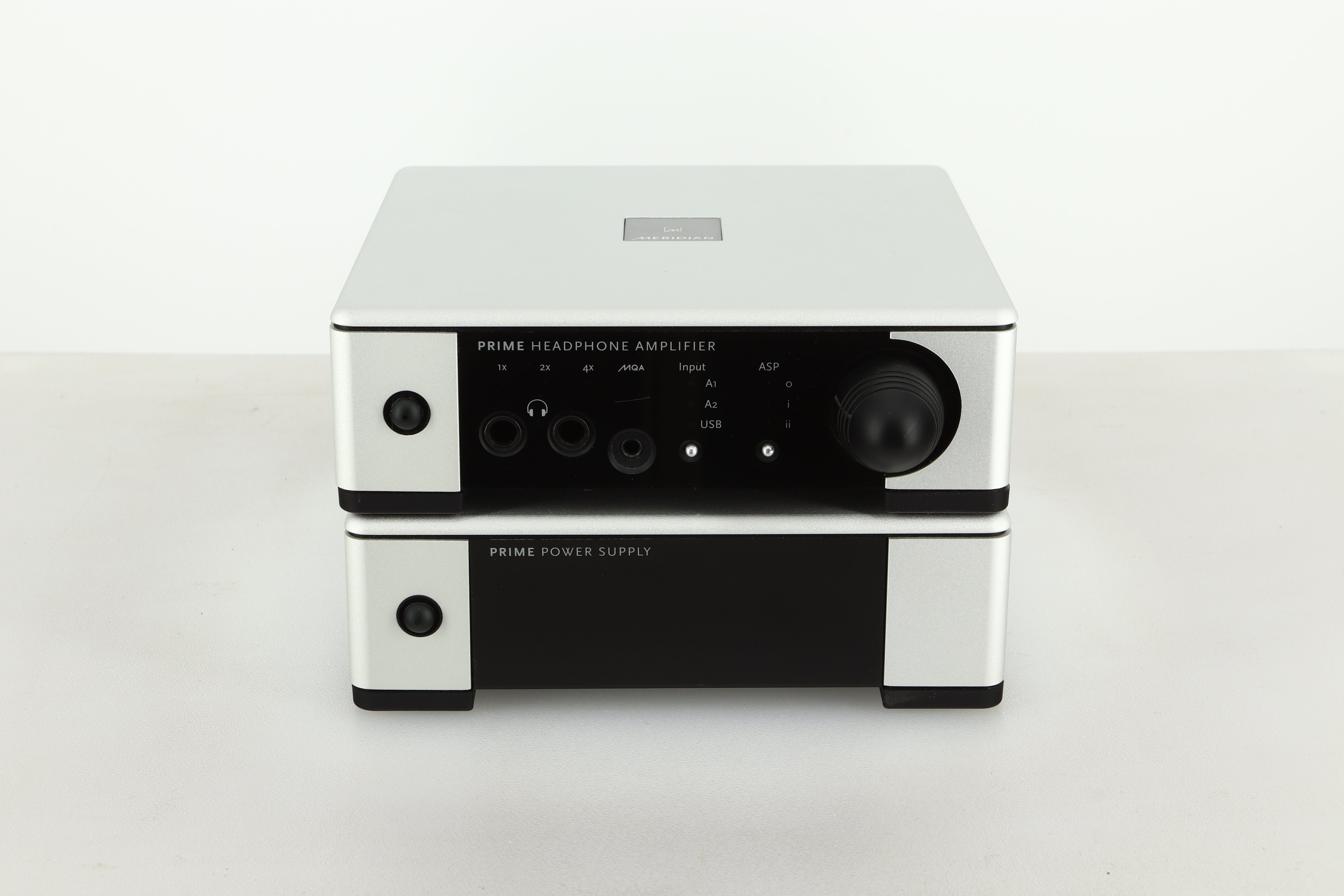

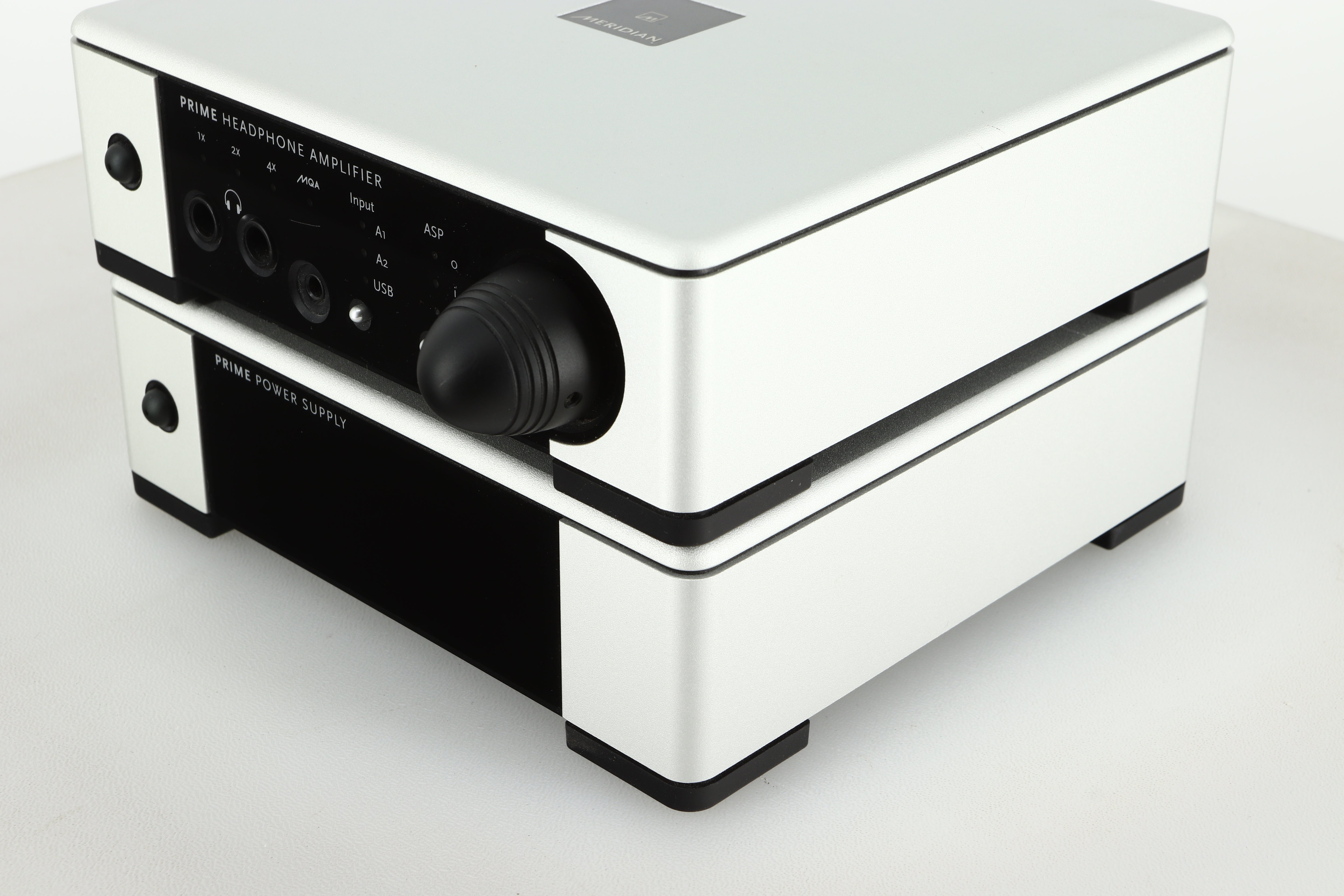

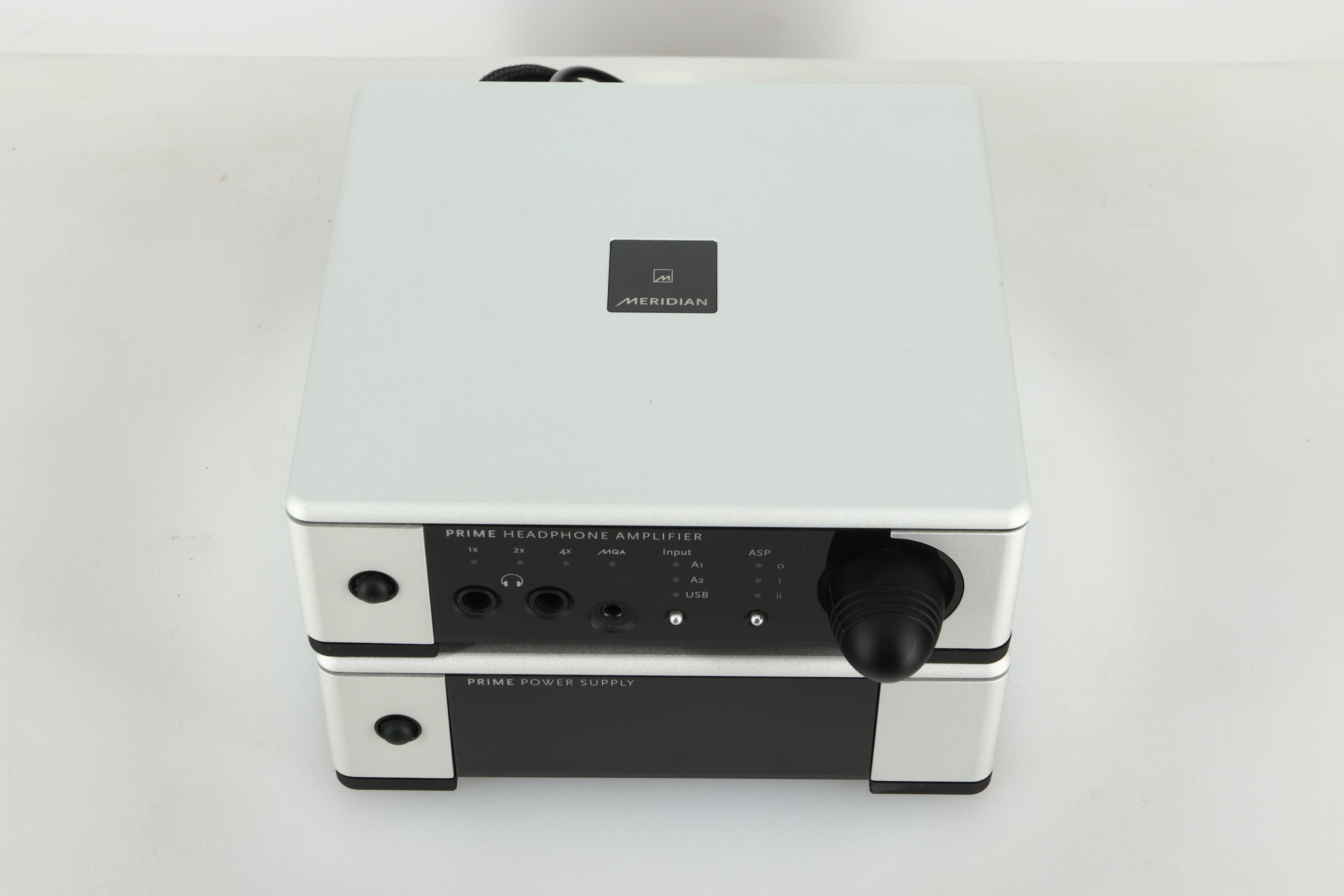

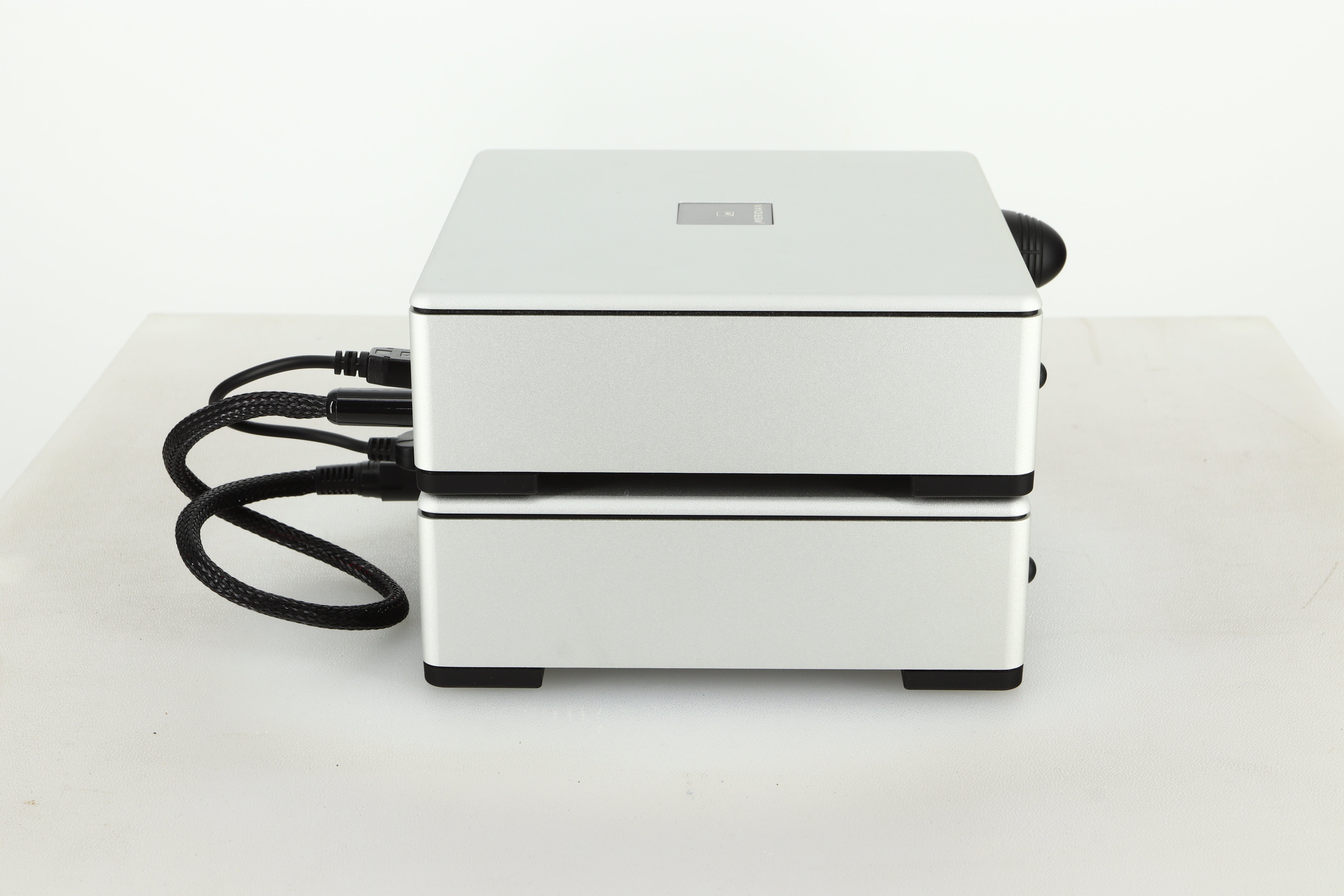

Meridian Prime Headphone Amplifier / Power Supply - Silver

Reference Quality for Headphones
Meridian’s Prime Headphone Amplifier is a reference-quality analogue headphone amplifier that can replay audio from both analogue and USB-based sources.
Built into an elegant and compact Allen Boothroyd-designed metal case, Meridian’s Prime Headphone Amplifier also provides a preamp output to drive an external audio system or analogue active loudspeakers and fully supports Meridian’s revolutionary MQA technology for studio-quality replay.
The Prime Headphone Amplifier is designed to appeal to audio enthusiasts who seek the highest possible performance from conventional analogue audio sources including personal stereo players, or from a computer via USB, listening on headphones, a conventional audio system or analogue active loudspeakers.

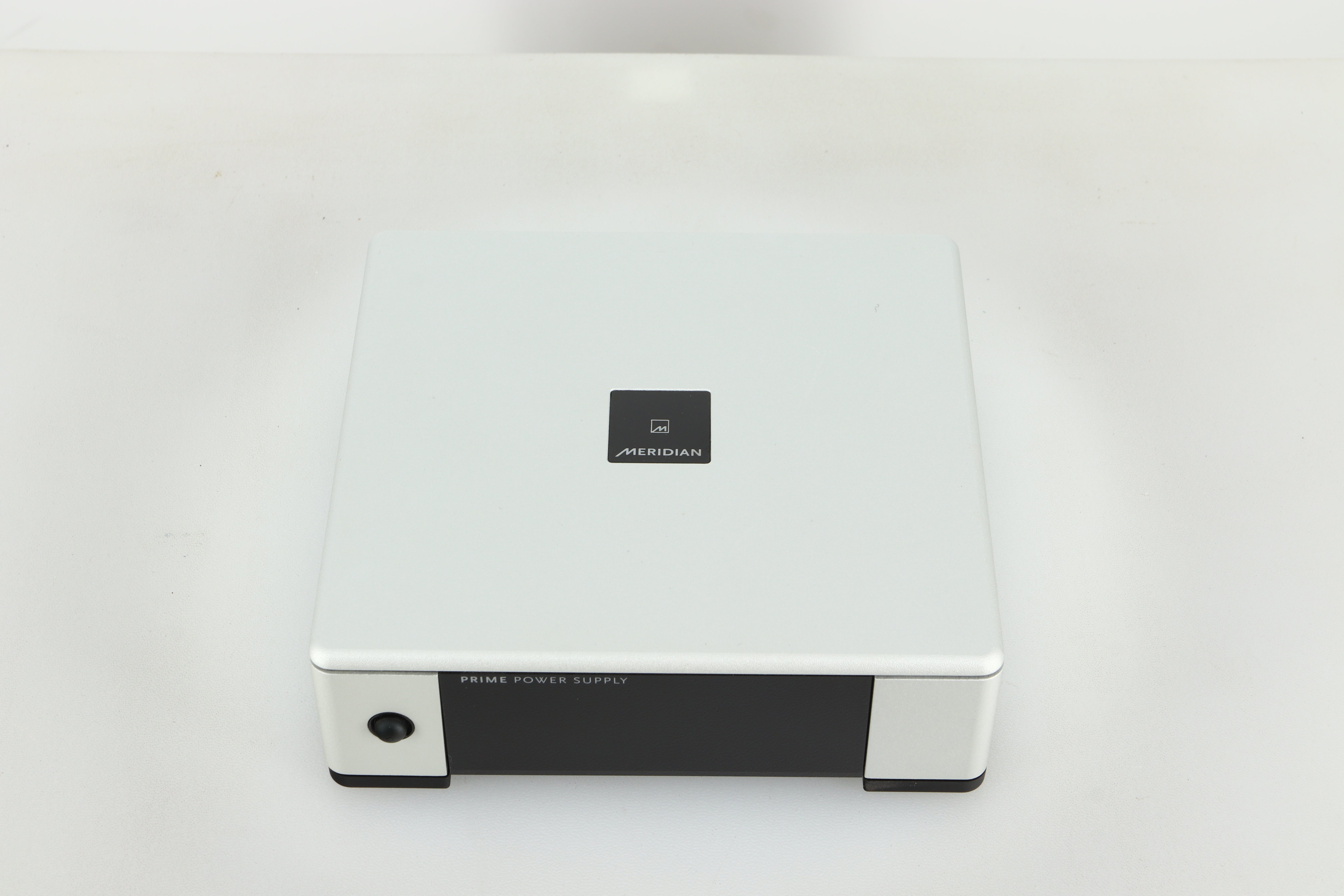

The Meridian Prime Headphone Amplifier can be powered by the wall-mounted supply provided or, for even higher audio quality, by the Meridian Prime Power Supply. The use of this external power supply means that AC noise is kept well away from the pure analogue stages of the Headphone Amplifier.

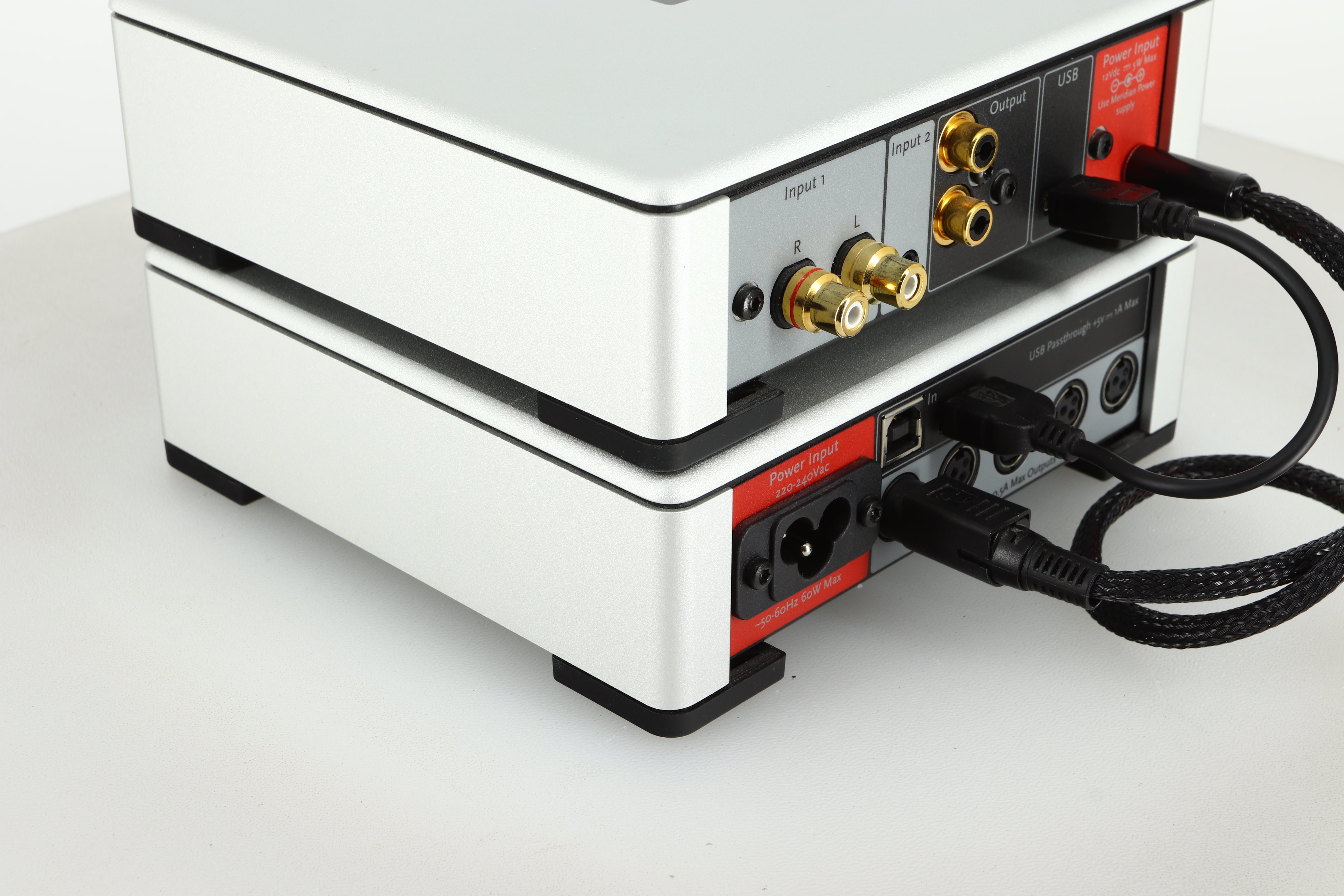

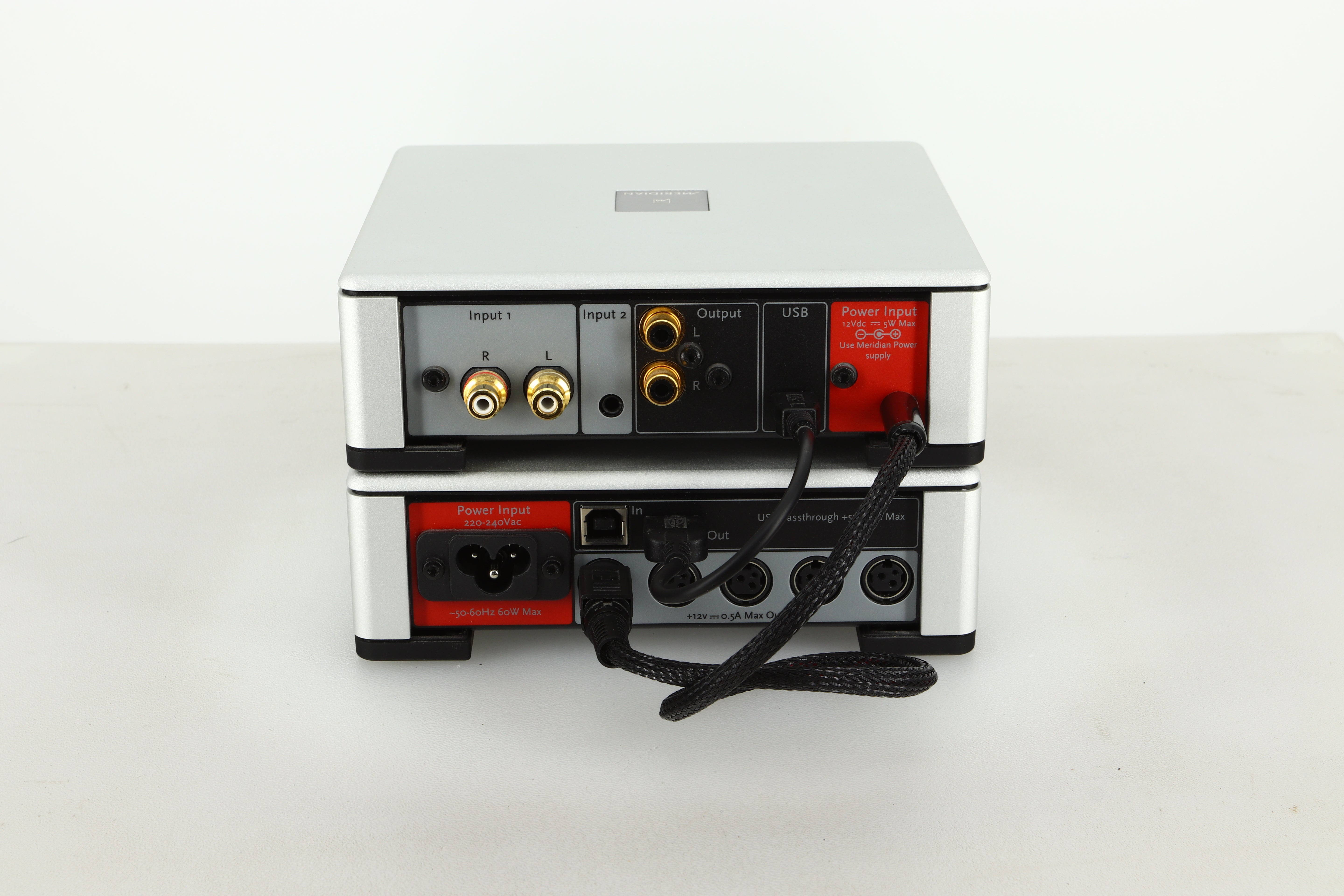

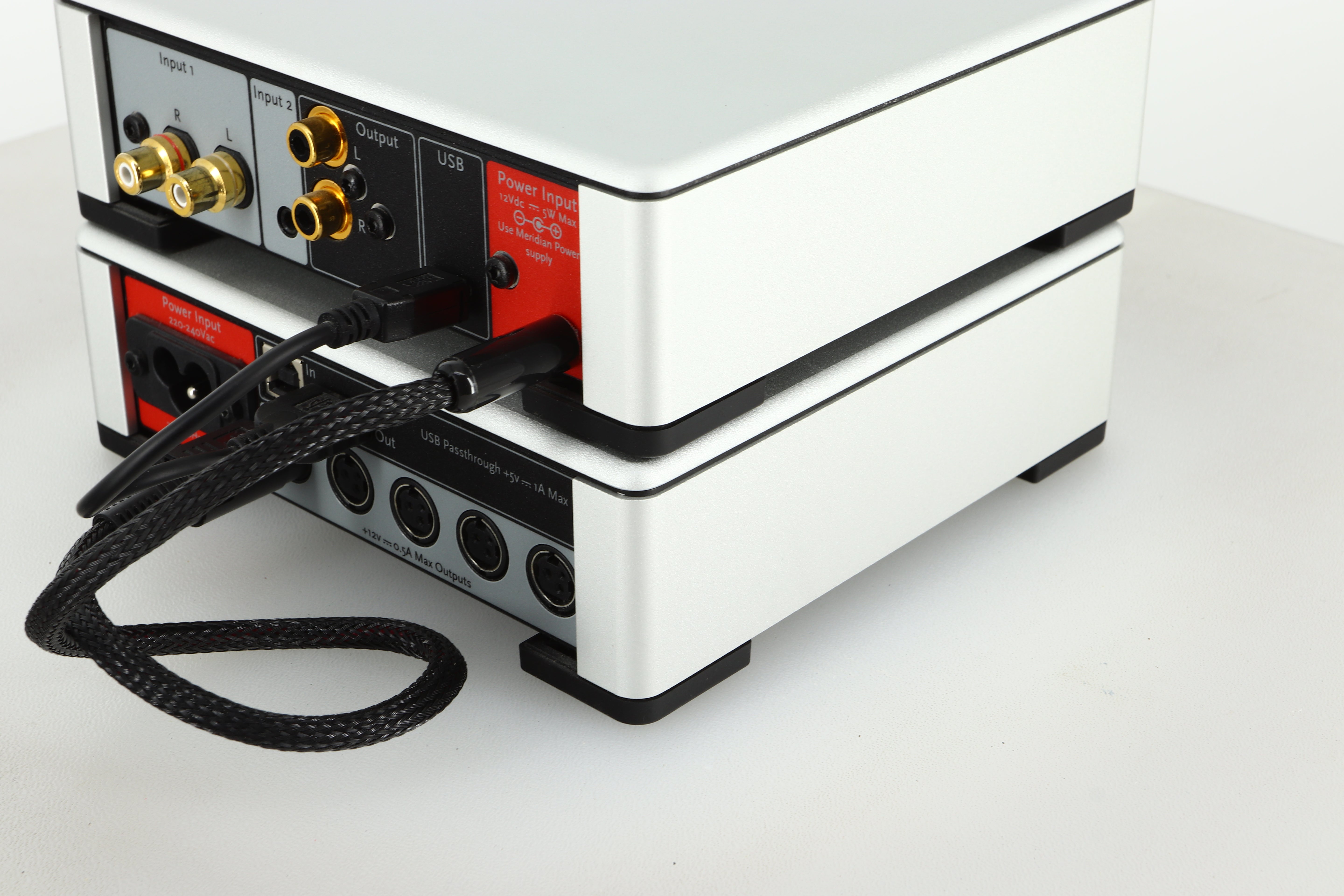

Inputs

• 1x pair Phono (stereo) (A1) Gain 3dB; 1.4Vrms in for 2Vrms out
• 1x 3.5mm analogue stereo (A2) Gain 12dB; 500mVrms in for 2Vrms out Analogue inputs overload capability >40dB
• 1x Asynchronous USB 2.0 interface, 44.1–192kHz ≤24-bit. Jitter <90ps p-p. Apodising filter and upsampling of 44.1/48kHz inputs to 88.2/96kHz; MQA decode and render

Outputs
• 1x pair phono (stereo) preamp out Maximum output 3.1Vrms @ 1kHz THD <0.001% @ 1kHz up to 3V rms Crosstalk <–70dB @ 1kHz Output can be disabled via power button
• 2x 1/4in A-type stereo phone jacks Maximum output 3Vrms off load, THD <0.002% Output impedance <100mΩ Power output 250mW up to 42Ω Short-circuit protected
• 1x 3.5mm stereo phone jack Max output 3Vrms off-load, THD <0.002% Output impedance 2.2Ω

Overall Audio performance
• Output noise (input A1) < –100dBV CCIR or A weighted
• Frequency response +0/–1dB DC–70kHz +0/–3dB DC–200kHz Headphone compatibility Suitable for impedances in the range 16–1kΩ or more. Suitable for open, closed, in-, on- or over-ear models. Recommended sensitivity >80dBspl/mW or >96dBspl/V

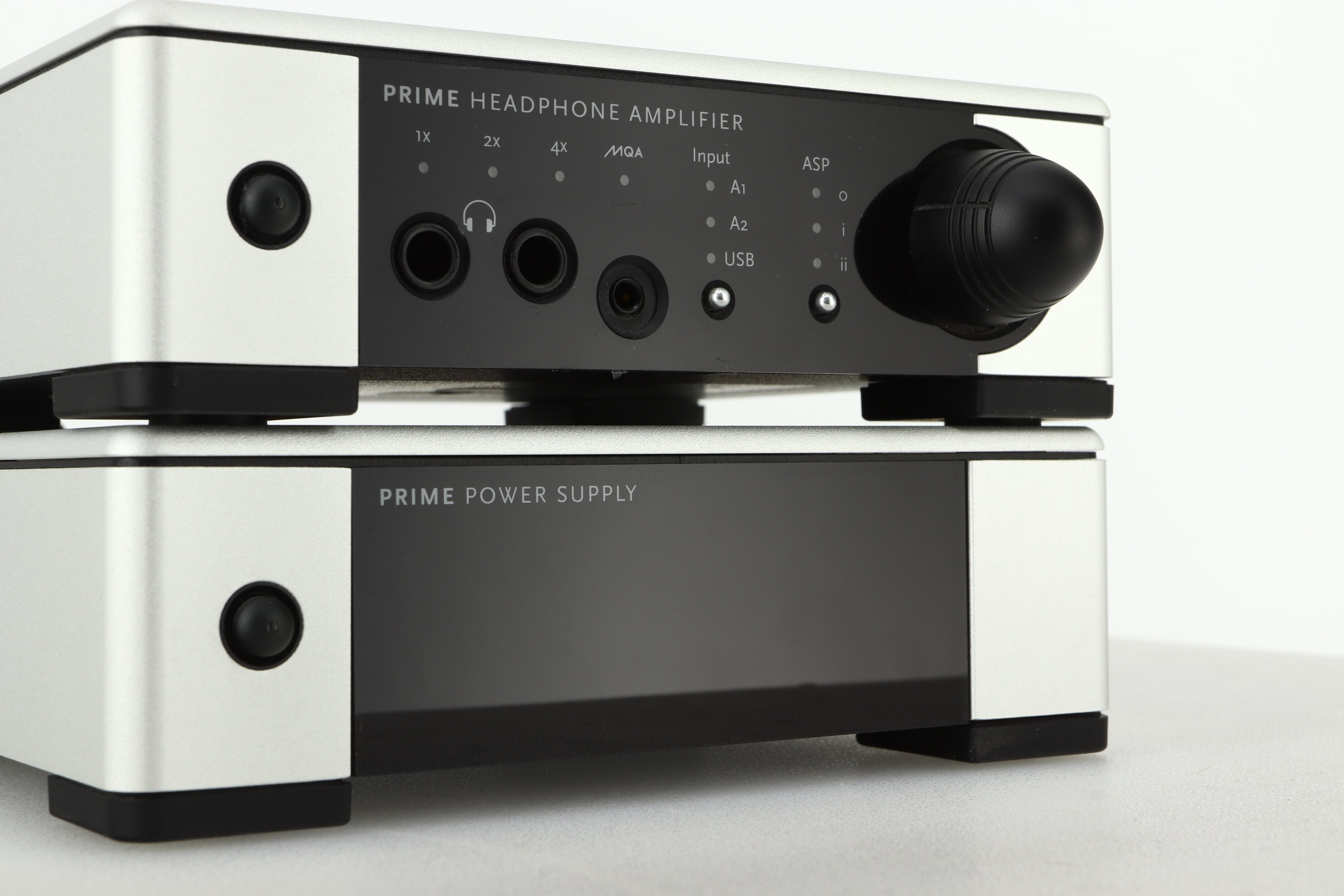

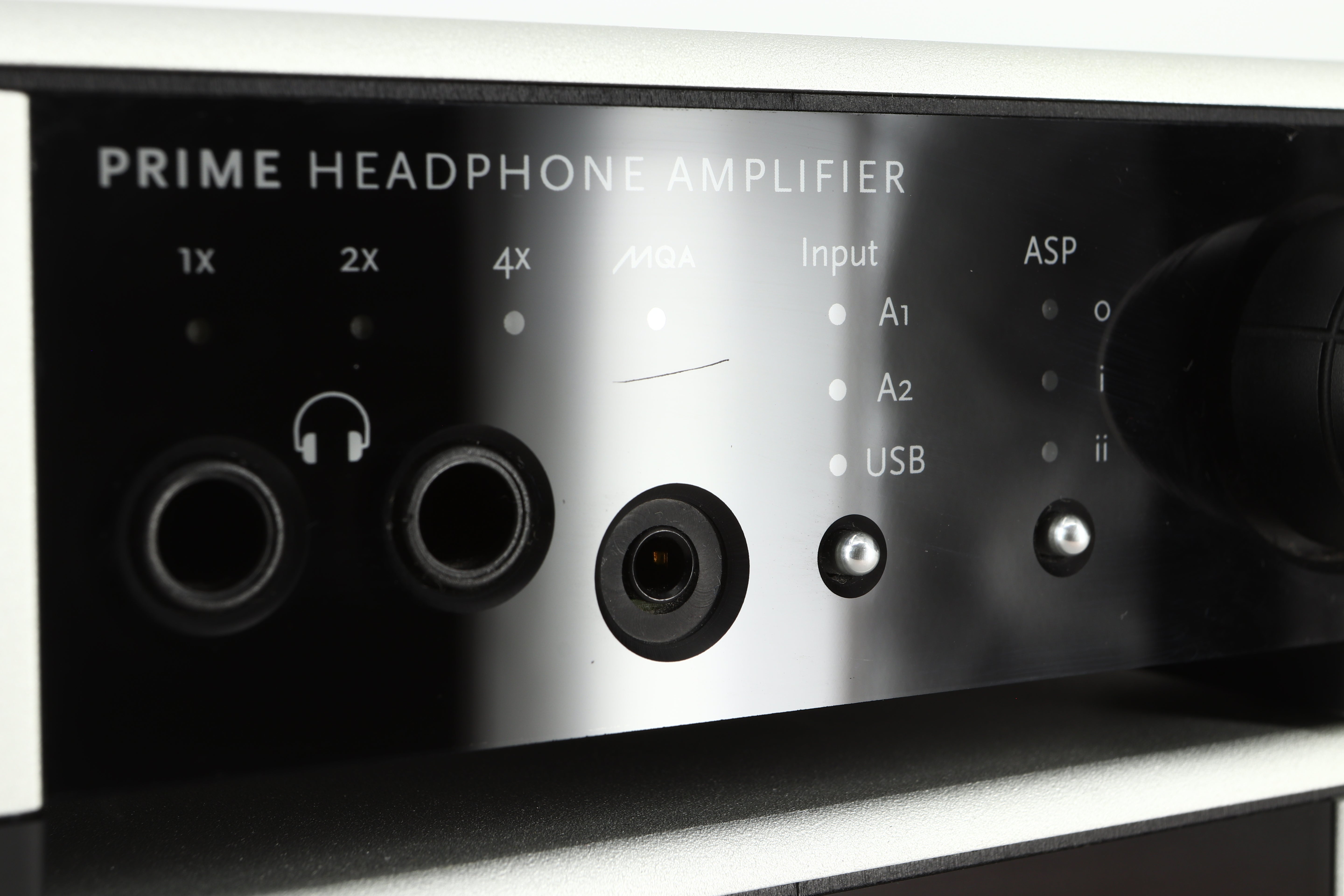

Controls
• Volume with precise tracking, 70dB range
• Input switch
• Processing (off/i/ii)
• Power including rear output mute Processing
• ‘Out-of-head’ Analogue Spatial Processing with dual settings plus bypass (headphone outputs only)

Power
• 12V DC
• Consumption <0.5W standby
• <1W in quiescent Construction
• Silver metal finish similar to G Series
