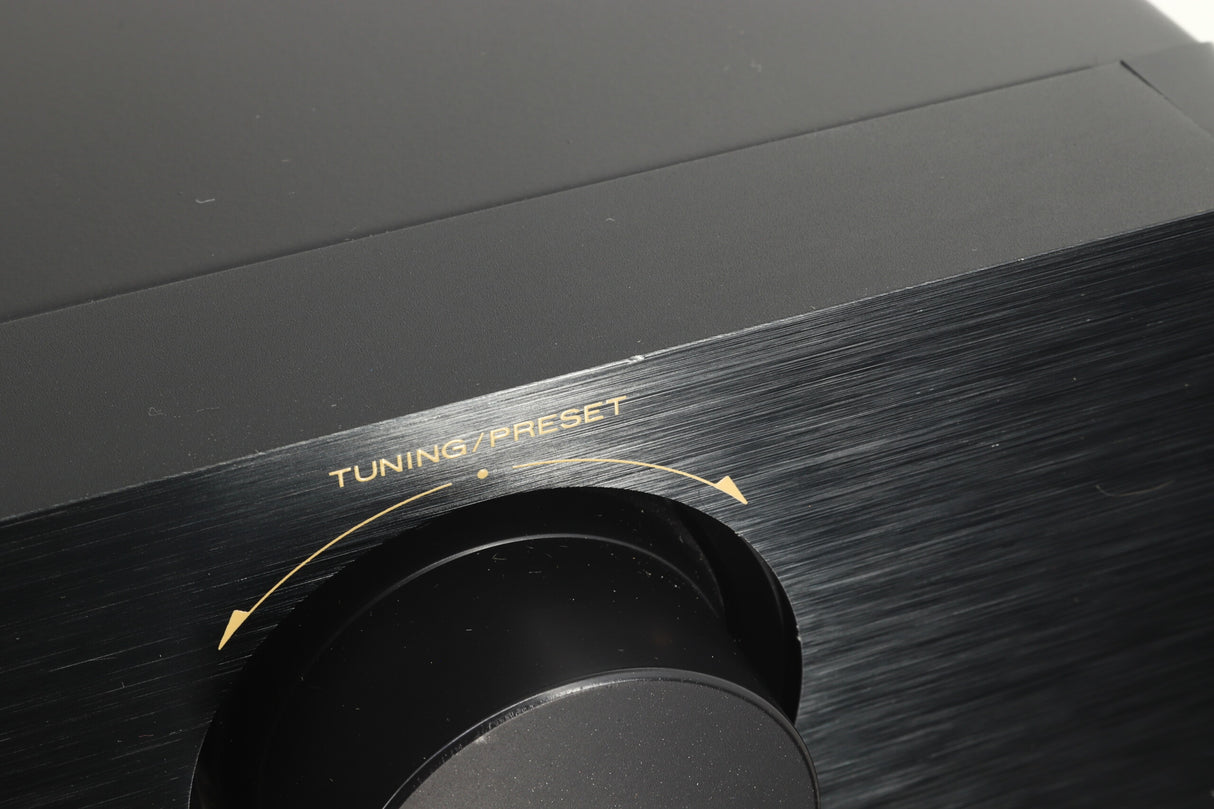

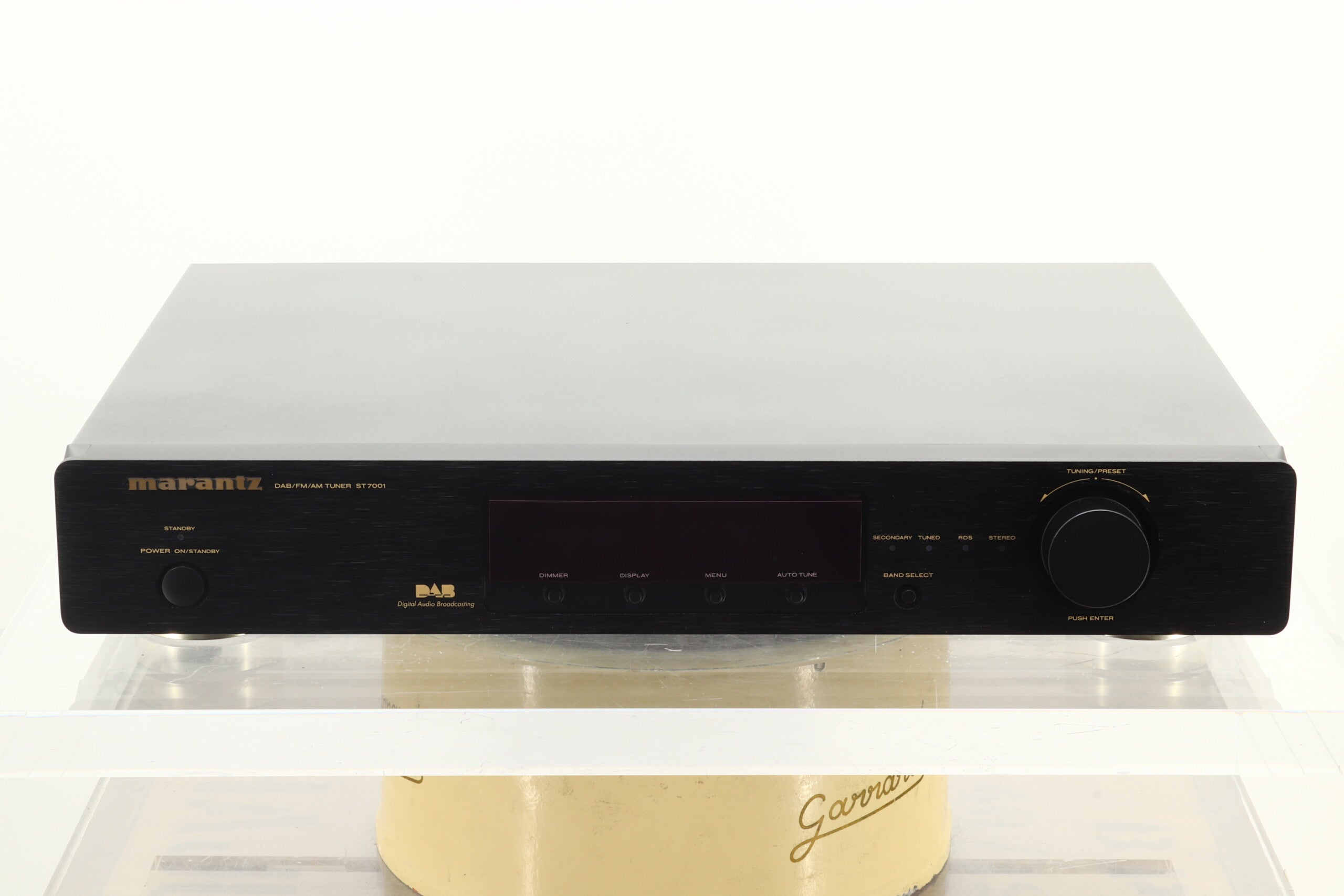

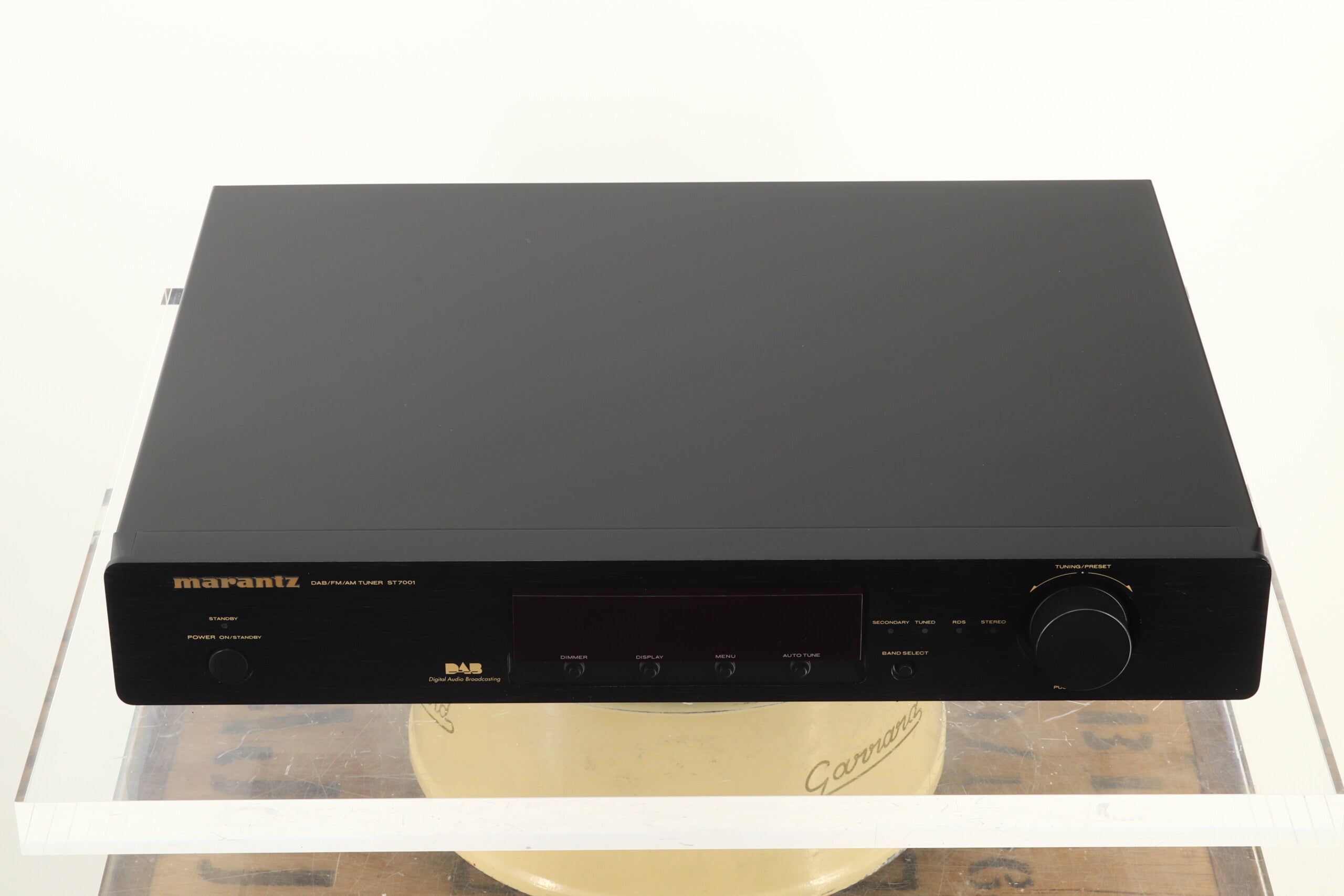

Marantz ST 7001 DAB/FM Tuner - Black

An very good example of this excellent DAB/FM/AM Radio Tuner from Marantz. Full working order and 3 months warranty.

FM tuner section
Frequency range ..........................87.5 MHz ~ 108.0 MHz
Antenna terminals .........................75 Ω/ohm Unbalanced
Usable sensitivity ...................................1.1 µV (12.2 dBf)
...........................................................1.1 µV (IHF)
Image interference ratio...........................................80 dB
IF interference ratio................................................100 dB
AM suppression ratio...............................................50 dB
Effective selectivity................................50 dB (±400 kHz)
Capture ratio...........................................................2.0 dB
Frequency characteristics
..................................20 Hz ~ 15 kHz +0.5/–1.0dB
Signal-to-noise ratio
Monaural ........................74 dB (IHF), 70 dB (DIN)
Stereo.............................68 dB (IHF), 64 dB (DIN)
Total harmonic distortion
Mono 1 kHz (at 75 kHz dev.) ........................0.2 %
Stereo 1 kHz (at 67.5 kHz dev.)......................0.3 %
Stereo separation 1 kHz (WIDE) .............................43 dB
DAB tuner section
Frequency range
......174.928 (5A) ~ 239.200 (13F) MHz (BAND III)
..1452.960 (LA) ~ 1490.624 (LW) MHZ (L–BAND)
Sensitivity............................................................–99 dBm
Signal-to-noise ratio...............................................103 dB
THD+N ....................................................0.007 % (1 kHz)
Channel separation...................................100 dB (1 kHz)
Selectivity..............................40 dB (at adjacent channel)

Frequency response
................................+0.5/–0.5 dB (5 Hz ~ 20 kHz)
Digital output............................................Optical, Coaxial
Sampling frequency ...............................................48 kHz
Aerial terminal ...................................75 Ω/ohm, F female
Analog output level ................................................2 Vrms
AM tuner section
Frequency range ...............................522 kHz ~ 1611kHz
Antenna terminals
............................Terminal type with loop antenna
Usable sensitivity.....................................................18 µV
Signal-to-noise ratio.................................................53 dB
General
Power supply.........................................AC 230 V, 50 Hz
Power consumption ..................................................12 W
Weight .....................................................................4.1 kg
