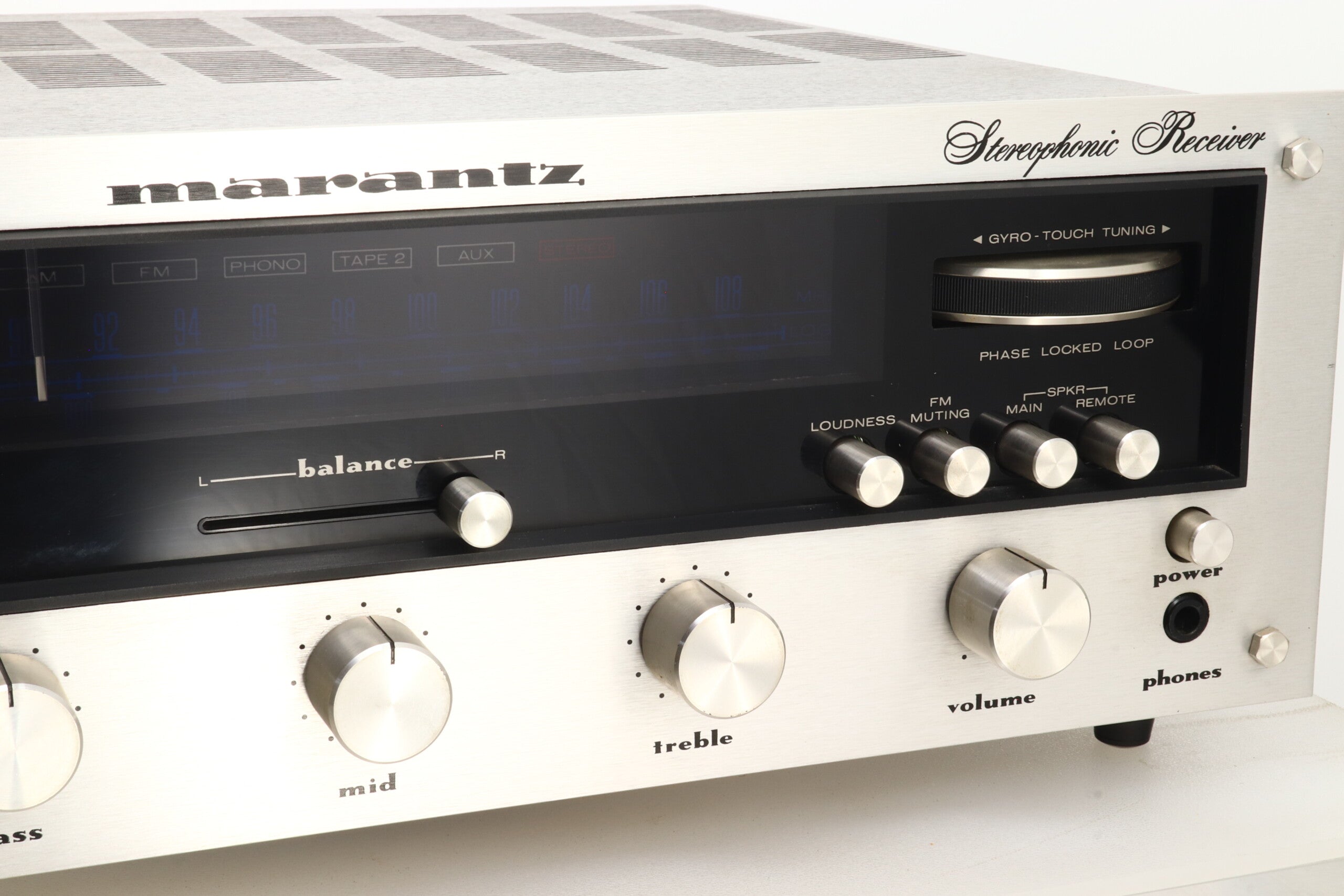

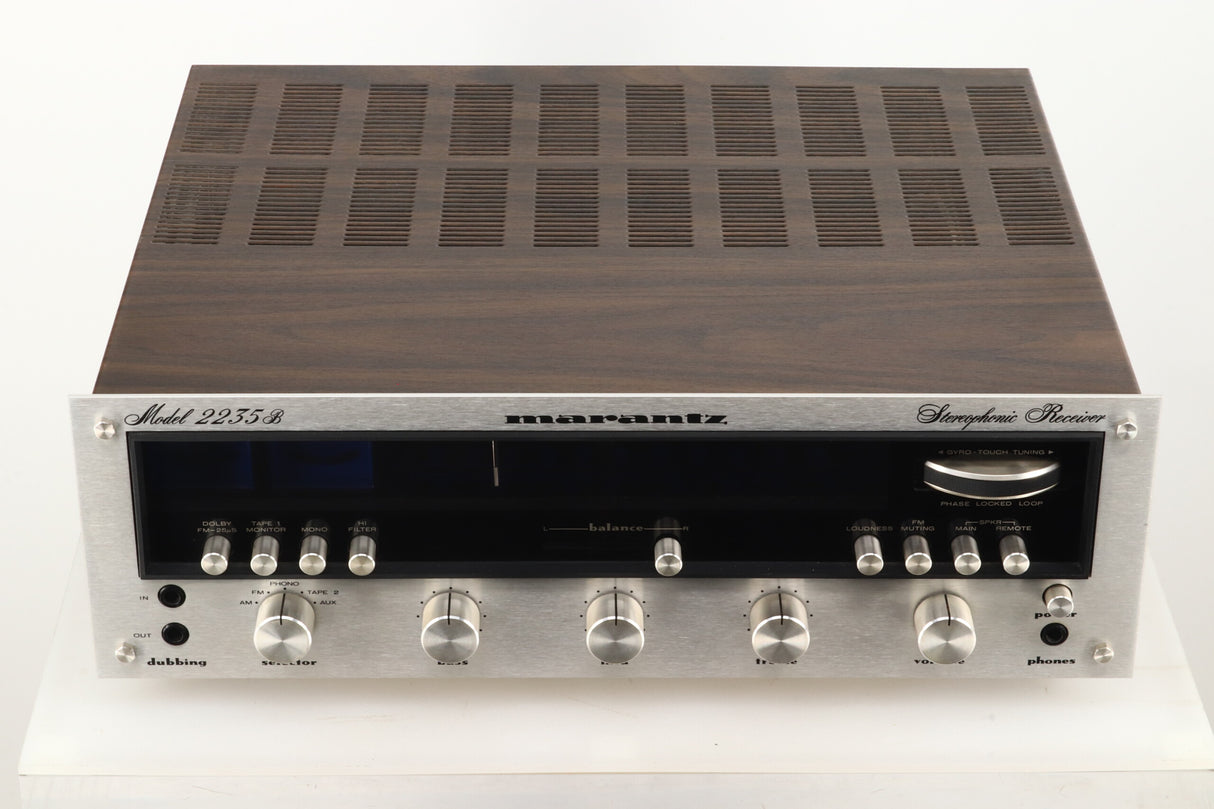

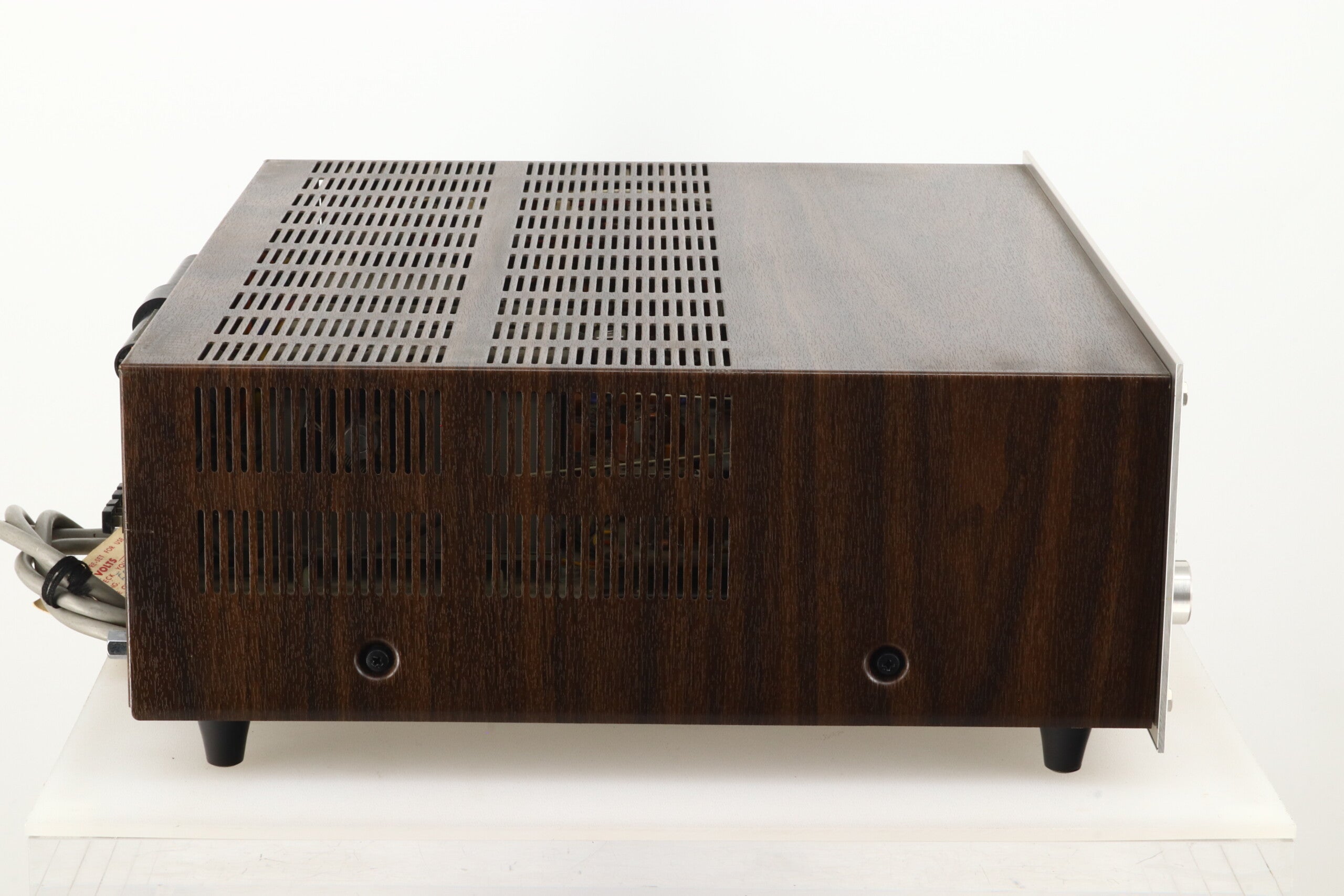

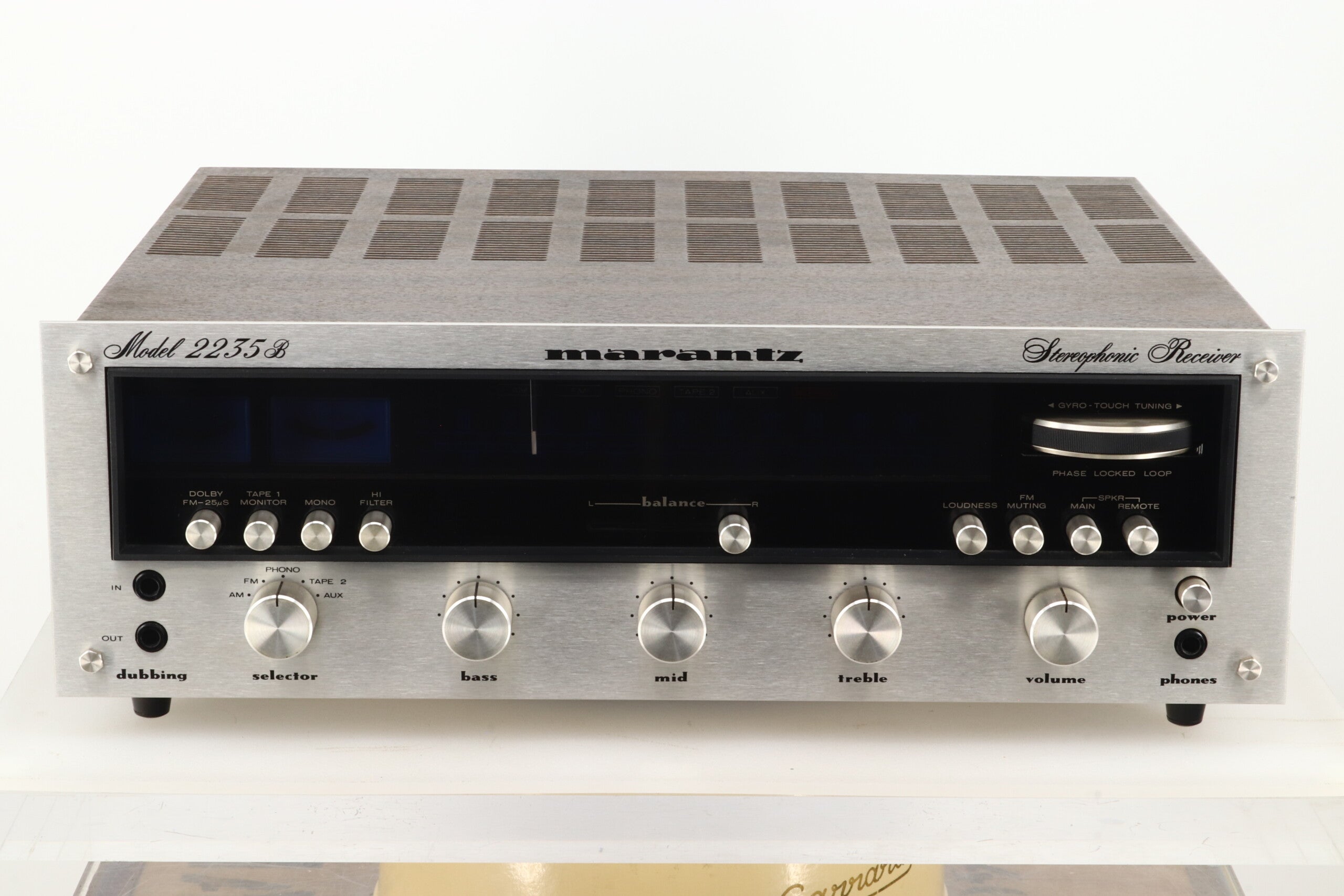

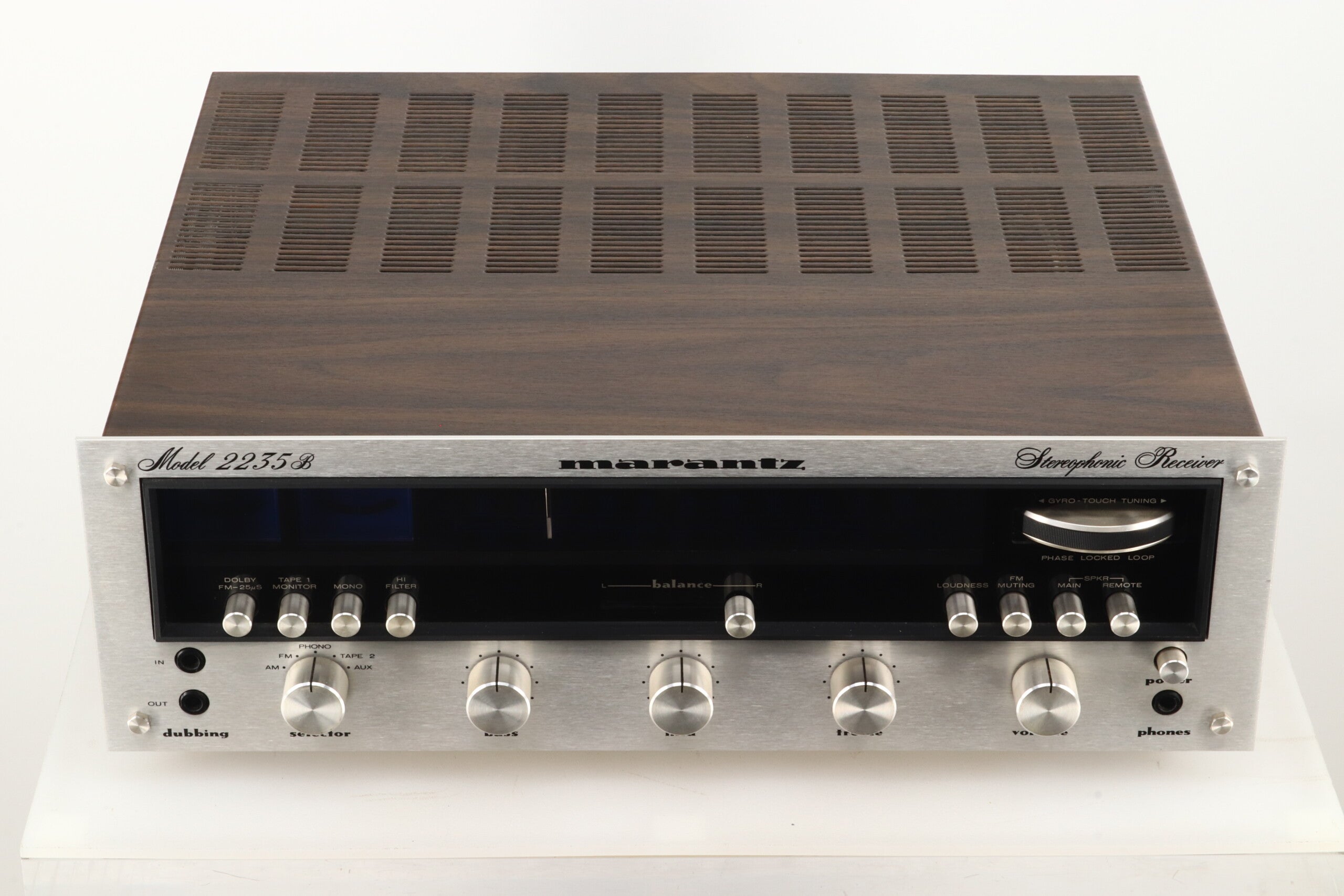

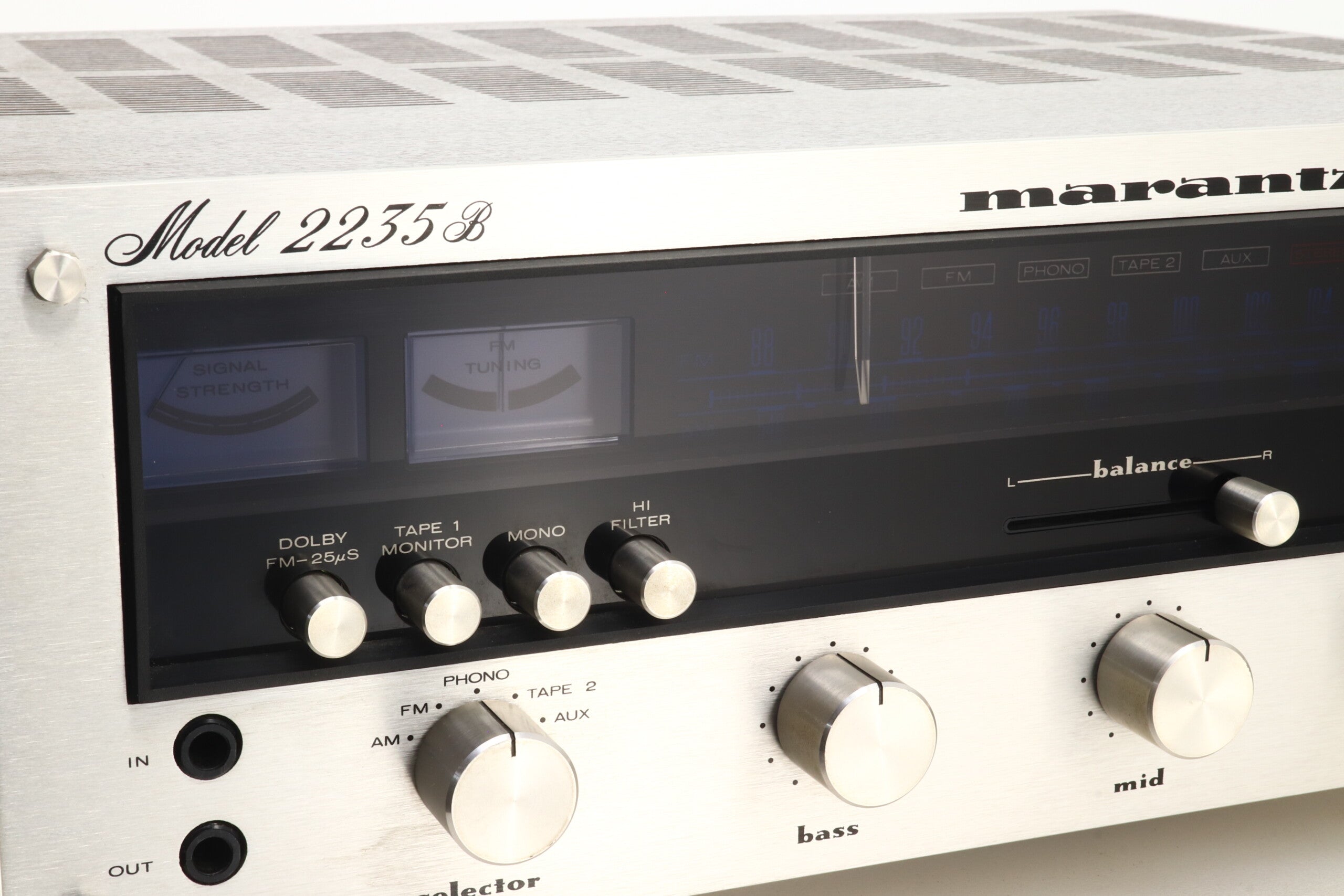

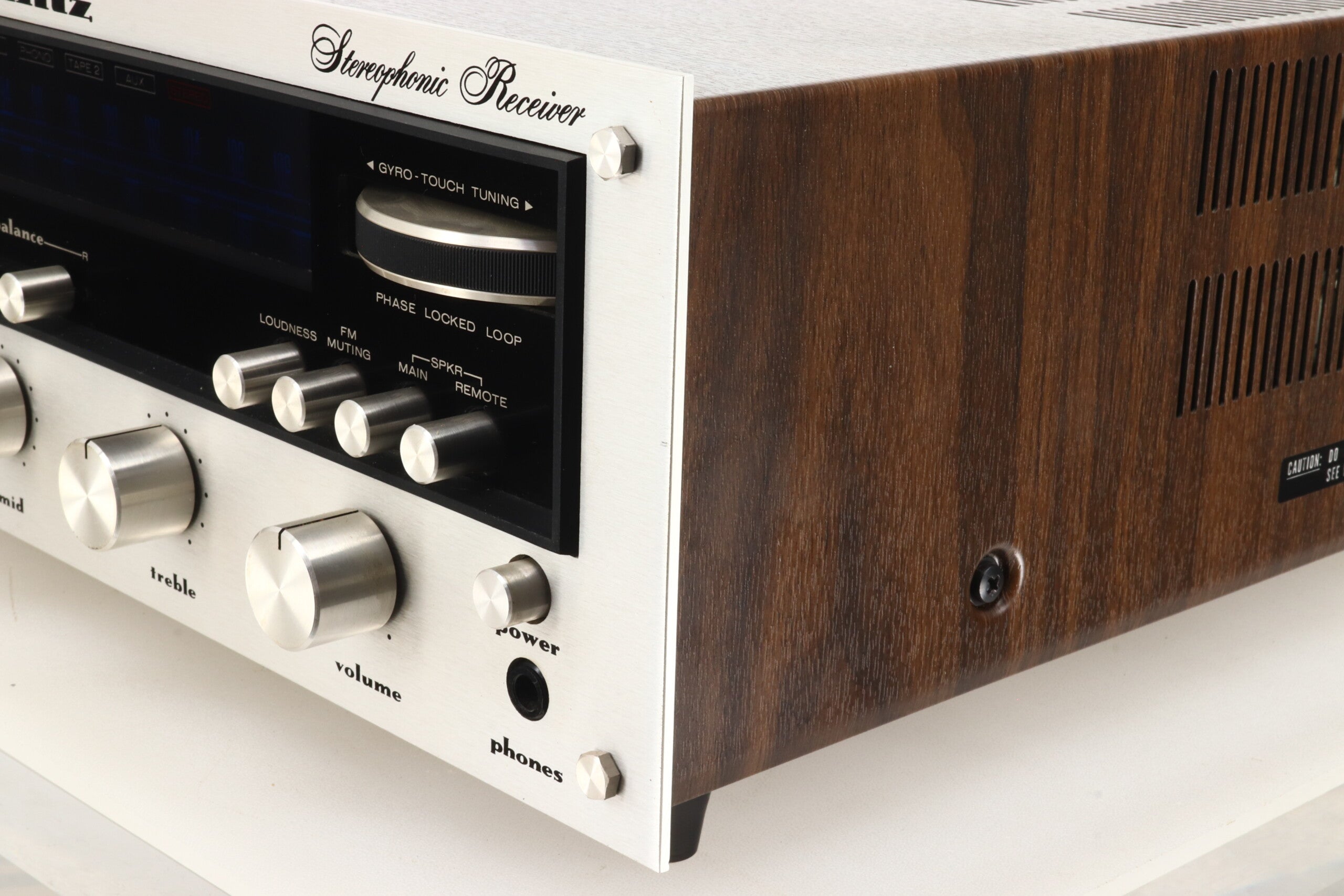

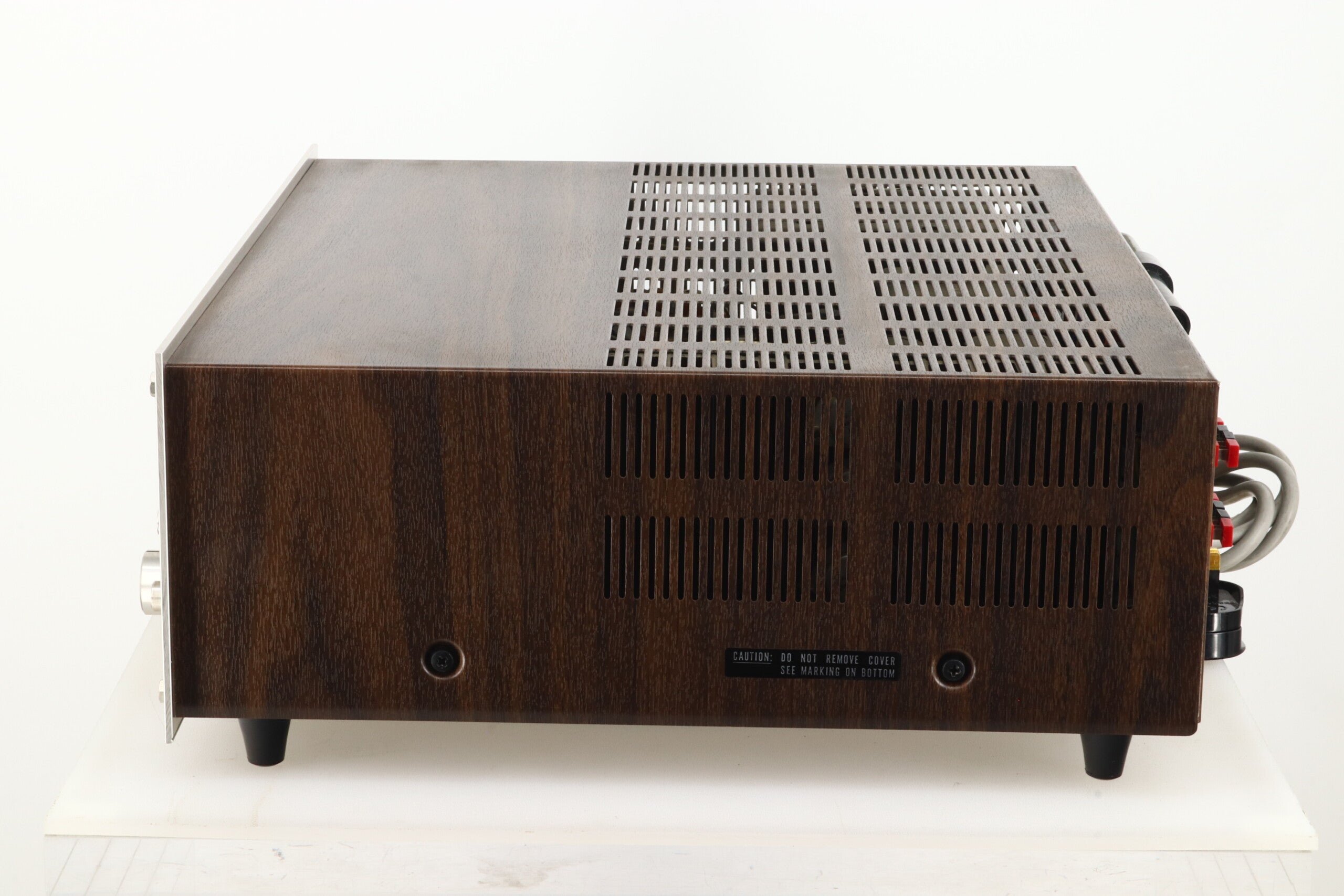

Marantz 2235B Stereo Receiver

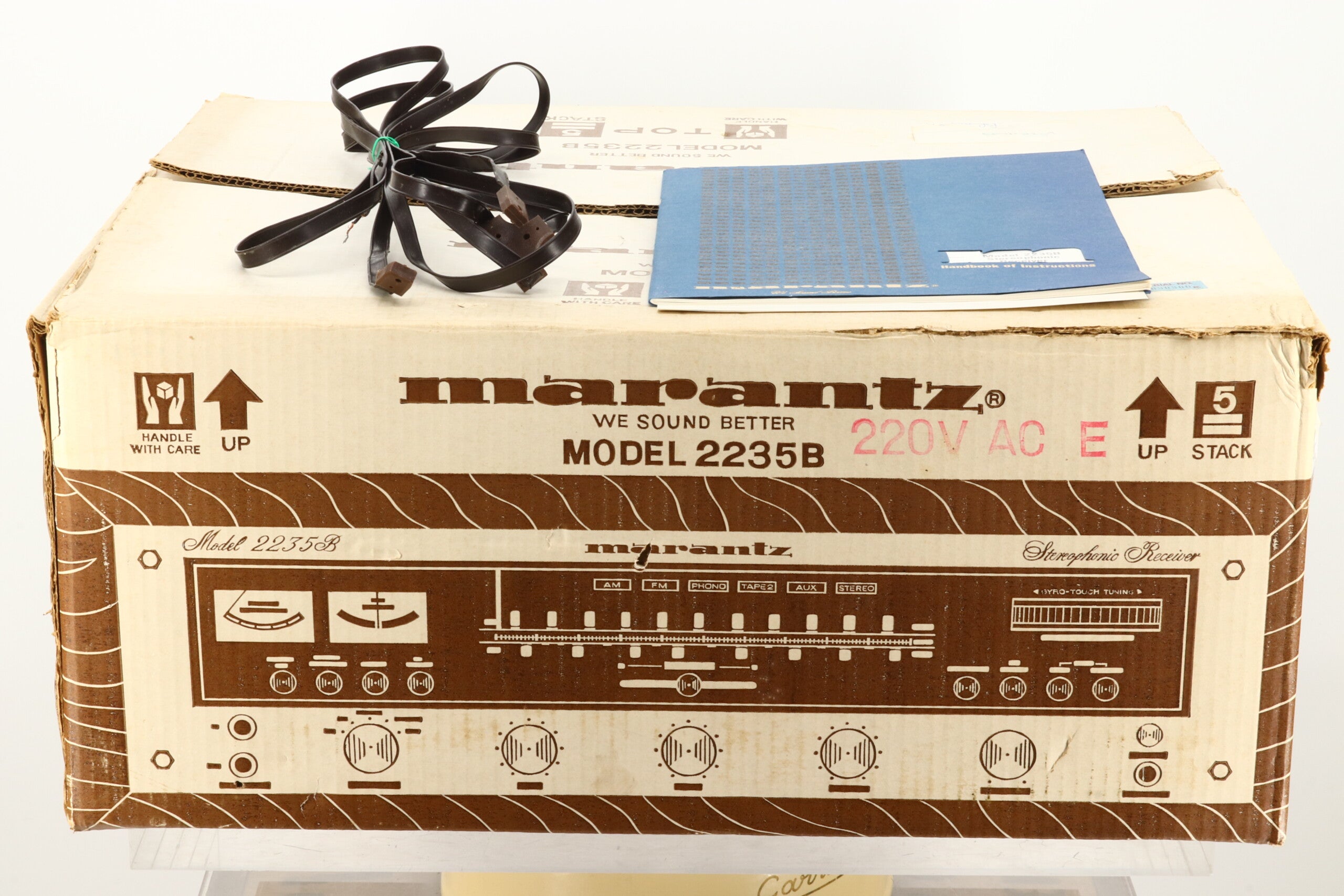

Here we have a vintage stereo receiver from Marantz. This classically styled unit is almost 50 years old but after a few lamps and a set of feet have been replaced it is still in full working order. Cosmetically very good considering its age plus it will be supplied in factory packaging with original manual.
Marantz Said….
The Marantz Model 2235B is an all solid state receiver incorporating the innovative design and unparalleled technology that have made Marantz famous in the audio component industry.
The Model 2235B features a sensitive FM tuner, a highly selective AM tuner, a low distortion preamplifier and two direct coupled amplifiers on a single chassis, while retaining a flexibility comparable to that achieved using separate components. The FM tuner utilizes an FET front end, ceramic IF filters, and a phase locked loop multiplex decoder. The AM tuner features an advanced integrated circuit and ceramic IF filters for high selectivity and sensitivity. The amplifier sections permit the connection of two stereo pairs of loudspeakers, a turntable or record

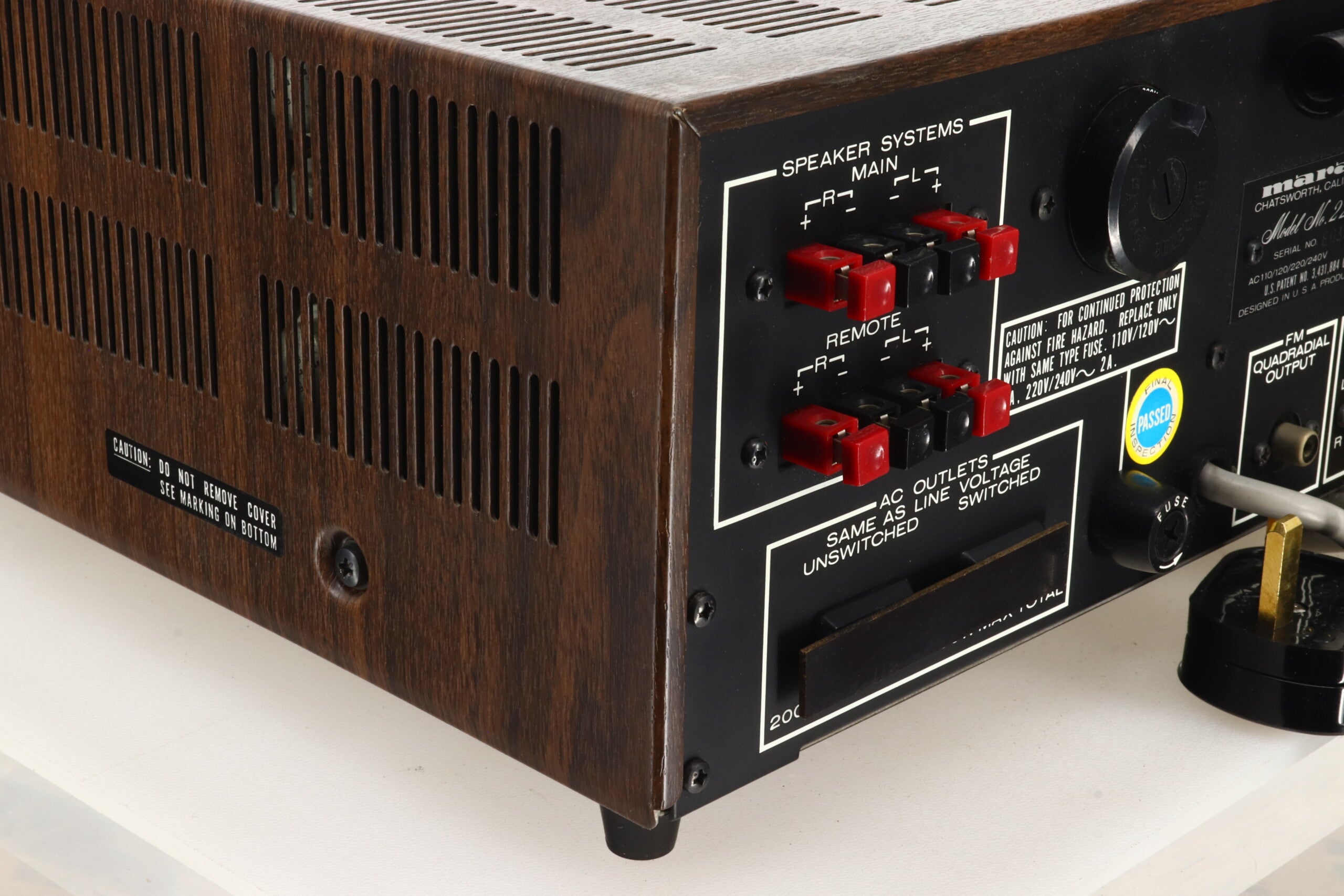

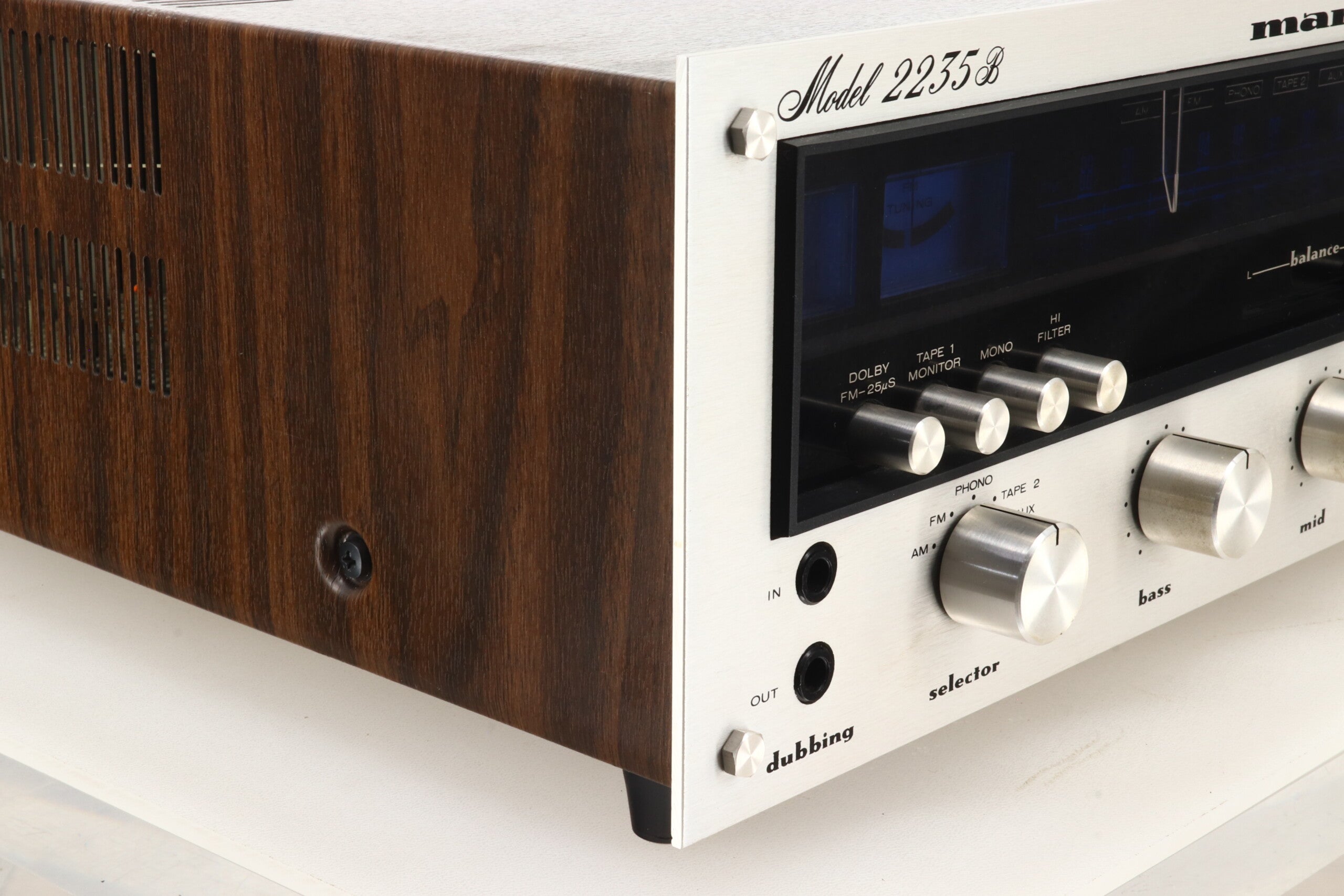

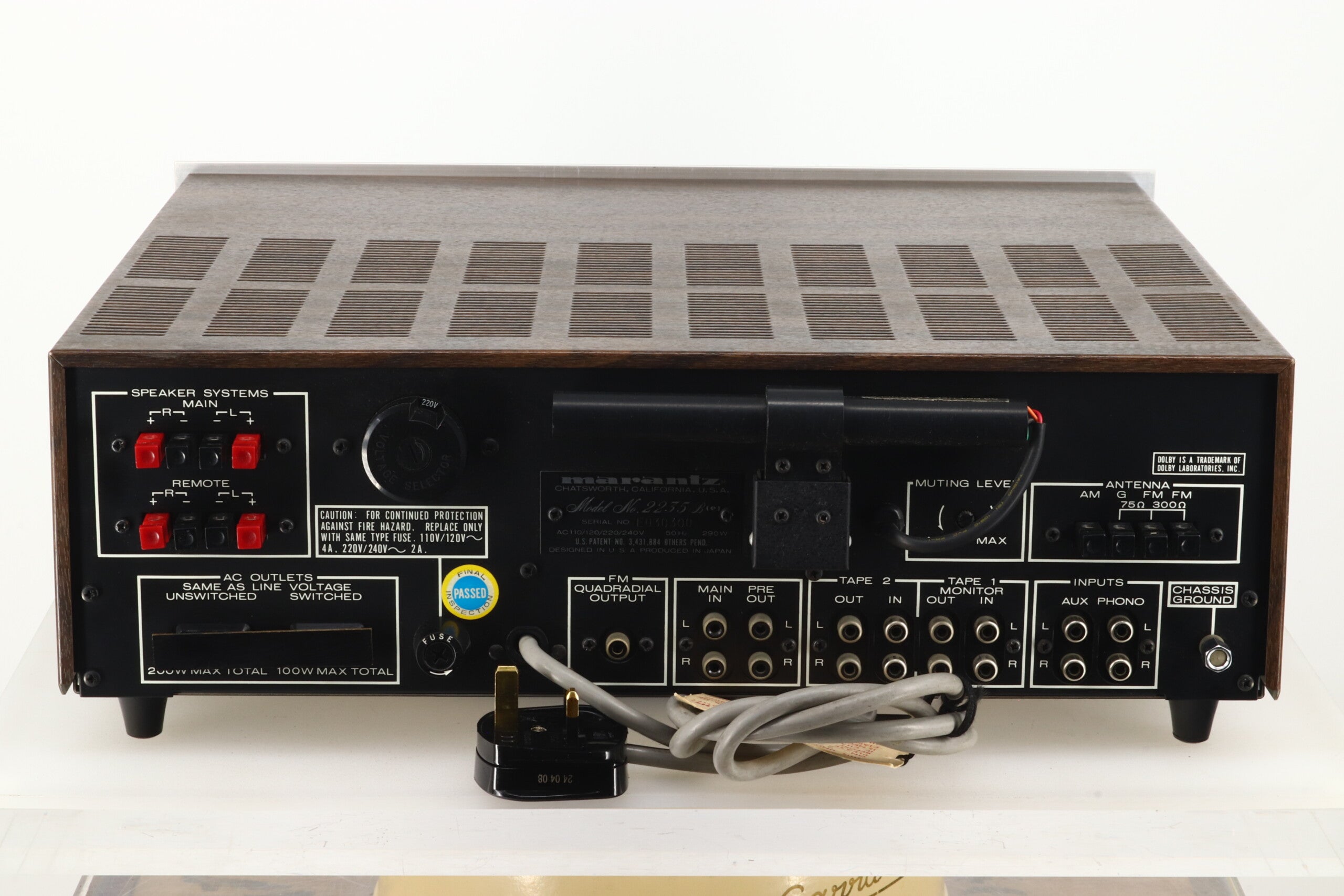

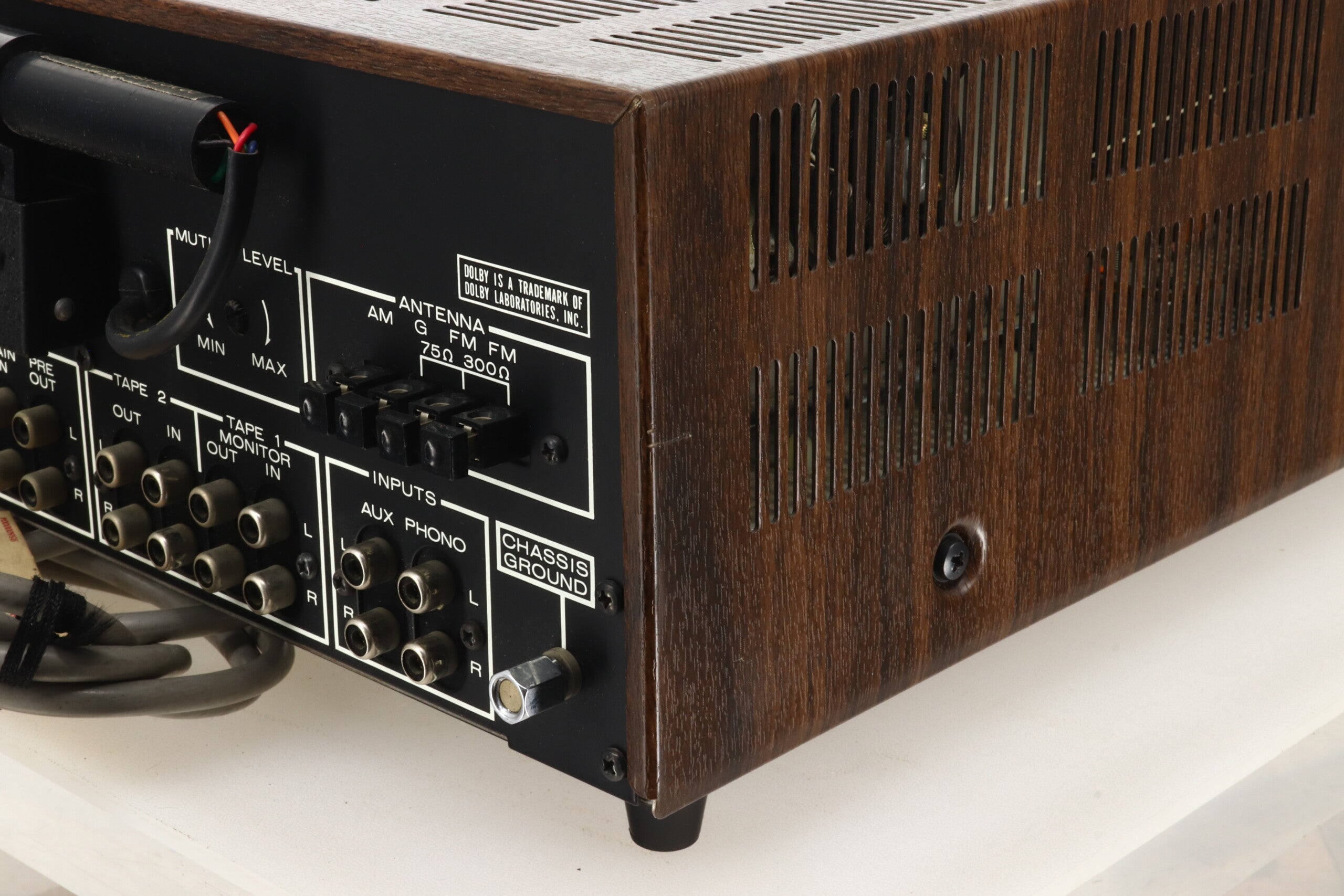

changer, two tape recorders, stereo headphones, and an auxiliary source such as an additional tuner or a TV sound source. The 2235B also features front panel dubbing jacks.
Specifications:
Amplifier Section:
Rated Power Output: 35 Watts Per Channel
Power Band: 20 Hz to 20 kHz
Total Harmonic Distortion: 0.25%
Load Impedance: 8 Ω
Intermodulation Distortion: 0.25%
Damping Factor: 55
Frequency Response: 20 Hz to 20 kHz ± 0.25 dB
Preamplifier Section:
Phono:
Dynamic Range: 96 dB
Equivalent Input Noise: 1.5 µV
Input Overload: 100 mV
Sensitivities: Phono: 1.8 mV; Tape: 180 mV; Main In: 1.5 V
Frequency Response (phono): 30 Hz to 15 kHz ± 1.0 dB
Input Impedances: Phono: 47 kΩ; Aux or Tape: 100 kΩ; Main In: 30 kΩ
Tape Output Level: 775 mV, Ref.: 7.75 mV at phono input
Signal to Noise Ratio: Aux Input: 80 dB; Phono Input: 65 dB
Tone Controls: Bass: 50 Hz: ± 10 dB; Mid: 700 Hz: ± 6 dB; Treble: 15 kHz: ± 10 dB
FM Tuner Section:
Selectivity (alternate carrier): 65 dB
Quieting Slope
RF Input for 30 dB Quieting: 1.9 V
Quieting at 5 µV RF Input: 52 dB
Quieting at 10 µV RF Input: 58 dB
Quieting at 50 µV RF Input: 68 dB
Total Harmonic Distortion: Mono: 0.3%; Stereo: 0.5%
Capture Ratio: 1.5 dB
Stereo Separation at 1 kHz: 40 dB
Spurious Rejection: 95 dB
Image Rejection: 70 dB
IF Rejection: 90 dB
AM Suppression: 50 dB
AM Tuner Section
Sensitivity: 20 µV
General
Power Requirements: 120 V AC, 50/60 Hz
Power Consumption at rated output, both channels operating: 180 W
Idling Power (Volume Control at zero): 30 W
Dimensions: 17⅜" (W); 14" (D); 5⅜" (H) mm
Weight: 26.4 lbs.
