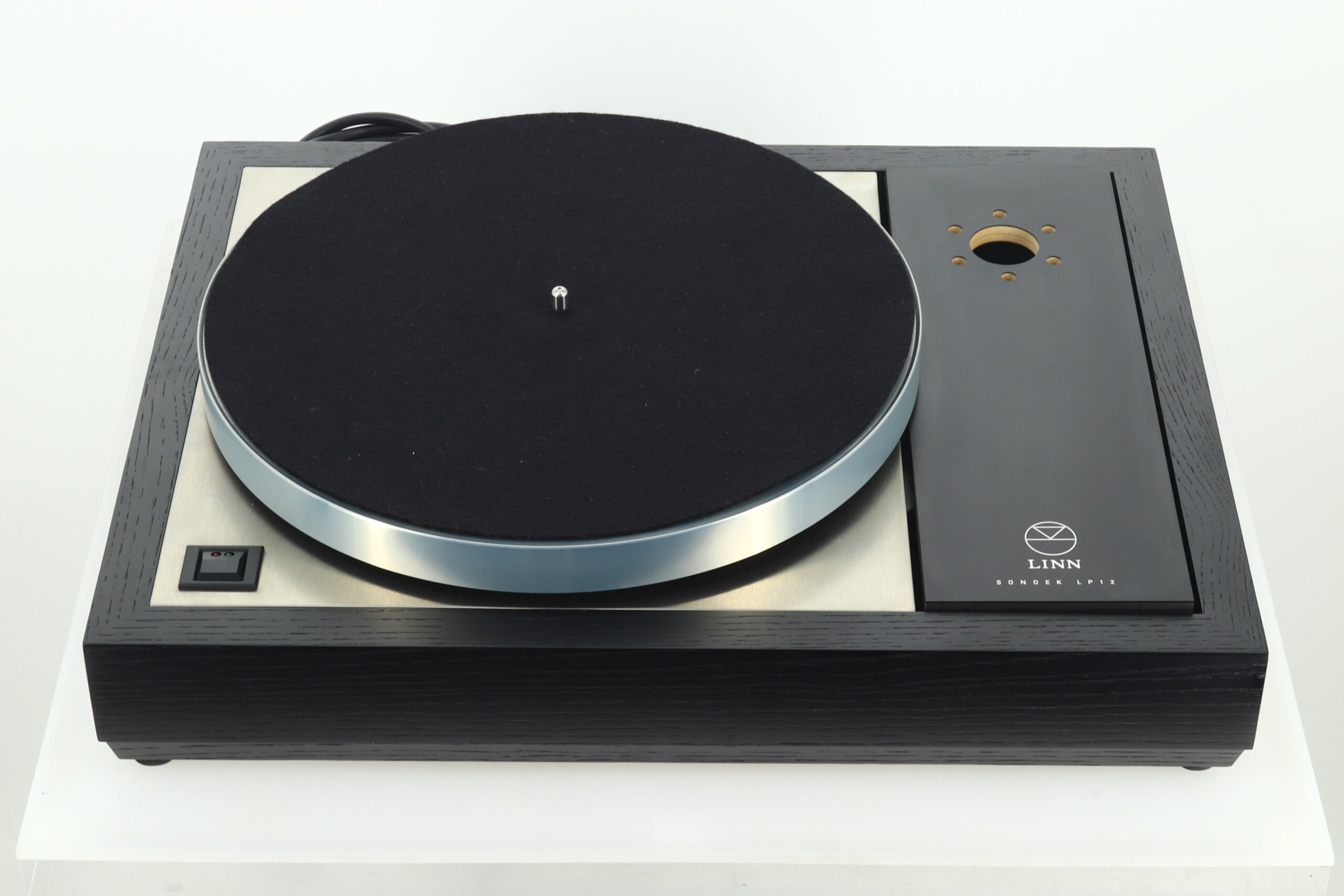

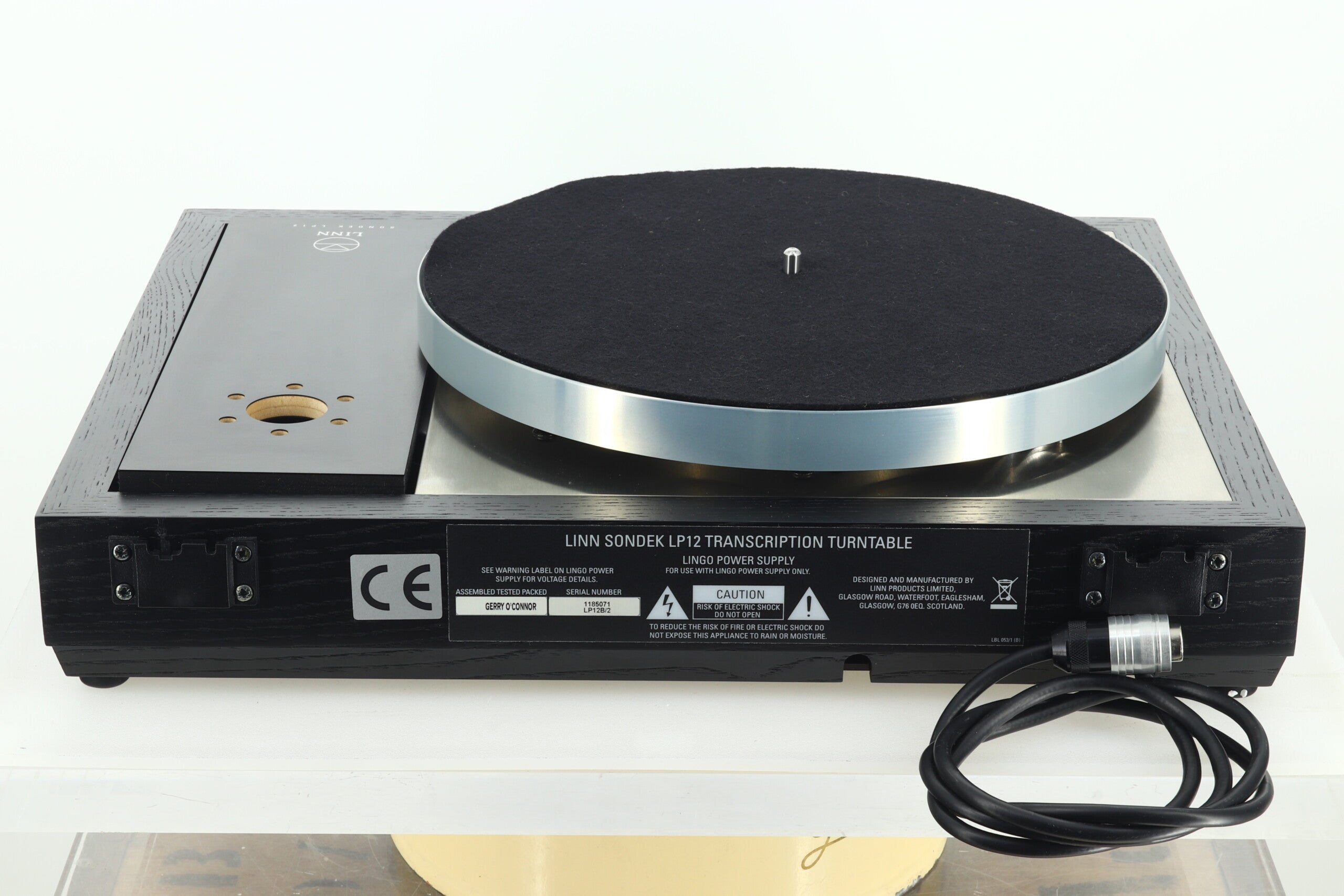

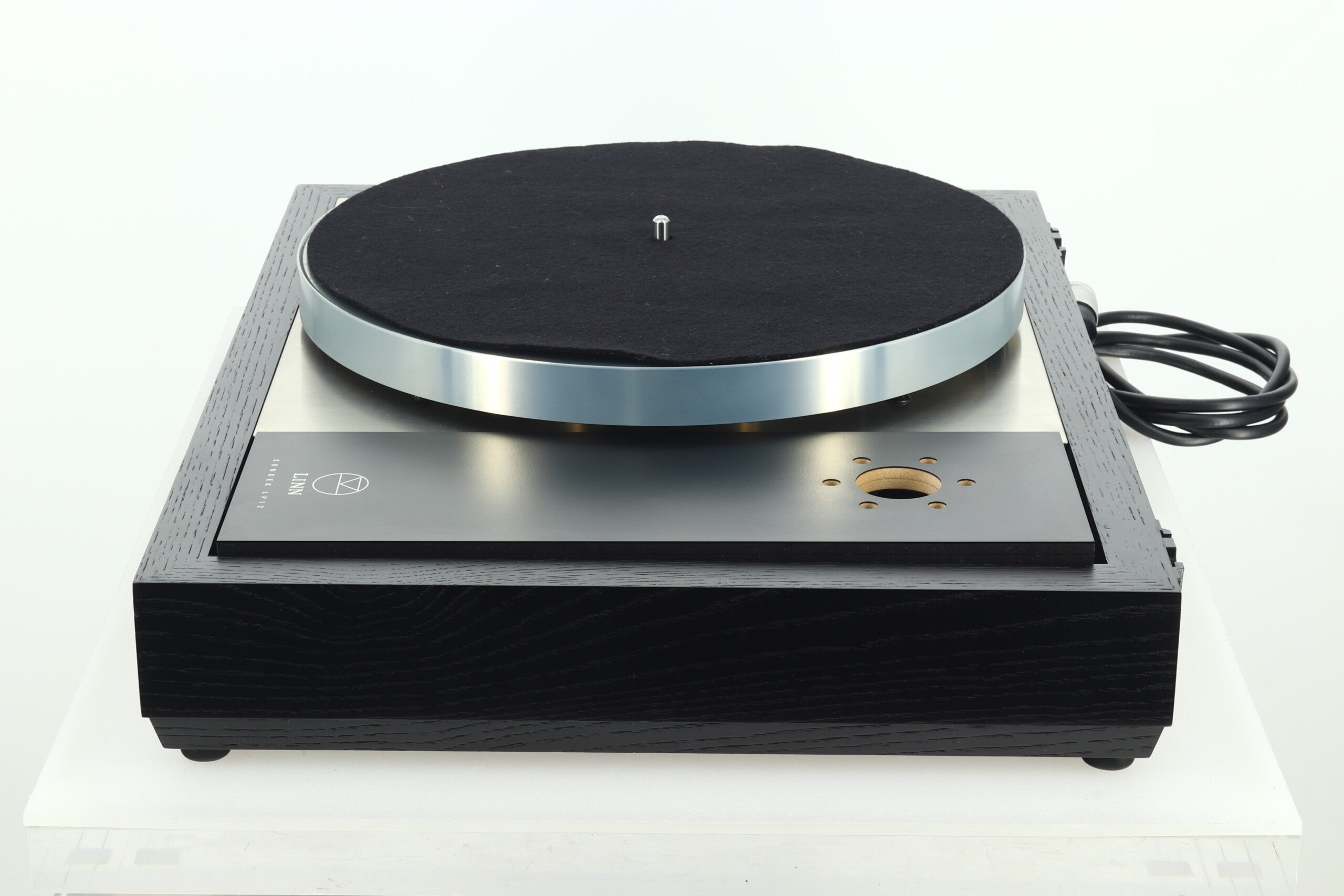

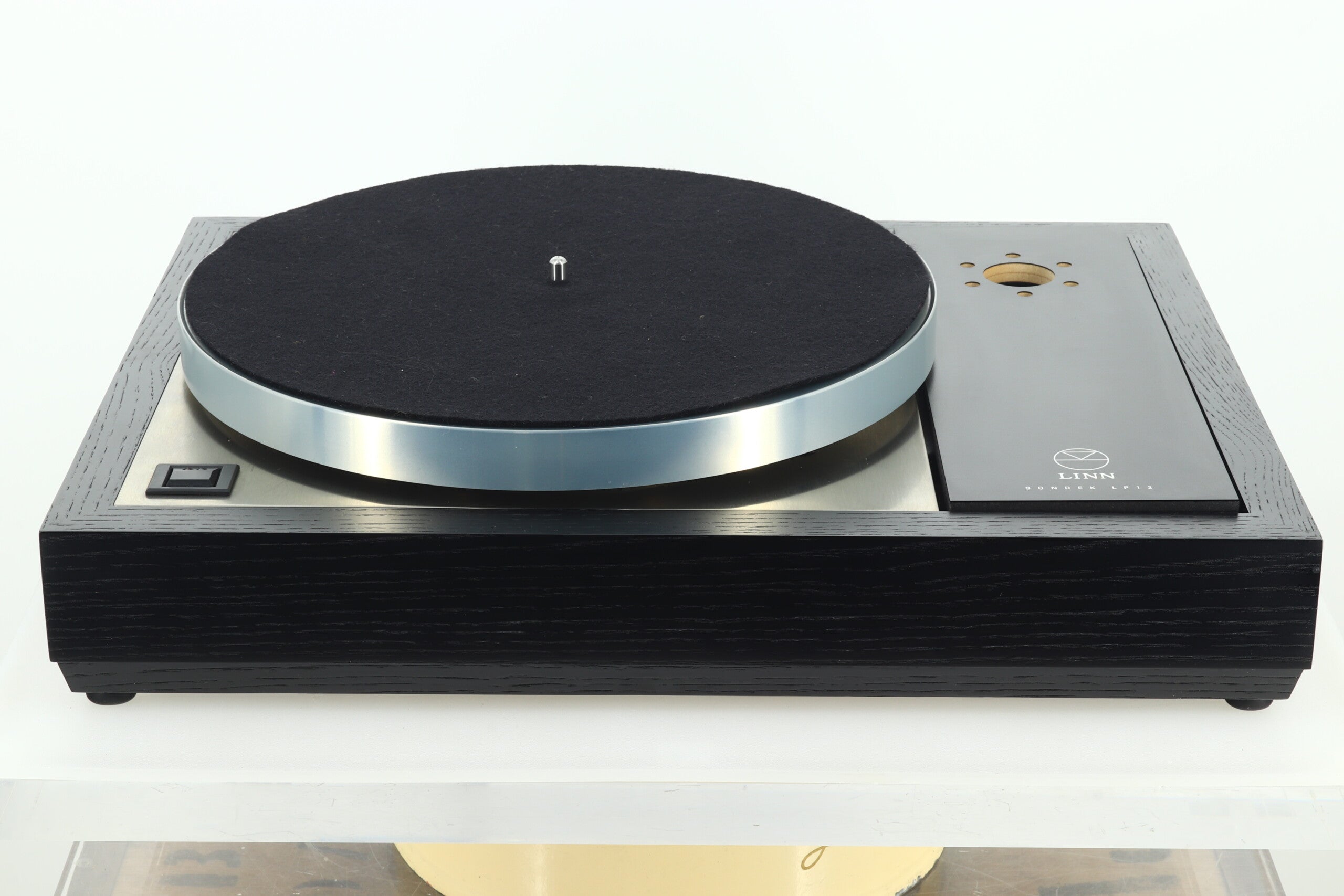

Linn LP12 Turntable - Black / Lingo 2 Power Supply

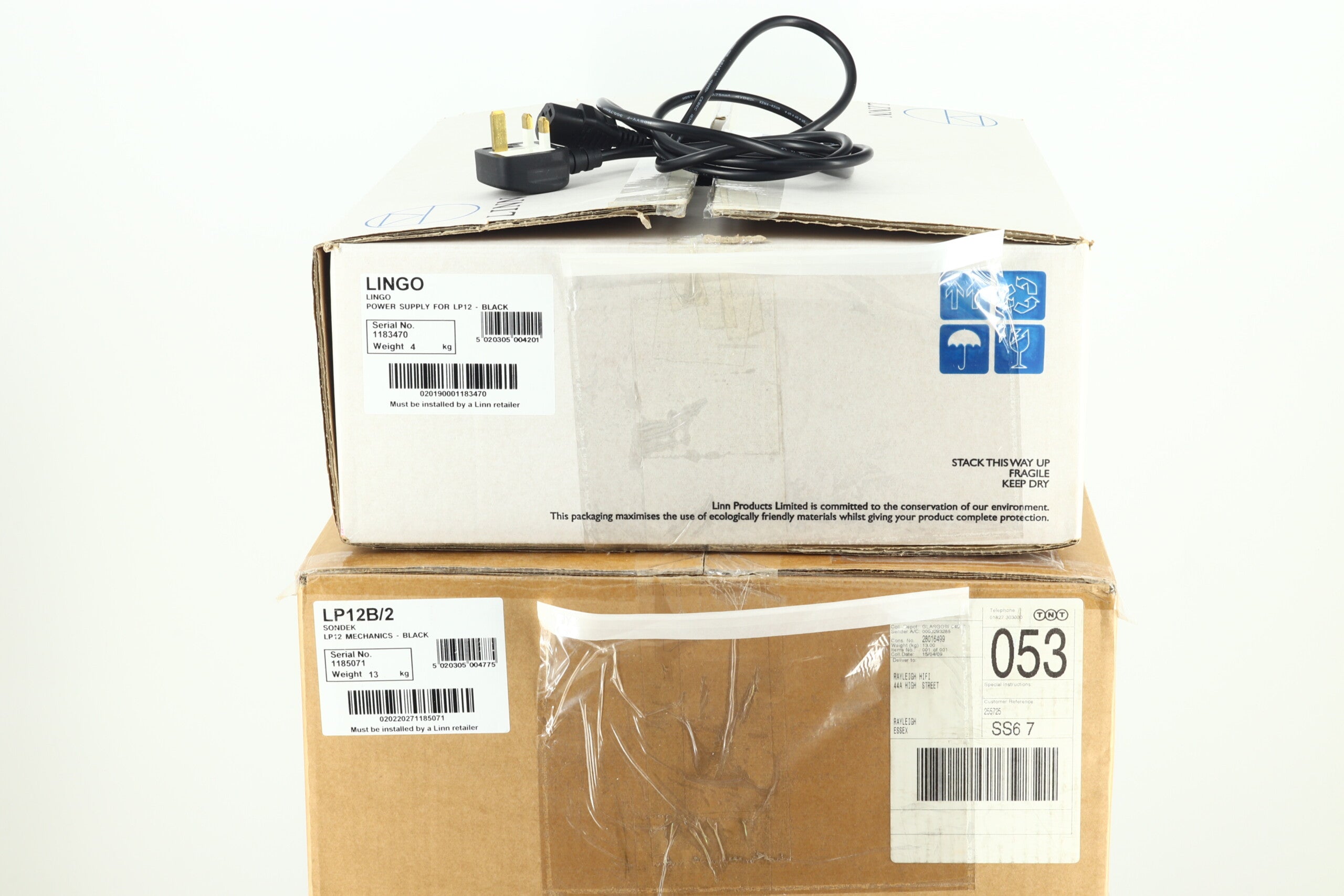

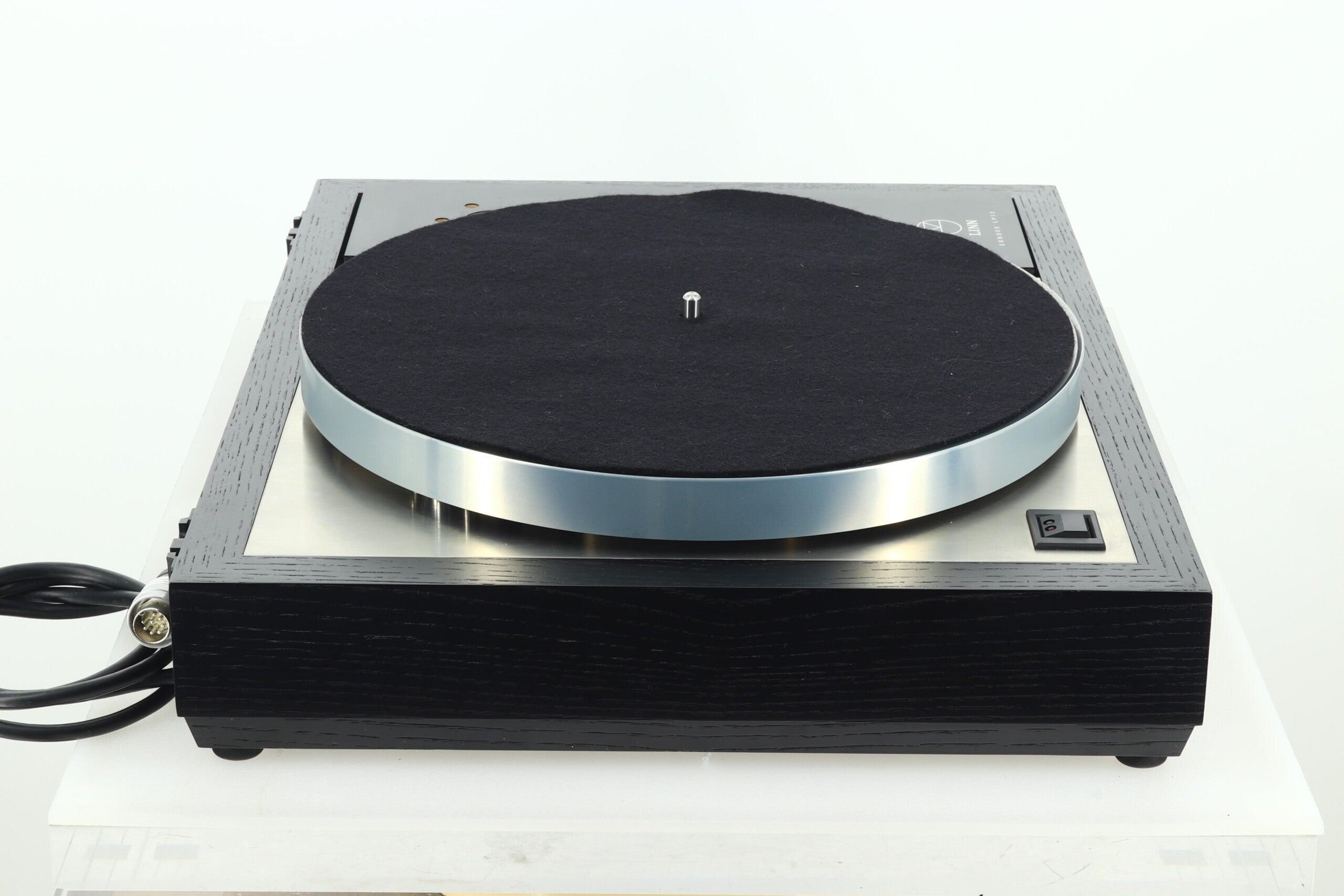

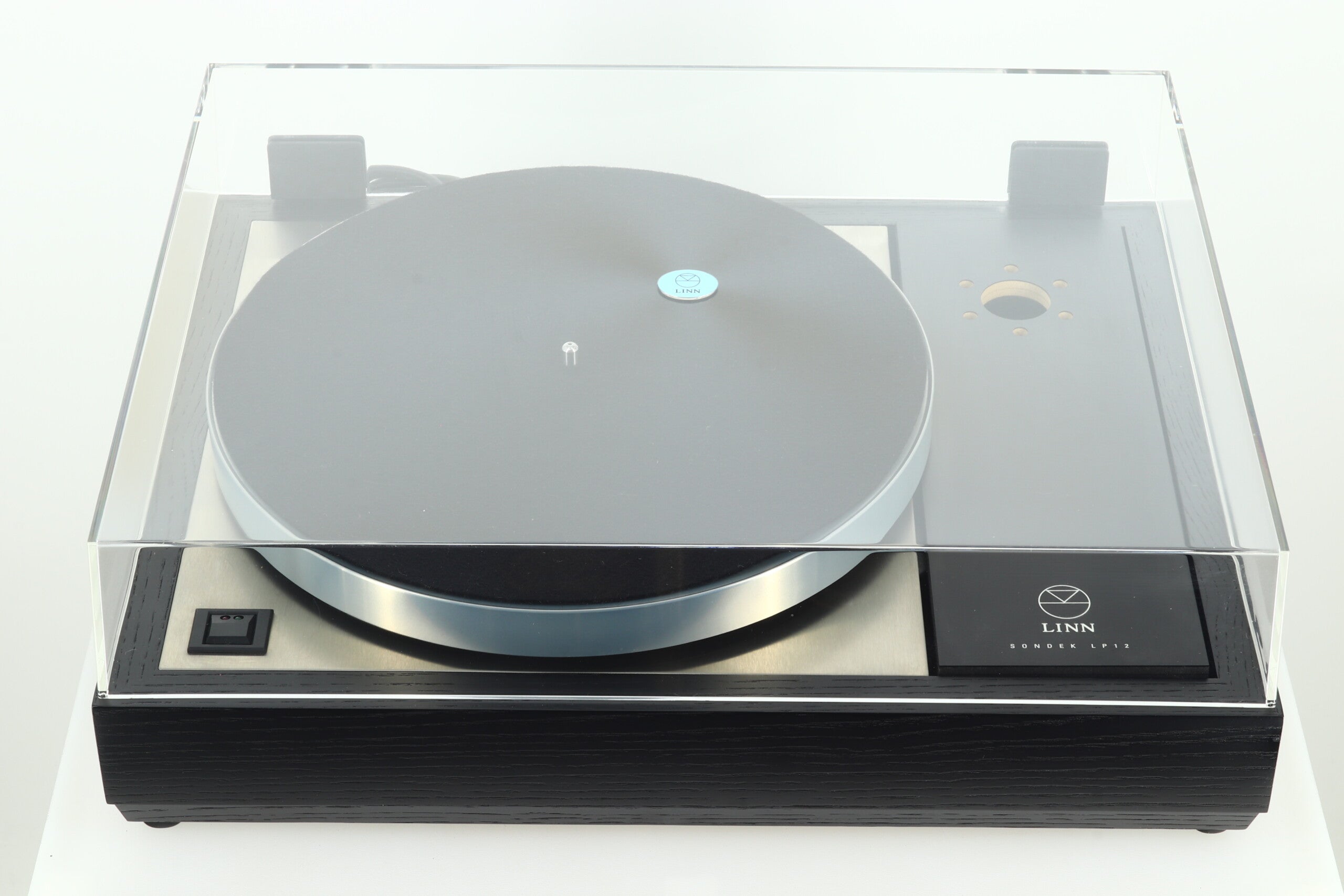

The classic Linn Sondek LP12 turntable is one of the oldest and most important audio components there is, and the fact that it still in production today, albeit with a few modifications along the way, says something about that original design. Our example has a Black Plinth and is fitted with a Cirkus bearing plus it also comes with a Lingo 2 Power Supply. Cosmetically both items are in good condition and come in original factory packaging. In addition a mains cable and our normal three month warranty are also included.
Linn Say…
Linn Products have always stated that the turntable is the most important part of a high fidelity system. If you don’t get a good signal off the record then it doesn’t matter how good the rest of your system is, the sound will be bad. When upgrading your system there is a strict hierarchy to observe. After the turntable, the next most important component is the arm, followed by the cartridge. Once the turntable system has been optimised, the next component to choose is the amplifier. Finally, the last link in the chain is the loudspeaker
The Linn Sondek LP12 reference transcription turntable has been setting the standards by which others are judged for over 30 years. Each component of the Sondek LP12 has been painstakingly developed to optimise information retrieval, because information lost at the source is lost forever, regardless of the amplifier or loudspeaker quality. Linn is involved in every stage of the record and playback process. We can therefore check the signal at each step of the hi-fi chain, which is why we know what makes the Sondek LP12 a very special turntable: its perfect speed accuracy at 33rpm and 45rpm, its immunity against acoustical feedback, its low noise main bearing with mirror finish, and our legendary precision manufacturing, all of which ensure the pitch accurate faithful reproduction of the original source.
Features:
Extremely low noise patented main bearing
Perfectly balanced high inertia platter
Strong, solid kiln-dried wood plinth
Heavy gauge non-magnetic, brushed satin, stainless steel plate
Highly efficient 3 point spring damped suspension
24-pole precision synchronous low noise, high torque motor
Precision pulley and Neoprene flat belt
33rpm + 45rpm
Specifications:
Type: Belt drive analogue turntable with 3-point suspension
Platter: 2 pieces, made of non-magnetic Mazak 8. Production tolerance 0.025 mm, optimal weight distribution
Platter mat: Felt
Main bearing: 1-Point bearing, mirror finish, oil bath
Suspension: 3-Point-Subchassis, 3 adjustable precision springs
Motor: High torque 24-Pol-Synchronous motor, fully screened and mechanically decoupled from main bearing
Drive: Neoprene flat belt, concentric precision pulley (0.01 mm)
Speed accuracy: 0.03%
Power consumption: 13W
Dimensions: 445 (W) x 356 (D) x 140 (H) mm – Approximately 70 mm required at rear and 250 mm above the unit to permit opening of lid
Weight 10 kg
Linn Cirkus Bearing….
The Cirkus upgrade to the LP12 focuses on bearing performance and the connection of the bearing housing to the sub-chassis. The improved bearing and stronger sub-chassis arrangement provides the turntable with greater stability and ensures the bearing sits perfectly true to the chassis of the turntable. This in turn minimises the risk of turntable platter movement with respect to the sub-chassis and arm. Even the slightest movement will introduce audible degradation to the reproduced signal. Together the changes to the bearing and the sub-chassis make an enormous difference to the overall performance of the turntable.

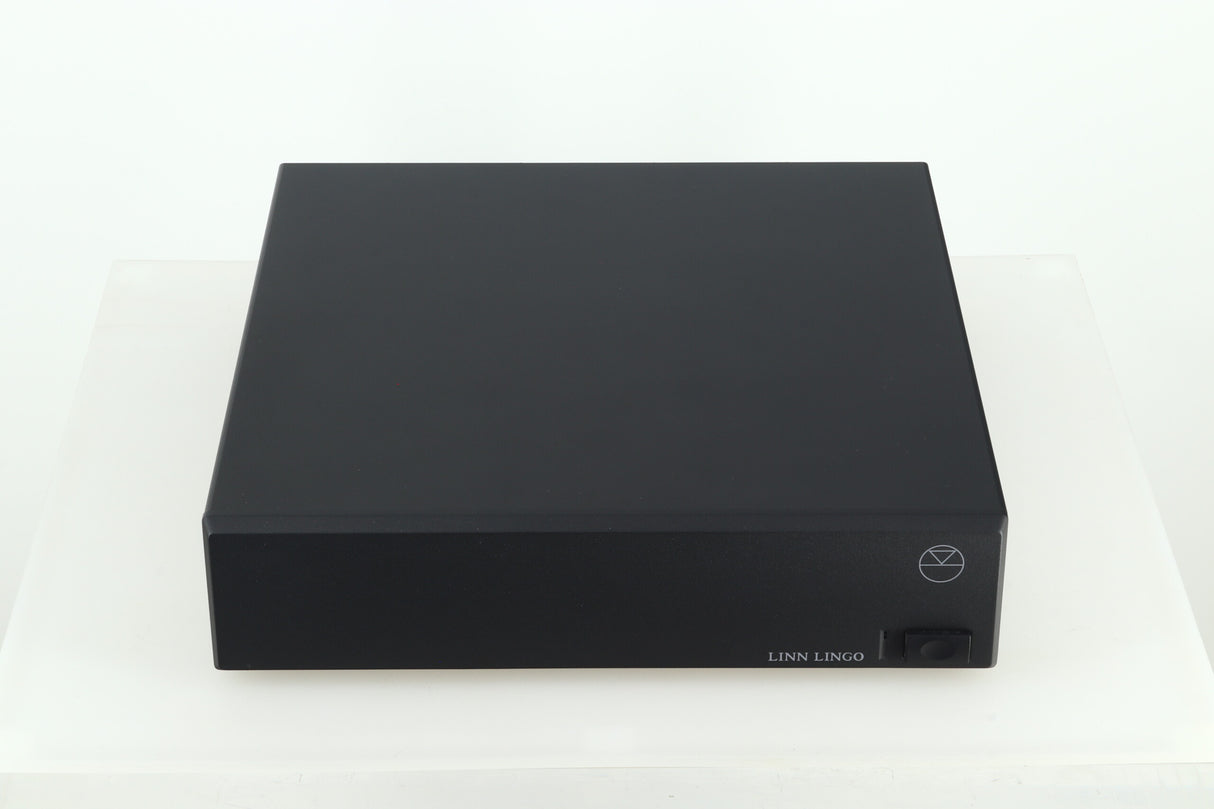

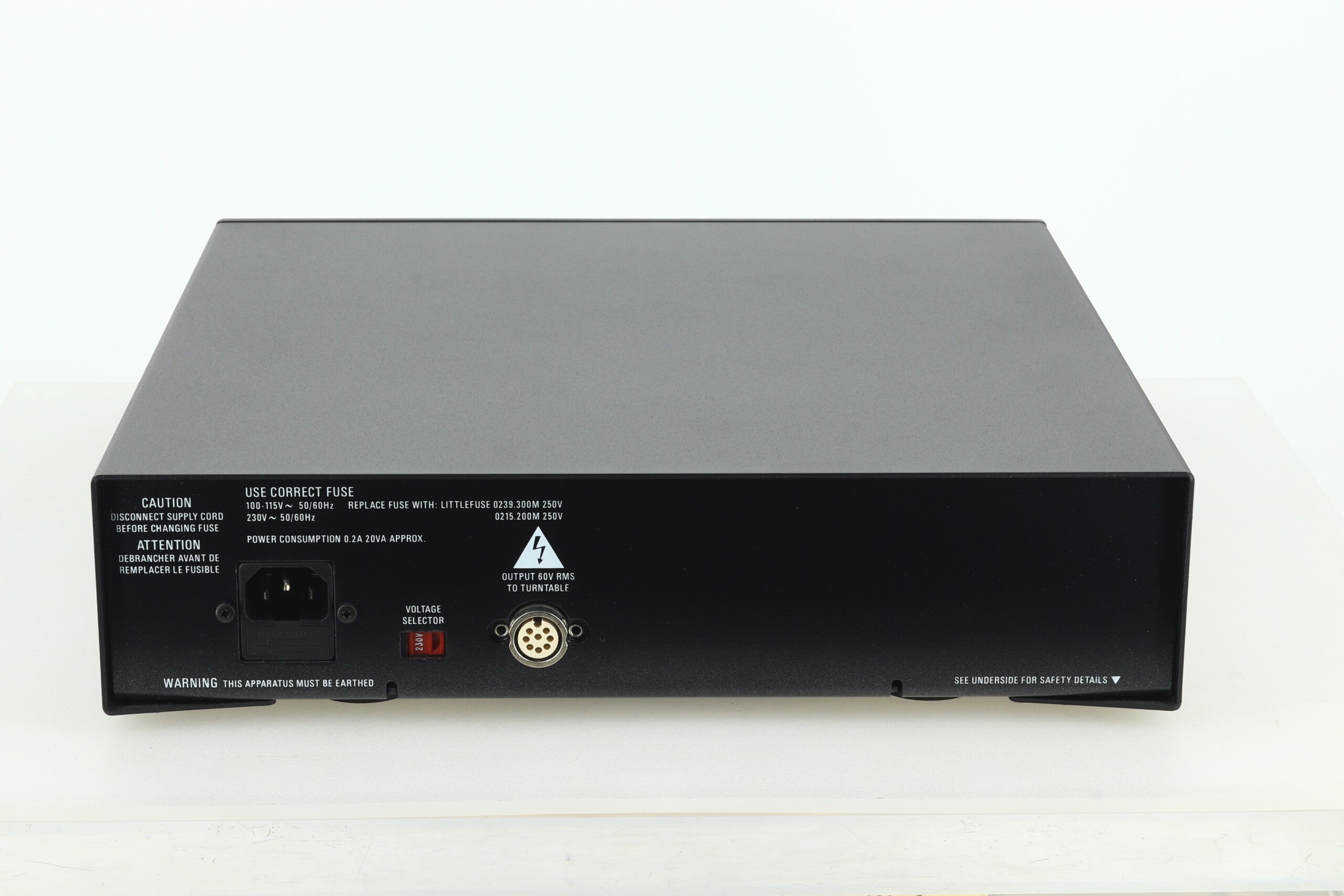

Linn Lingo 2….

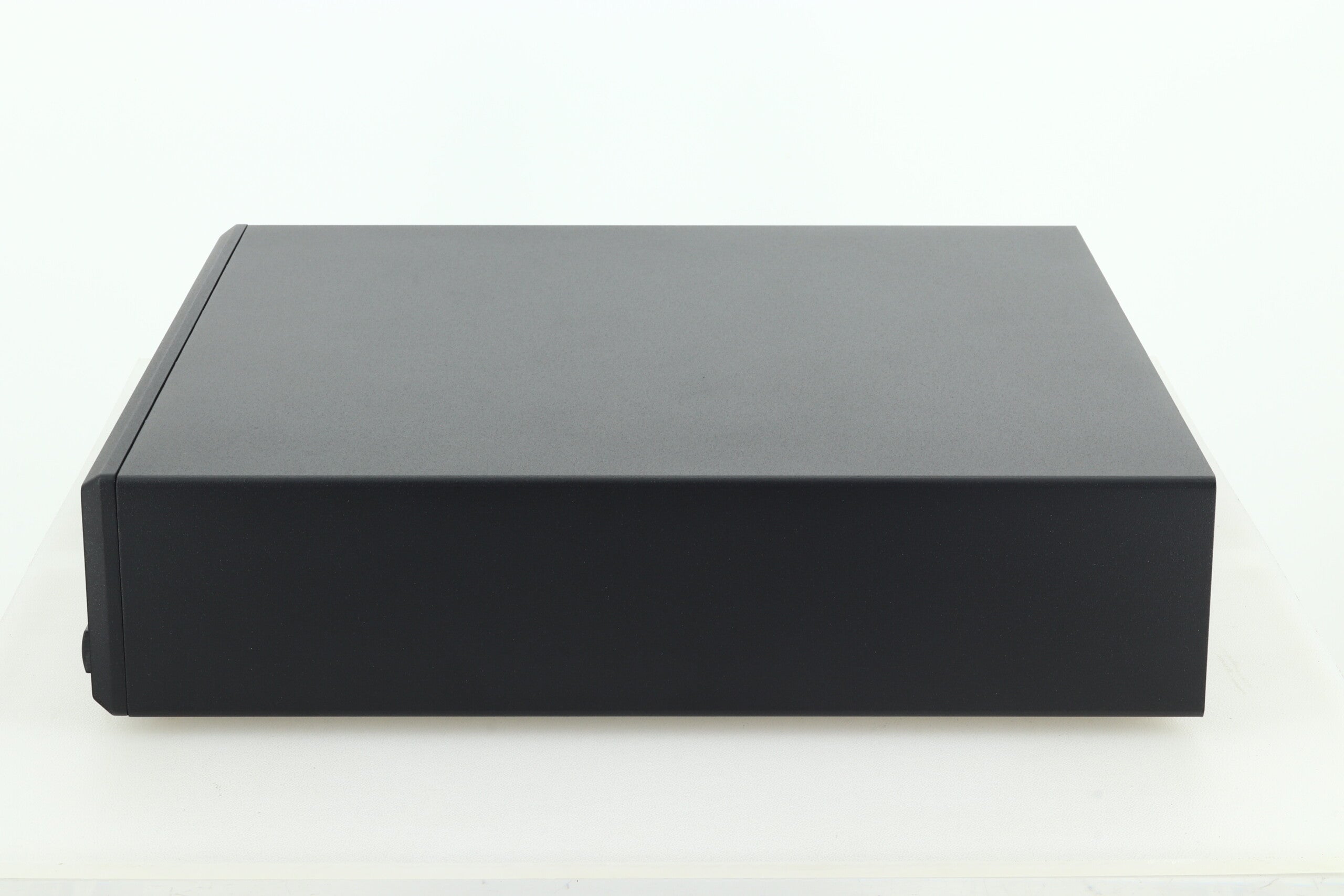

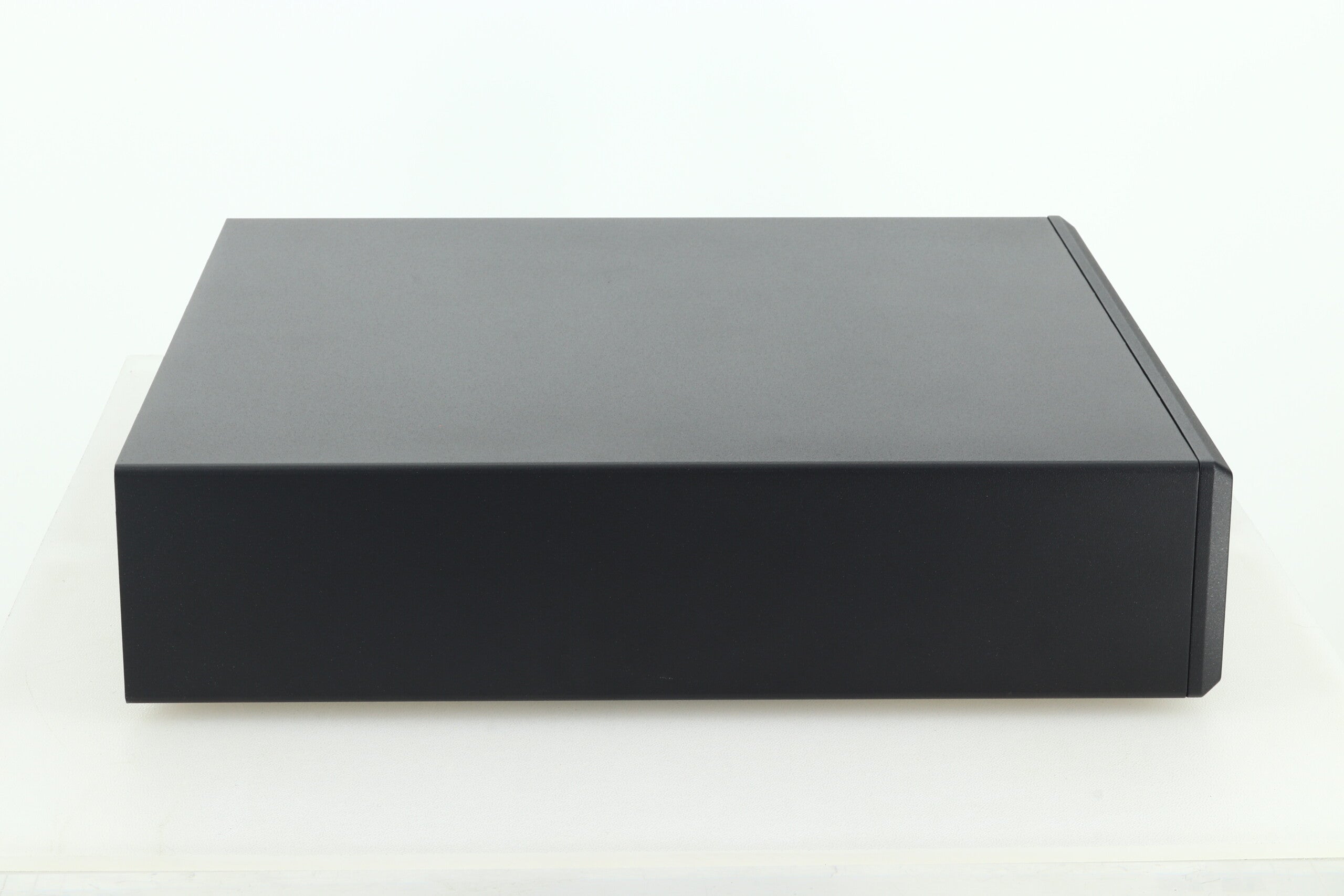

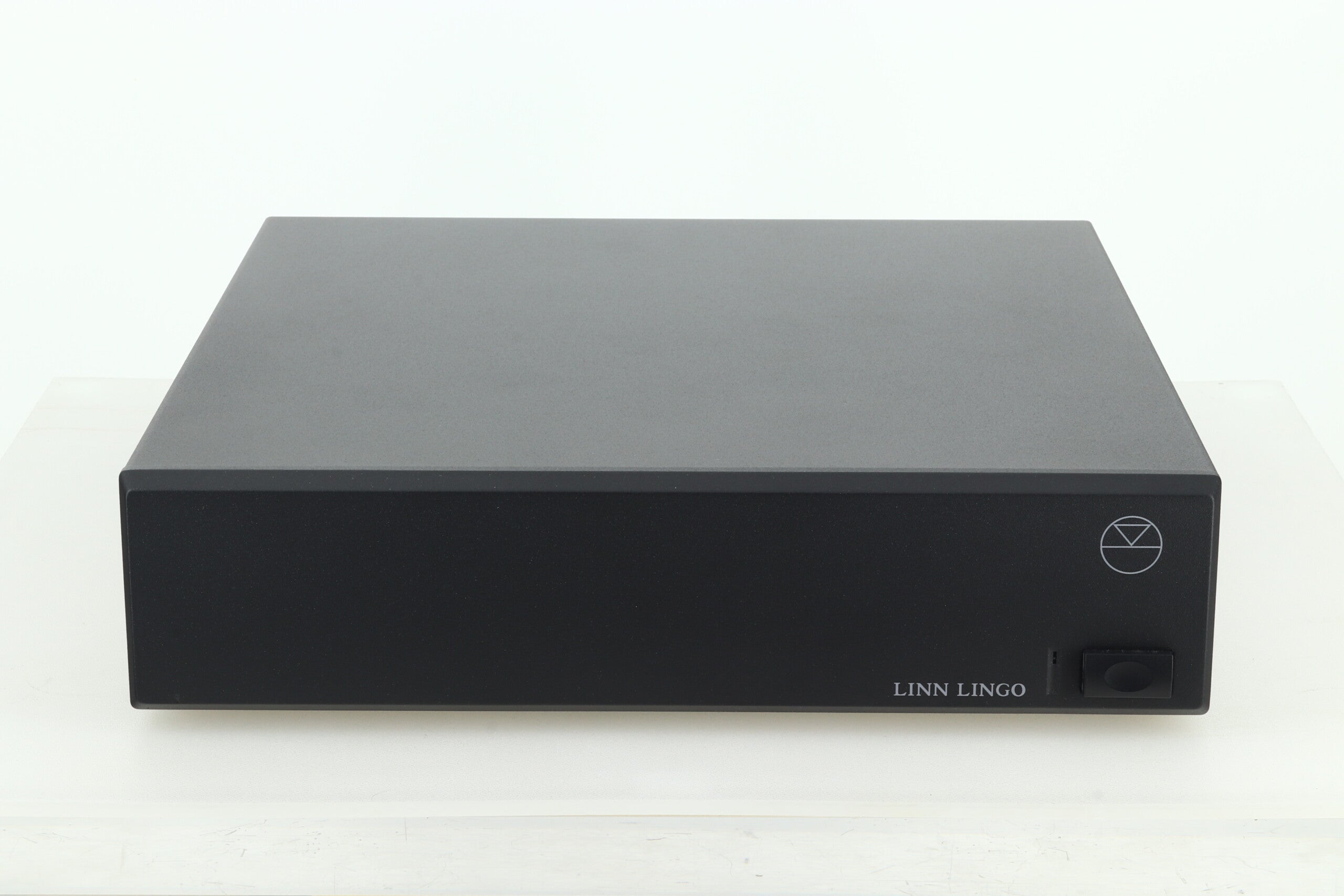

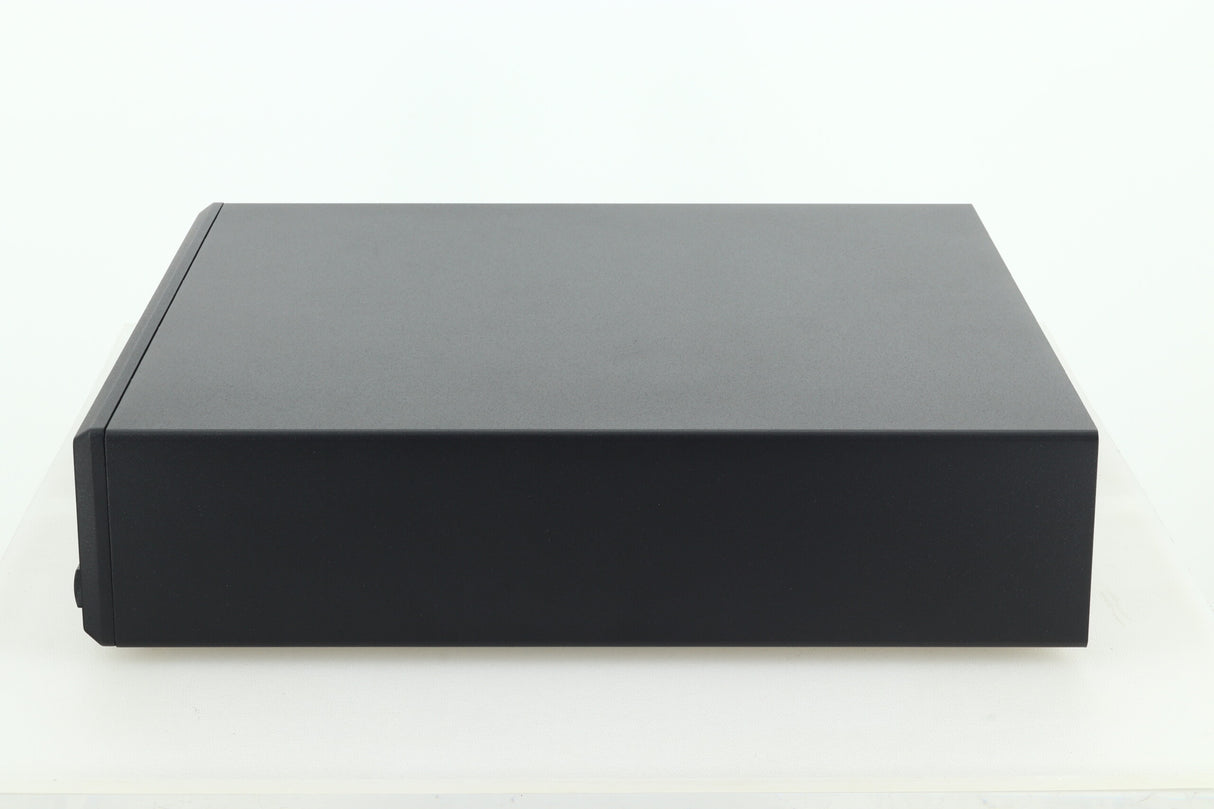

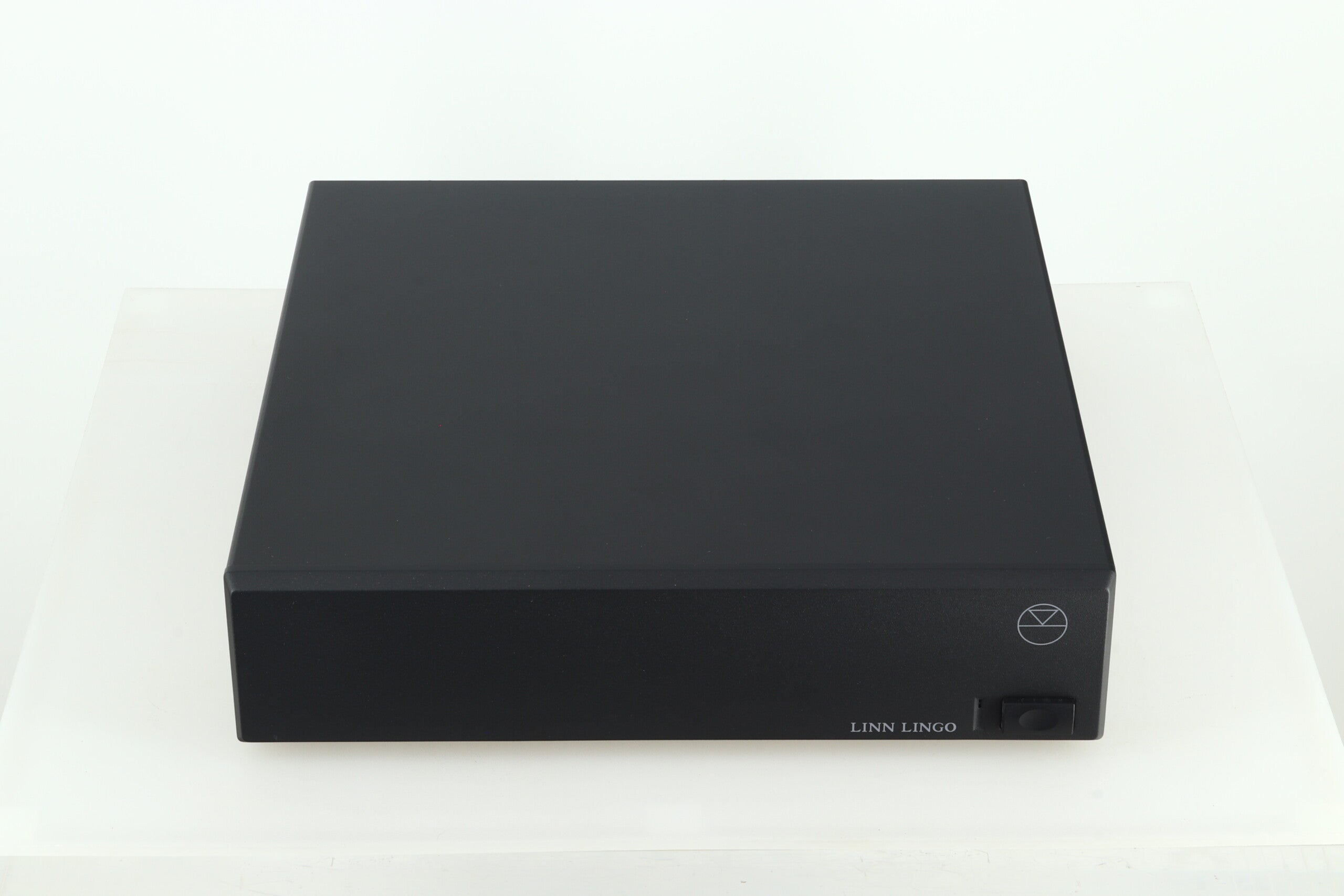

Lingo 2 is an external power supply designed exclusively for the Sondek LP12 turntable. It offers unsurpassed speed accuracy for both 33.3 and 45 rpm, plus precise filtering of mains voltage to ensure harmonic distortion is kept to a minimum.
At the heart of the Lingo 2 are two very low-noise crystal oscillators – one for each turntable speed. These coupled with the mains filtering provide the LP12’s 24-pole synchronous motor with an exceptionally clean sinusoidal waveform.
Load-sensing ‘stall detection’ circuitry is used to feed the motor with higher voltage for increased start-up torque and reduced voltage once the platter reaches the selected speed.
Lingo 2 offers an easy upgrade for existing LP12 owners using Valhalla or Basik power supplies. It is available in black and silver finishes from qualified Linn outlets worldwide.
Features:
Separate, extremely low-noise crystal oscillators for 33.3 and 45 rpm
Precision filtering of mains voltage to minimise harmonic distortion
Load-sensing circuitry provides extra torque at start-up
Electrically isolated from mains supply variations
Easy upgrade for any Sondek LP12 turntable
Specifications:
Introduced: 1990
Type: Power supply for Sondek LP12 turntable
Speeds: 33.33 rpm, 45 rpm
Power Consumption: 6 W
Voltage/Fuse: 240 V/T200 mA
Dimensions: 320 (W) x 320 (D) 80 (H) mm
Weight: 1.5 kg
