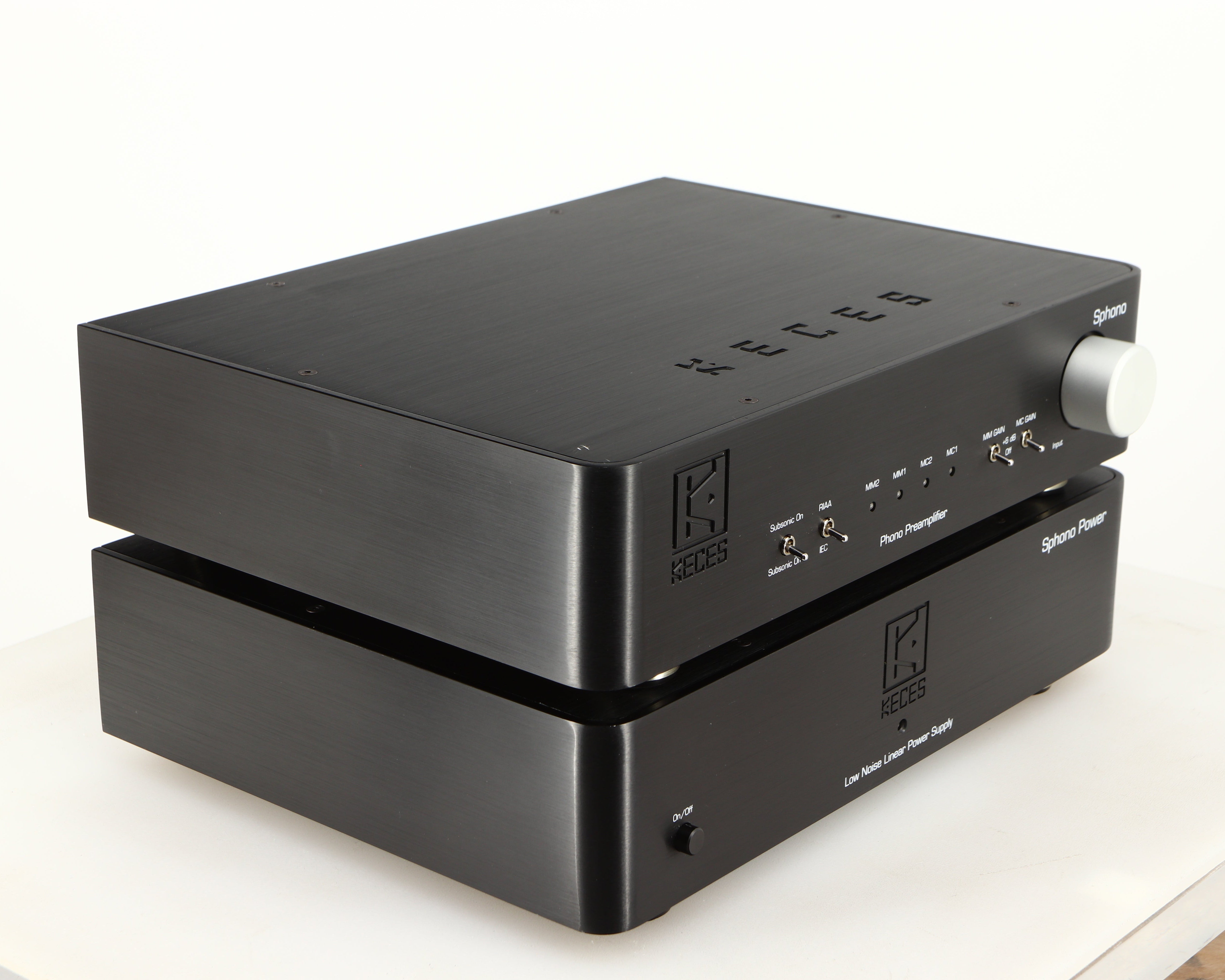

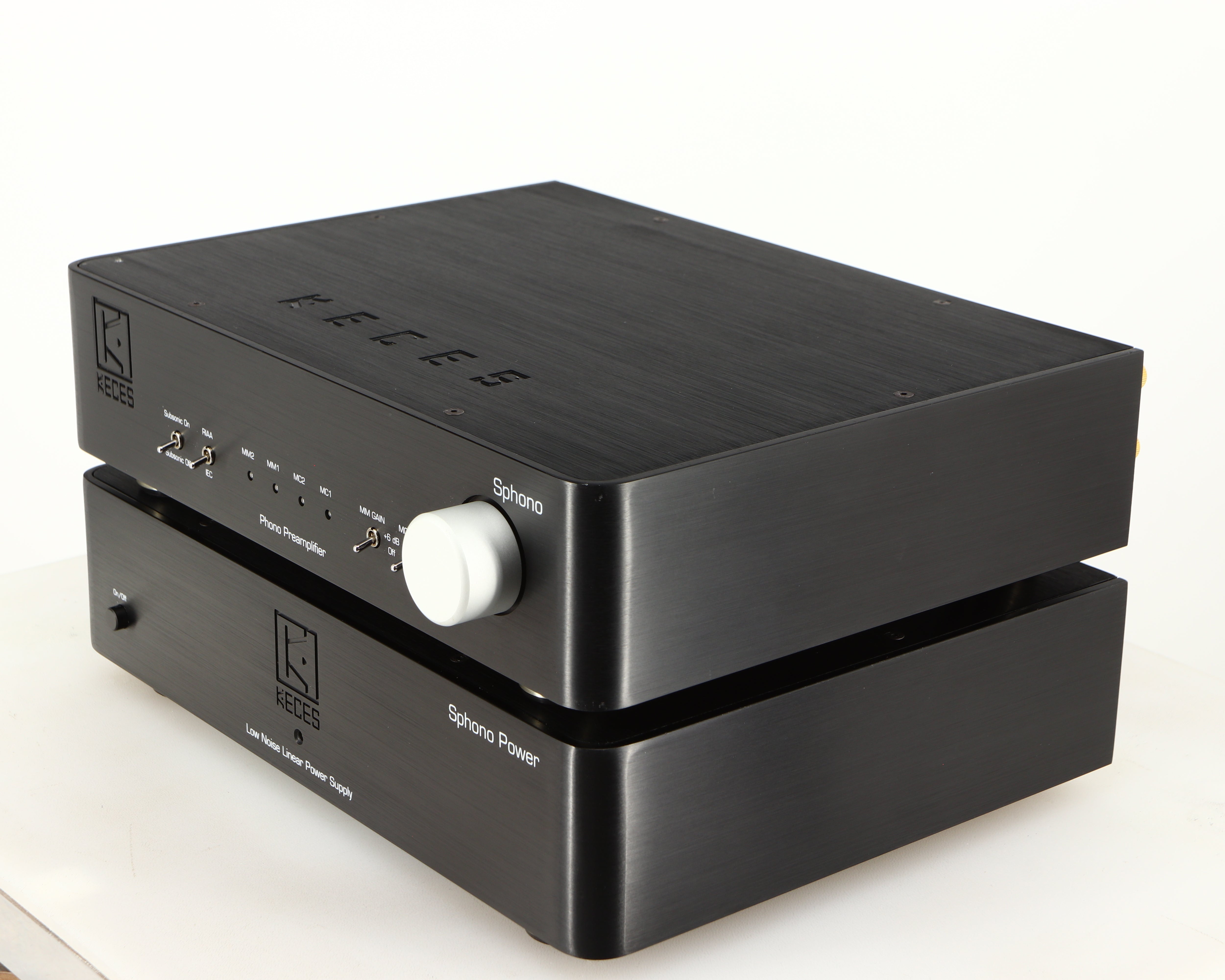

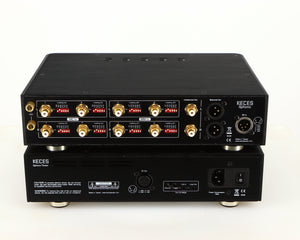

Keces Sphono Phonostage & Sphono PSU

Features

• Power by High Quality Linear Power Supply (Sphono Power), provide pure DC ± 48 V and + 15 V high dynamic range to Sphono.
• Dual Mono design

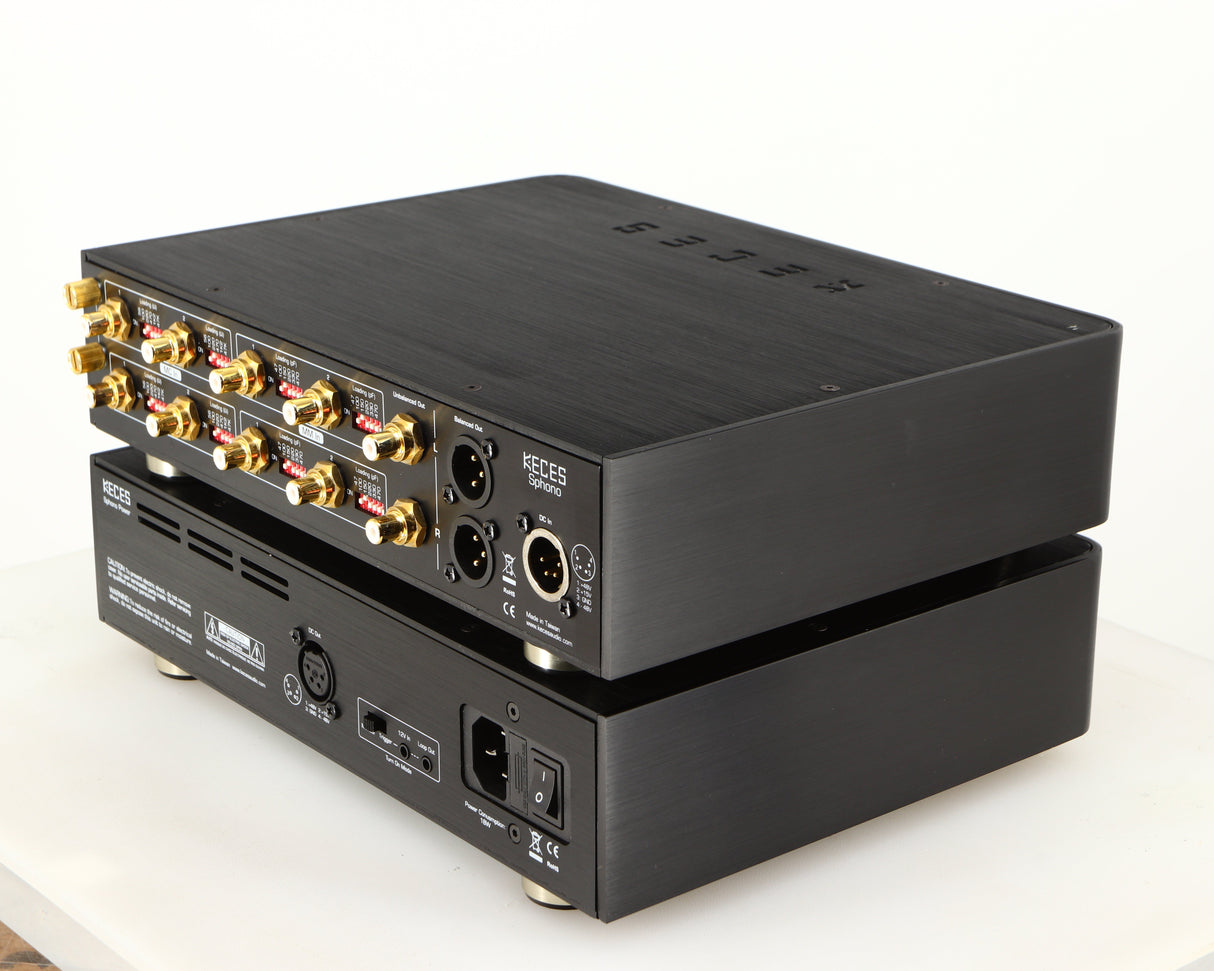

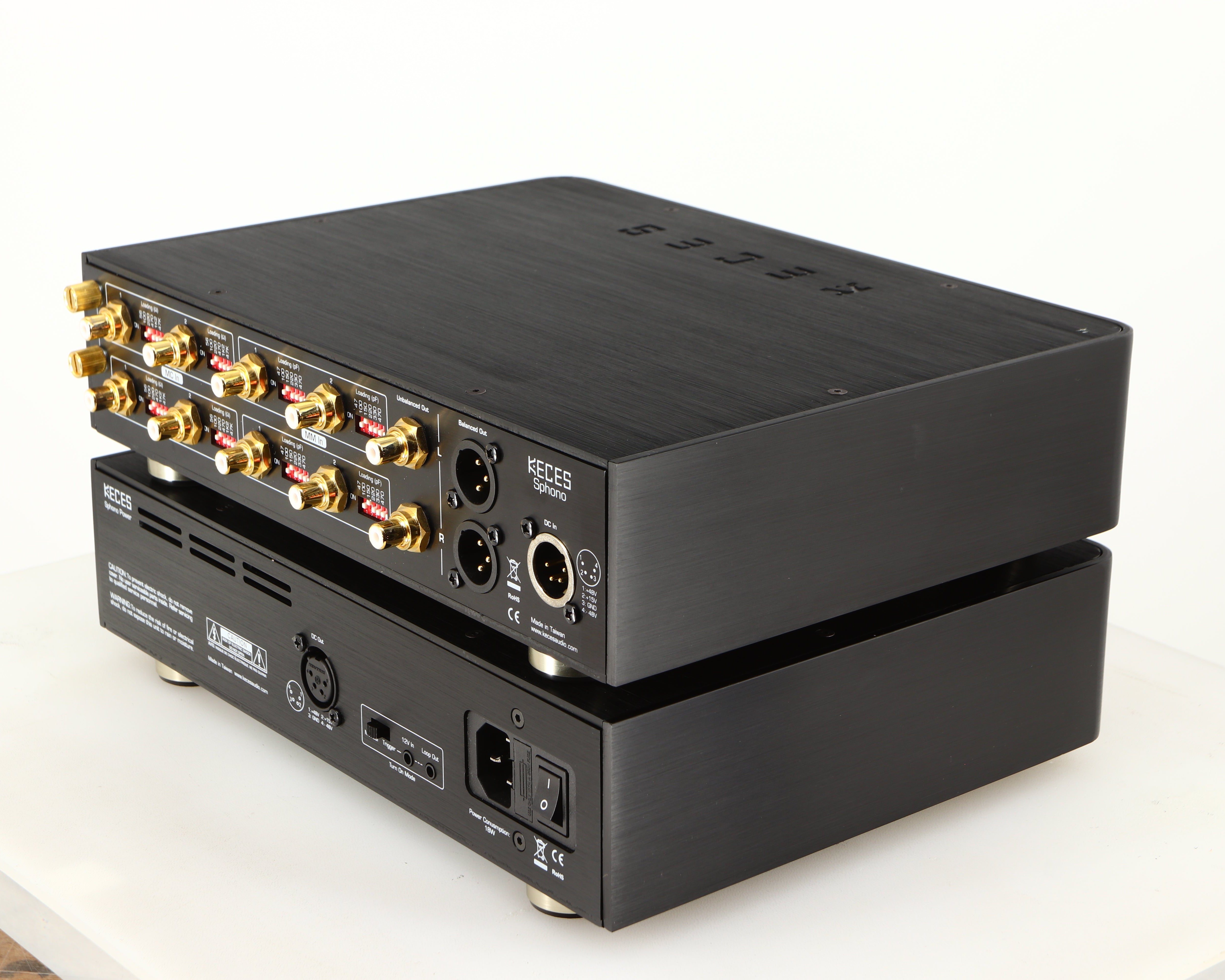

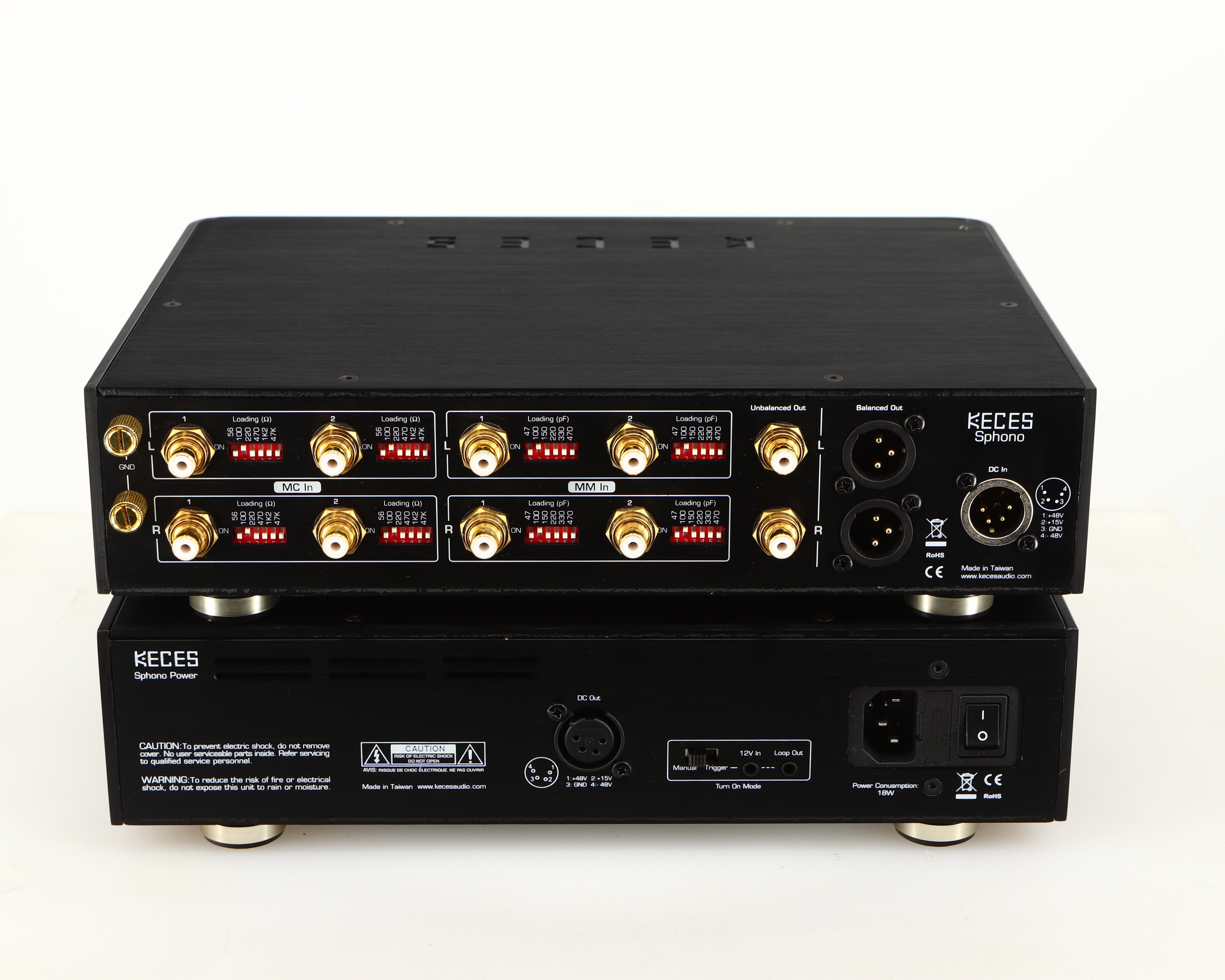

• Balanced and unbalanced outputs

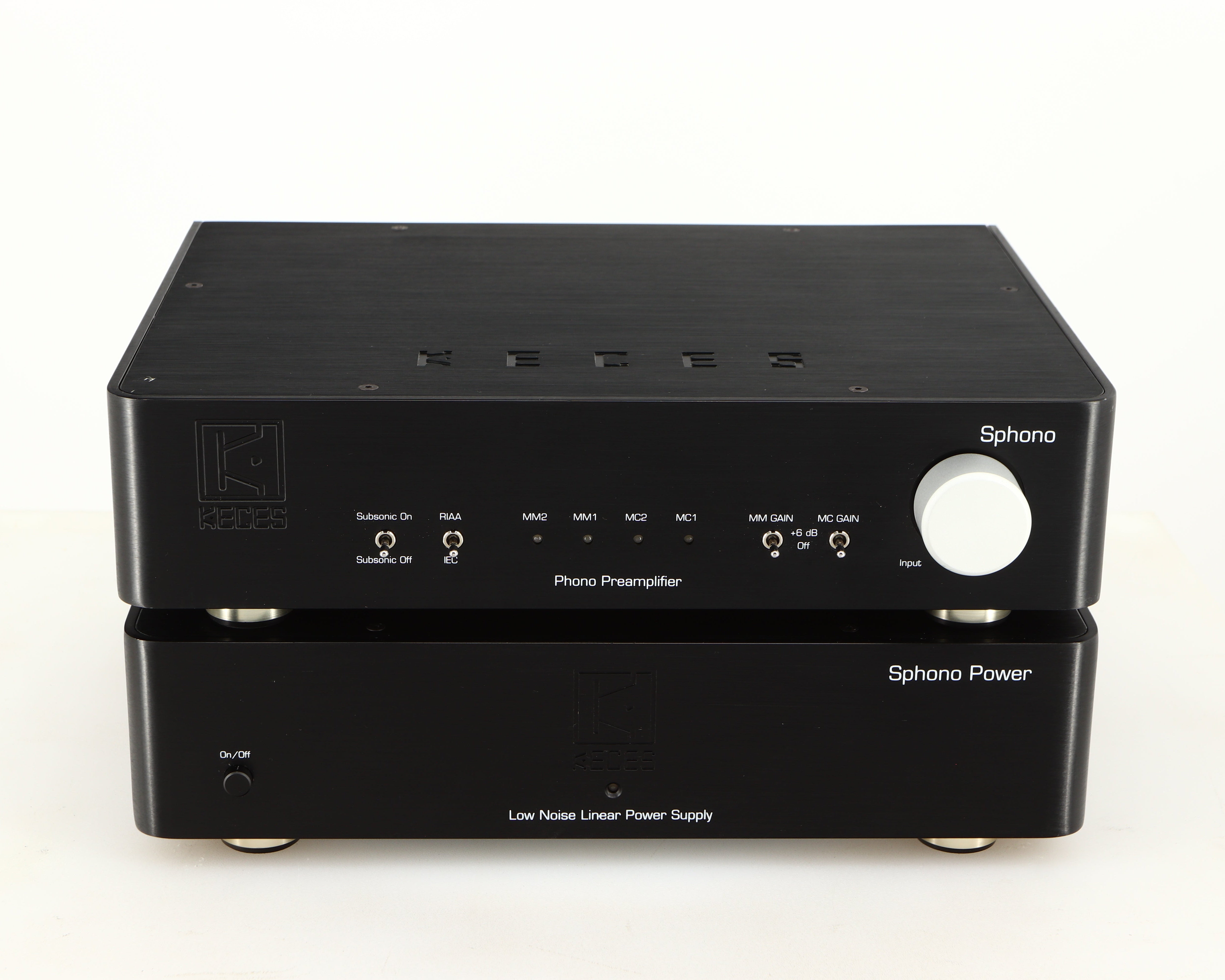

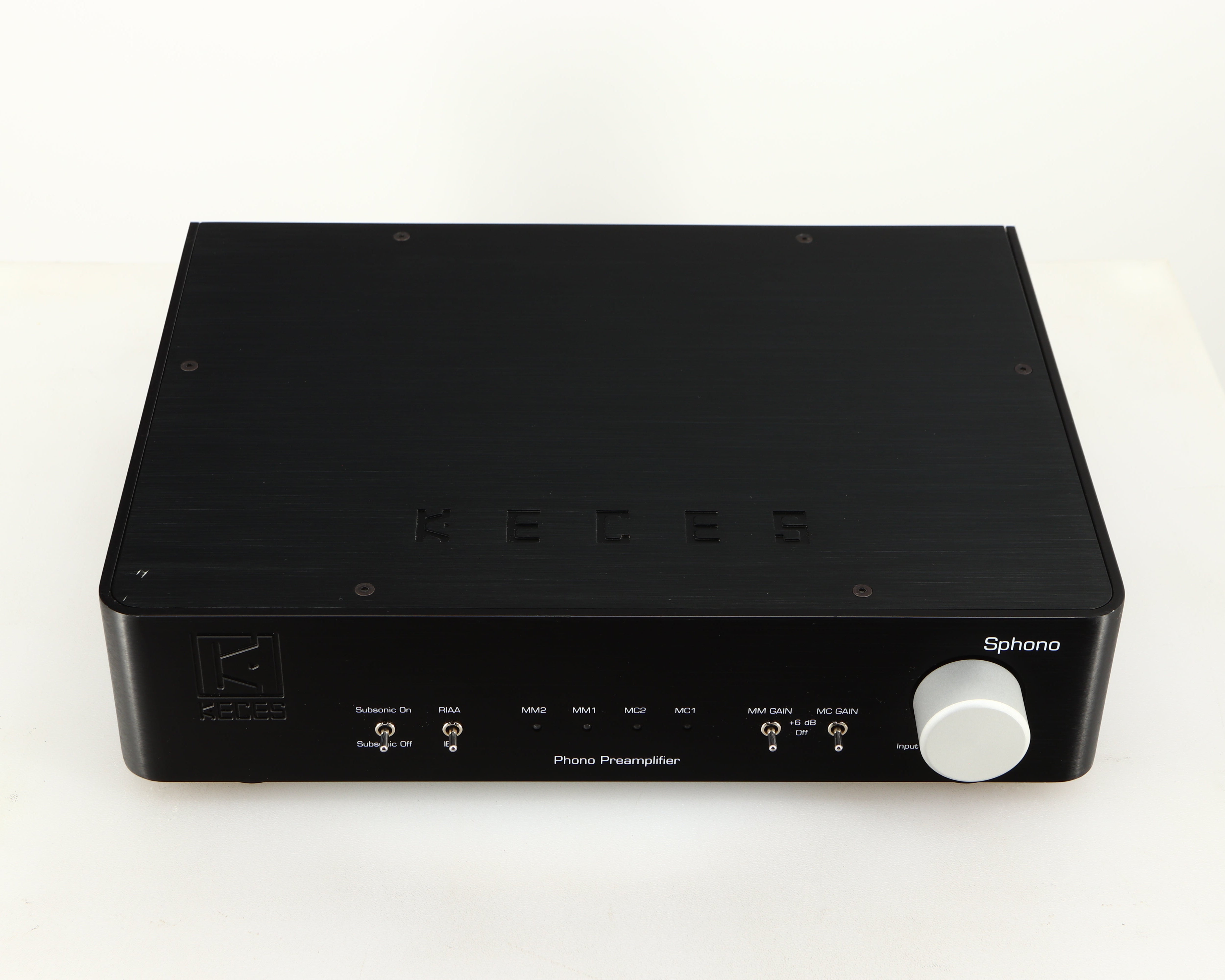

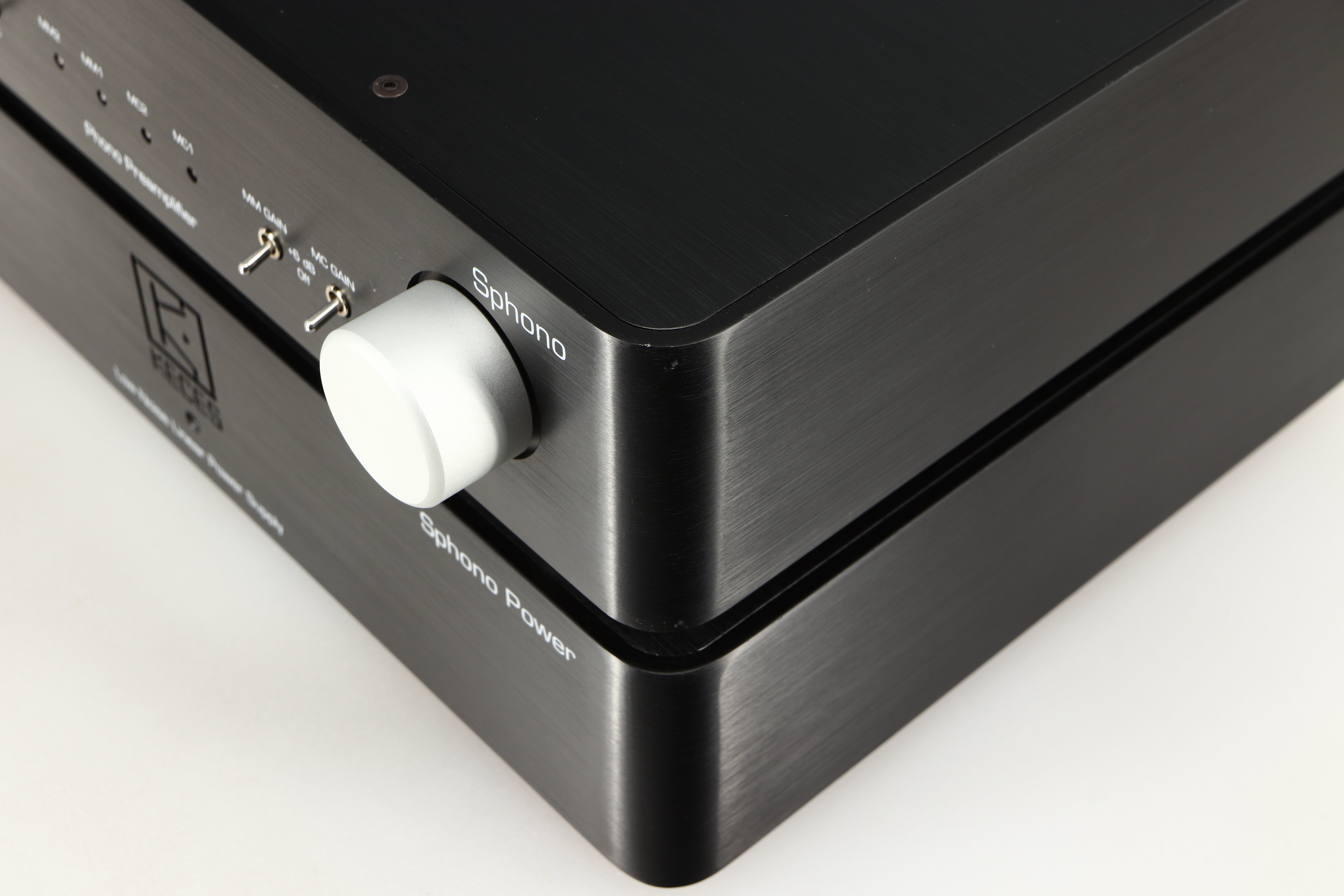

• Front panel input select switch for 2 MM inputs and 2 MC inputs
• Front panel subsonic filter switch
• Front panel MM/MC Gain select
• Front panel EQ curve select for IRAA and IEC
• Variable MC impedance adjustment of 56/100/220/470/1K2/47 kΩ
• Variable MM loading adjustment of 47/100/150/220/330/470 PF
• RIAA/IEC accurate to within 0.2 dB
• Audiophile grade resistors and capacitors
• Audiophile grade XLR output jacks
• Gold-plated RCA input and output jacks

Sphono Phono Stage
Frequency Response: 20 - 20 kHz
Total Harmonic Distortion: MM < 0.002%; MC < 0.09%
Signal to Noise Ratio: MM 96 dB A-weighted; MC 82 dB A-weighted
Input Impedance: MM 47 kΩ; MC variable 56/100/220/470/1K2/47 kΩ
Input Capacitance: MC 100 PF; MM 47/100/150/220/330/470 PF
Gain: 40 dB/46 dB for MM; 60 dB/66 dB for MC
Power In: DC ± 48V and + 15 V (Power by Sphono Power)
Casing: 4 mm Aluminium
Dimension: 300 (W) x 220 (D) x 66 (H) mm
Weight: 3.5 kg

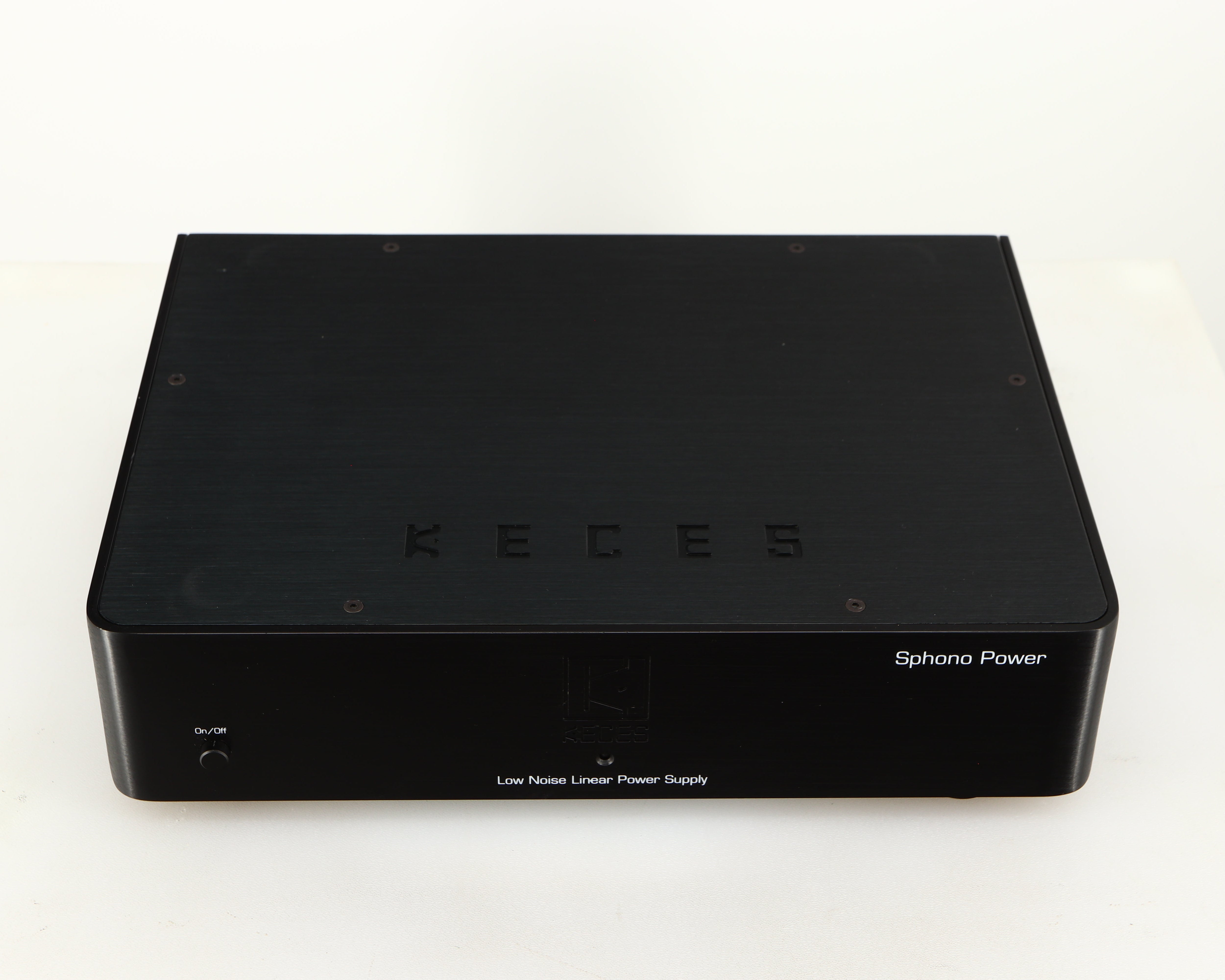

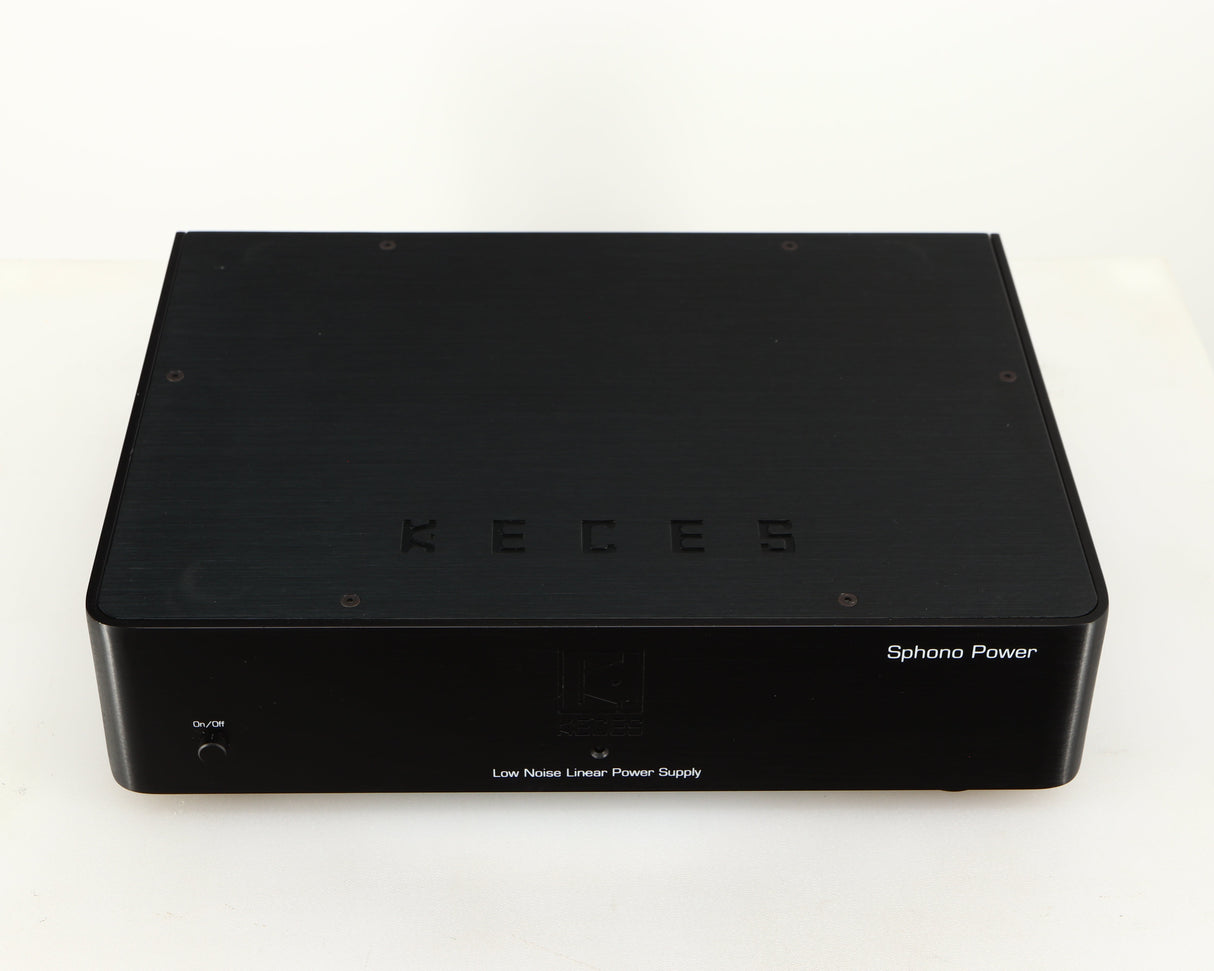

Sphono Power Supply AC Input Voltage 110 V - 120 V, 60 Hz / 220 V - 240 V, 50 Hz (Switchable)
DC output Voltage: DC ± 48 V and + 15 V
Power Consumption: 18 Watts
Casing: 4 mm Aluminium
Dimension: 300 (W) x 220 (D) x 66 (H) mm
Weight: 5.0 kg
