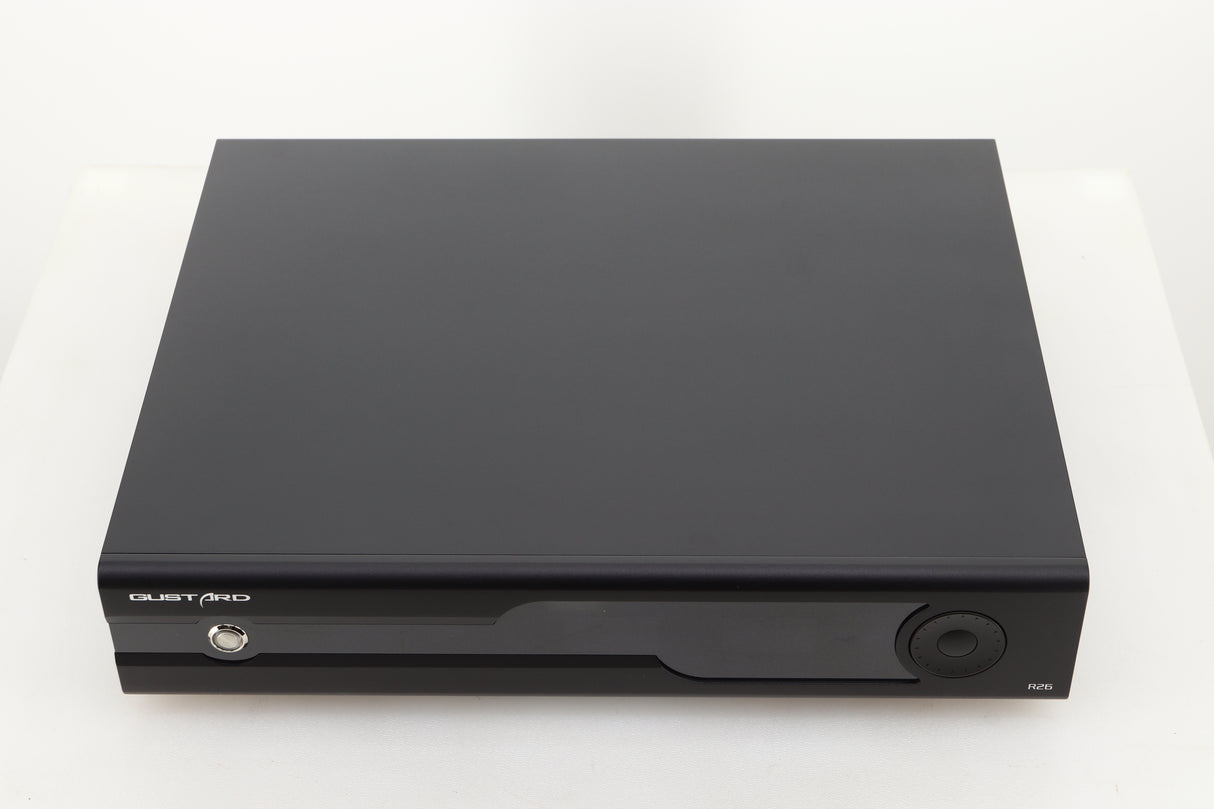

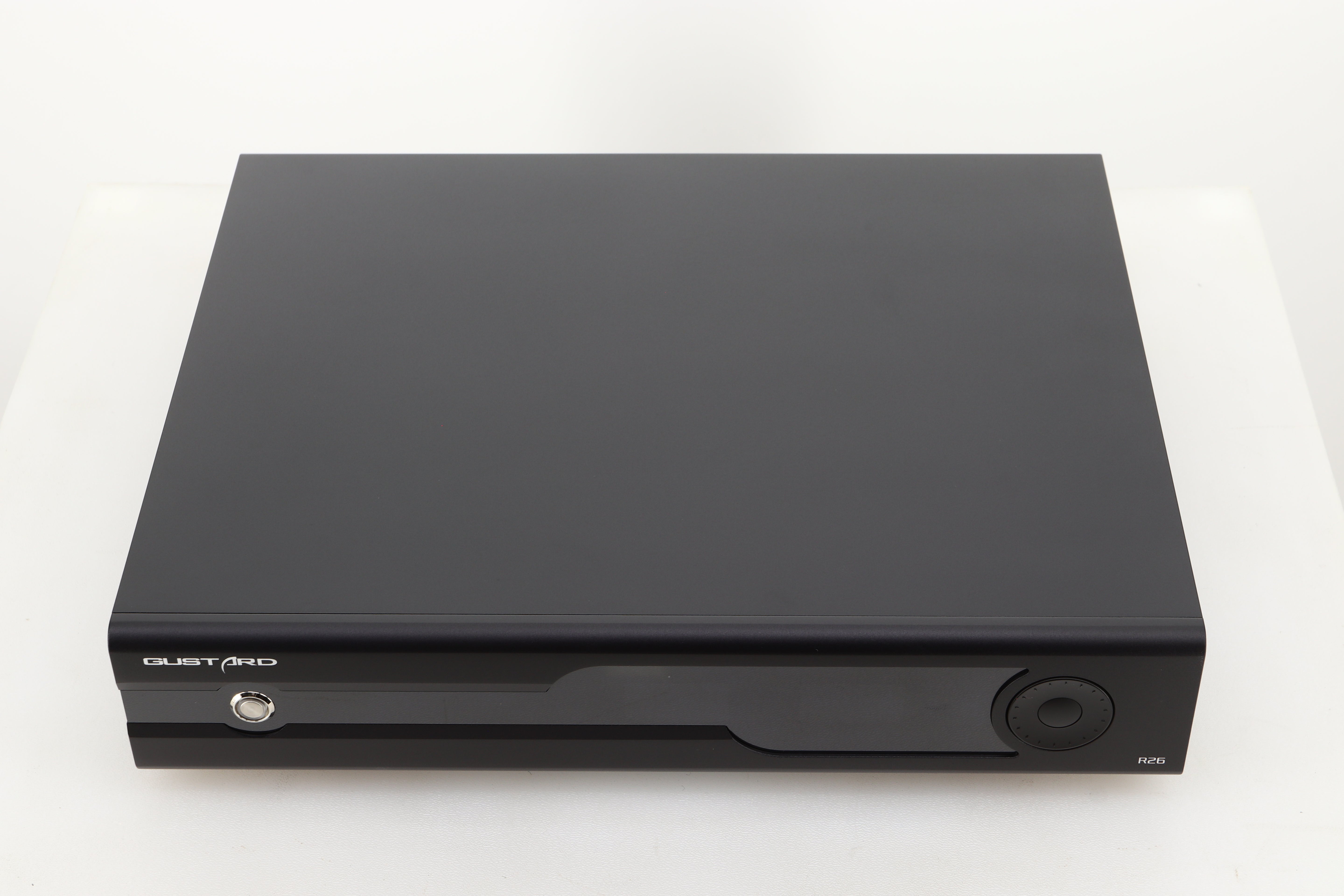

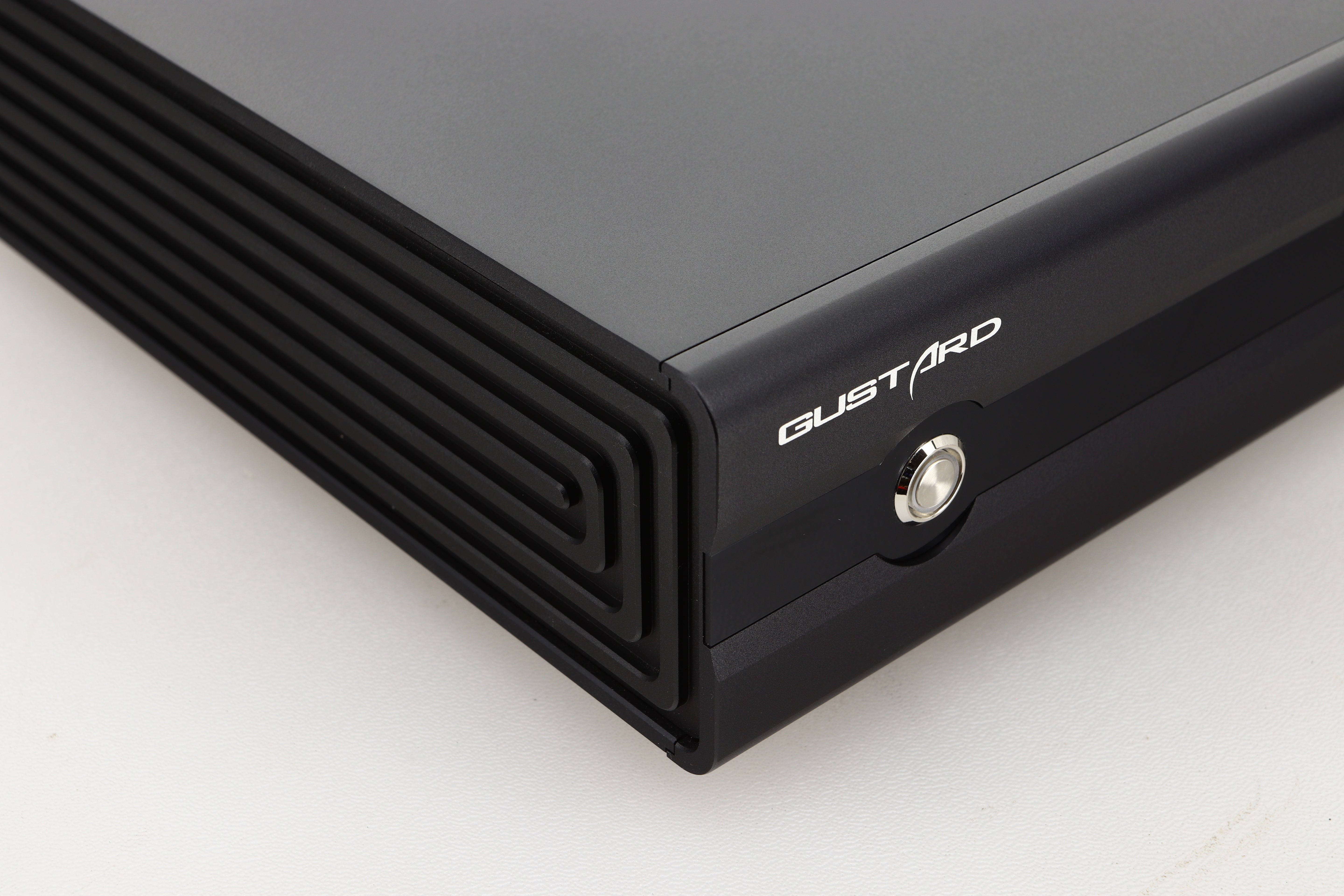

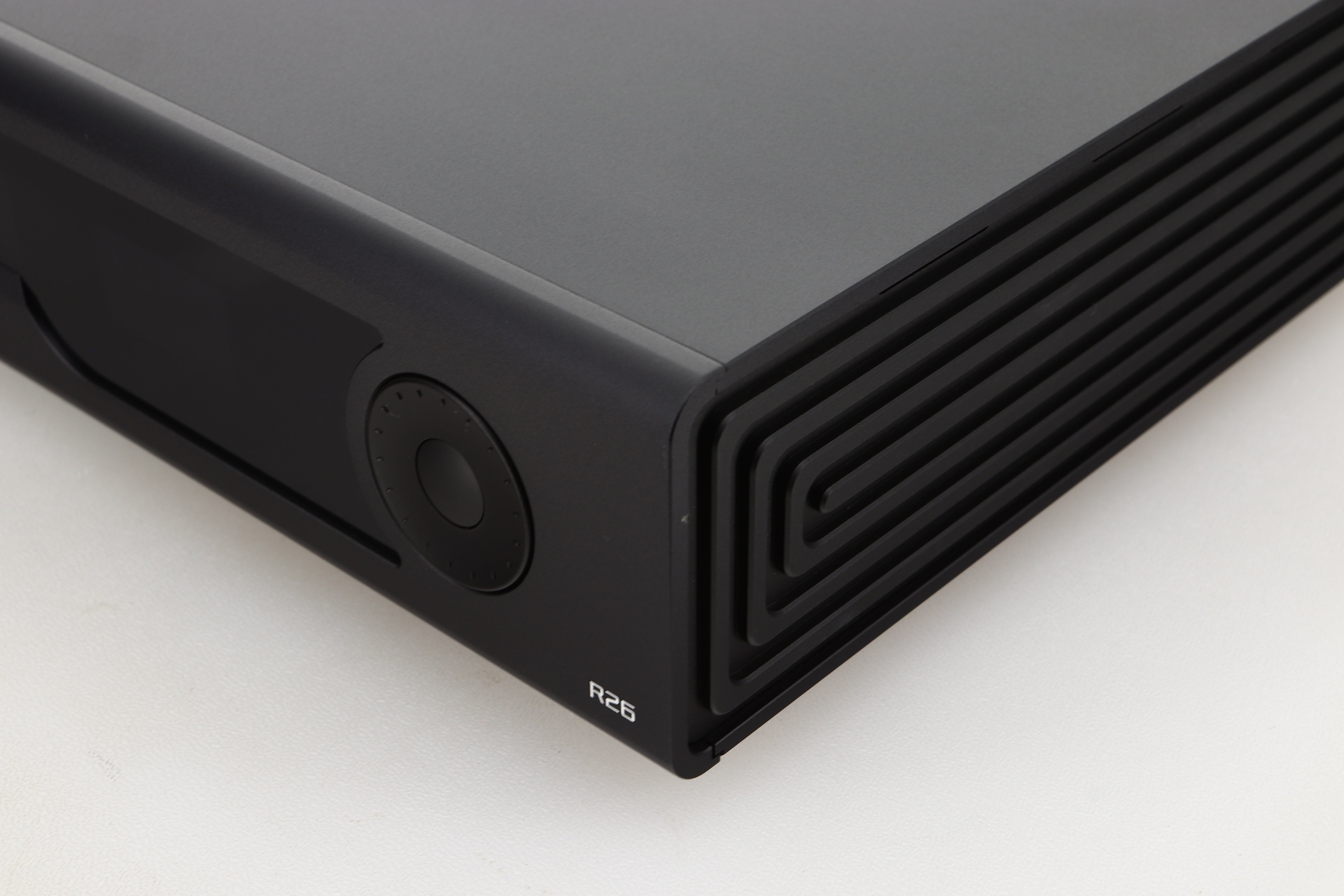

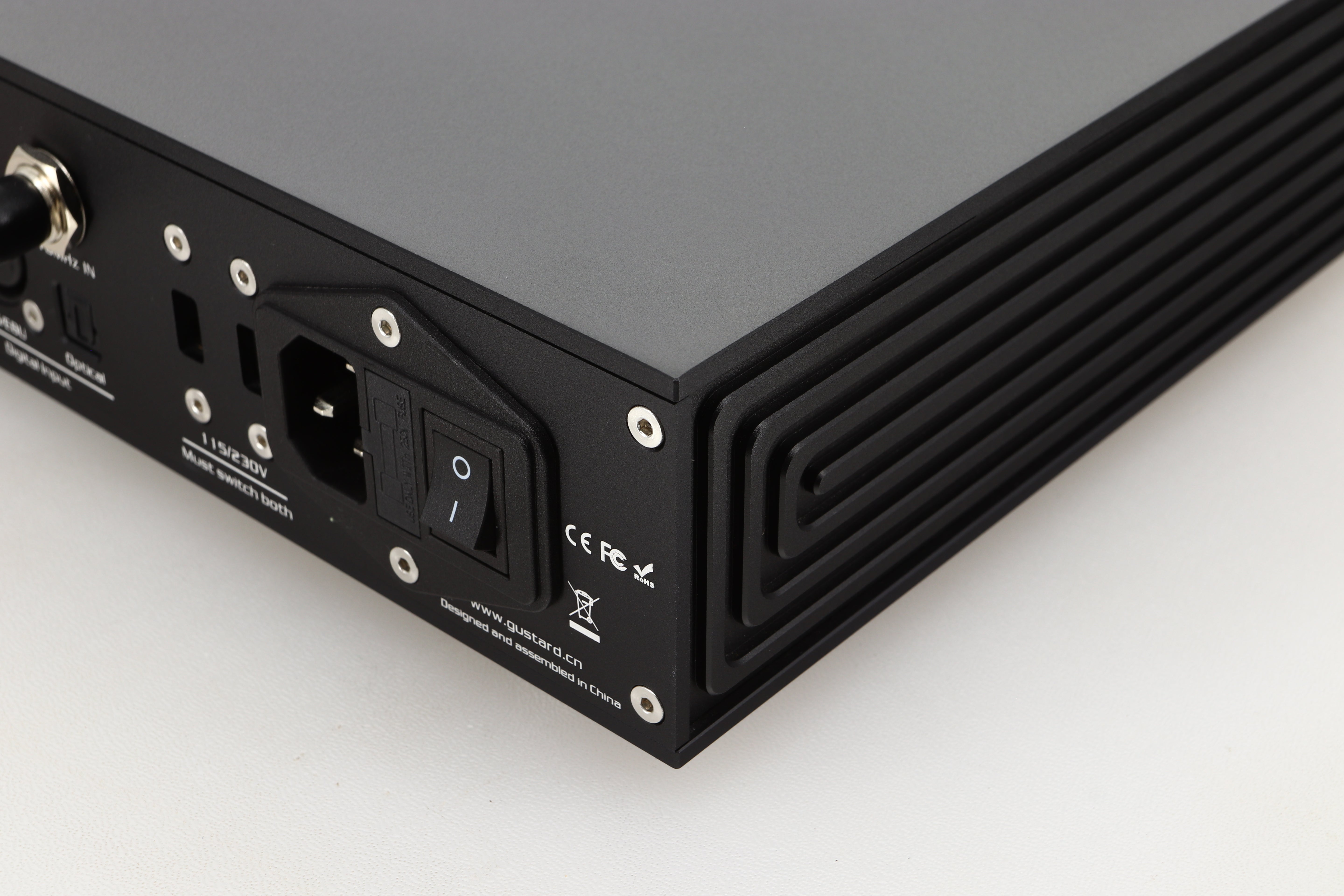

Gustard R26 Discrete R2R DAC - Black

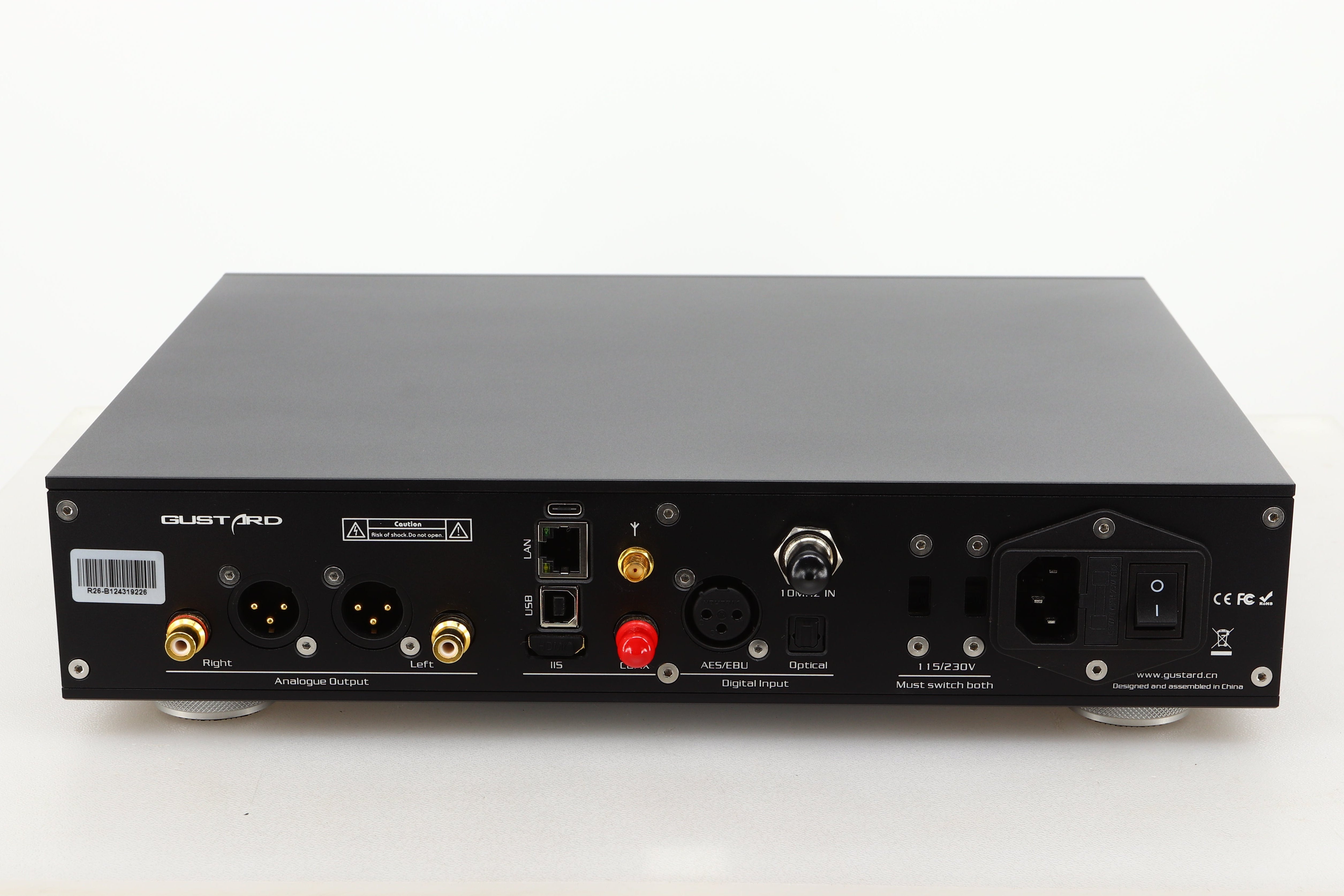

Digital inputs:
COAX/AES/OPT input format:
PCM 16-24bit/44.1-192kHz; DSD DoP64
USB/Streamer input:
PCM 16-32bit/44.1-768kHz;
DSD DoP64-DOP256;
NATIVE DSD: DSD64-DSD512
IIS input format:
PCM 16-32bit/44.1-1536kHz;
NATIVE DSD: DSD64-DSD2048 (DSD2048: @ DSD direct mode)

10M input interface(BNC):
Input impedance 50 Ohm, 0dBm-20dBm, CMOSsquare wave 0.2V-3.3V, sine wave 0.5-3.3V

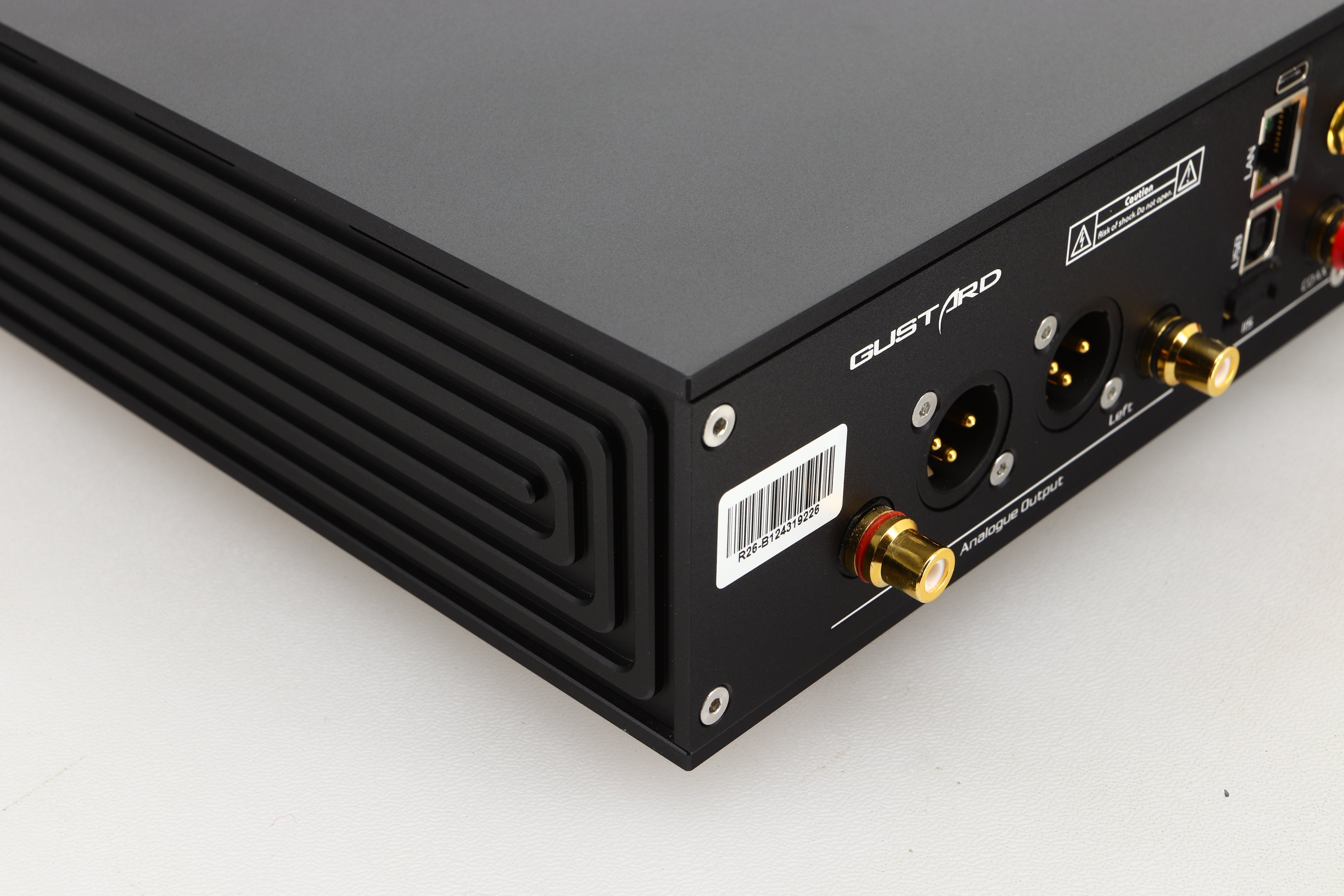

Analog Output:
Frequency Response: 20-20kHz /±0.2dB OS mode
Dynamic Range: >117dB
Signal-to-Noise Ratio: >122dB
Channel Crosstalk: <-134dB @ 1kHz
THD+N: <=0.003% @1kHz
IMD: ≈0.008% @ 0dbfs
RCA Output Level: 2.5Vrms (VOLUME FIXED)
RCA Output Impedance: 100Ω
XLR Output Level: 5.0Vrms (VOLUME FIXED)
XLR Output Impedance: 100Ω

Miscellaneous Specifications
AC Power: AC115V/230V 50/60Hz; 115V, 230V (Manual switching)
Power Consumption: <20W
Chassis Dimensions: 330 x 260 x 65 (No pins included 10mm)
Weight: 5.5KG
Package Dimensions: 420 x 360 x 175mm
Shipping Weight: 7.3KG
