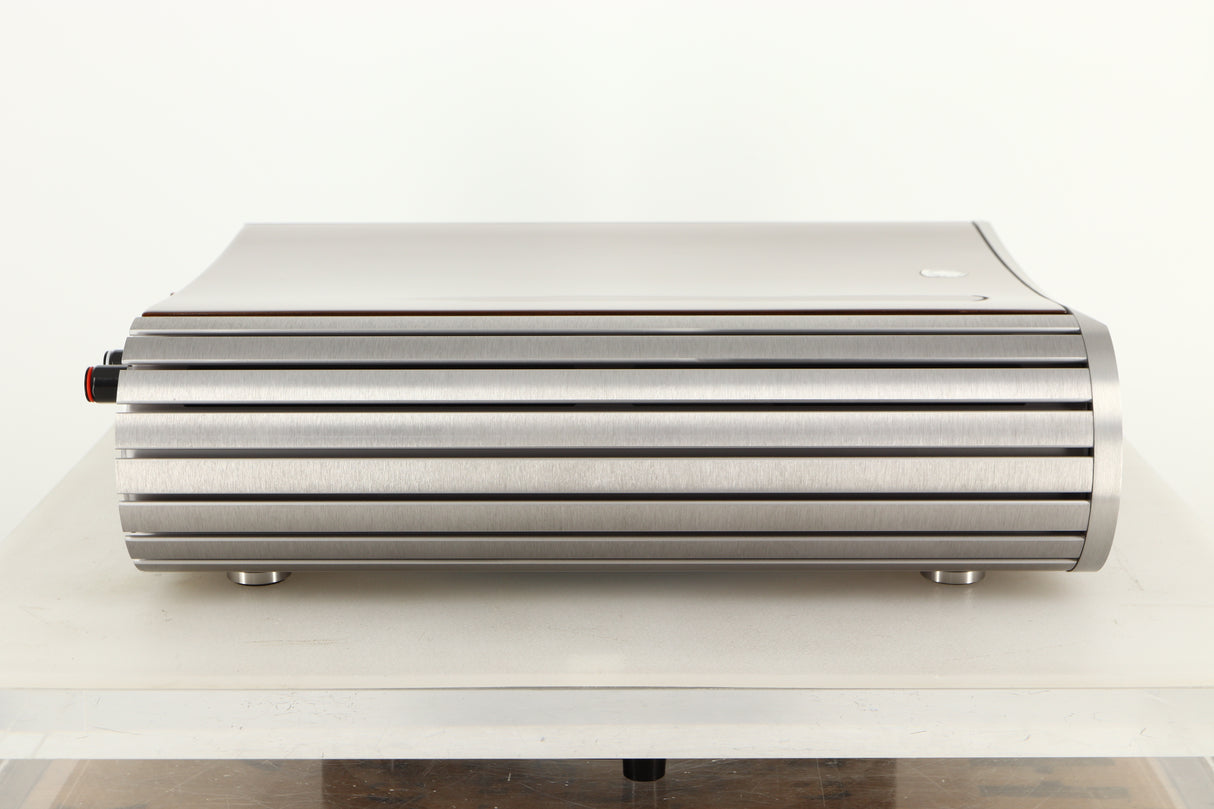

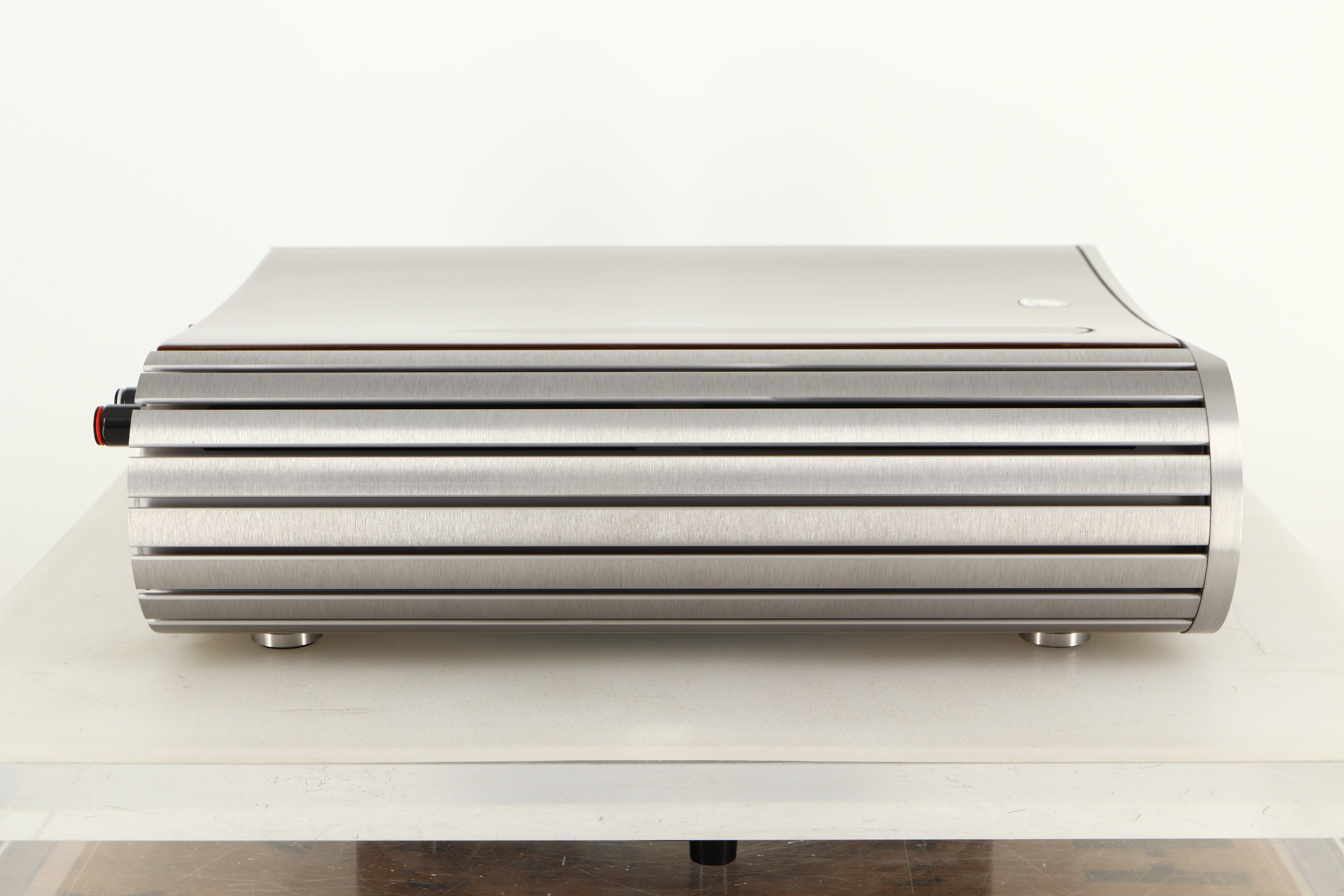

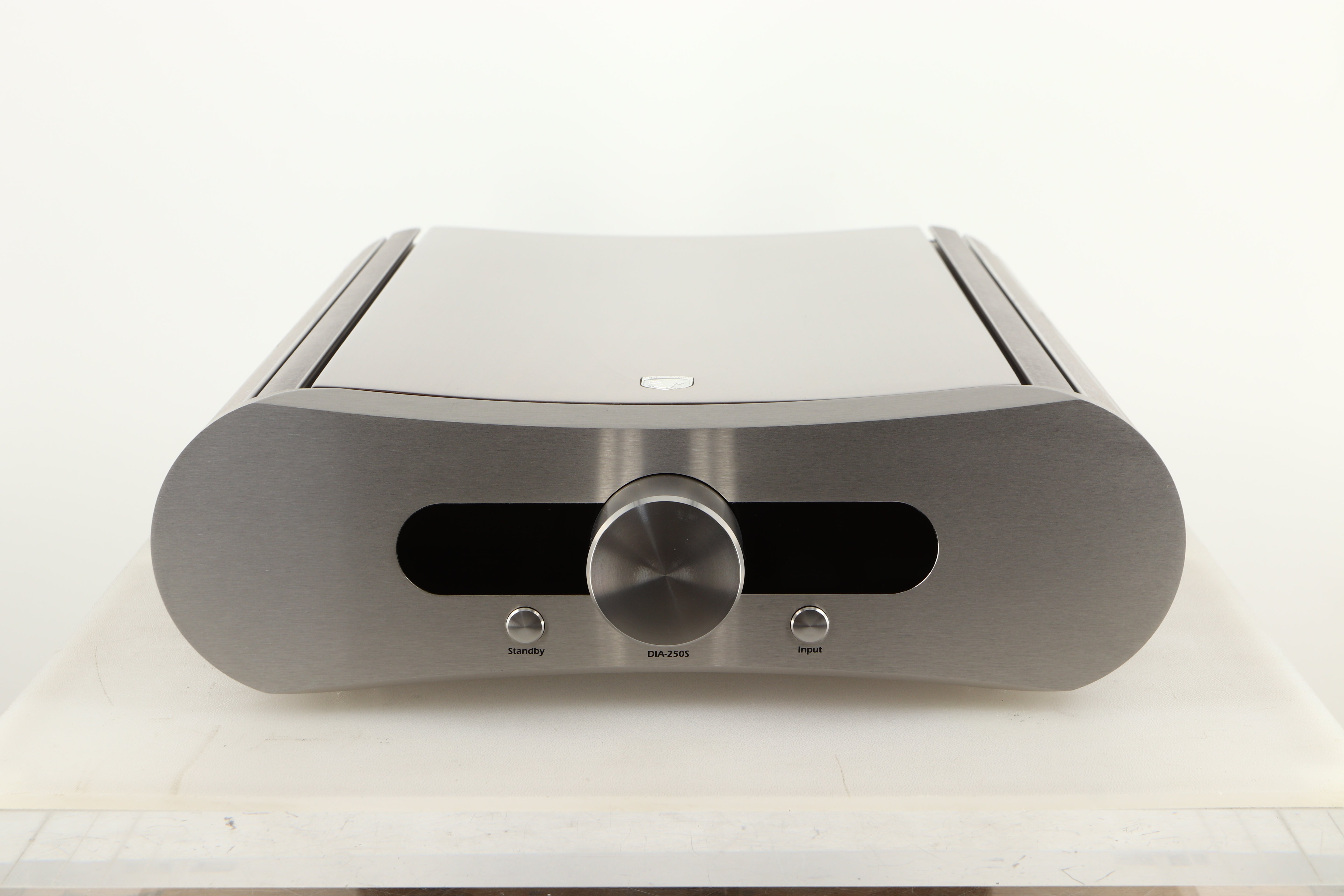

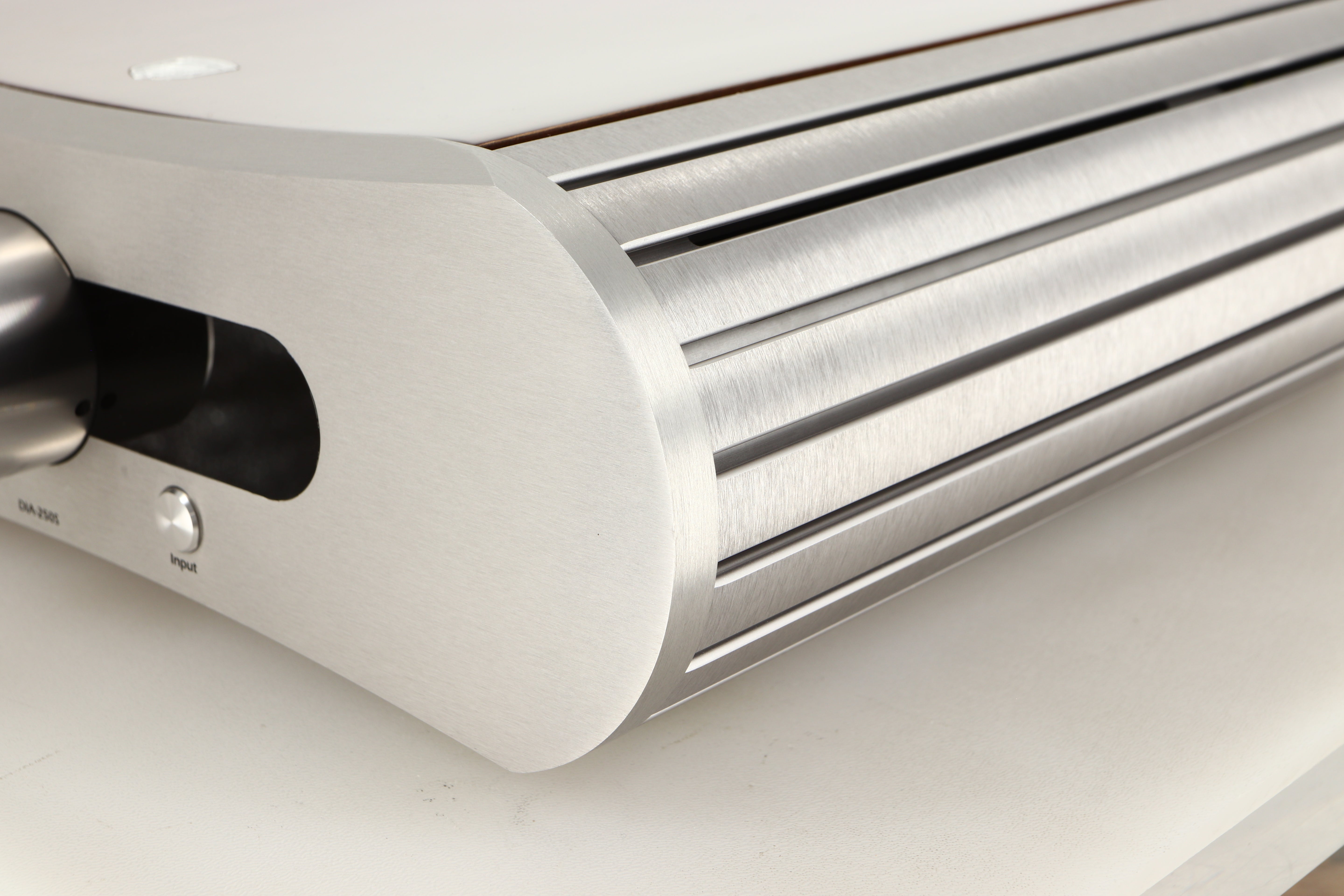

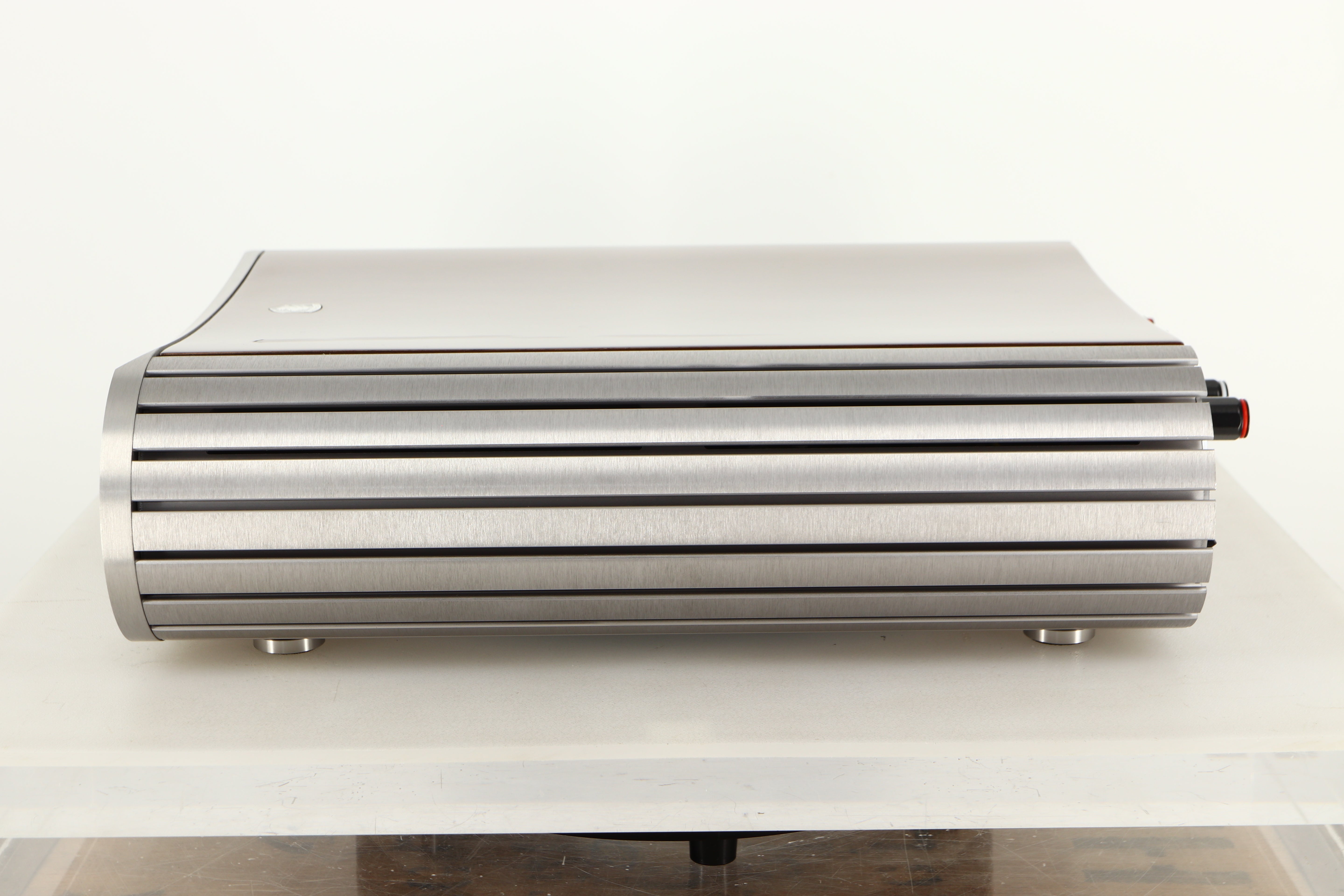

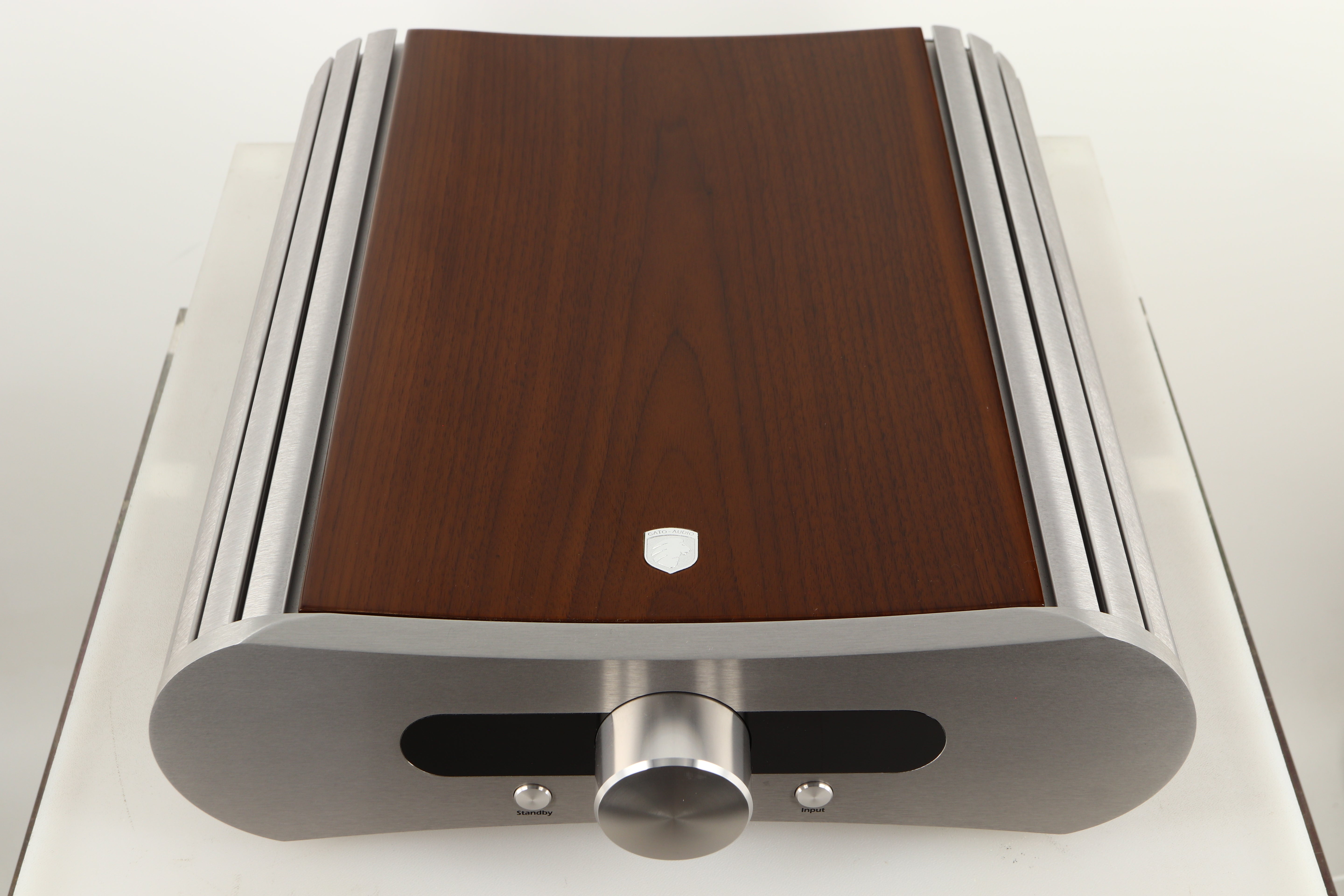

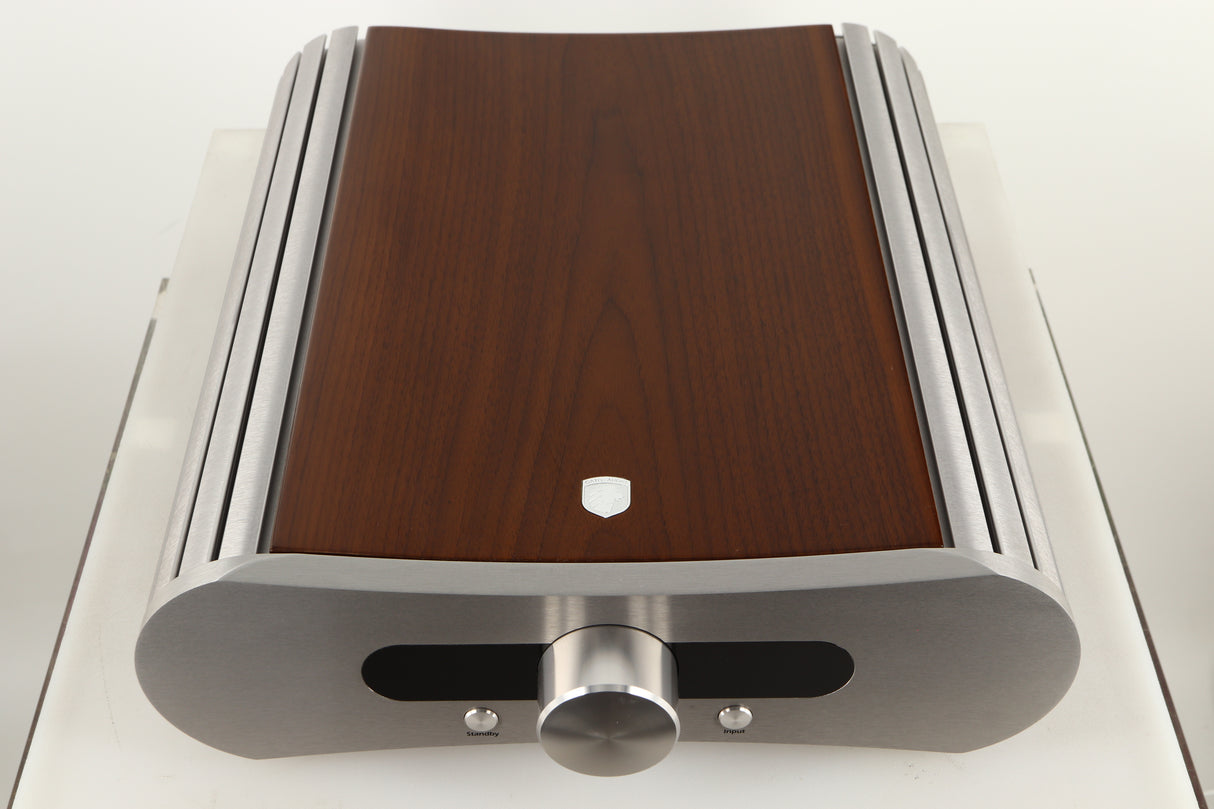

GATO DIA-250S Integrated Amplifier - High Gloss Walnut

S is for "Super" This brand new amplifier may look like the standard DIA-250 amplifier we introduced three years ago, but in fact we put more than a year’s work into improve every part of the DIA-250s already fantastic award winning performance.

We changed and improved the electrical circuits and layouts in more than twenty ways, the most significant being:
Optimized mains filter
Improved general and local power supplies
New input stage
Improved output stage
New analogue stages in the D/A converter
Improved digital signal routing
Updated firmware
Improved connectors
Incorporated aptX Bluetooth module

More details, better micro dynamics and more "air" around the performing musicians. Everything is served with naturalness and a musicality normally reserved big expensive class A/B amplifiers - the result is stunning!
The DIA-250s amplifier offers a state of the art Class-D output stage with dedicated and optimized switch mode power supplies. The multiple stage power amplifier is built around proven technology from International Rectifier, optimized with a precision high frequency oscillator and PWM modulator. A pair of precision switching MOS-FET transistors, with super low on-resistance ensures the high frequency switching is done perfectly and with as little loss as possible. The output filters are made from quality PP capacitors and low DCR coils, converting the high power PWM signals back into detailed and smooth analogue music.
The built-in D/A converter offers real high end performance, enabled by the use of a dedicated power supply, a balanced-drive Burr-Brown PCM1794 D/A converter, an optimized high bandwidth I/V converter, and an analogue stage with low-Q, low pass filters. All digital inputs are upsampled to 24bit/192kHz. This D/A converter will upgrade any digital source - such as wired or wireless streaming from your computer or CD drive - to a high end level of detail and musical performance.
We had our eye on versatility and connectivity when designing this amplifier. The DIA-250s offers not only a wide range of digital and analogue inputs, but also line outputs, a trigger signal for external power amplifiers, and a configurable home theatre input. The HT input can turn the amplifier into a fixed level power amplifier for use in a surround setup, without compromising the sonic performance.

Features

• 2 x 250 W @ 8 ohm / 2 x 500 W @ 4 ohm
• Class D output stage
• Built in 24-bit/192 kHz D/A converter with upsampling
• Coax, optical and asynchronous USB digital input up to 24-bit/192 kHz, optical up to 24-bit/96 kHz
• aptX Bluetooth 4.0 receiver
• Accepts digital streaming directly from Apple iPad
• Two unbalanced and one balanced inputs
• Nonmagnetic enclosure
• Direct function; enables use in home theatre systems
• Designed, developed and build in Copenhagen, Denmark

Output Power: 250 W/8 Ω; 500 W/4 Ω
Frequency Response: 20 Hz - 20 kHz, - 0.5 dB, and 2 Hz - 70 kHz, - 3 dB
Total Harmonic Distortion: < 0.01% at rated power
Signal To Noise Ratio: > 110 dB
Line Out Maximum Level: 13 V balanced; 6.5 V unbalanced
Total Harmonic Distortion: < 0,001% pre out
Input Impedance: 20 kΩ RCA or 40 kΩ Balanced
Line Output Impedance: 75 Ω
Voltage Gain: 26 dB (+ 10 dB headroom)
Recommended Speaker Load: 4 -16 Ω

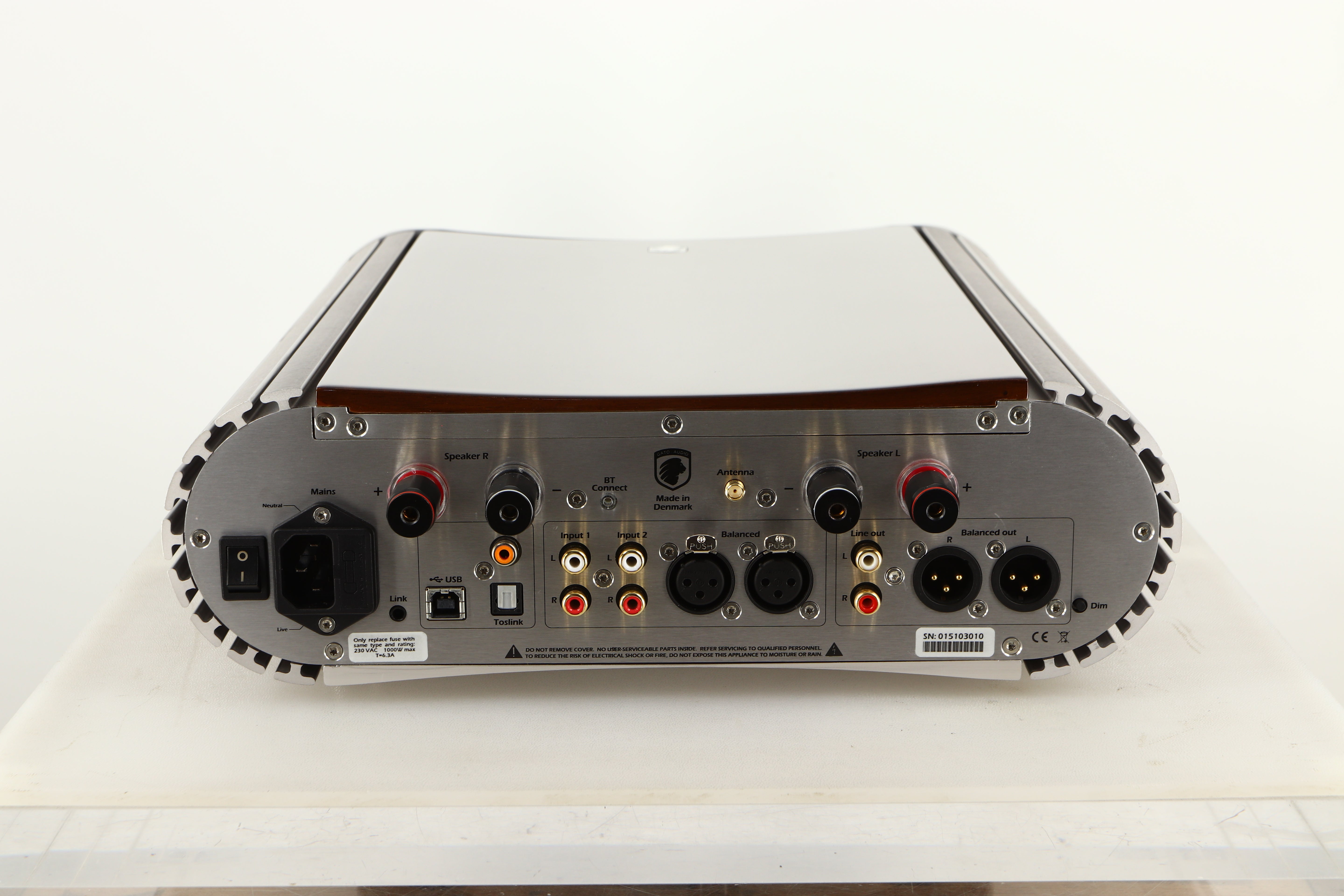

Balanced Analogue Inputs: 1 pair gold plated XLR Neutrik
Unbalanced Analogue Inputs: 2 pairs of gold plated RCA Stereo

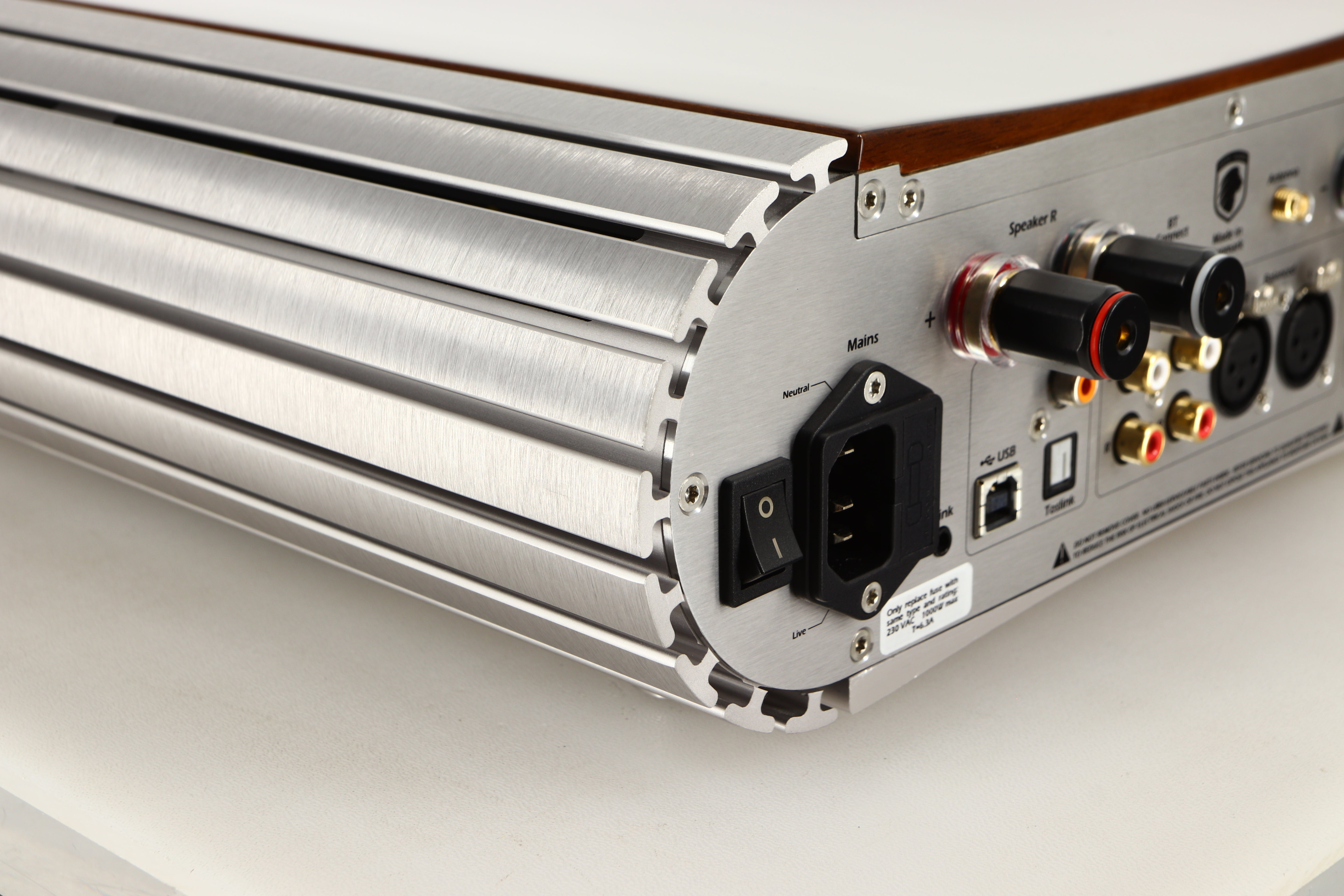

Digital Inputs: 1 pc USB type B, 1 pc TOSlink, 1 pc RCA, 1 pc aptX Bluetooth

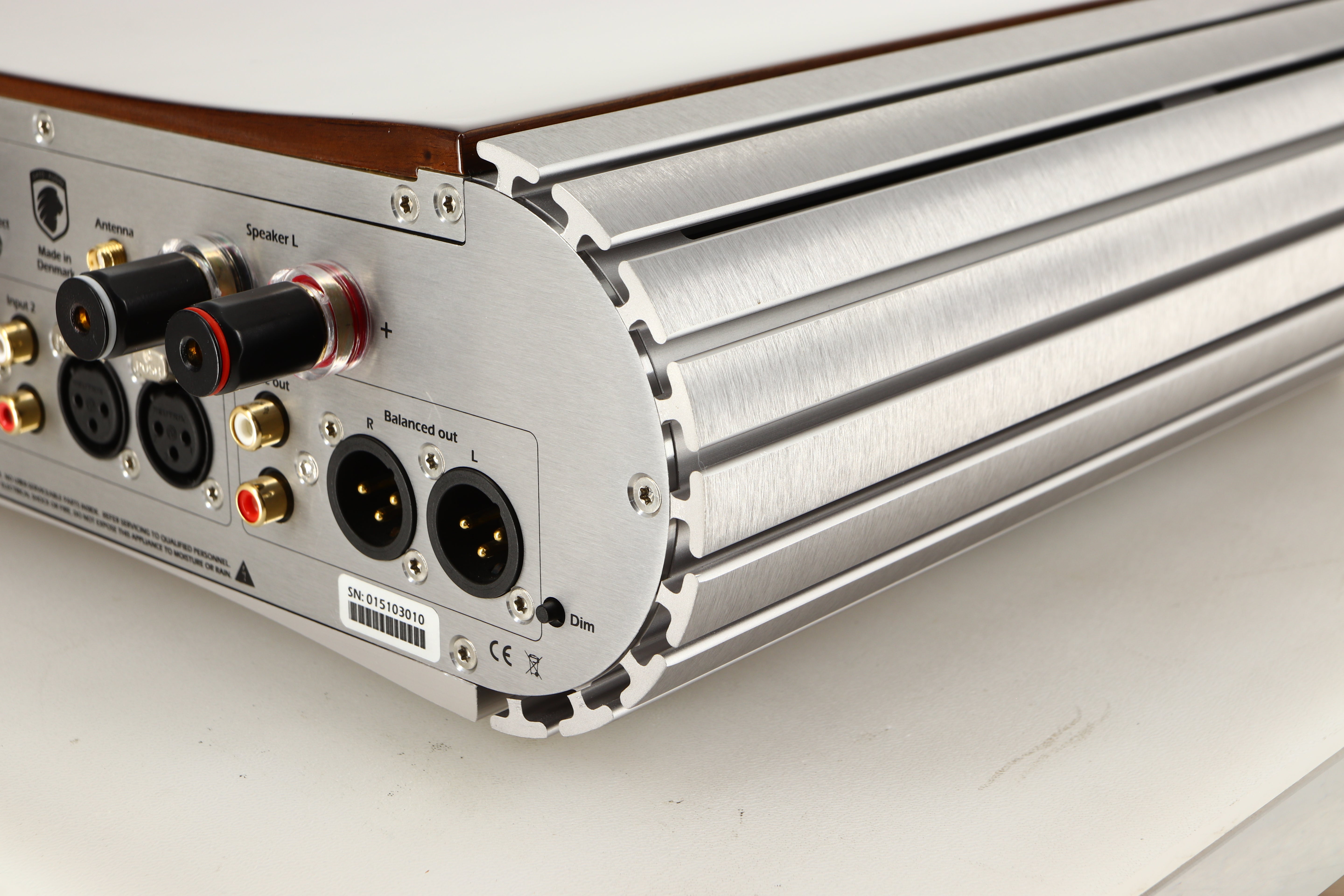

Balanced Analogue Outputs: 1 pair gold plated XLR Neutrik
Unbalanced Analogue Outputs: 1 pair of gold plated RCA Stereo
Speaker Output: 2 pairs of gold plated safety banana
Trigger, 12 V: 1 pc mini jack
Power Requirements: 115 VAC/230 VAC, 50 Hz/60 Hz
Power Consumption: 1000 W (Max); 23 W (Idle); < 1 W (Standby)
Dimensions: 325 (W) x 420 (D) x 105 (H) mm
Weight: 10.0 kg
