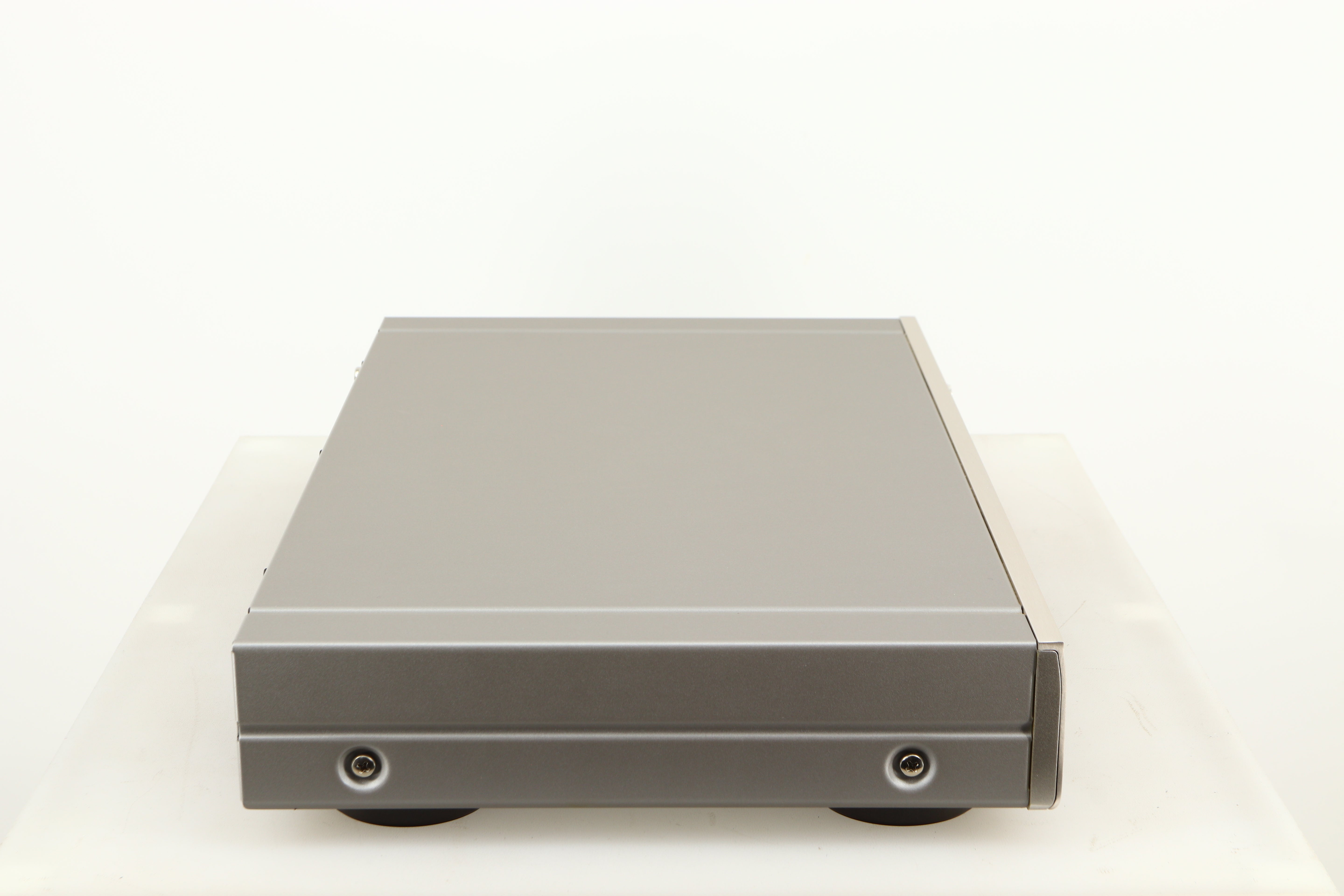

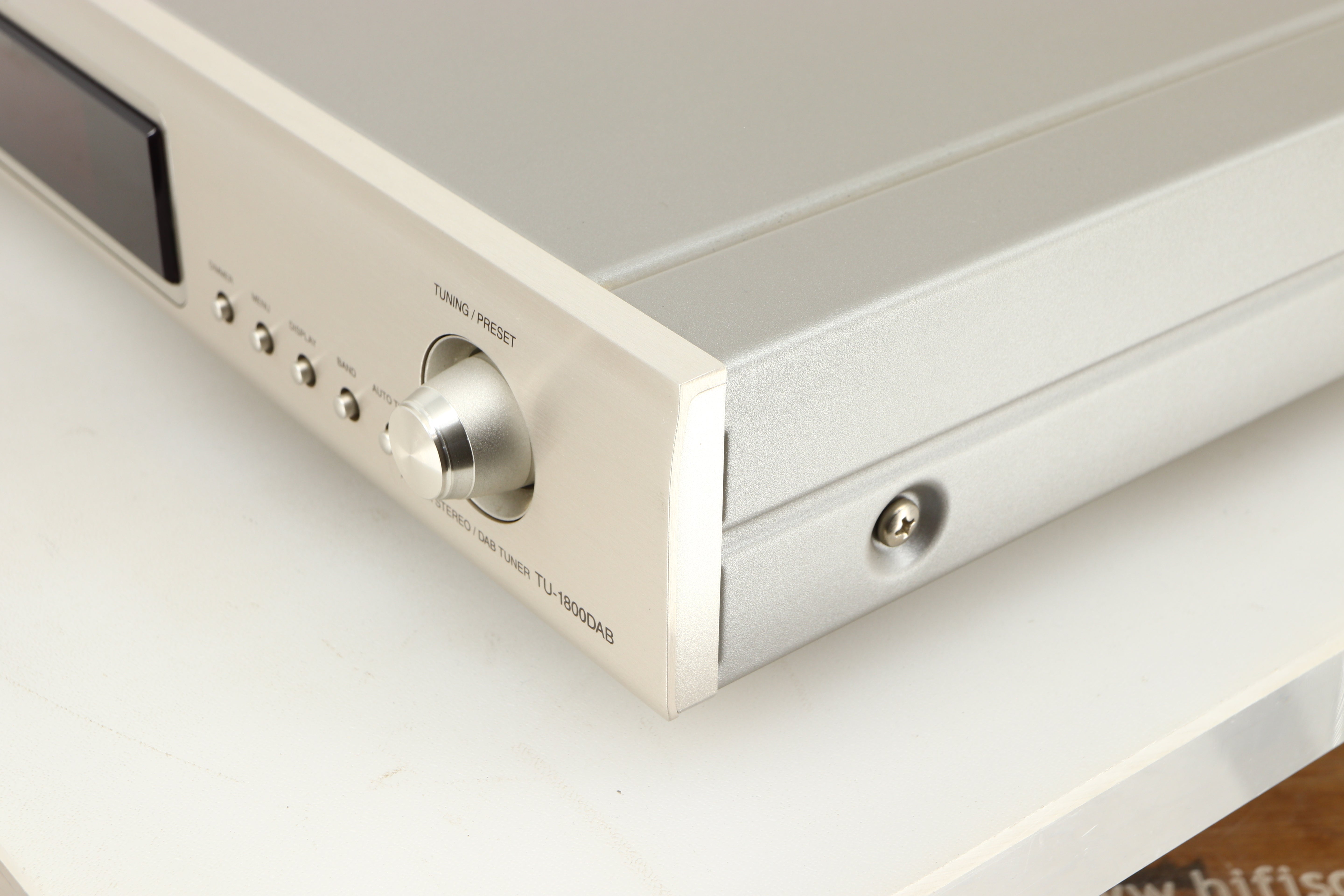

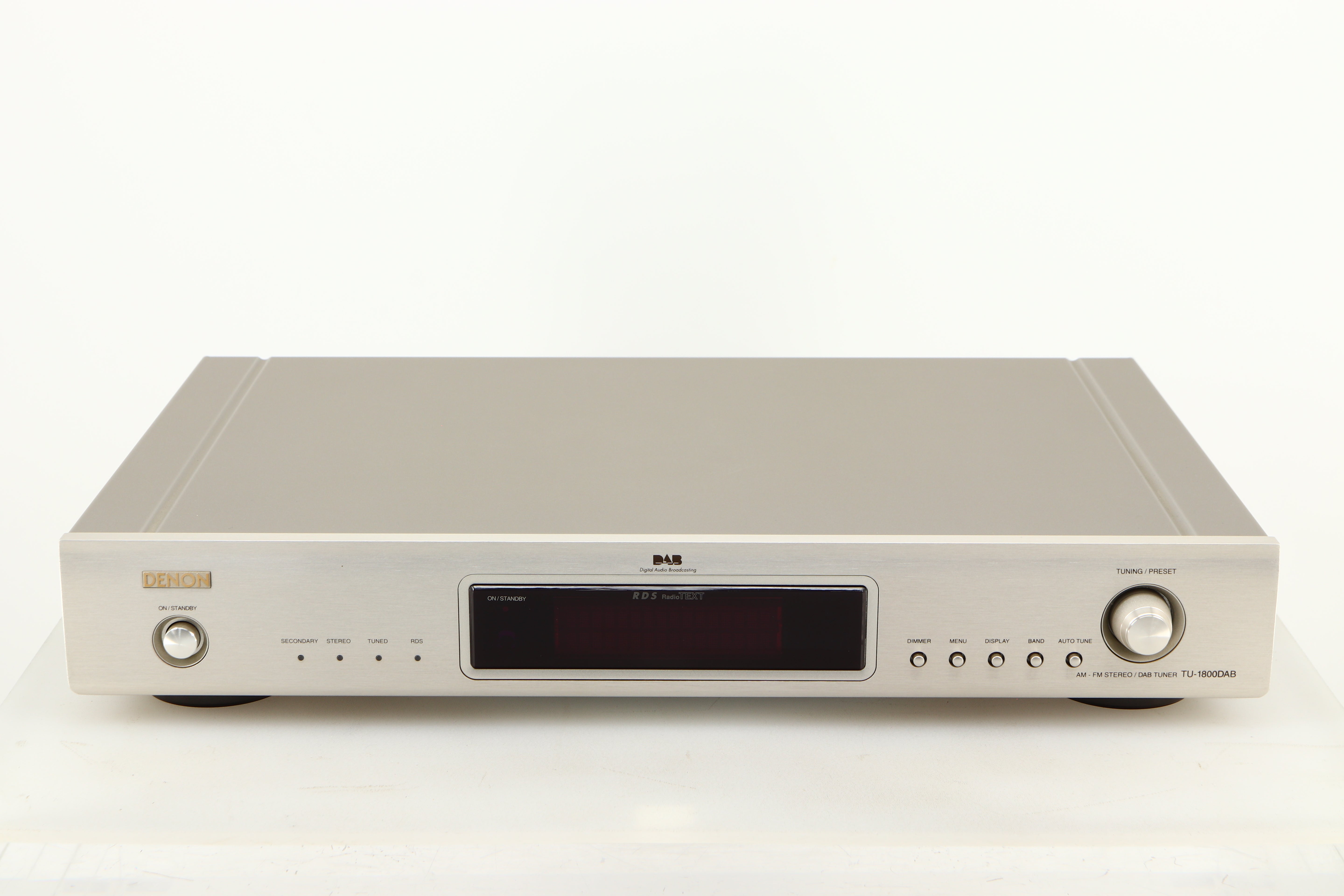

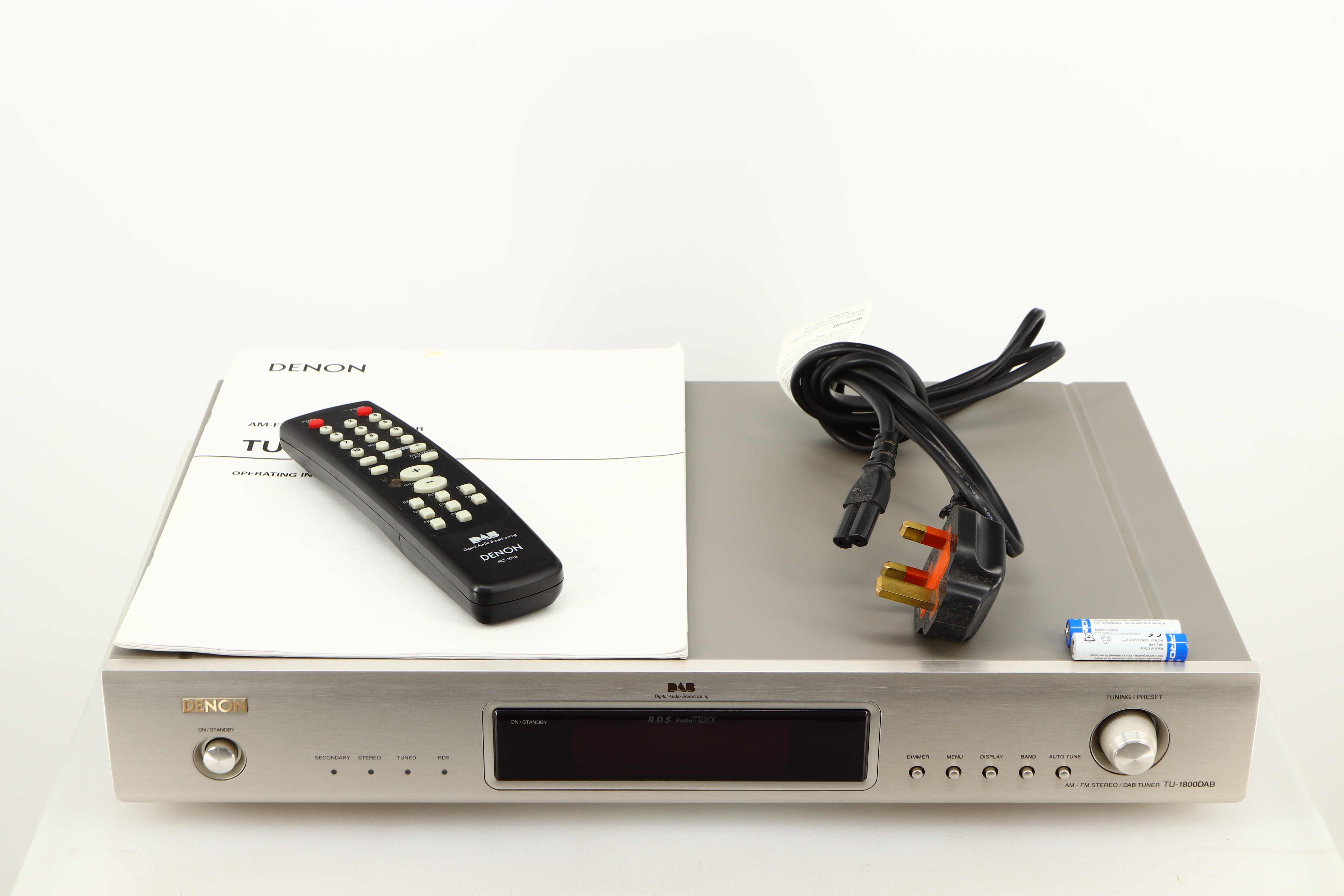

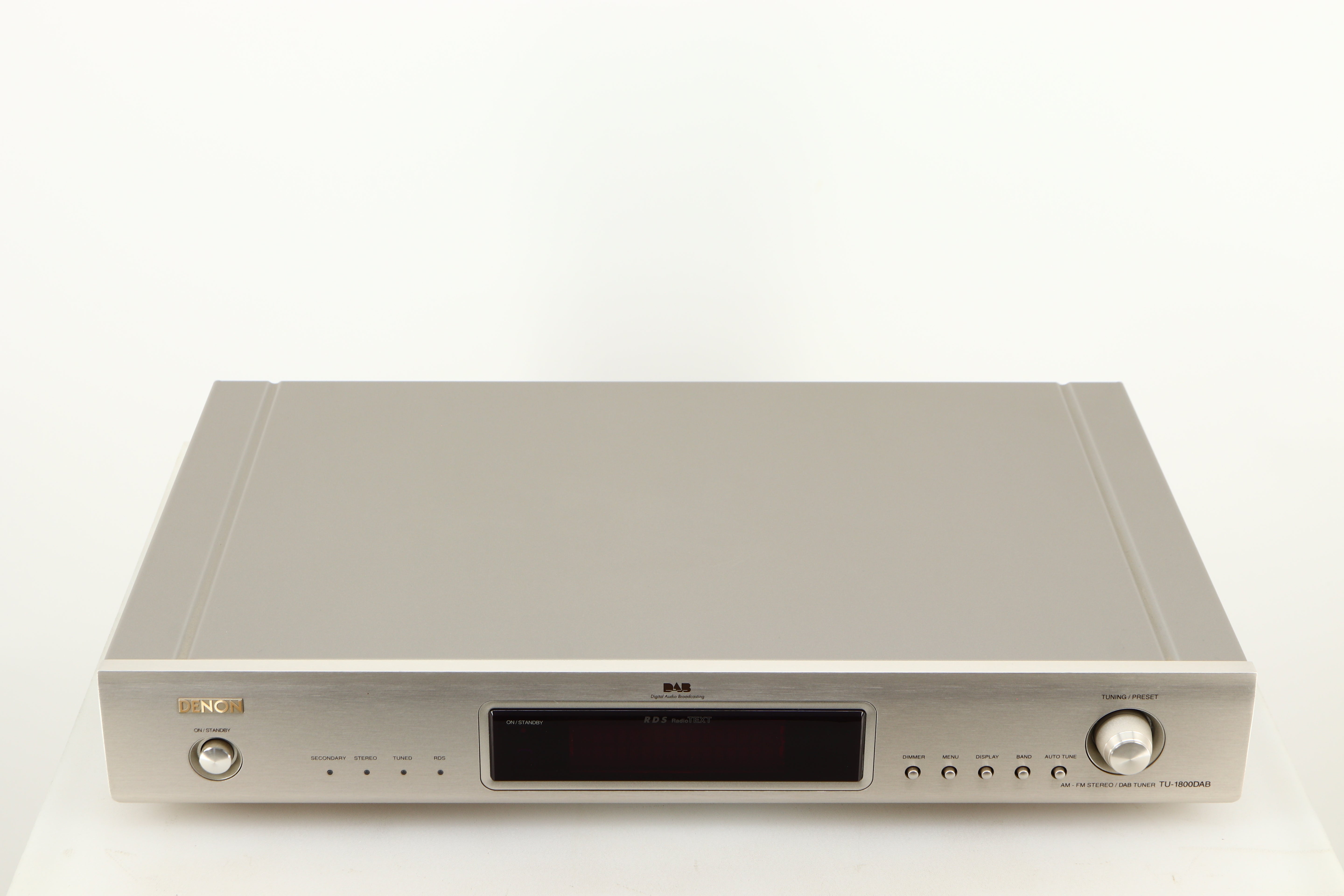

Denon TU-1800 DAB/FM Tuner - Silver

FM tuner section
• Frequency range: 87.5 MHz ~ 108.0 MHz
• Antenna terminals: 75 Ω/ohm Unbalanced
• Usable sensitivity: 1.0 µV (11.2 dBf) 1.2 µV (IHF)
• S/N 50 dB sensitivity: Monaural: 1.6 µV (15.3 dBf) Stereo: (µV is at 75 Ω/ohm, 0 dB = 10-15 W): 23 µV (37.2 dBf)
• Image interference ratio: 80 dB
• IF interference ratio: 100 dB
• AM suppression ratio: 50 dB
• Effective selectivity: 50 dB (±400 kHz)
• Capture ratio: 2.0 dB
• Frequency characteristics: 20 Hz ~ 15 kHz dB
• Signal-to-noise ratio: Monaural: 77 dB (IHF), 73 dB (DIN), Stereo: 72 dB (IHF), 68 dB (DIN)
• Total harmonic distortion: Mono 1 kHz (at 75 kHz dev.): 0.15 %, Stereo 1 kHz (at 67.5 kHz dev.): 0.3 %
• Stereo separation 1 kHz (WIDE): 43 dB

2 DAB tuner section
• Frequency range: 174.928 (5A) ~ 239.200 (13F) MHz (BAND III) 1452.960 (LA) ~ 1490.624 (LW) MHZ (L–BAND)
• Sensitivity: –99 dBm
• Signal-to-noise ratio: 103 dB
• THD+N: 0.007 % (1 kHz)
• Channel separation: 87 dB (1 kHz)
• Selectivity: 40 dB (at adjacent channel)
• Frequency response: +0.5/–0.5 dB (5 Hz ~ 20 kHz)
• Digital output: Optical, Coaxial Sampling frequency: 48 kHz
• Aerial terminal: 75 Ω/ohm, F female
• Analog output level: 2 Vrms

AM (MW) tuner section
• Frequency range: 522 kHz ~ 1611 kHz
• Antenna terminals: Terminal type with loop antenna
• Usable sensitivity: 18 µV
• Signal-to-noise ratio: 53 dB

Others
Power supply: AC 230 V, 50 Hz
Power consumption: 14 W
Maximum external dimensions: 434 (W)
