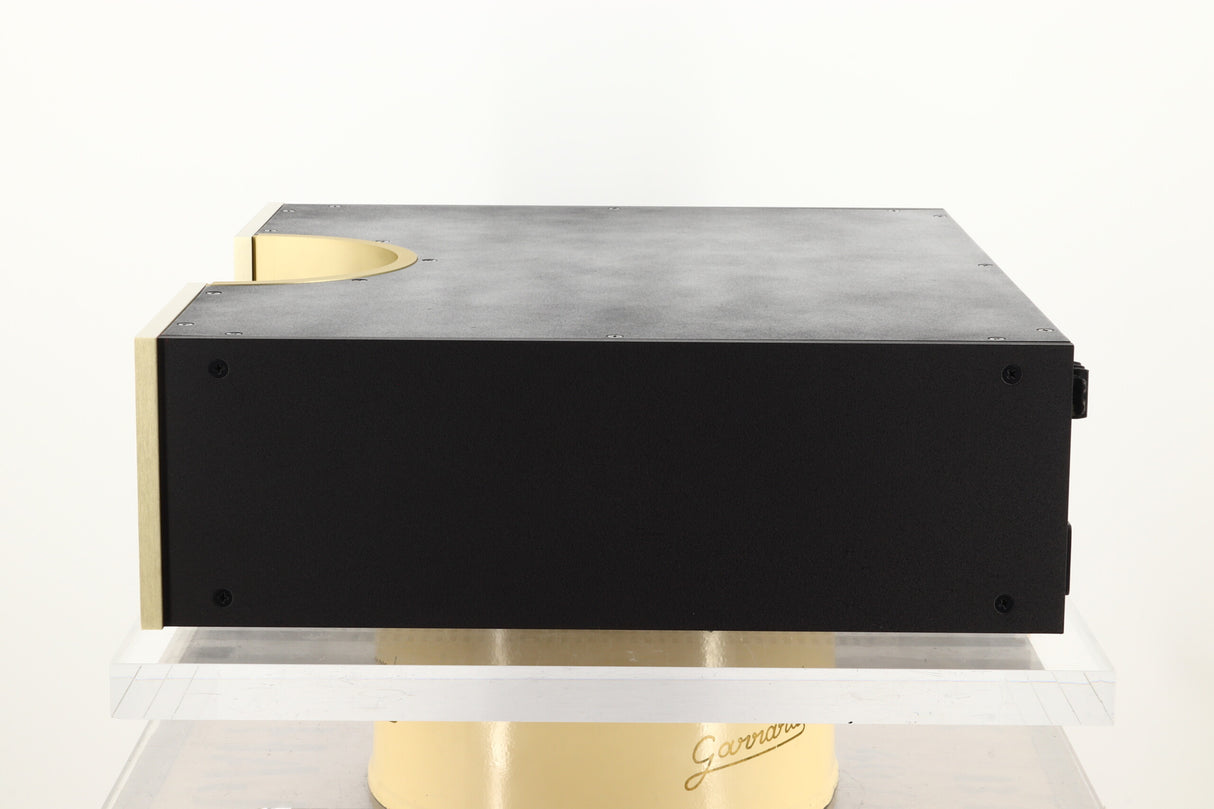

Conrad Johnson CT5 Pre Amplifier

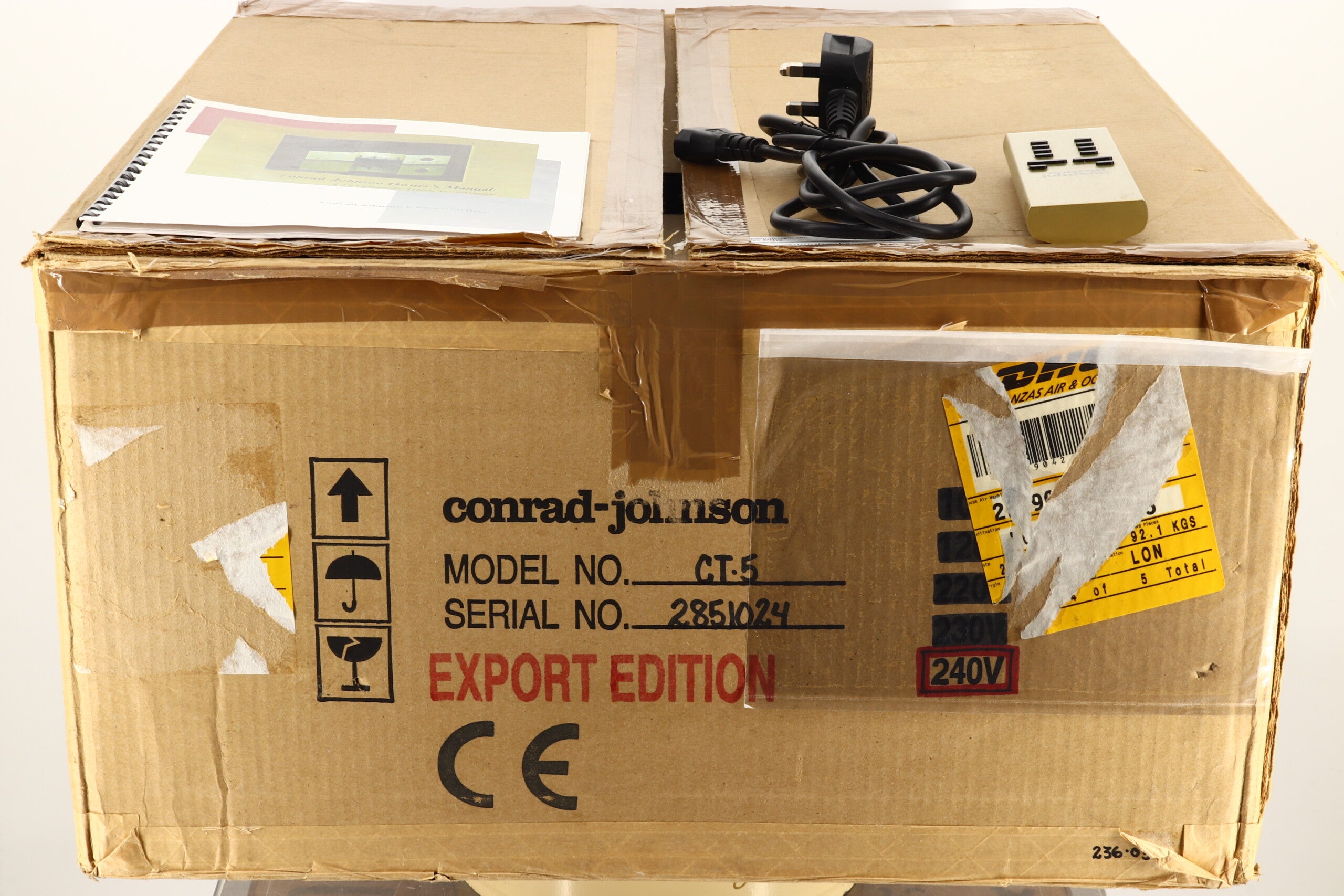

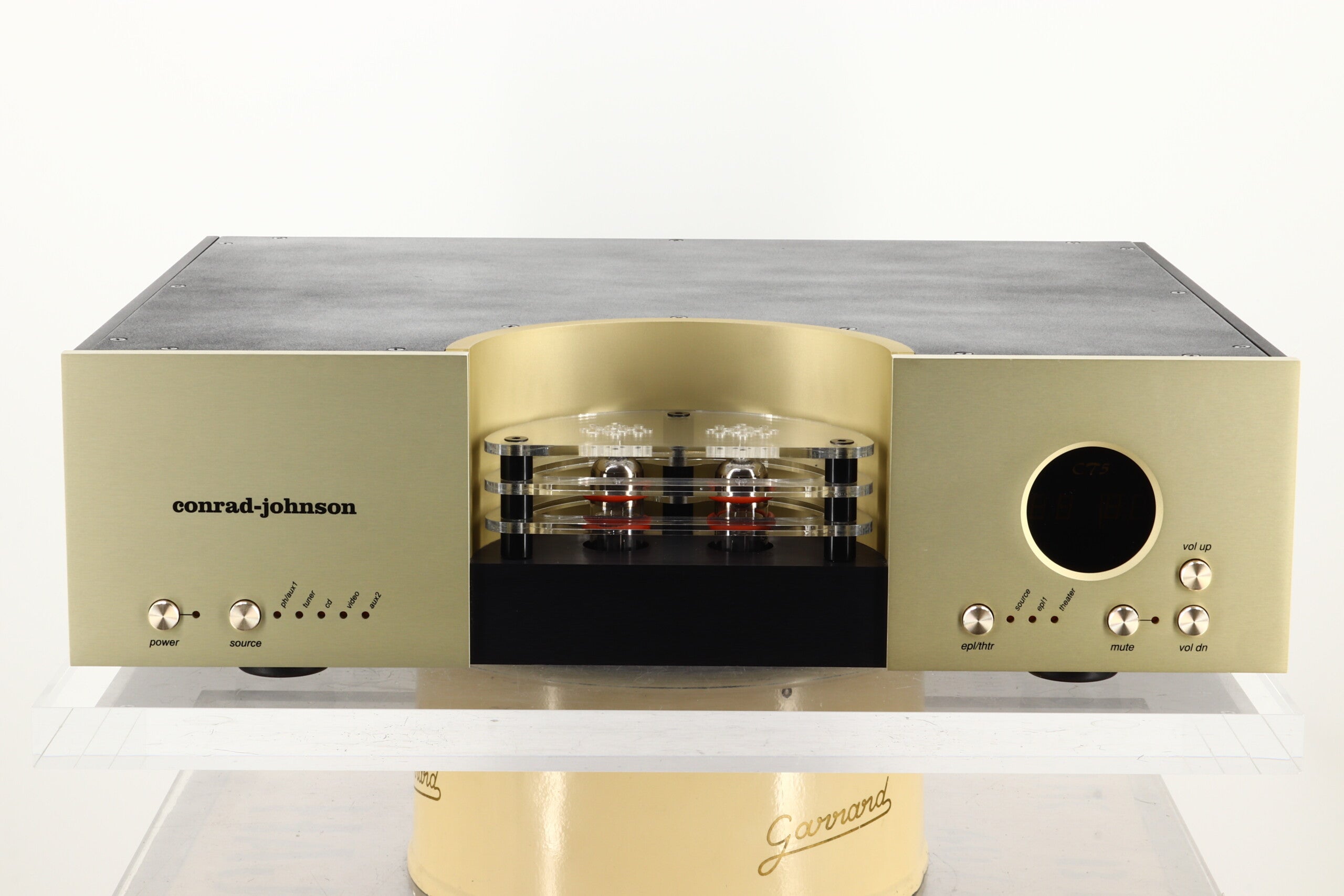

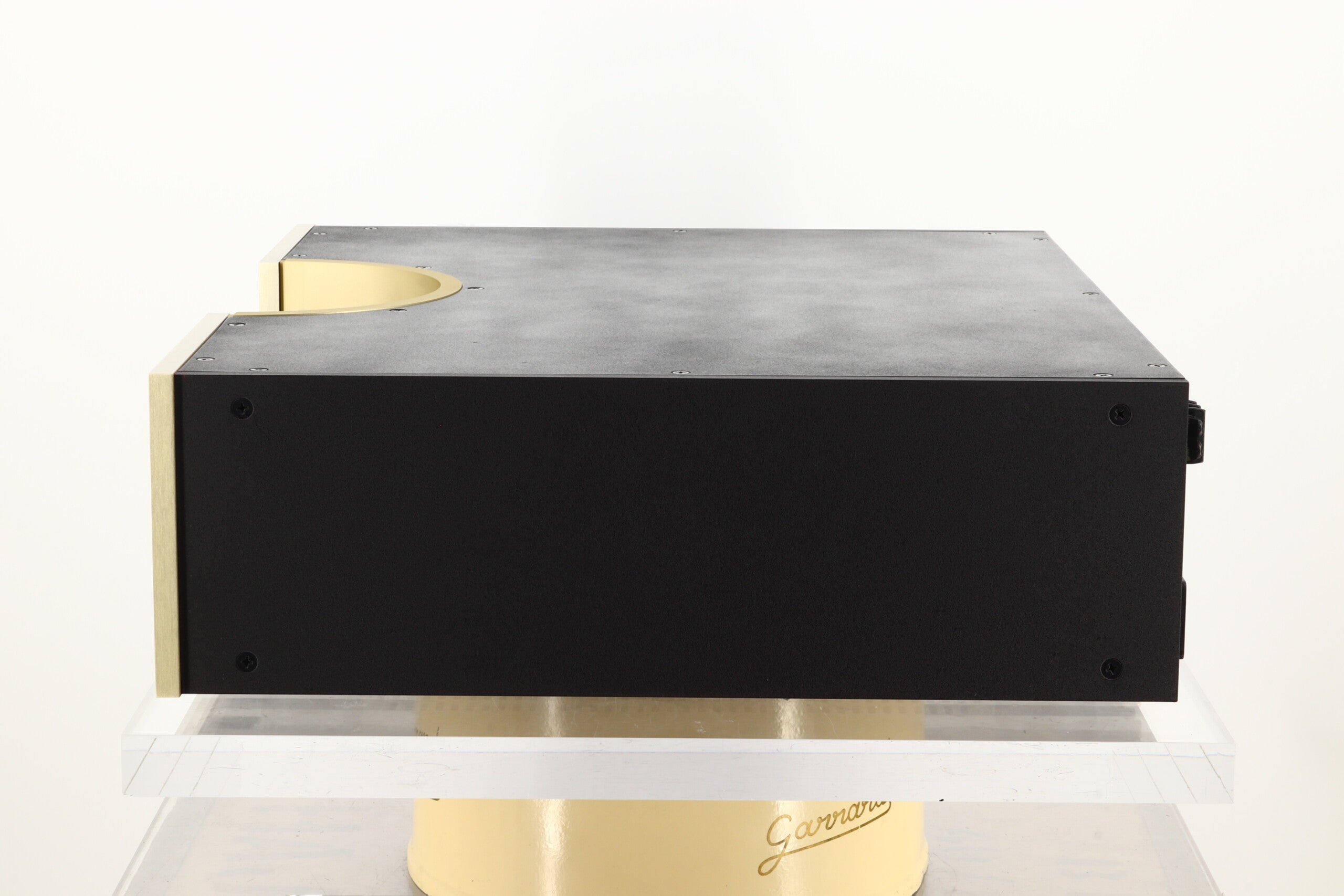

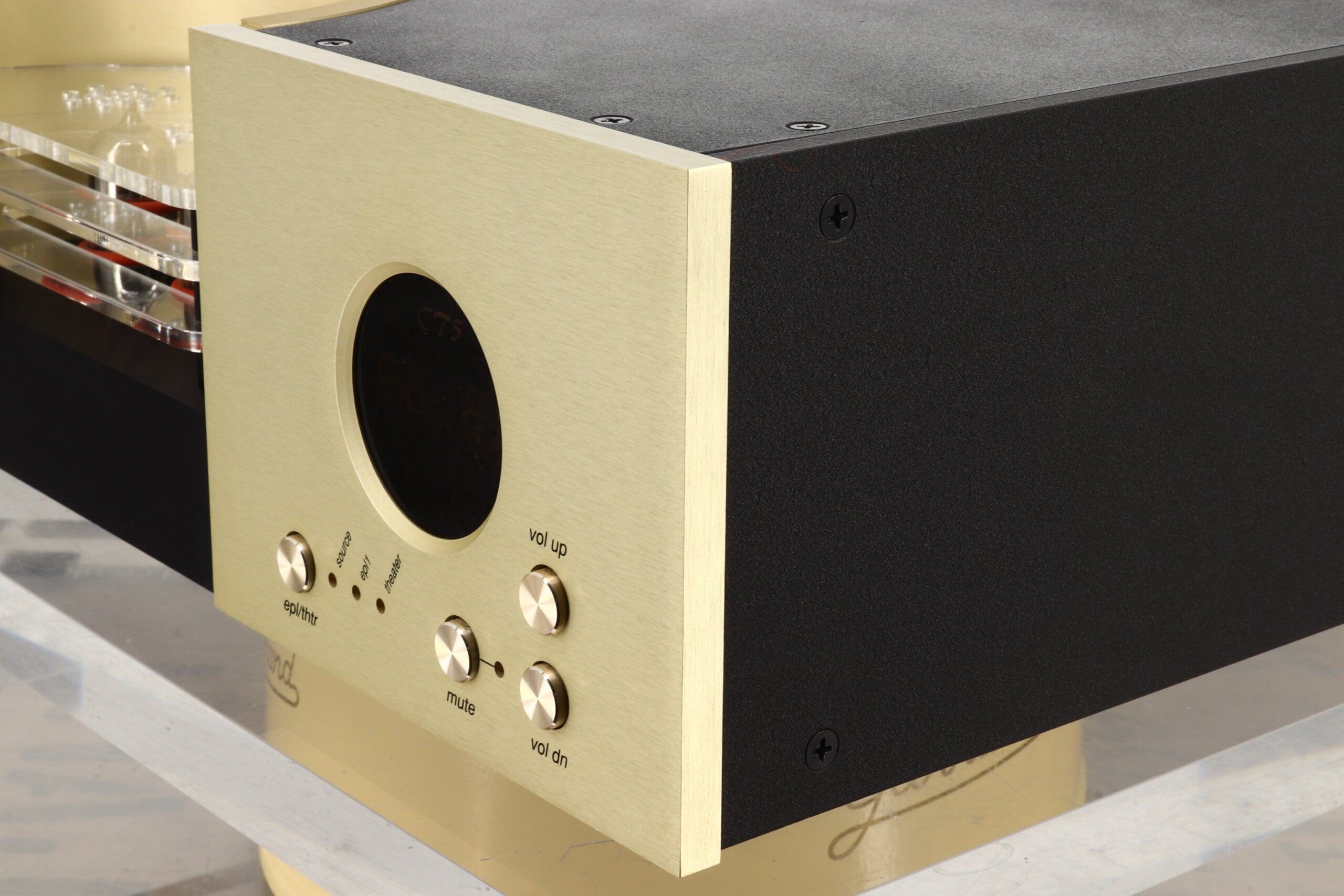

Here we have a classic pre amplifier from American company Conrad Johnson. The CT5 composite triode preamp comes in good fully working condition, noting some probably age related marking to the top plate and the markings on the remote control are somewhat faded - please see photographs. It is supplied in original factory packaging along with remote control unit, manual, mains cable plus, our regular three month warranty.
Conrad Johnson Say….
With the 1996 introduction of the Anniversary Reference Triode (ART), Conrad Johnson established a benchmark for line-stage preamplifier performance that reigned supreme for most of a decade. Reviewers were unanimous in their praise, proclaiming it the finest sounding preamplifier ever manufactured. In 2004, the ACT2 line stage brought new materials technology and refined power supply design to the composite triode circuit pioneered by the ART, once again elevating the state of the art. As has been our tradition at Conrad Johnson, these technological advances are now offered in a more cost effective near state of the art design, the CT5 composite triode preamplifier.
The composite triode circuit is a conceptually simple design - based on creating a single “super” triode by paralleling sections of individual tubes. In this way, the entire amplification circuit can be reduced to a single active stage, without buffers or feedback. Any active circuit element will colour the sound, whether the element is an amplifier or a buffer stage. By designing a line stage consisting of a single composite triode, we are able to reduce the circuit to the absolute minimum of a single active element. The result is an astonishing improvement in dynamics and dynamic shadings, as well as focus.

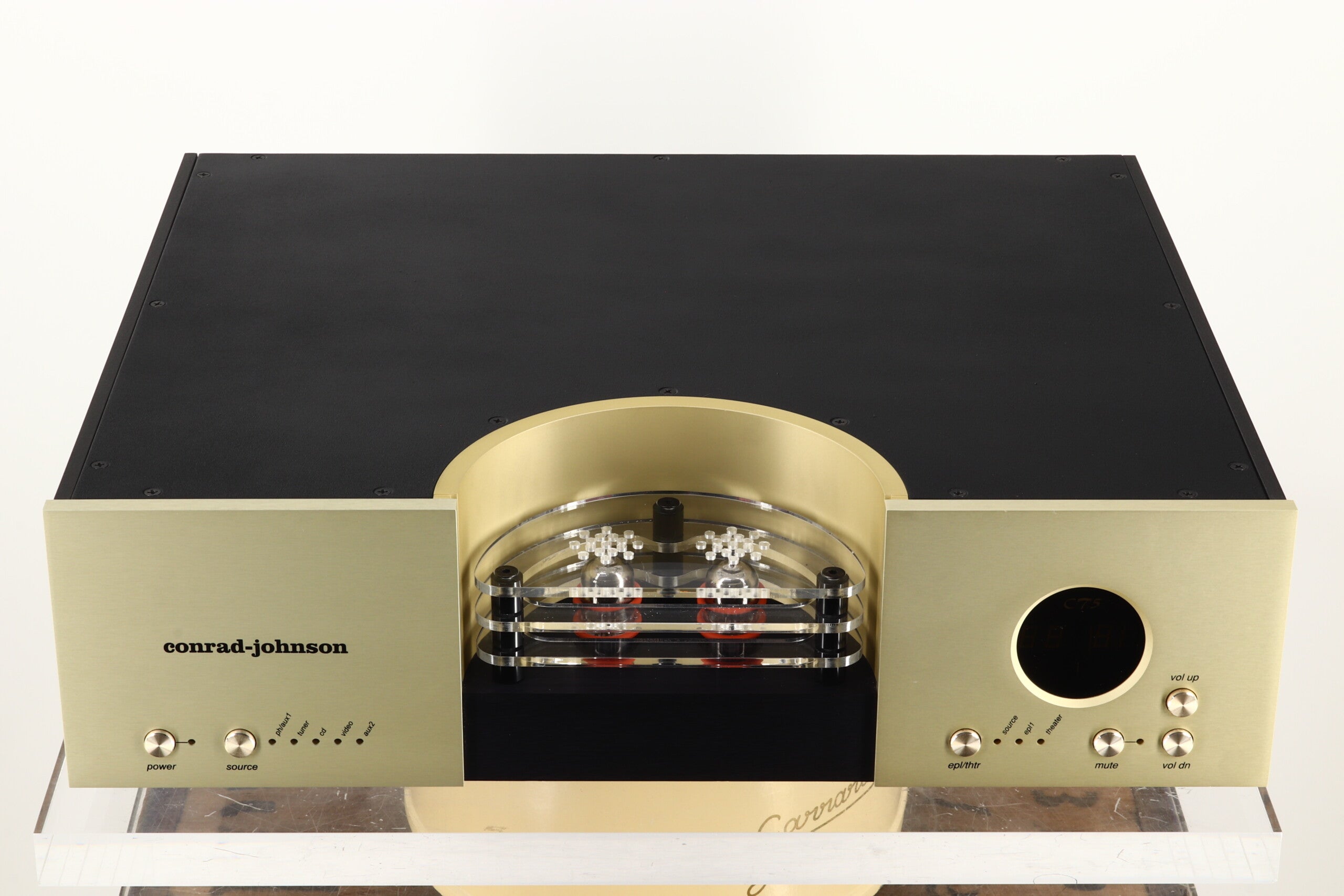

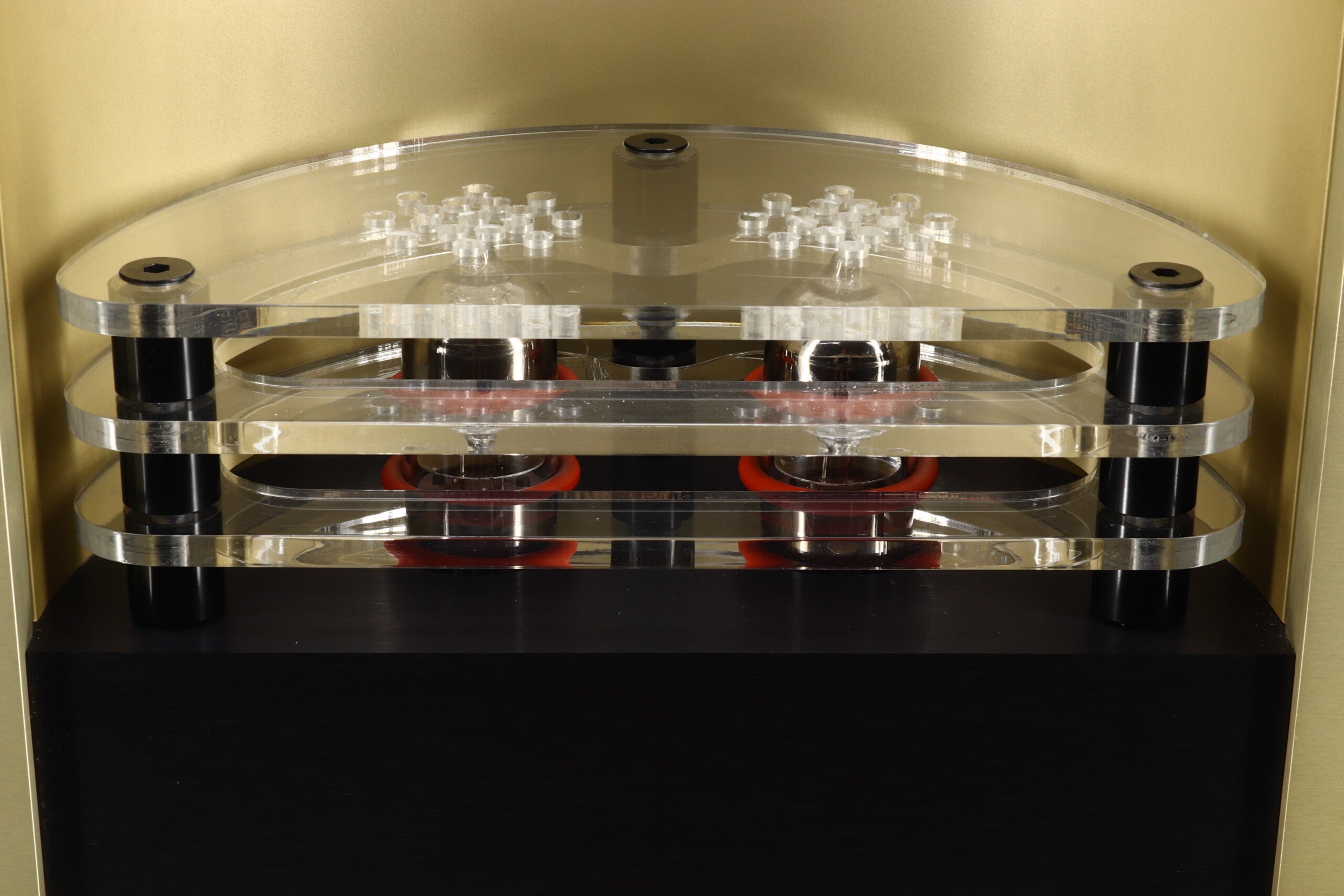

In the CT5, the composite triode is comprised of two paralleled sections of ultra-high transconductance miniature twin-triode tubes. This circuit achieves a sufficiently low output impedance to drive most inter-connect/amplifier combinations while eliminating any circuit element that might compromise its sonic purity. To realize the full potential of this amplifier stage, it is powered by a sophisticated discrete voltage regulator designed to completely isolate the audio signal from the power line.

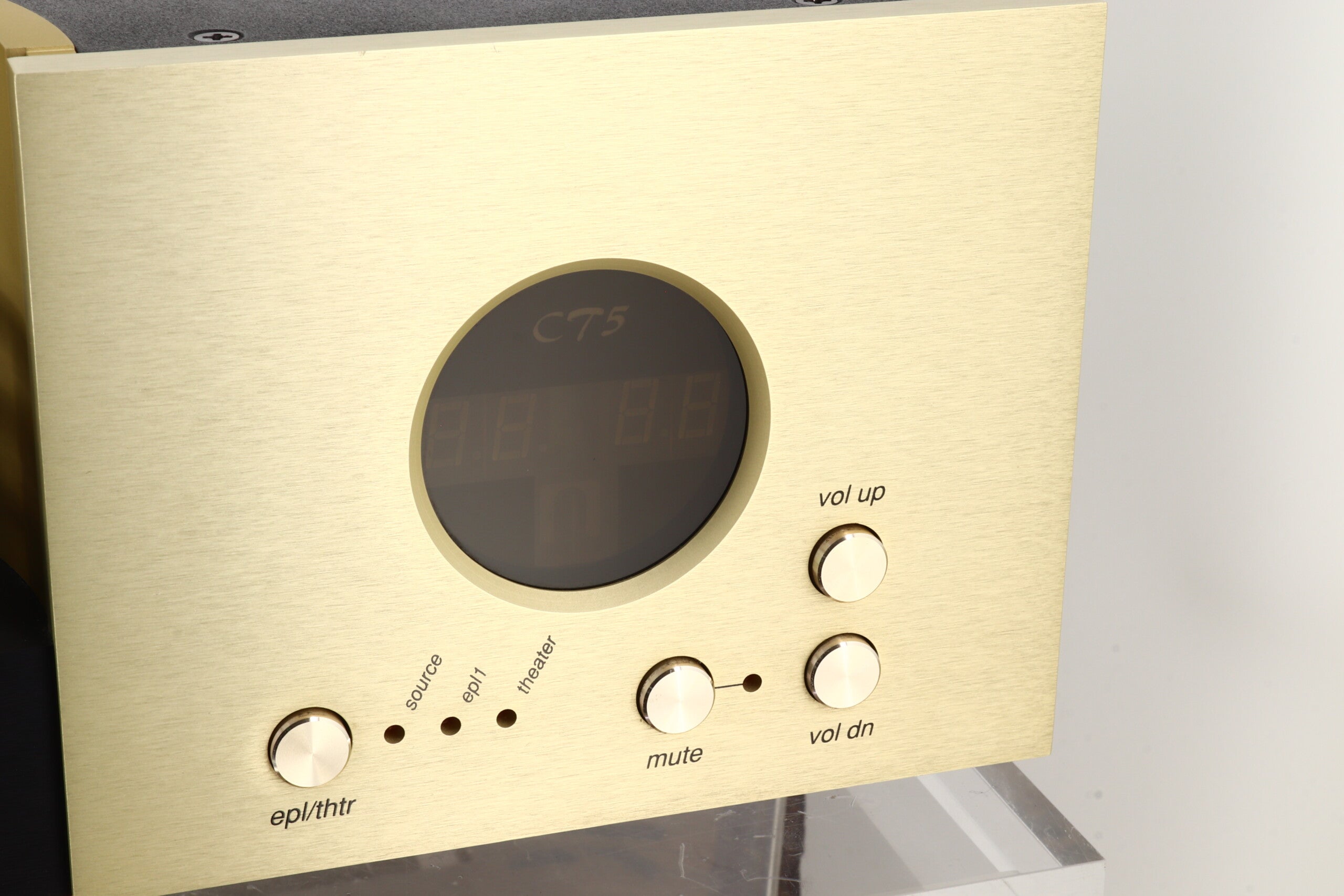

All control functions of the CT5 operate through microprocessor-controlled relays. For the level control, the relays select combinations from a network of precision, low-noise metal foil resistors to effect loudness and balance changes in 100 steps of approximately 0.7dB per step. All switching and adjustment can be controlled by the unit’s remote control. A Theatre mode, which passes the input signal through at unity gain, makes it simple to incorporate the CT5 into a high quality home theatre system without compromising its two-channel performance.

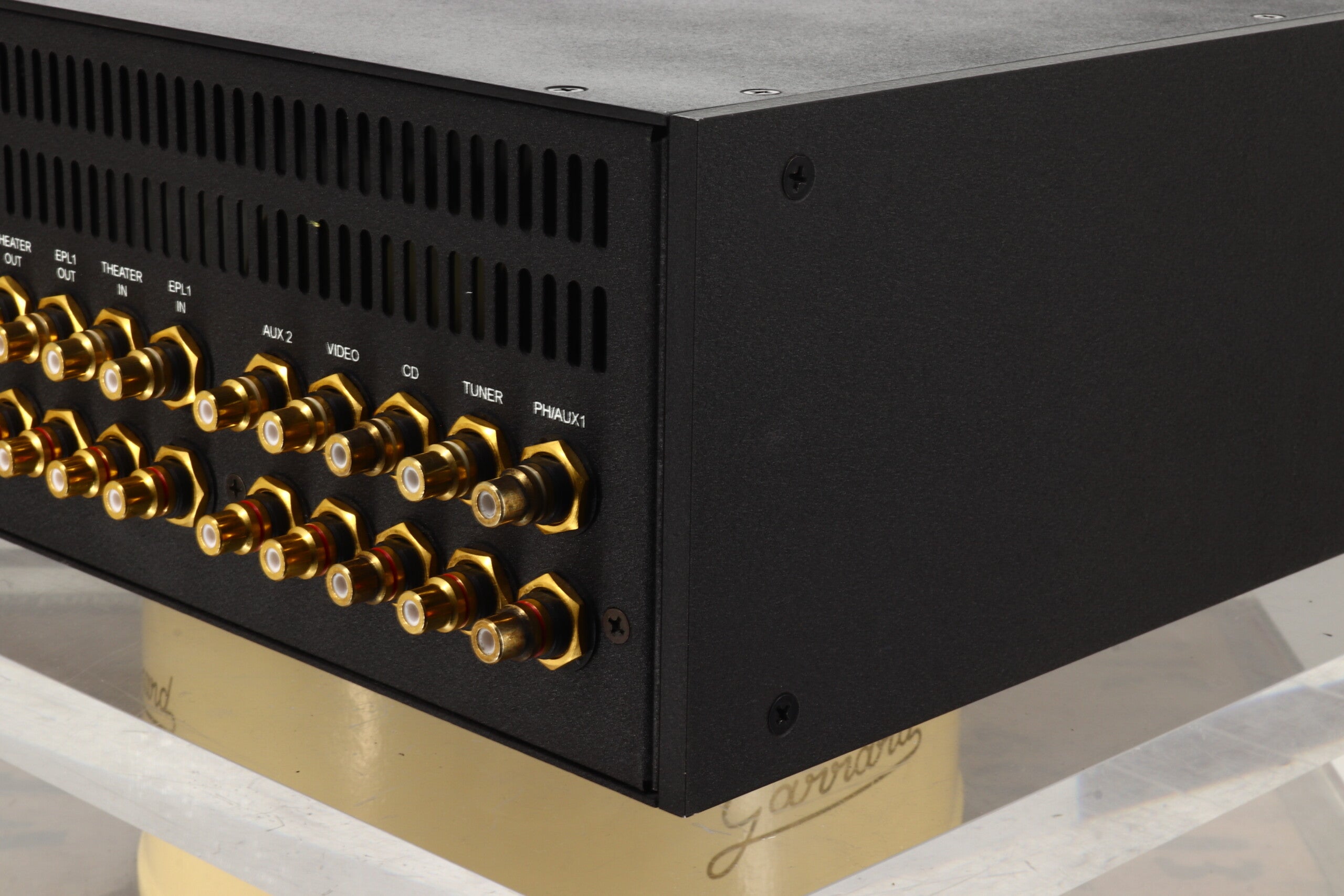

Like its bigger brother, the ACT2, the CT5 is constructed from the highest quality, carefully selected parts for unrivalled sonic performance and reliability. The same CJD Teflon capacitors that distinguish the ACT2 are used in the CT5 for output coupling and post-regulator power supply storage. All other capacitors in the audio circuits and related power supplies are polypropylene or polystyrene, and the resistors in these circuits (including the level control) are special low inductance, high-precision laser-trimmed metal foil resistors. Switches are sealed relays with gold-plated silver contacts. Input and output connectors are premium quality custom machined parts.
In our quest to recreate the glory of music without compromise, we at Conrad Johnson are dedicated to bridging the gulf between craft and art to create audio amplification components that do credit to music performances. Through meticulous engineering, careful specification of only the finest available component parts, and a painstaking attention to construction, we have created what we feel is a line-stage without rival in its class. We invite you to arrange an audition of the CT5 with your Conrad Johnson dealer to experience the extraordinary musical performance of this remarkable preamplifier.
Specifications:
Gain: 20 dB
Maximum Output: 10 Vrms
Bandpass: 2 Hz to more than 100 kHz
Distortion at 1.0 V output: Less than 0.1% THD or IMD
Freq. Response: 2 Hz to 100 kHz
Hum and Noise: 100 dB below 2.5 Vrms
Phase: Phase inverting
Tube Complement: 2 x 6N30P
Phase: Inverts phase of all inputs at main out
Output Impedance: 800 ohms
Dimensions: 15.5"D x 19"W x 5"H
Net Weight: 31 lb net
