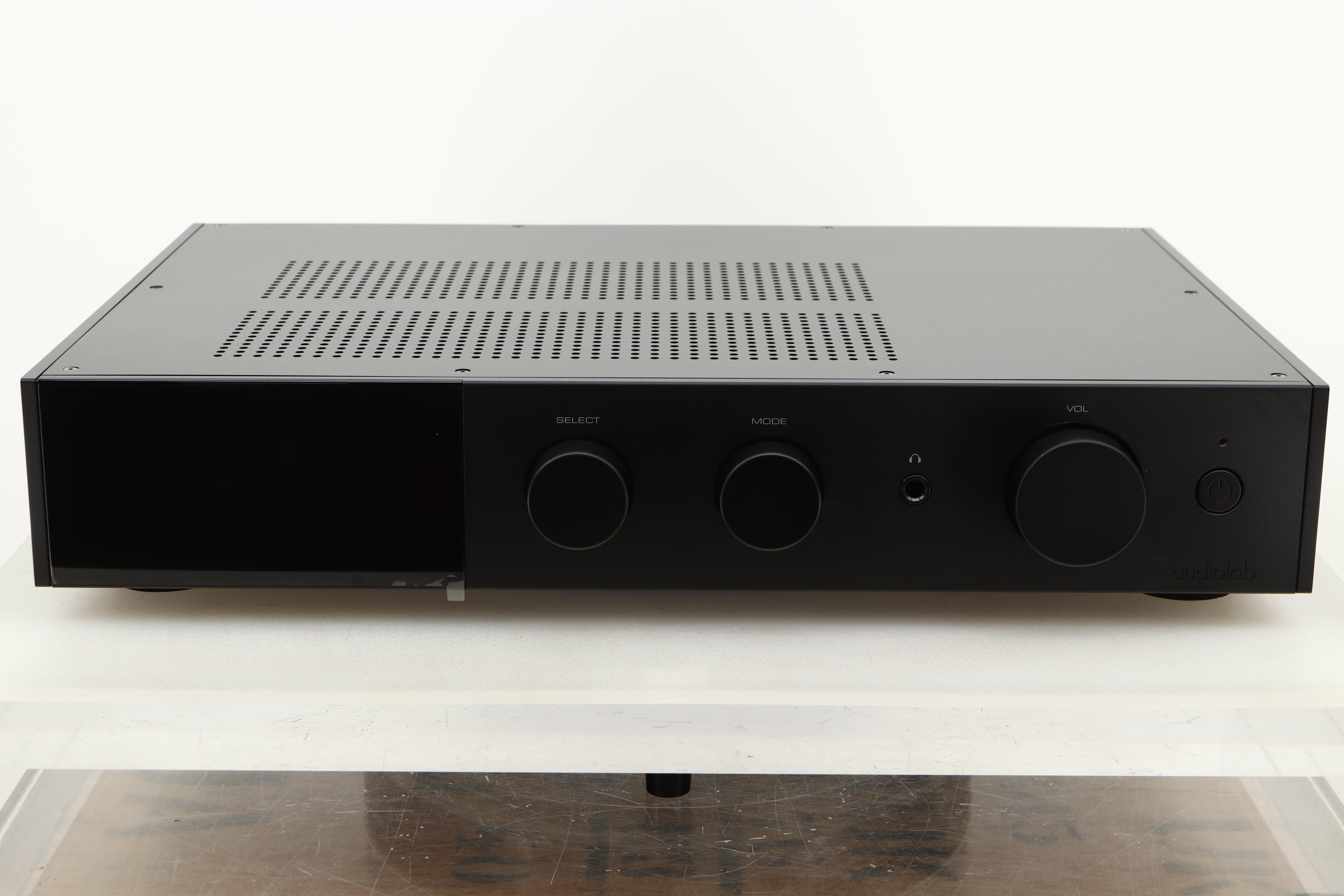

Audiolab 9000A Integrated Amplifier - Black

As ever, the 9000A is the centre of the audiolab focus in being the beating heart of any high-performance audio system. It’s more powerful, capable and feature-packed than any of the preceding models – the most advanced audiolab integrated amplifier yet. Versatility is key to audiolab’s integrated amplifier appeal, and the 9000A offers to cater for audiophiles of all creeds. Loaded with digital and analogue source connection, wireless connectivity for portable devices, an all-new phono stage to cater for vinyl playback and the usual, class-leading amplification for loudspeakers and headphones.

General Description: Integrated Amplifier
Inputs: 3 x Analogue, 1 x XLR, 1 x Phono (MM), 1 x Power Amplifier, 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX HD/LDAC), 1 x 12V Trigger
Outputs: 1 x PRE Amplifier,1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency: Optical / Coaxial: 44.1kHz-192kHz; PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512

Preamplifier:
Gain (max.): +6dB (Line), +53dB (Phono MM)
Input Sensitivity: 1Vrms (Line, Volume = 0dB); 2Vrms (XLR, Volume = 0dB), 4.4mV (Phono MM, Volume=0dB)
Input Impedance: 10K (Line); 47K // 100pF (Phono MM)
Total Harmonic Distortion (THD): < 0.0004% (1kHz @ 2V, Volume = 0dB)
Frequency Response: 20Hz-20kHz (+/-0.1dB)
Output Voltage: 2.3V max. (Volume = 0dB)
Output Impedance: 120 ohms
Signal-to-Noise Ratio: > 110dB (Line & XLR, A-weighted); > 80dB (Phono MM, A-weighted)

DAC:
D to A Converter: ES9038Pro
Total Harmonic Distortion (THD): < 0.001% (1kHz @ 0dBFS)
Output Level (0dBFS, 1kHz): 2.1Vrms
Max. Sampling Frequency: Optical, Coaxial: 192kHz; PC USB: PCM768kHz, DSD512
Signal-to-Noise Ratio (S/N): > 117dB (A-weighted)

Power Amplifier:
Gain: +29dB
Rated Power Output: 2 x 100W (8 ohms, THD<1%); 2 x 160W (4 ohms, THD<1%)
Frequency Response: 20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD): <0.002% (1kHz @ 50W / 8 ohms)
Input Sensitivity: 1Vrms
Signal-to-Noise Ratio (S/N): > 110dB (A-weighted)
Max. Output Current: 15A

Headphone Amplifier:
Total Harmonic Distortion (THD): < 0.01% (1kHz, 50mW )
Output Impedance: 2.35 ohms
Load Impedance: 20-600 ohms

General:
Standby Power Consumption: <0.5W
Net Weight: 9.4kg
Gross Weight: 11.2kg
Dimensions: (mm) (W x H x D): 444 x 342 x 89
Carton Size: (mm) (W x H x D): 514 x 470 x 161
Finish: Black
Power Requirements: 220-240V ~ 50/60Hz; (depending on region) 100-120V ~ 50/60Hz
