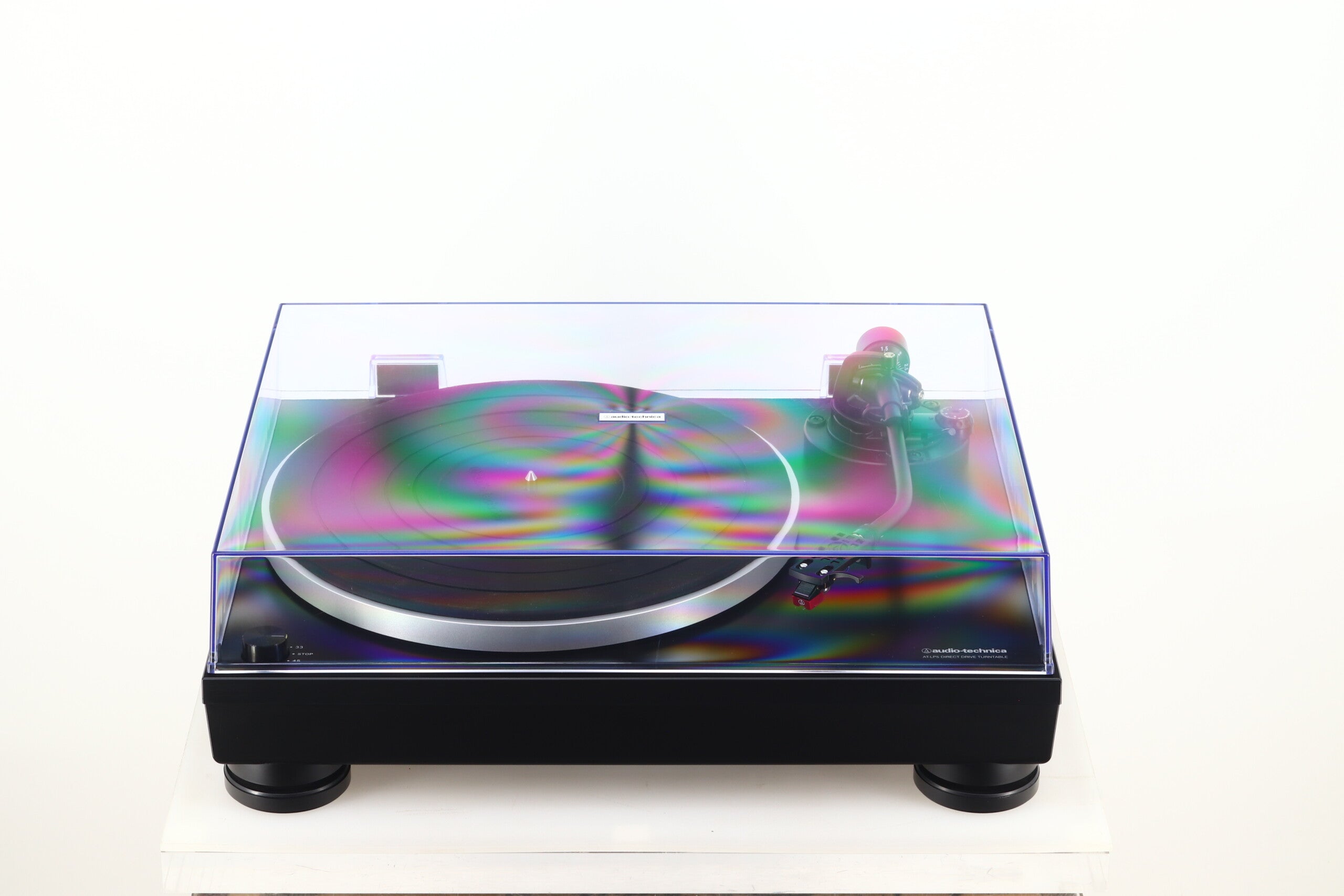

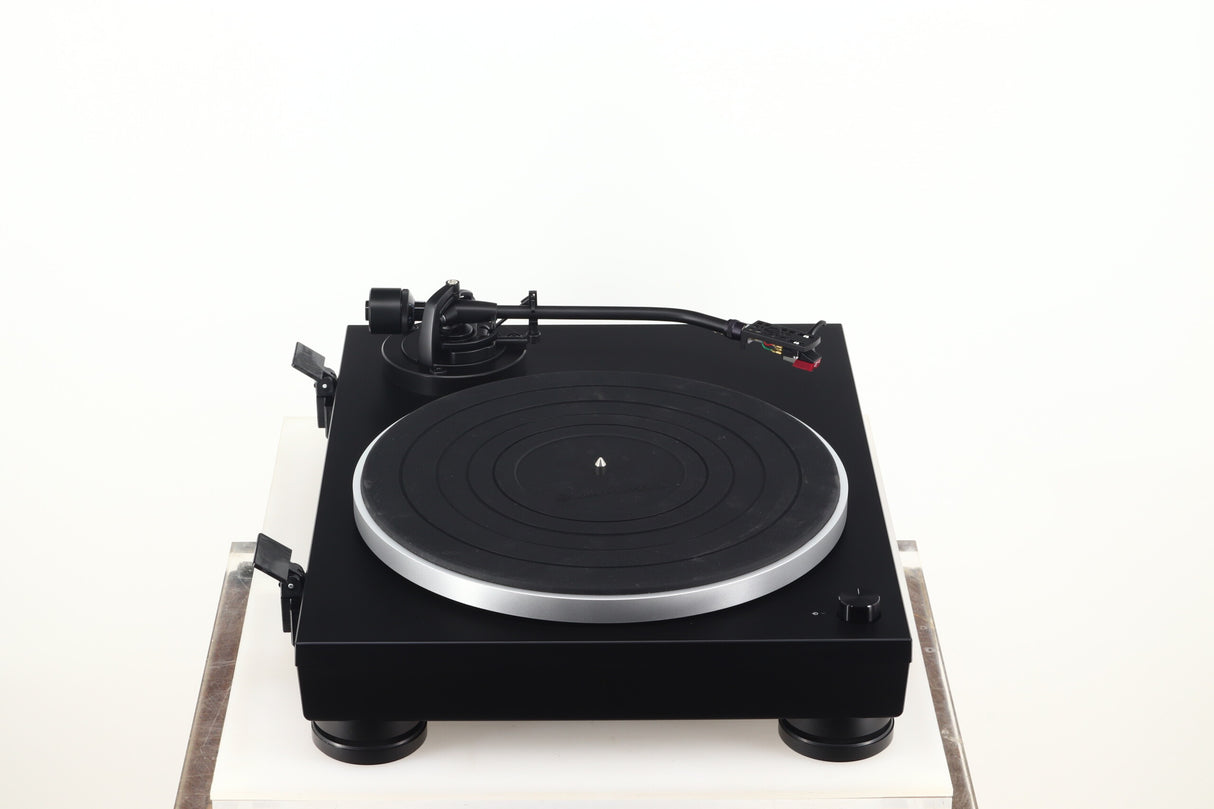

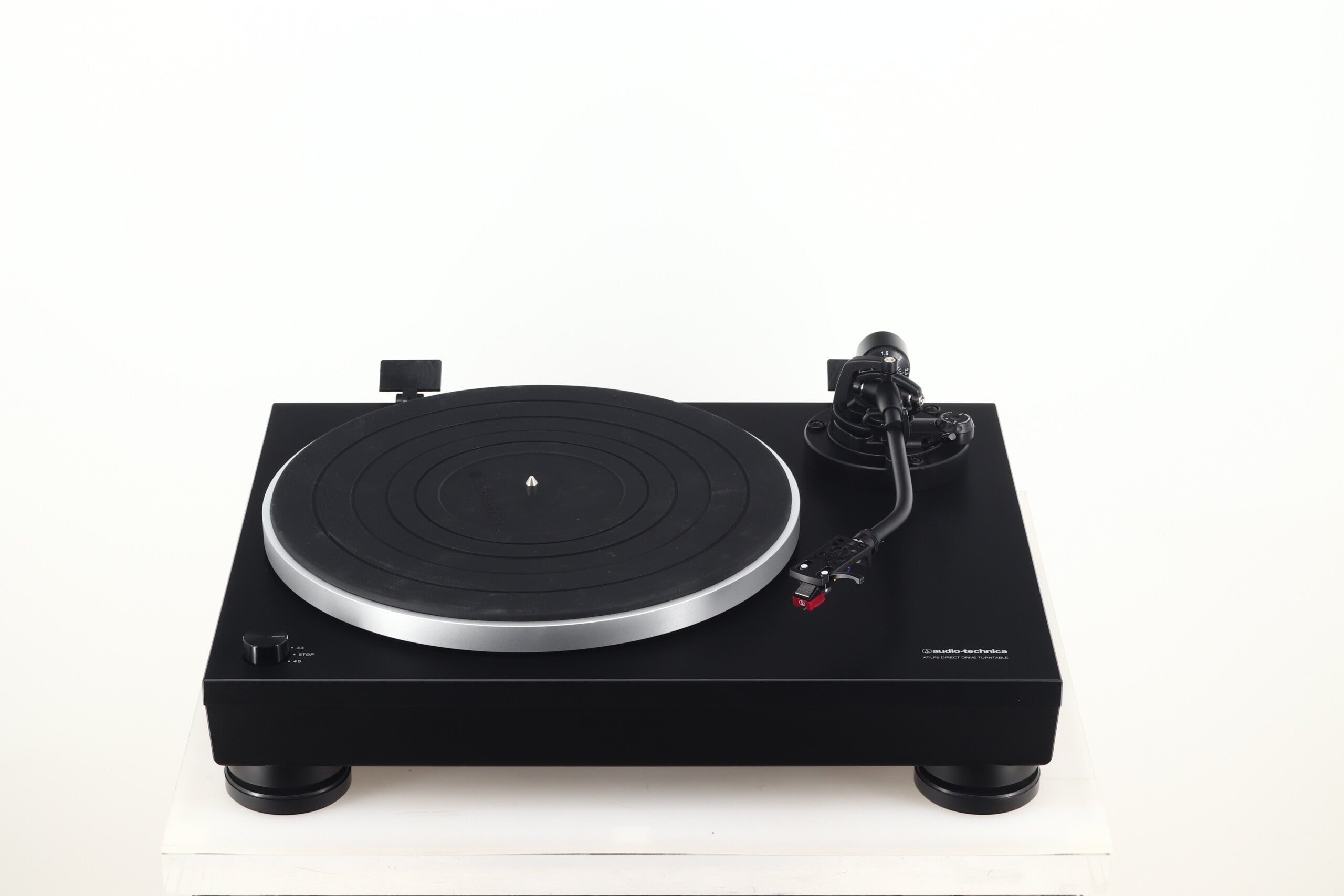

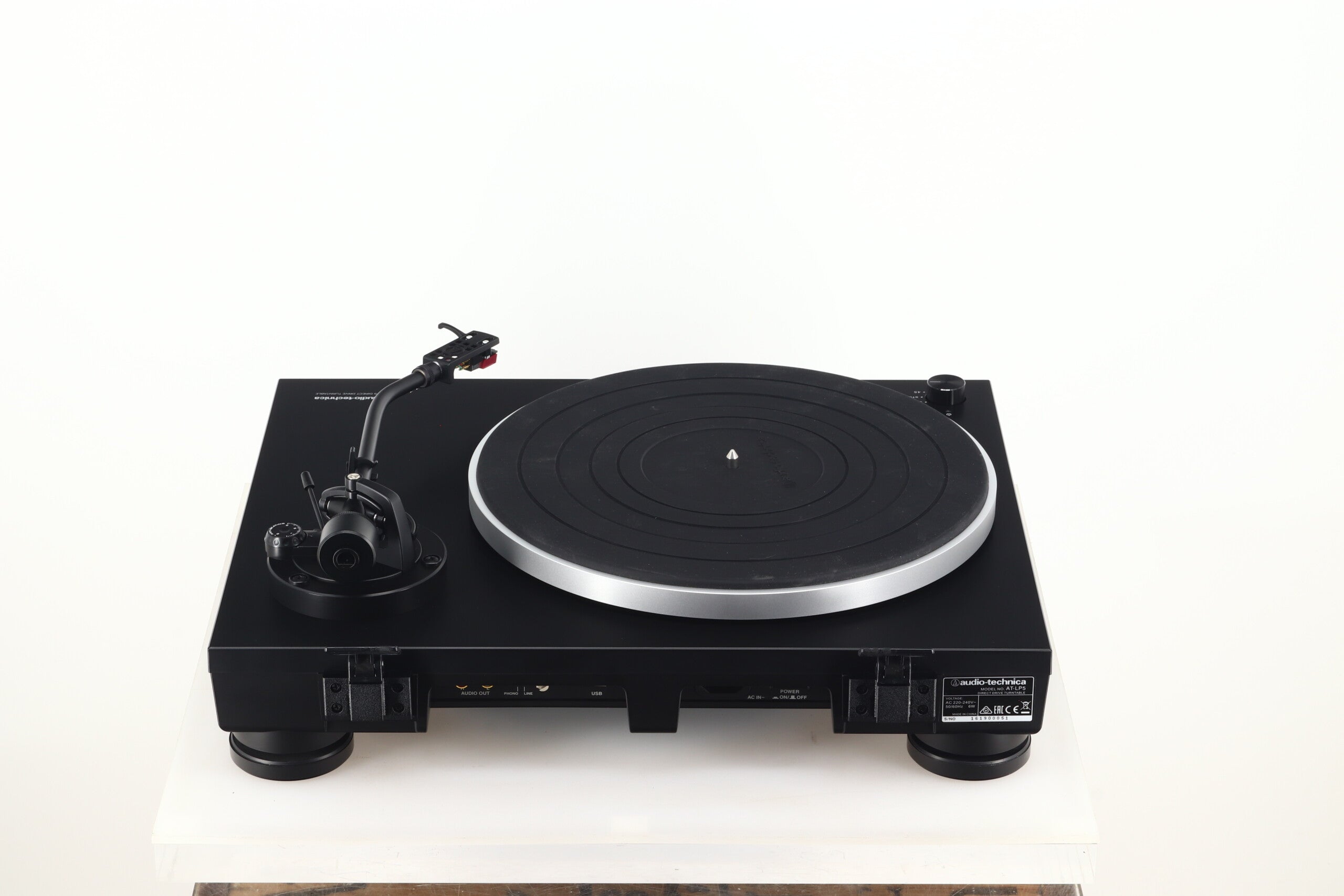

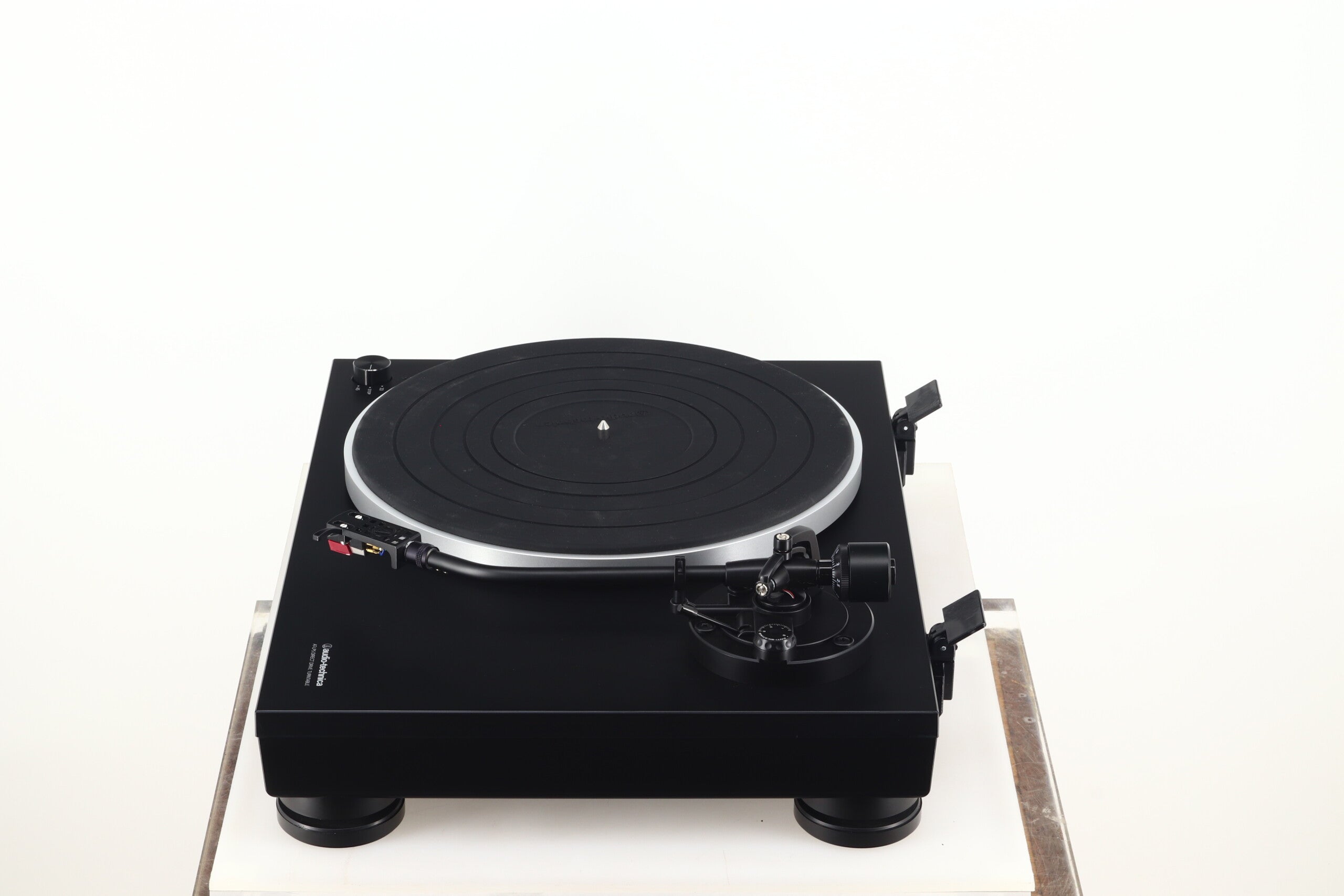

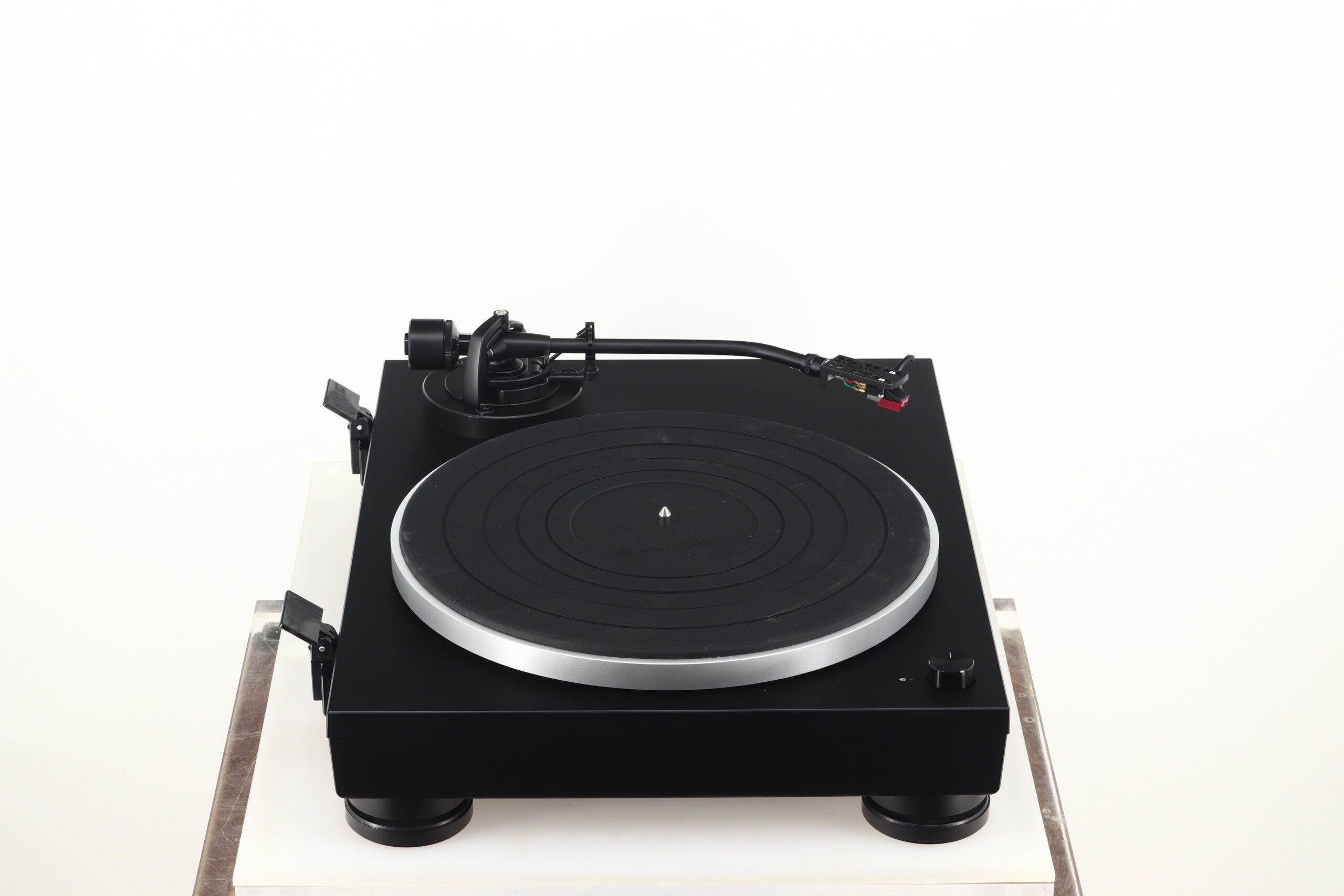

Audio Technica AT-LP5 Turntable - Black

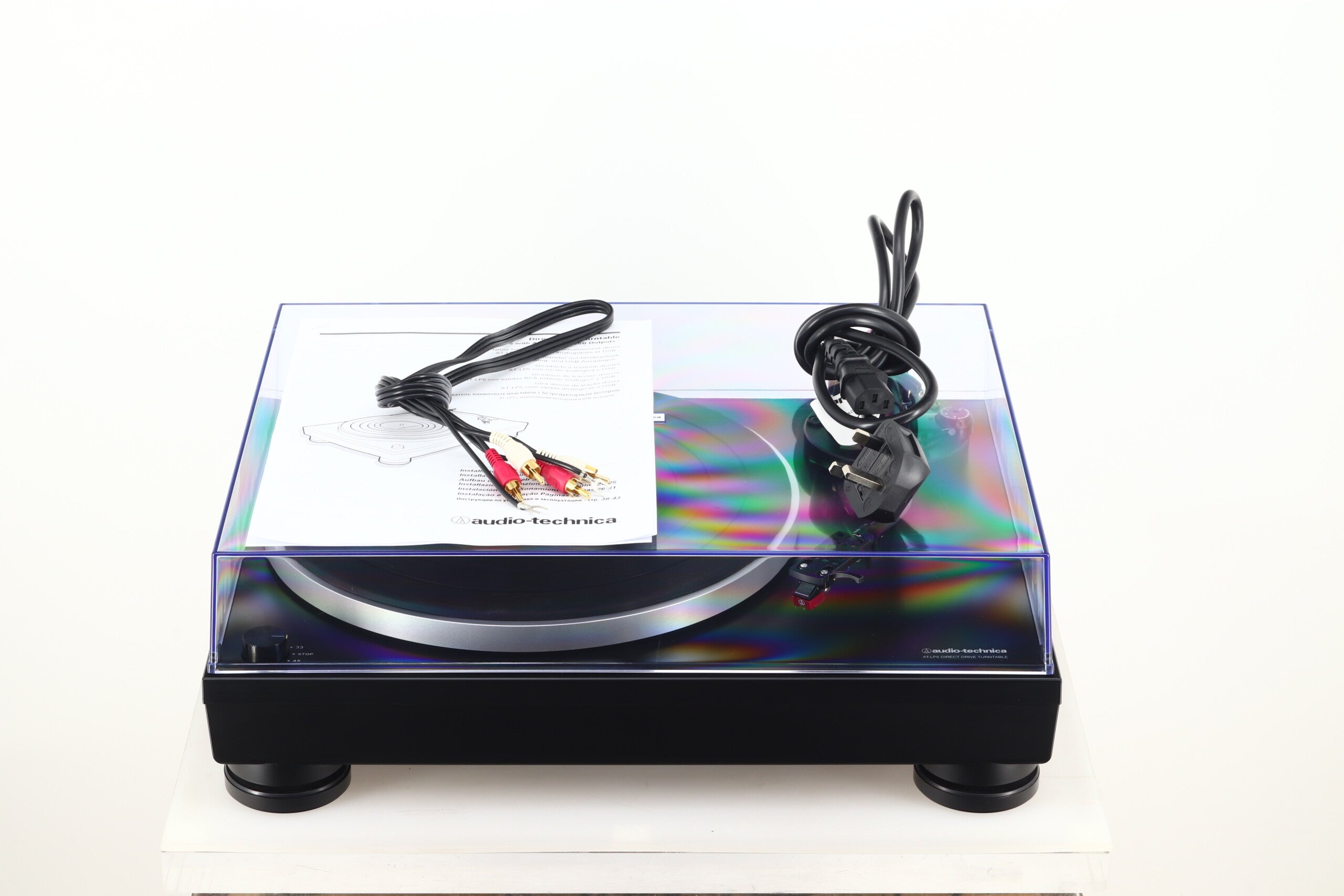

Here we have an example of the 5* awarded AT-LP5 turntable from Japanese company Audio Technica. It features a built-in phono stage and USB output for digitising your vinyl collection. It is in good condition and will come professionally packaged with manual, interconnect and mains cable. Our standard three month warranty is also included.
Audio-Technica Say….
A perfect balance of technology and design, the sleek contemporary lines of the AT-LP5 turntable grace any room in the home while delivering performance features born out of Audio-Technica’s rich analogue heritage.
The direct-drive engine provides playback for both 33.3 & 45 RPM records with a cast aluminium platter and thick damping mat housed together in a structure that has been engineered for minimum chassis resonance, while skilfully retaining the discreet look that complements today’s listening environments.

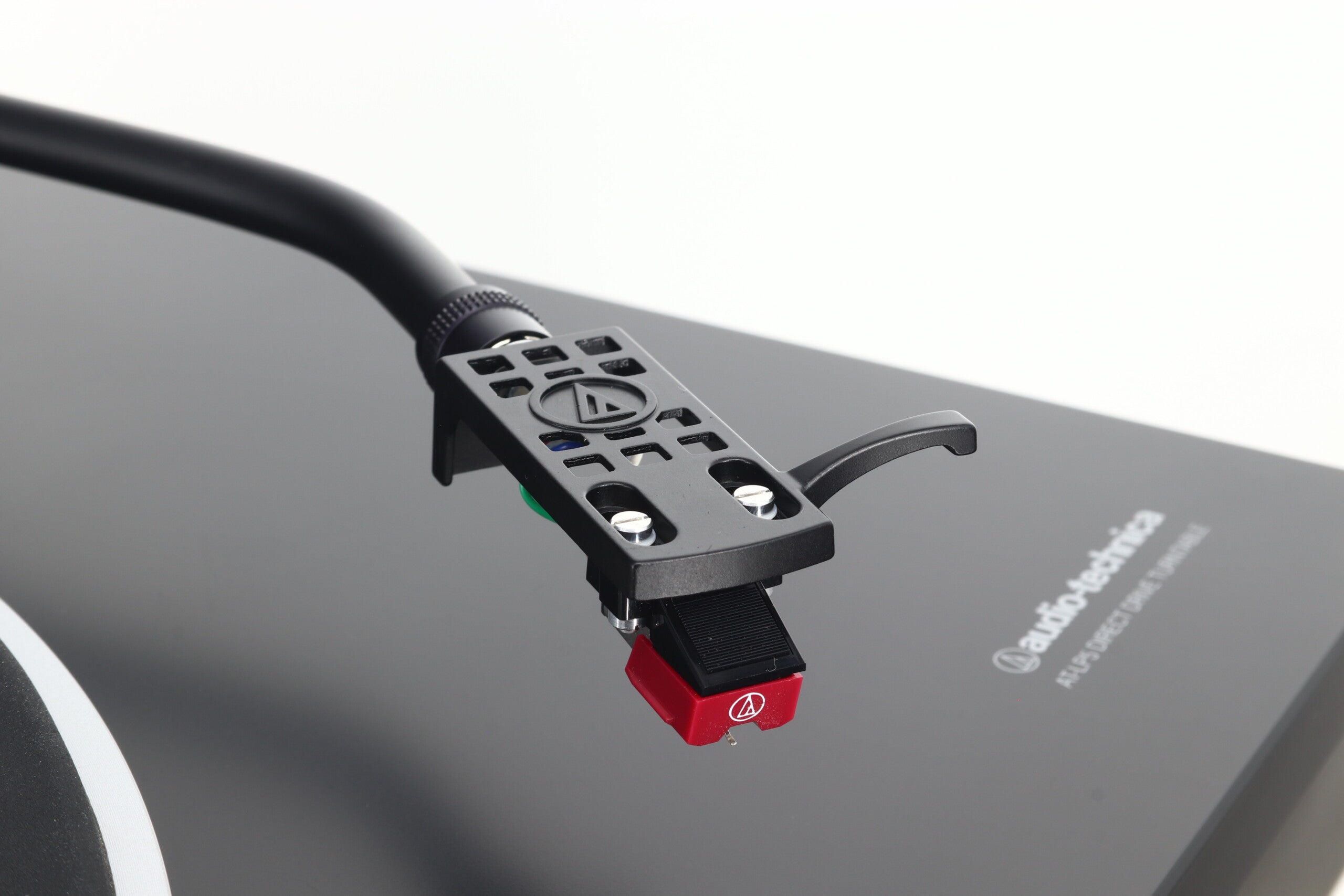

The J-shaped tonearm, engineered to minimise tracking error, harks back to the original Audio-Technica designs of the 1960’s & 70’s complementing the AT-LP5’s clean lines and comes fitted with Audio- Technica’s lightweight
AT-HS10 headshell and the exclusive AT95EX Dual Moving Magnet cartridge.
Created specifically for the AT-LP5 turntable, the AT95EX cartridge delivers extended frequency and transient response through new materials selected by Audio-Technica’s cartridge experts in Japan.
With great attention paid to the complete analogue signal path, subtle features such as the gold-plated u-shaped connections of the headshell, the choice of using both the internal or an external phono pre-amplifier, and a stable high-rated internal mains power supply with enhanced grounding, the audio reproduction credentials of the AT-LP5 are assured… while the looks simply speak for themselves.
And while it’s every bit the traditional Audio-Technica turntable, the LP5 doesn’t ignore newer technology: a USB output allow users to record vinyl music onto Mac and PC in a choice of digital audio formats.
Specifications:
Turntable
Type: 2-Speed, fully manual operation
Motor: DC motor
Drive Method: Direct drive
Rotation Speeds: 33.3 RPM, 45 RPM
Turntable Platter Die-cast aluminium, precision machined
Rubber Mat Weight & Dimensions: 370 g - Ø 294 mm x 5 mm (thickness)
Starting Torque: >1.6 kgf.cm
Braking System: Electronic brake
Wow and Flutter: < 0.2% WRMS (33 RPM)
Signal-to-Noise Ratio: > 50 dB
Outputs Levels: PHONO (Pre-amp bypassed) 3.5 mV; LINE (Pre-amp engaged) 150 mV
Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
USB Function A/D, D/A: 16-bit 44.1 kHz or 48 kHz USB selectable
Computer Interface: USB 2.0 Compliant Windows XP, Vista or MAC OSX
Tonearm
Type: Static balance J-shaped tonearm
Effective Length: 247 mm
Overhang (typical): 17 mm
Maximum Tracking Error Angle Less than 2.3° at any point of the record
Stylus Pressure Adjustment Range 0 to 5 g
Applicable Cartridge Weight 15 to 20 g
Cartridge and Headshell
Cartridge Model: AT95EX
Cartridge Type: VM Design Stereo Dual Moving Magnet
Recommended Load Impedance: 47,000 Ohms
Output Voltage: 3.5 mV (at 1 kHz, 5 cm/sec)
Stylus Elliptical: 0.3 x 0.7 mil elliptical
Tracking Force Range: 1.5 to 2.5 g (standard 2 g)
Cartridge Weight (AT95EX): 5.7 g
Headshell Model: AT-HS10
Headshell Weight: 10 g
Headshell Overhang Adjustment: ± 5 mm
General
Power Supply Requirement: 220 to 240 V AC, 50/60 Hz
Power Consumption: 6 W
Dimensions: 450 (W) x 352 (D) x 157 (H)
Weight: 7.4 kg (without dust cover)
