ATC SCM100a Active Standmount Speakers - Rosewood

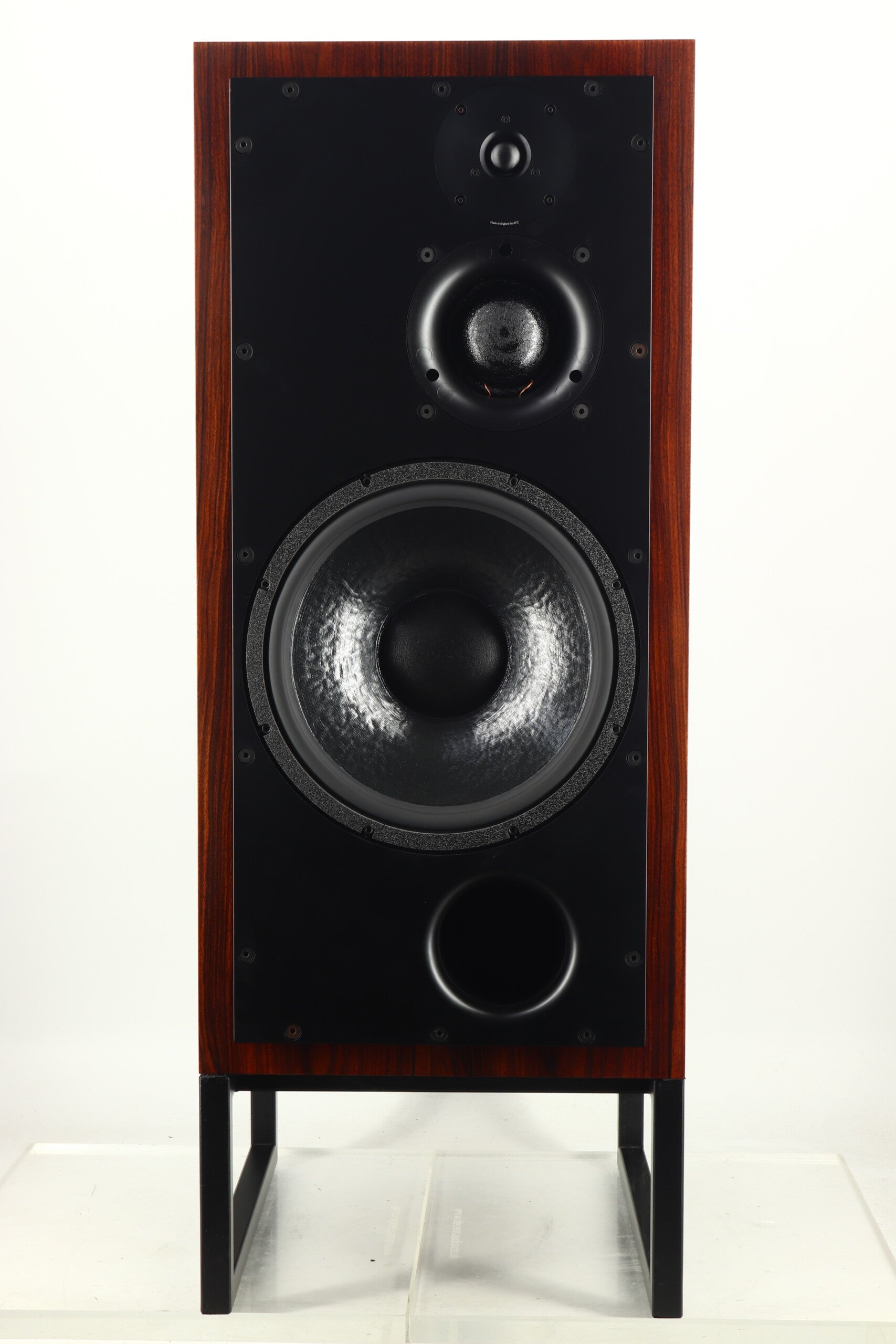

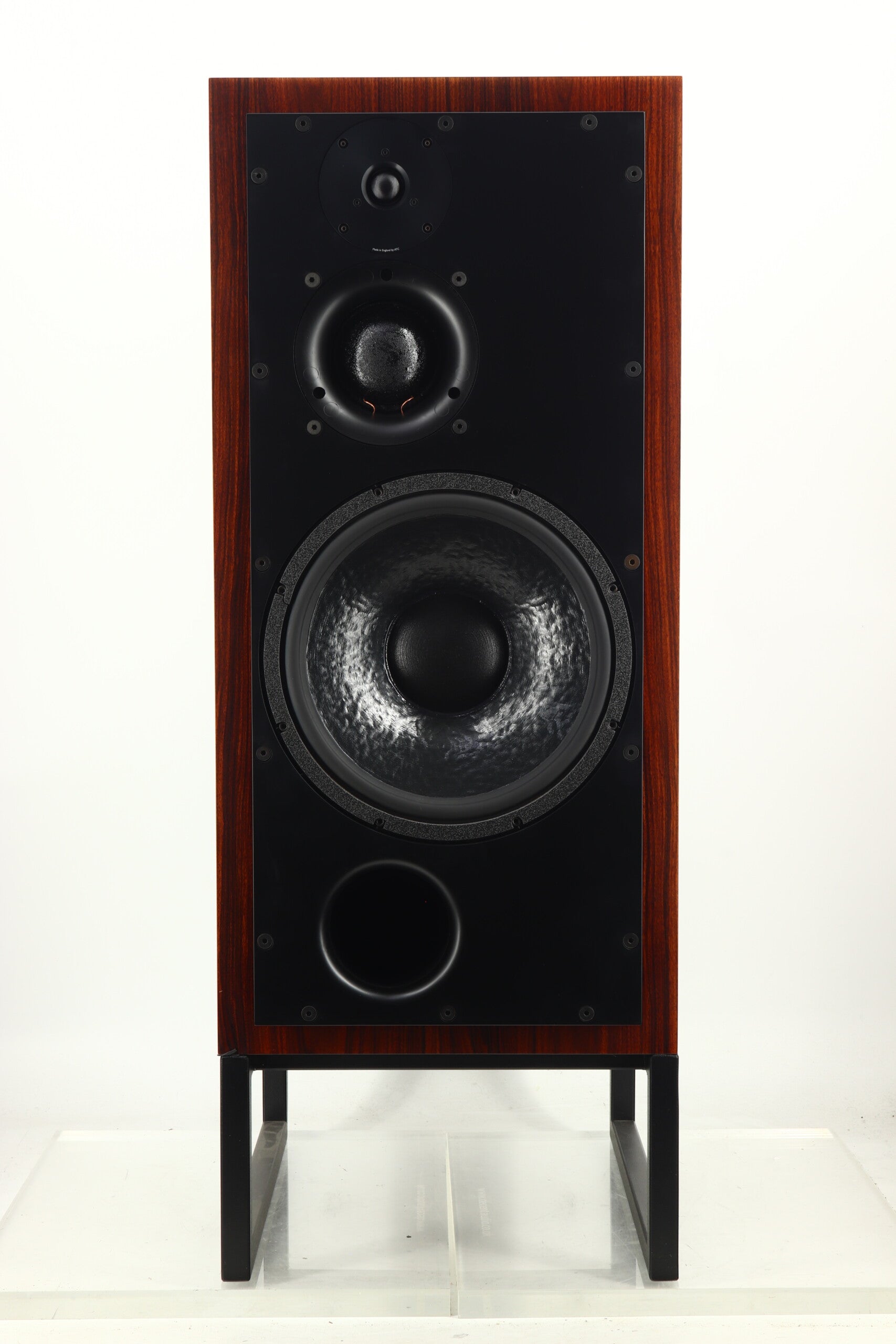

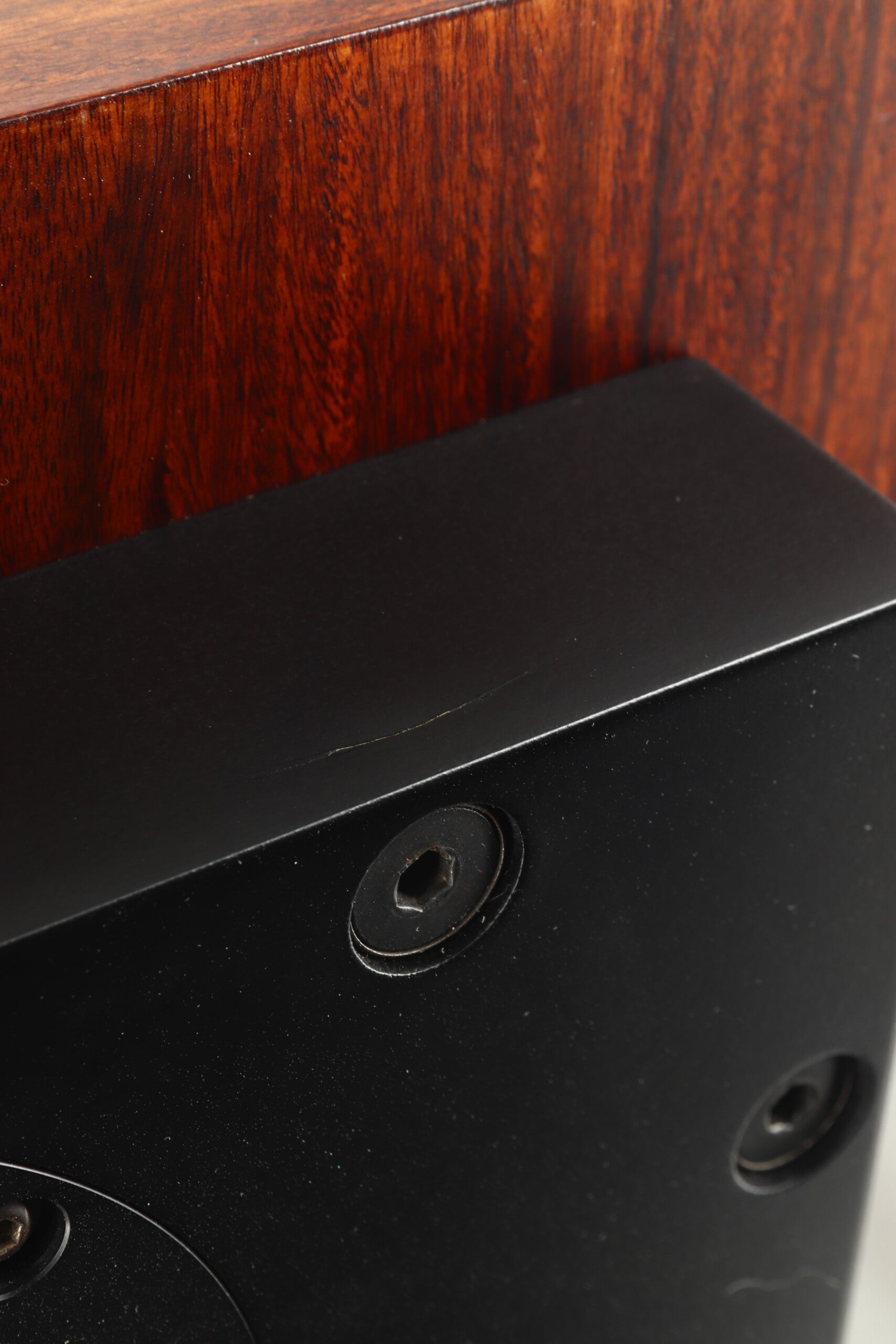

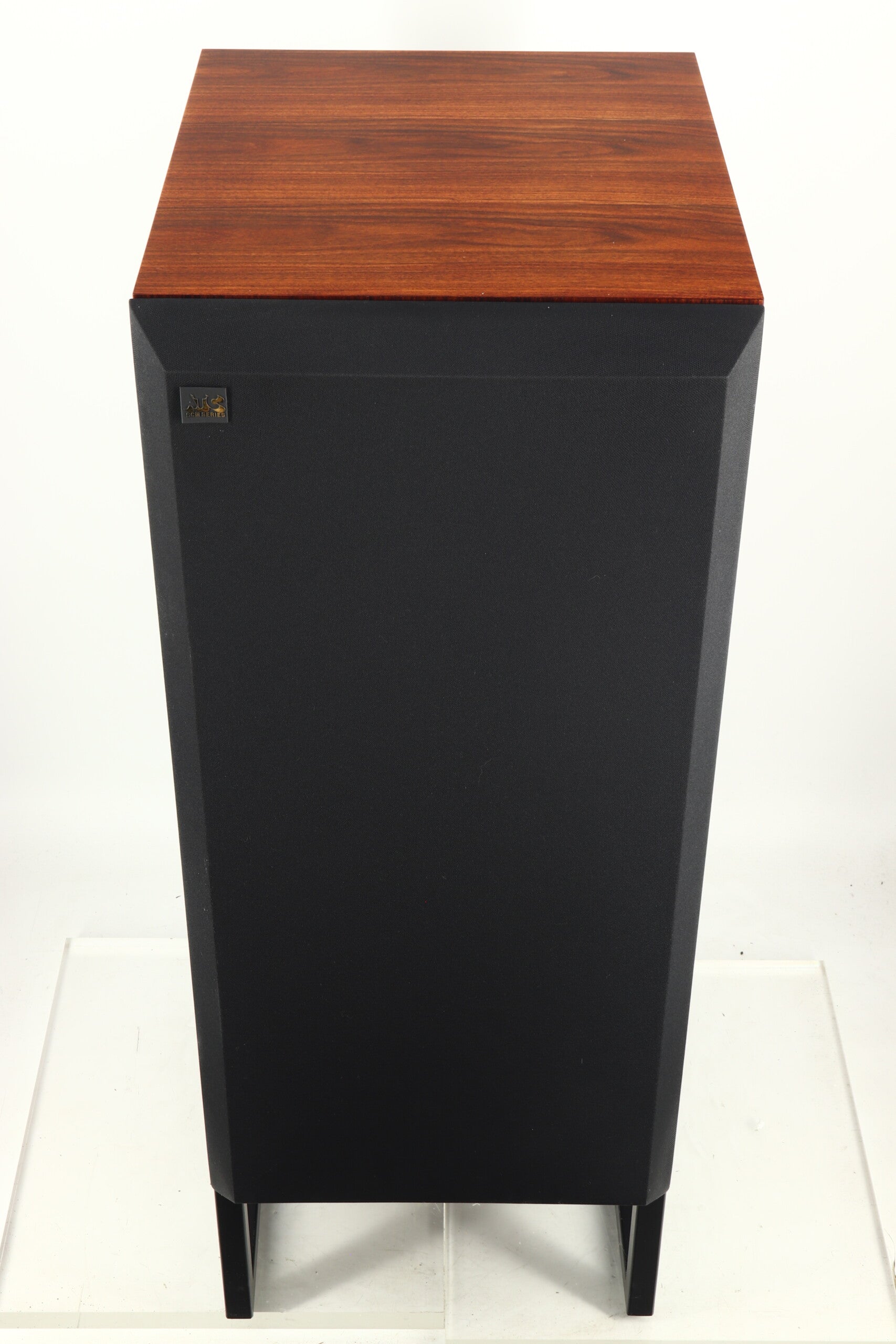

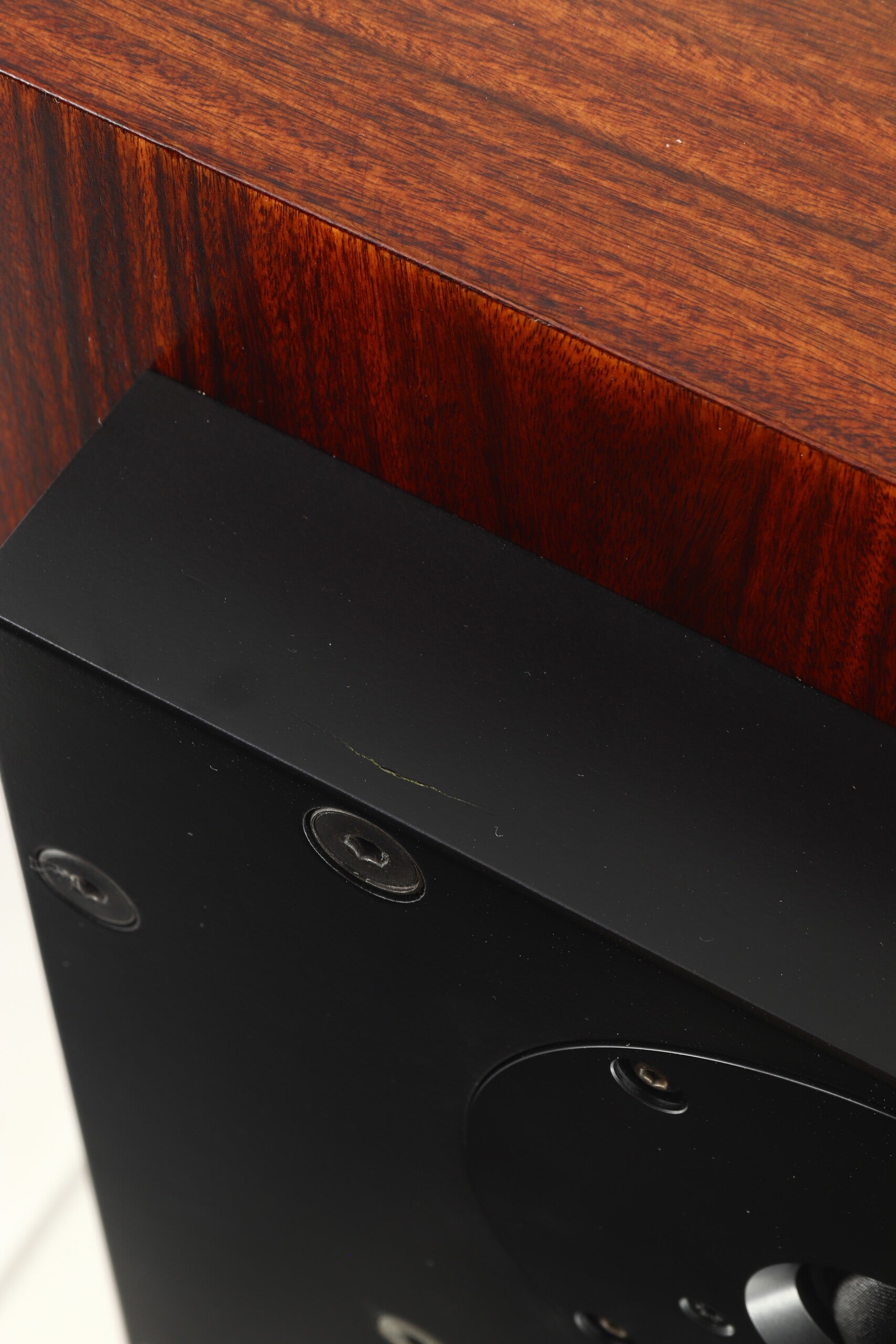

Here we have a pair of SCM100a Active monitor style loudspeakers from British company ATC. They are in good condition noting a couple of blemishes on the front baffles as shown in the close up photographs. These were brought upto current ASL spec about 7 years ago with the new ATC tweeter and have minimal use since being used as a display pair in our shop. They will be supplied with their purpose built stands, in their original factory packaging – on a pallet – and of course comes with our regular three month warranty.
ATC Say….
The SCM100 ASL is designed to perform at its best with the finest quality hi-fi equipment.
Like its smaller brother, the SCM50 ASL, the monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S soft dome midrange driver. However, recent modifications that include an upgraded tweeter and enhanced port profile have brought about further improvements in all performance parameters.

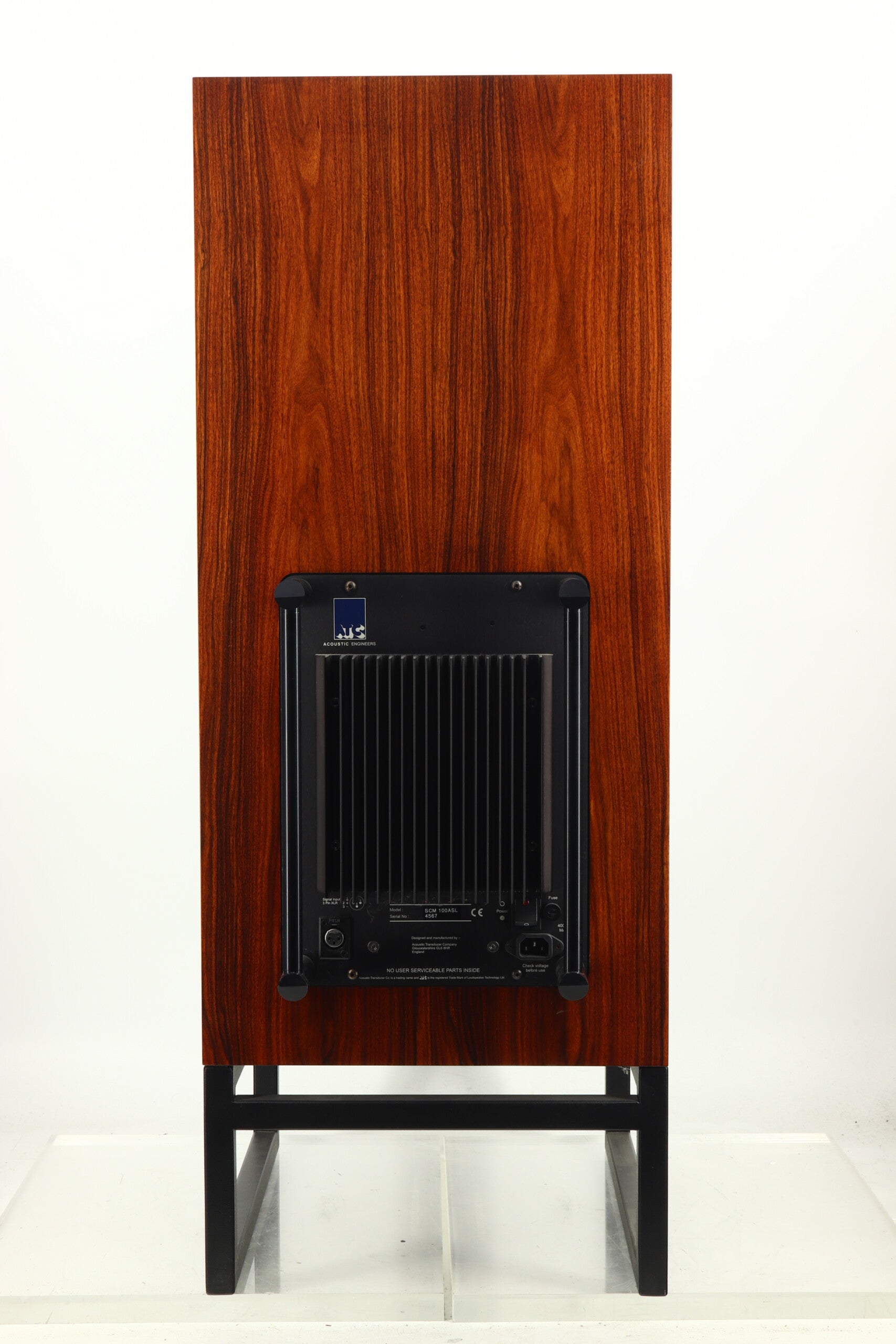

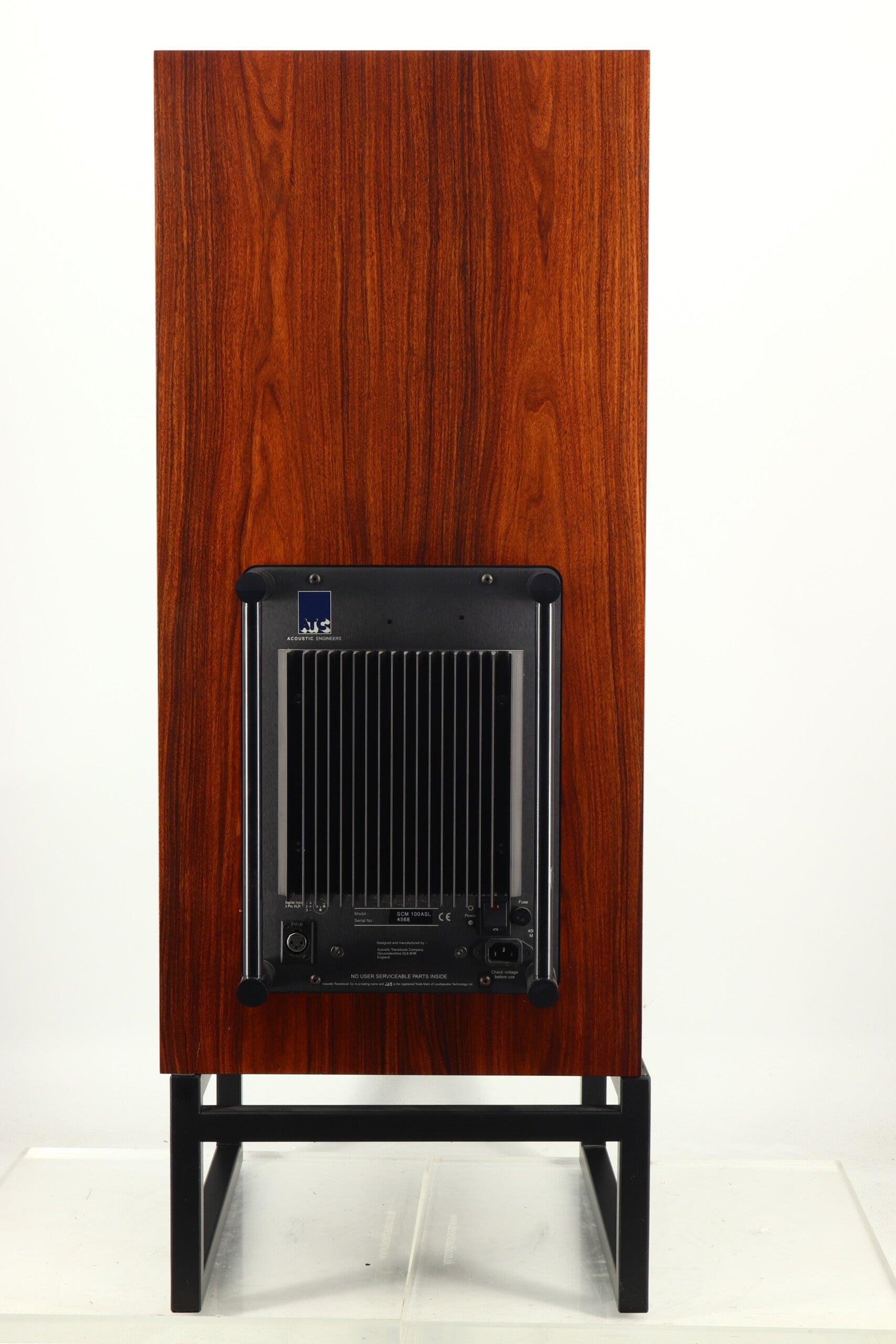

Bass performance is equally impressive, thanks to ATC’s 12″ professional level bass driver that incorporates the company’s unique Super Linear Magnet technology. Bass, mid and HF drive units in the active model have their own dedicated and individually matched MOSFET amplifiers.
ATC’s active crossover network consists of a wide band-width, electronically balanced input stage with high common mode rejection and very low distortion.

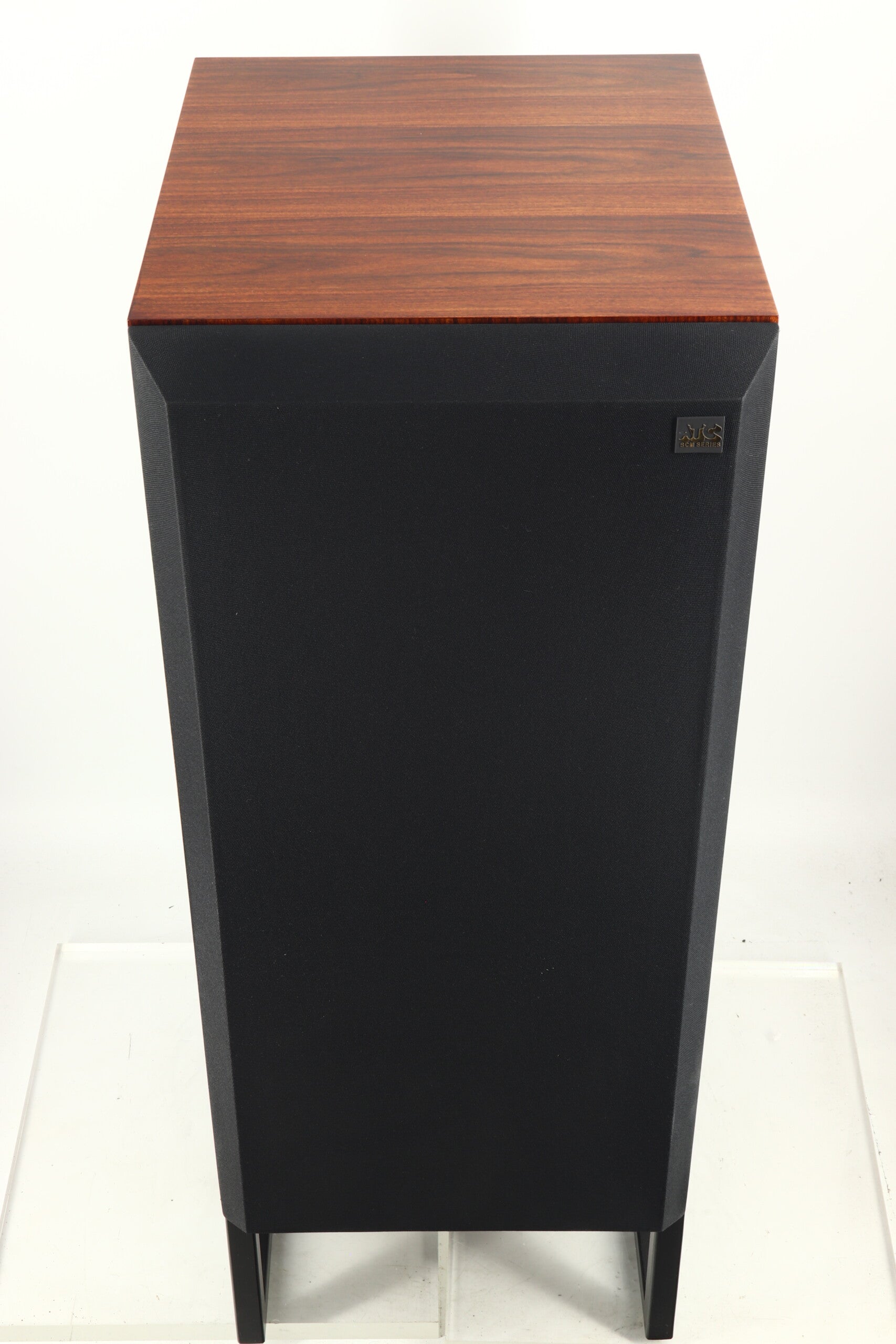

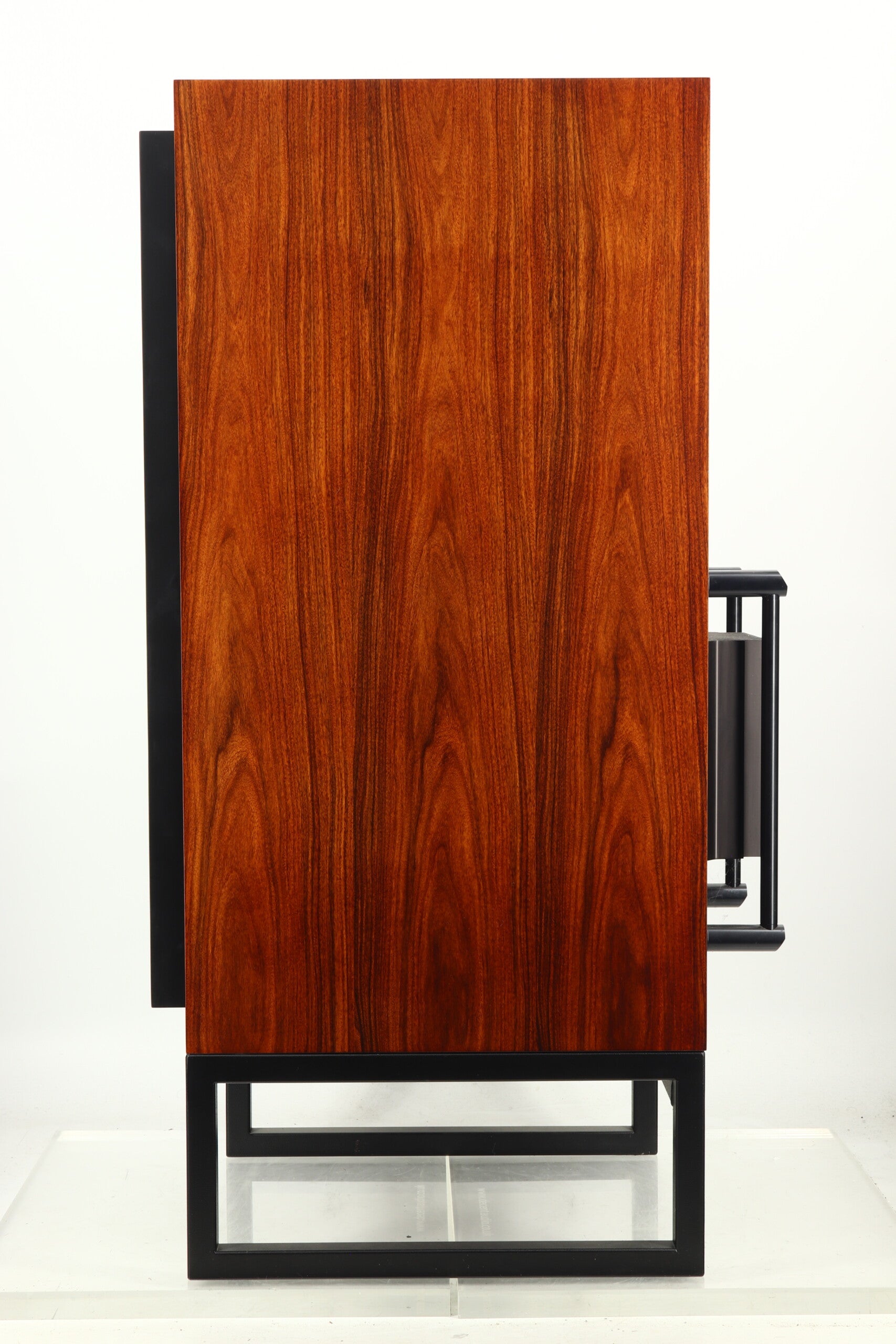

Speakers are supplied with stands and fabric wrapped grills.
Specifications:
Drivers: HF 25 mm; Mid 75 mm; LF 314mm Super Linear
Amplitude Linearity ± 2 dB: 65 Hz - 17 kHz
Frequency Response – 6 dB: 32 Hz & 22 kHz
Matched Response: ± 0.5 dB
Dispersion: ± 80° Coherent Horizontal ± 10° Coherent Vertical
Max continuous SPL @ 1m: 115 dB SPL
Crossover Frequency: 380 Hz & 3.5 kHz
Input Connector: XLR
Input Sensitivity: 1 V
Input Impedance: > 10 kOhms balanced XLR
Amplifier Output: HF 50 Watts RMS; MF 100 Watts RMS; LF 200 Watts RMS
Overload Protection: Active FET momentary gain reduction (amplifiers)
Power Requirements: Voltage: 100, 115, 230 (factory set)
Frequency: 50/60 Hz
Power: Nominal 90 Watts, Driven 350 Watts
Dimensions: 834 (H) x 400 (W) x 585 (D) mm (stands add 200 mm to height)
Weight: 58.5 kg
