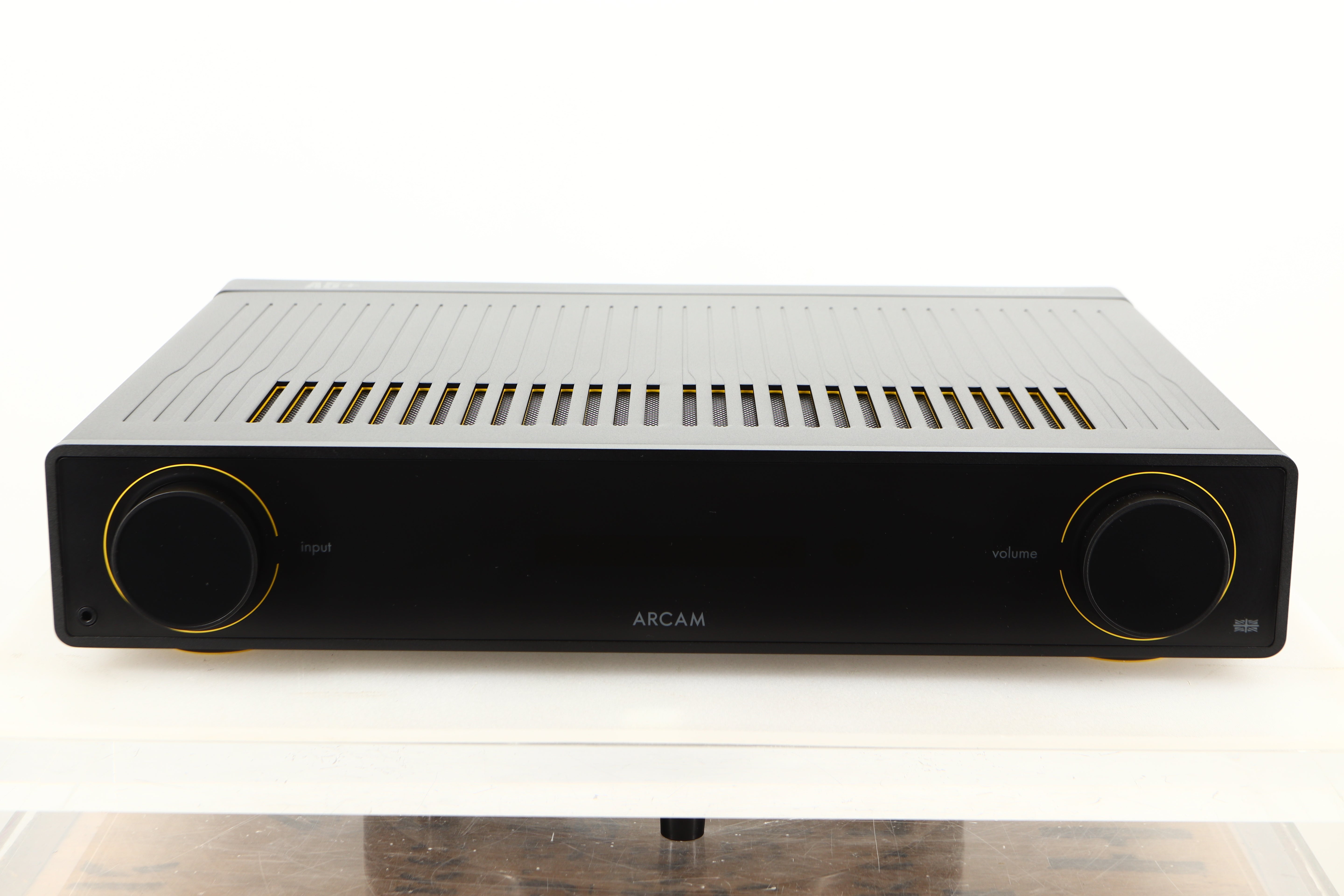

Arcam A5+ Integrated Amplifier

The ARCAM A5+ is for sharing intimate listening experiences with family and friends.
The "A" in ARCAM stands for amplification, where our expertise lies. The A5+ is the latest in nearly 50 years of amplifier design and manufacture, dating back to our first product in 1976 —the A&R Cambridge A60 amplifier. Since the launch of the award-winning ARCAM Radia A5, we haven't rested. Our engineering team pushed further to create the ARCAM A5+, an even better sounding and more versatile integrated amplifier.
The A5+ features an enhanced power supply design and cutting-edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to share music wirelessly, with no pairing required.
With a wide array of digital and analogue inputs, including a meticulously tuned phono stage, the A5+ ensures impeccable sound quality for everything from vinyl to streaming.

Features

• Wireless audio with Bluetooth 5.4
• Featuring Snapdragon Sound for wireless lossless audio
• Featuring Auracast for connecting wireless headphones or speakers to play music in multiple spaces.
• Hi-res audio digital inputs
• ESS ES9018 DAC
• Meticulously tuned phono stage
• Class AB amplification
• 2x 50 Watts (8Ω) Power Output
• Compact remote control

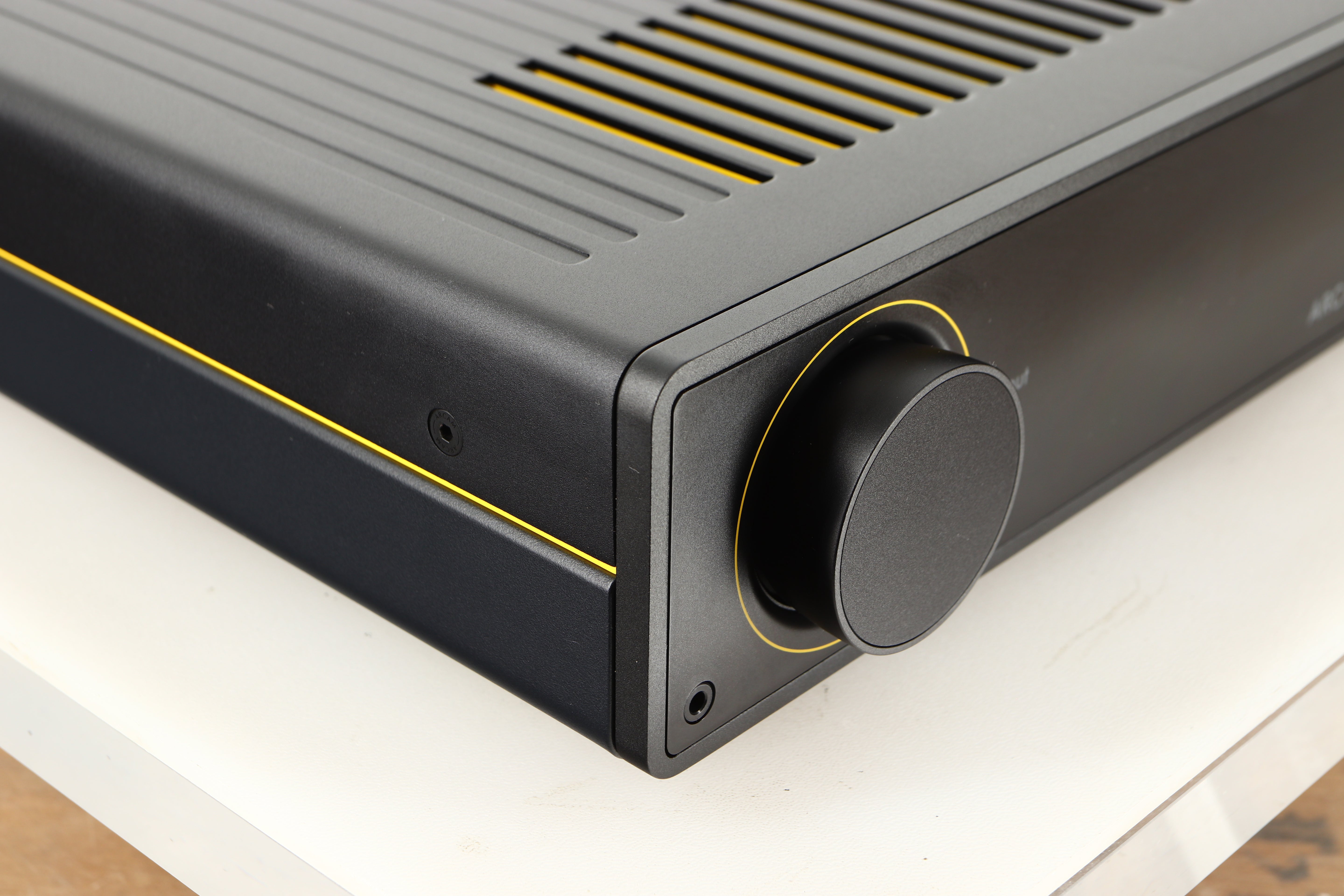

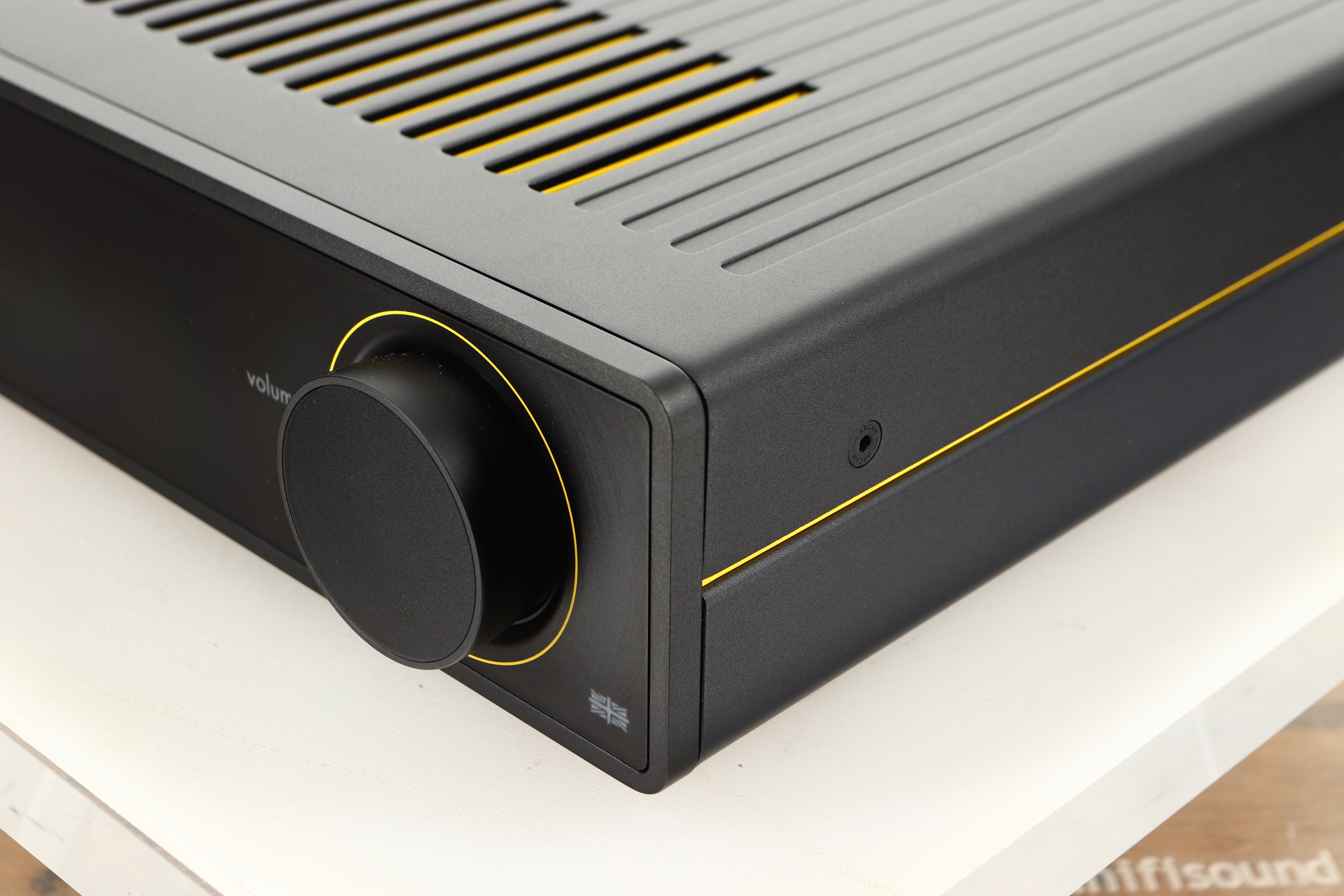

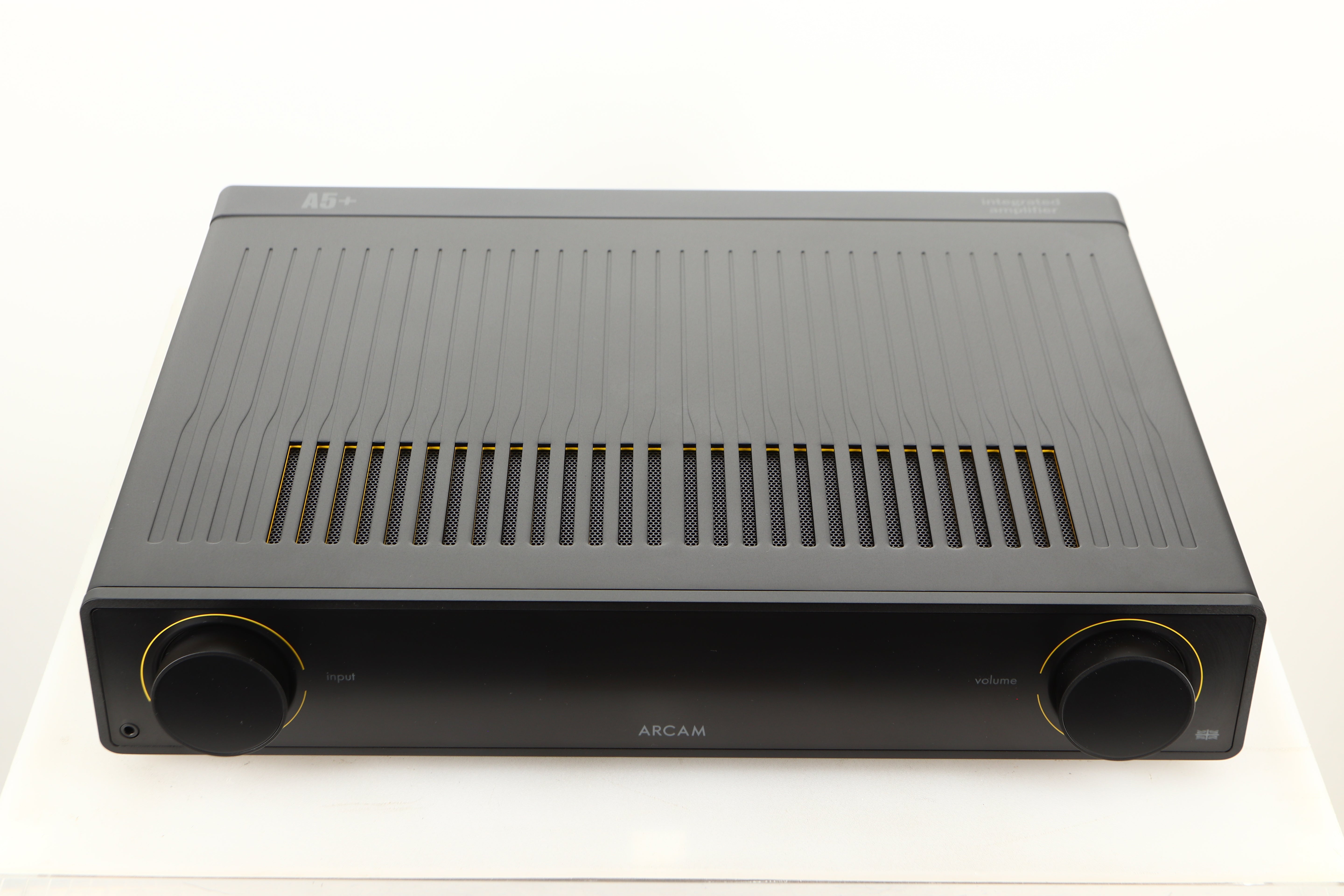

• Solid aluminium dials

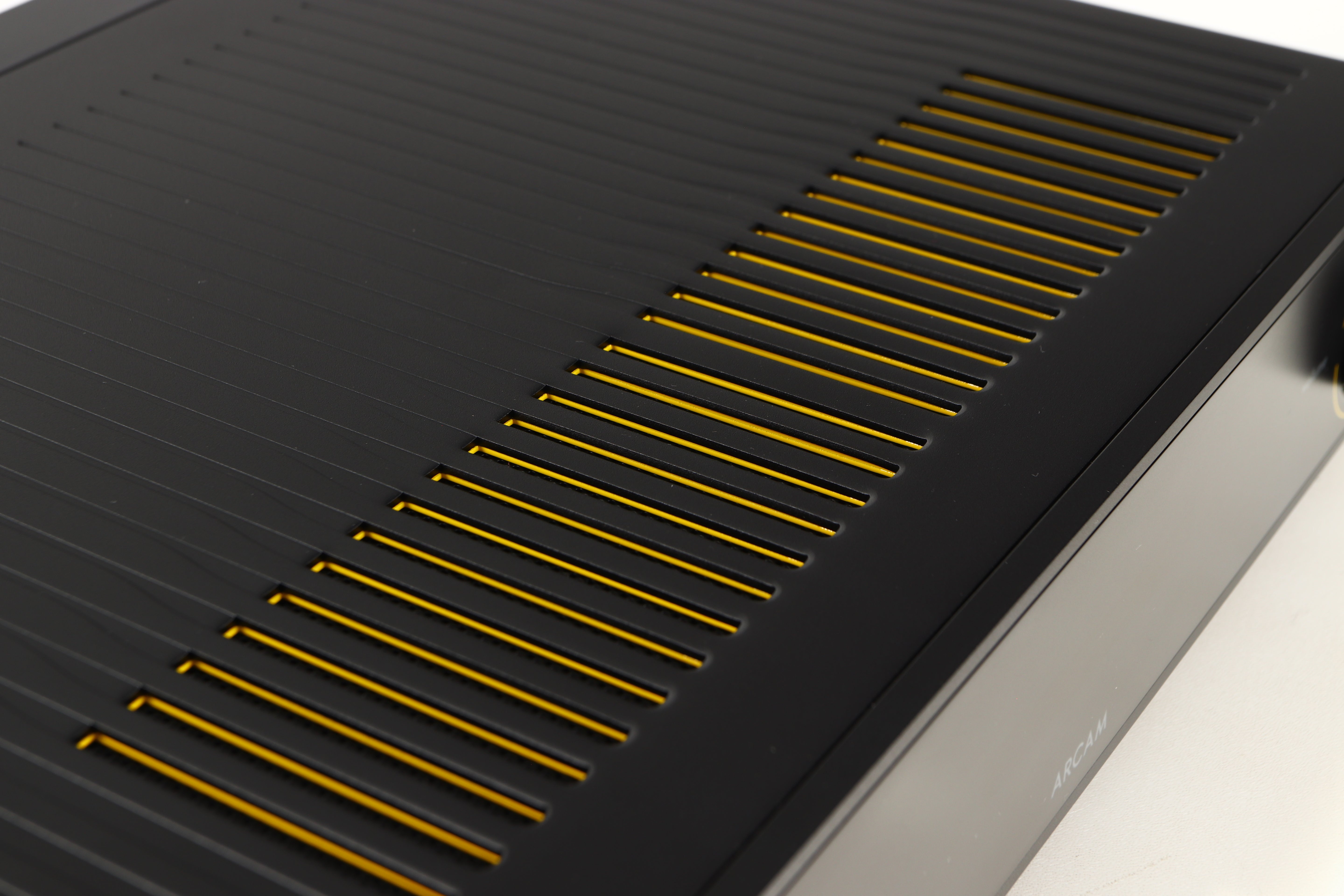

• Aluminium front, top, sides and rear panels

Power Output: 50 W into 8 Ω @ 20 Hz ‑ 20 kHz; 75 W into 4 Ω @ 1 kHz (0.5% THD)
Harmonic Distortion: 0.003%, 80% power, 8 Ω at 1 kHz

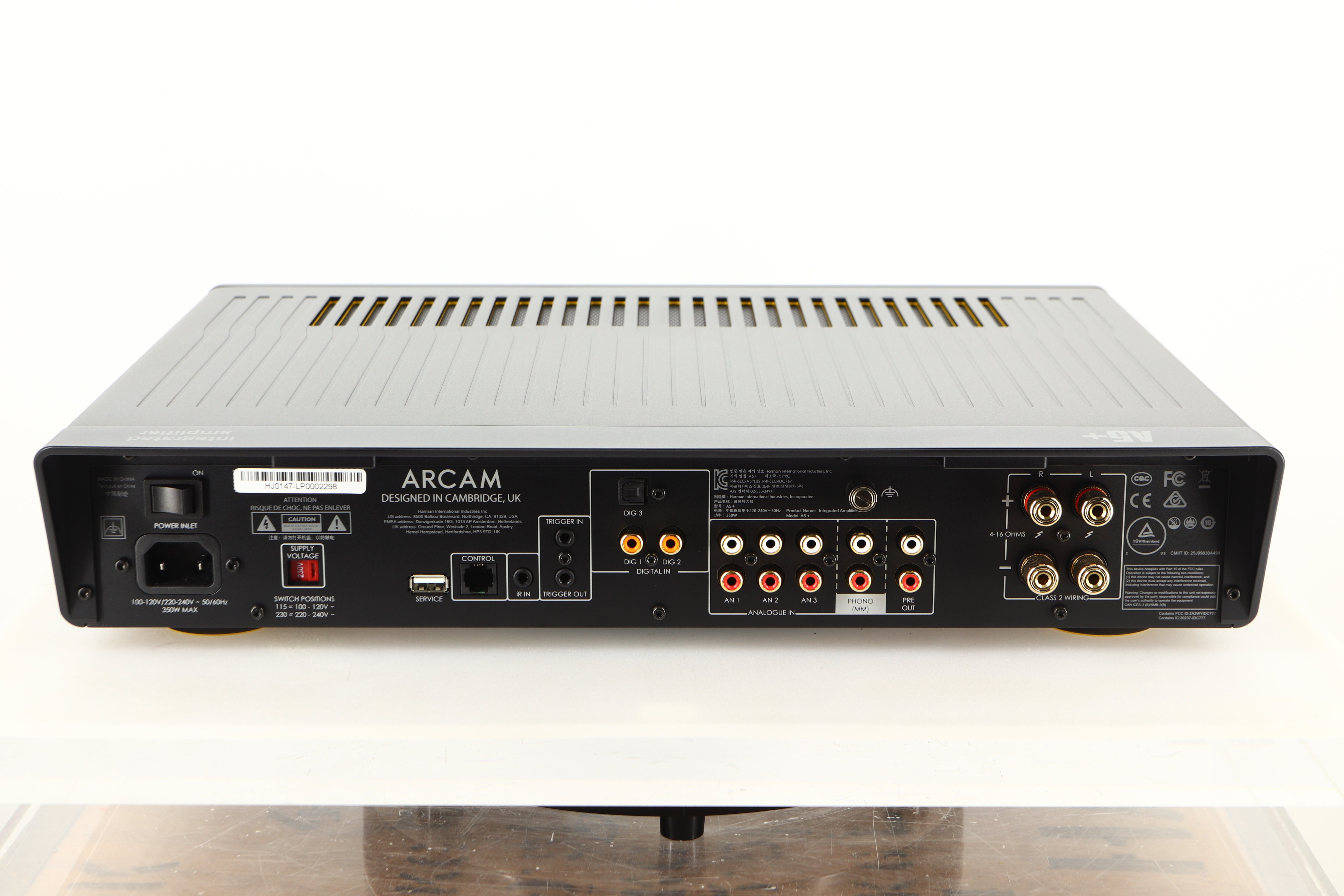

Number Of Inputs: 3 (RCA pairs)
Signal/Noise Ratio: 106 dB (A-wtd, ref. 50 W, 1 V input)
Frequency Response: 20 Hz - 20 kHz, ± 0.2 dB (Line); 20 Hz - 20 kHz ± 1 dB (Phono)
Input Impedance: 47 kΩ + 100 pF (MM Input)
Digital Inputs Supported Sample Rates: 192, 176.4, 96, 88.2, 48, 44.1 kHz
Bit Depths: 24, 16-bit
Signal/Noise Ratio: 109 dB (A-wtd, ref. 50W, 0dBFS)
Maximum Headphone Output Level (RMS): 2.5 V/5 V into 32 Ω/300 Ω
Load range: 16 Ω - 2 kΩ
Bluetooth Version: 5.4; A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast
Bluetooth Transmitter Frequency and Power: 2,400 MHz to 2,483.5 MHz: < 20 dBm

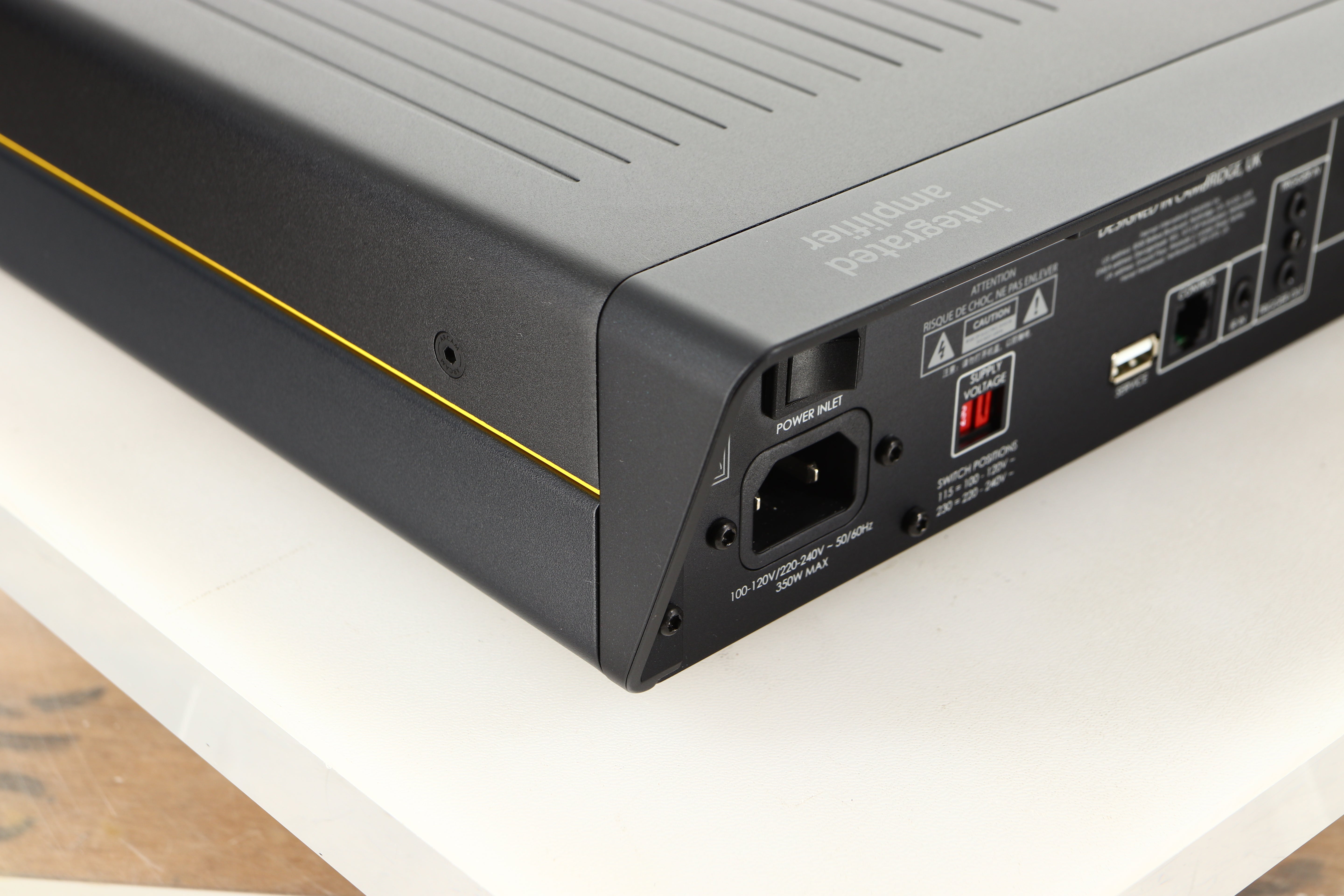

Mains Voltage: 100 V or 110 - 120 V or 220 - 240 V, 50 - 60 Hz
Power Consumption: 350 W (maximum); < 0.5 W (standby)
Dimensions: 431 (W) x 344 (D) x 83 (H) mm
Weight: 8.14 kg
