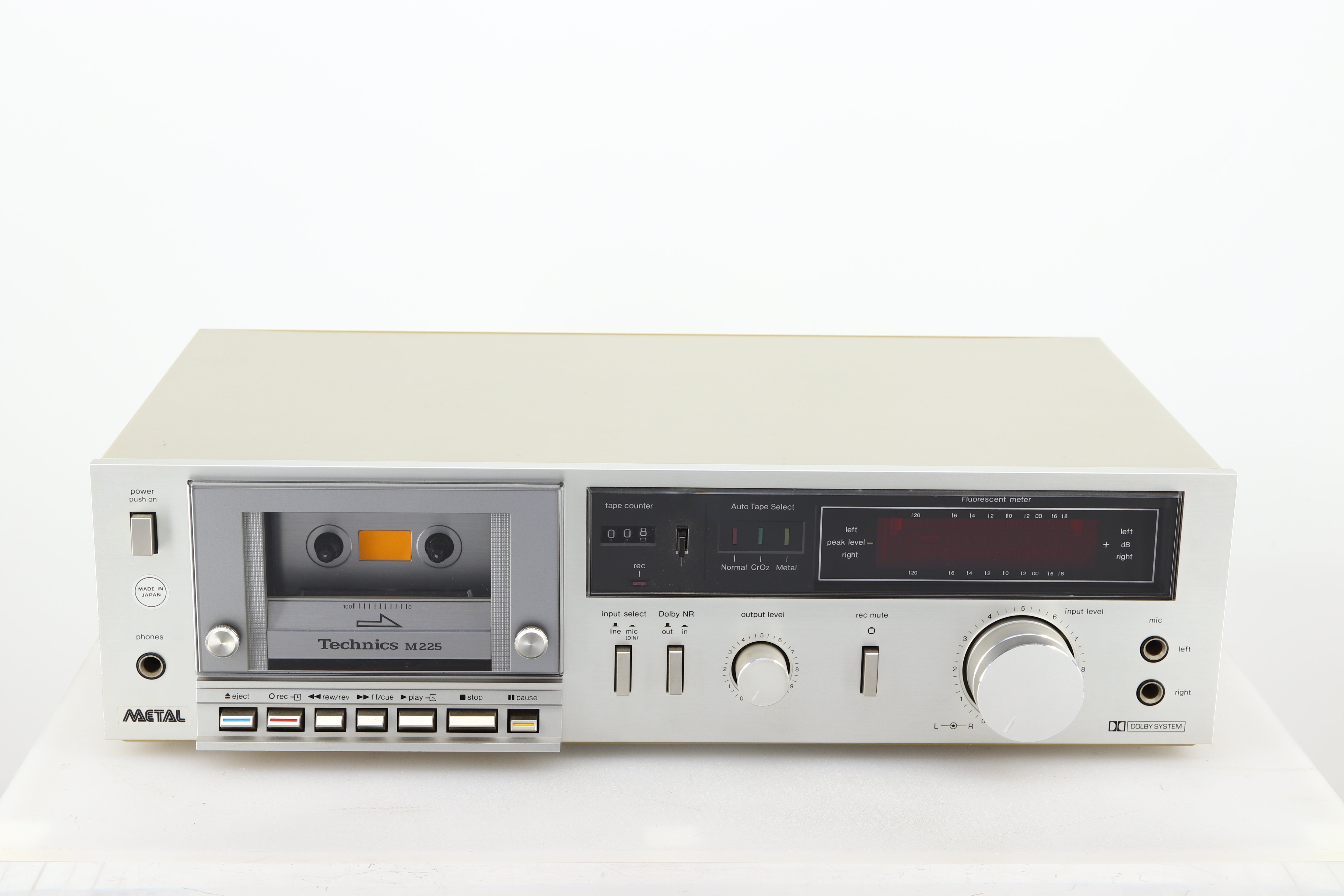

Technics RS-M225 Cassette Deck

Now The Convenience You've Always Wanted From A Cassette Deck
A cassette deck loaded with automation and styled for operating convenience, the RS-M225 is an outstanding example of Technics engineering. It's a performer. Just look at the features the RS-M225 offers to enhance your music system. Technics has included a music selector that finds the beginning of a track on a tape.
And there is the auto-tape selector that prevents EQ and bias errors. Naturally, Technics has equipped the RS-M225 with soft-touch controls and an FL meter system with peak hold to assure that you can make accurate recordings. All this, combined with a reasonable price, makes the RS-M225 a welcome addition to almost any audio system.
With the RS-M225, you no longer have to search your cassettes for your favourite musical passages. The music select function automatically skips back to the beginning of the selection you just heard or moves forward to the start of the upcoming selection on the tape.

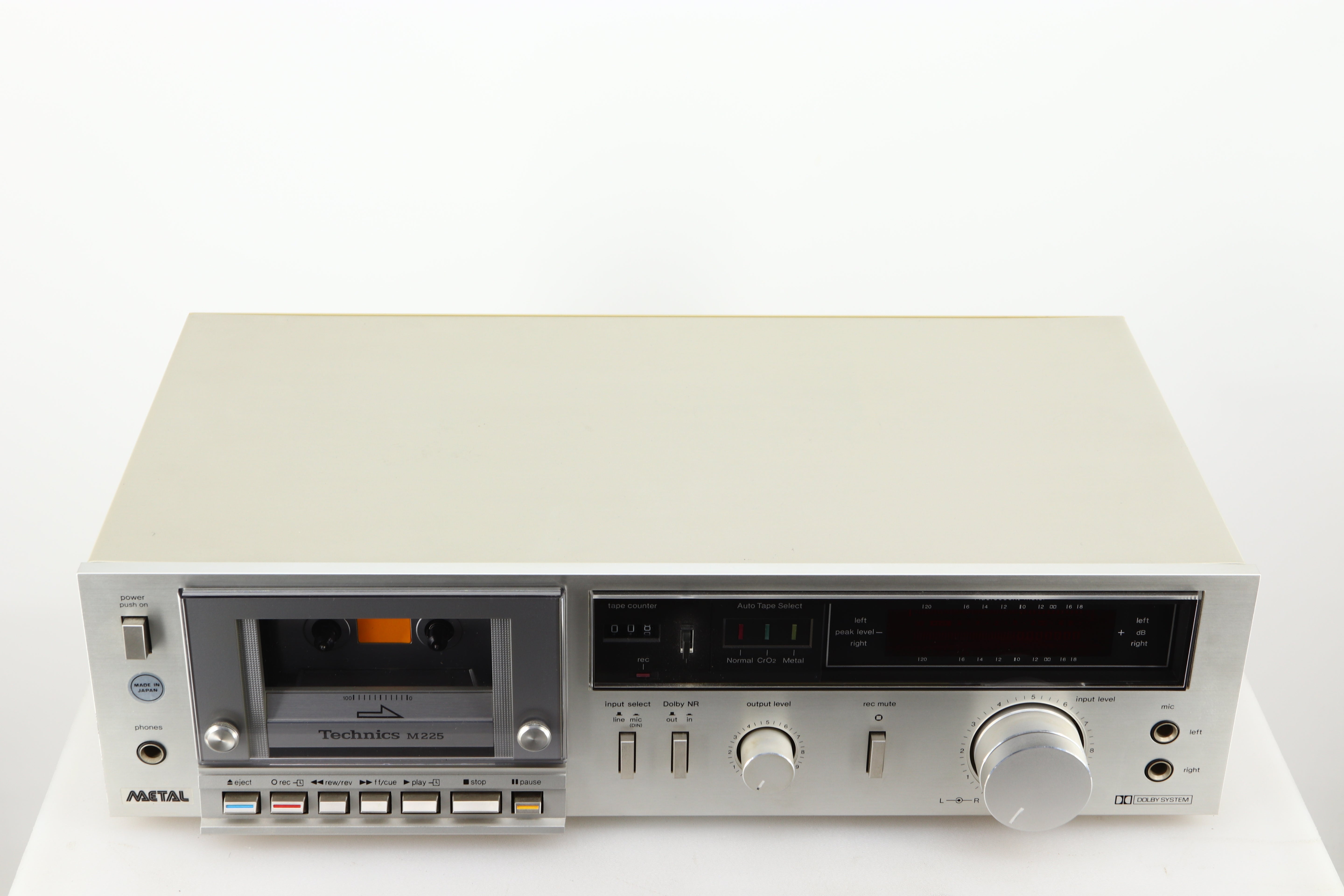

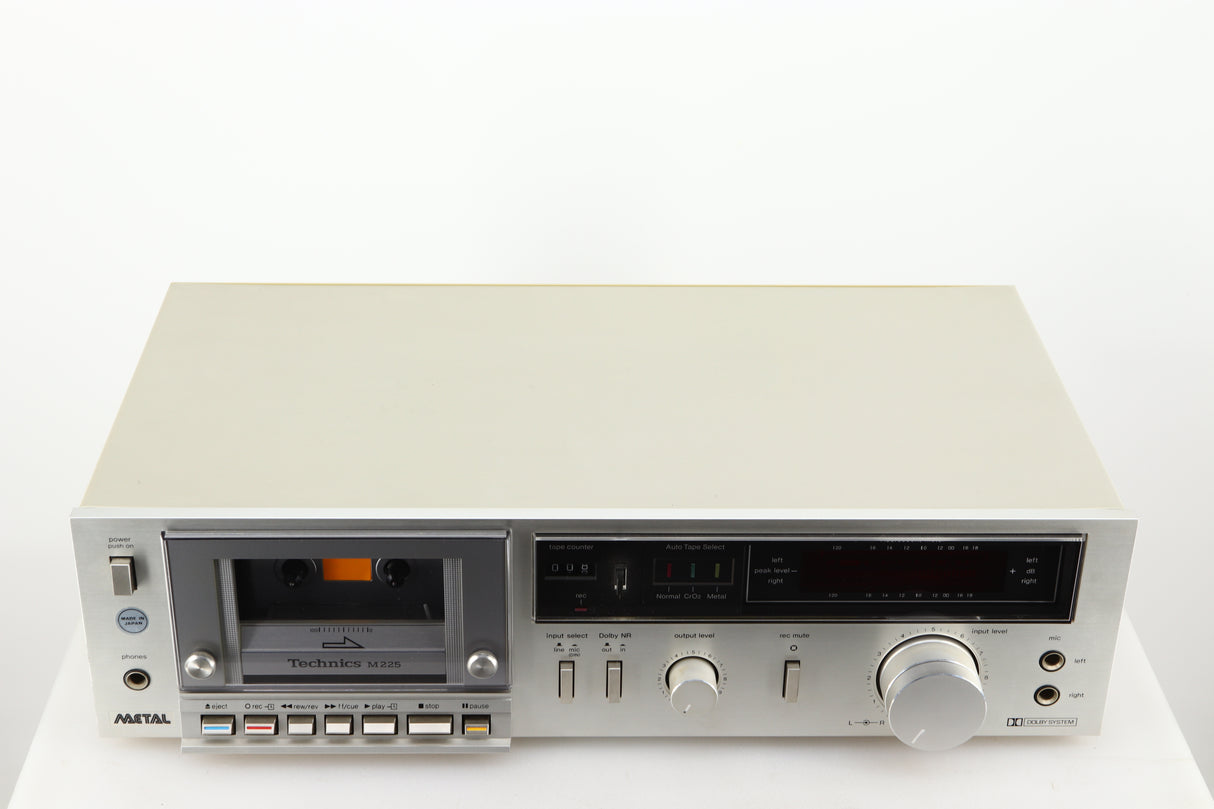

And with the auto-tape selector, the RS-M225 actually detects which type of tape you use (new metal, Cr02 or normal) while adjusting for proper EQ and bias settings. Thus you are assured the potential of a good recording every time. Technics has included three LED's on the front panel of the RS-M225 which light up to confirm which kind of tape is in use (red for normal, green for Cr02 and yellow for new metal tape).
What's more, you'll also appreciate the convenience of the rewind autoplay and full auto stop functions.
The RS-M225 has easy to use, soft-touch controls that are superior to the old style, piano key controls. Just a slight, but definite, pressure from your fingertip is all that is necessary to operate the cassette deck functions. The soft-touch controls also allow direct mode switching. For example, you can go from fast forward or rewind directly to play without pushing the stop button.
So there's less wear on the functions themselves and you spend more time listening to your music.
For precise recordings, the RS-M225 has an FL meter system with peak hold capability. The FL meter itself is actually eighteen fluorescent tube segments which can be easily read from across the room. And the display pattern changes above O dB for critical high-level signals.
These electronic meters help you assure that recording levels on the RS-M225 are accurate and aid in eliminating unwanted noise and distortion. Note that their response is fast with almost no chance of overshoot or delay. Peak hold capability means that the signal value and the registered peak are both indicated to you at the same time. The peaks themselves are held for 2 seconds for your convenience and then reset automatically. And, as there are no mechanical parts in this meter system, there is almost no chance of a breakdown as with traditional needle meter systems.
With an advanced record/playback head, the RS-M225 delivers an extended frequency response from 20 Hz to 18 kHz. Wow and flutter is kept to a low 0.048% WRMS thanks to Technics reliable tape transport system. And signal to noise ratio is a high 67 dB (Dolby* NR in, using Cr02 tape) so tape hiss is minimal. All in all, a superb cassette deck thoughtfully designed with you in mind. From Technics. The Science of Sound.

Features

Single-touch recording
Timer-assisted record/playback
Cue and review convenience
Dual concentric left and right channel input level controls
Mic/line input source selector
Record muting switch
Output level control
Oil-damped soft loading and unloading
Removable cassette well

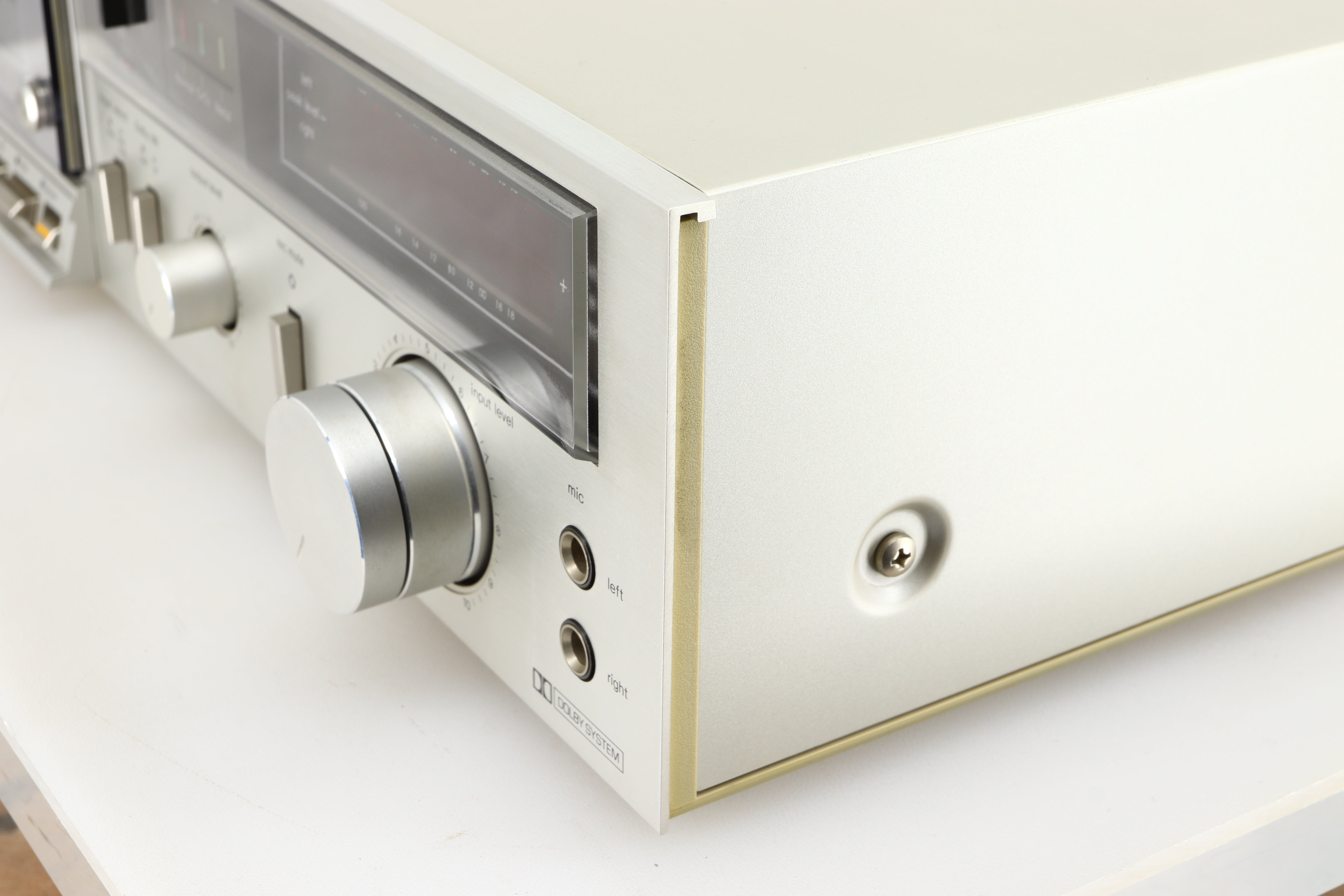

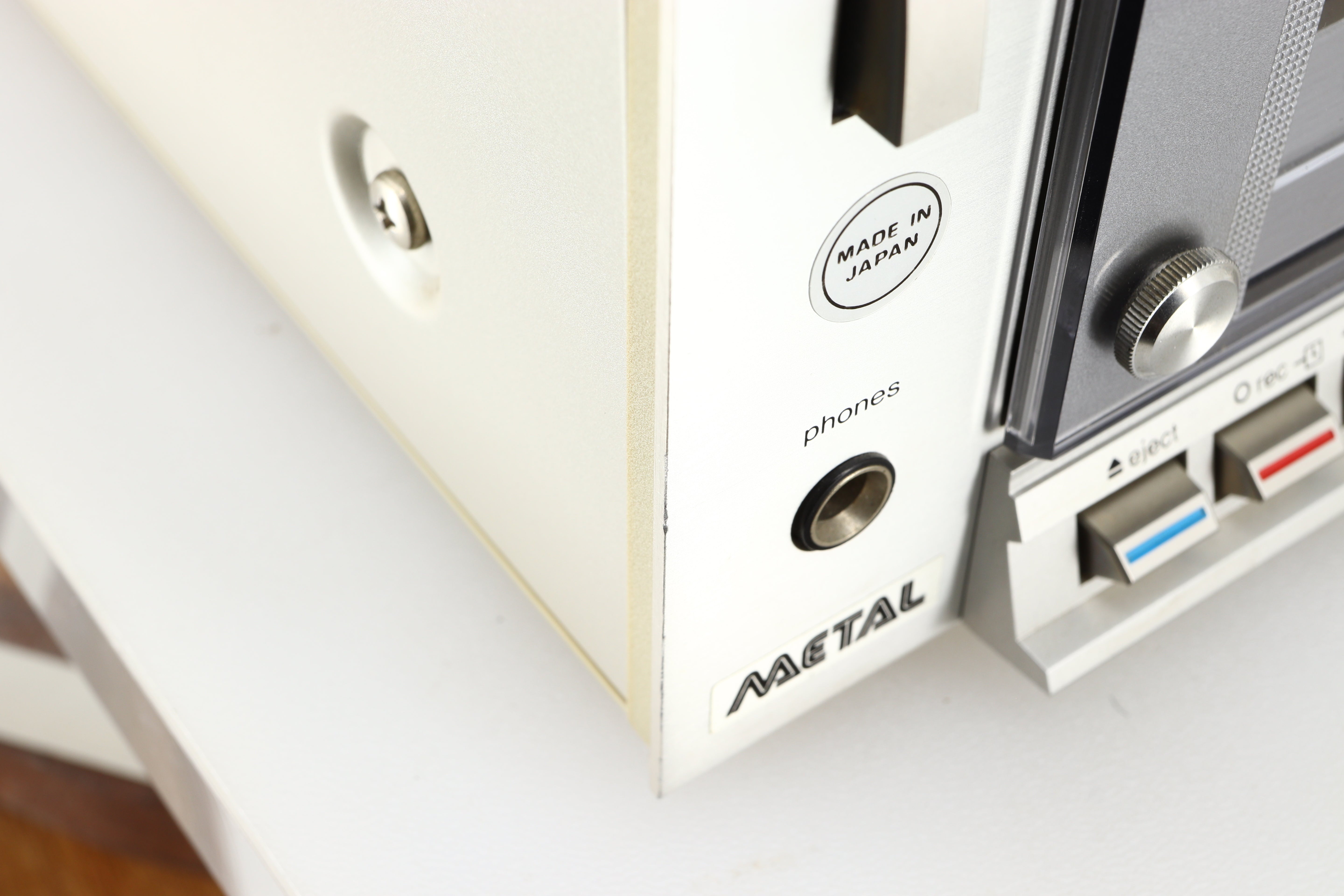

Front panel headphone and microphone jacks

Track System: 4-track 2-channel stereo recording and playback
Tape Speed: 4.8 cm/s
Wow and Flutter: 0.048% (WRMS)
Frequency Response: Metal tape: 20 - 18,000 Hz; CrO2 tape: 20 - 18,000 Hz; Normal tape: 20 - 17,000 Hz
Signal-to-Noise Ratio: Dolby NR in: 67 dB (above 5 kHz); Dolby NR out: 57 dB (signal level=max. recording level, CrO2 type tape)
Fast Forward and Rewind Time: Approx. 90 sec. with C-60 cassette tape

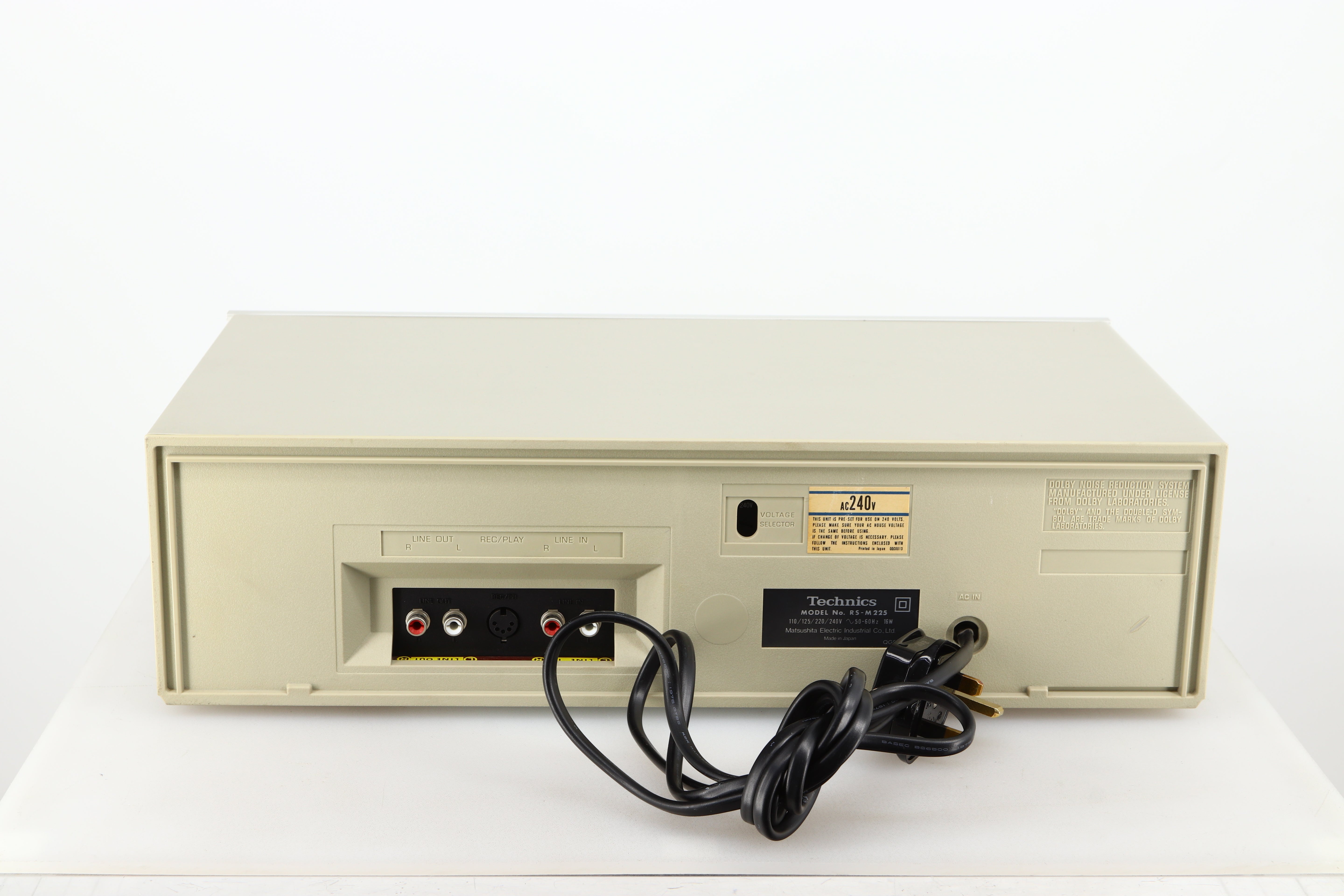

Inputs:
Mic: Sensitivity 0.25 mV, input impedance 70 kΩ, applicable microphone impedance 400 Ω - 10 kΩ
Line: Sensitivity 60 mV, input impedance 40 kΩ
Outputs:
Line: Output level 400 mV, output impedance 1.5 kΩ or less, load impedance 22 kΩ over
Headphone: Output level 80 mV, load impedance 8 Ω
Bias Frequency: 80 kHz
Motor: 1x electronically controlled DC motor
Heads: 1 - MX head for record/playback; 1 - double-gap ferrite head for erasure
Power Requirements: 220/240 V, 50 - 60 Hz
Power Consumption: 28 W
Dimensions: 430 (W) x 246 (D) x 119 (H) mm
Weight: 4.3 kg
