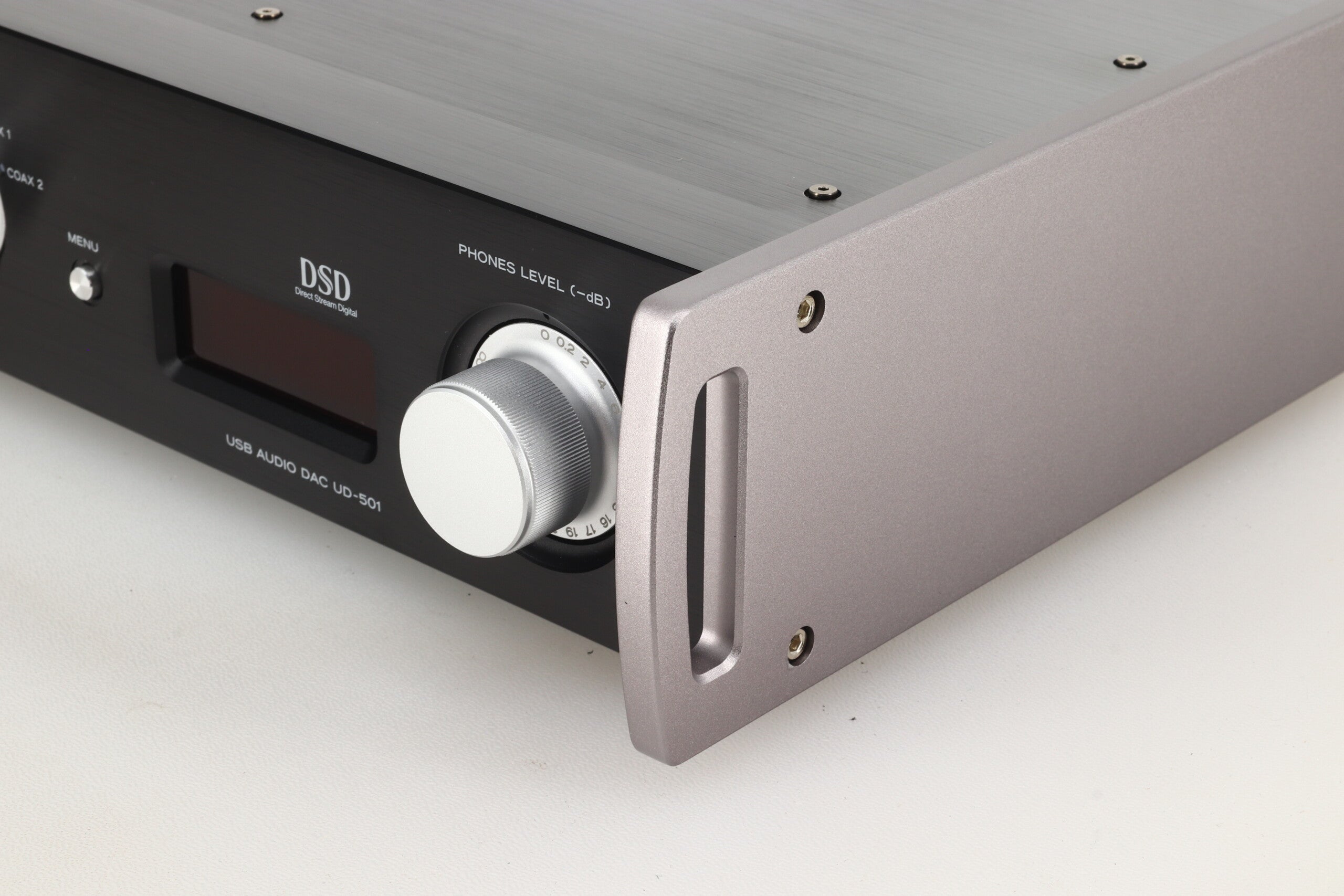

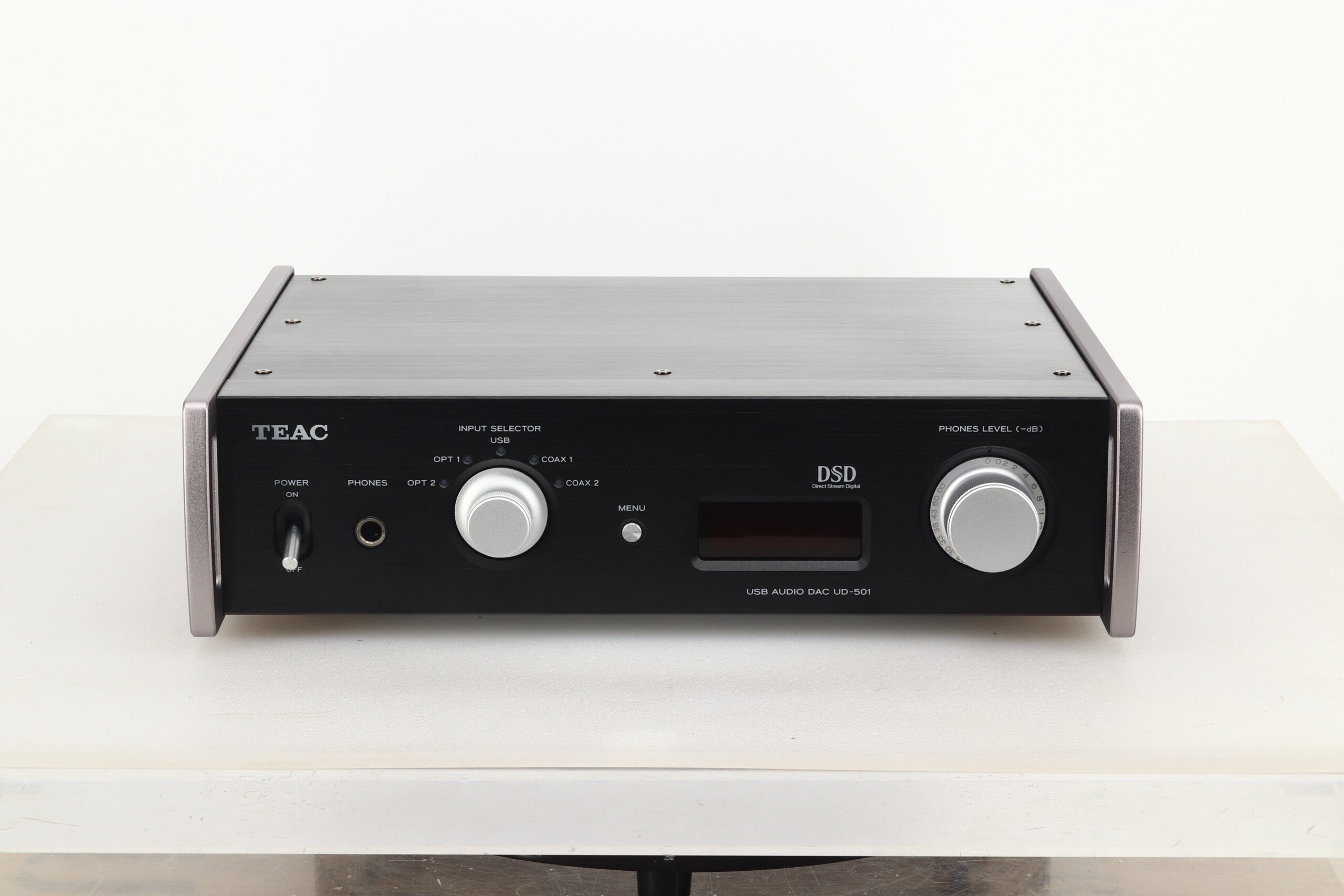

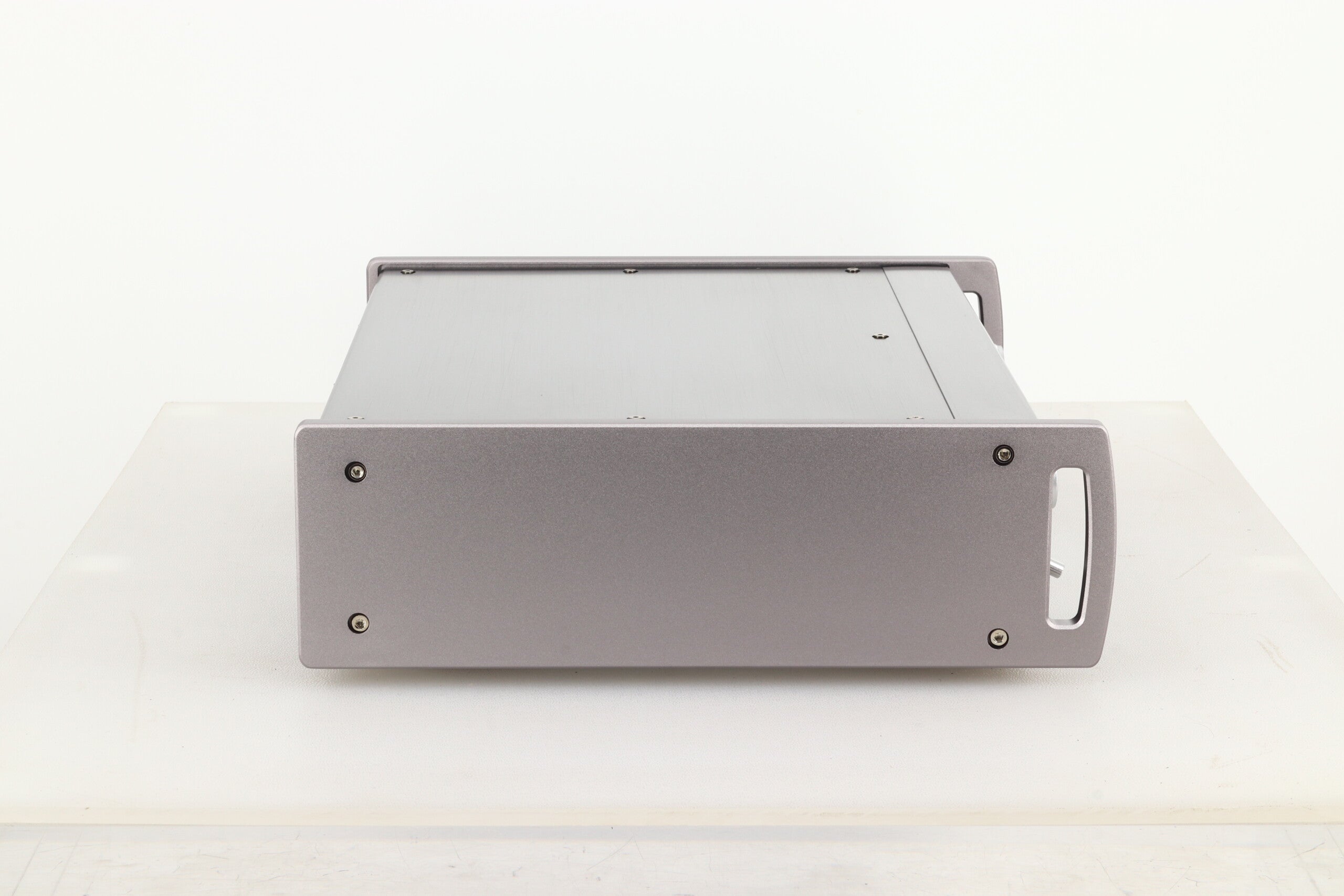

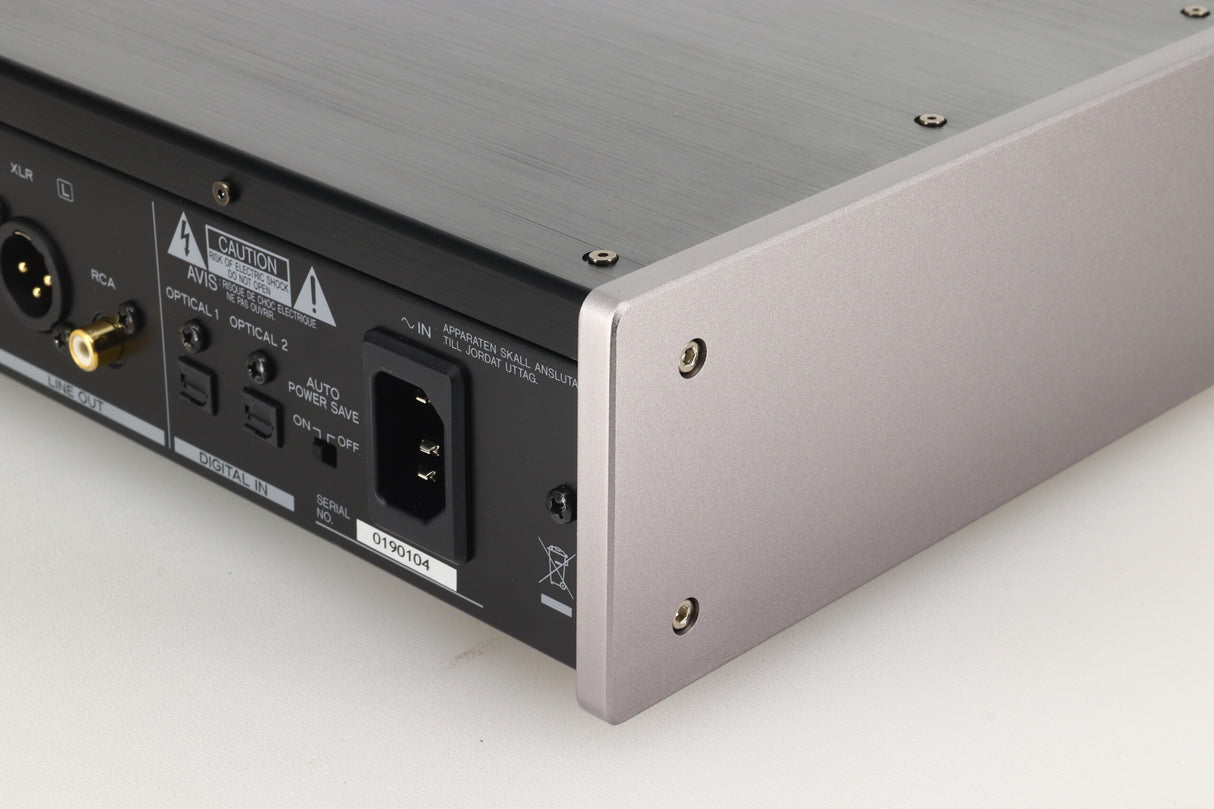

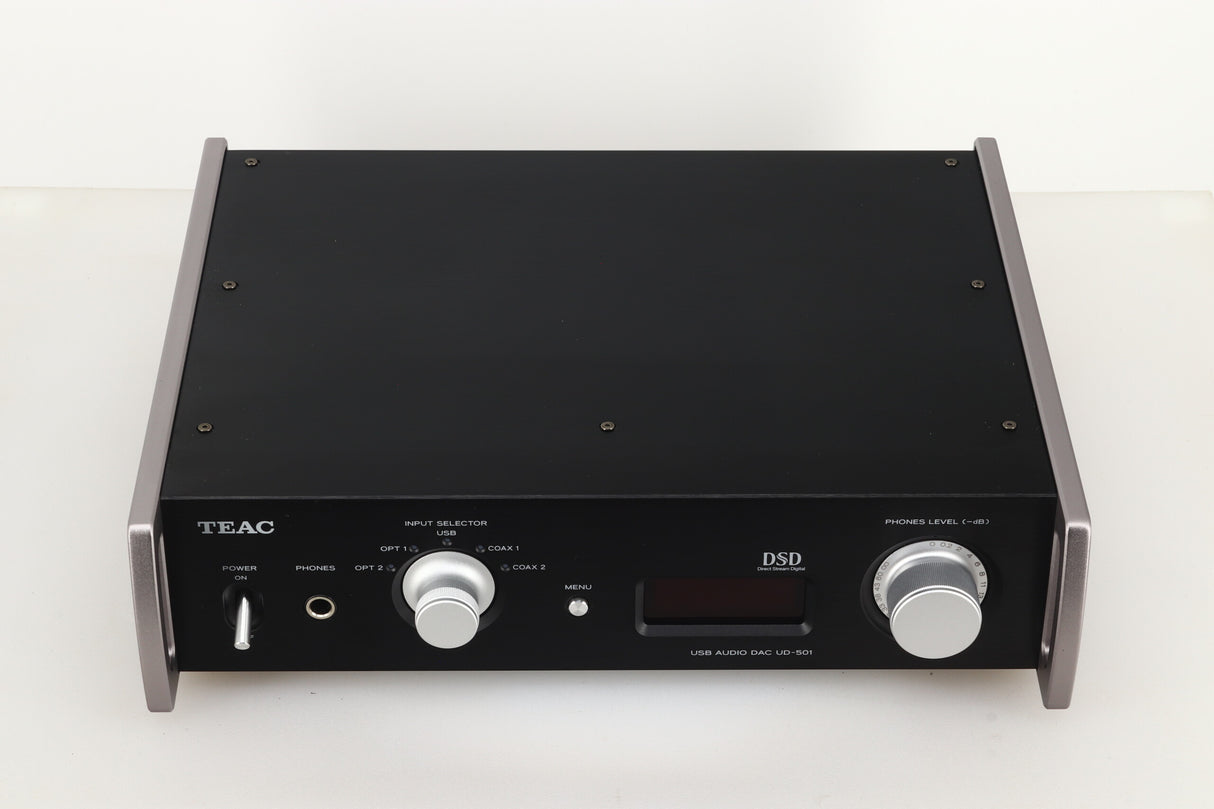

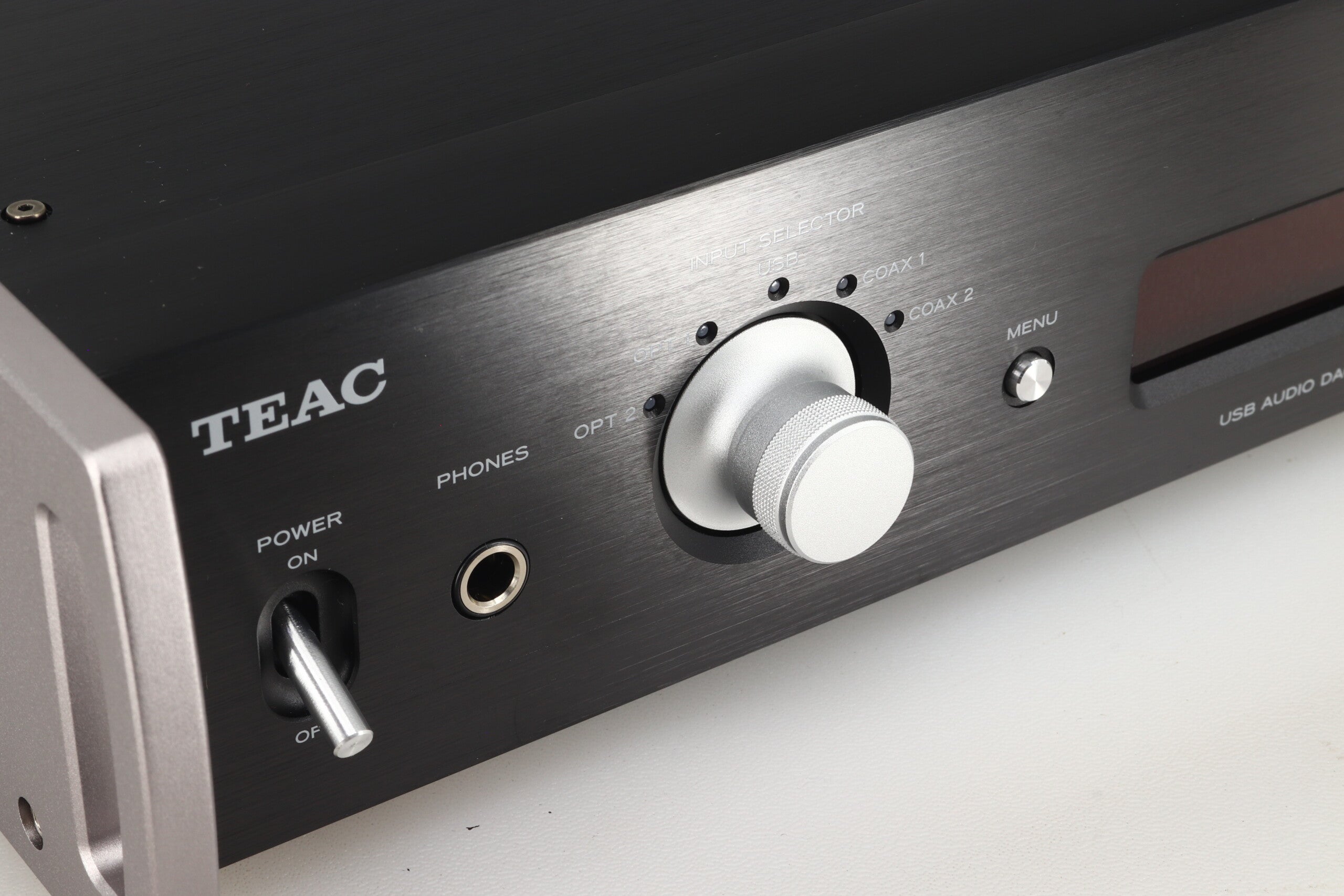

Teac UD-501 Digital Analogue Converter - Black

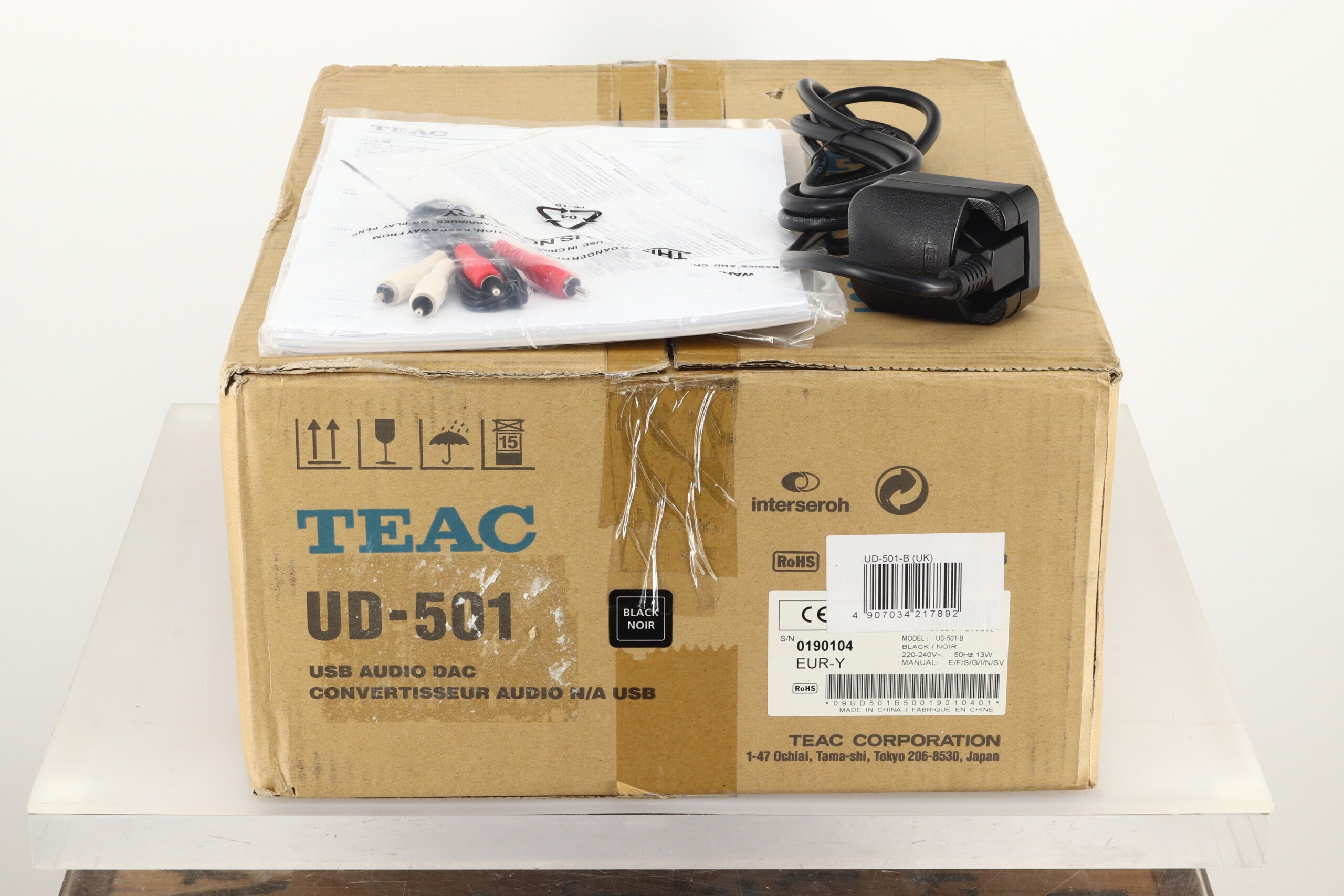

A great example of this excellent small format DAC from Japanese specialist TEAC. Full working order, with original box and manual. Three months warranty.

The UD-501 supports Direct Stream Digital (DSD) playback at either 2.8 MHz or 5.6MHz (DXD) rates. PCM audio is supported up to 384kHz/32-bit resolution. It connects to your computer over USB using ASIO 2.1 or DoP.

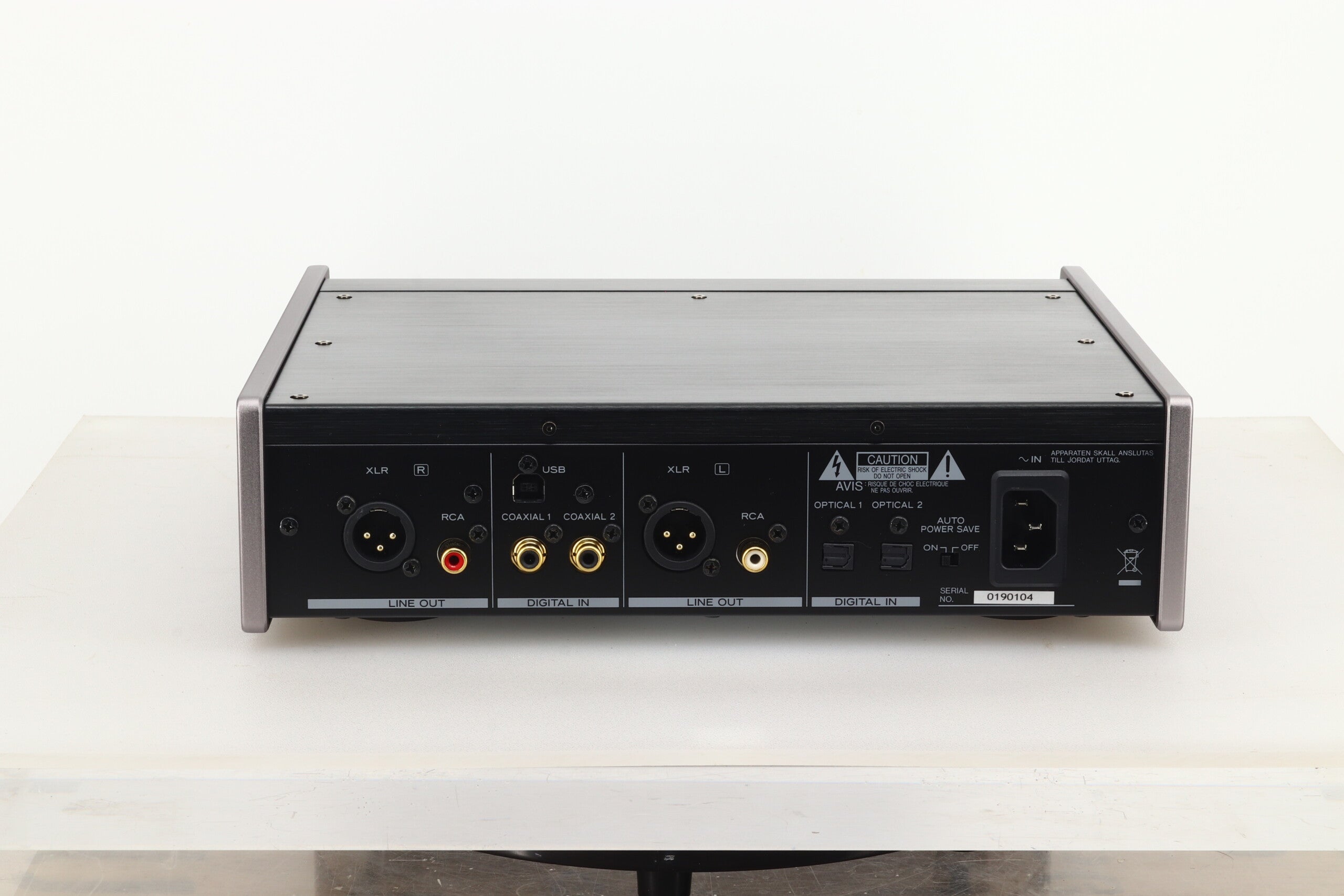

The output section of the UD-501 features two BurrBrown 32-bit DACs per channel and JRC MUSES op amps, also with a dual monaural design. Both balanced XLR and unbalanced RCA outputs are available to connect to your power amplifier. A toroidal-core power supply ensures top performance and clean transient playback, for quality that outperforms components five times its price.

Digital audio inputs
COAXIAL RCA jacks x 2 (0.5 Vp-p/75 ohms)
PCM data
sampling frequency 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
bit rates 16/24-bit
OPTICAL Optical digital connectors x 2 (–24.0 to –14.5 dBm peak)
PCM data
sampling frequency 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,
bit rates 16/24-bit
USB Type B connector x 1 (USB 2.0 compliant)
PCM data
sampling frequency 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz
bit rates 16/24/32-bit
DSD data
sampling frequency 2.8/5.6MHz

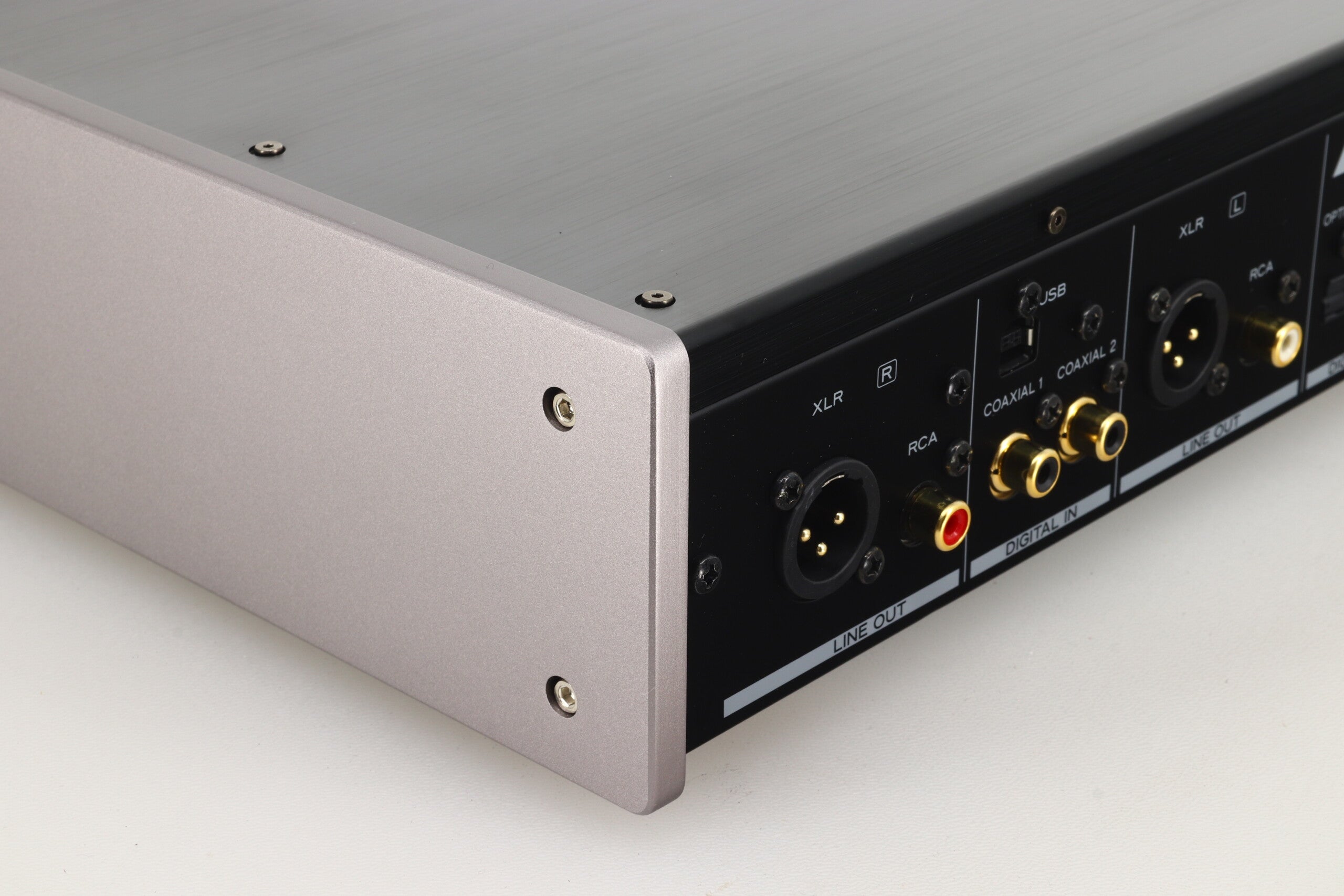

Analog audio outputs
XLR XLR jacks x 1 pair
Output impedance 88 ohms
Maximum output level 4.0Vrms (1/full-scale, into 10 kΩ)
Frequency range 5Hz - 80kHz (-3dB)
S/N ratio 115dB
Distortion 0.0015% (1kHz)
RCA RCA jacks x 1 pair
Output impedance 22 ohms
Maximum output level 2.0Vrms (1/full-scale, into 10 kΩ)
Frequency range 5Hz - 80kHz (-3dB)
S/N ratio 115dB
Distortion 0.0015% (1kHz)
Headphones output
Connector Standard 6.3 mm stereo jack
Maximum output 100 mW + 100 mW (into 32 ohms)
Power supply AC 120 V, 60 Hz
Power consumption Max 13W (Auto power save standby mode: 0.1W)
Overall Dimensions 290 (W) x 81.2 (H) x 244 (D) mm,
11.4" (W) x 3.2" (H) x 9.6" (D)
Net Weight 4.0kg (8 15/16 lb)
