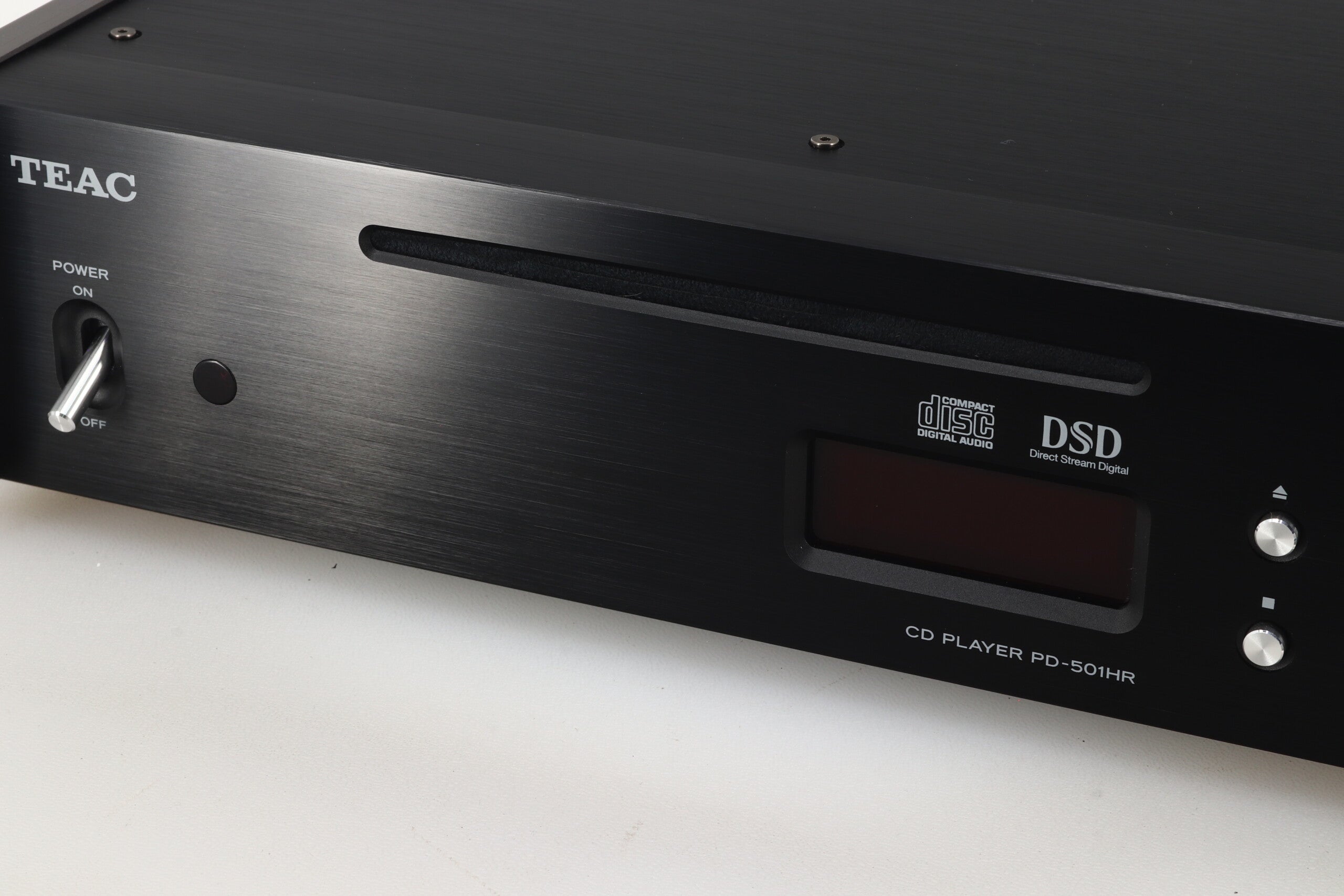

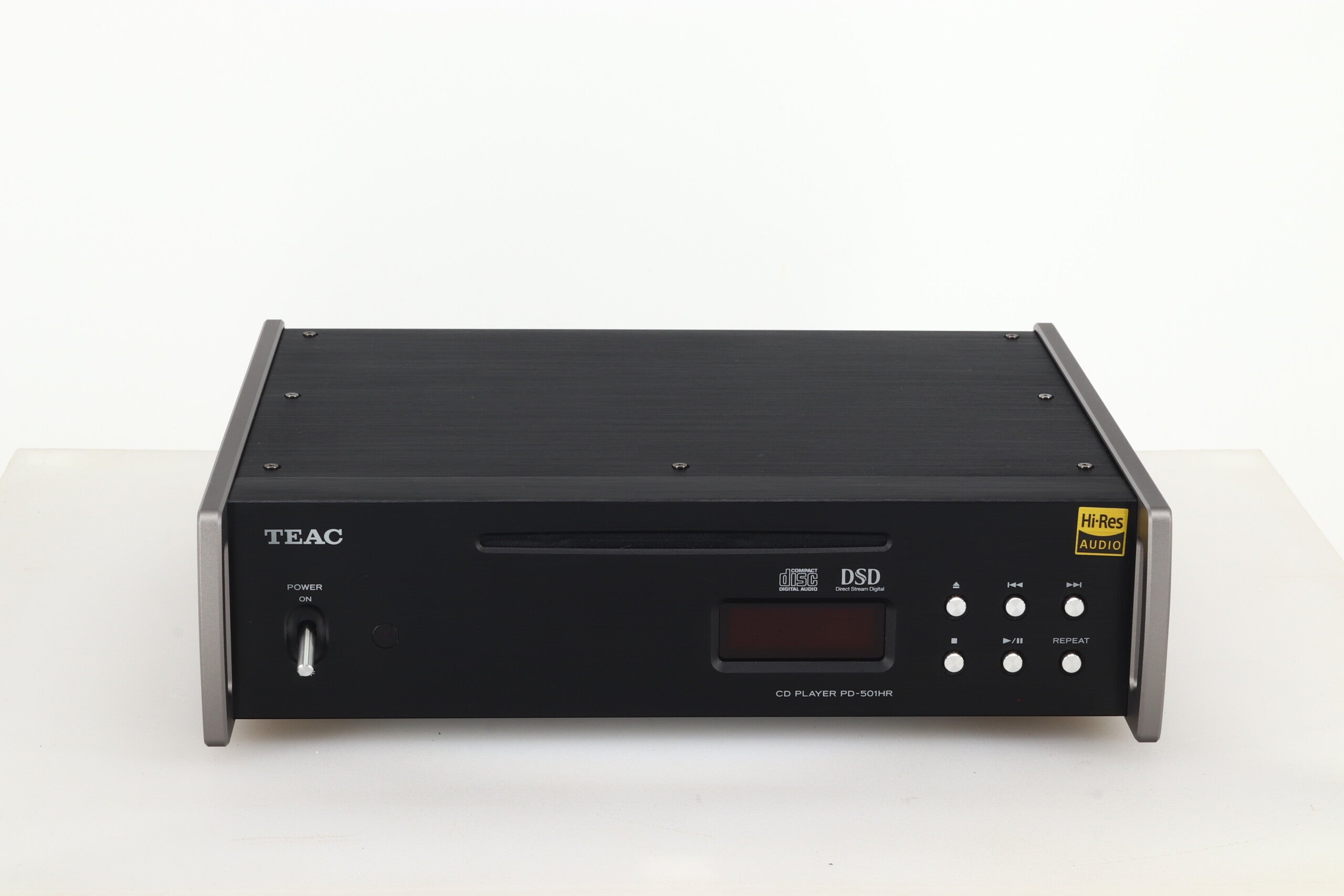

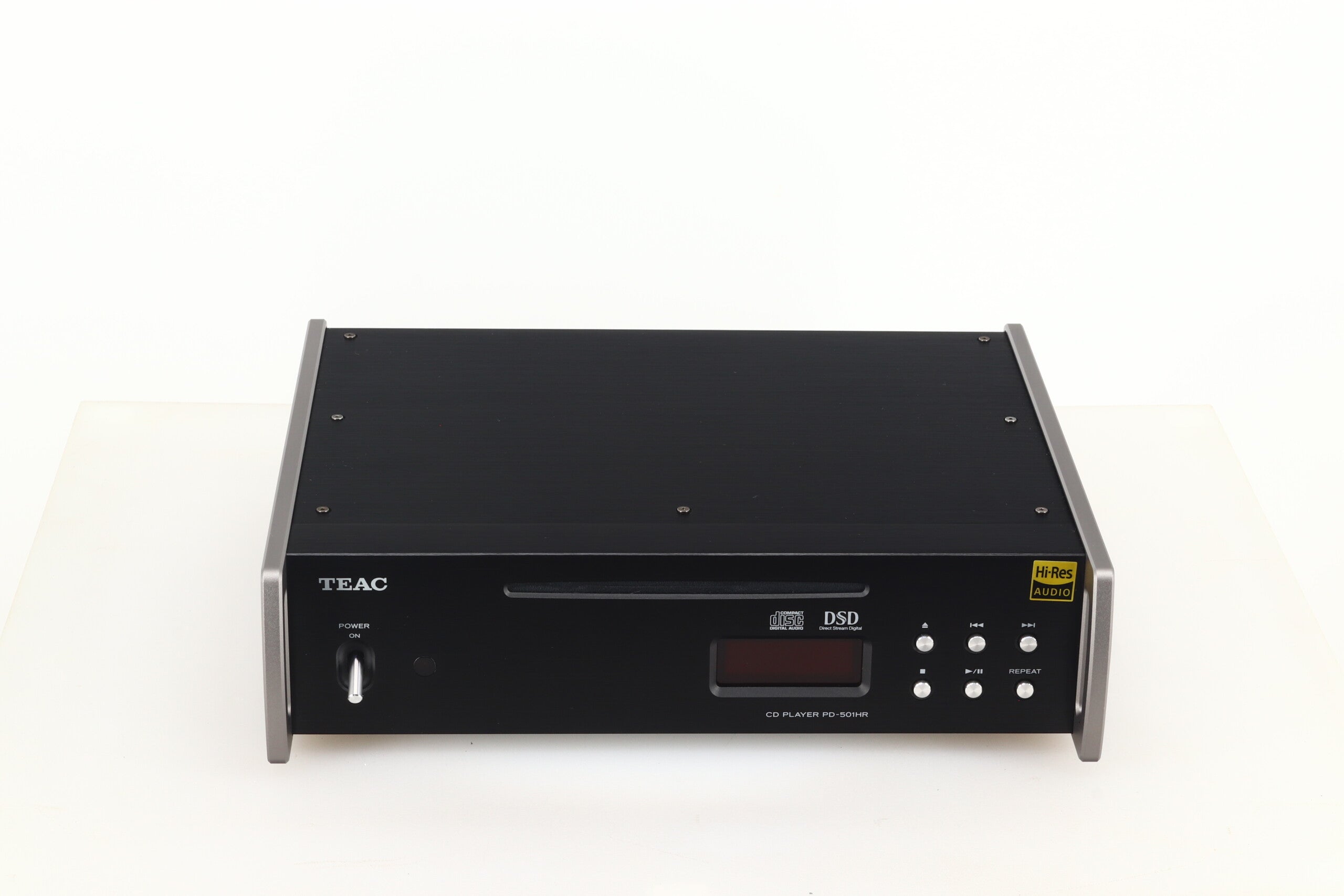

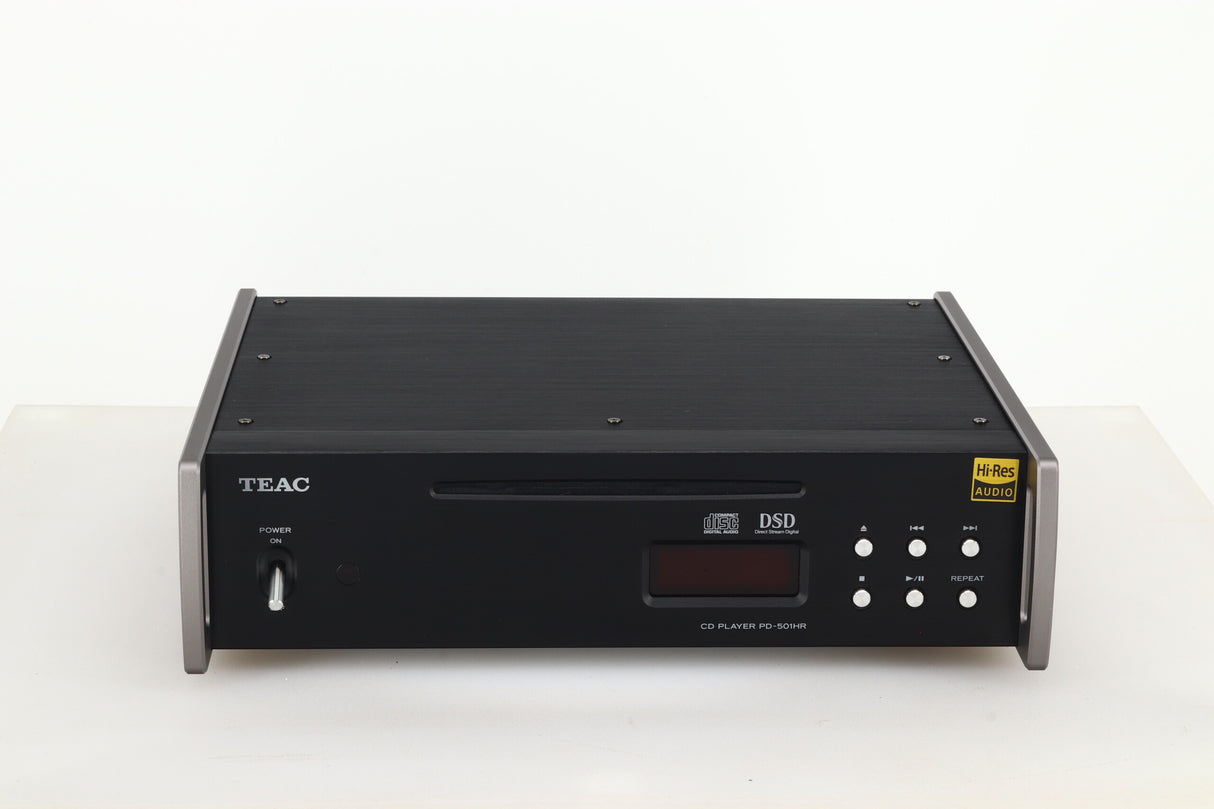

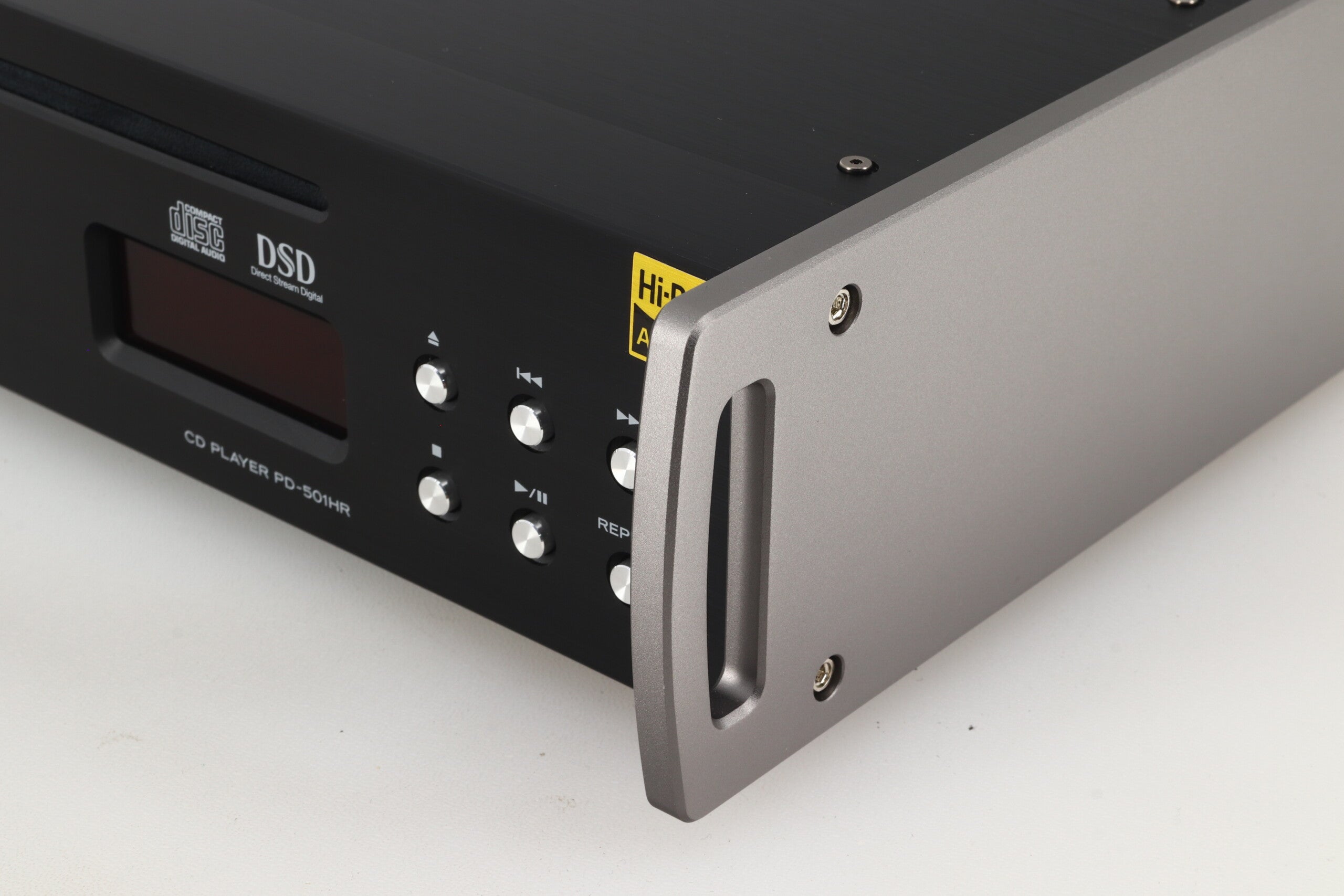

Teac PD-501HR CD Player - Black

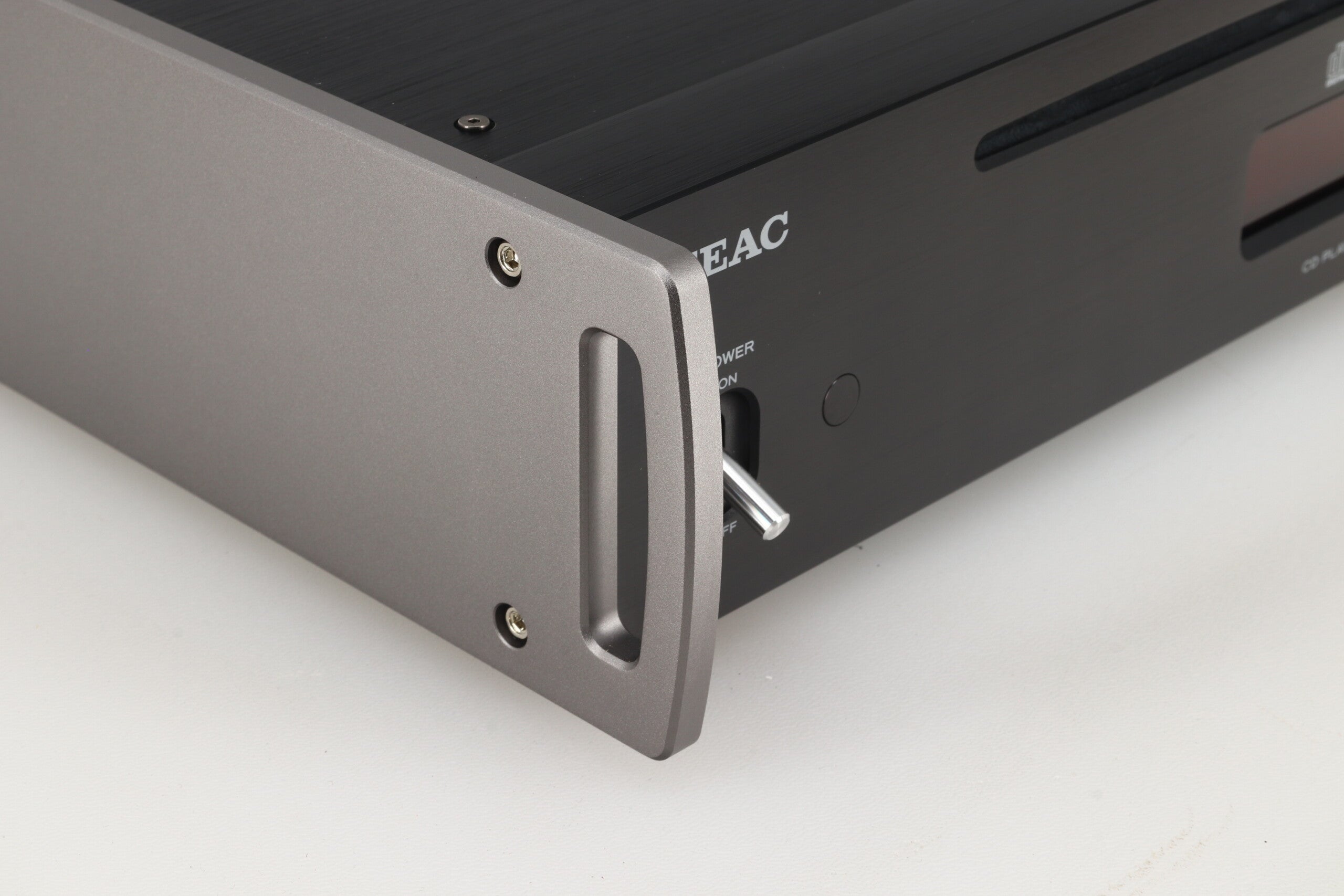

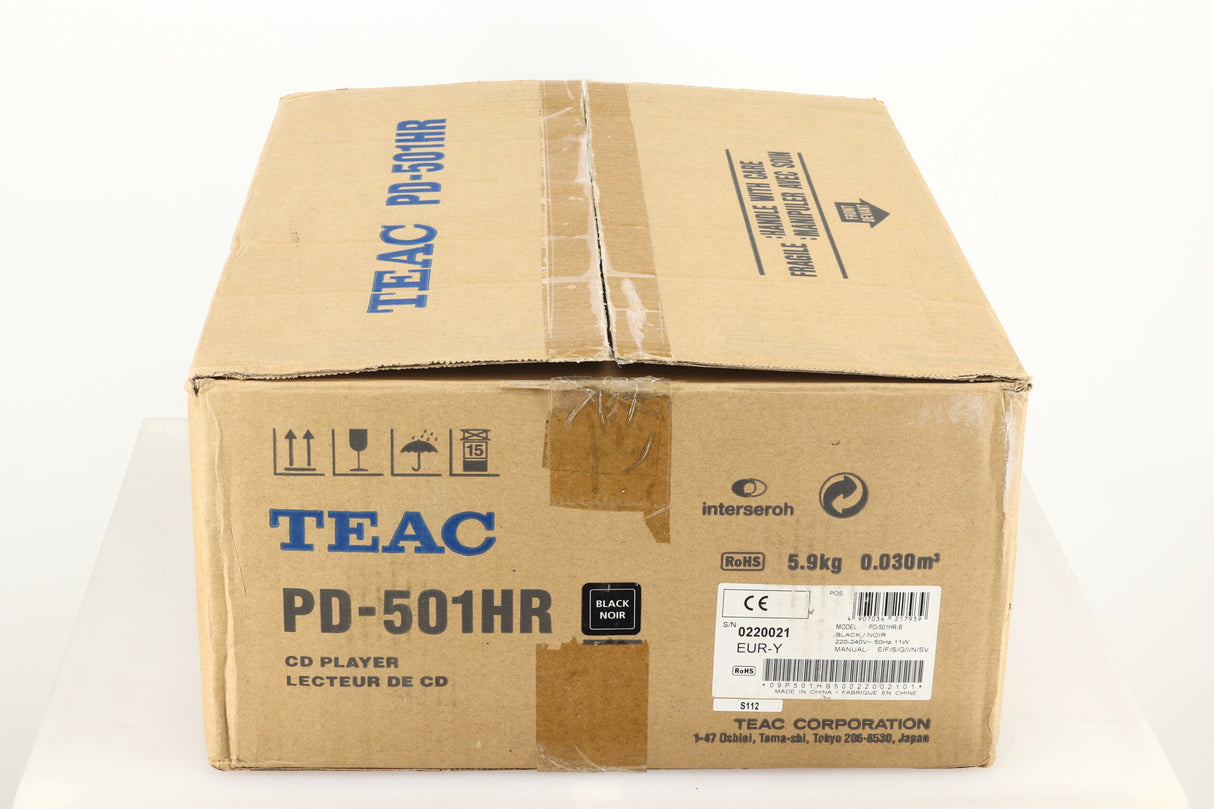

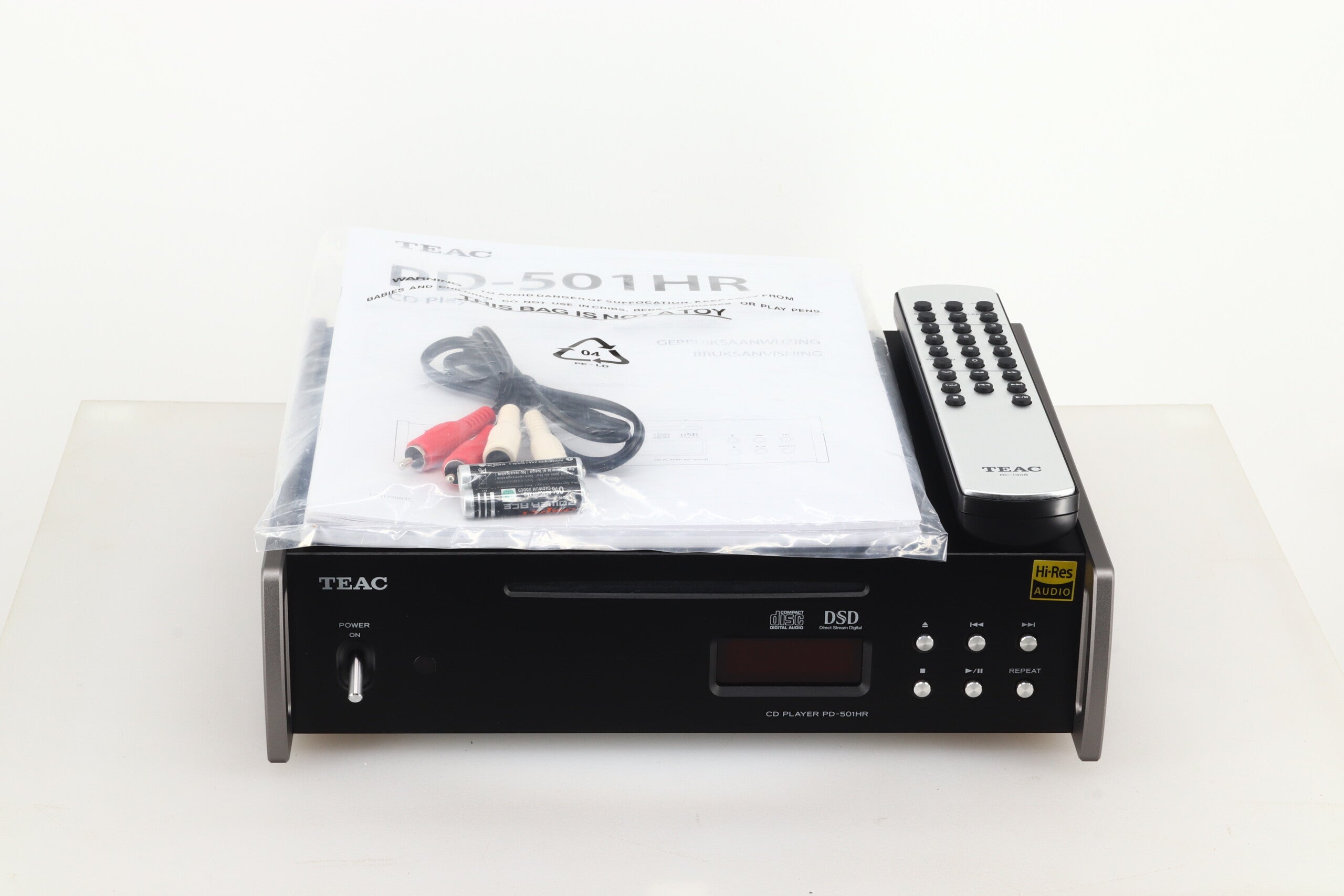

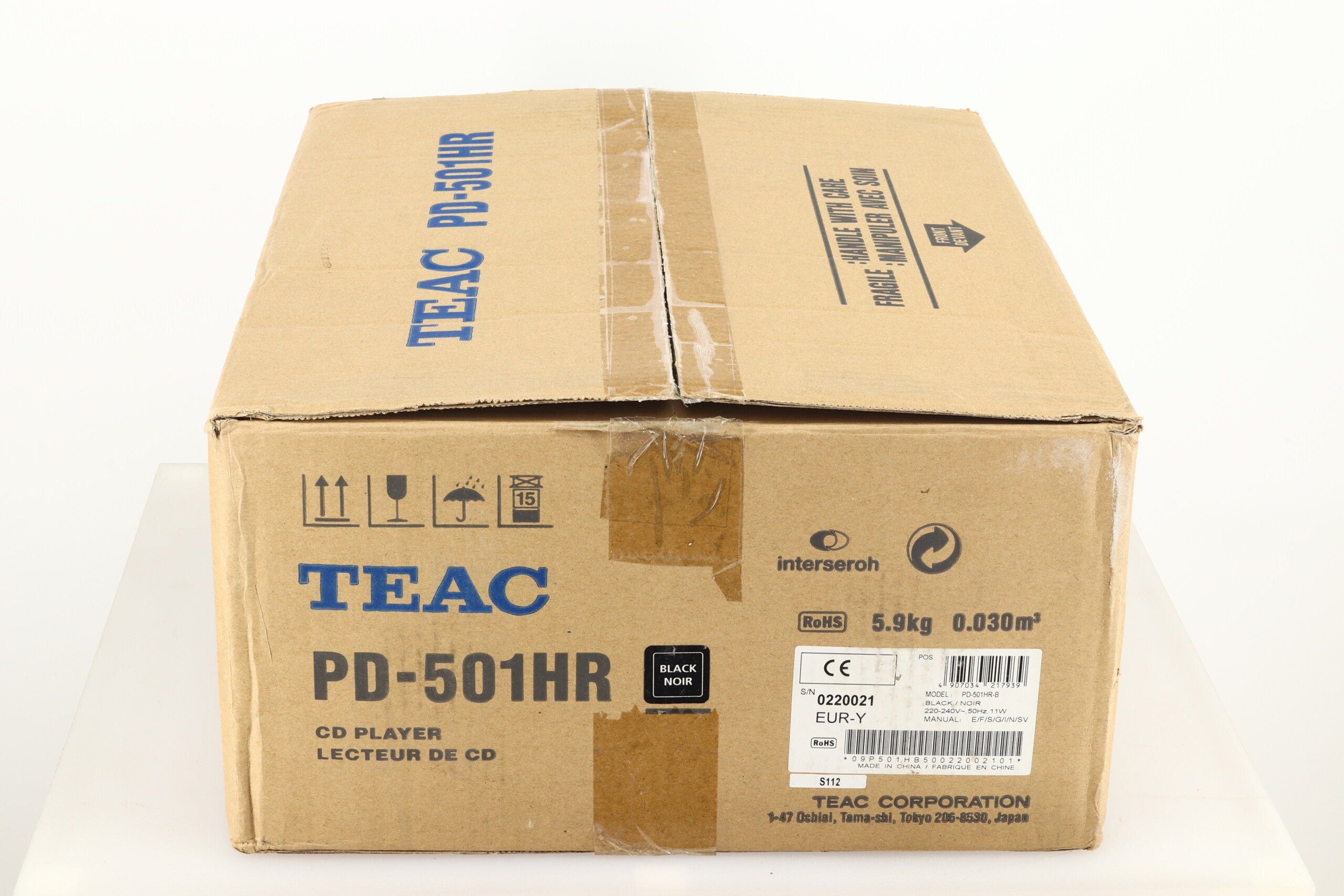

An excellent example of this CD player from Japanese specialist TEAC. It comes boxed with remote and manual. Full working order with 3 months warranty. Dark patch to top panel but generally great condition.

TEAC say...

Supports 2.8/5.6MHz DSD disc playback (dsf format on recordable DVD discs)
Supports 24bit/192kHz PCM disc playback (wav format on recordable CD/DVD discs)
Supports CD-DA disc
Center-mount mechanism design with slot-in drive
VACS vibration control stabilize mechanism
Cirrus Logic CS4398 D/A Converter
BlackFin processor for signal processing
JRC NJM5532 for operational amplifier
Separated power supply for digital and analog sections
Schottky Barrier Diodes for stable current supply
Pure mode for DSD/PCM processing
6-layer glass epoxy circuit boards for simplified signal paths
Max 11 watts of low power consumption
Auto power saving mode (user selectable)
Repeat play (1/All/Folder), Shuffle play, Max 99 tracks program play

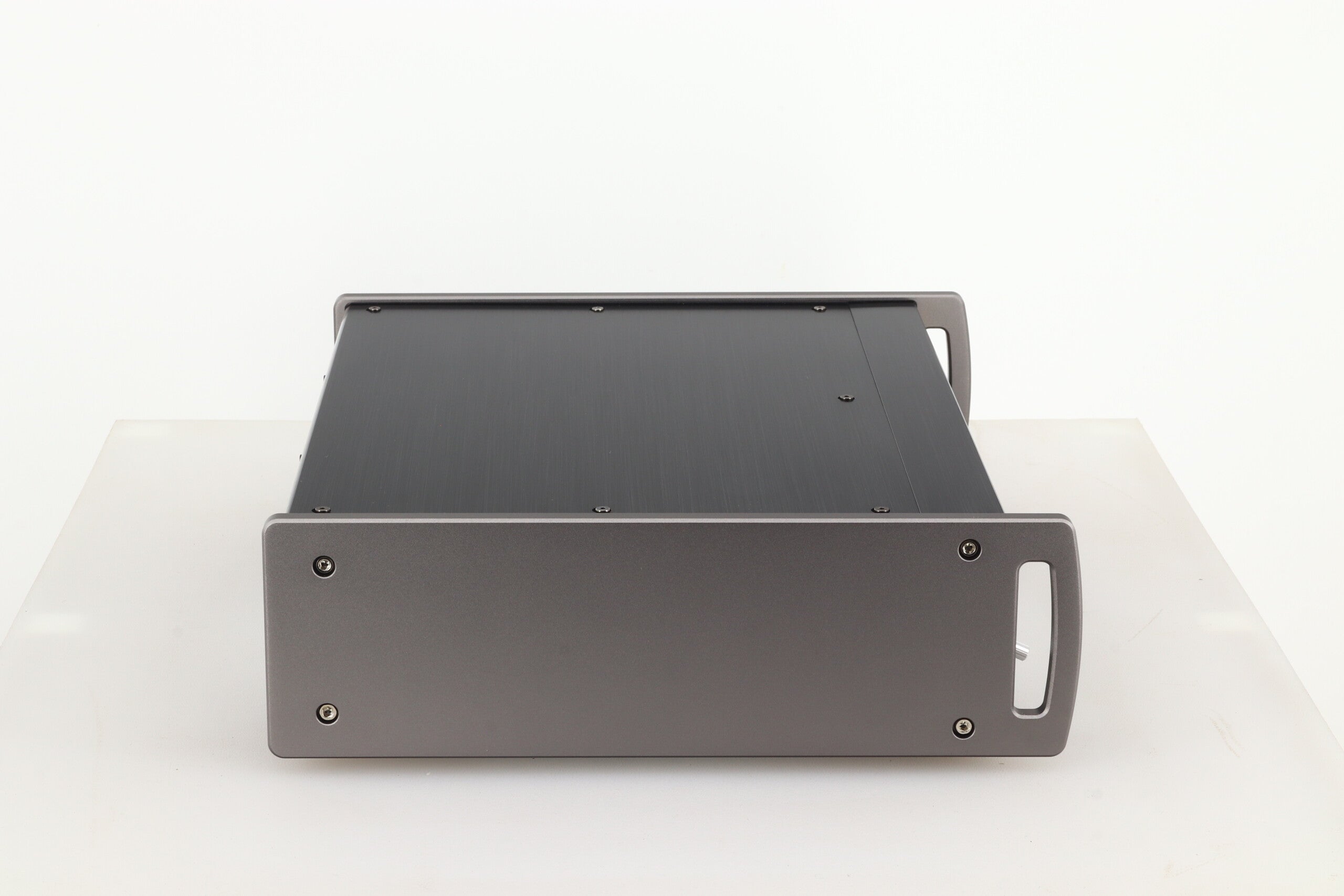

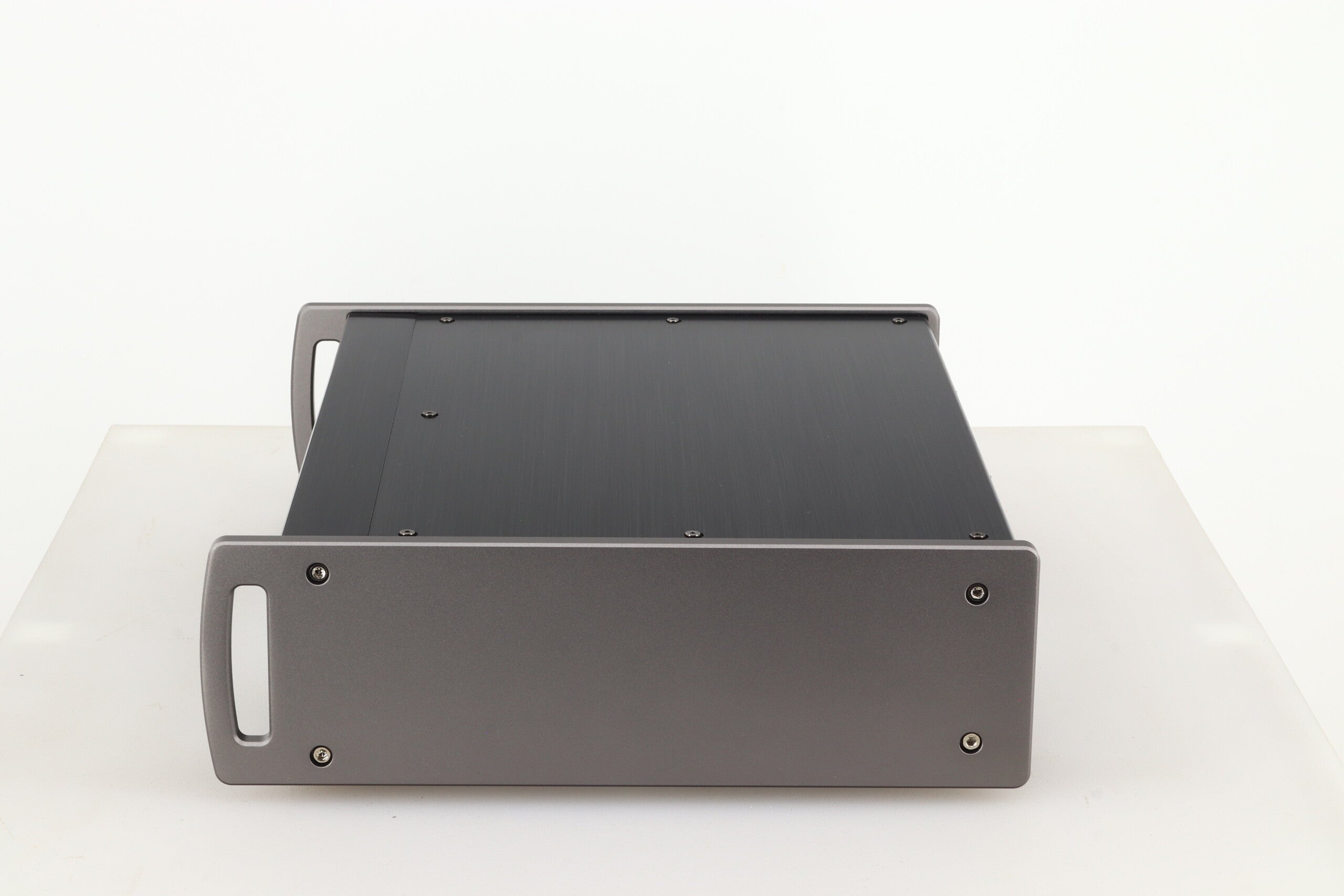

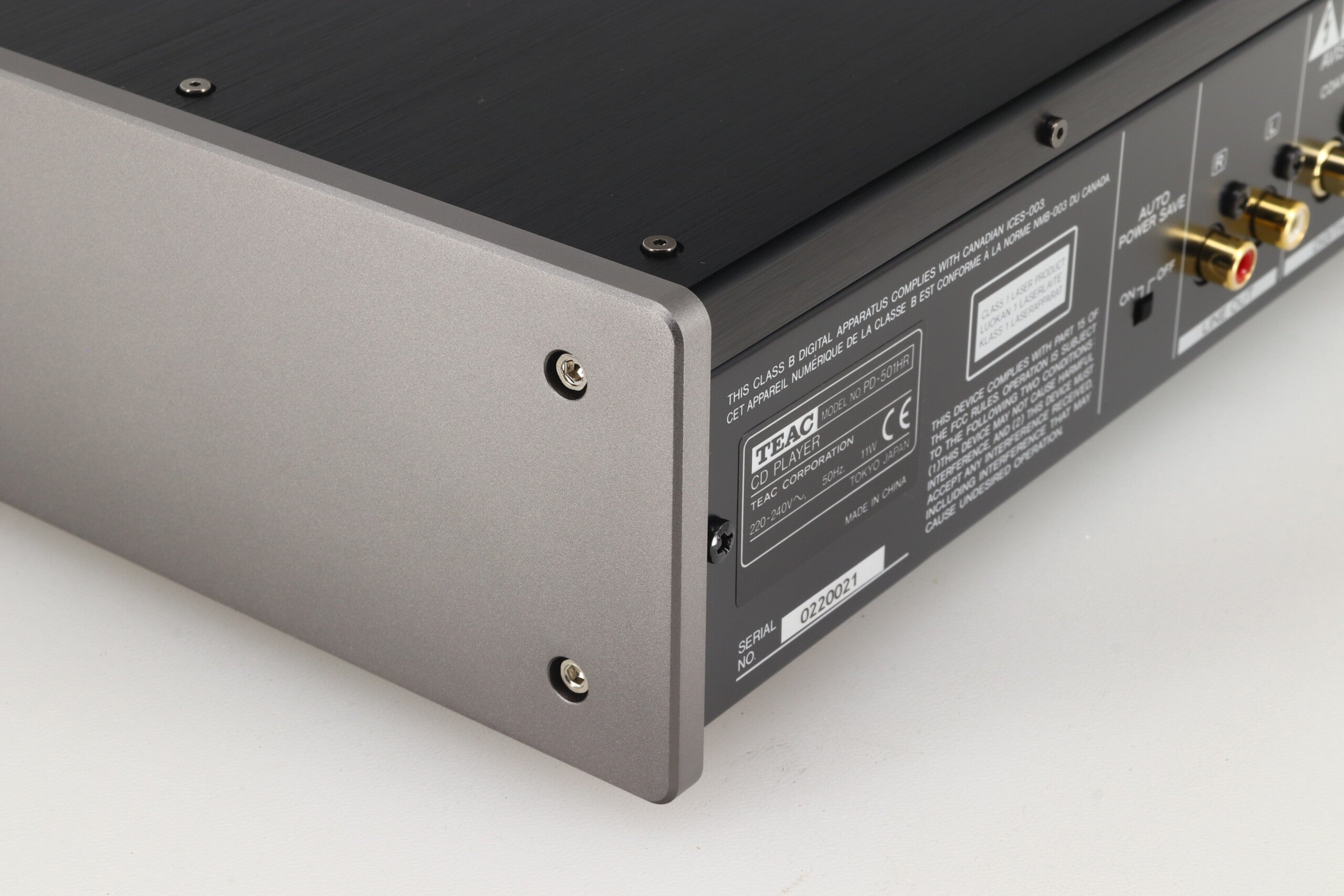

Full metal body
Organic EL display with dimmer

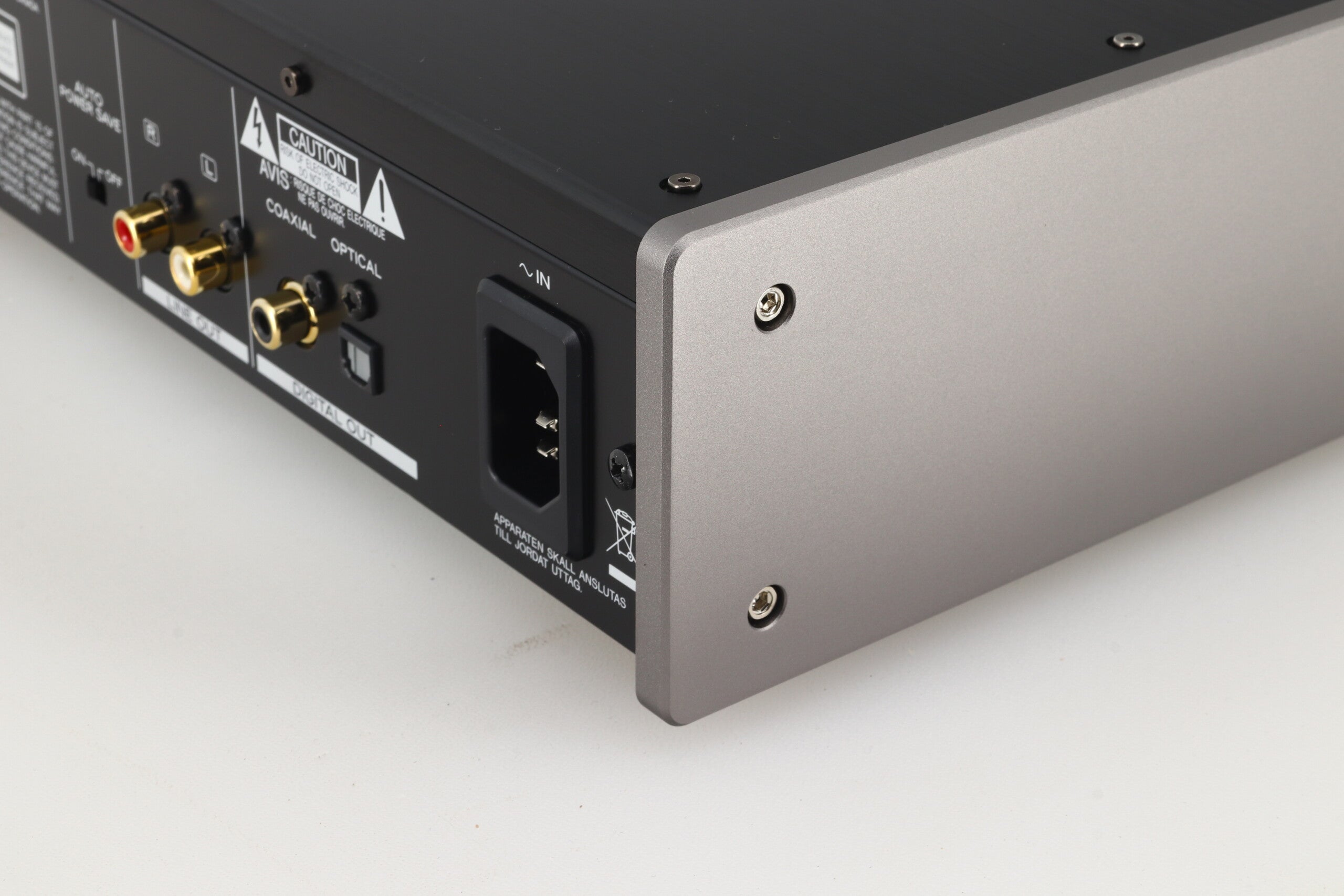

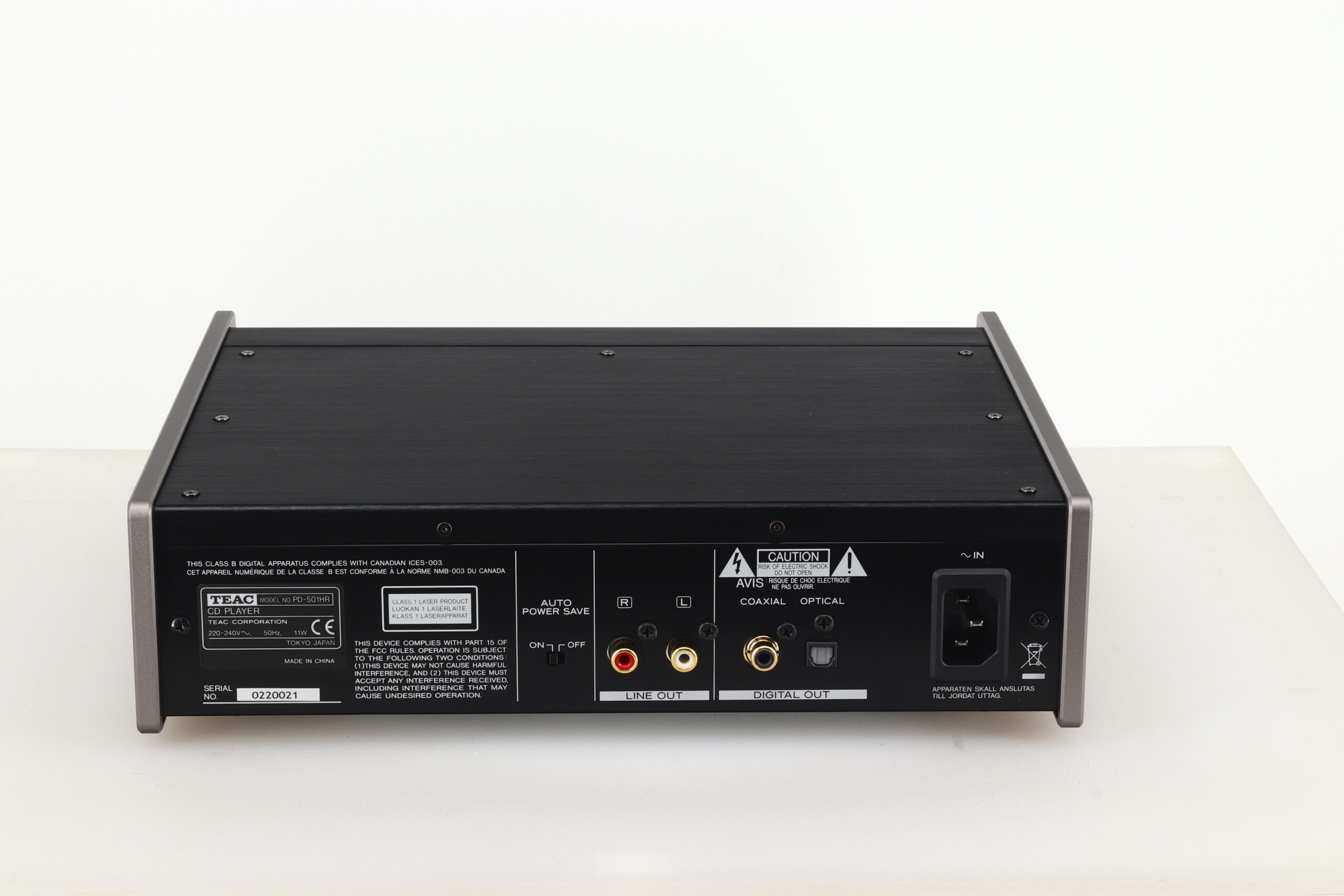

1 Optical digital output
1 Coaxial digital output
1 Analog unbalanced RCA output
Remote control

Supported Media CD-DA, CD-ROM, CD-R, CD-RW (ISO9660 Level 1/2/Joilet)
DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW (UDF, DVD-ROM compatible)
*SACD is not supported
*Only 12cm discs can be used
Supported Audio Formats
CD-DA (Audio CD ) 44.1kHz
16bit
PCM (WAV) 44.1kHz, 88.2kHz, 176.4kHz, 48kHz, 96kHz, 192kHz
16/24-bit
DSD 2.8MHz, 5.6MHz
Audio Performance
CD-DA
Frequency range 20Hz – 20kHz
S/N ratio 116dB
Distortion 0.0013%
Dynamic range 103dB
PCM(192kHz/24-bit)
Frequency range 20Hz - 80kHz
S/N ratio 116dB
Distortion 0.0004%
Dynamic range 118dB
DSD
Frequency range 20Hz - 80kHz
S/N ratio 116dB
Distortion 0.0005%
Dynamic range 112dB
Analog output
RCA
Connector RCA Pin Jack
Output impedance 100 ohms
Nominal output voltage level 0.32Vrms
Digital outputs The sampling frequency and bit rate used by the digital outputs (COAXIAL and OPTICAL) are the same as for the playback source. During DSD playback or CD/PCM playback in pure mode, however, nothing is output from the digital outputs.
COAXIAL
Connector RCA Pin Jack
Output impedance 75 ohms
Output level 0.5Vp-p
OPTICAL
Connector TOS-link
Output impedance -24.0 to -14.5 dBm peak
Output level 0.5Vp-p
Operation Power 120V AC, 60Hz
Power Consumption 11W (Auto power save standby mode: 0.1W)
Overall Dimensions 290 (W) x 81.2 (H) x 244 (D) mm
11.4" (W) x 3.2" (H) x 9.6" (D)
Net Weight 4.2kg (9 3/8 lb)
