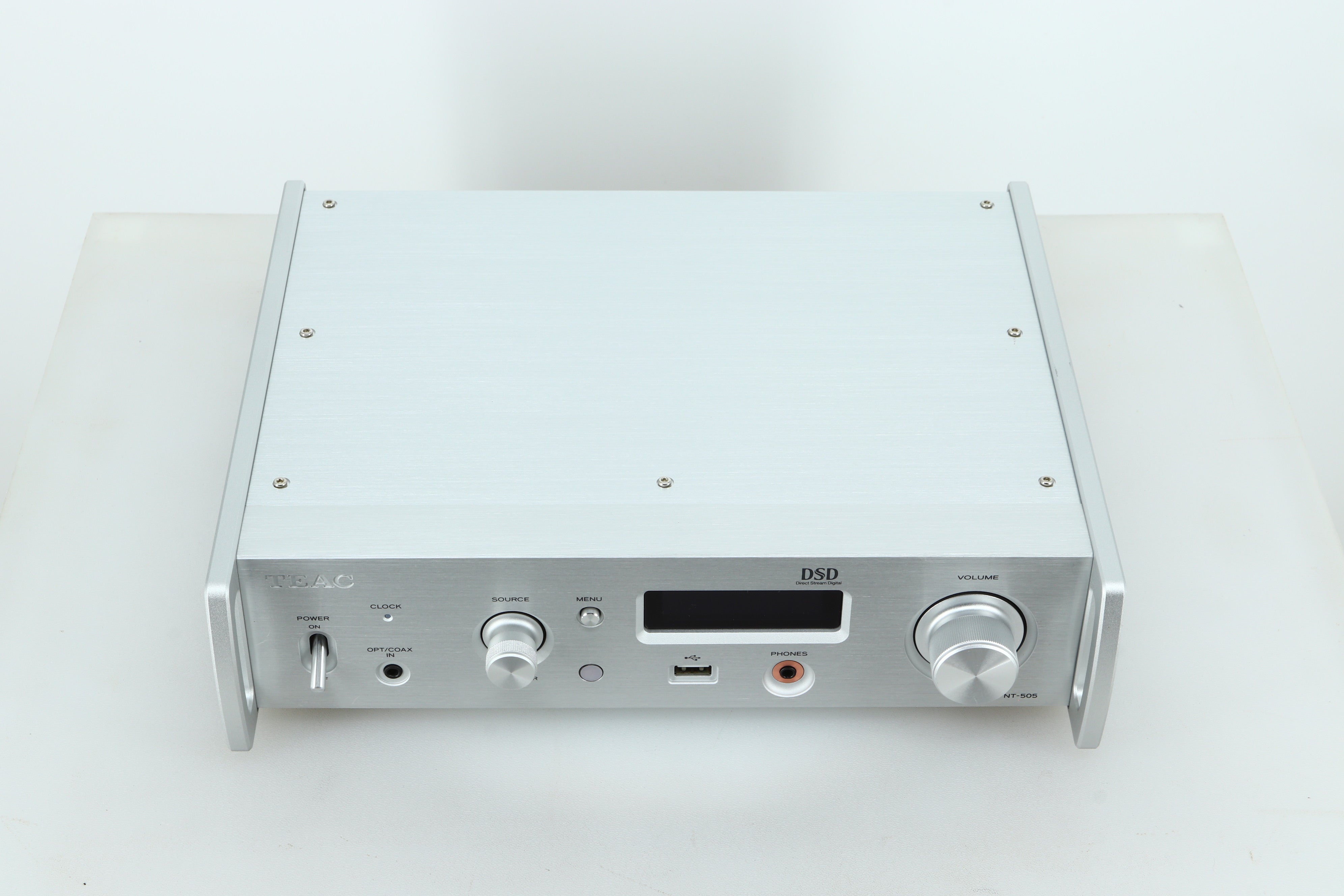

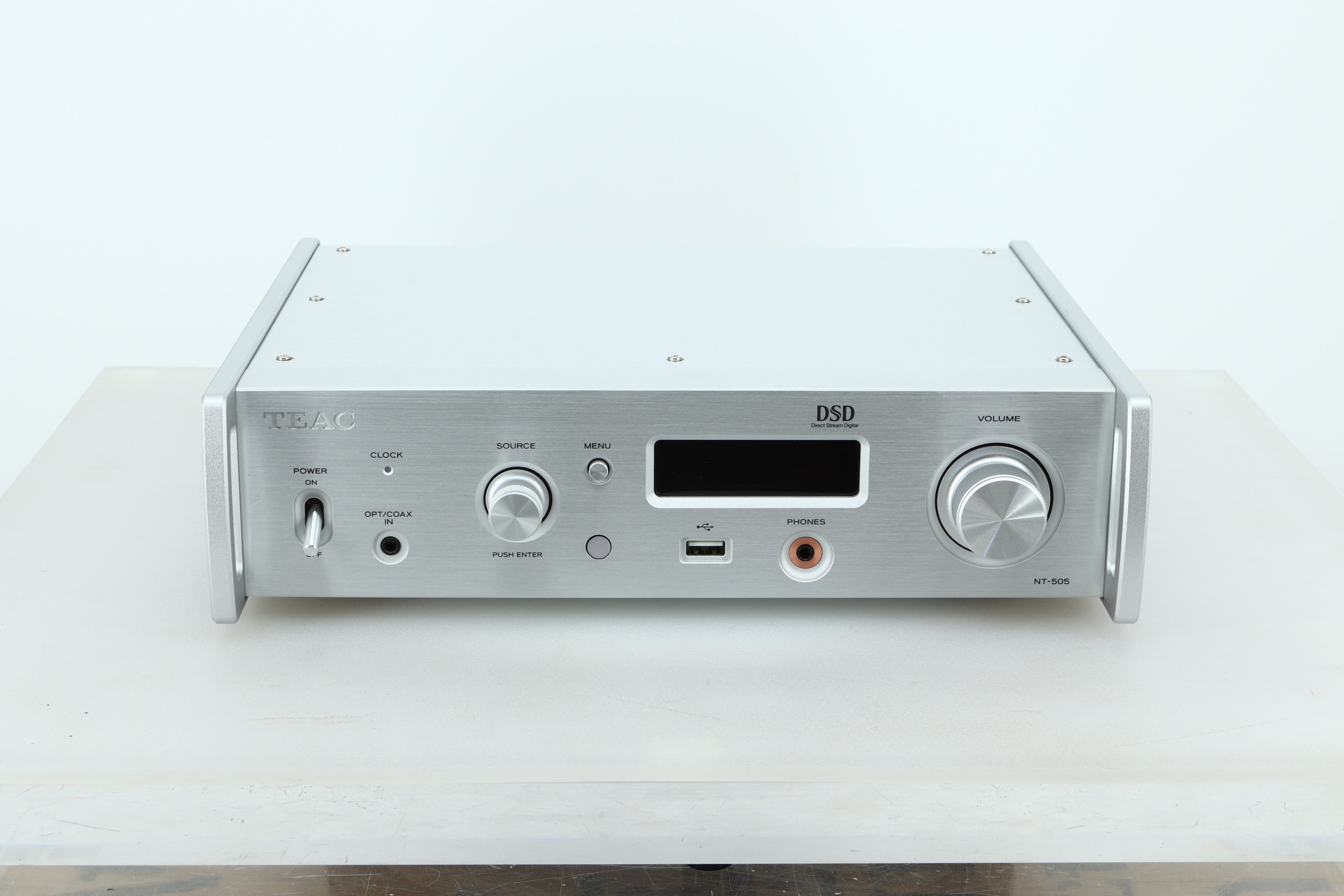

TEAC NT-505 DAC/ Network Player - Silver

The NT-505 is a flagship dual monaural USB DAC with versatile network playback capabilities. It successfully incorporates the latest network technologies, along with TEAC’s decades of accumulated audio design experience, in an attractive package with an A4-sized footprint.
Like its predecessor (the NT-503) it employs a dual monaural circuit design to process audio signals with even greater purity, with the latest VERITA AK4497 DAC chip used on each of the two channels. This improves the S/N (signal to noise) ratio by processing each channel individually in monaural mode, as well as delivering DSD512 (22.5MHz) native and 768kHz/32-bit PCM playback capabilities.
The analogue section, which is one of the keys to sound quality, includes four TEAC-HCLD buffer amp circuits that allow different drive modes, - fully-balanced drive for balanced output, and parallel drive mode for unbalanced output - to achieve enhanced acoustic expression.
On the network audio side, the NT-505 supports high-quality music subscription services, namely TIDAL and Qobuz, and is Roon Ready. There’s also a built-in MQA decoder, and you will enjoy unlimited music content on the Internet thanks to its high-quality digital and analogue processing technologies.
In addition to a wide range of digital and analogue inputs, a Bluetooth® receiver supporting LDAC™ and Qualcomm® aptX HD™ allows you to stream high-quality audio wirelessly from your smartphone to this flagship USB DAC.
The NT-505 is a compact and high-spec USB DAC and network player that supports the latest Hi-Res formats and online music subscription services.

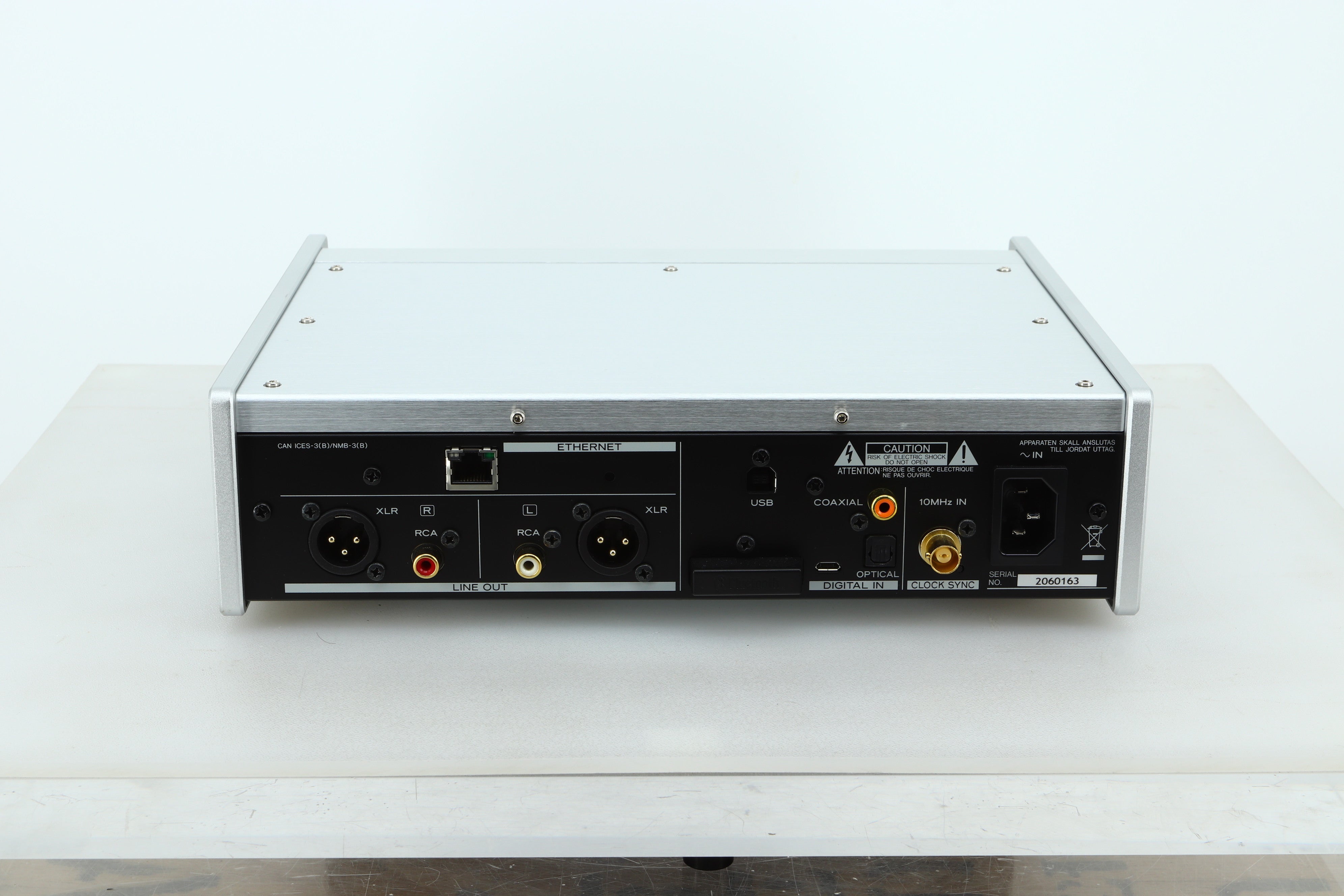

Analogue Audio Outputs -

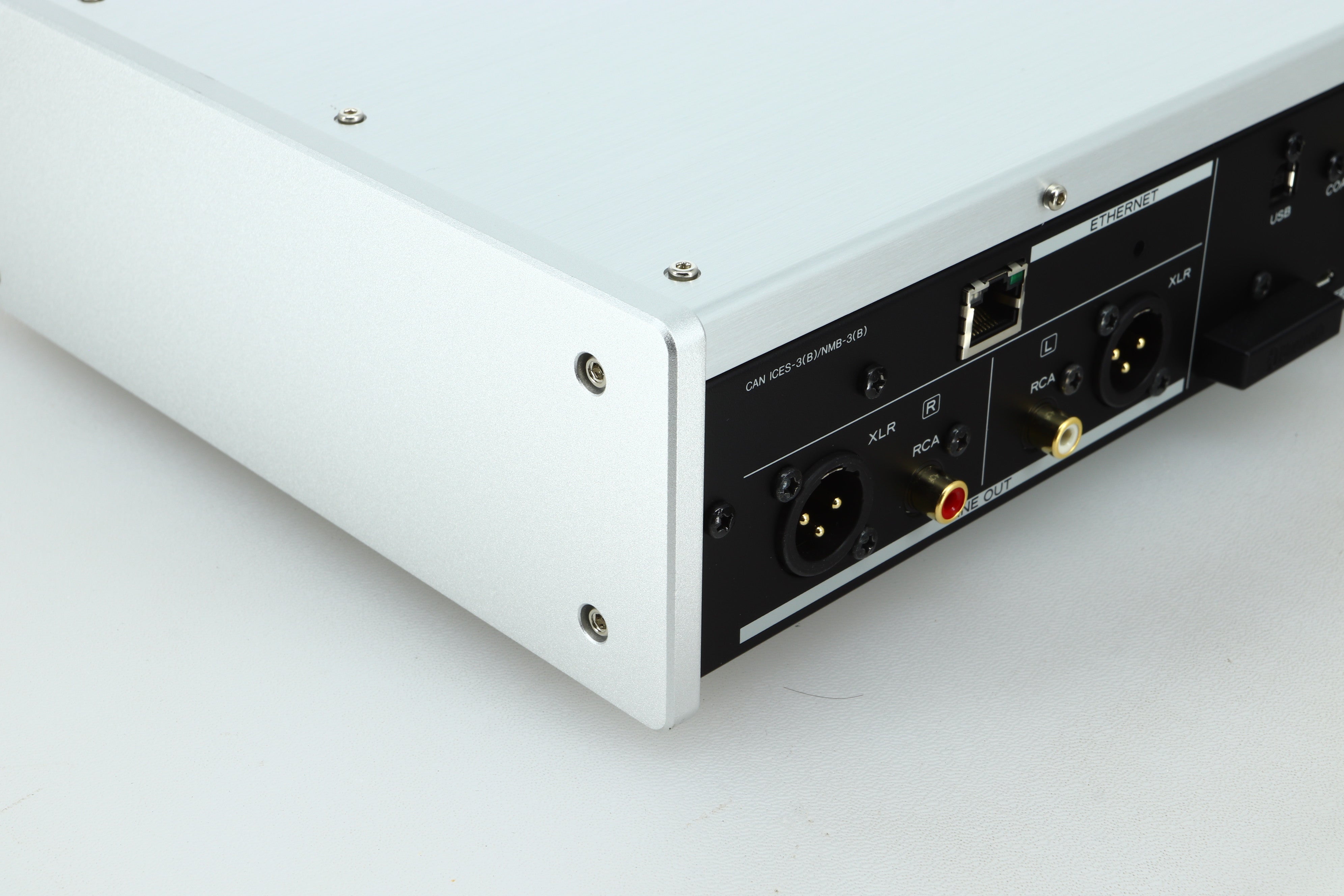

Connectors: 1 pair XLR Connectors; 1 pair RCA Connectors
Output Impedance: XLR: 188 Ω; RCA: 150 Ω
Maximum Output Level (1 kHz/full-scale, into 10 kΩ)
- Fixed 0 dB: XLR/RCA: 2.0 Vrms
- Fixed + 6 dB: XLR/RCA: 4.0 Vrms
- Variable: XLR: 12 Vrms; RCA: 6 Vrms
Frequency response: 5 Hz - 80 kHz (+ 1 dB/- 5 dB)
Signal to Noise Ratio: 110 dB (A-Weight, 1 kHz)
Distortion: 0.0015% (1 kHz, LPF: 20 Hz - 20 kHz)

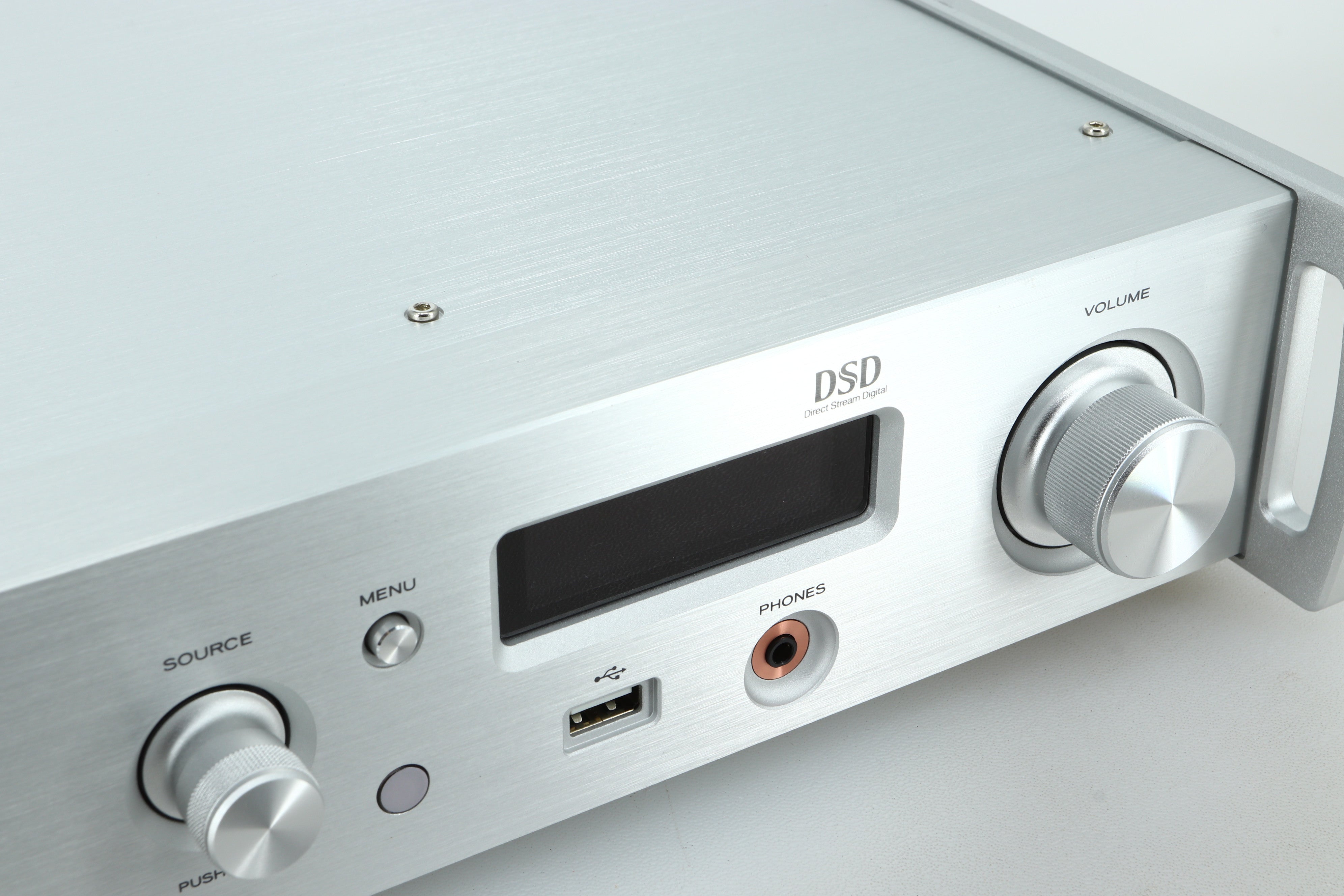

Headphone Connector: 3.5mm 4-pole stereo mini jack × 1
Headphone Maximum Effective Output: 500 mW into 32 Ω

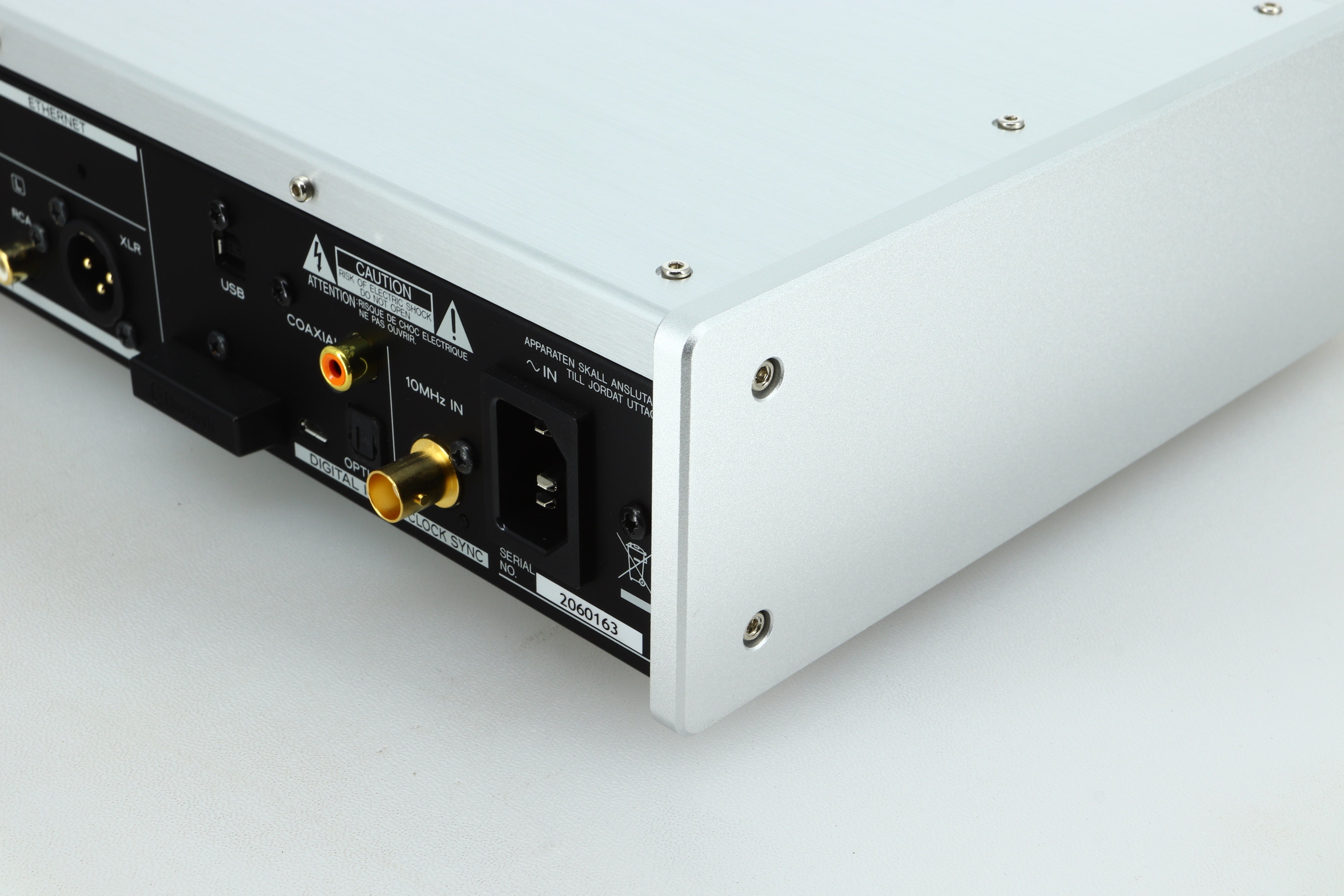

Digital Audio Inputs -
Coaxial Digital: RCA connector × 1; 3.5mm mini jack × 1 (0.5 Vp-p, 75 Ω)
Optical Digital: Square connector × 1; Round connector × 1 (- 24.0 to - 14.5dBm peak)
USB Flash Drive: USB Type A port (front) × 1 (USB 2.0 compliant)
USB: USB Type B port (rear) × 1 (USB 2.0 compliant)
PCM Data Sampling Frequency -
Coaxial Digital/Optical Digital: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
USB: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz
USB Flash Drive/Network: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz
Quantization Bit Depth -
Coaxial Digital/Optical Digital: 16/24-bit
USB/USB Flash Drive/Network: 16/24/32-bit
DSD Data Sampling Frequency -
Coaxial Digital/Optical Digital: 2.8 MHz (supported using 176.4 kHz/24-bit DoP transmission)
USB: 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz
USB Flash Drive/Network: 2.8/5.6 MHz
Power supply: AC 220 - 240 V, 50/60 Hz
Power consumption: 20 W (max); 0.4 W (standby)

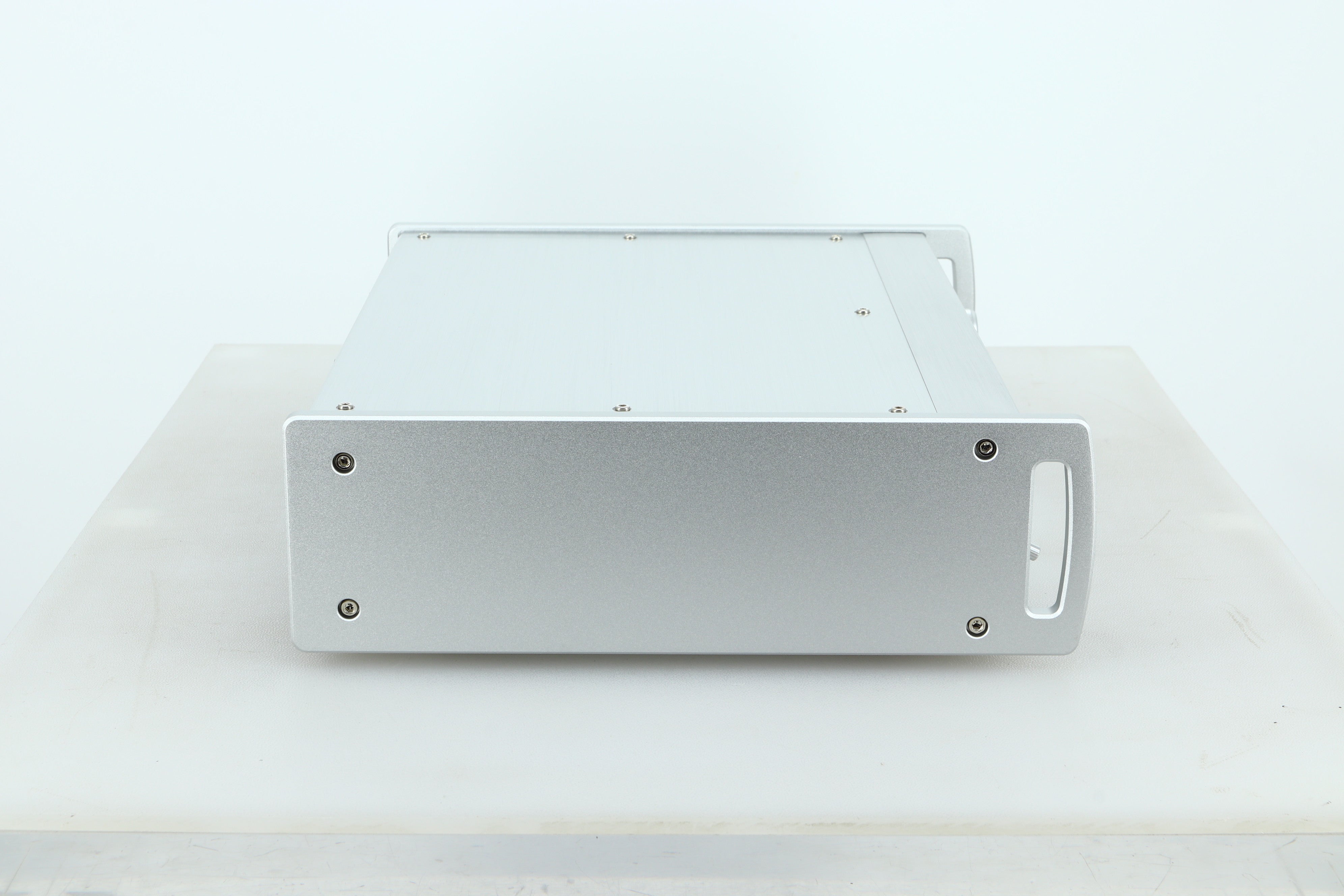

Dimensions: 290 (W) x 248.7 (D) x 81.2 (H) mm
Weight: 3.9 kg
