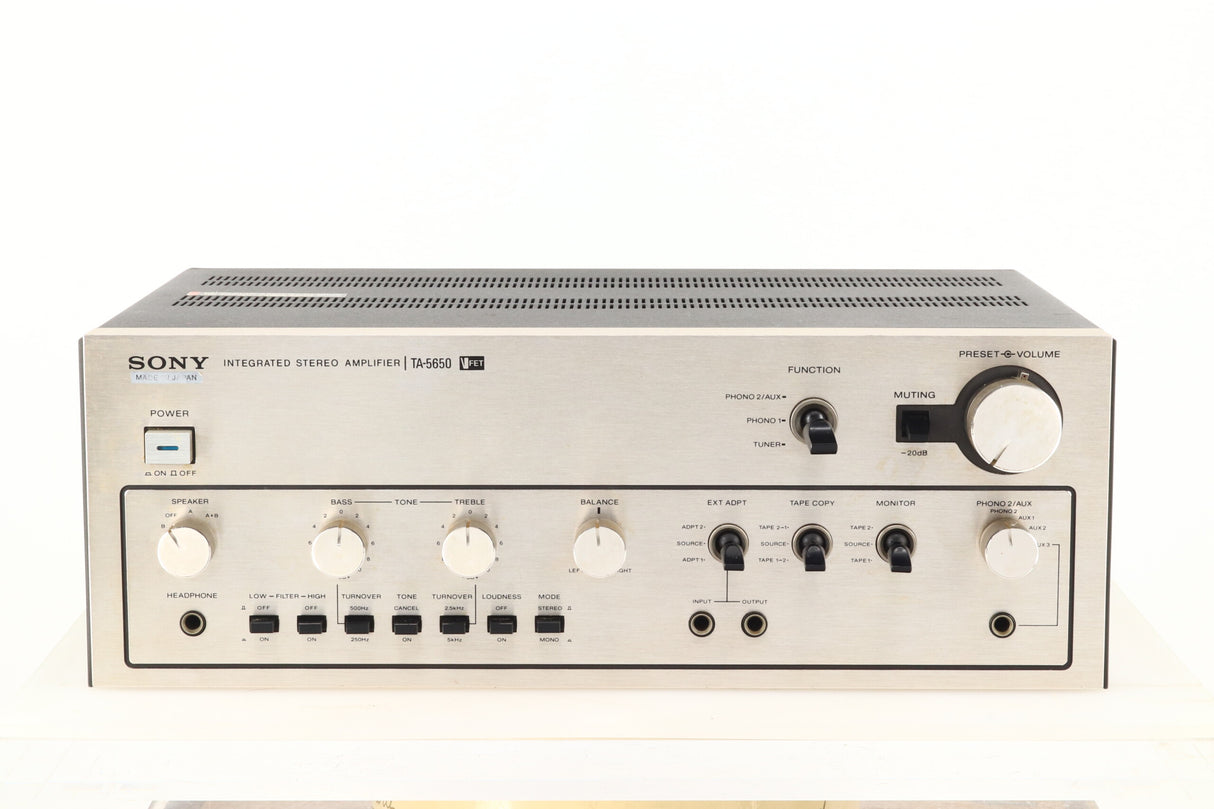

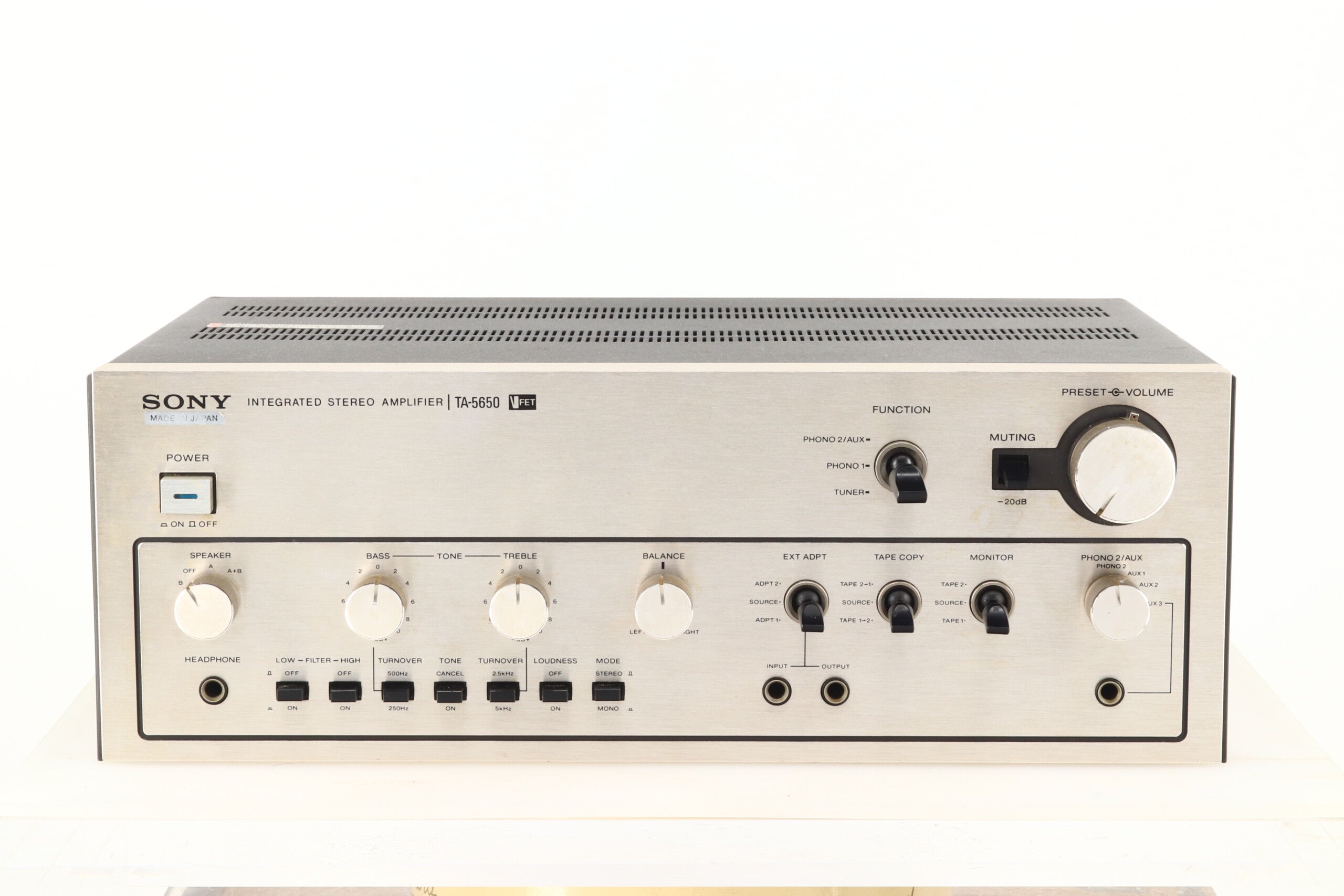

Sony TA-5650 Integrated Amplifier

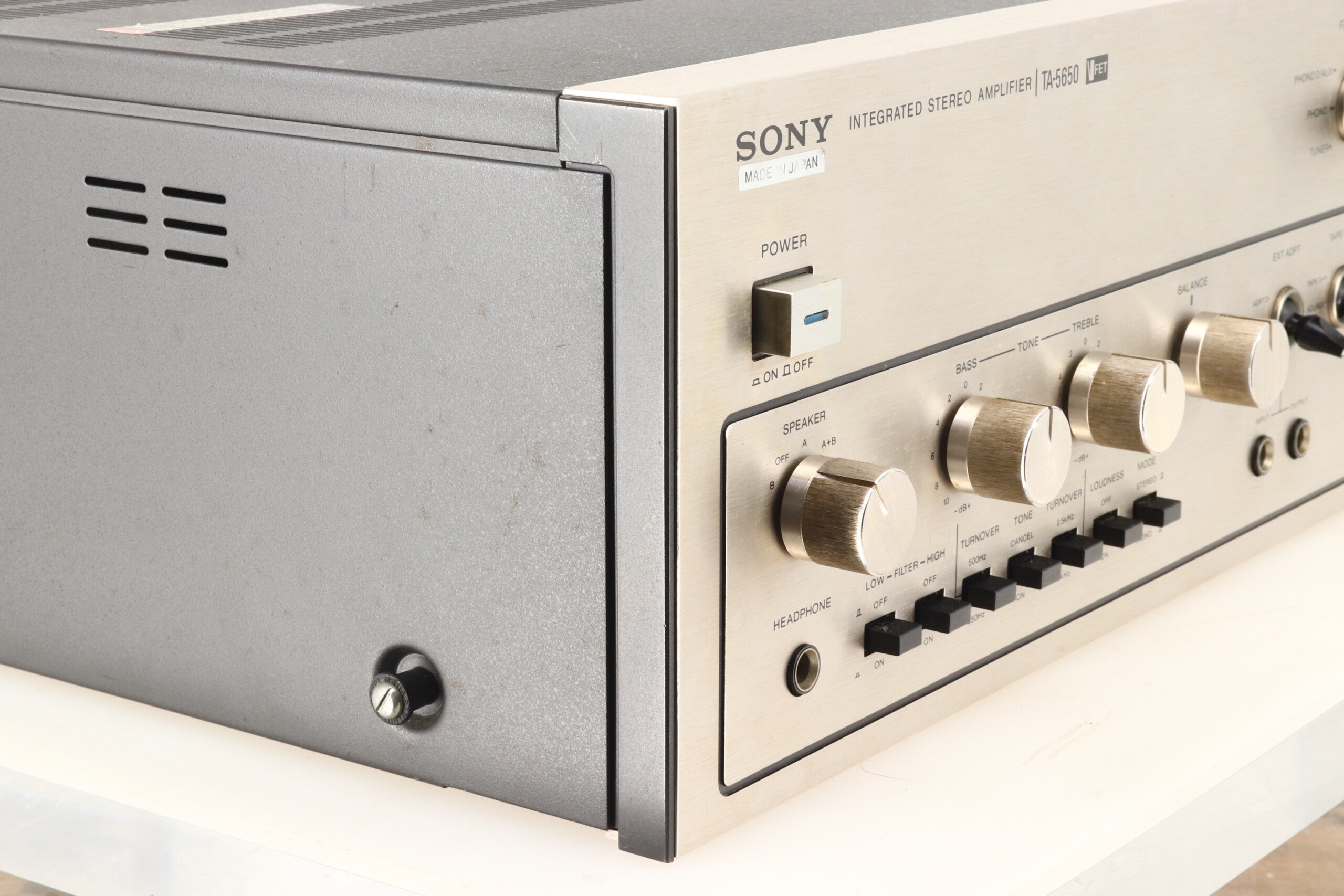

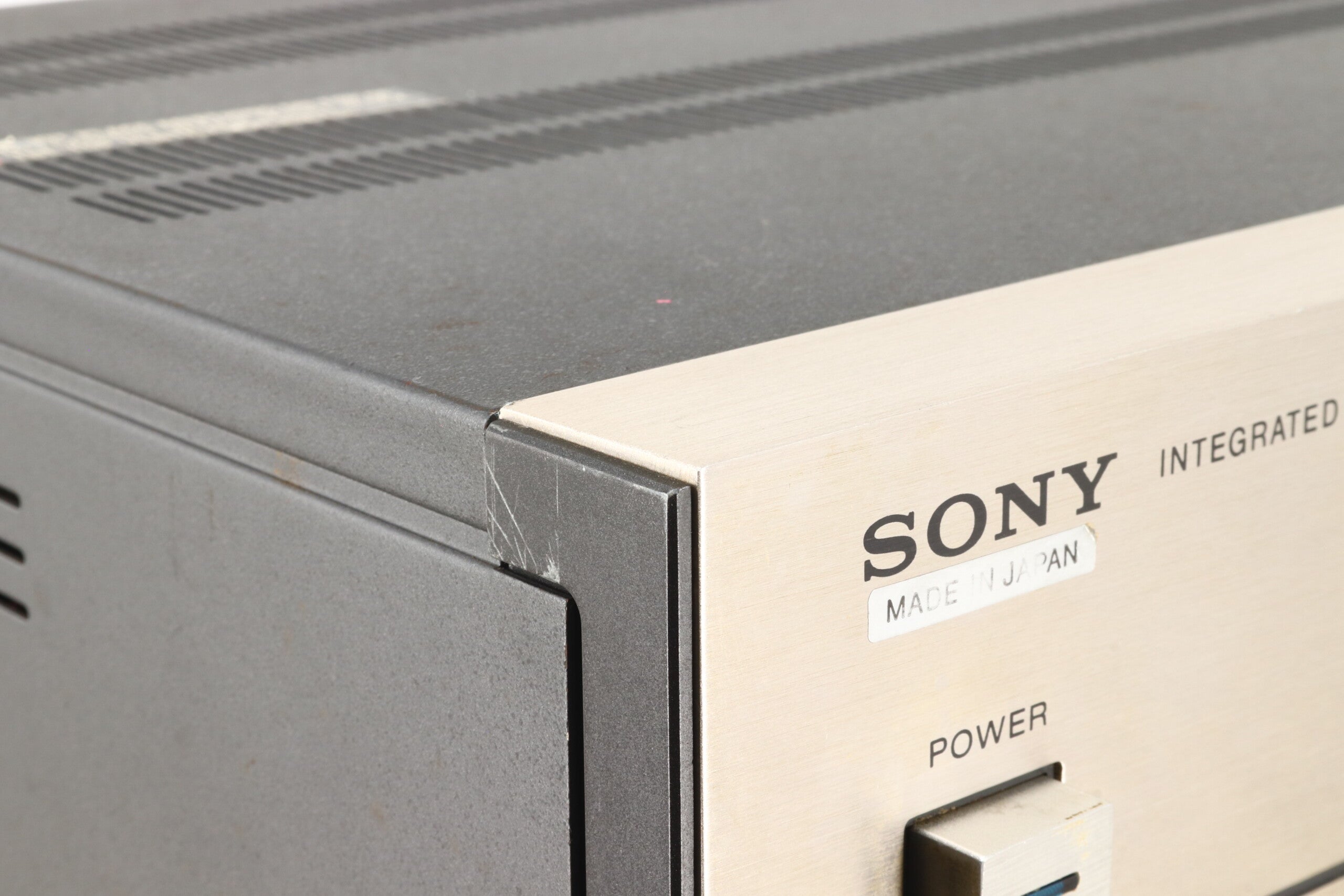

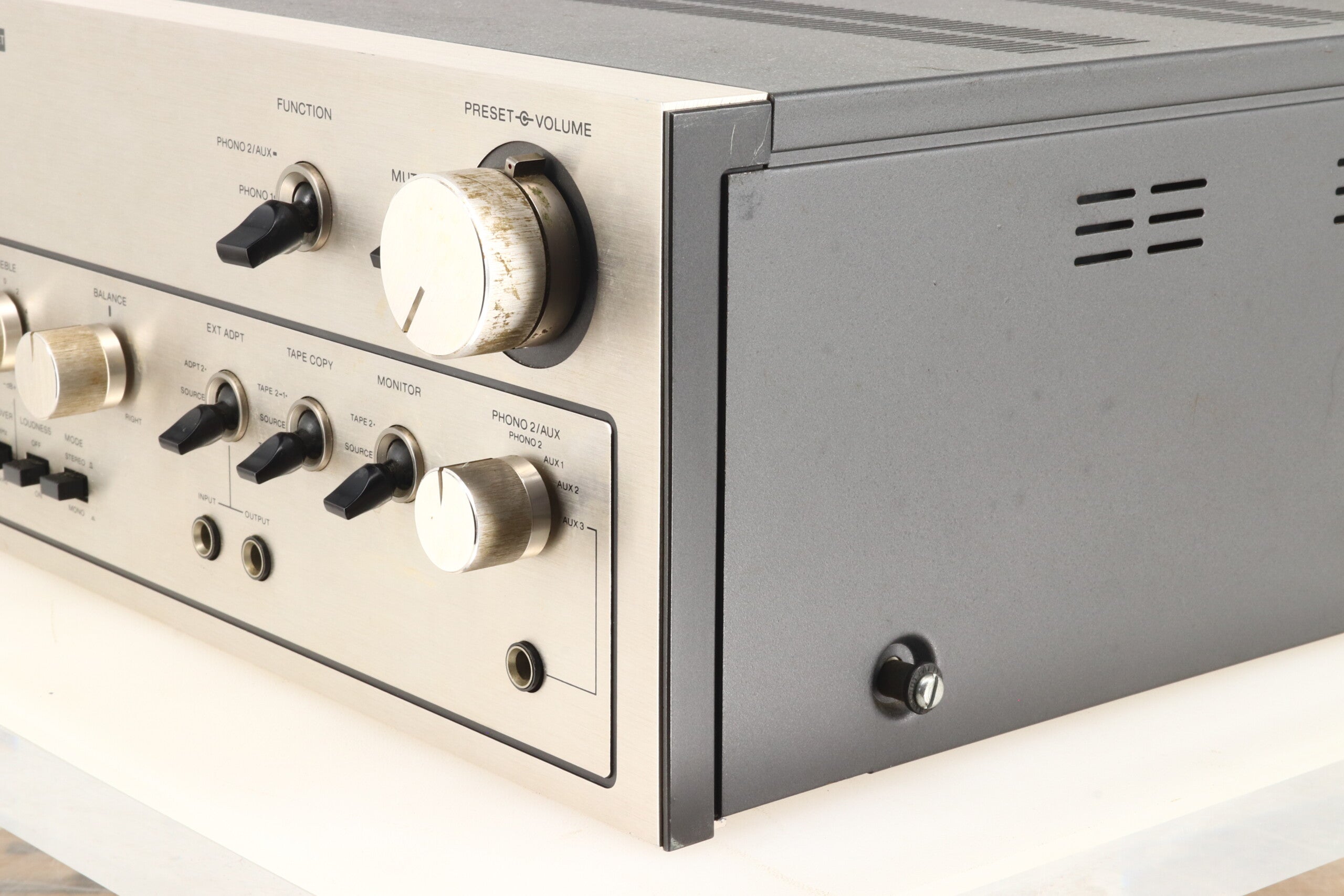

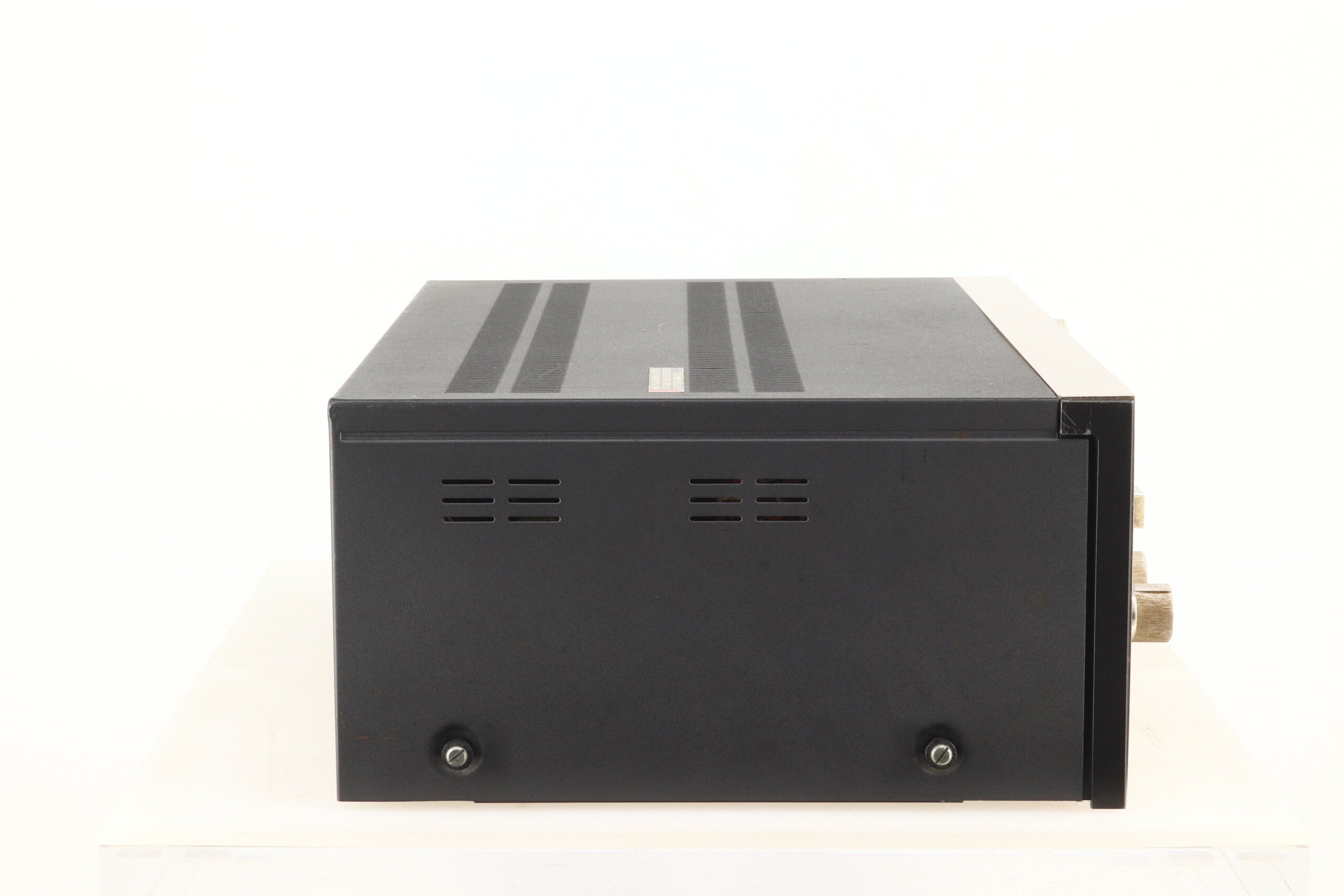

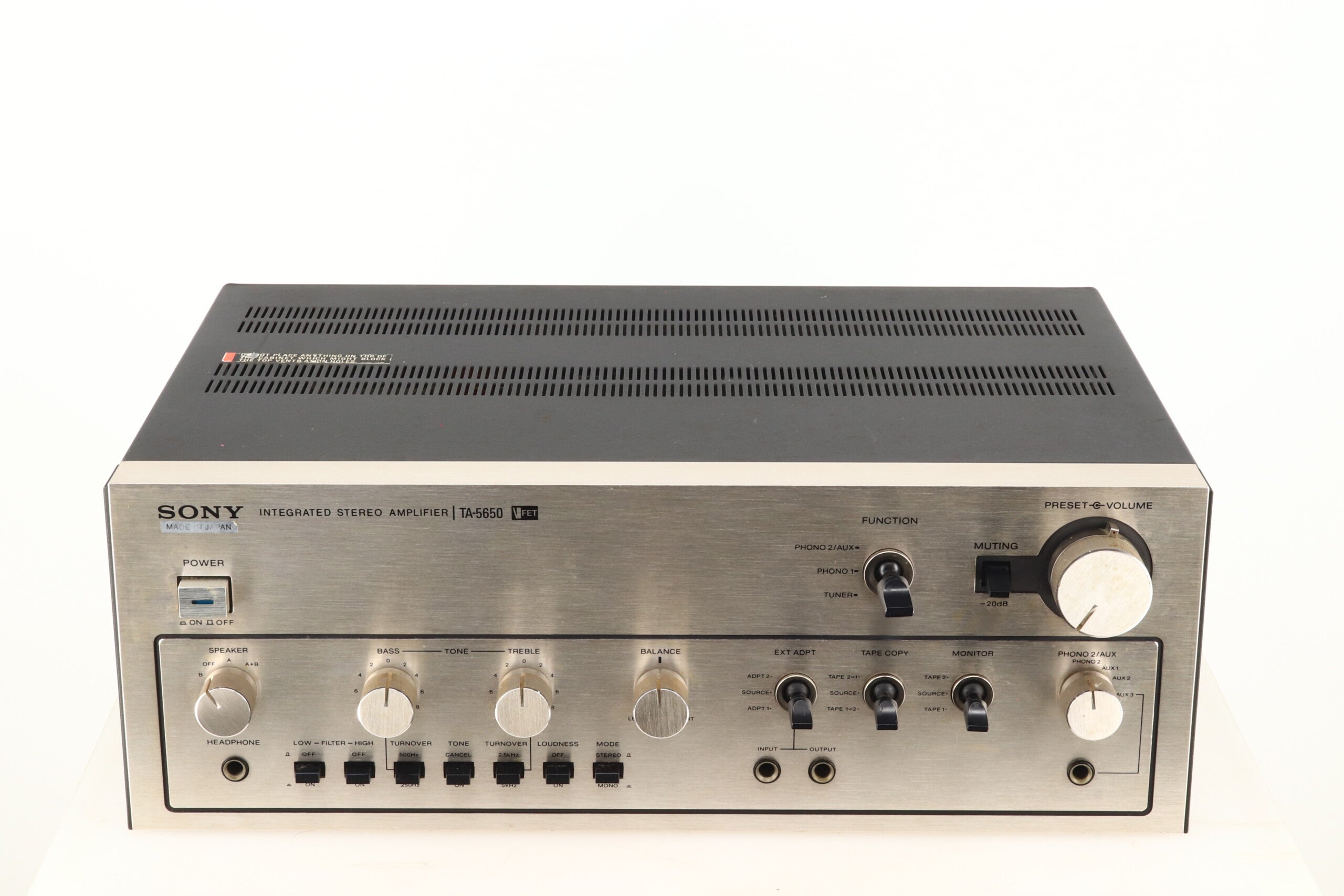

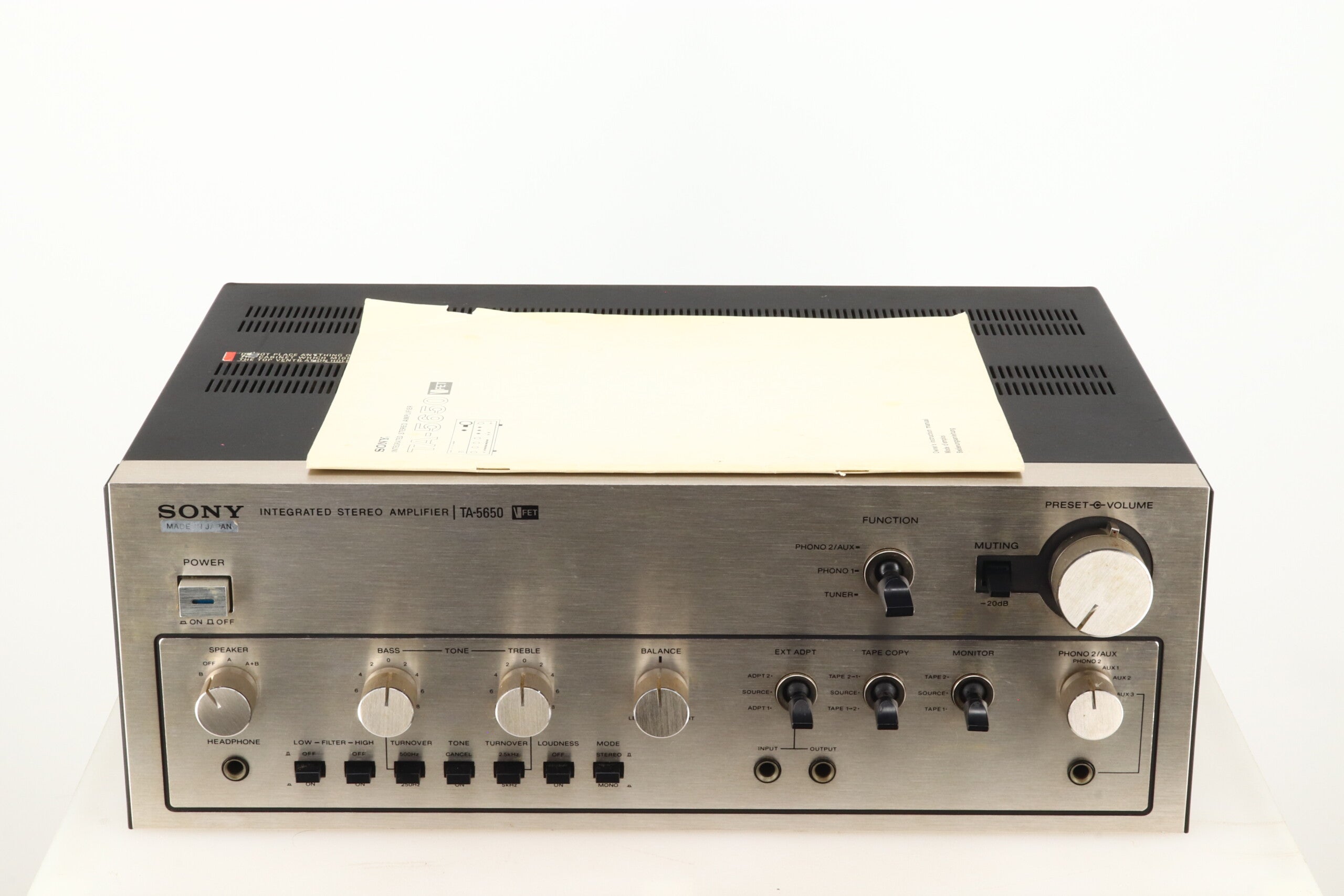

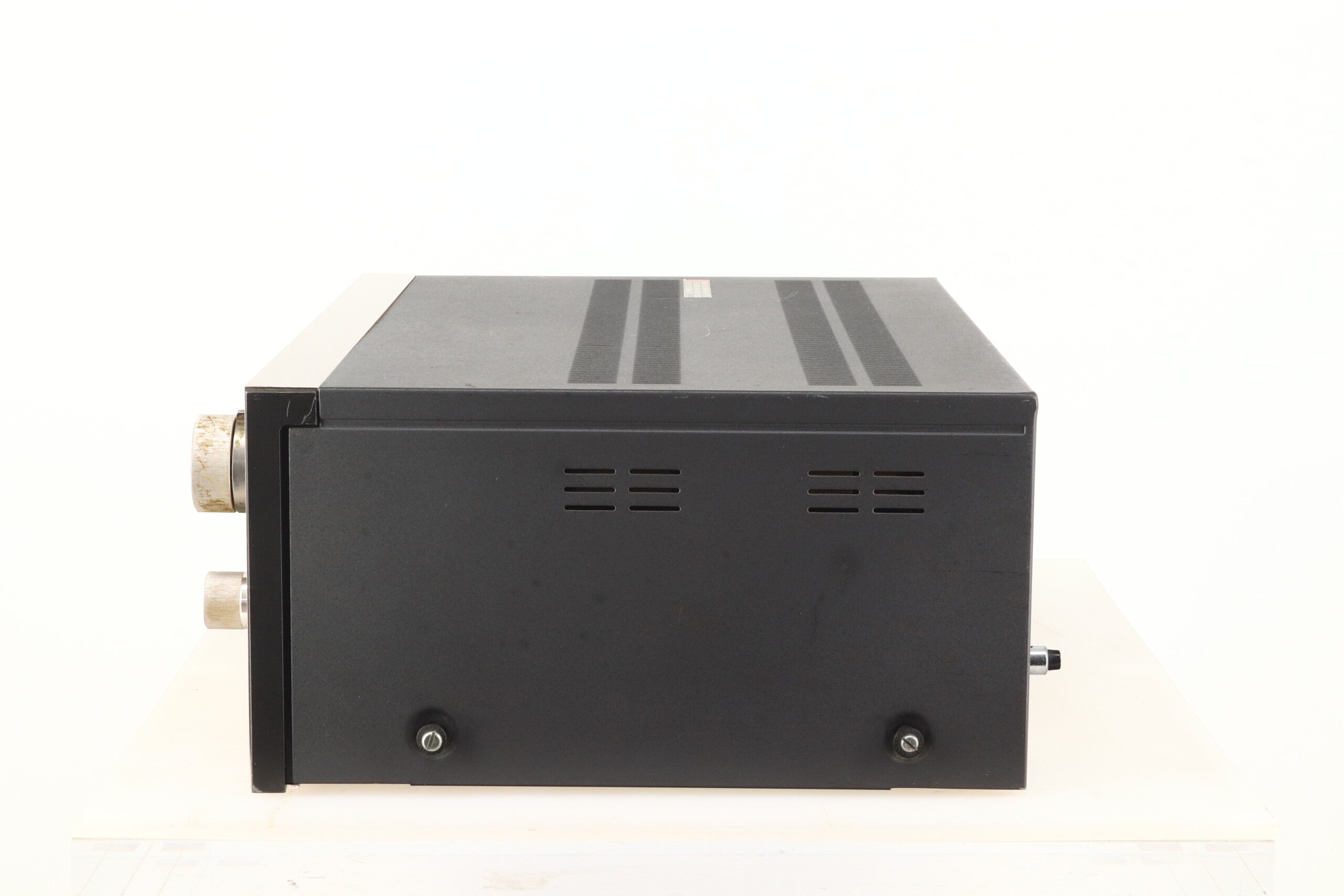

Here we have a piece of audio history in the form of a Sony TA-5650 Integrated Amplifier which dates back to the mid to late 70’s. It has to be said that our example of the TA-5650 is in poor cosmetic condition but underneath all that, it still works well. It will be well packaged for safe delivery.
Sony said….
Amplifiers bearing the V-FET symbol are utilising vertical field effect transistors developed by Sony engineers to handle high currents found in their output stages. The first of a new generation of V-FET amplifiers, the TA-5650 has characteristics closer to those of the thermionic valve, than the Bi-polar transistor previously used in solid state amplifiers providing a smoothness of sound that will satisfy even the most critical of Hi-Fi enthusiasts.
Features:

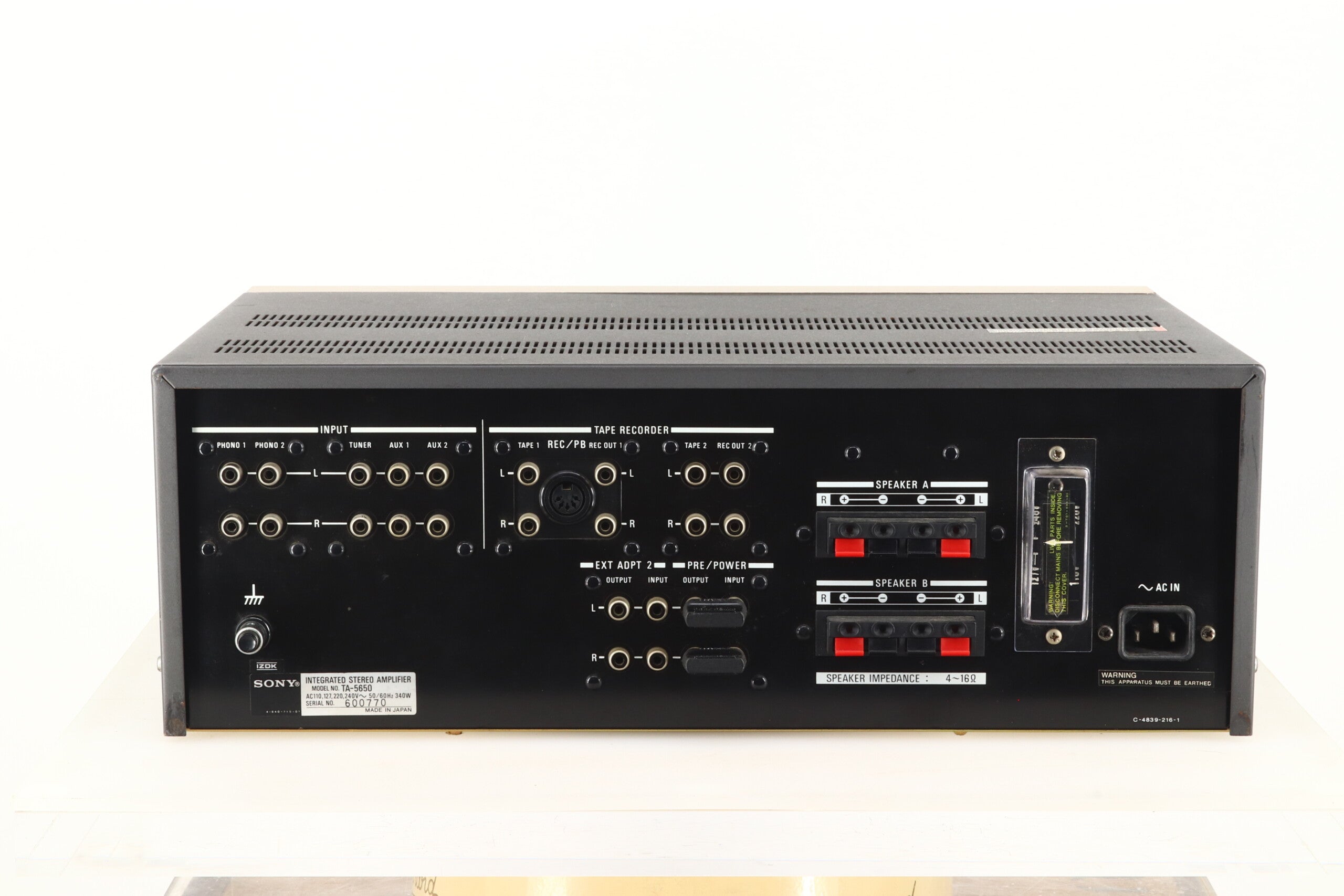

8 Inputs
Connections for 2 tape recorders
Tape copying facility

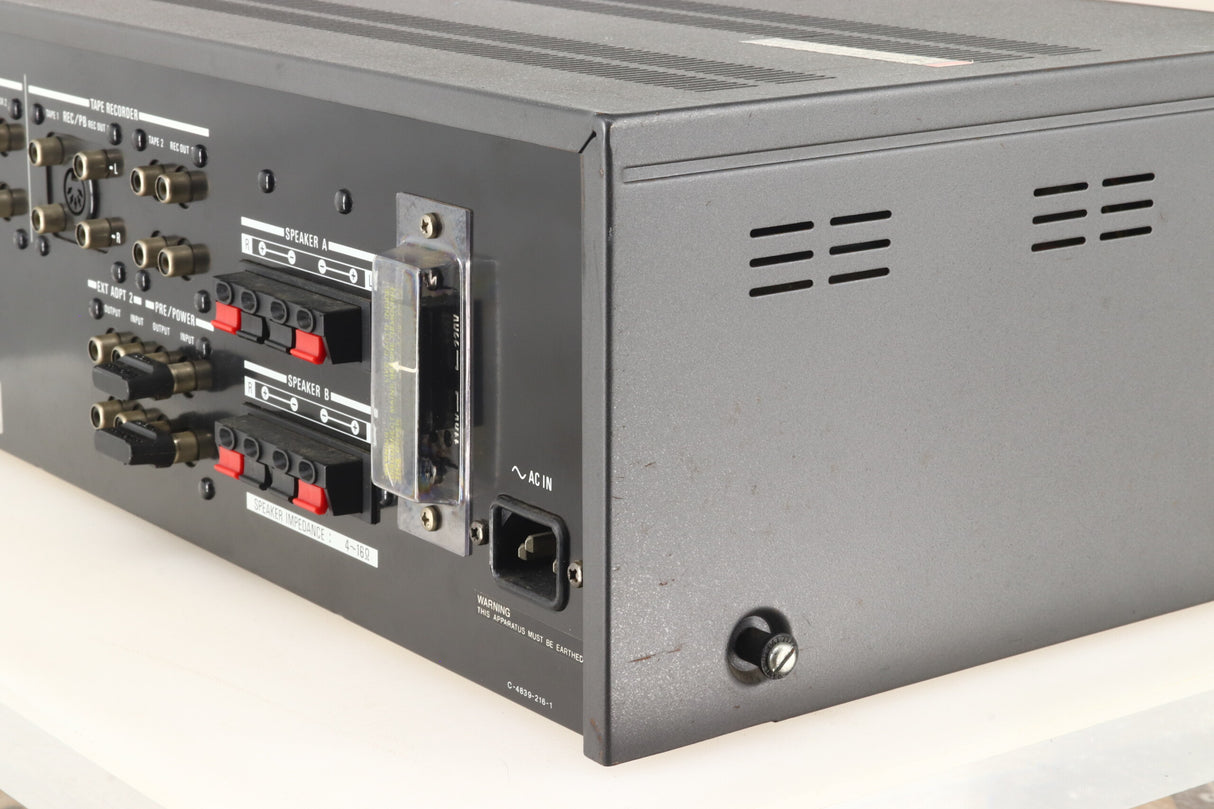

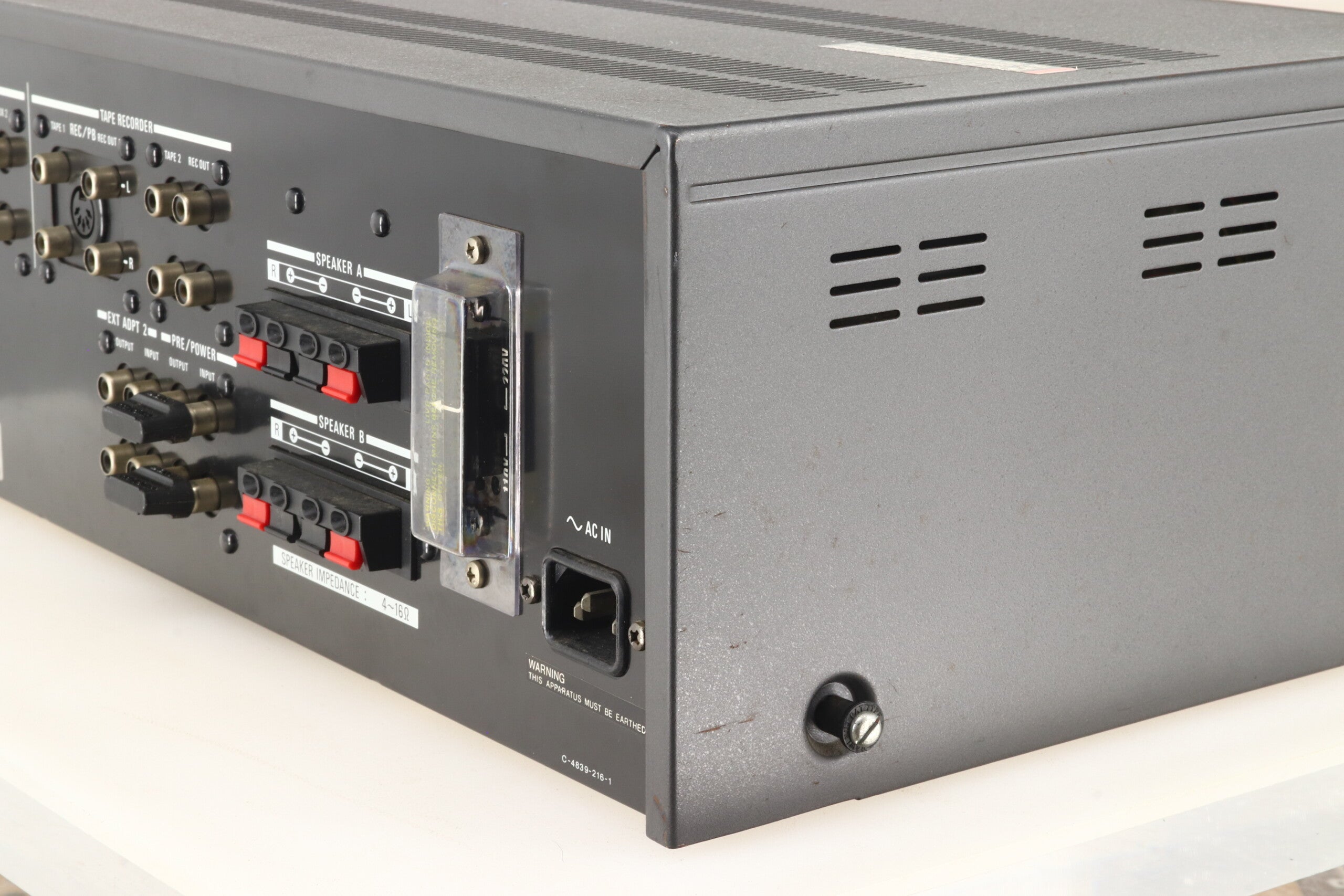

Connections for 2 pairs of speakers
Specifications:
Type: Stereo pre-main amplifier
Rated Output: 50 W into 8 Ω
Power Bandwidth: 5 Hz to 40 kHz
Harmonic Distortion: 0.1% @ 1 kHz rated output; 0.08% @ 1 W output
Intermodulation Distortion: 0.1% @ rated output; 0.08% @ 1 W output
Frequency Response: 2 - 100,000 Hz + 0/- 2 dB
Damping Factor: 50 (1 kHz, 8 Ω)
Input Impedance: 50 kΩ (phono); 250 kΩ (line)
Input Sensitivity: 2.5 mV (phono); 150 mV (line)
Signal to Noise Ratio: 70 dB (phono); 90 dB (line)
Power Requirements: 240 V, 50 Hz
Power consumption: 340W
Dimensions: 430 (W) x 325 (D) x 170 (H) mm
Weight 12.5 kg
