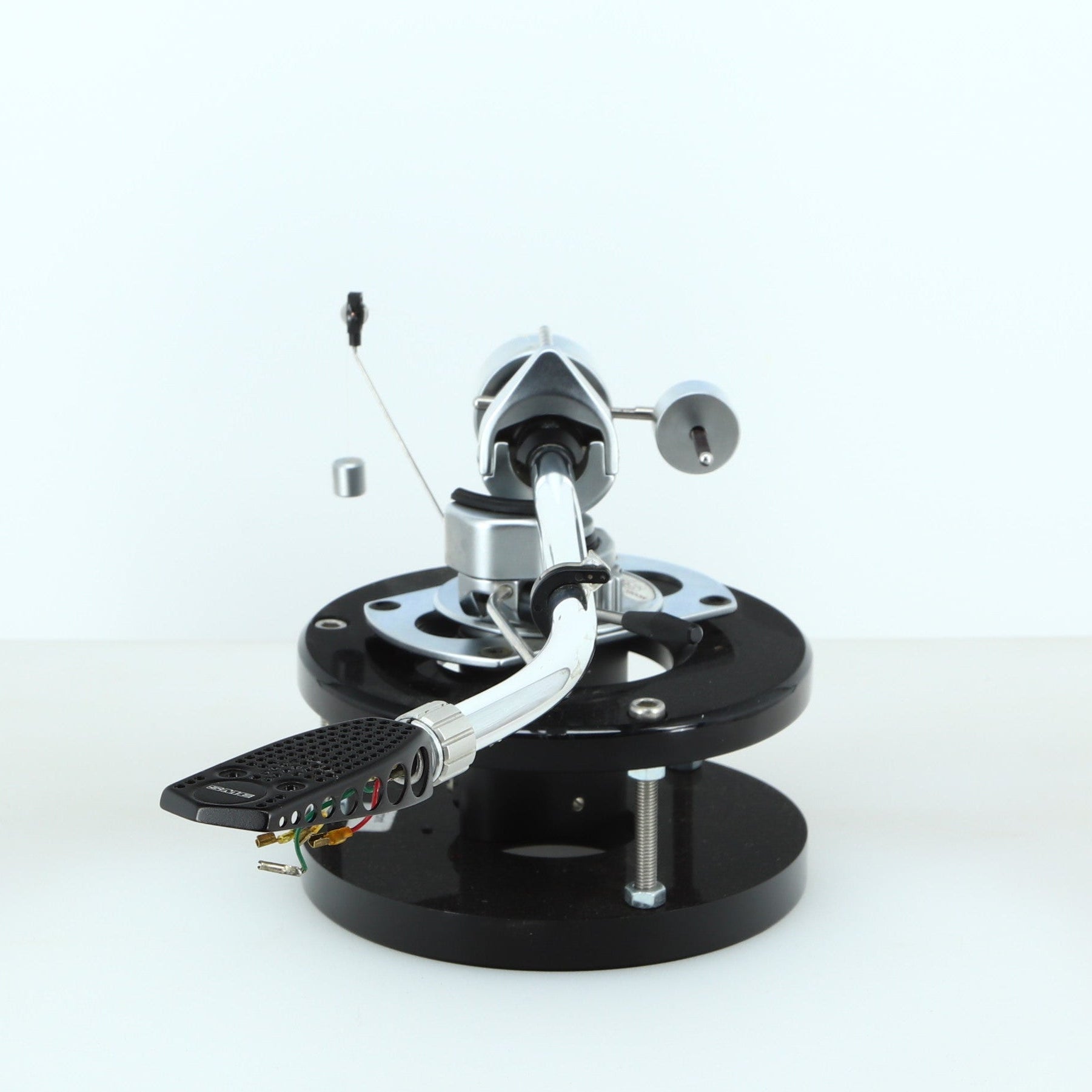

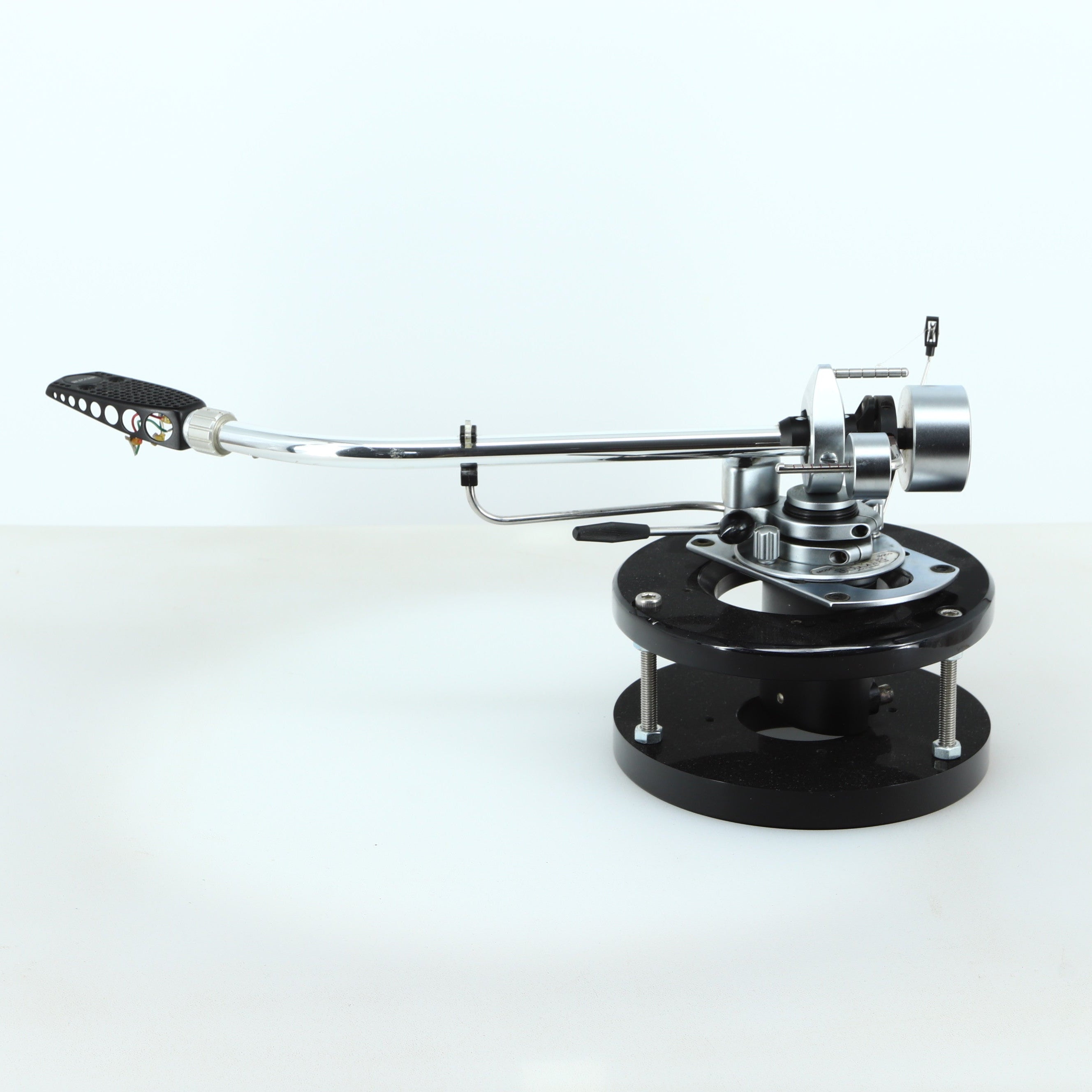

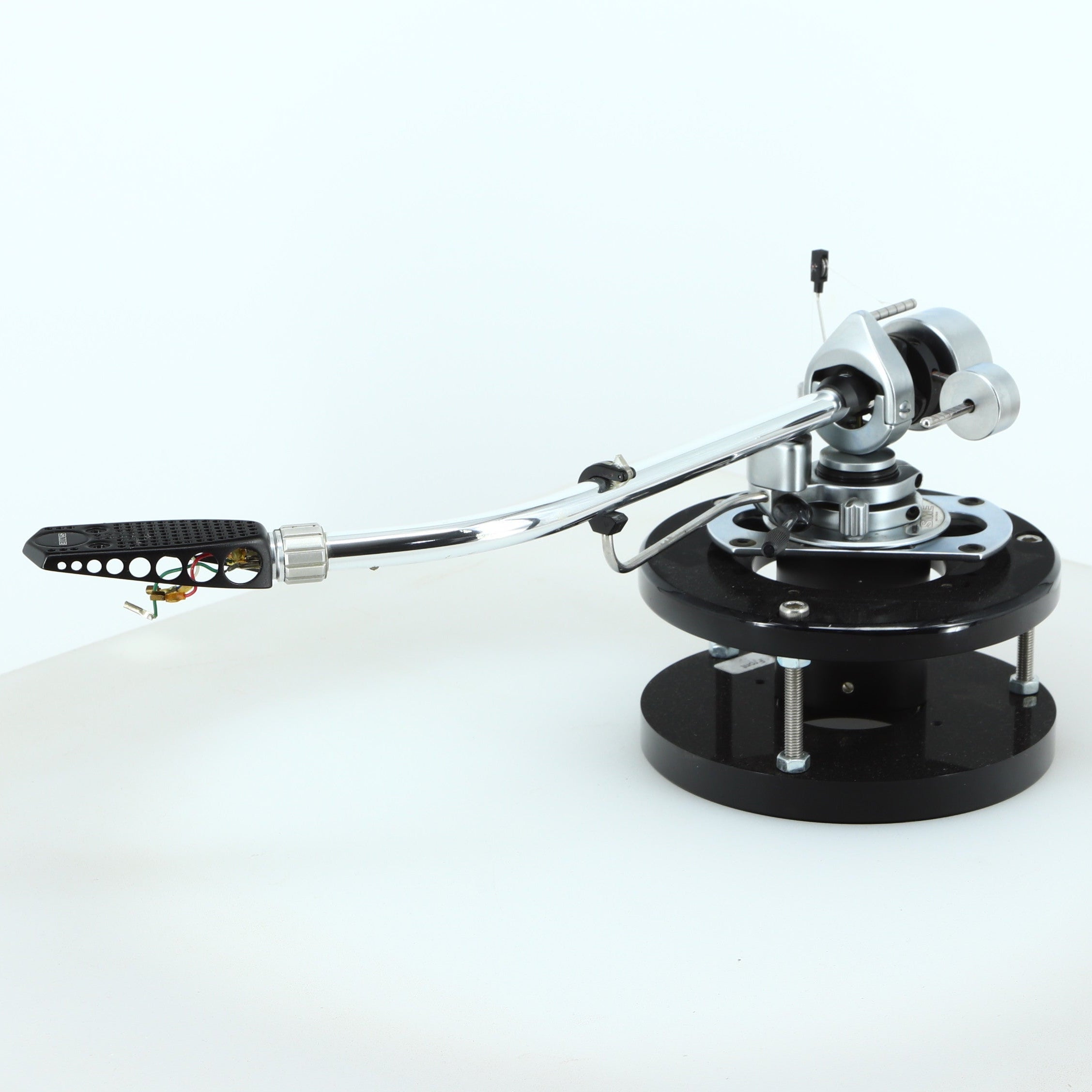

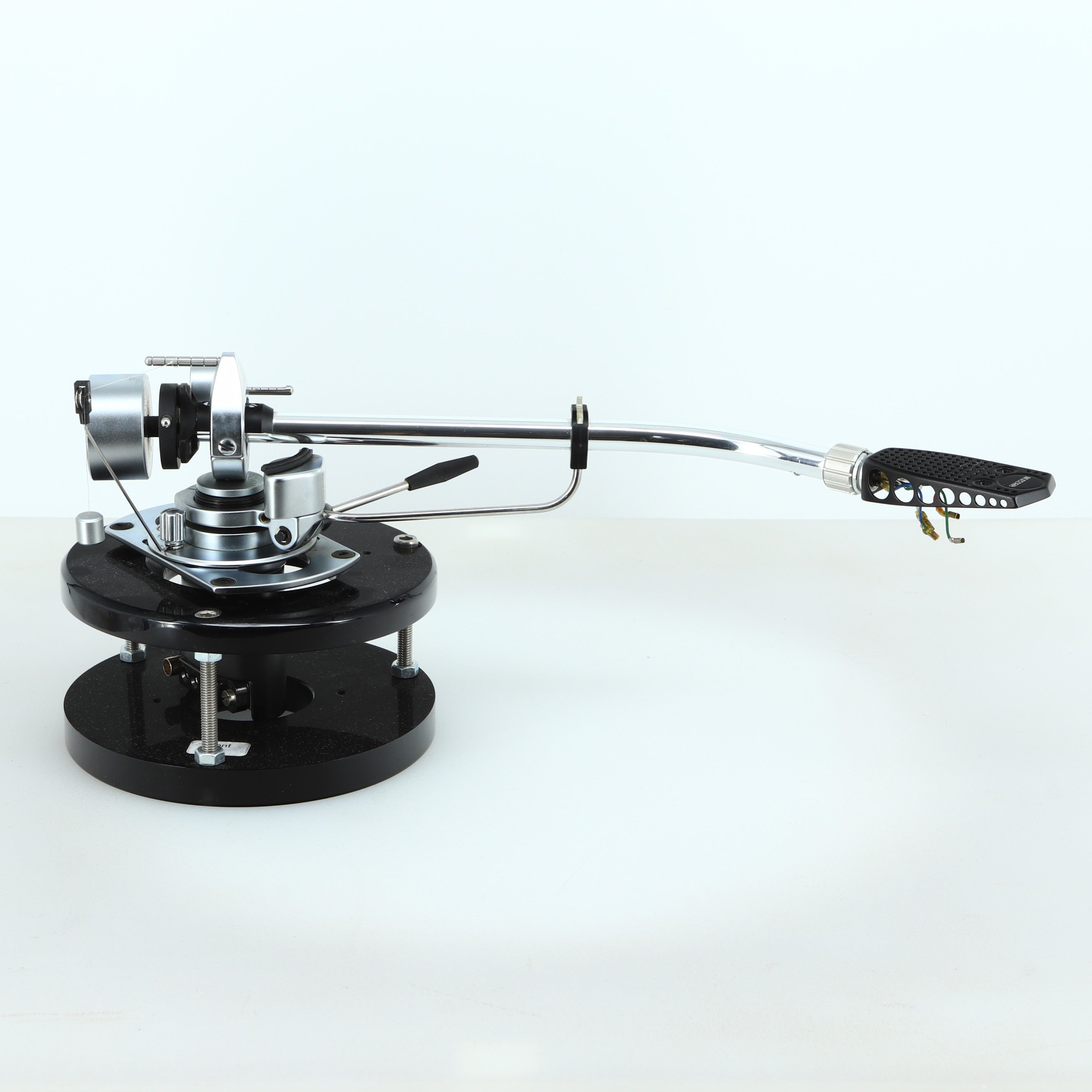

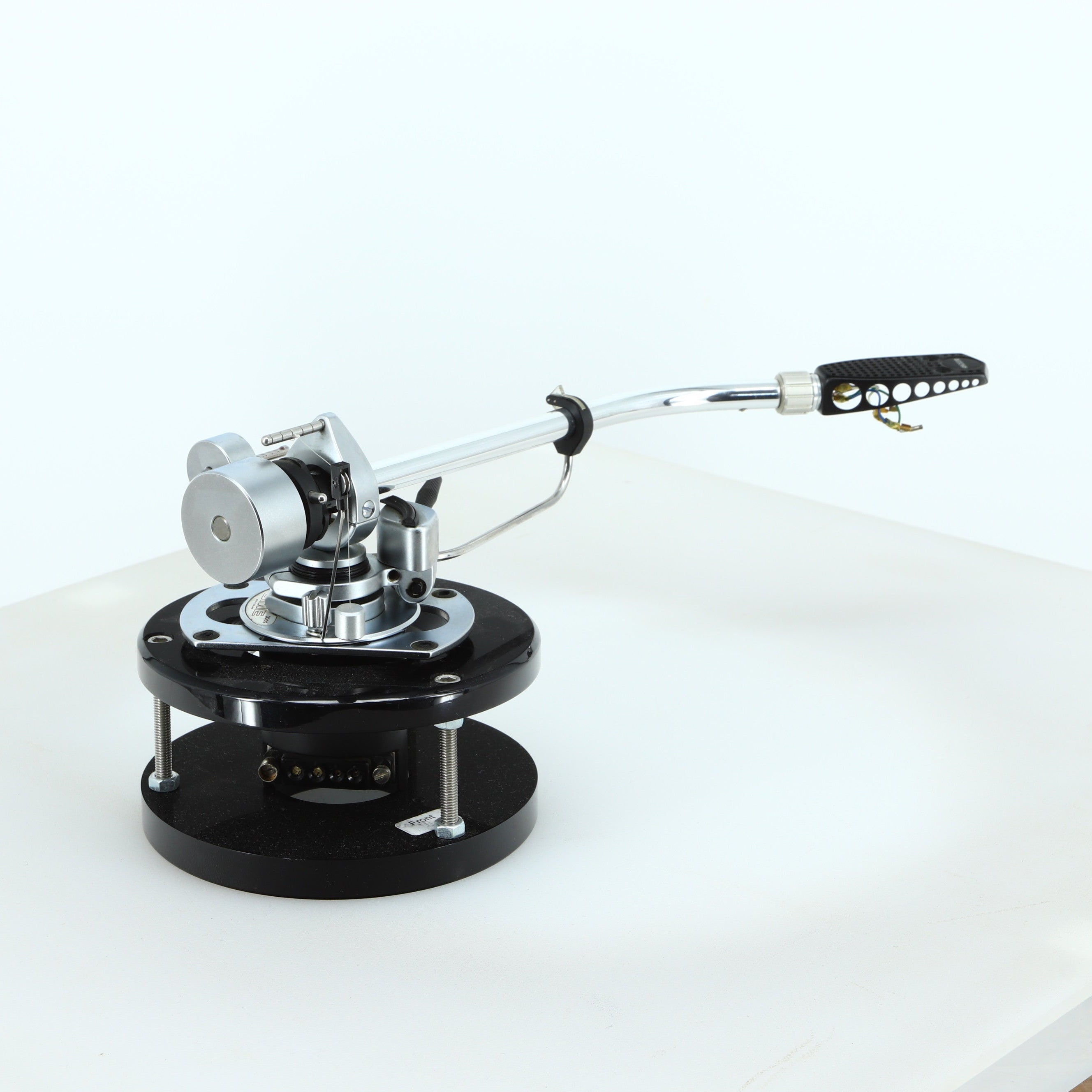

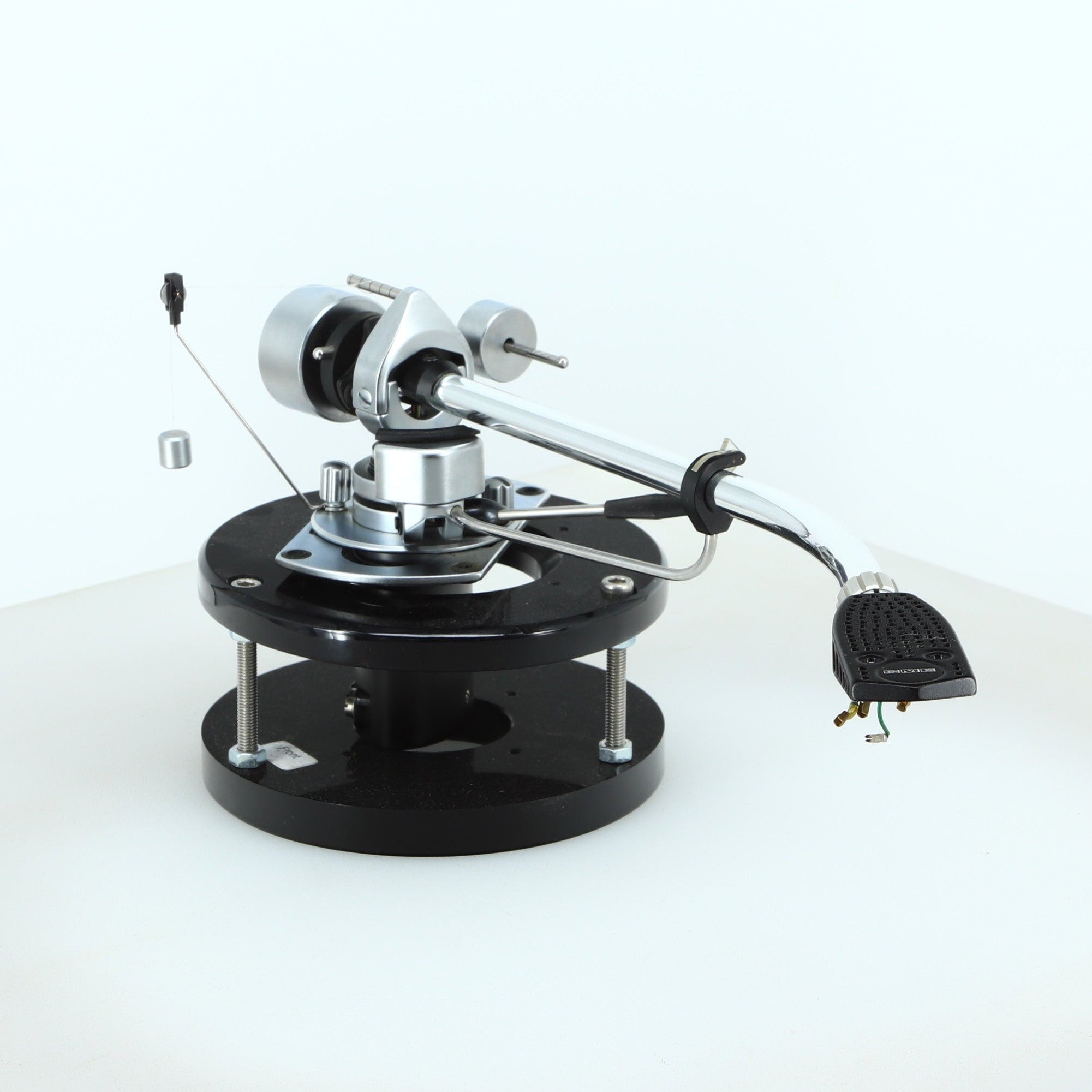

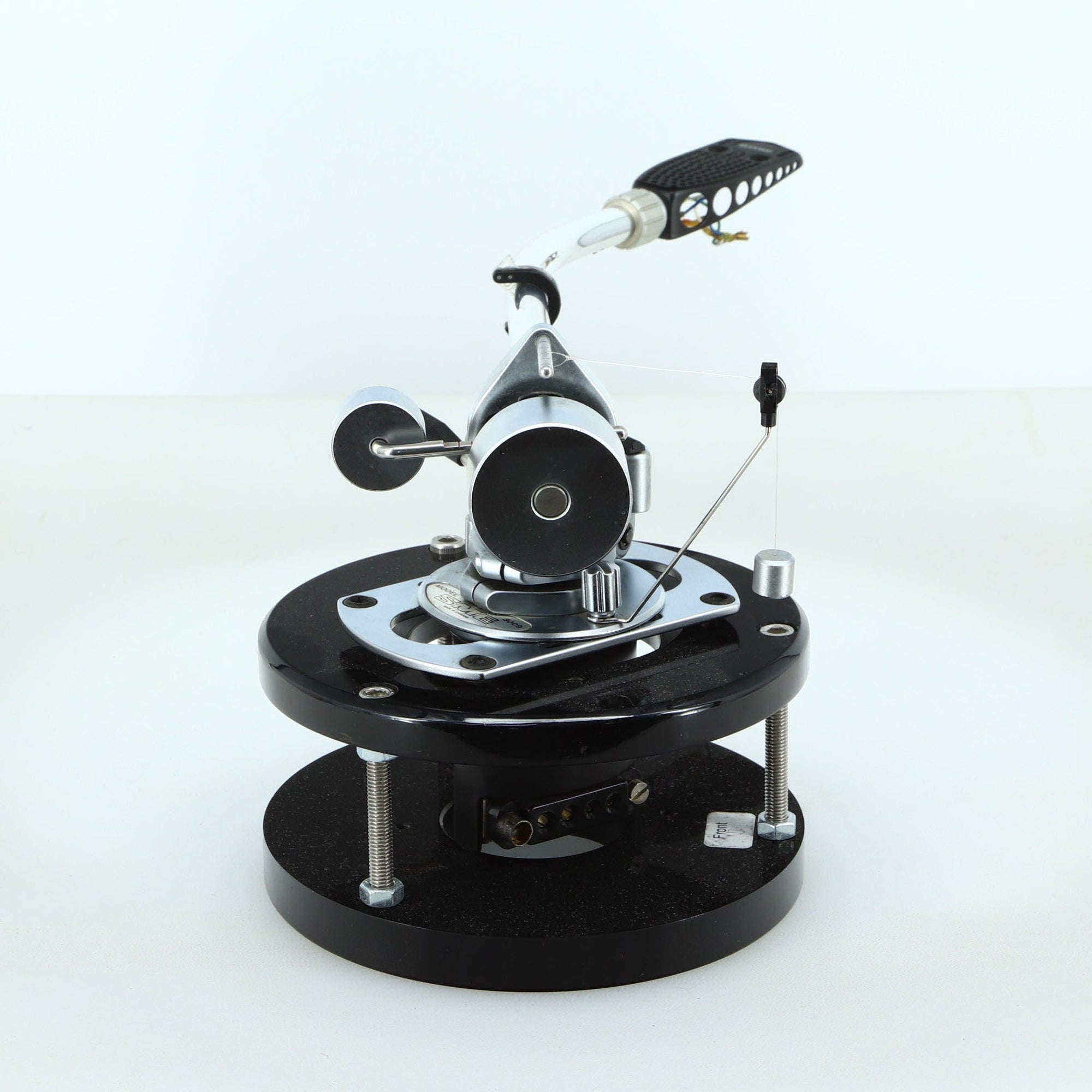

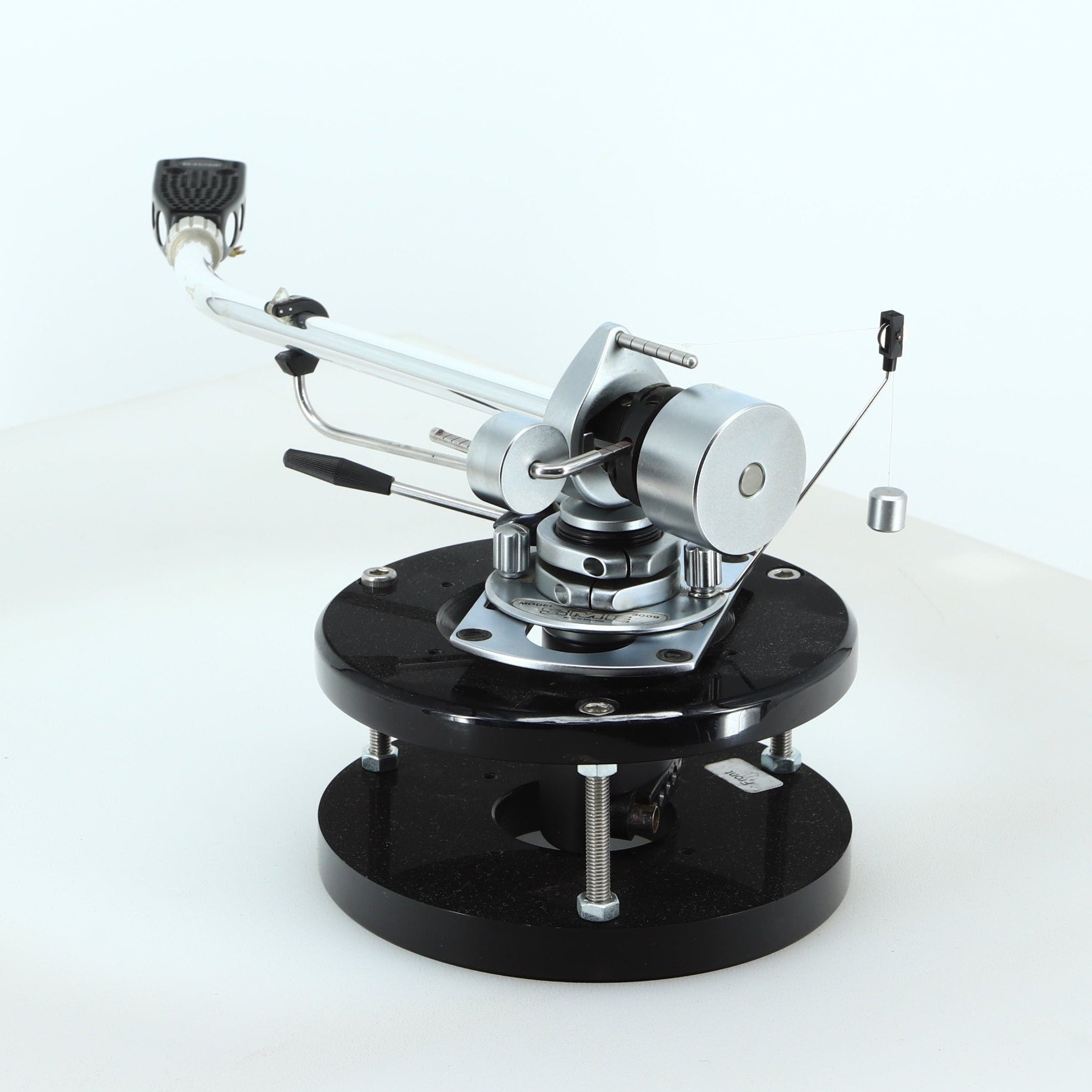

SME 3009 Series II Improved Tonearm

SME Model 3009 Series II Improved precision pick-up arms combine latest design features with the same high quality engineering and finish that made their predecessors famous for more than a decade. Each arm is meticulously built and tested and will meet its specification reliably through many years of service. Skilful design and choice of materials combine high mechanical strength with low inertia and friction ensuring full suitability for professional as well as domestic application. Technically correct and aesthetically satisfying the SME has been called “The best pick-up arm in the world” and we believe you will find this to be true.
Sensitivity and strength combine with versatility to ensure the continuing popularity of the Series II Improved design which is available In two versions.
Model 3009/S2 is the standard arm having a typical pivot to stylus distance of 231.2 mm. Average effective mass is 12.5 grams. It is the one most frequently used and has a detachable headshell, S2, which is interchangeable with others of similar pattern.
Model 3009 is generally similar, but the headshell is non-detachable, saving weight and reducing the average effective mass to 9.5 grams. This can provide better matching for high compliance cartridges by raising the system resonance above the critical 5 - 8 Hz region in which excitation by record warp occurs.

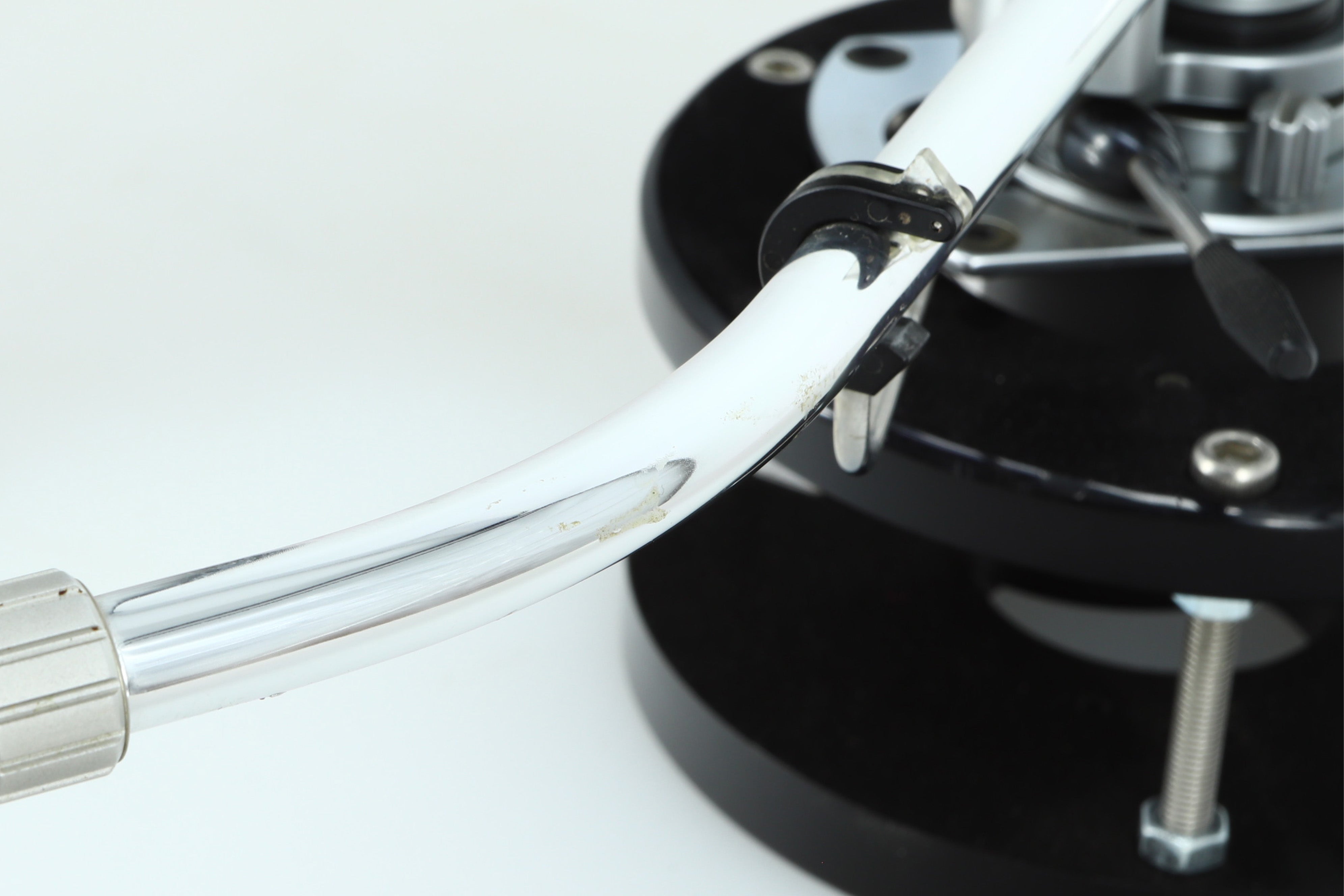

Both models have a polished bright-anodised aluminium tone arm 9.5 mm diameter with a wall thickness of 0.56 mm. A fibrous lining assists the dissipation of acoustic information.

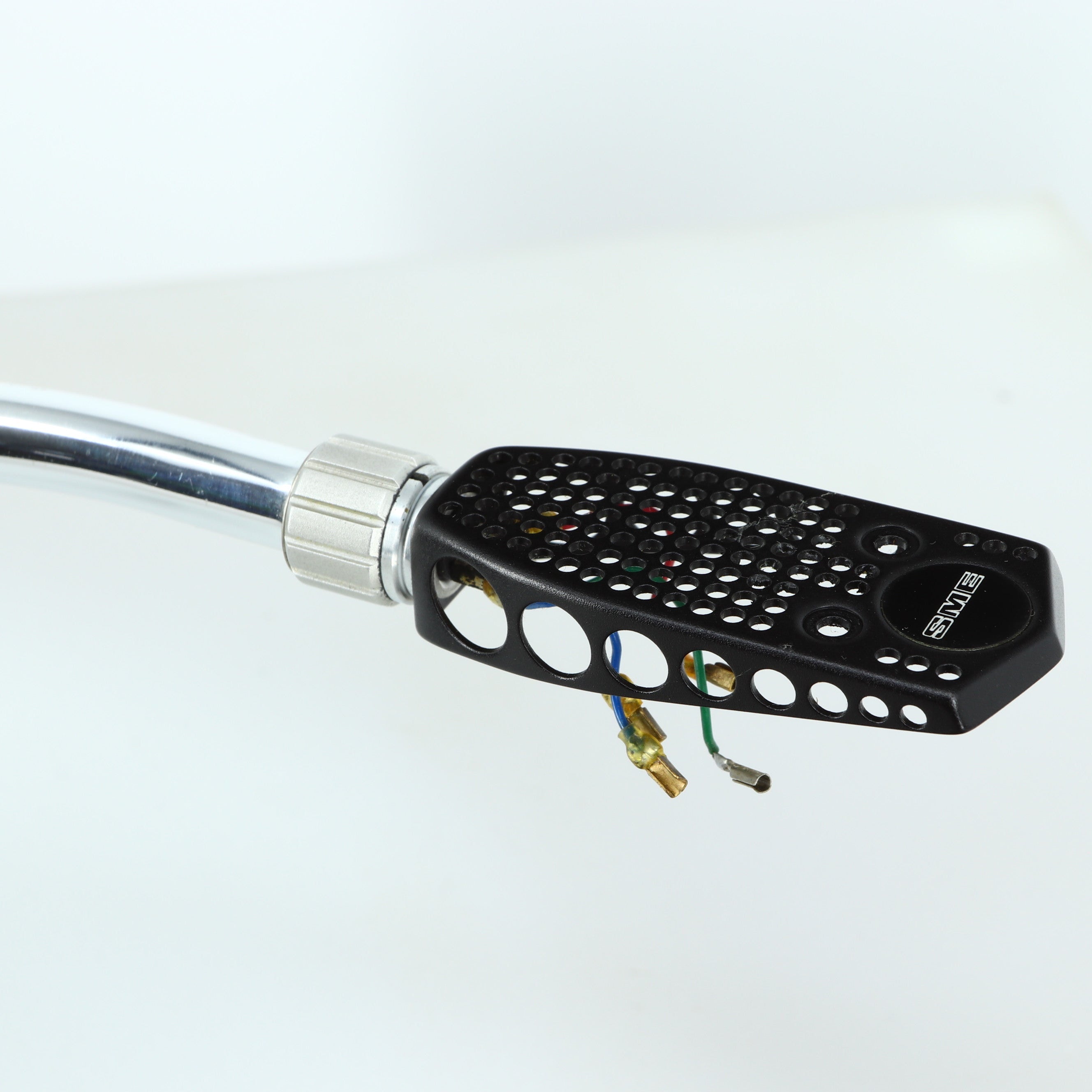

The S2 headshell is pressed from aluminium alloy, rationally perforated for lightness and strength.
Series II Improved arms are compact and easily adjustable. Their balance range can be widened if desired with one or another of the accessory weights offered for the purpose.
Straightforward design makes them a popular choice with enthusiasts and professional users throughout the world. Each arm is meticulously built and tested and will meet its specification reliably for many years.

Features & Specifications
Low friction pivots
Vertical axis: high-precision, fully protected ballraces
Horizontal axis: 0.005” radius knife-edges rolling in planished chrome seating’s
Less than 0.02 gram applied at the stylus will deflect the arm
Low inertia
Fixed elements of the balance system are light
Movable elements are heavy and close to the fulcrum
Precise tracking force up to 1.5 grams applied without a tracking force gauge
Bias adjustable to correspond with tracking force

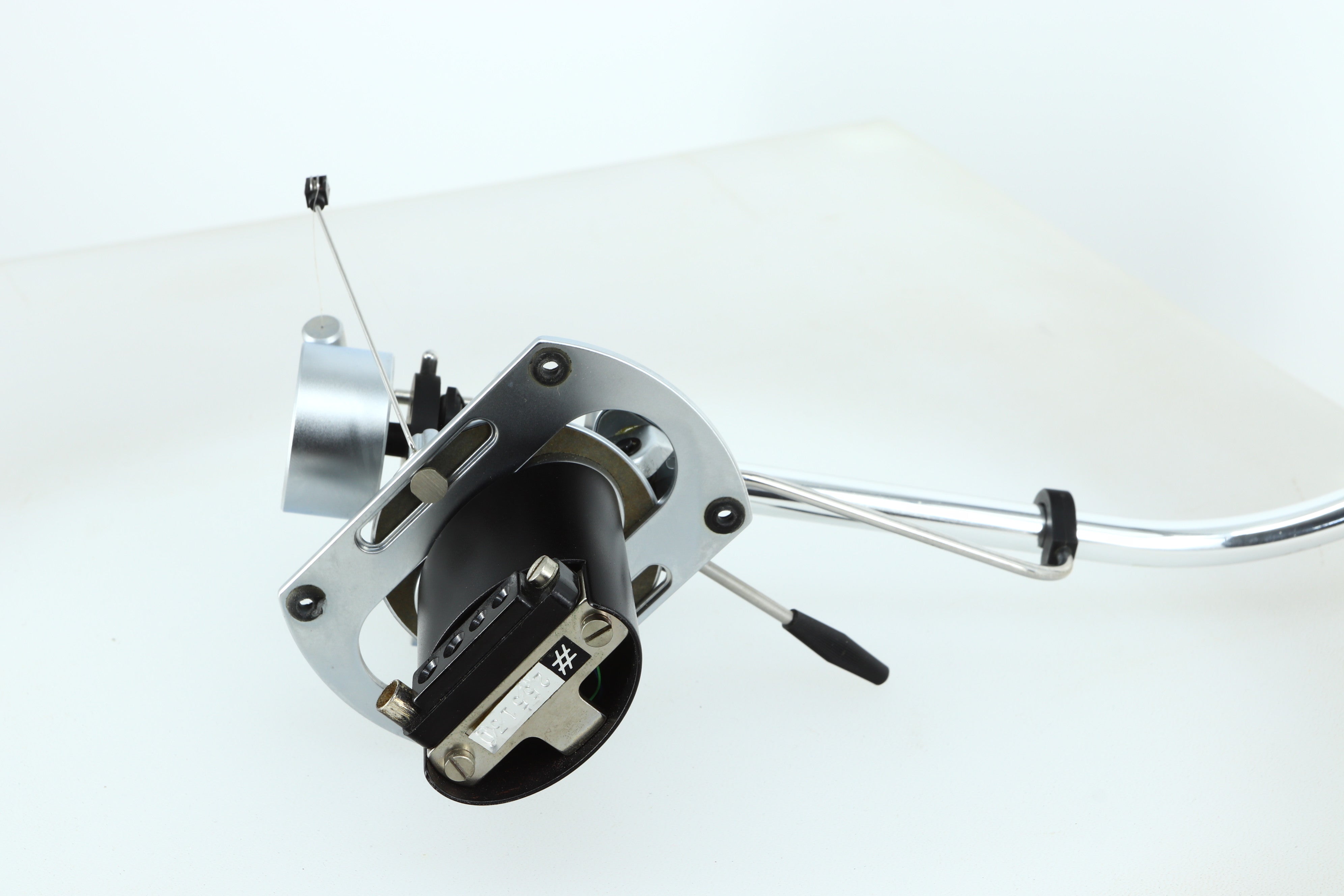

Base slides on bedplate for tracking adjustment with protractor
Fluid damped lowering and raising control

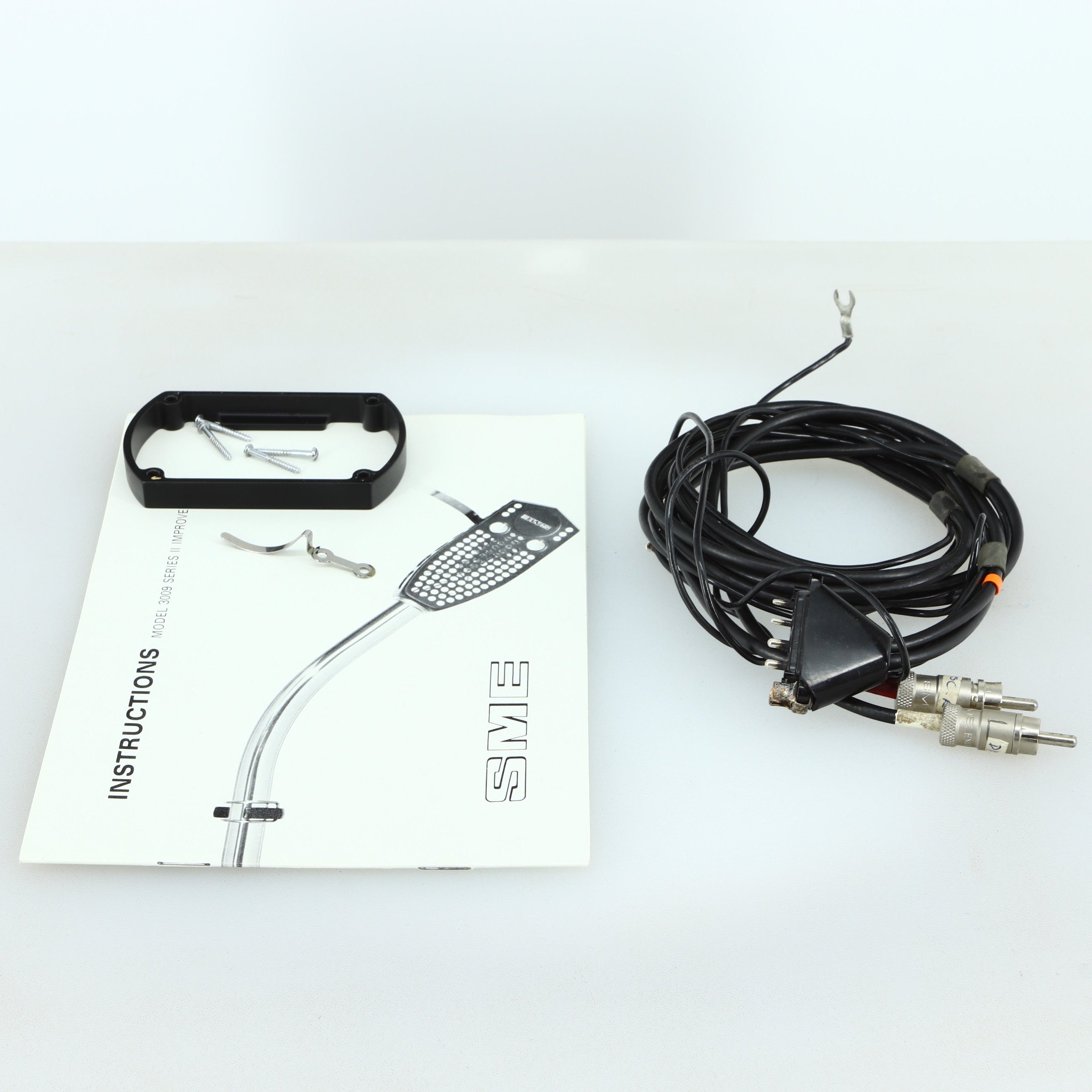

Audio Cable: 1.22 m RCA Phono plugs

Dimensions
Nominal Length: 231.2 mm (pivot to stylus)
Distance From Bedplate Centre To Turntable Centre: 215.4 mm
Tracking adjustment: ± 12.7 mm
Overall Height: 60.3 - 79.3 mm
