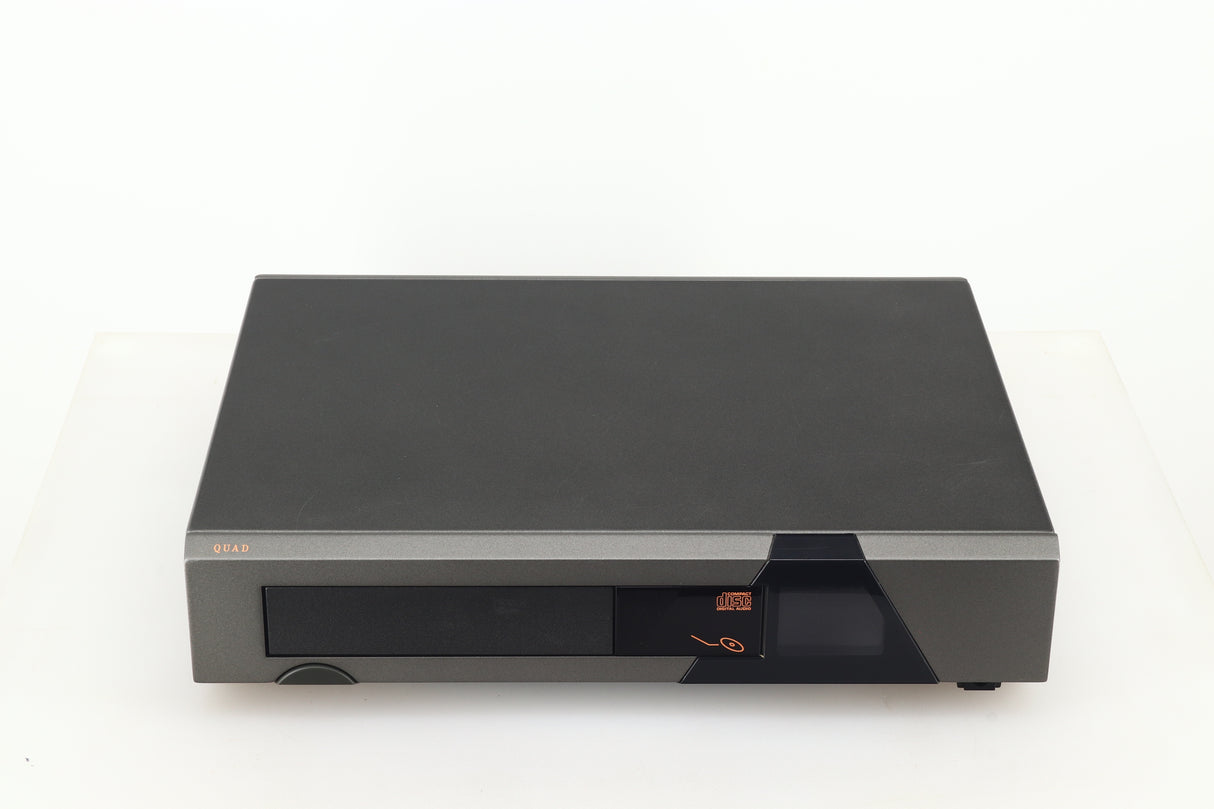

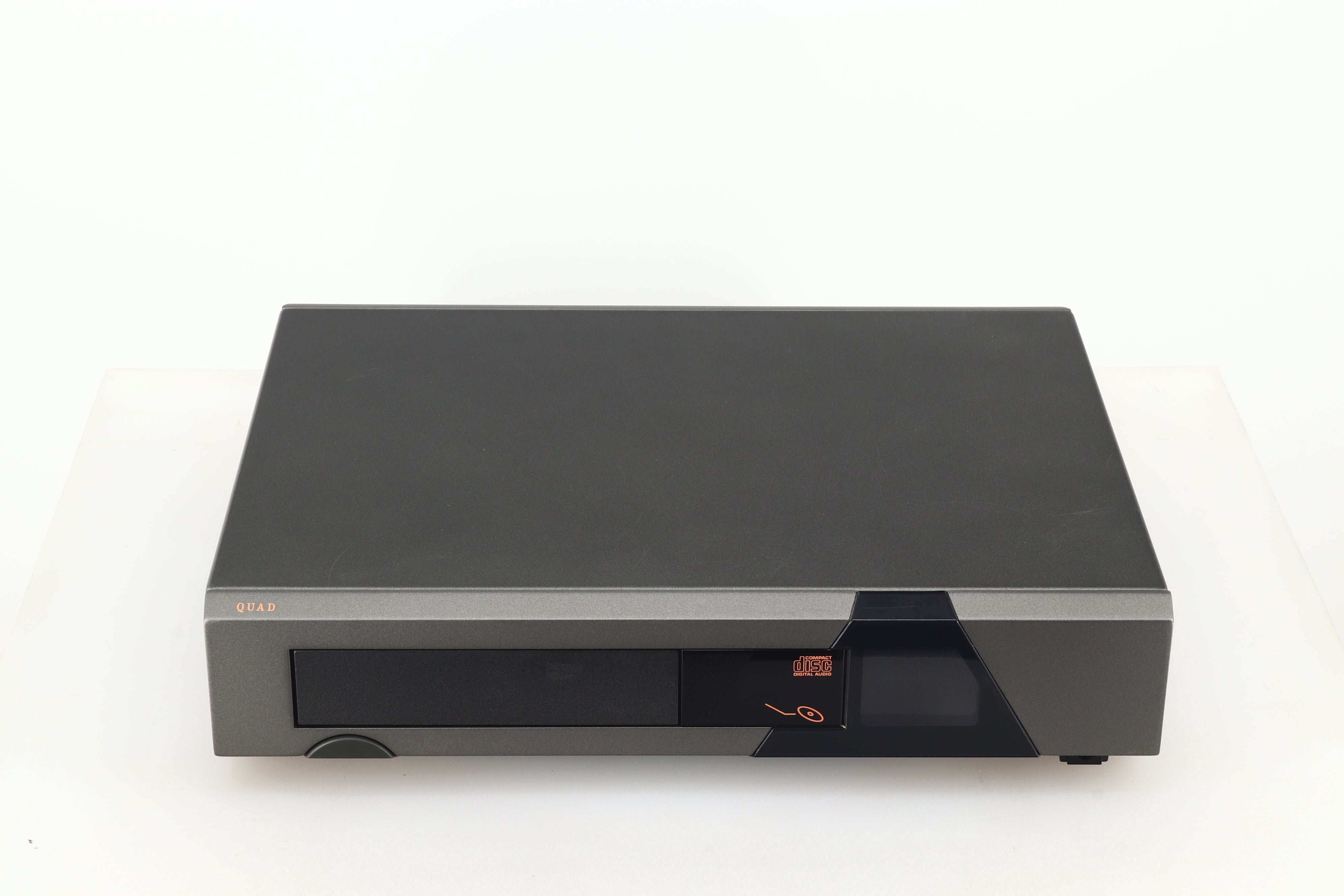

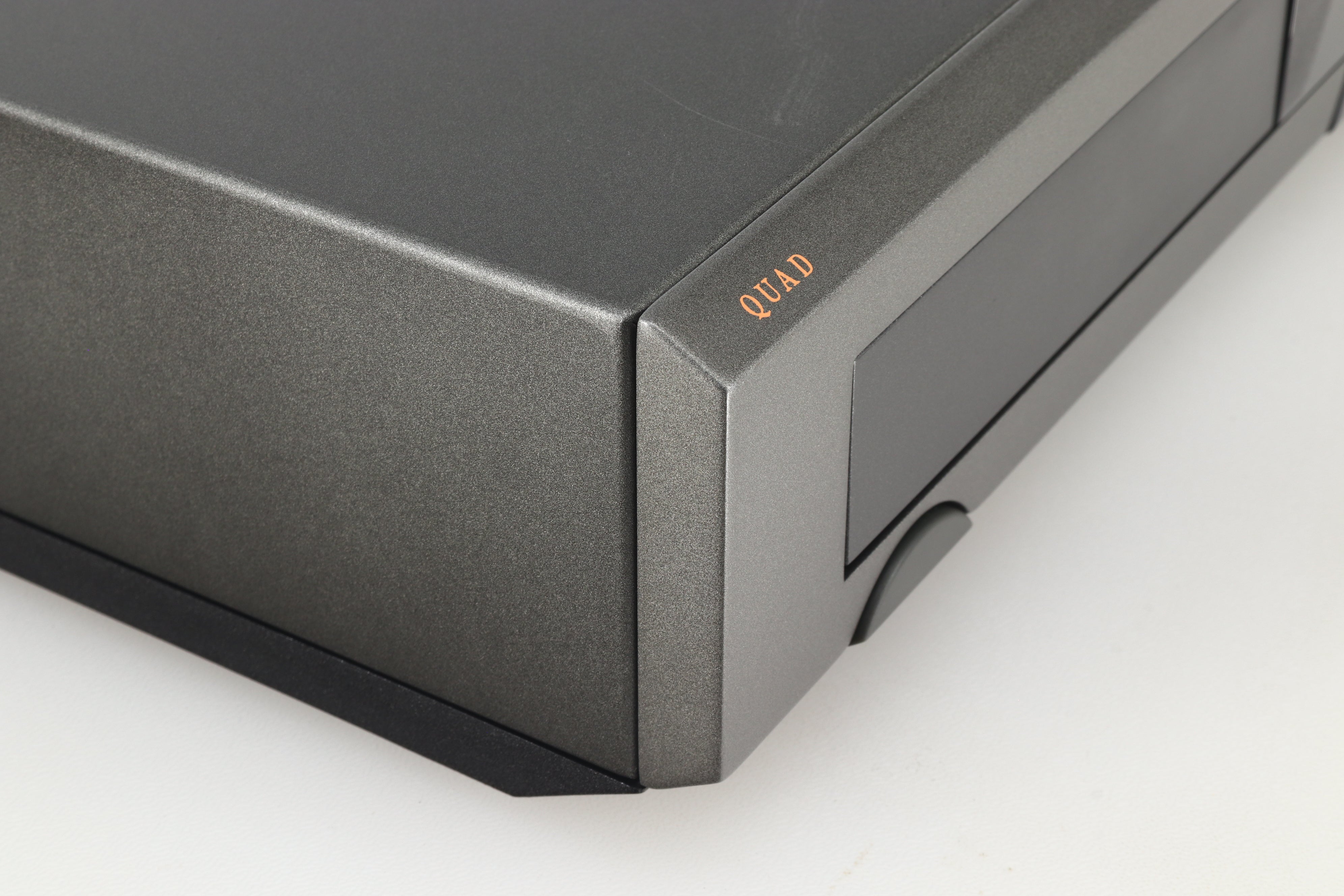

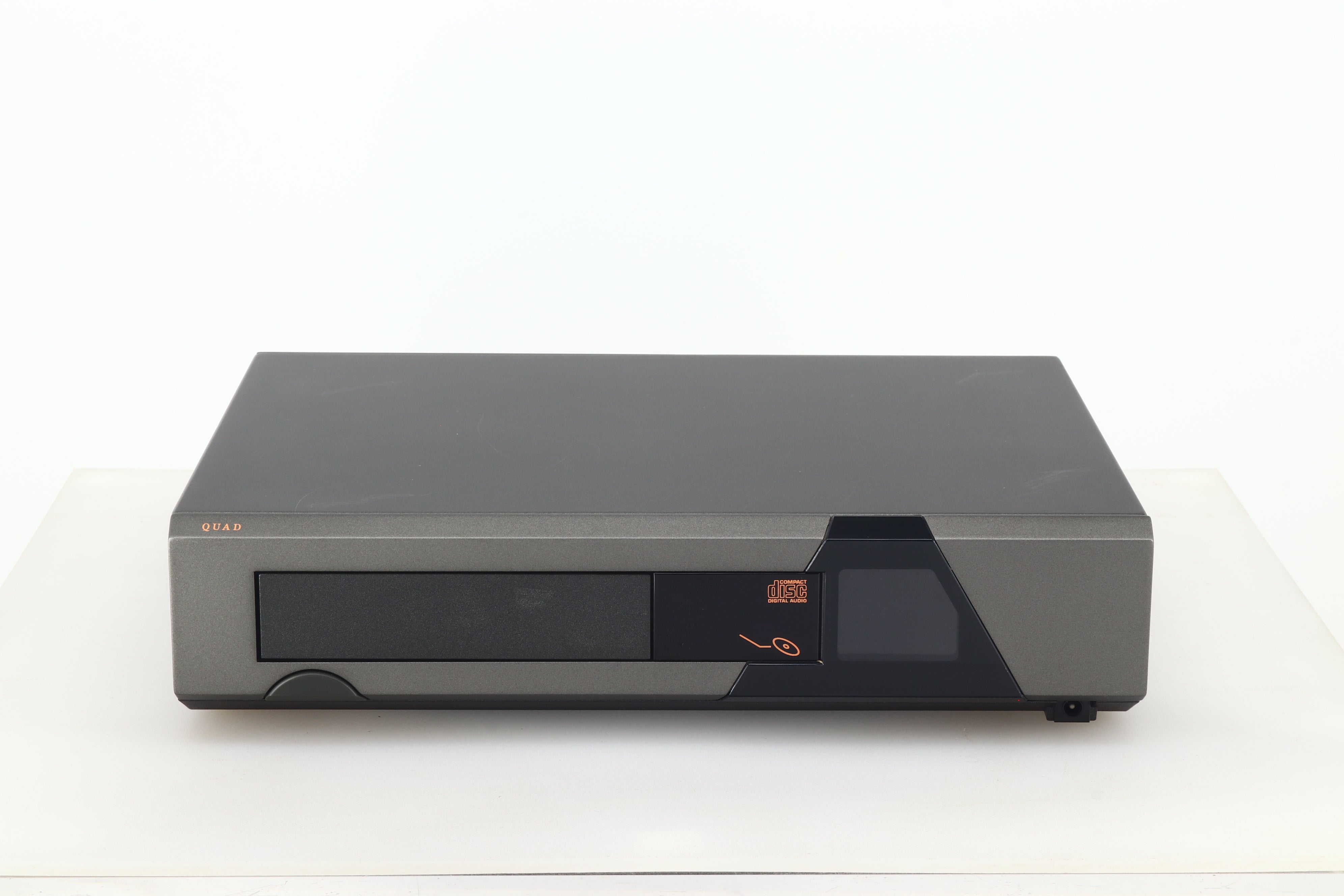

Quad 67 CD Player

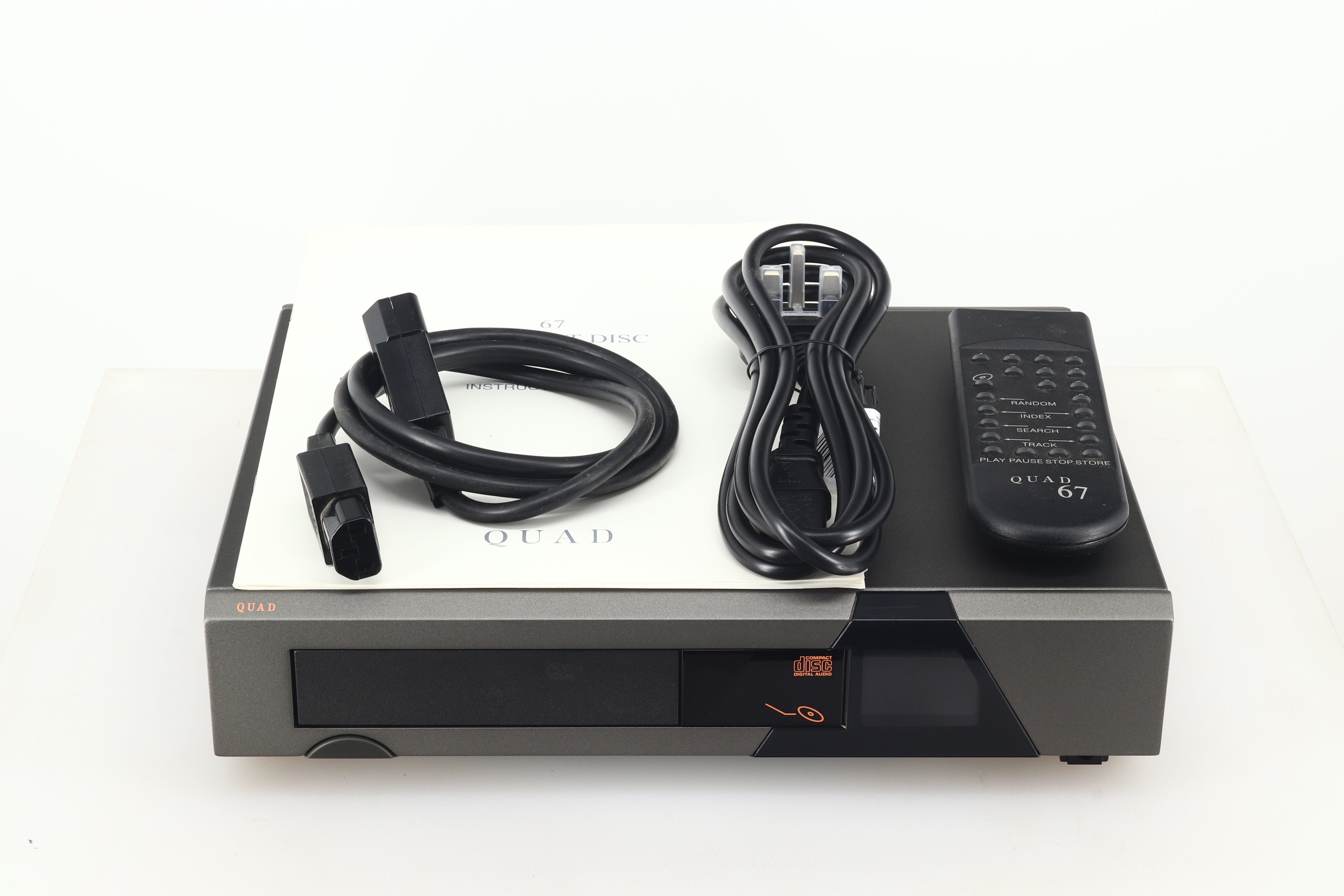

The Quad 67 Compact Disc player is controlled either from the Quad 66 remote control panel or the small hand set which is supplied with it. The design brief for the 67 was to use the very best of current technology to produce a player with totally neutral and transparent performance.
The Quad 67 Compact Disc player uses the Philips COM 9 engine and a Delta Sigma modulation decoder to provide a player which has a measured performance very close to the theoretical optimum and with a very high tolerance of damaged or faulty discs. The COM 9 engine is extremely well engineered and produces a very low error output even with badly marked or out of specification discs. It is very quiet in operation.
Delta Sigma modulation is a variation on Bit-stream technology. The chief advantage of the Delta Sigma chip is that the accuracy of conversion is not dependent upon the accuracy of the master clock and is thus not susceptible to clock jitter, which makes the task of the design engineer somewhat easier. However with digital technology it is not the terminology which matters as much as the quality of the engineering and we are confident that the 67 is a true Quad product.

Frequency Response: < ± 0.1 dB 20 Hz - 20 kHz
Phase Linearity: < ± 0.5° 20 Hz - 20 kHz
Signal/Noise Ratio: > 100 dB 20 Hz - 20 kHz
Crosstalk: > 100 dB at 1 kHz
Total Harmonic Distortion: < 0.002% at 1 kHz
Wow And Flutter: Below measurement levels
D/A Conversion: 18-bit / 64 x oversampling Delta - Sigma converter
Audio Output: 2 Vrms max. 300 mV on normal programme material. Minimum load impedance 10 kΩ
Optical Read-Out System: Laser semi-conductor Ai GaAs wavelength 800 nm
Sampling Frequency: 44.1 kHz
Digital Output: For digital signal processors
Remote Control Interface: RC-5 system

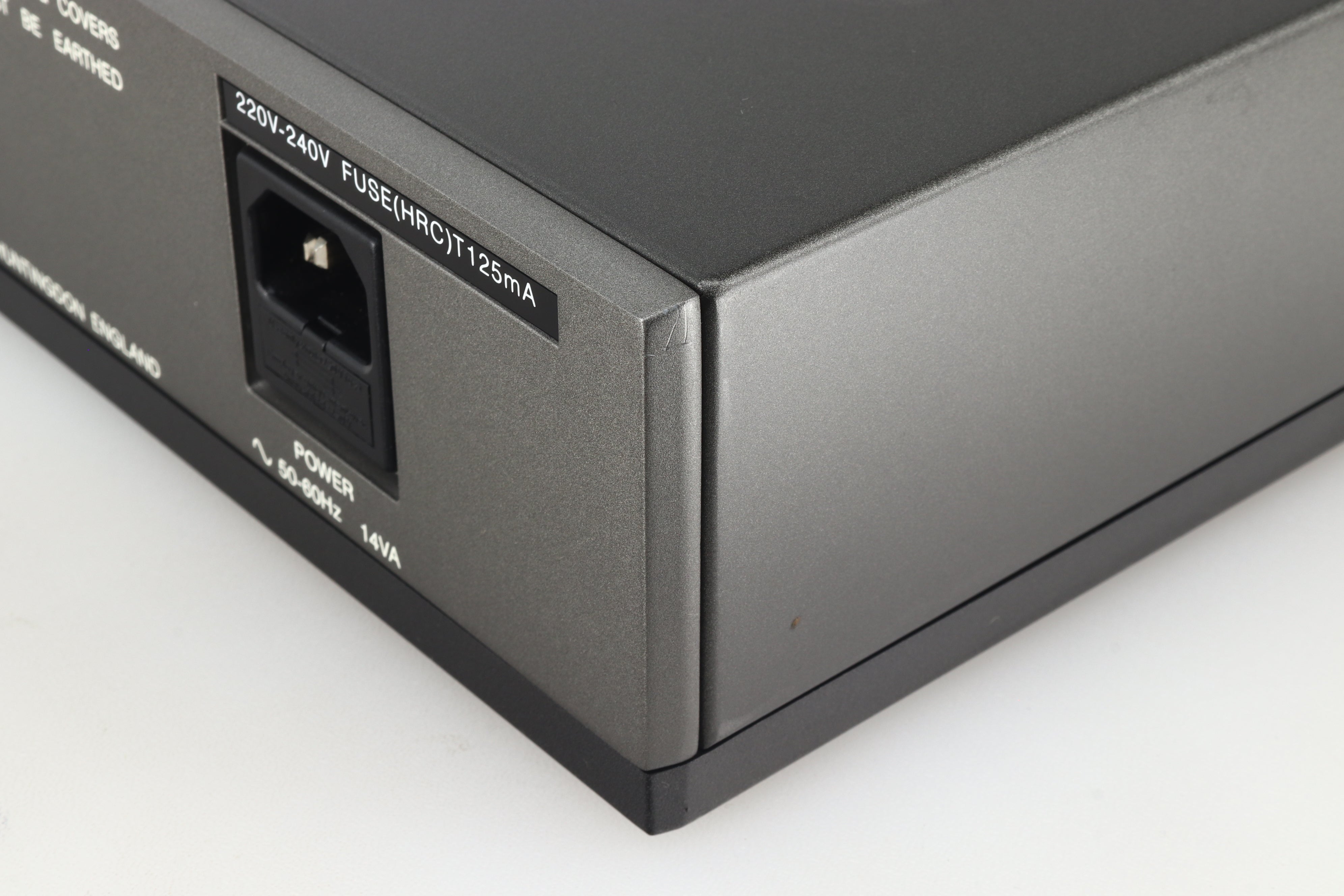

AC input: 110 - 120 V or 220 - 240 V, 50 - 60 Hz; 14 W
Dimensions: 321 (W) x 240 (D) x 80 (H) mm
Weight: 3.5 kg
