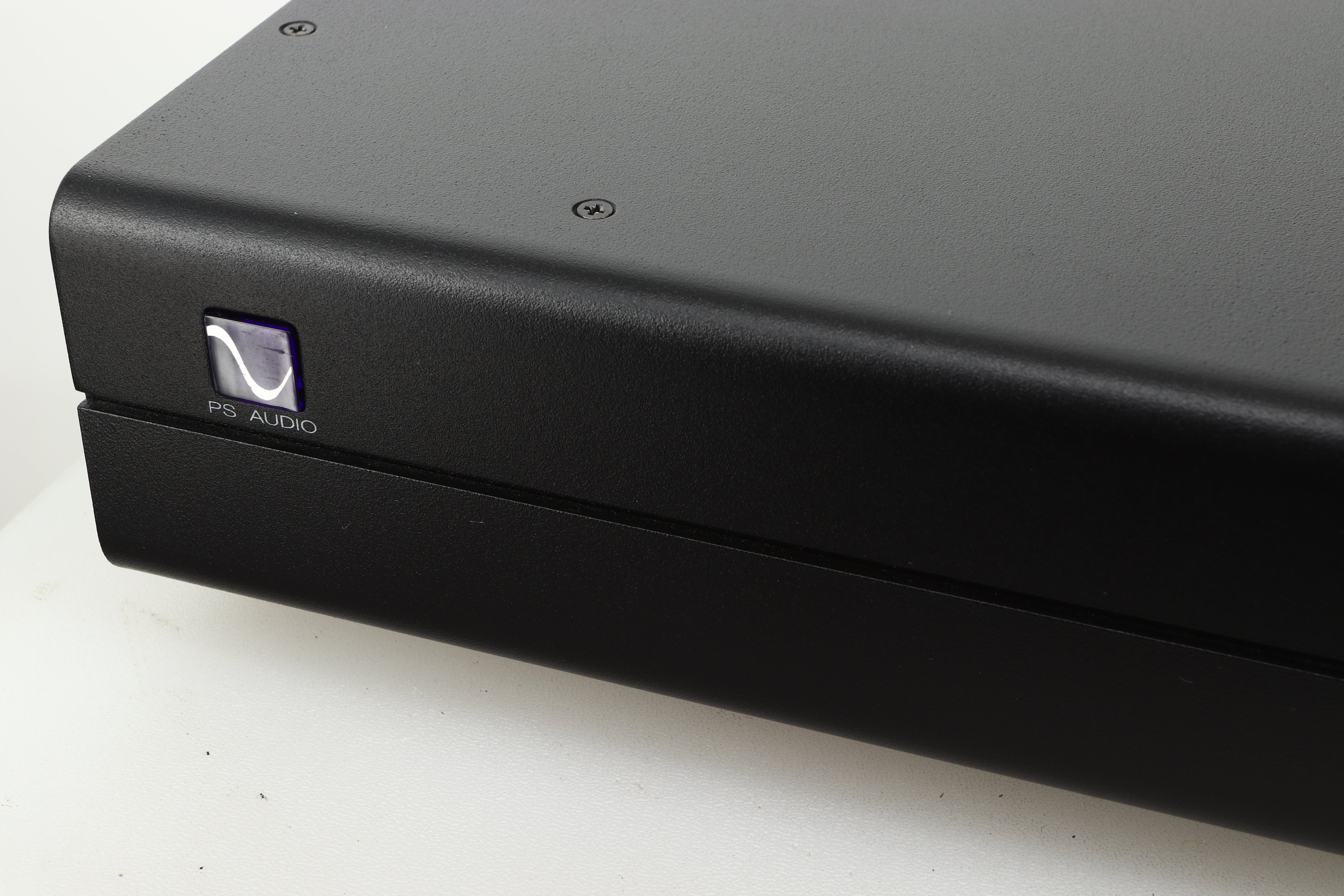

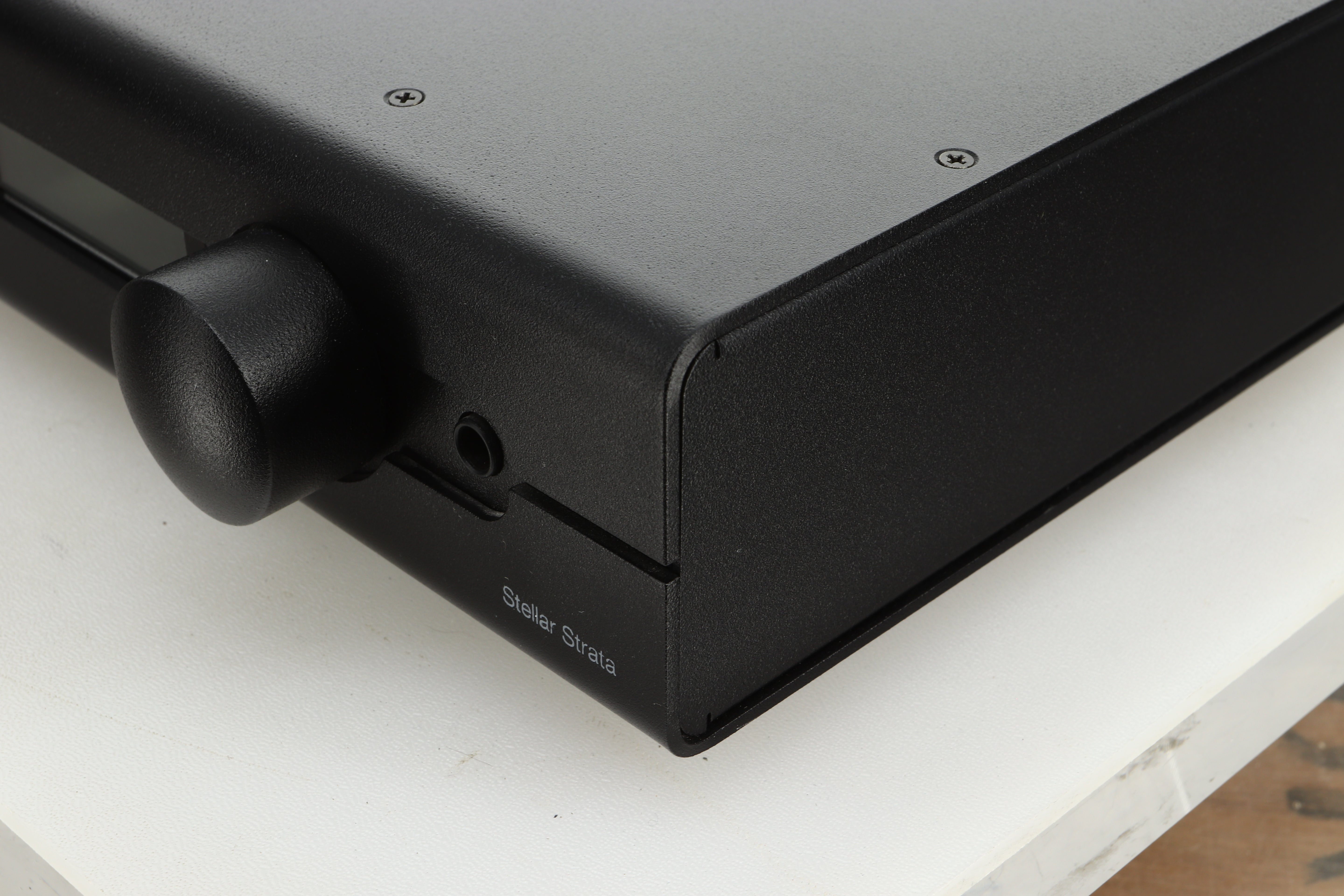

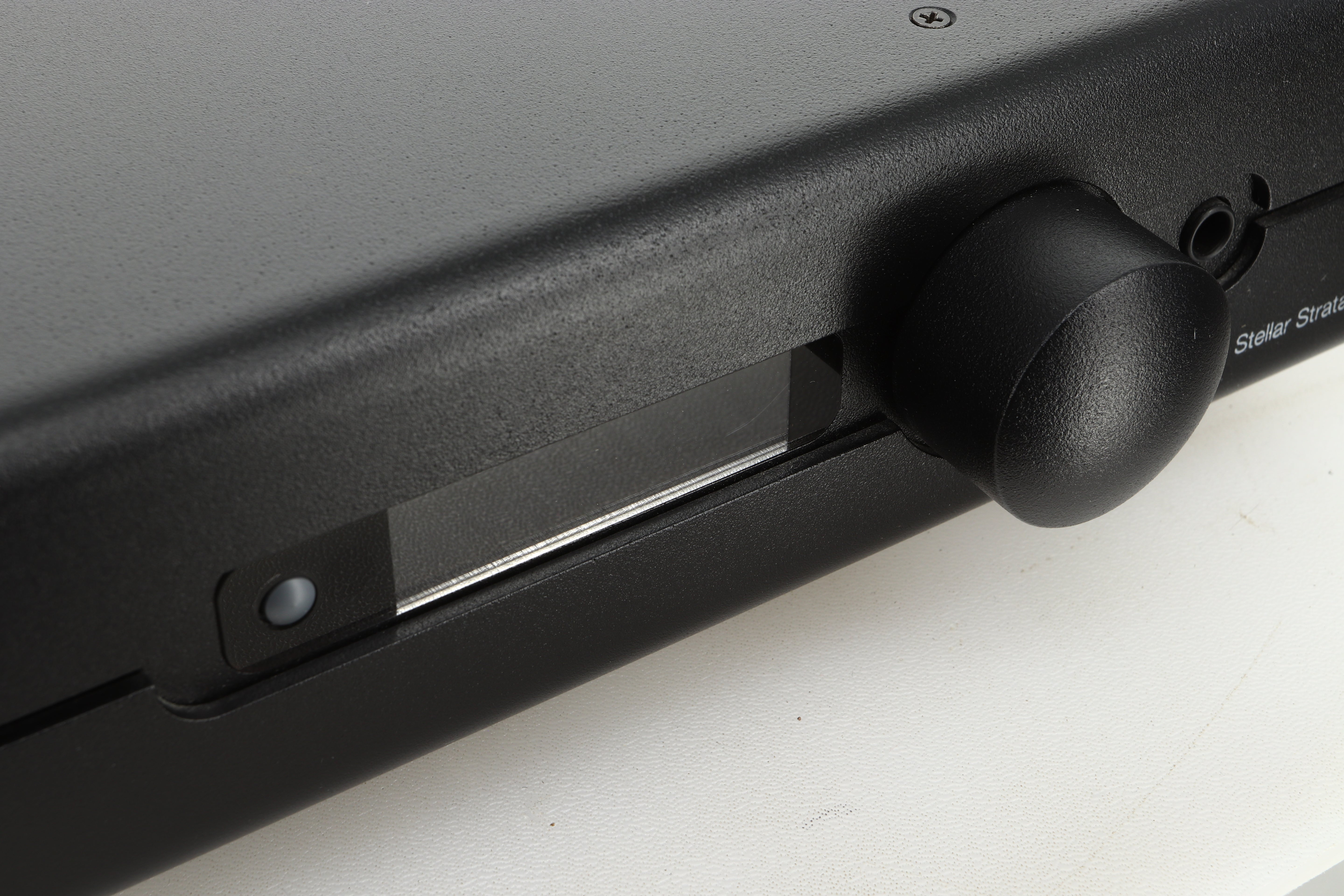

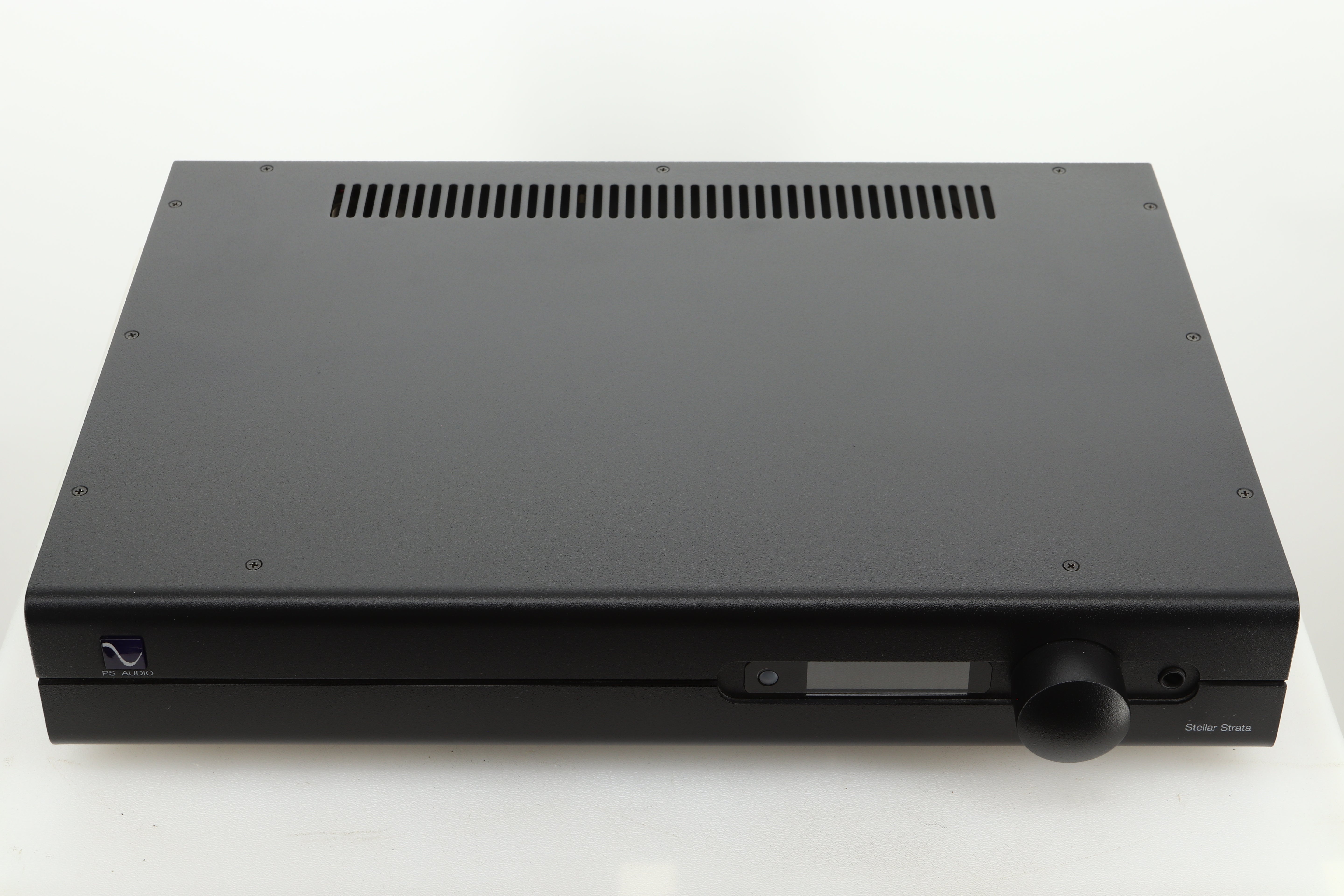

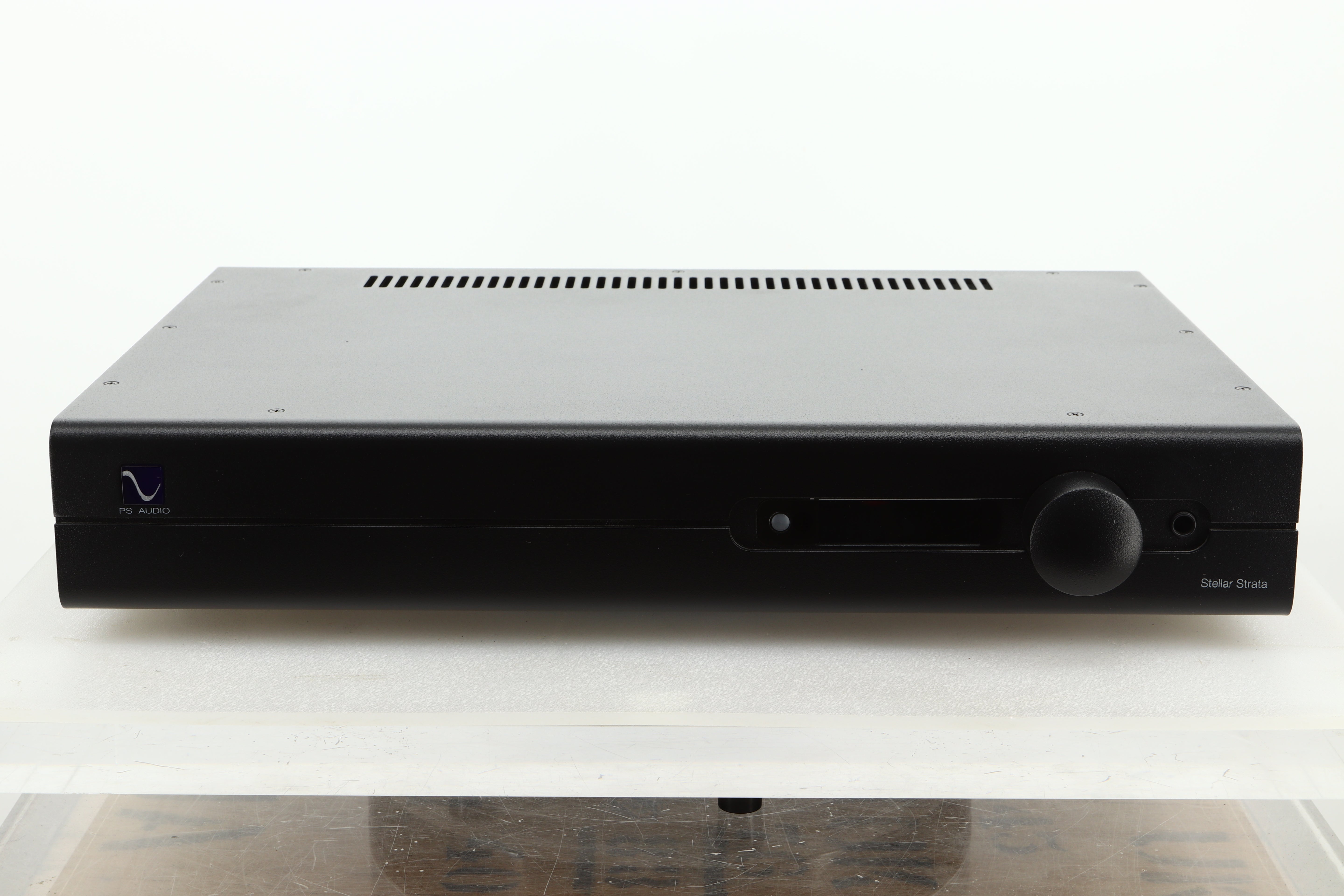

PS Audio Stellar Strata Mk1 Integrated Amplifier - Black

Stellar Strata combines exceptional sound quality and flexibility with full-featured DAC, streaming module, 200 watt-per-channel Analog Cell™ power amp and more.
The Strata integrated amplifier is fully balanced from input to output for extremely transparent, detailed sound quality and ultra-quiet operation. Its preamplifier stage features PS Audio’s exclusive analogue GainCell™, which eliminates the sonic degradation that can be caused by conventional volume controls. The Strata provides three analogue inputs including an XLR balanced input.
The built-in DAC was designed by the PS Audio engineering team of Bob Stadherr and Darren Myers to deliver extraordinary sound quality from any digital source. All digital signals are fed in native mode into the DAC’s proprietary 32-bit Digital Lens, which recognizes the sample rate, re-clocks the data, reduces jitter and applies other processing. The DAC can deliver up to 384 kHz digital audio depending on the source, with native DSD capability. The Strata provides coaxial and optical digital, asynchronous USB and I2S inputs.
A built-in streaming module offers high-resolution audio up to 192 kHz from streaming services including Tidal, Qobuz, Spotify, Napster, iHeart Radio, DLNA and other sources. The streaming module is operated from a smartphone using the new PS Connect app and music server software such as JRiver, Bit Perfect, Amarra or Pure Music. The phone acts as a wireless controller, with the Strata receiving its audio stream directly from the internet via Ethernet or Wi-Fi.
In addition, the Strata’s digital filter selection feature allows the listener to choose between Slow, Minimum and Fast settings and tailor the high-frequency response to personal preferences and program sources.
The Strata’s output stage utilizes an ICE high-current Class D module with PS Audio’s exclusive GainCell circuitry, which mirrors the sonic warmth of a vacuum tube while providing the power and control of solid state. The amp can deliver 200 watts per channel (into 4 ohms, 100 into 8 ohms), and drive even difficult loudspeaker loads with ease. Other Strata features include a built-in headphone amplifier, a volume trim function that adjusts the levels of each input to avoid large volume swings when switching between sources, phase and balance adjustments and other useful functions.
Like every PS Audio product, meticulous attention has been paid to parts quality and construction.

Features

Class A balanced analogue GainCell preamplifier section
Full-function DAC
High-resolution streaming up to 192 kHz using PS Connect control app

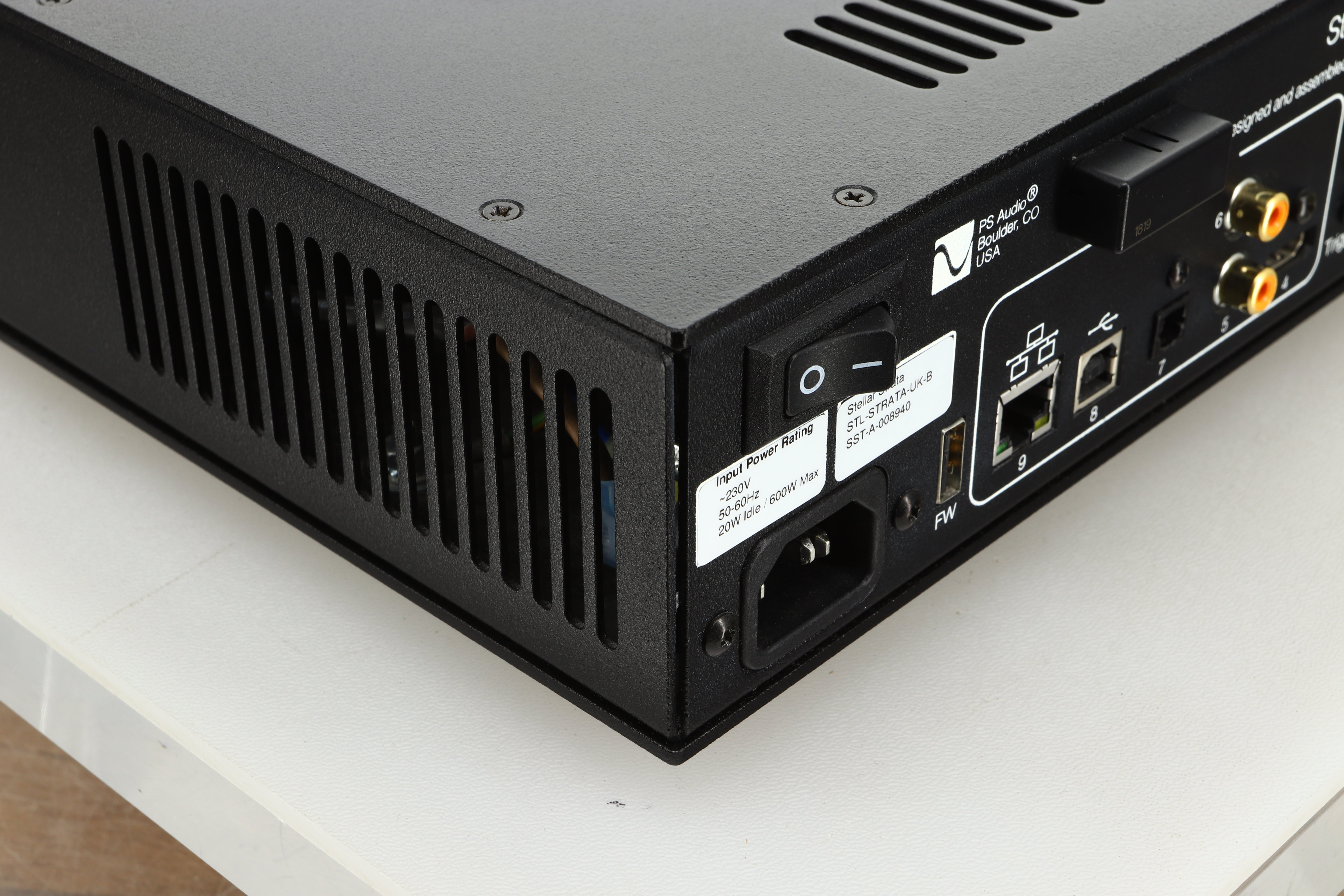

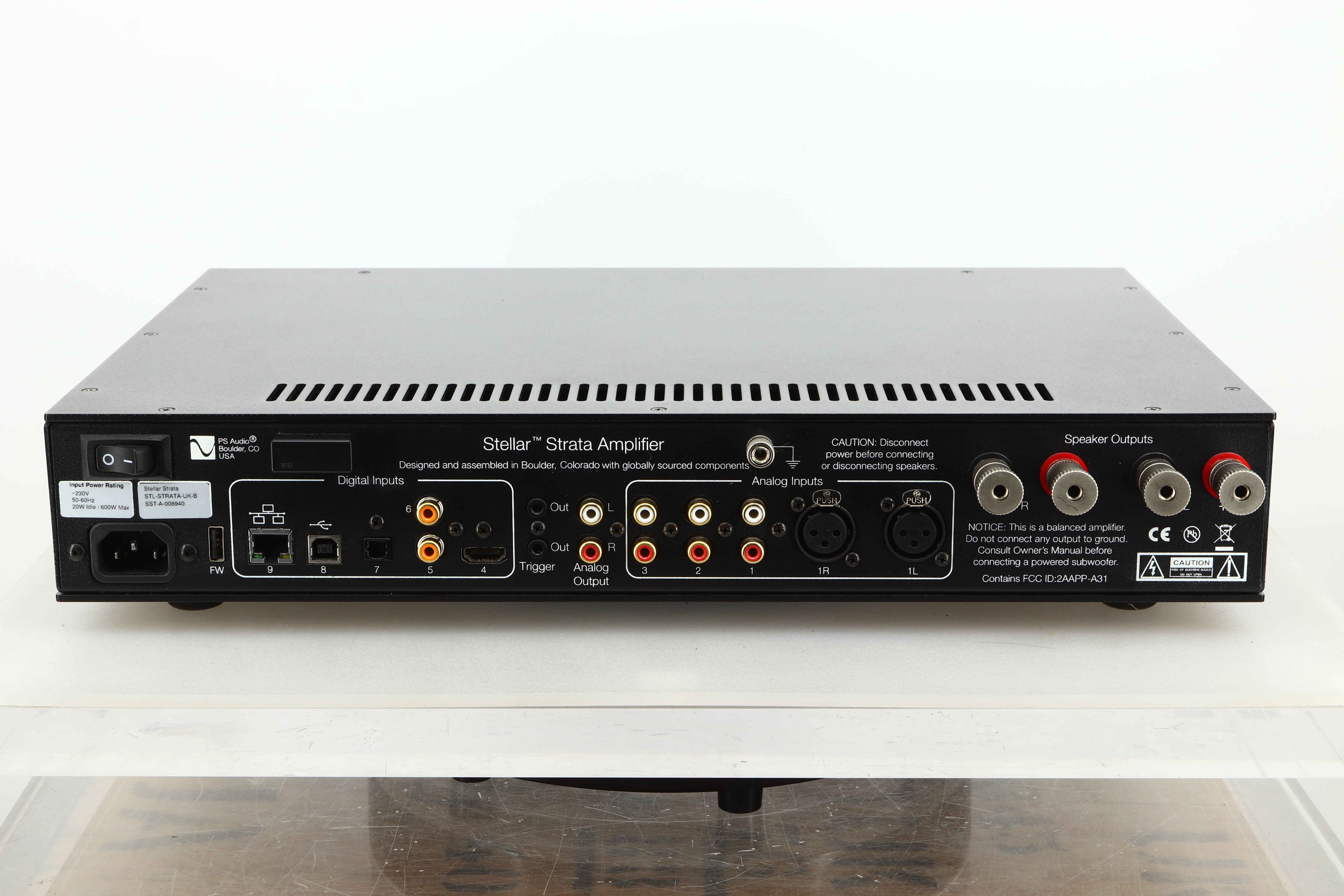

Three single-ended analogue inputs, one balanced analogue input and four digital inputs including coaxial, optical, I2S and USB (asynchronous to 384 kHz) with DSD capability
200 watts per channel into 4 ohms, 100 watts into 8 ohms; hybrid amplifier with Class A input stage coupled to a high-powered Class D output stage
Built-in Wi-Fi
Built-in Class A headphone amplifier

Analogue Inputs
Input Separation: > 85 dB
Input Impedance: Unbalanced 47 kΩ; Balanced 100 kΩ
Maximum Input Level: > 16 Vrms
Analogue Output
Output Impedance: Line Out 100 Ω
Gain: Volume = 100, 6 dB +/- 0.5 dB

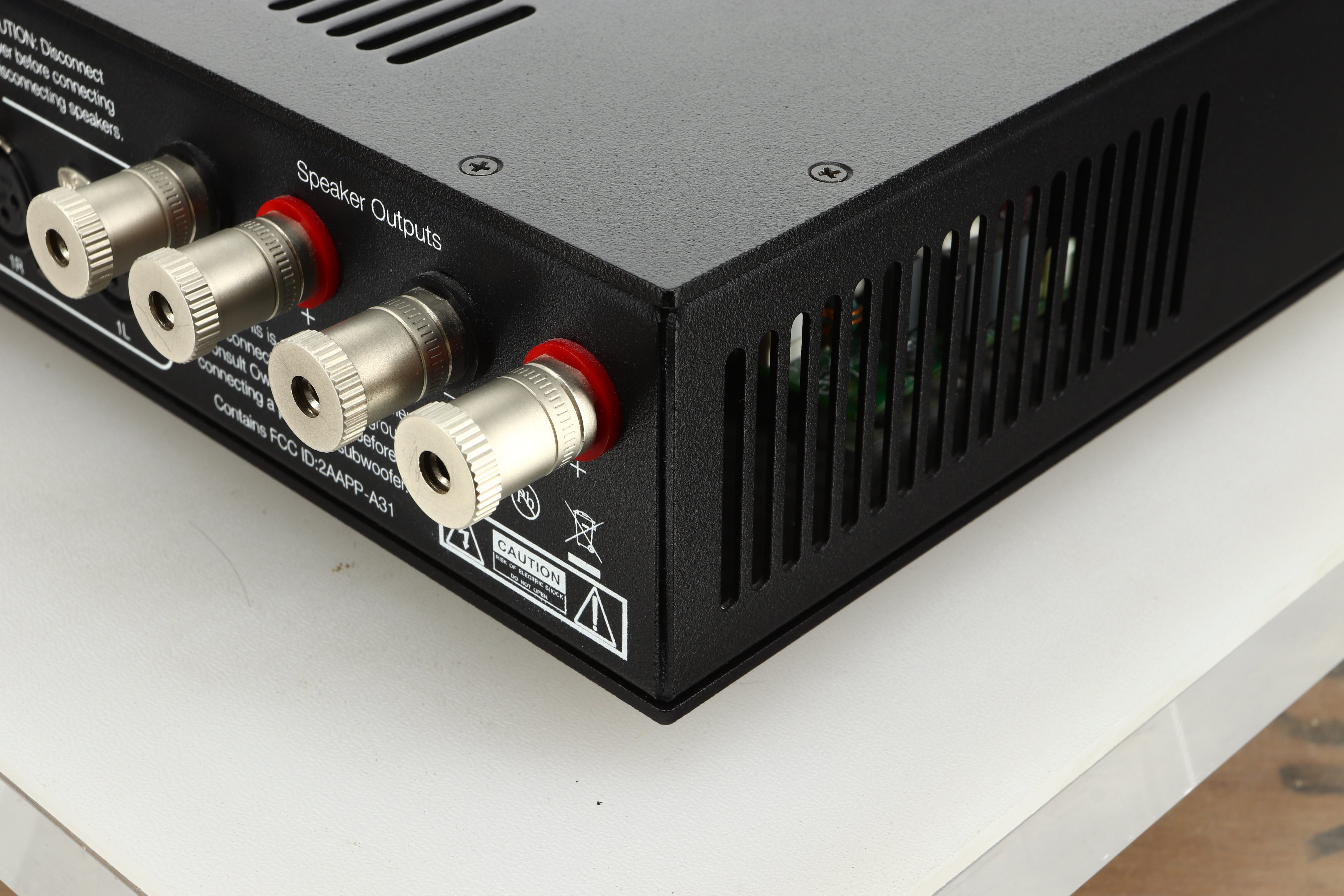

Main (Speaker) Output
Gain (relative to line output): 30.5 dB
Output Power: 8 Ω, 1 kHz, 1% 100 W minimum
Output Power: 4 Ω, 1 kHz, 1% 150 W typical
Frequency Response: +/- 1 dB, 20 Hz - 20 kHz; - 3 dB, 7 Hz - 40 kHz
Total Harmonic Distortion + Noise: 1 kHz, 10 W/4 Ω 0.02%
Intermodulation Distortion: 18/19 kHz - 65 dB
Speaker Impedance: 4 Ω minimum
Output Impedance: 50 Hz, 150 mΩ typical
Damping Factor: 50 Hz, 4 Ω, 29
Sensitivity: @ 76, 1.6 Vrms; @ 100, 400 mVrms
Channel Separation: 1 kHz > 90 dB
Headphone Output
Gain: 16.5 dB
Output Power: 300 Ω, 1 kHz, 1% 300 mW; 16 Ω, 1 kHz, 1% 3.25 W
Frequency Response: +/- 1 dB, 7 Hz - 40 kHz
Total Harmonic Distortion: 1 kHz, 1 Vrms 300 Ω < 0.02%, 16 Ω < 0.02%
Signal to Noise Ratio: 1 kHz > 110 dB (max output)
Output Noise: < - 90 dB V
Headphone Impedance: 8 Ω minimum
Output Impedance: < 4 Ω
Input Voltage: 230 Vac
Power Consumption: Idle 20 W; Typical 50 W; Maximum 600 W
Dimensions: 17.0” (W) x 12.0” (D) x 2.8” (H)
Weight: 21 lbs
