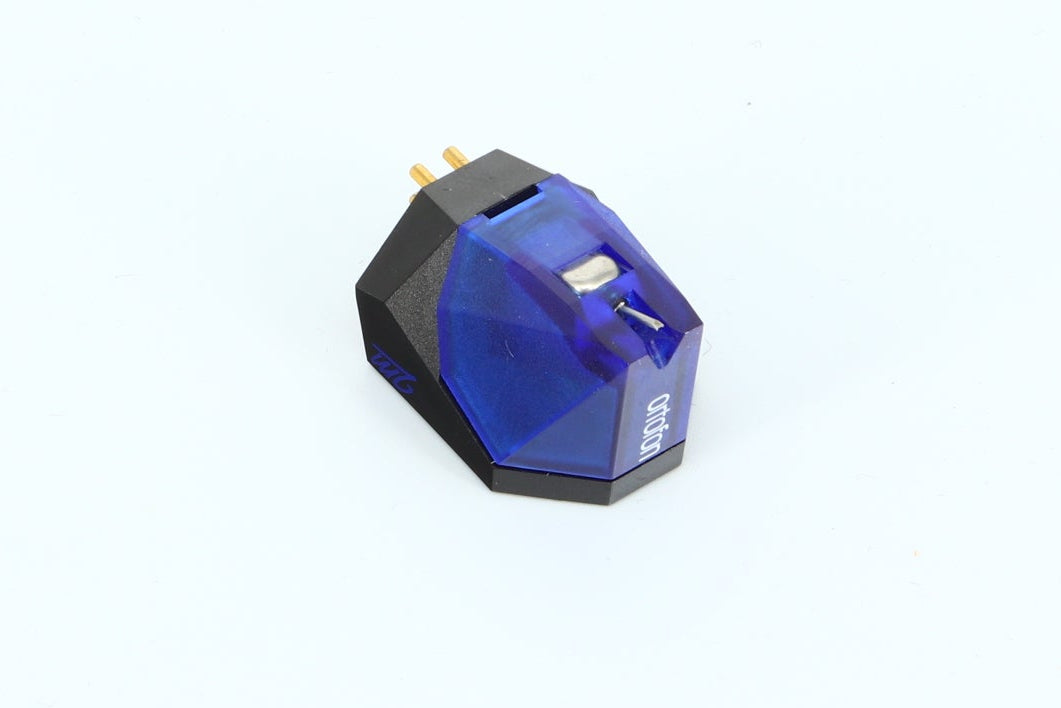

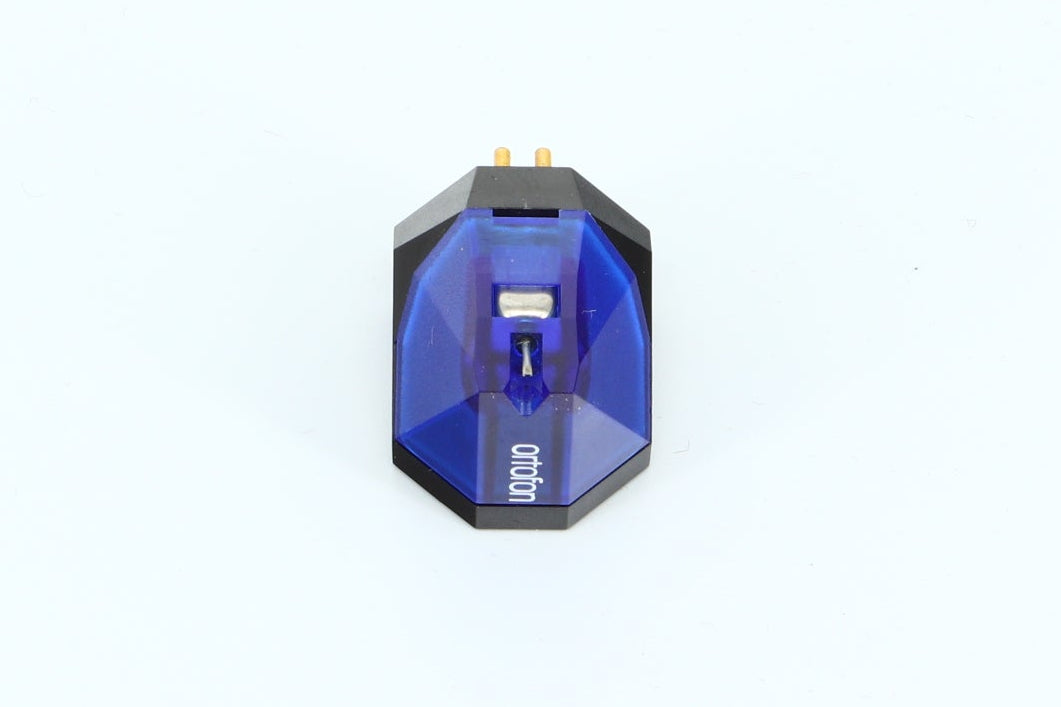

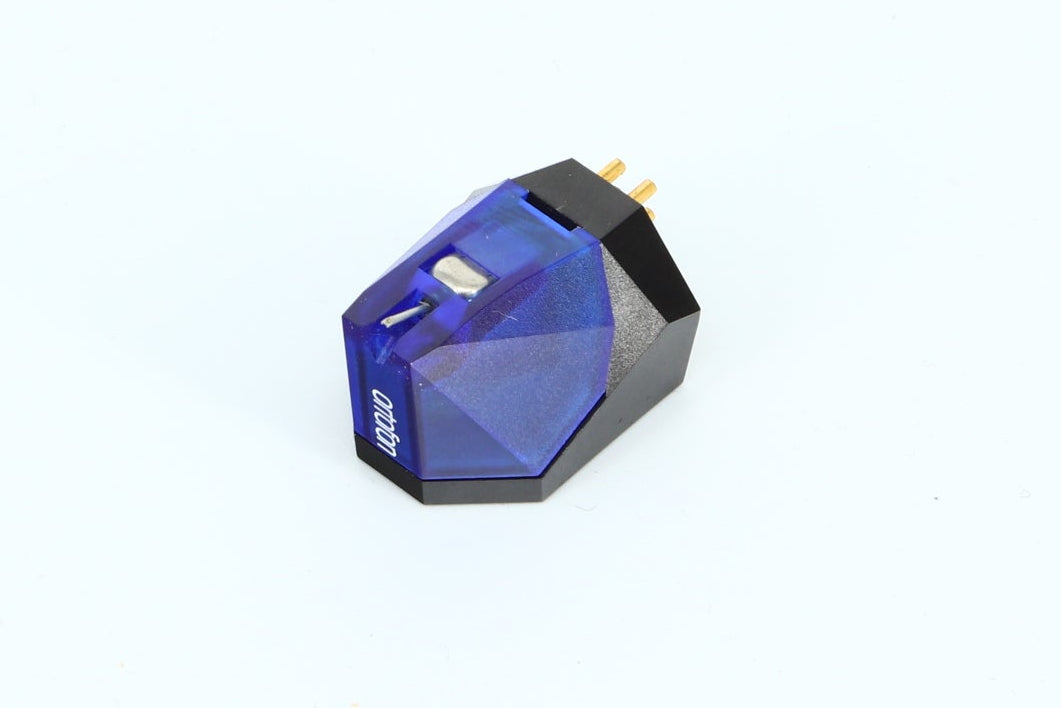

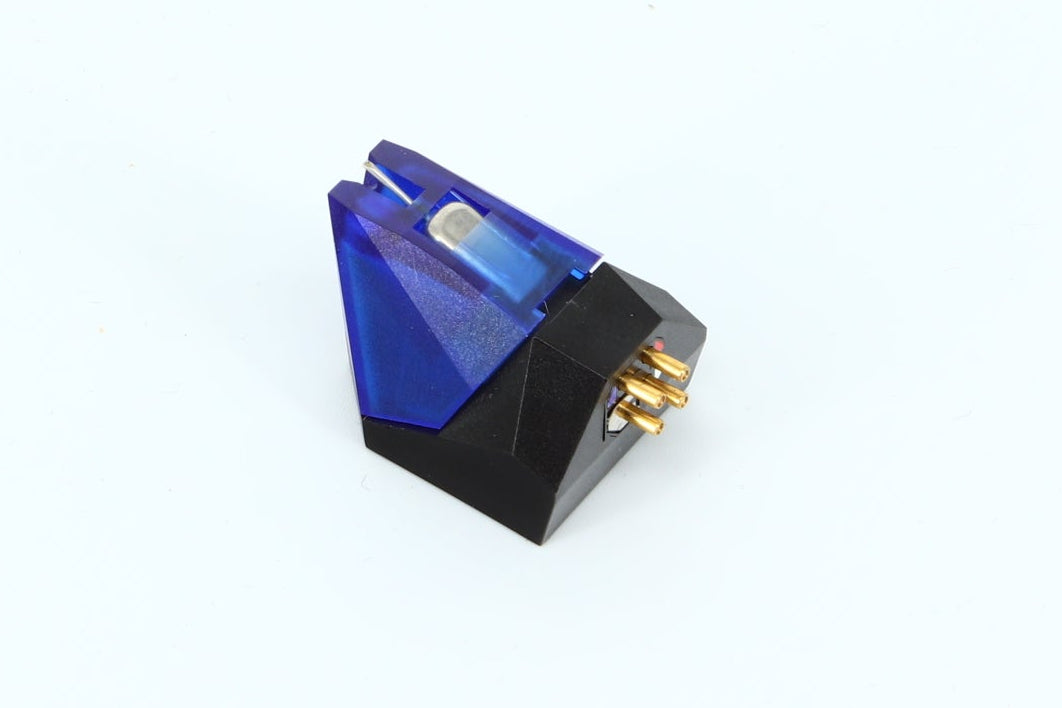

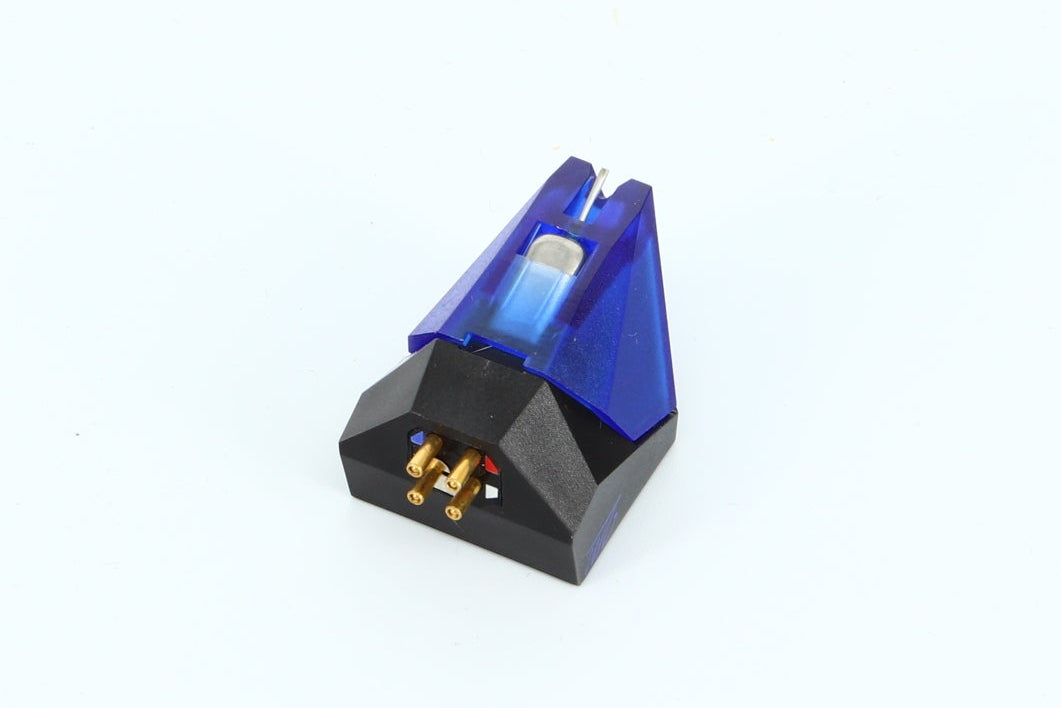

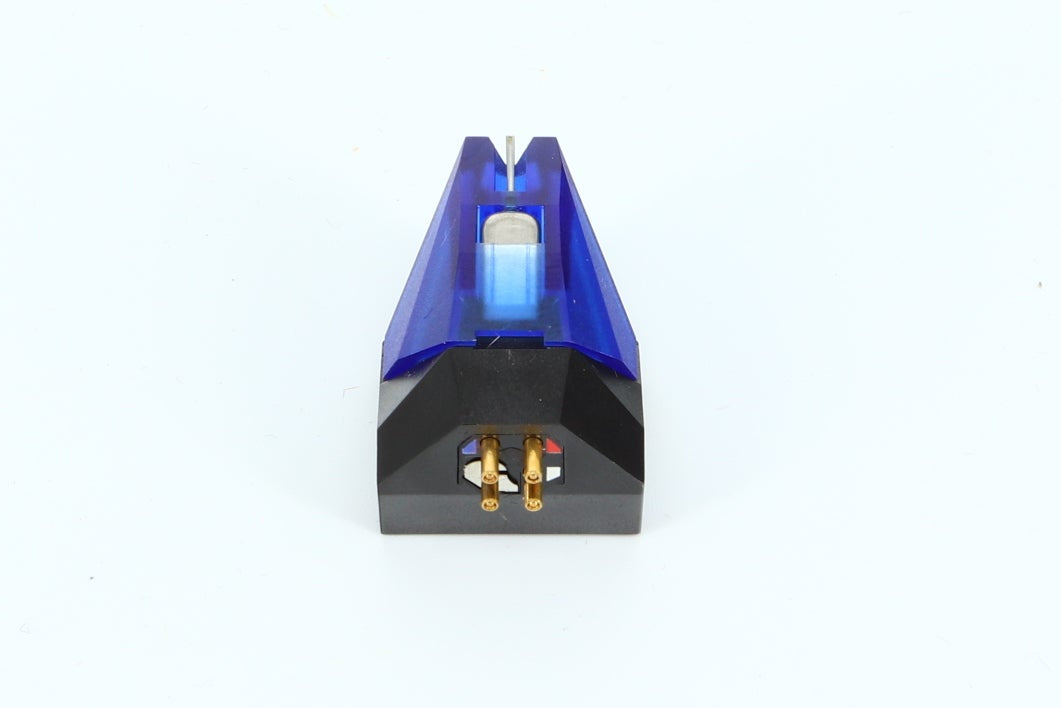

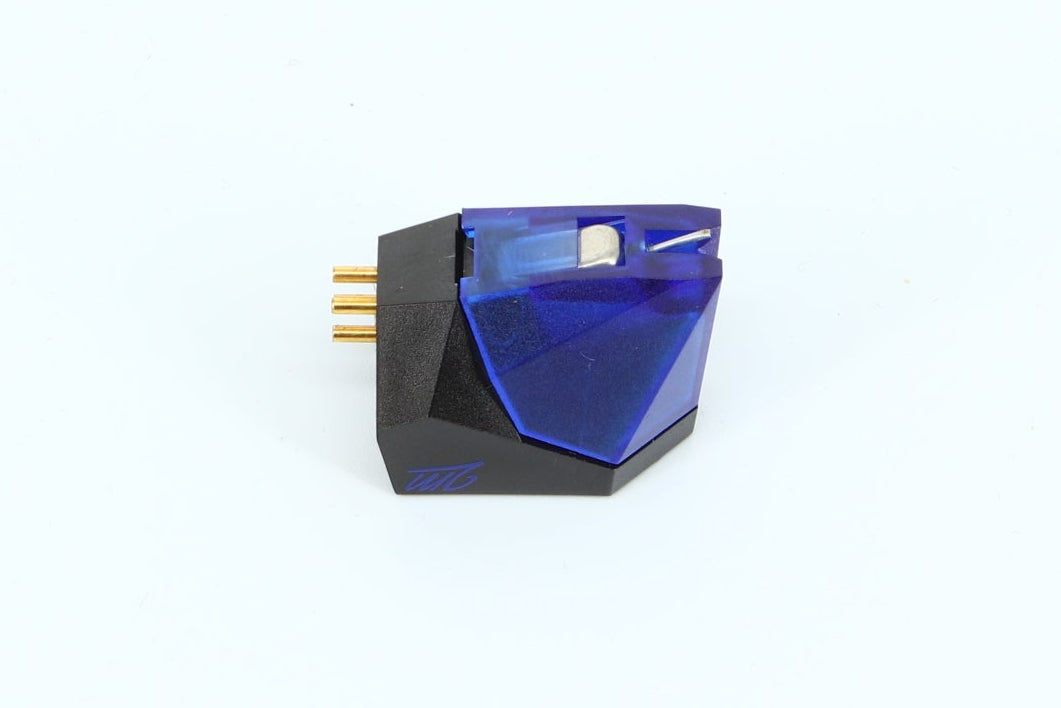

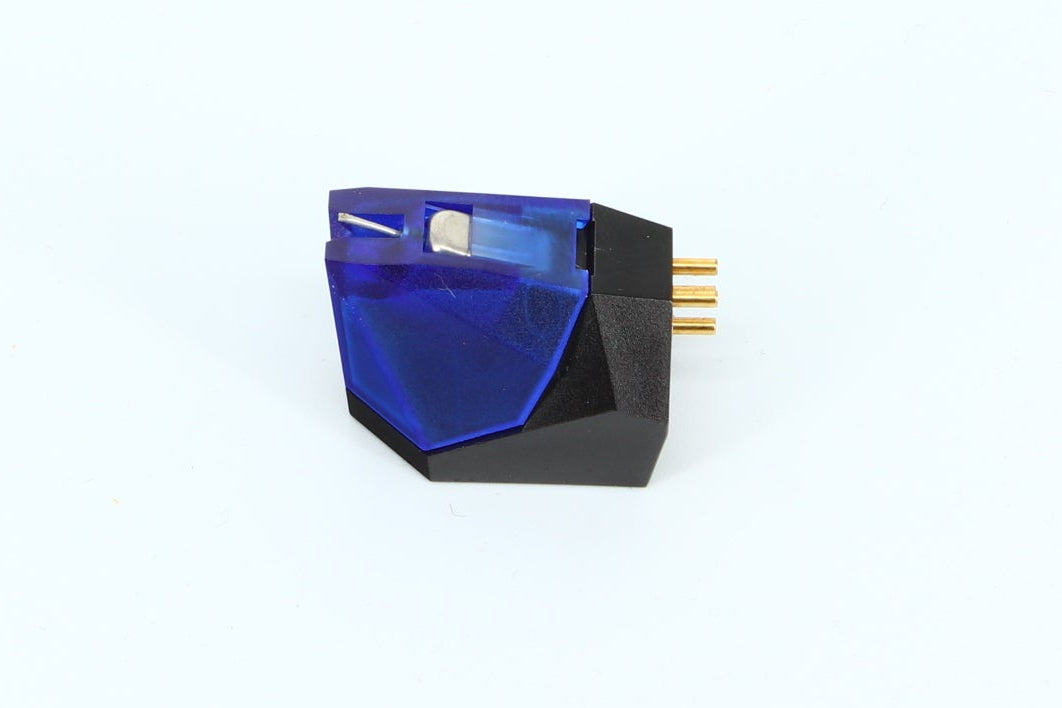

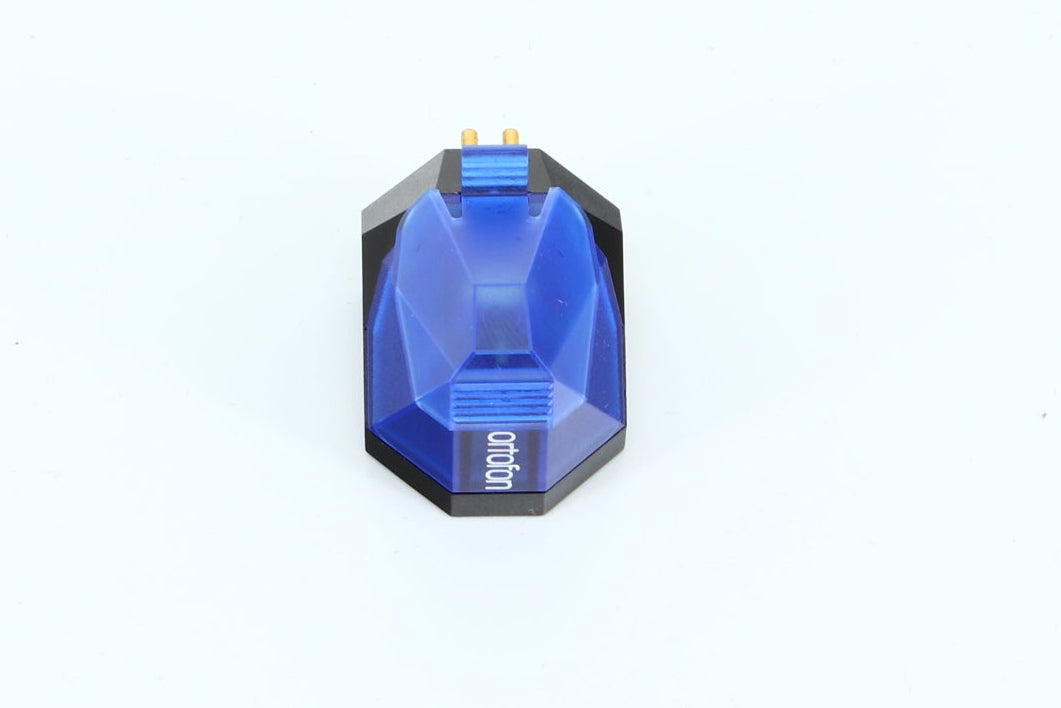

Ortofon 2M Blue MM Cartridge

The 2M Red and 2M Blue are designed for precise and accurate retrieval of the information in the record groove. Indeed, it is Ortofon's lasting philosophy to only ever play the recorded sound, without colouration. To obtain a flat frequency response, as with a Moving Coil cartridge, Ortofon are using split pole pins in the 2M design, to reduce the eddy current. The split pole pins are an Ortofon invention which was originally presented in the 500 and Super OM series, to great effect.

Output Voltage (at 1kHz, 5cm/sec): 5.5mV,br> Channel Balance at 1kHz: 1.5dB
Channel Separation at 1kHz: 25dB
Channel Separation at 15kHz: 15dB
Frequency Range (at -3dB): 20Hz - 25kHz,br> Frequency Response 20Hz - 20kHz: +2 / -1dB
Tracking Ability at 315Hz: Typically 80μm
Compliance, Dynamic, Lateral: 20μm / mN
Stylus Type: Nude Elliptical
Stylus Tip Radius r / R: 8 / 18μm
Tracking Force Range: 1.6 - 2.0g (16 - 20mN)
Recommended Tracking Force: 1.8g (18mN)
Tracking Angle: 20º
Internal Impedance / DC Resistance: 1.3kΩ
Internal Inductance: 700mH
Recommended Load Resistance: 47kΩ
Recommended Load Capacitance: 150 - 300pF
Cartridge Colour Body / Stylus: Black / Blue
Cartridge Weight: 7.2g
Replacement Stylus Unit: Stylus 2M Blue

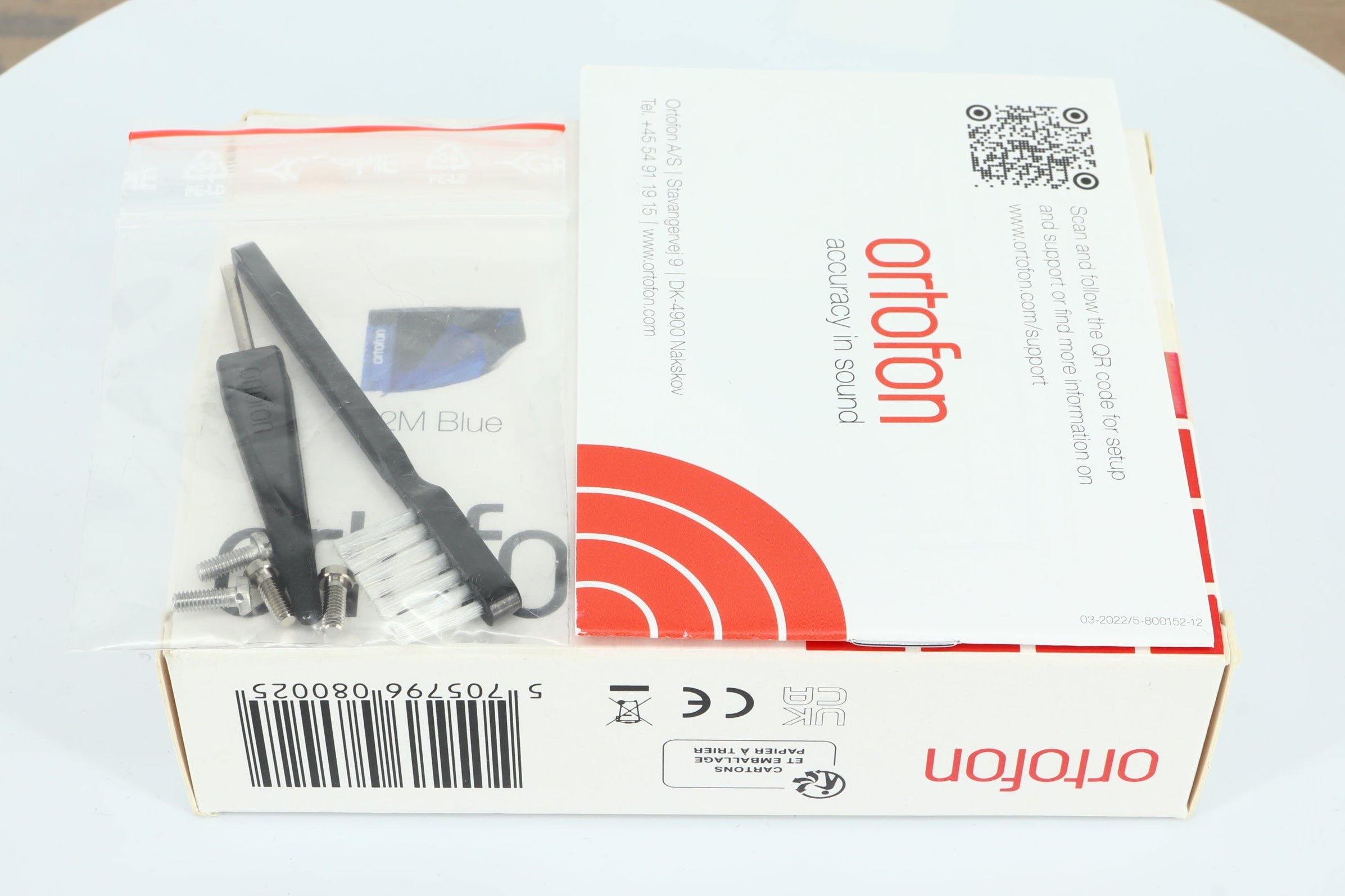

Accessories: Stylus Brush / Screwdriver
