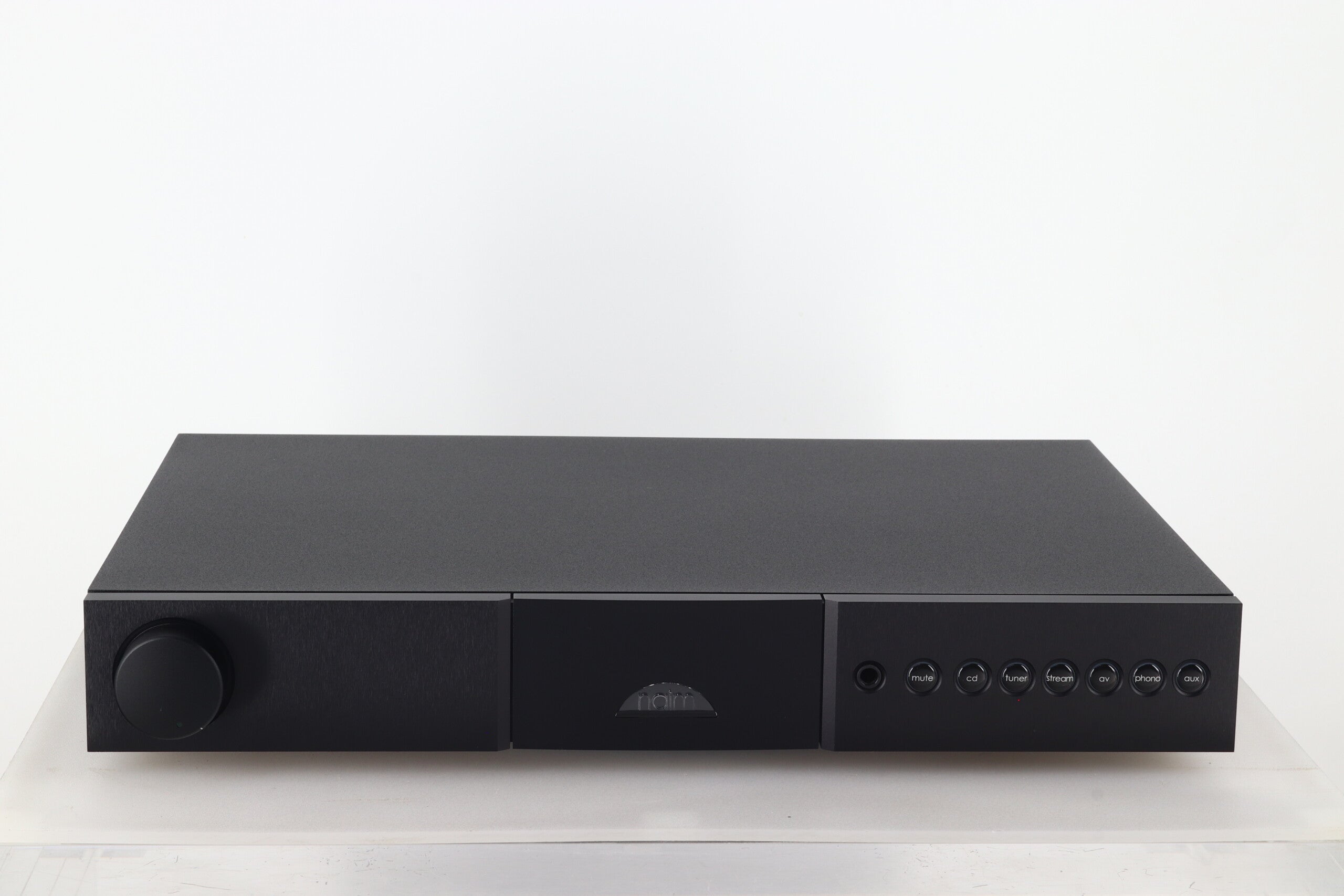

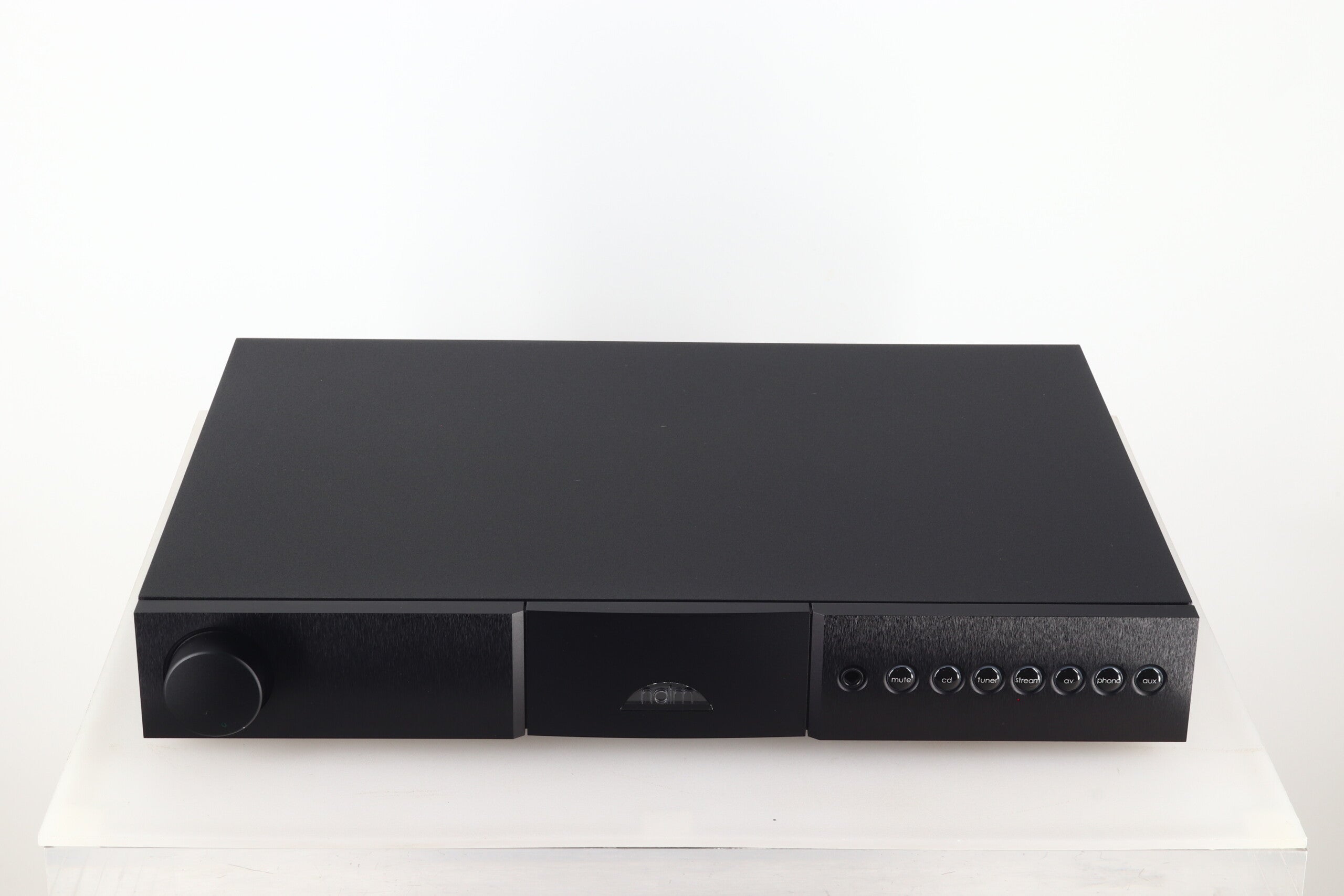

Naim Nait XS-3 Integrated Amplifier

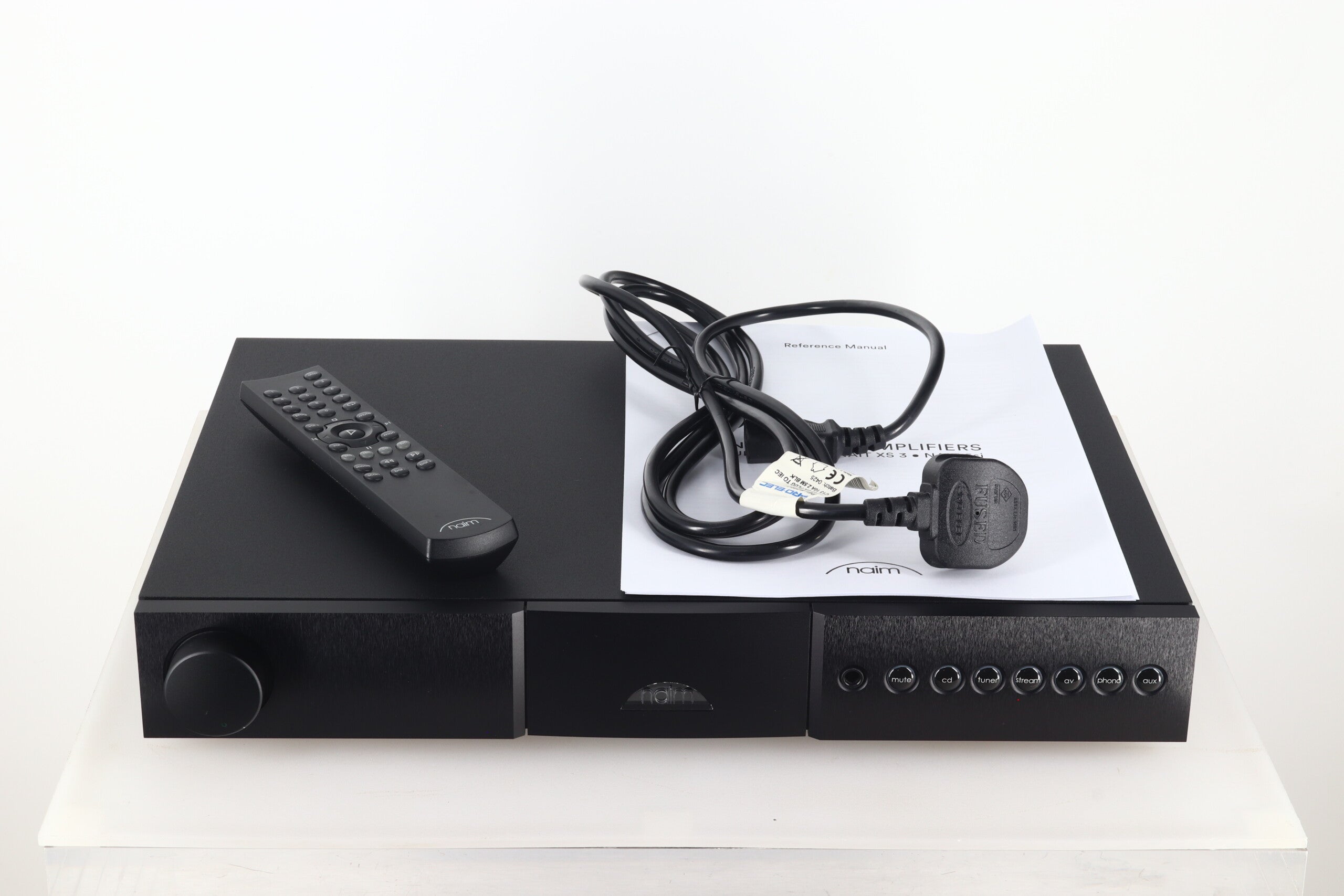

Here we have an excellent example of the award winning Naim NAIT XS 3 Integrated Amplifier which we believe dates from 2019. It comes in original factory packaging, with remote control, mains cable, link plug, manual, and as we (Hi-Fi Sound) are an authorised Naim dealer it will of course feature our standard three month warranty.
Naim Say….
In the six years since the last NAIT integrated amplifiers were released, our research and development team have worked on a range of amplifier improvements.
The result is upgraded power amplifier sections for NAIT XS 3, delivering greater pace and intimacy to their musical delivery - whether it’s driving a pair of loudspeakers or your favourite pair of headphones.
The NAIT XS 3 has received significant performance upgrades, including a built-in phono stage, making it a perfect partner for turntables, as well as for streamers, CD players, or any other music source people want to enjoy with the signature Naim sound.
The NAIT XS 3 offers much of the performance of our reference quality SUPERNAIT 3 in a simpler, slimmer package combining a 70W power amplifier with five analogue inputs plus a phono stage. Its high-performance preamplifier stage is as transparent as you would expect from a Naim Audio amplifier, and it also shares the single-ended class-A headphone output of its larger sibling.
The NAIT XS 3 can be upgraded with our external power supplies, power amplifiers and even cabling upgrades to get the best from all sources.
Features:
With our typical obsessive attention to detail – all in service of achieving the most authentic musical performance – the NAIT XS 3 benefits from the following features:

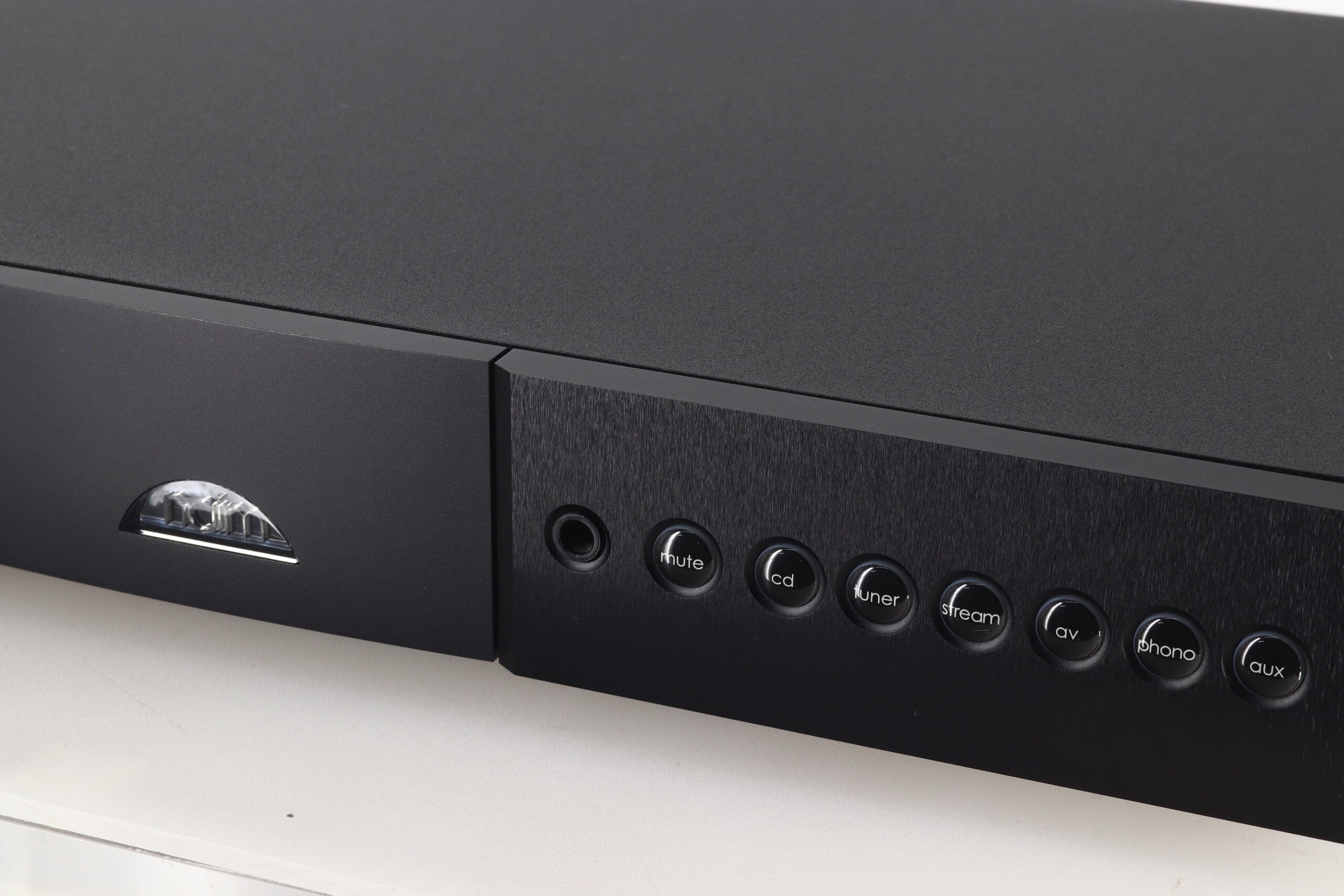

Class A headphone amplification

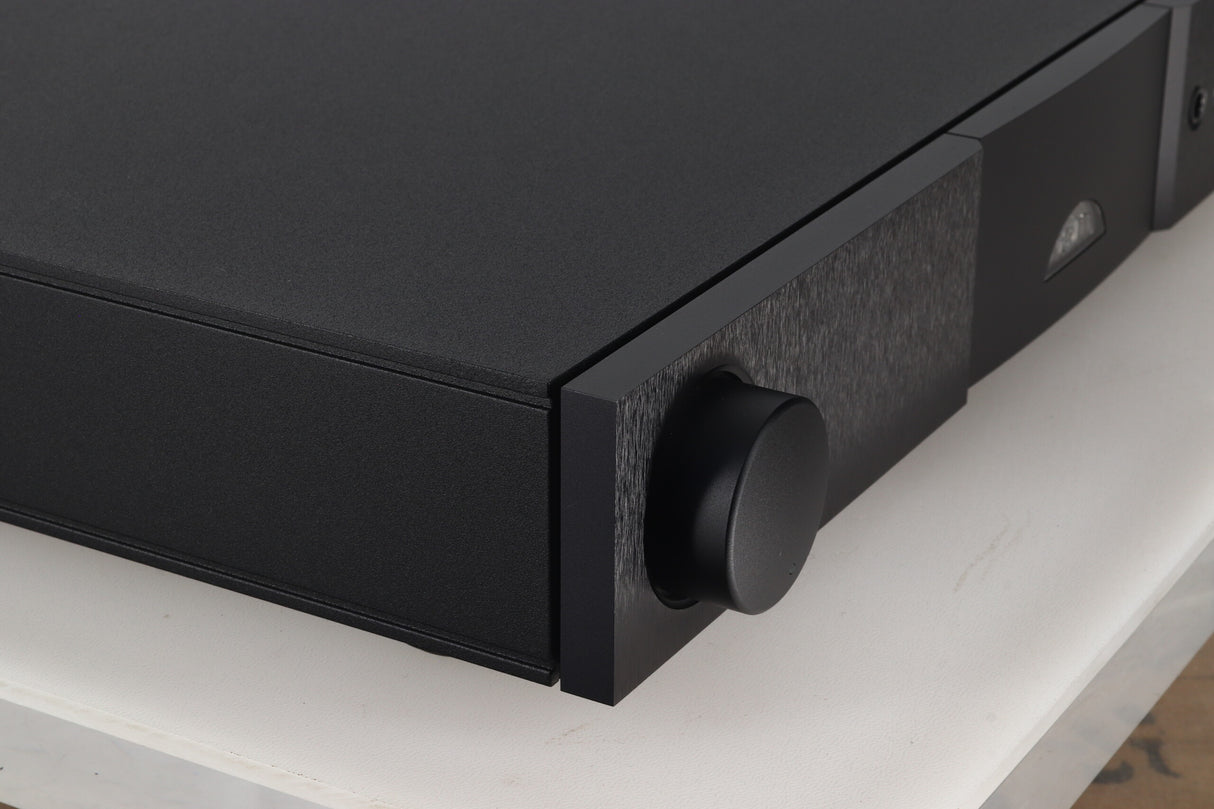

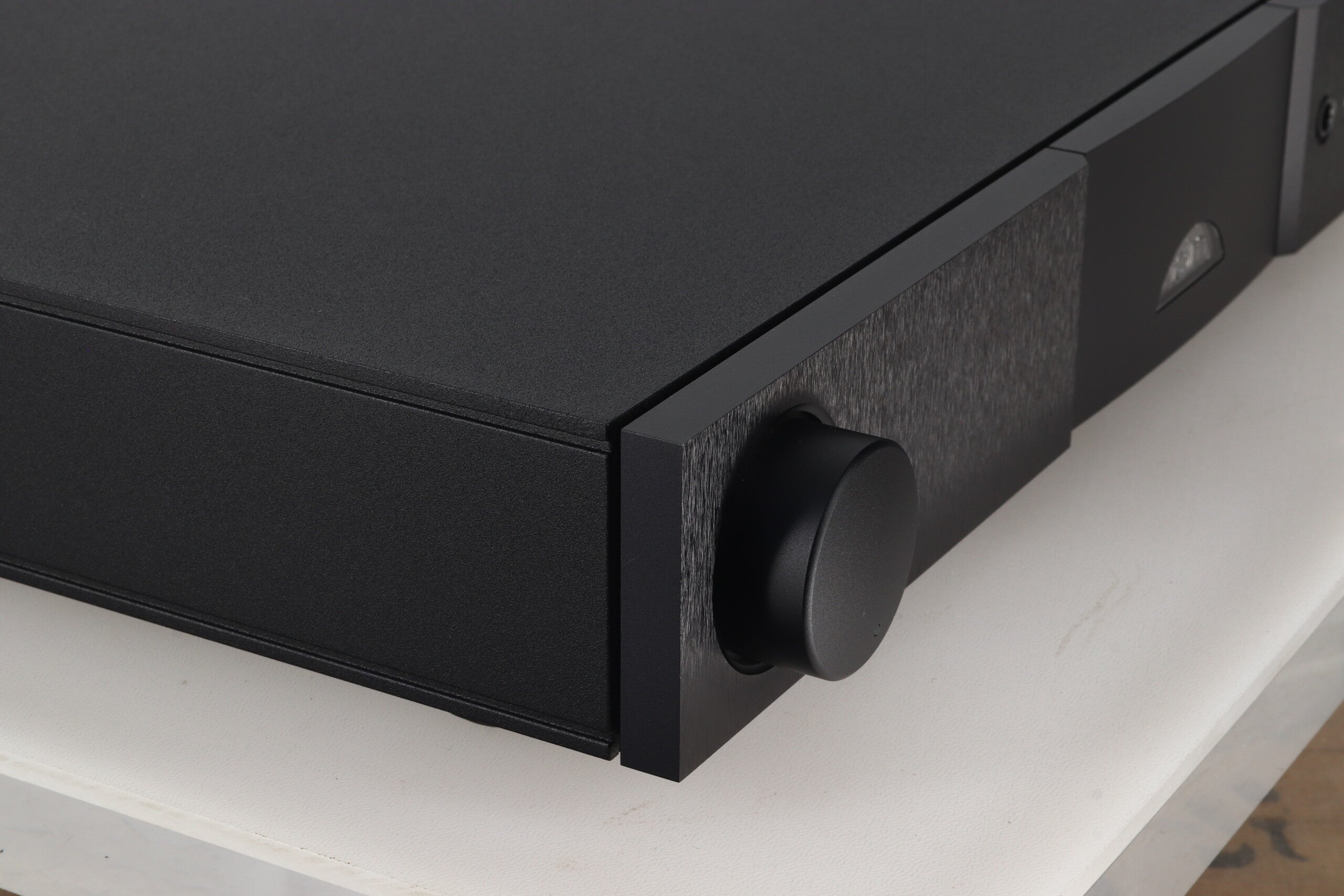

Alps Blue Velvet volume control
Reed relay input selection
Ceramic insulators for the power transistors
Galvanically isolated microprocessor control section
Microphonic-isolating PCB mounts
The upgrades in more detail:
Our R&D team has found a way to more than double the speed of the voltage gain stage, which in turn doubles the rate at which the speaker output stage can react.
The second gain stage transistors have been optimised, so they no longer need to be shielded by a cascode stage transistor. Removing the cascode means less amplifier stabilisation is required: that doubles the slew rate and delivers another uplift in sound quality.
The phono circuit topology comprises 3 stages: the gain stage, passive equalisation and final gain and active equalisation. This enables excellent noise performance, extended RIAA equalisation beyond the audio band and great overload headroom.
All RIAA equalisation capacitors are ‘through-hole’ mounted film designs, with low microphonic pickup and excellent transient performance. As phono stages are 1000x more sensitive than other inputs, this greatly benefits the sound quality.
Input impedance is 47kΩ in parallel with 470F capacitive loading; the gain is perfect for 5mV moving magnet cartridges
Specifications:

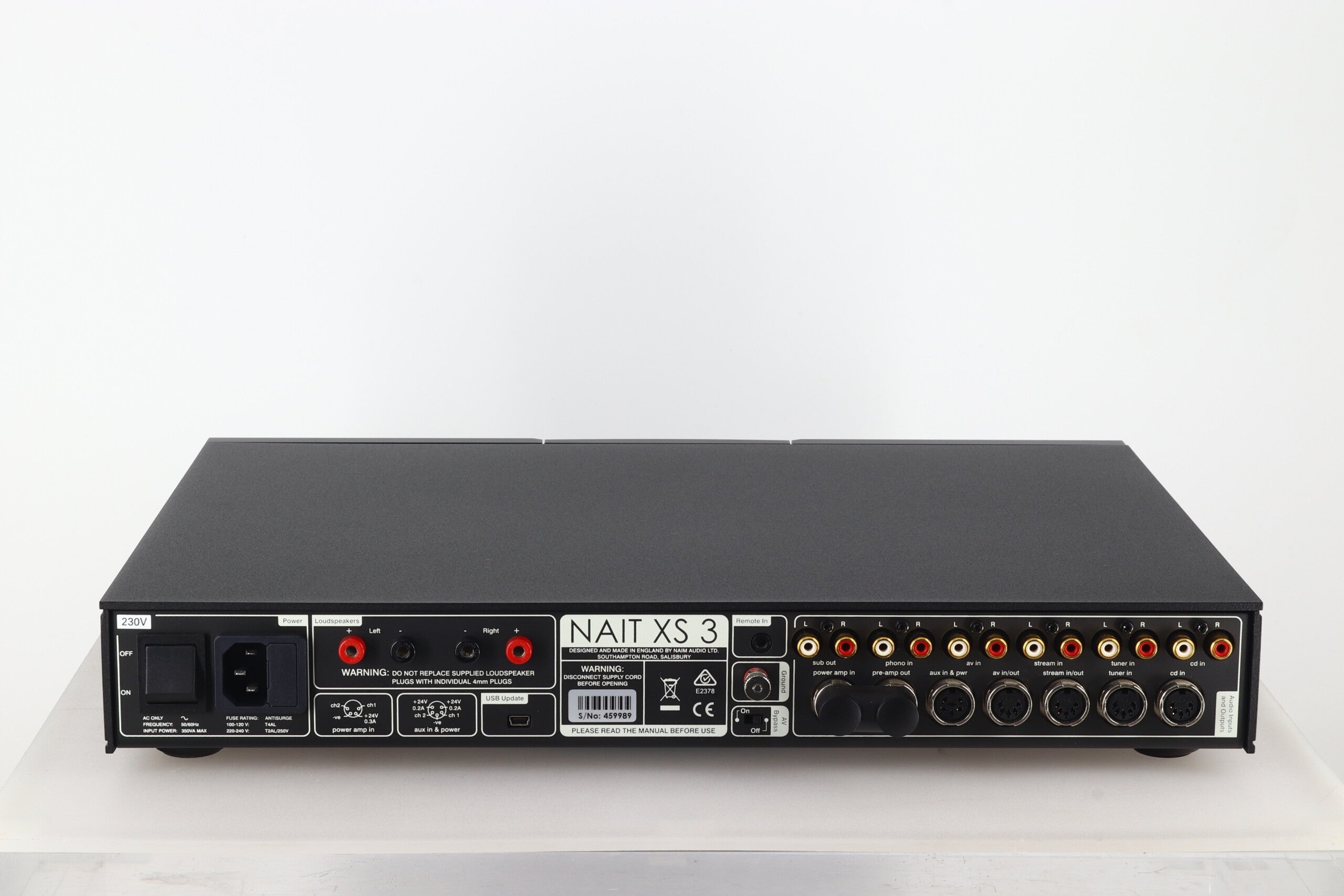

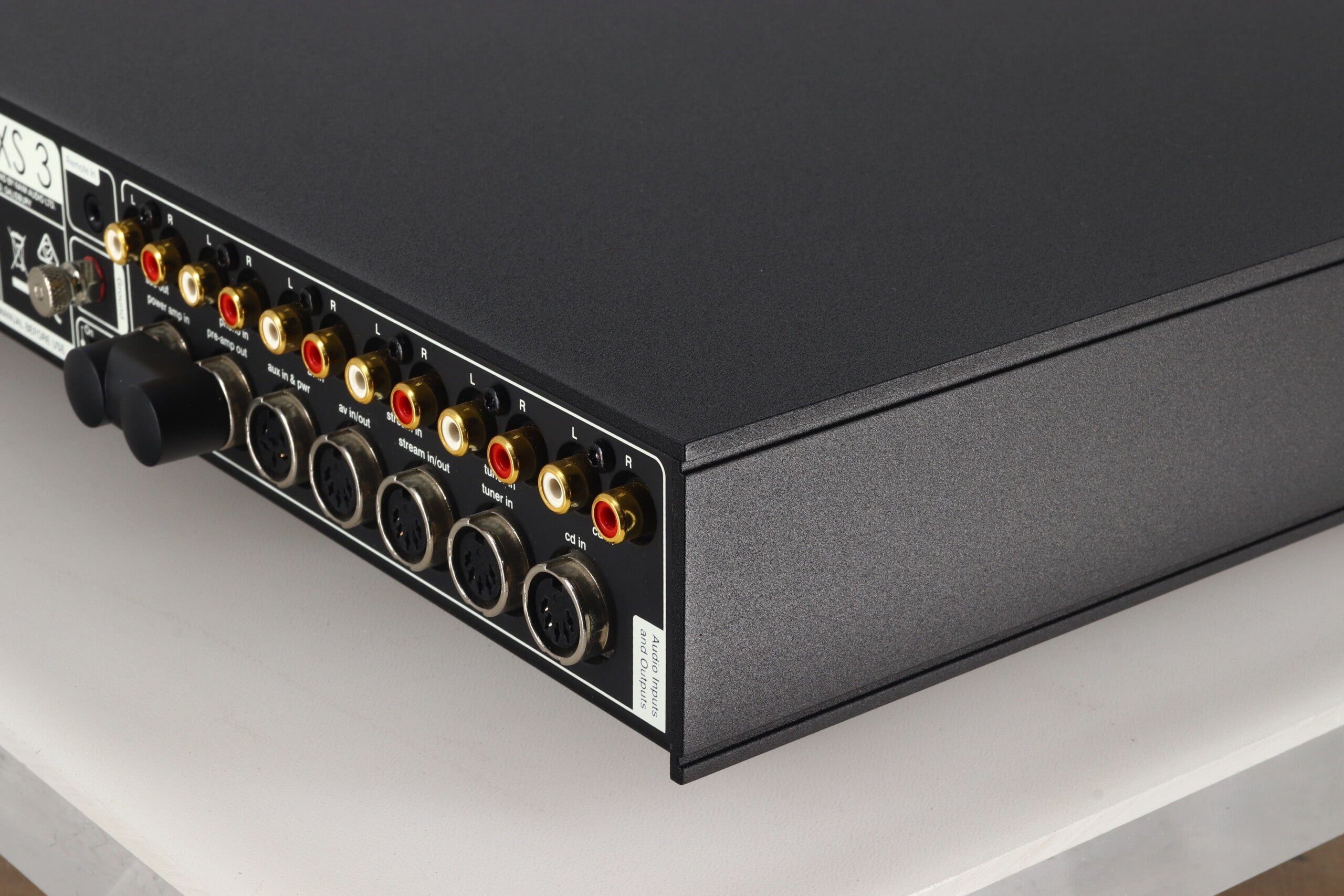

MM Phono Input: via RCA, 47 k parallel 470 pF input impedance, suitable for 5 mV cartridges
Line Level Inputs: 130 mV sensitivity, 47 k input impedance, suitable for 2 V
Power Amp In: DIN Socket
Powered Accessory Sockets: +24 V for Naim phono amplifier

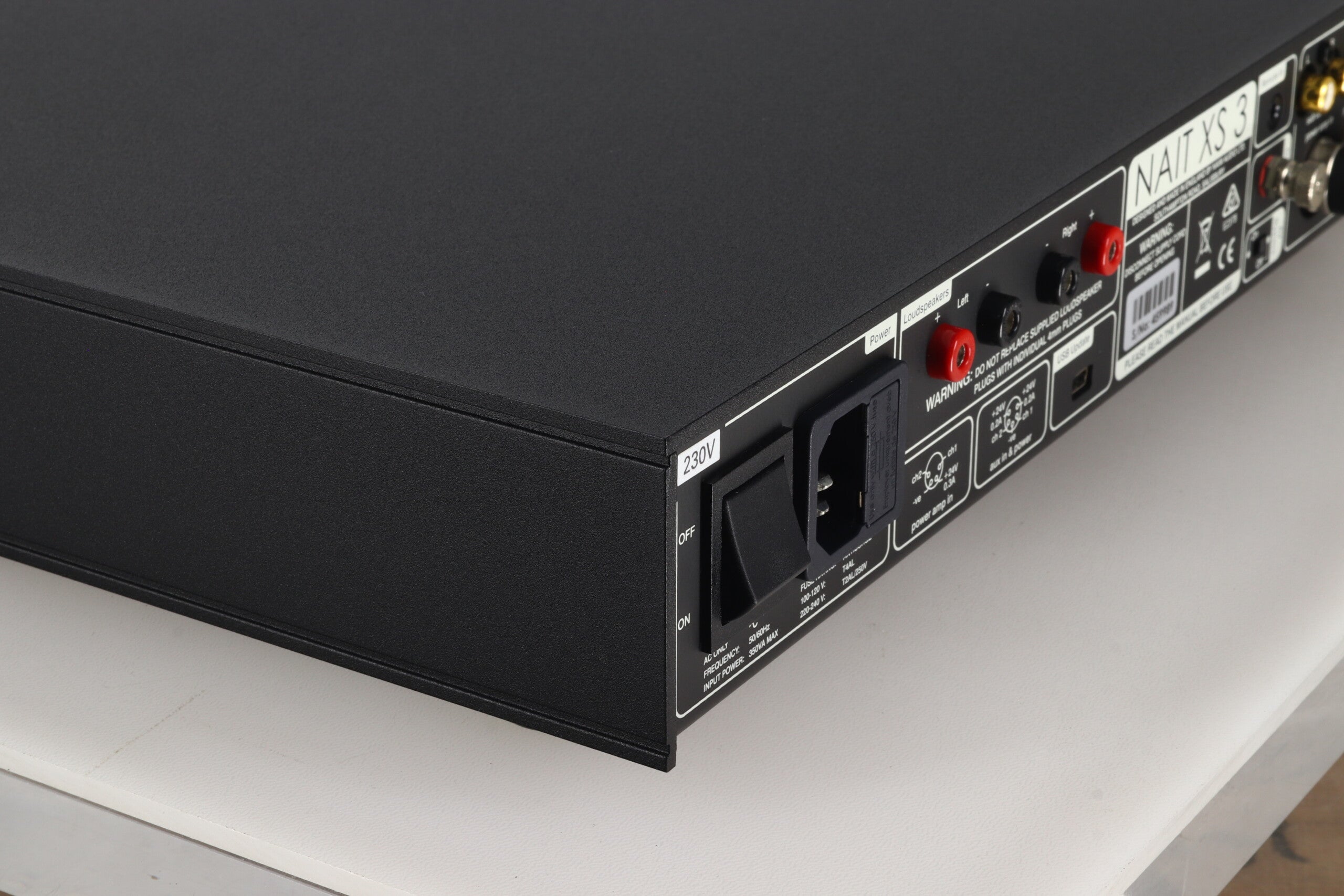

Speaker Outputs: 70 W per channel into 8 ohms (4 mm sockets), 100 W per channel into 4 ohms
Line Outputs Variable (level): Pre-amp (DIN), Sub (RCA pair) 775 mV, <50 ohms
Line Outputs Fixed (level): AV (DIN), Stream (DIN) 130 mV, 600 ohms
Headphone Output: 1/4 inch (6.35 mm) TRS Socket
Updates: 1 x USB mini-B
Remote Input: 1 x 3.5 mm Jack on rear
Power Consumption (max.): 350 VA
Mains Supply: 115 V, 230 V; 50 or 60 Hz
Power Consumption (quiescent): 16 VA
Case: Black powder coated
Front: Brushed and black anodised
Weight: 8.5 kg
Dimensions: 432 (W) x 314 (D) x 70 (H) mm
