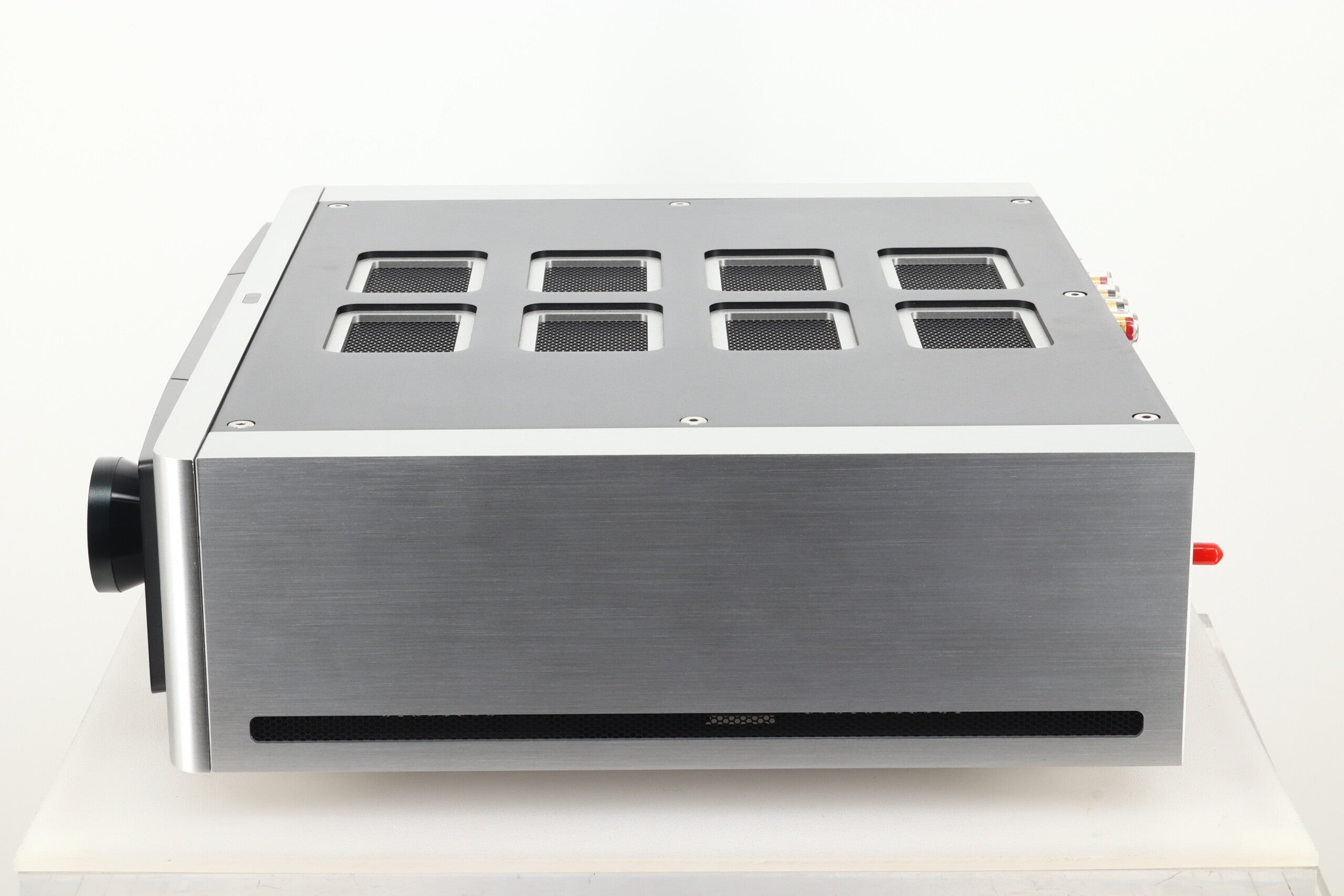

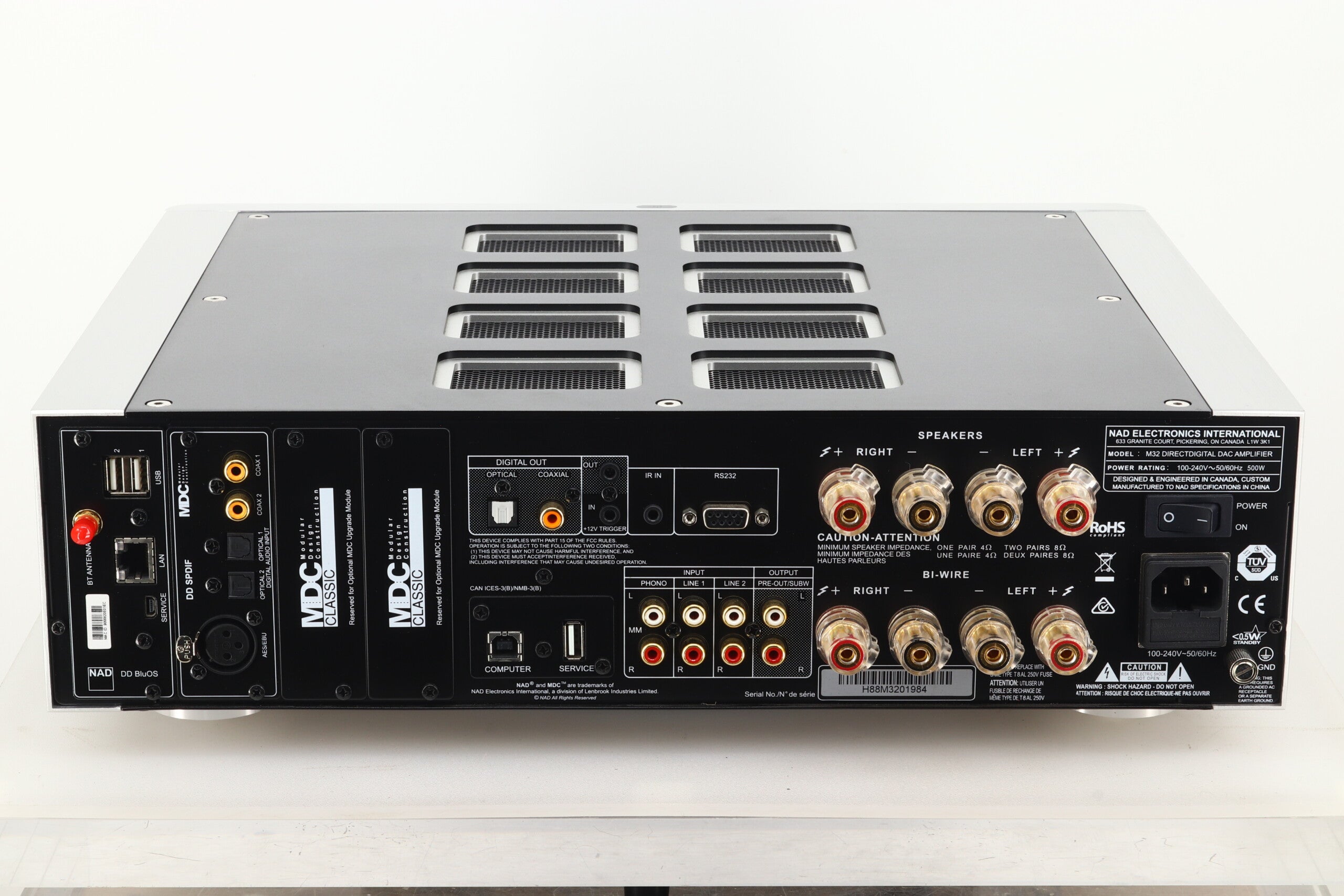

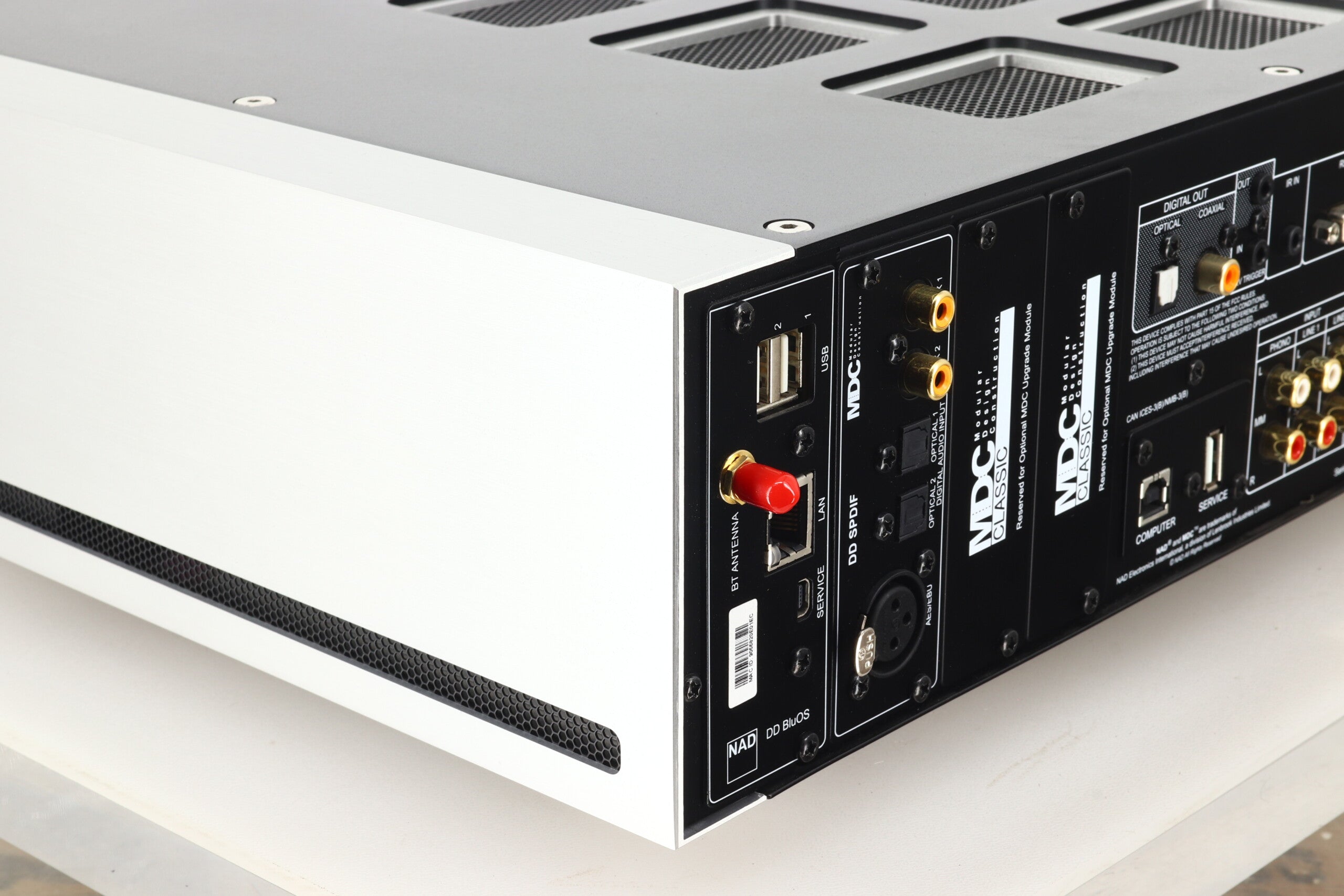

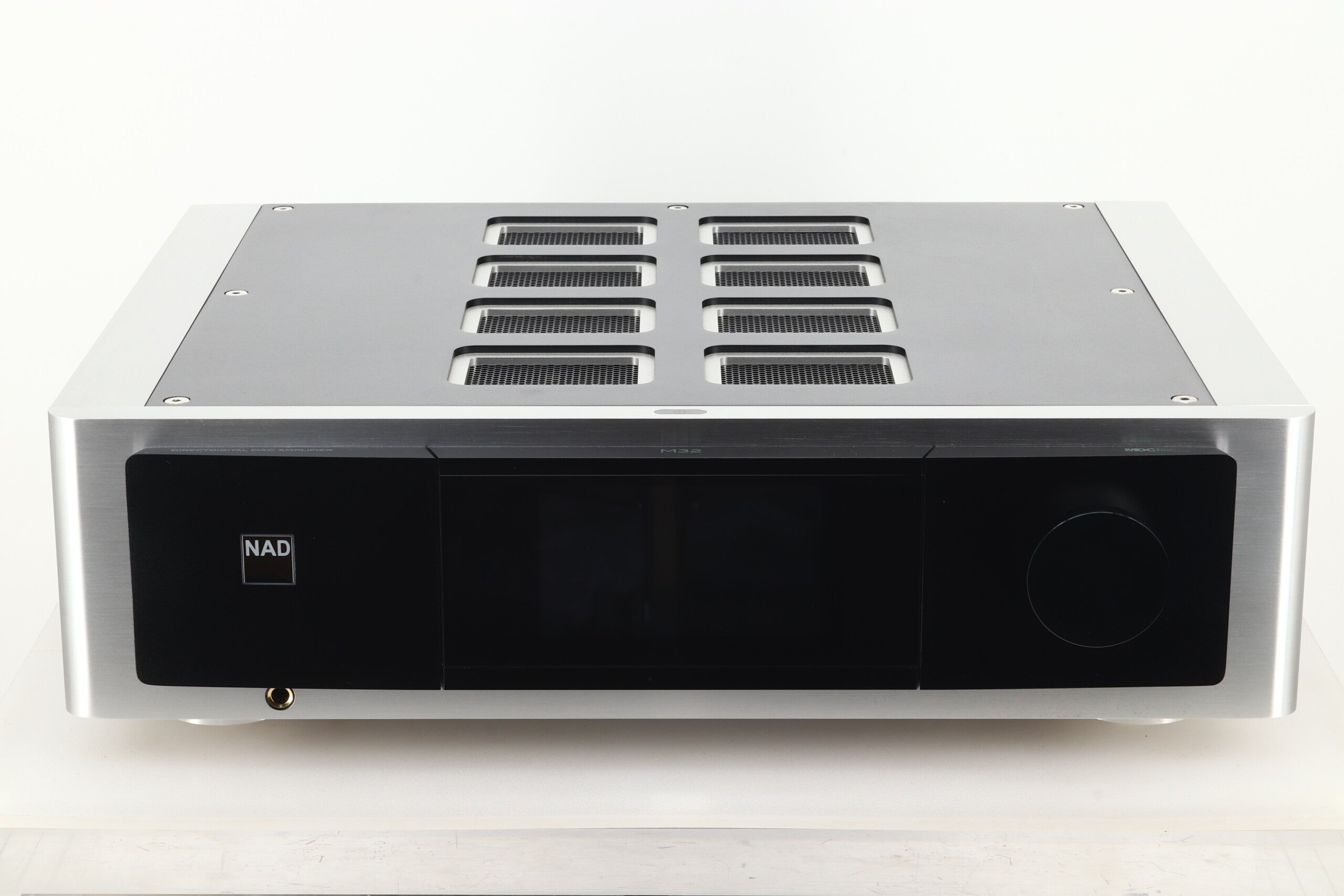

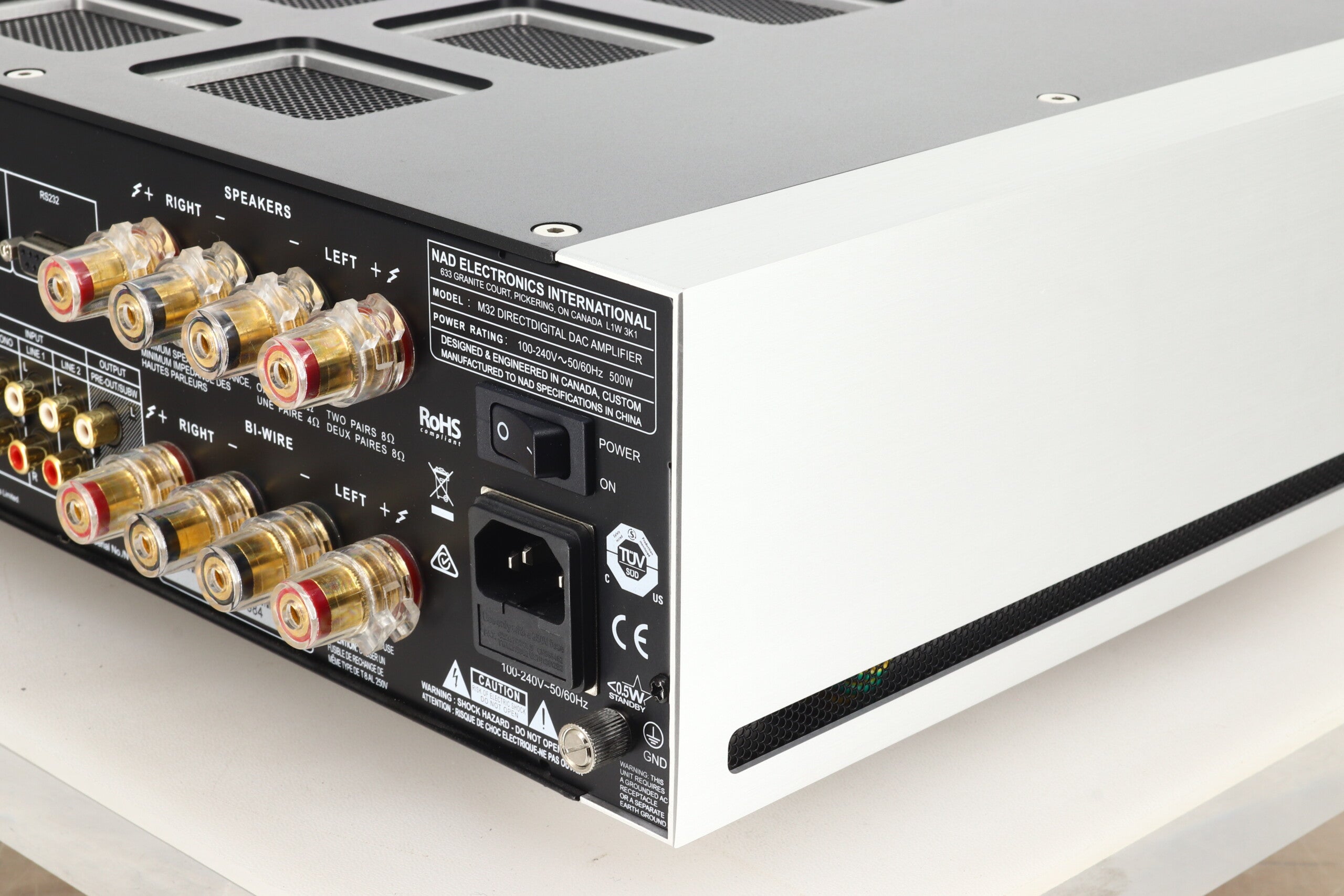

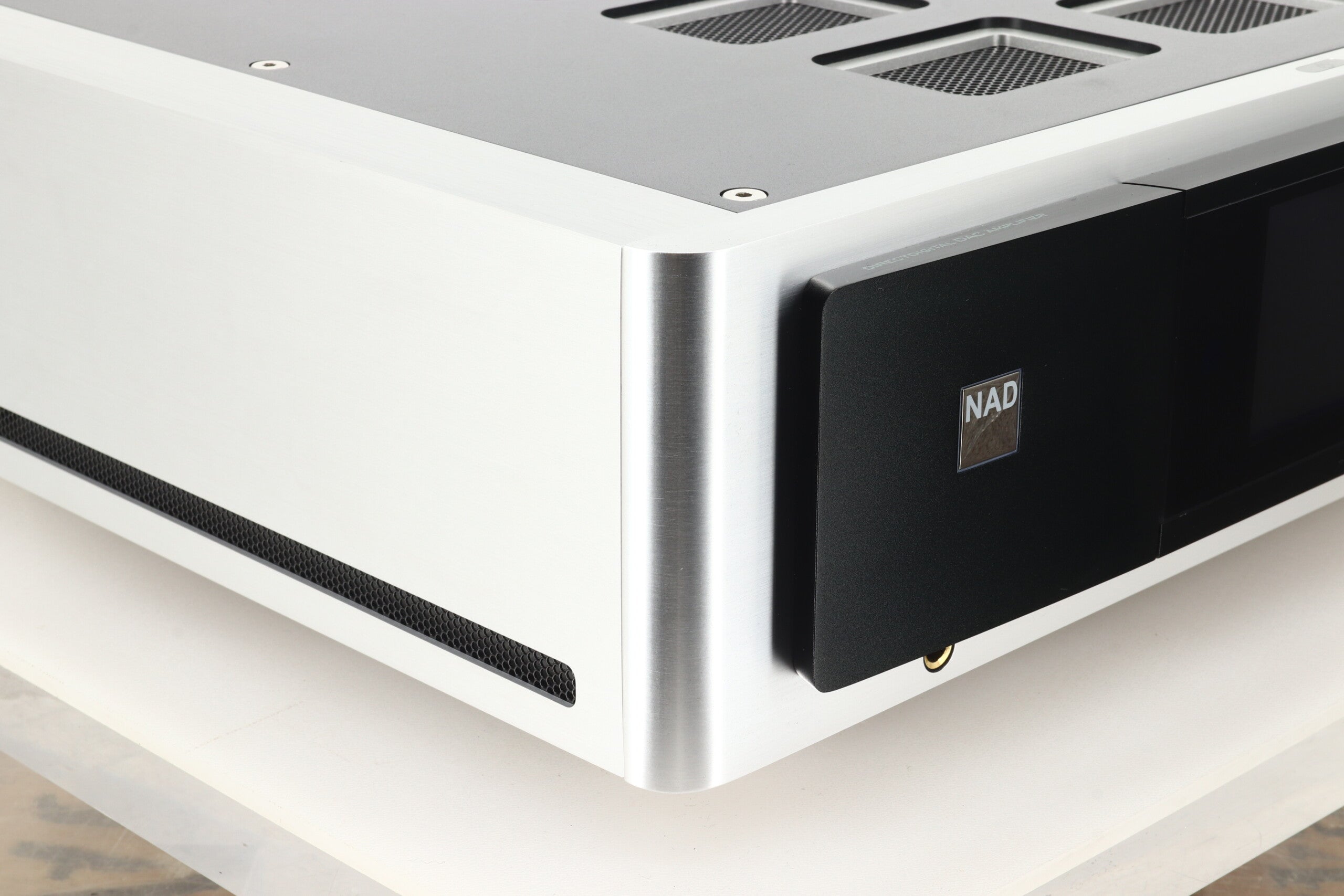

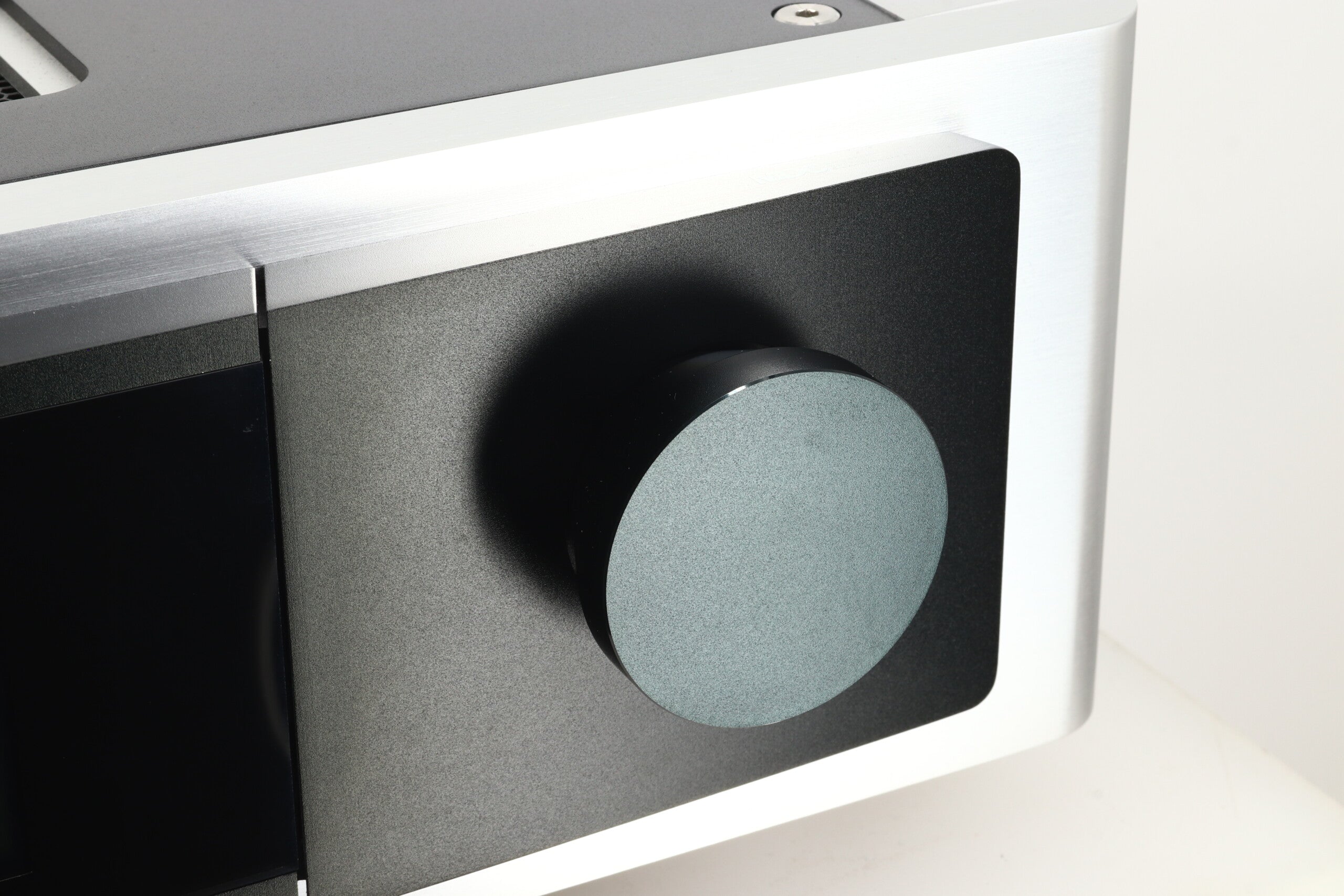

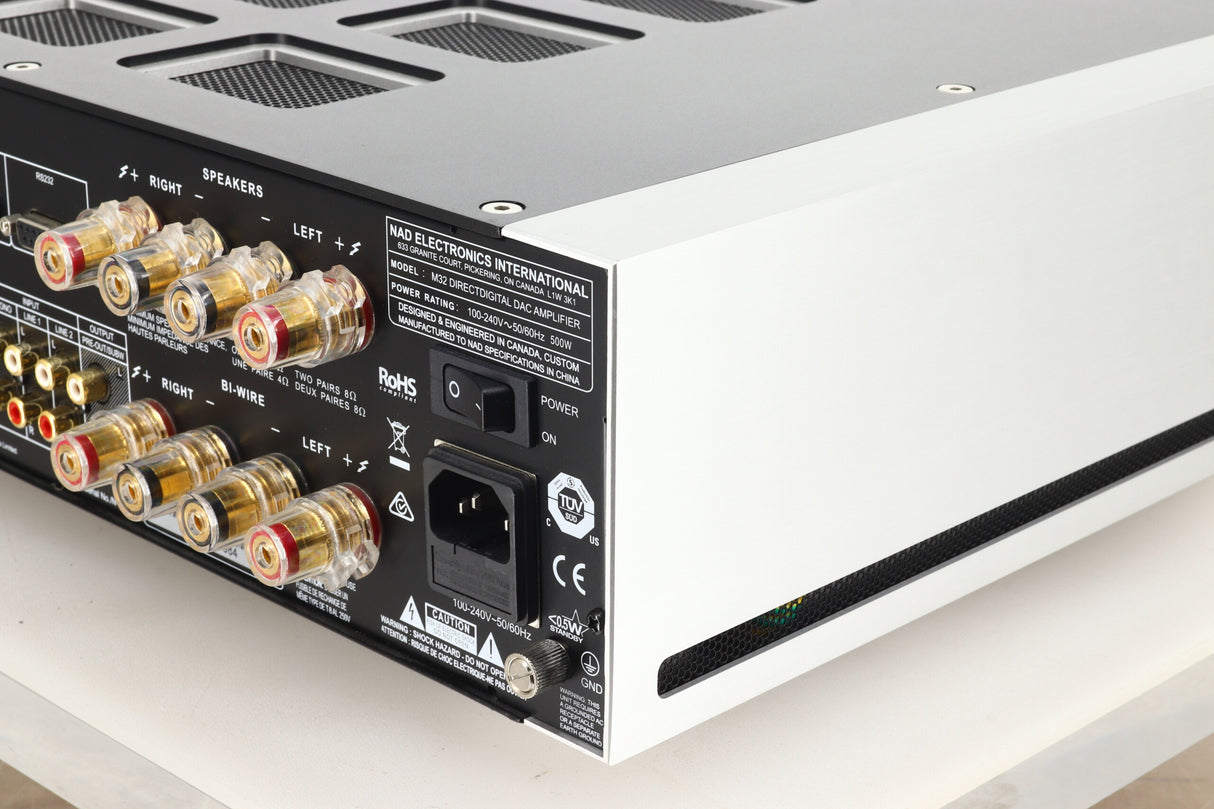

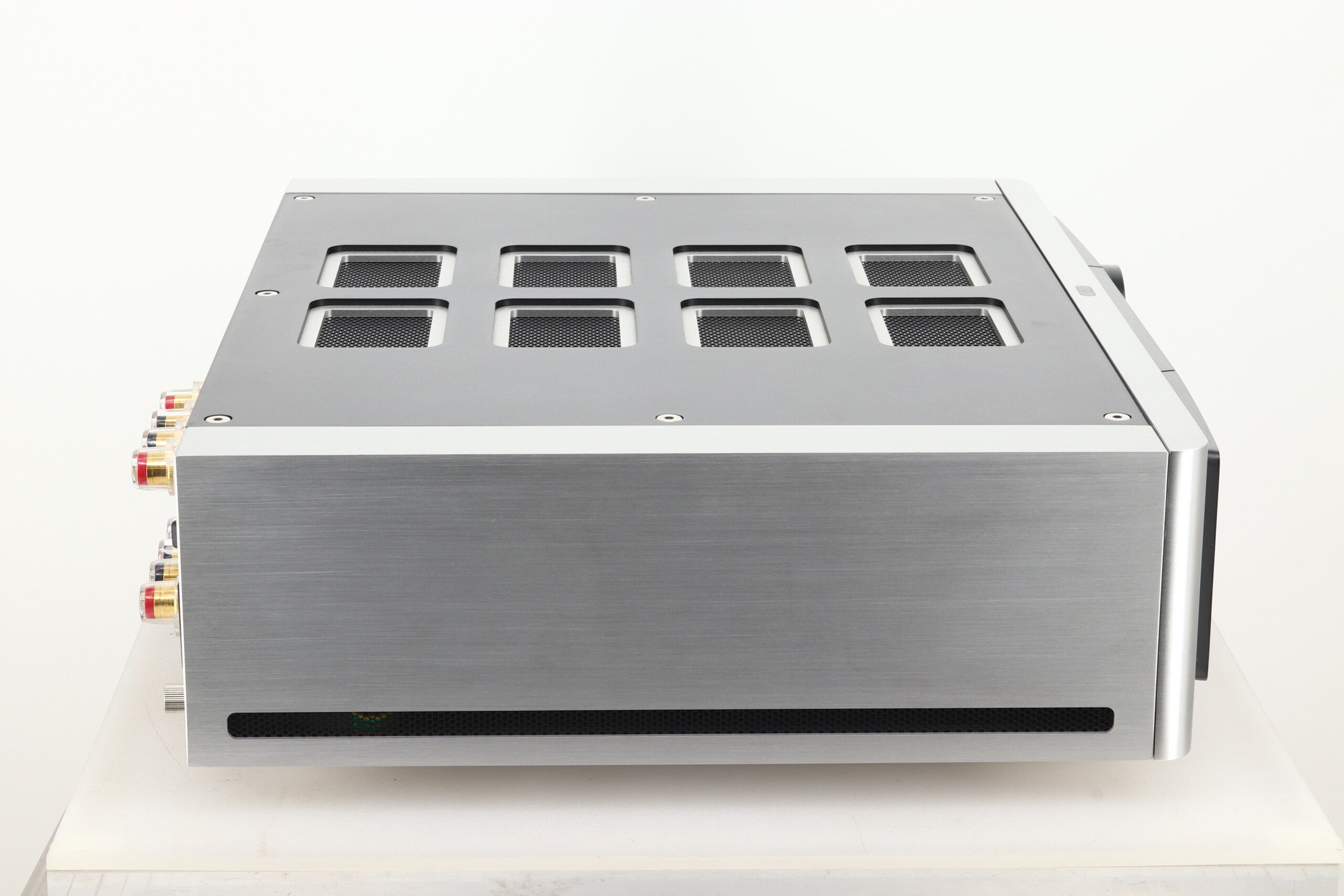

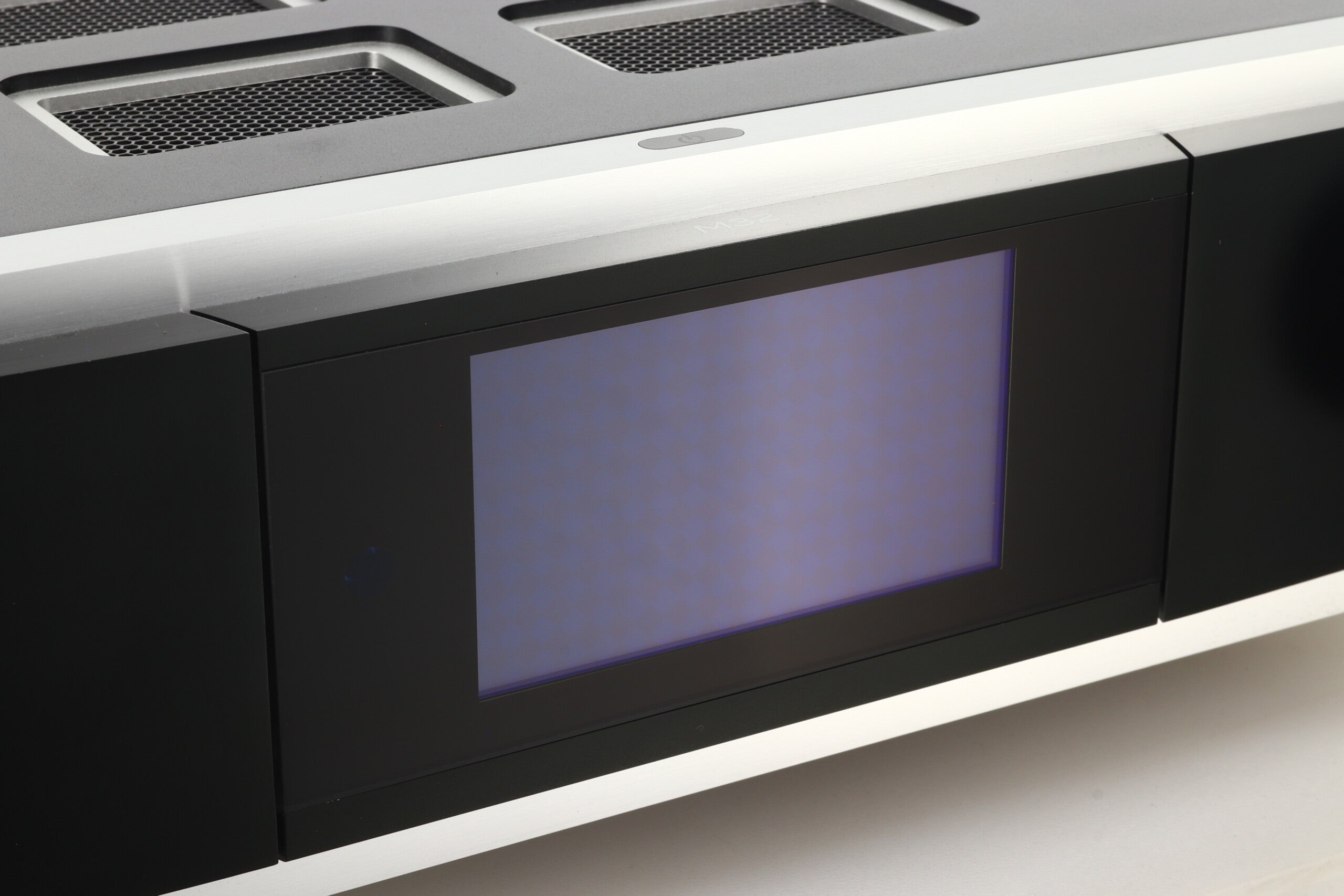

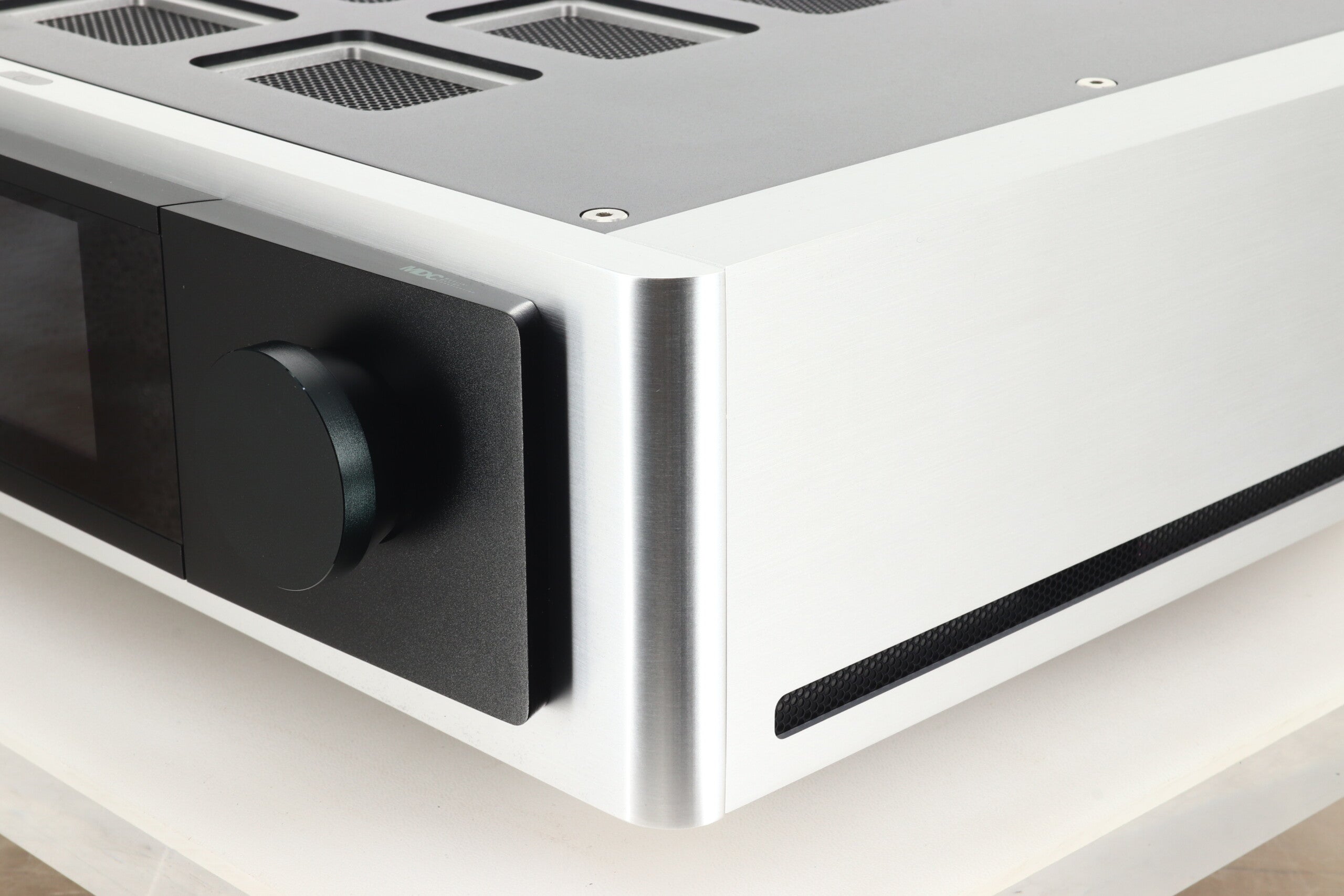

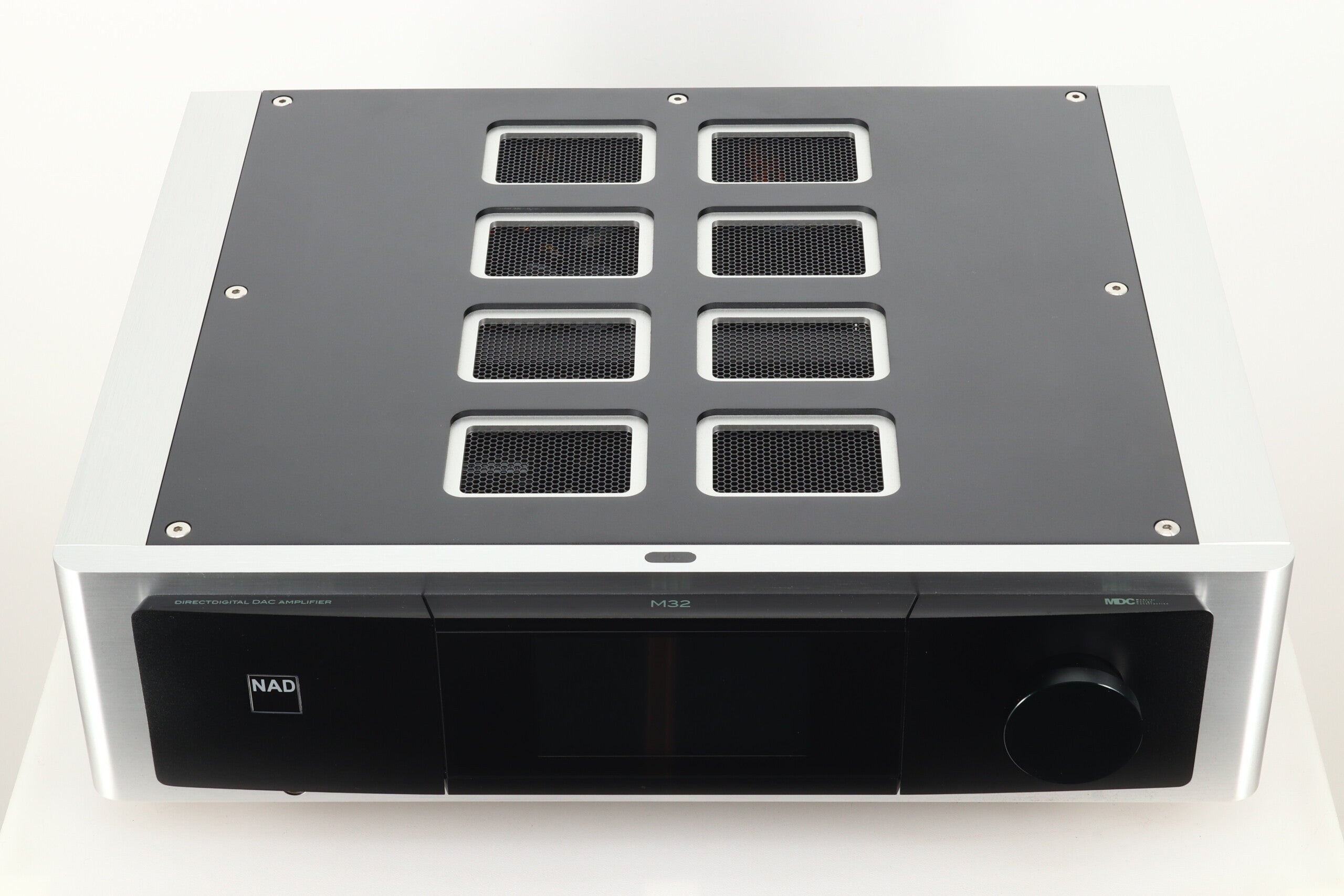

NAD M32 Integrated Amplifier

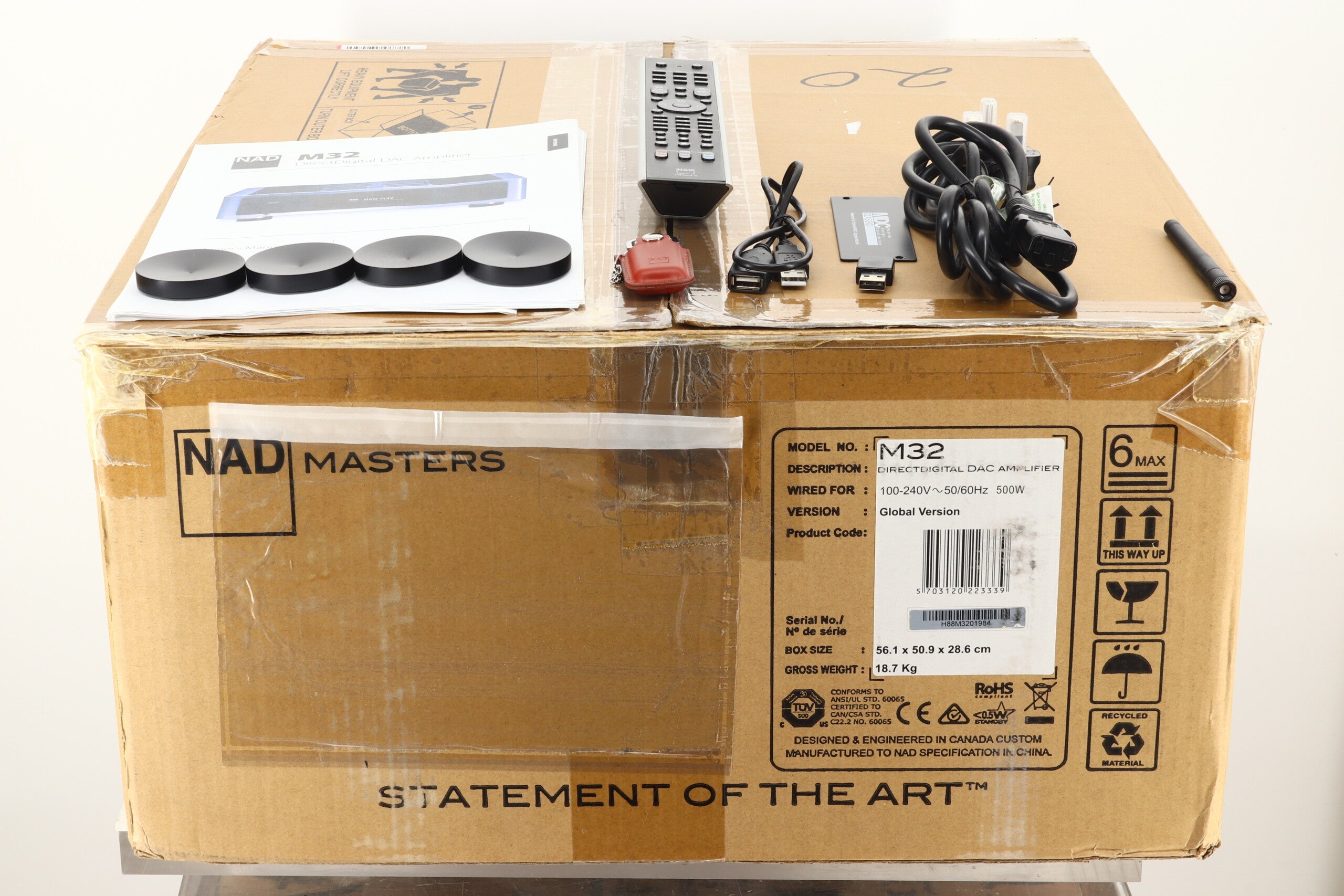

Here we have Streaming DAC Amplifier from electronics specialists NAD. This all-in-one unit just needs a pair of speakers and you’re good to go. The M32 is able to stream music via the BluOS app or you can take advantage of its vast array of digital and analogue inputs to expand your music playing system. Our unit is in very good condition and is supplied in original factory packaging along with remote control unit, manual, mains cable, Wi-Fi & Bluetooth antennas, USB cable, USB stick and plus standard three month warranty.
NAD Say….
An elegant, top-of-the-line, BluOS™ - capable integrated amplifier with a host of features that offer maximum flexibility, excellent efficiency, and reduced noise and distortion. Also includes a phono input and a headphone output to accommodate music lovers of all kinds.
Using a proprietary modular design, you can upgrade or expand your M32 as technologies emerge, ensuring a cost-effective way to keep the music “on” into the future.
With the optional MDC BluOS module, you can centralise your digital music libraries and streaming services, and control playback from your smartphone or tablet. Network any BluOS-enabled product together through your home Wi-Fi connection to create multi-room music experiences.
Advanced software-controlled algorithms result in the shortest signal path from source to speaker to produce virtually no distortion and a damping factor of over 1,000. This technology is among the fastest and most accurate amplification and error correction available.
Features:
DirectDigital™ amplification, combining all preamplification and power amplification functions into a single amplifying stage
Four MDC slots with three for customisation and expandability, all are 24/192 capable
MM Phono Input
Single-ended Line Inputs
Asynchronous USB 2.0 (24/192) Computer Input
AES/EBU, Coax, and Optical 24/192 Inputs
Subwoofer X-over with selectable Crossover Frequency and Levels
Headphone Amplifier
Two sets of Speaker Outputs for Bi-wiring
Remote Control HTRM-2
Specifications:
Line In, Speaker Out
Continuous Output Power into 8 Ω and 4 Ω: 180 W (ref. 20 Hz - 20 kHz at rated THD, both channels driven)
THD (20 Hz - 20 kHz): 0.005% (250 mW to 180 W, 8 Ω and 4 Ω)
Signal/Noise Ratio: > 92 dB (A-weighted, 500 mV input, ref. 1 W out in 8 Ω)
Clipping Power: > 195 W (at 1 kHz, 0.1% THD)
IHF Dynamic Power: 8 Ω - 220 W; 4 Ω - 360 W; 2 Ω - 400 W
Peak Output Current: > 30 A (in 1 Ω, 1 ms)
Damping Factor: >160 (ref. 8 Ω, 20 Hz to 6.5 kHz)
Frequency Response: ± 0.3 dB (ref. 20 Hz - 96 kHz at 192 kHz)
Supports Bit Rate/Sample Rate: up to 24-bit/192 kHz
Standby Power: < 0.5 W
Idle Power: 40 W
Digital Input (Coaxial, Optical, AES/EBU)
Input: Coaxial, Optical, AES/EBU
Preamplifier Specifications
Line Input, Pre Out
Input Impedance (R and C): 10 kΩ + 100 pF
Maximum Input Signal: > 4 Vrms (ref. 0.1% THD)
Output Impedance: 240 Ω
Input Sensitivity: 146 mV (ref. 500 mV out, Volume Maximum)
Maximum Voltage Output -IHF load: > 2 V (ref. 0.1% THD)
Tone Controls: Treble: ± 10 dB at 20 kHz; Bass: ± 10 dB at 60 Hz; Balance: - 10 dB
Phono Input, Pre Out
Input Sensitivity: 2.38 mV (ref. 500 mV out, Volume Maximum)
Maximum Input Signal 11 kHz: > 66 mV rms (ref. 0.1% THD)
Line Input, Headphone Out
Output Impedance: 0.5 Ω
Dimensions And Weight
Dimensions: 435 (W) x 396 (D) x 133 (H) mm
Weight: 9.8 kg
