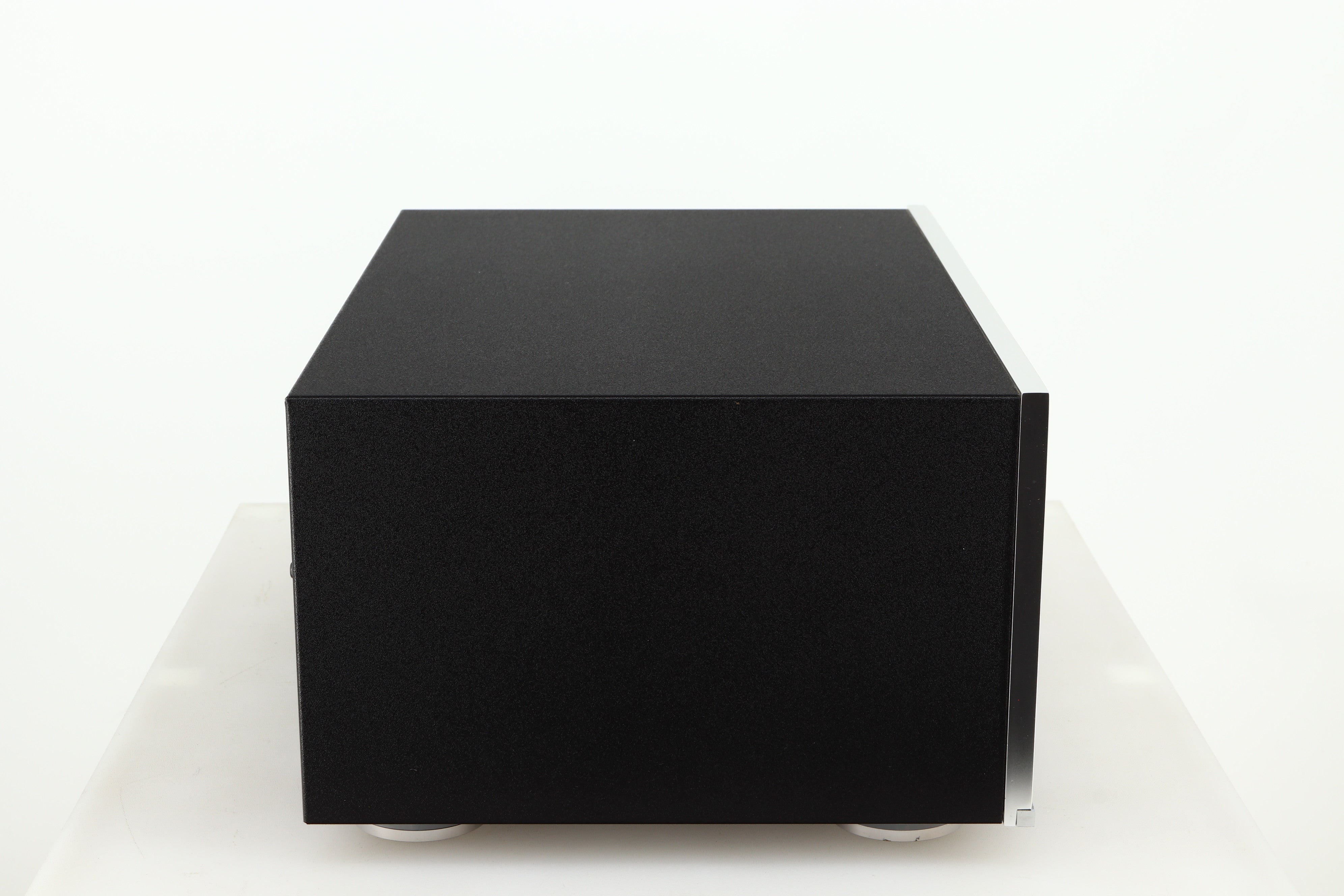

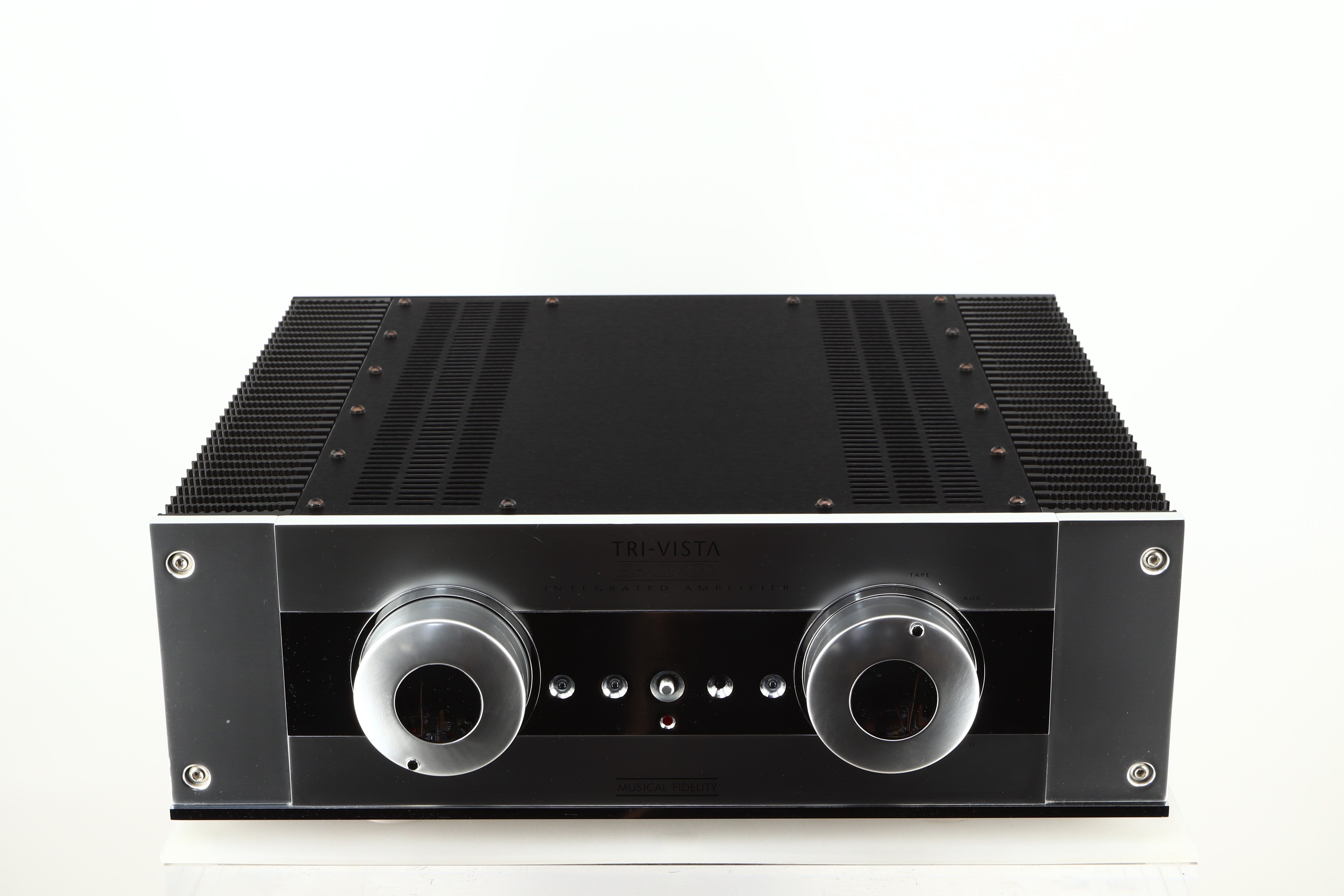

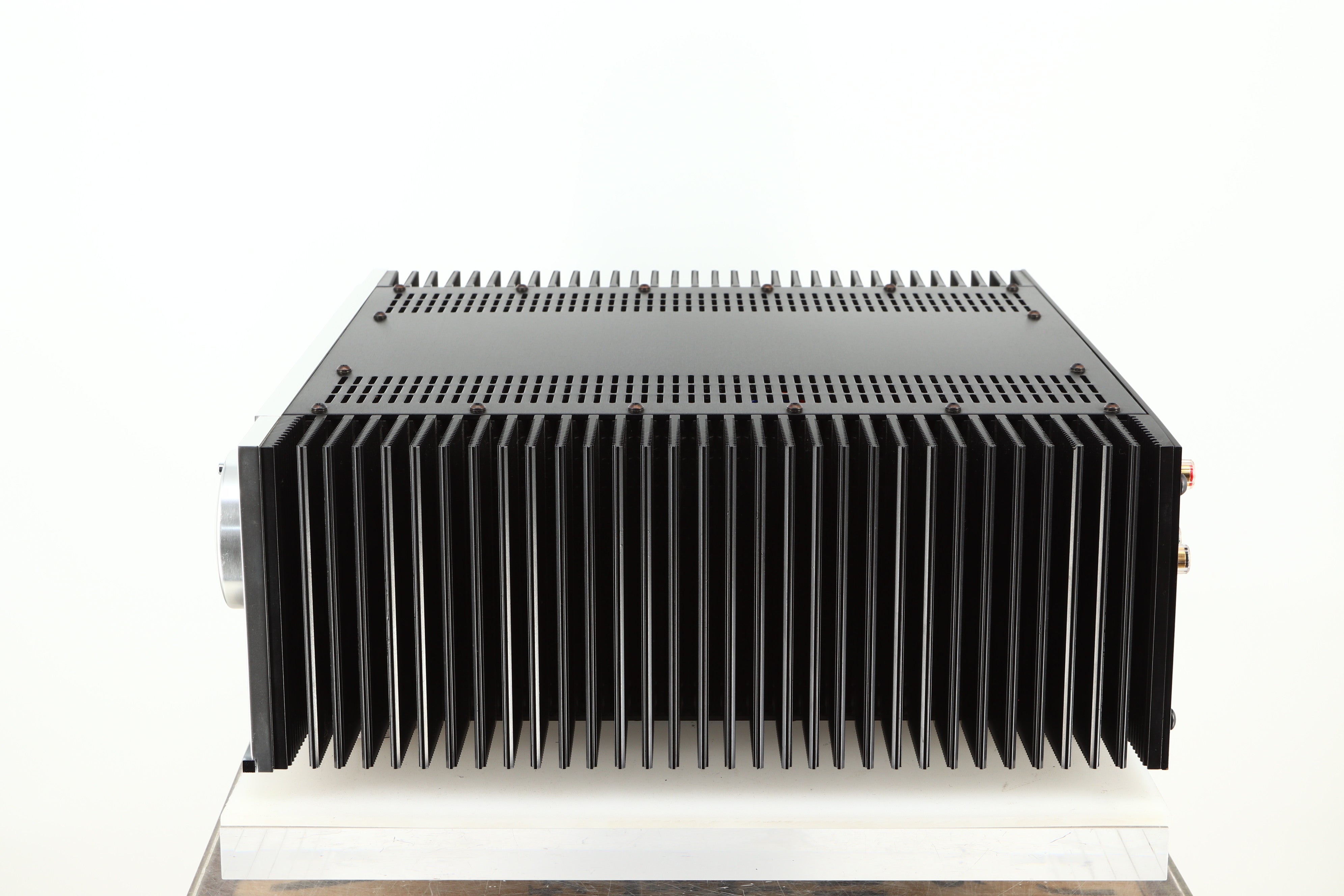

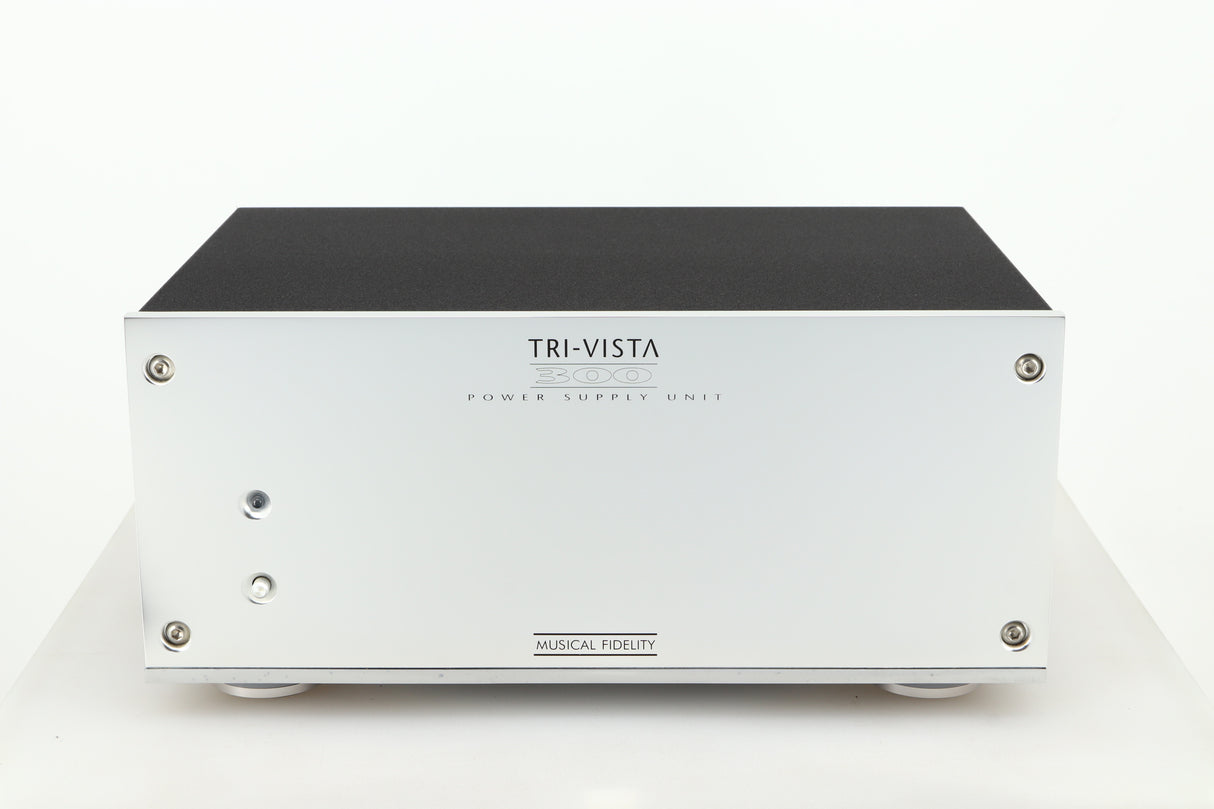

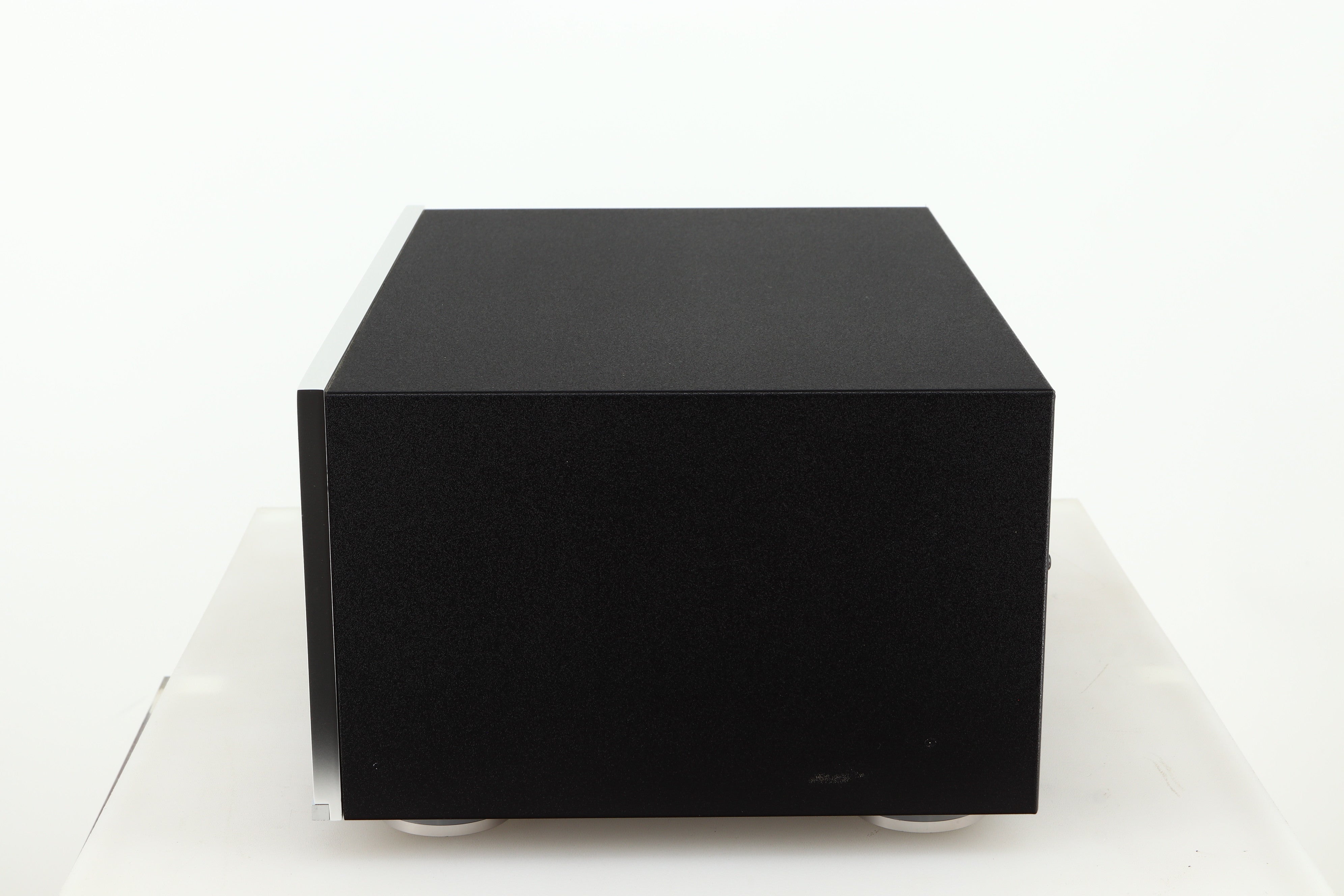

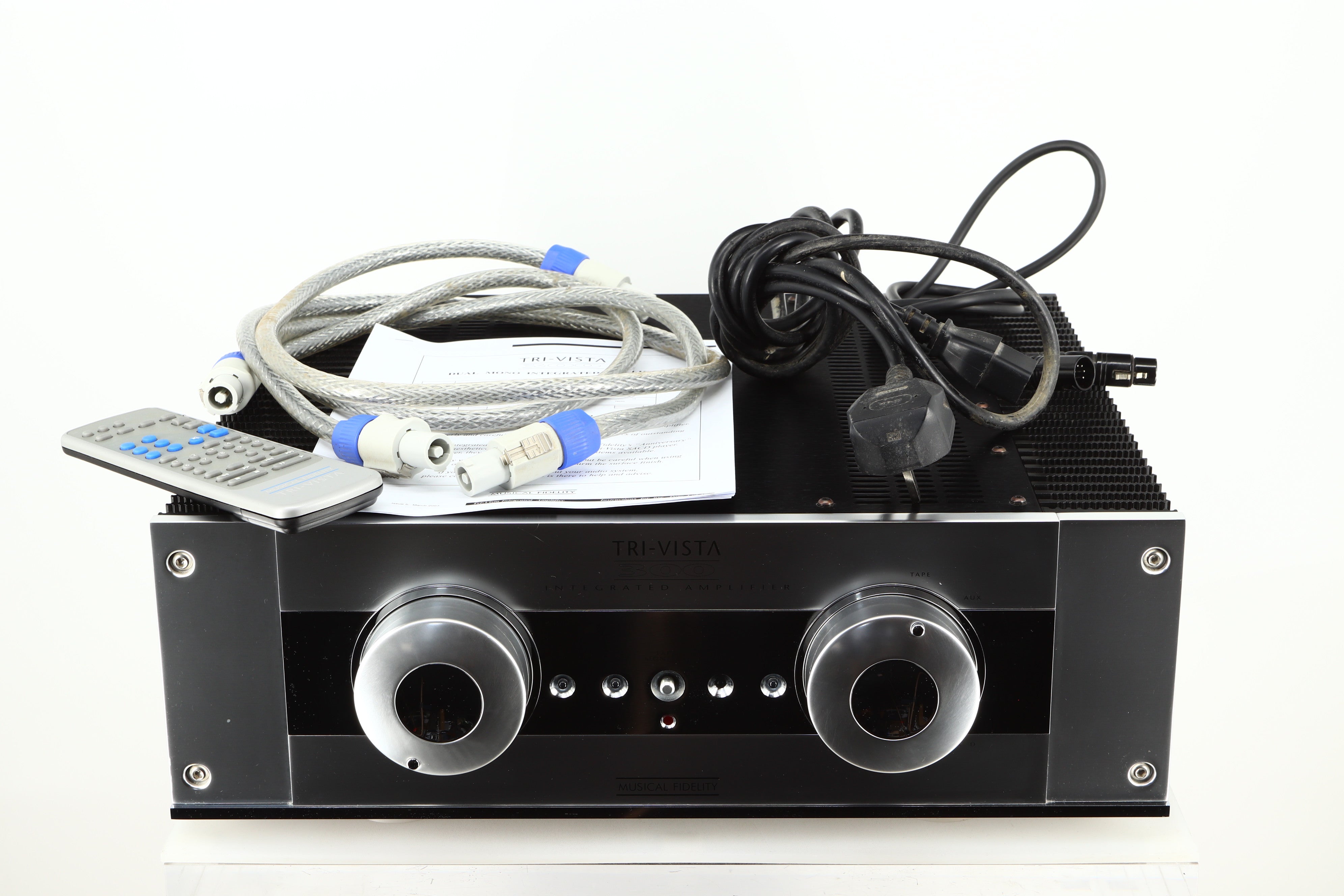

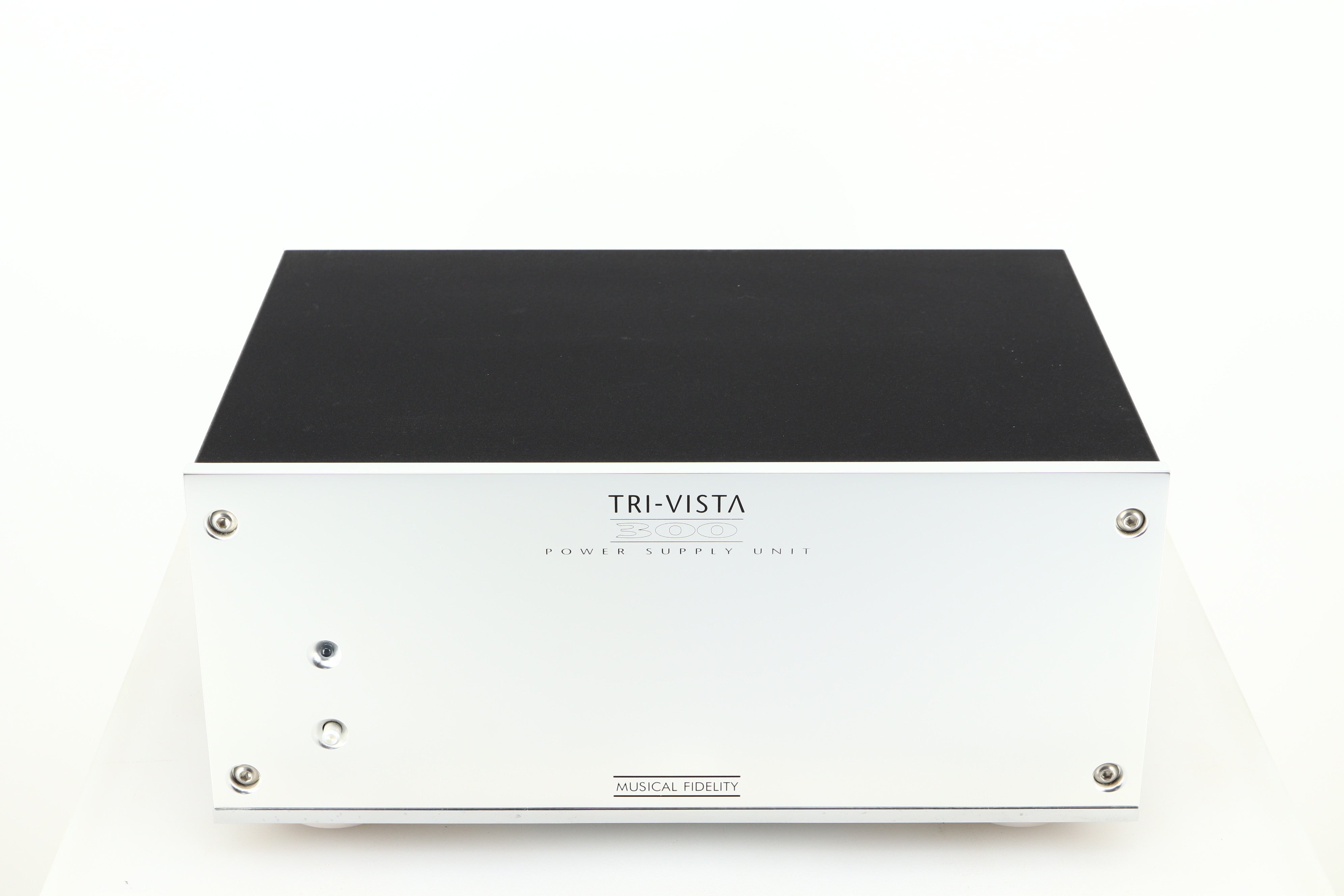

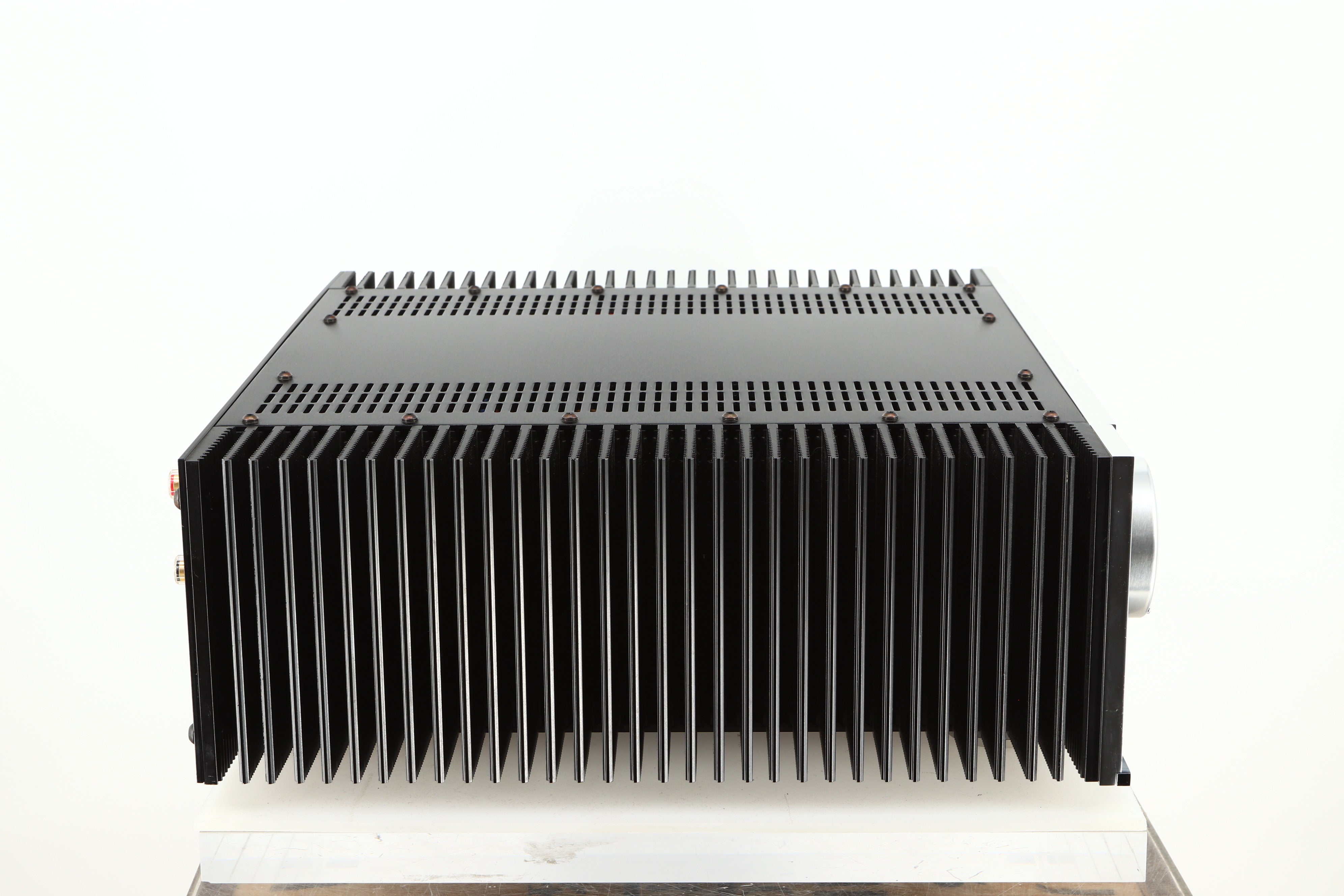

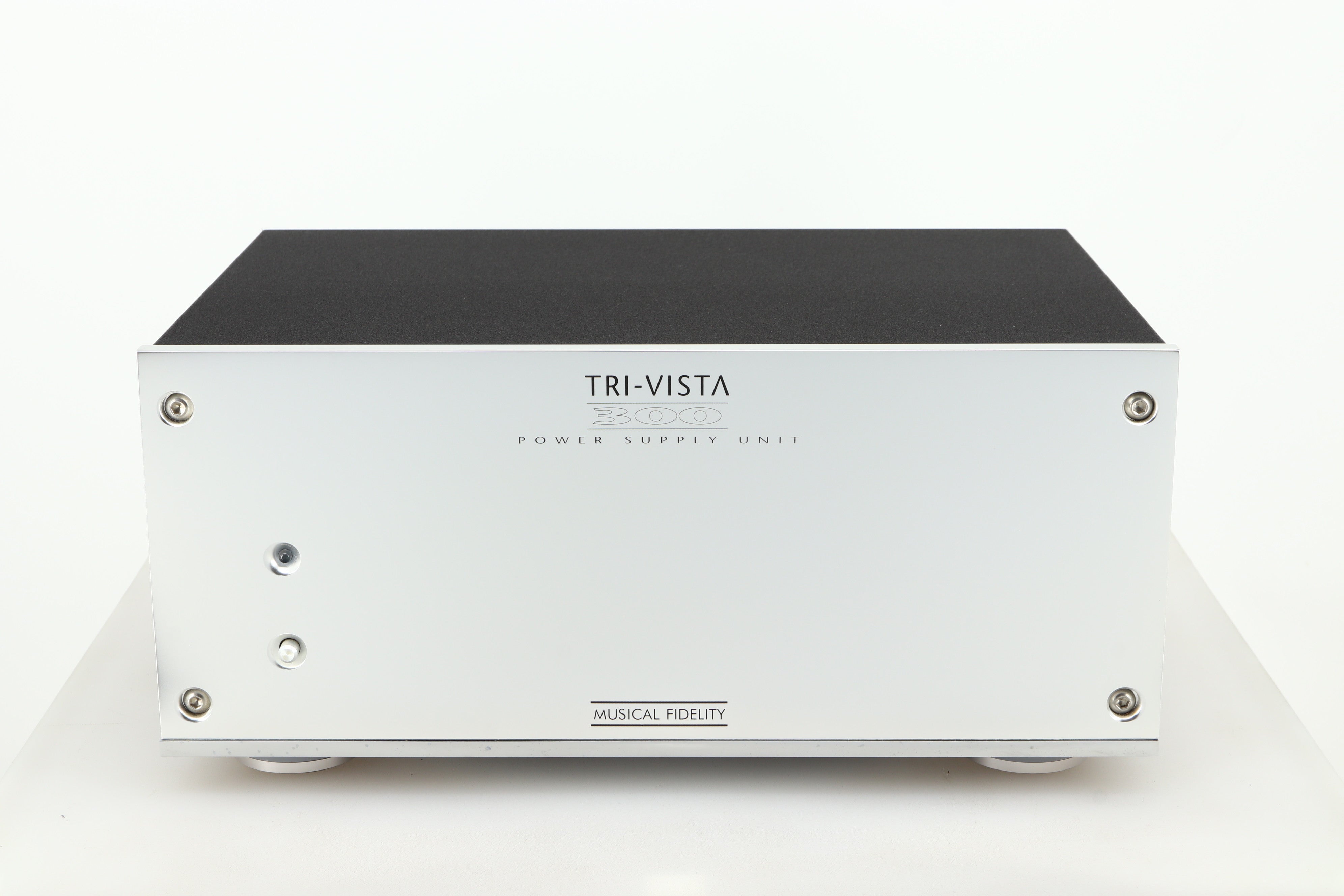

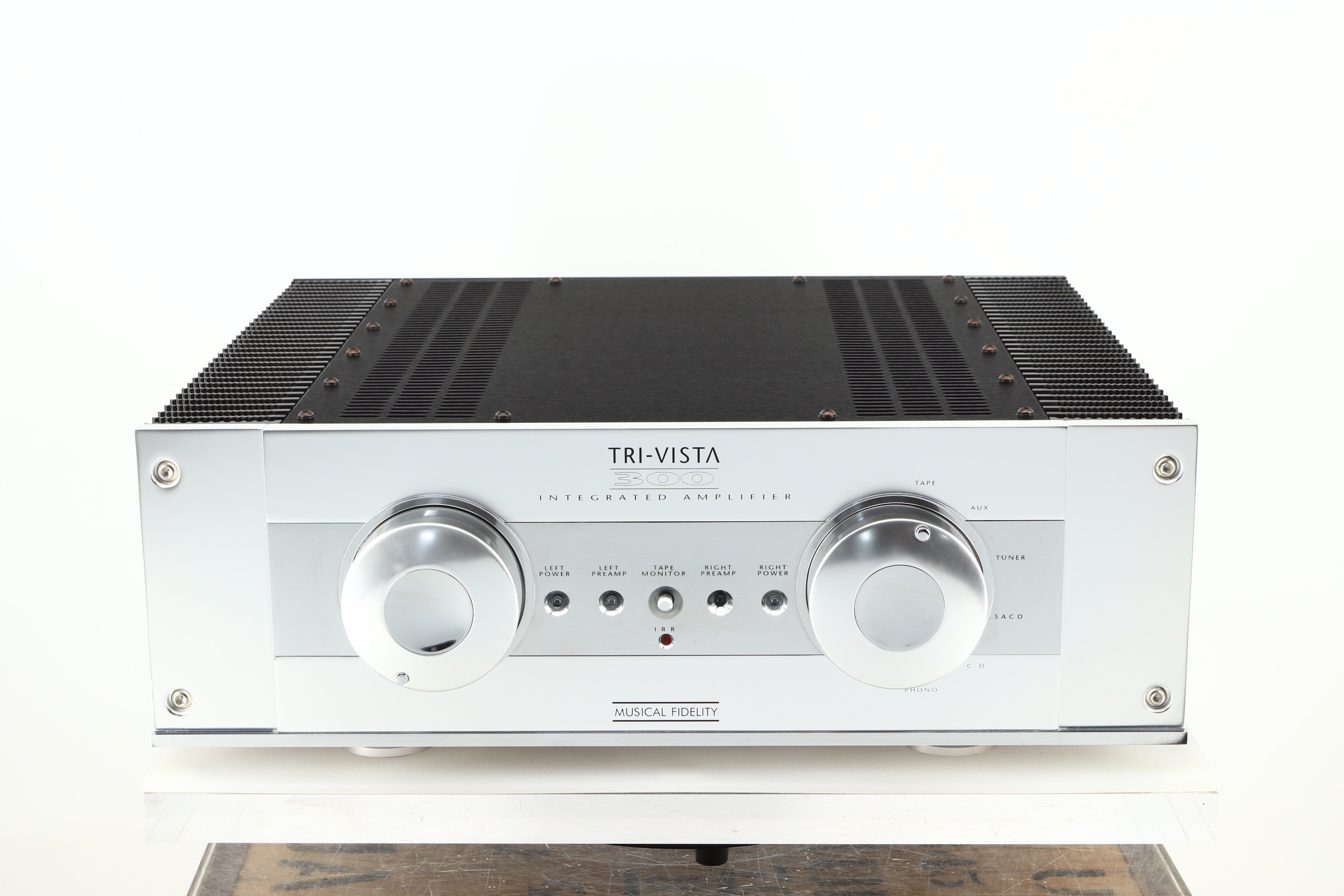

Musical Fidelity Tri-Vista 300 Integrated Amplifier / Power Supply Unit

The Tri-Vista Integrated amplifier is part of Musical Fidelity’s “Anniversary” range, and aesthetically a perfect match for the Tri-Vista SACD player. Together, they form one of the finest hi-fi systems available.

Output:
Voltage RMS: 53 Volts 20 Hz to 20 kHz
Peak: 150 Volts
Power: 350 Watts per channel into 8 Ohms (25.5 dB W); 600 Watts per channel into 4 Ohms
Peak-To-Peak Output Current: 96 Amps
Damping Factor: 210
Output Devices Per Channel: 8
Pre-Output Impedance: 50 Ohms
Line Inputs:
Harmonic Distortion at 1 kHz < 0.002% up to 90% power into 4 or 8 Ohms
Total Harmonic Distortion + Noise, 20 Hz to 20 kHz < 0.007%
Signal To Noise Ratio > 102 dB ‘A’-weighted
Input Sensitivity for 350 Watts into 8 Ohms: 330 mV
Input Impedance: 220 kOhms
Overload Margin: 36 dB
Channel Separation: > 70 dB, 20 Hz to 20 kHz
Frequency Response: 20 Hz to 20 kHz, + 0, - 0.0 dB; 20 Hz to 60 kHz, + 0, - 1.2 dB
Phono Input:
Signal To Noise Ratio: > 96 dB ‘A’-weighted
Input Sensitivity: 2.5 mV (moving magnet)
Input Impedance: 47 kOhms
Overload Margin: 29 dB

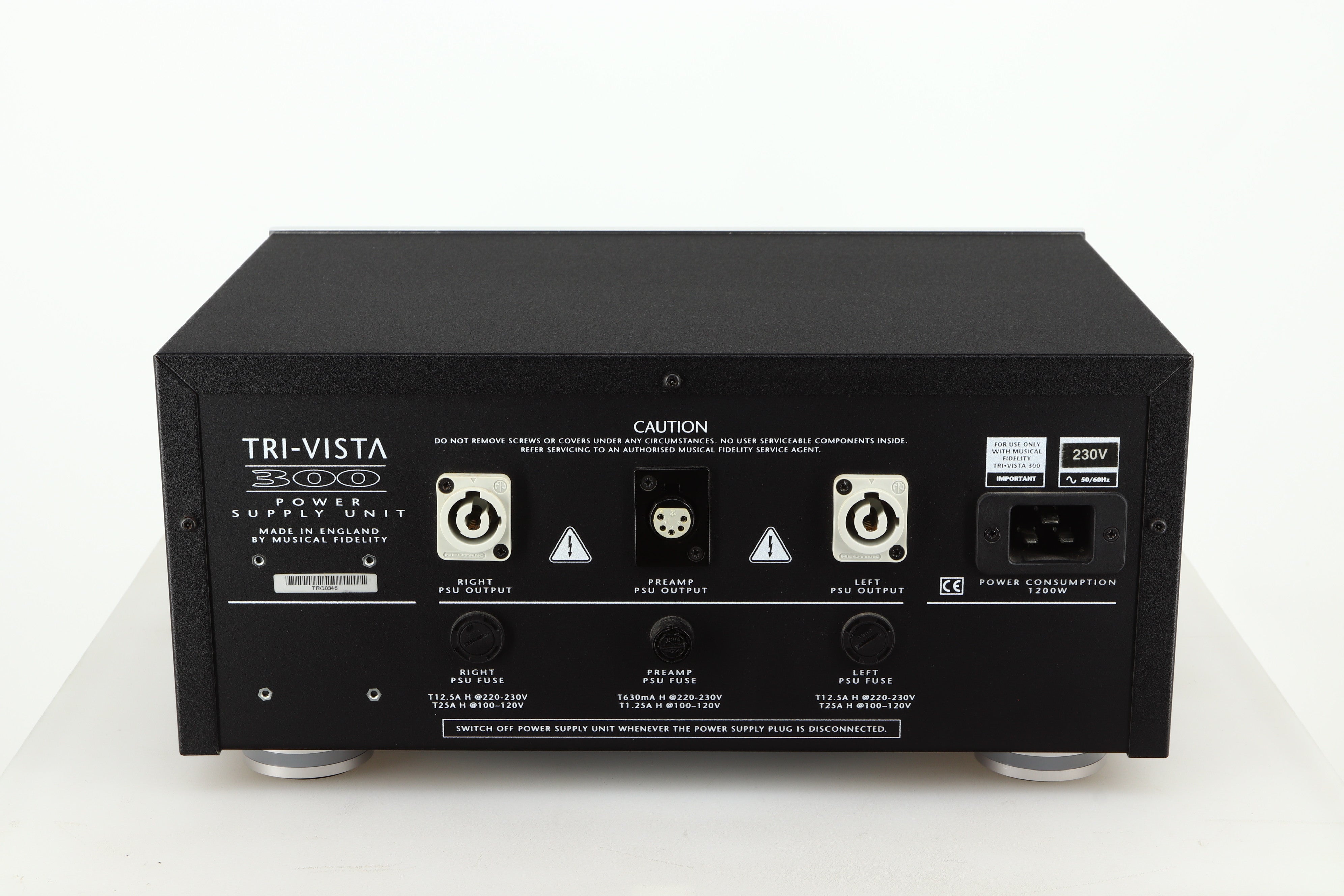

Power Requirement: 100 / 115 / 230 Volts AC 50 / 60 Hz (factory pre-set), 1200 Watts maximum into 8 Ohms, 104 Watts idle

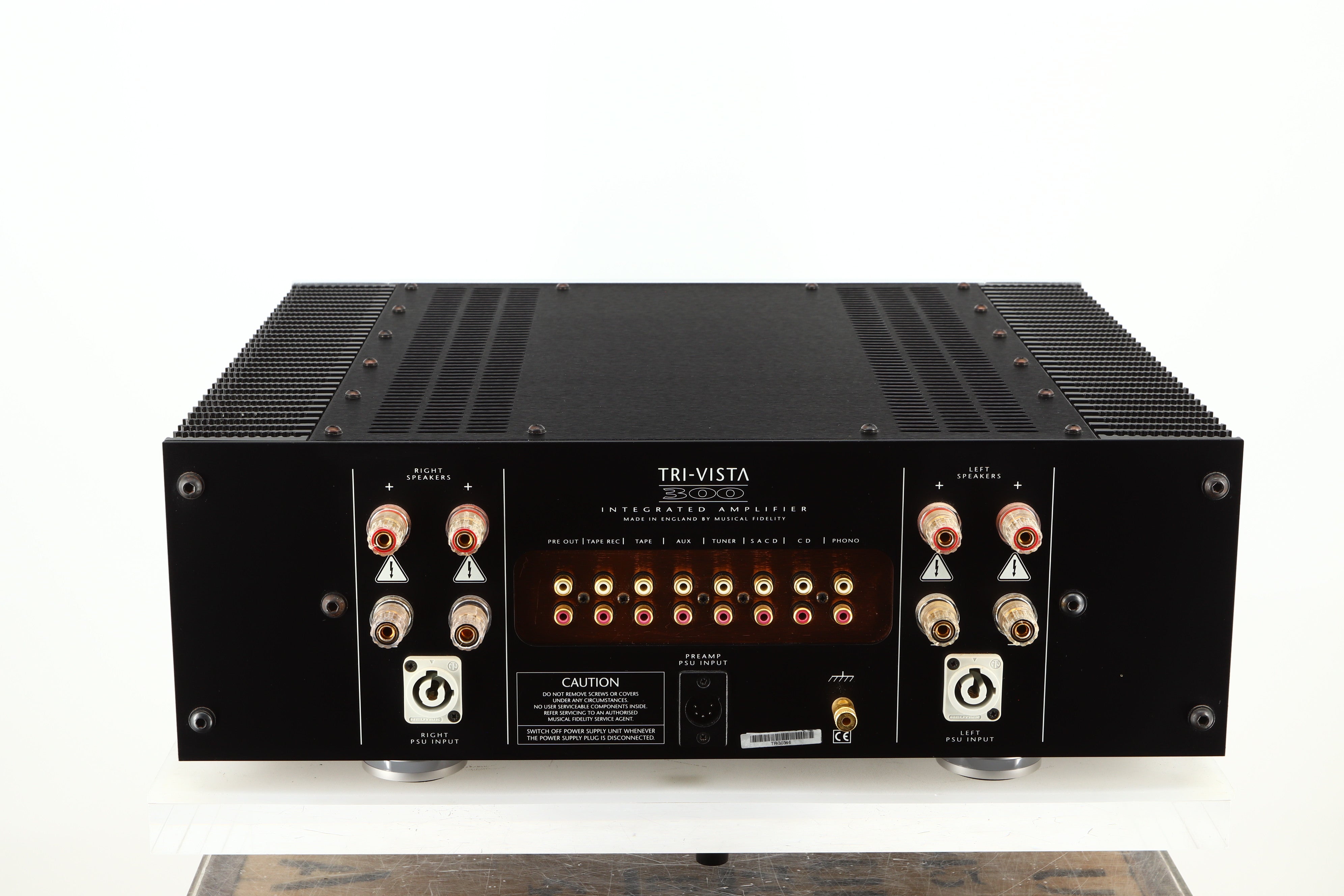

Inputs: 5 pairs line level RCA connectors, 1 pair phono (moving magnet) RCA connectors
Outputs: 2 amplifier channels via 2 pairs per channel binding posts, 1 pair RCA audio pre-outputs controlled by the volume setting
Dimensions: 483 (W) x 480 (D) x 167 (H) mm (Amp); P.S.U: 364 (W) x 480 (D) x 167 (H) mm (PSU)
Weight: 30.0 kg (Amp); 16.0 kg (PSU)
