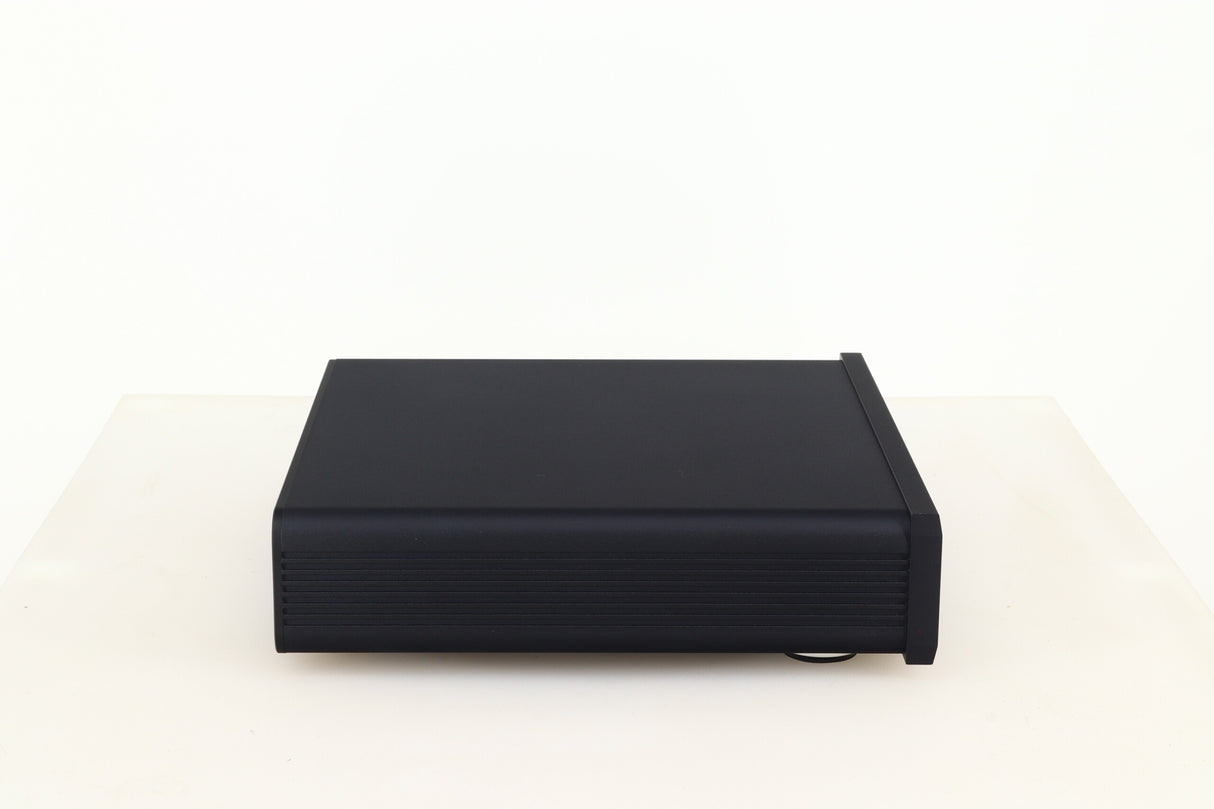

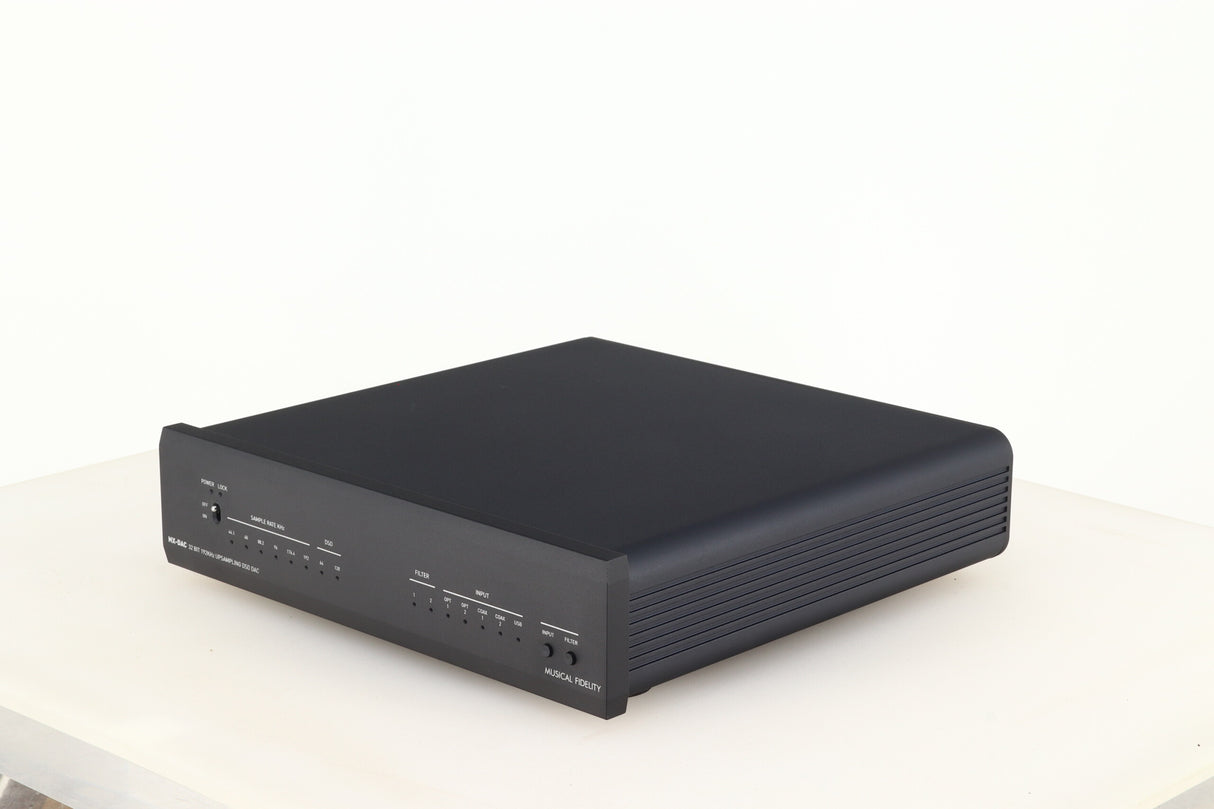

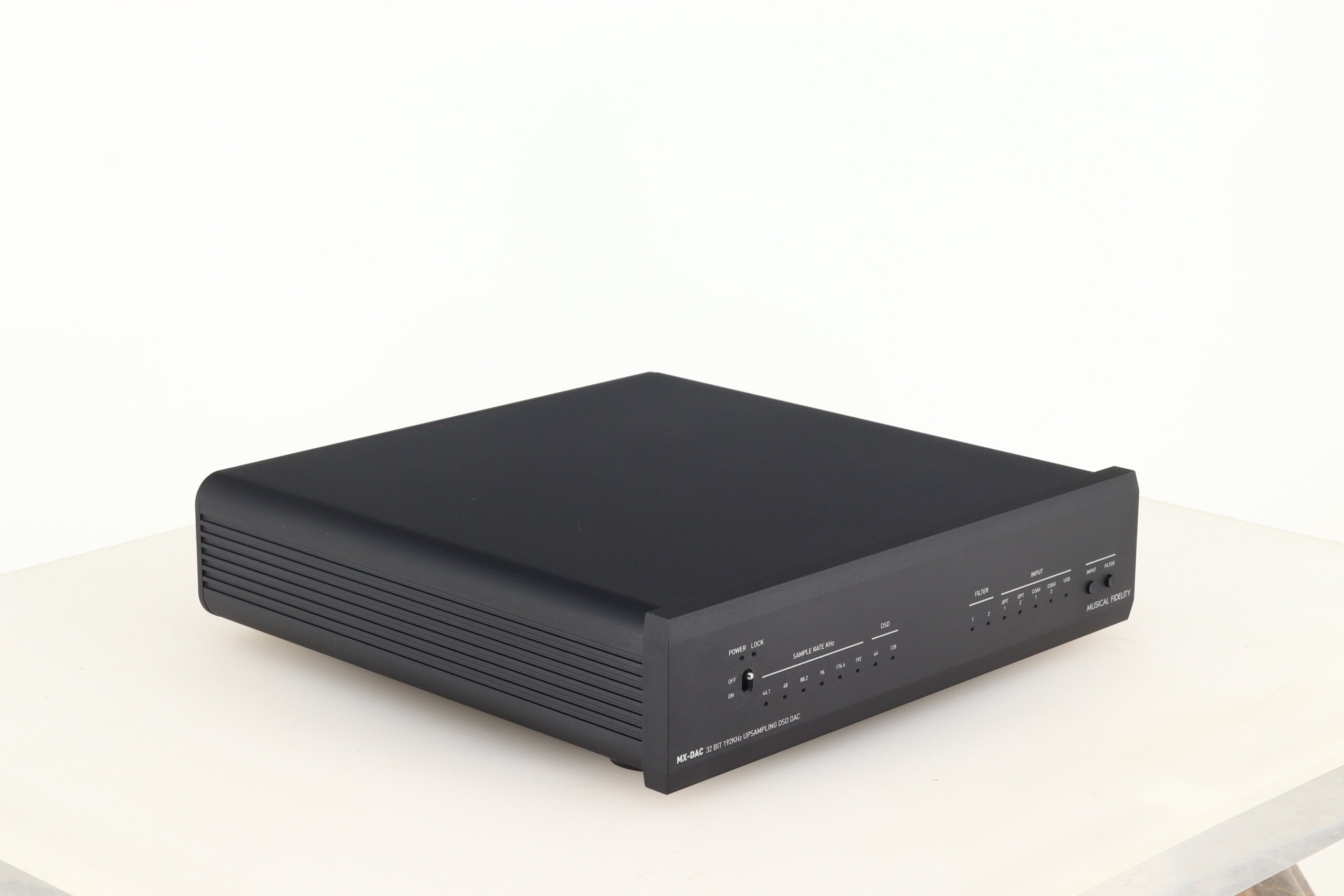

Musical Fidelity MX Digital Analogue Converter - Black

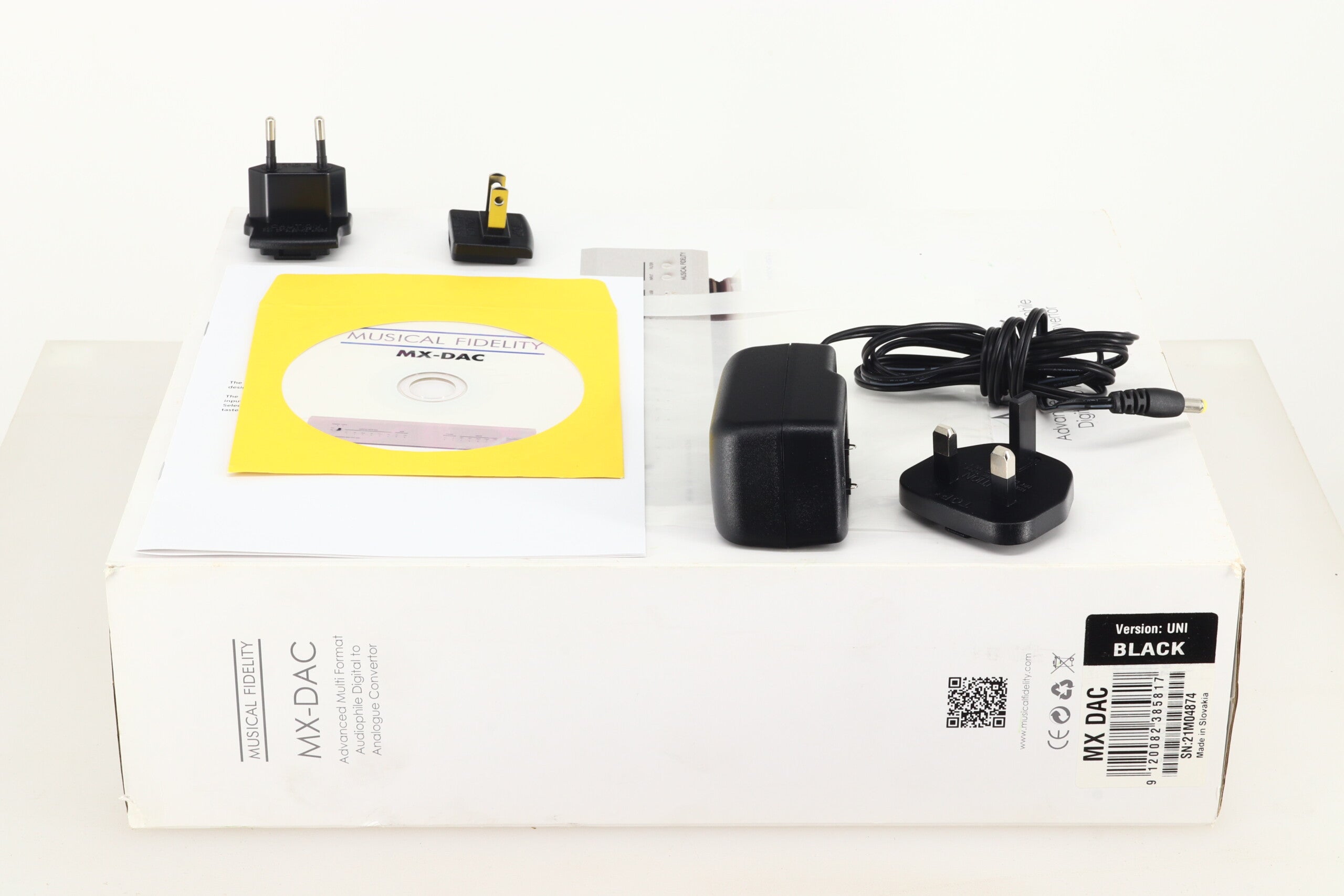

Here we have an example of the MX-DAC digital to analogue converter from former British company Musical Fidelity. Able to cater for almost all digital inputs this fully balanced unit comes in very good condition. It is supplied in original factory packaging along with power supply unit, manual, Windows driver CD and our normal three month warranty.
Musical Fidelity Say….
After years of patient research and development, we are proud to launch our MX-DAC with DSD. With its technical innovation, superb technical performance and excellent build quality, the new MX DAC offers truly outstanding value for money.
The MX-DAC is a tremendous performer. It has ultra-low distortion, very wide bandwidth and low noise. The technical figures are state-of-the-art and show that our implementation is almost perfect, to ensure completely neutral and accurate digital-to-analogue conversion of any digital input. The MX DAC has inputs for: 2 x coax (up to 24-bit 192 kHz PCM), 2 x optical (up to 24-bit 192 kHz PCM) and asynchronous USB up to 24-bit 192 kHz PCM as well as DSD 64 and DSD 128.
Also, all inputs whether from coax, optical or USB, are processed in the DSD domain. This desirable feature gives a warmth and humanity to the sound that simple digital conversion doesn’t achieve. The MX DAC has both single ended and balanced outputs.

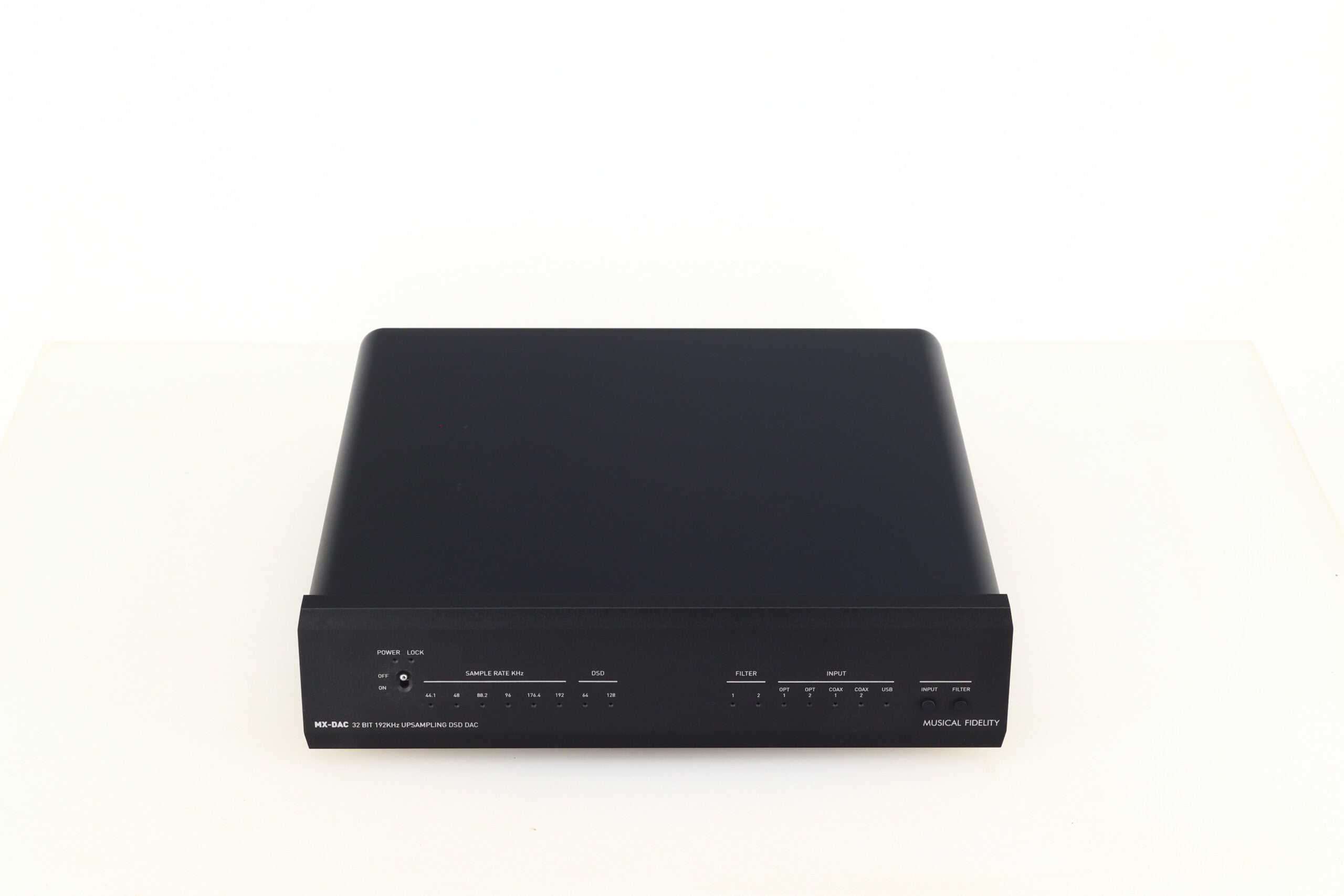

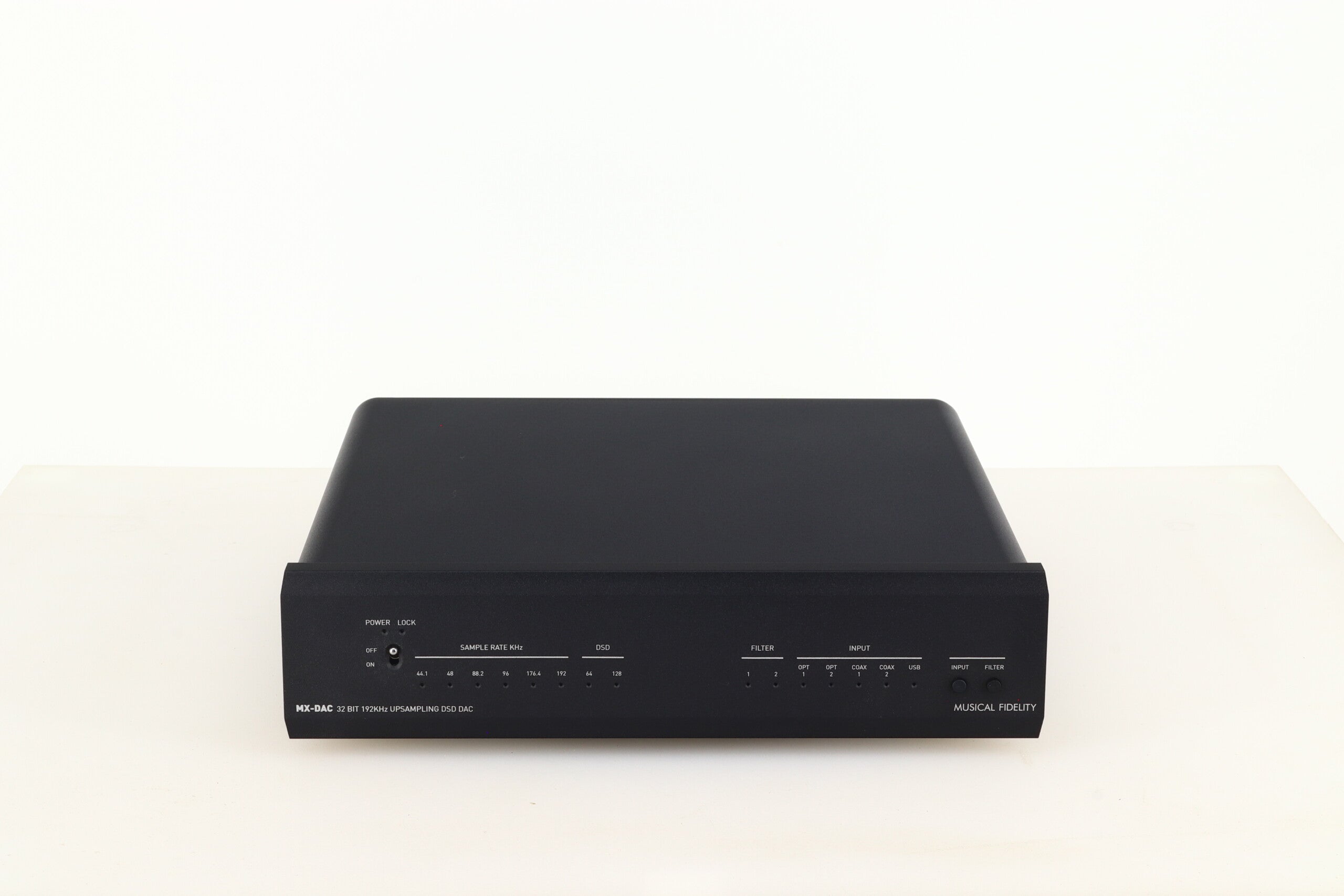

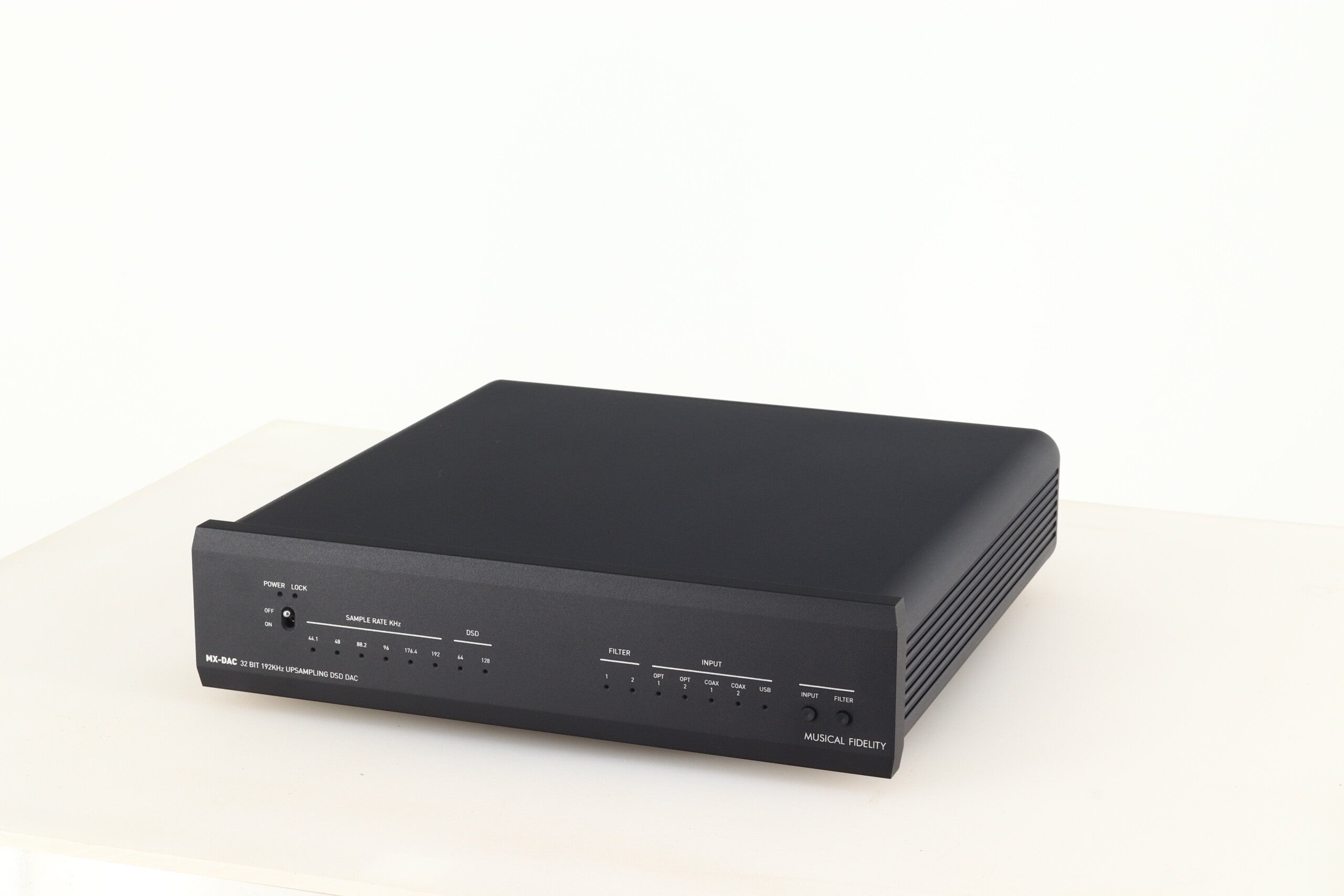

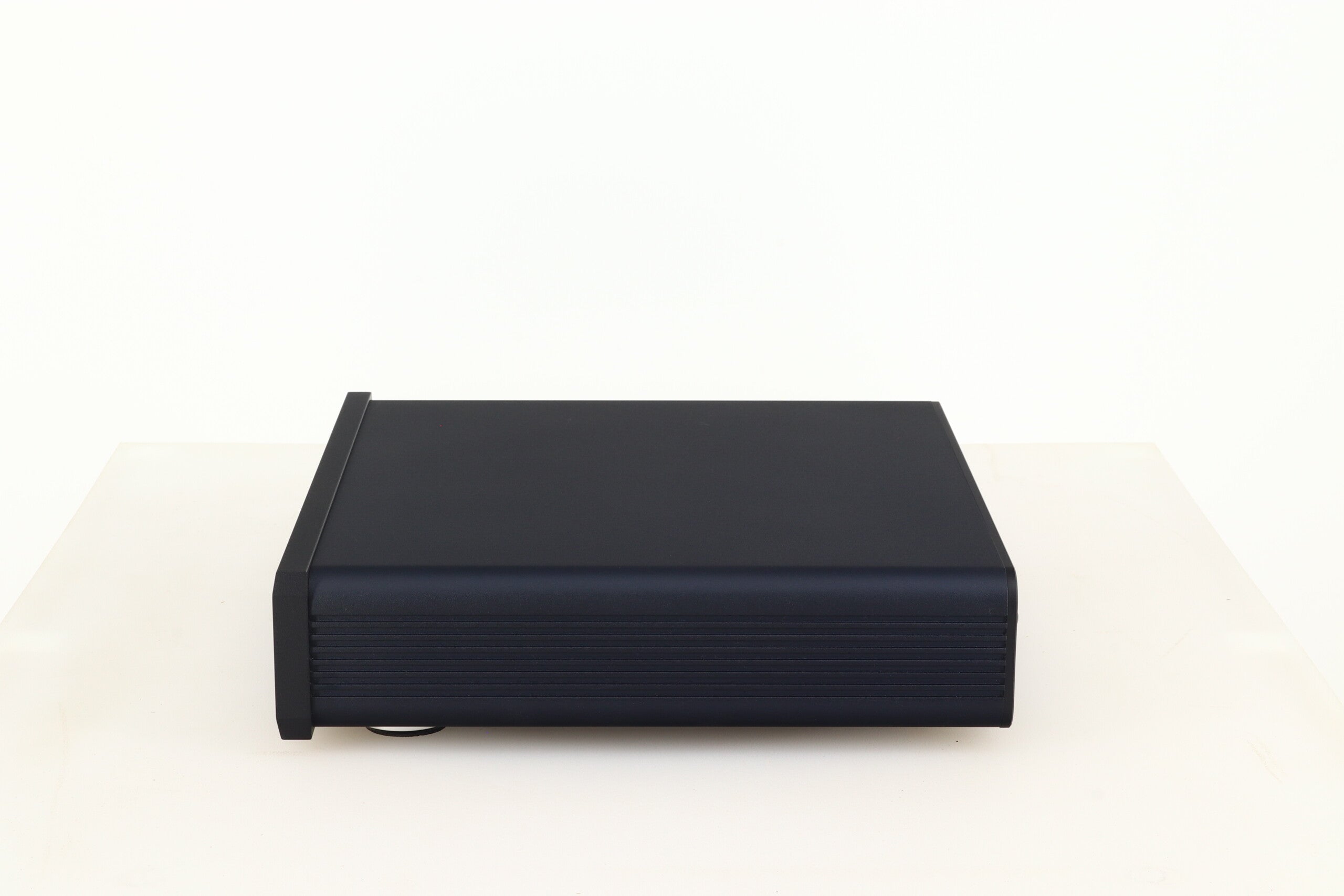

The new MX range has beautiful aesthetics and wonderful build quality. The front panel and housing are both from exclusive custom made extrusions using mil-spec aluminium.
Features:
Superlative state of the art performance with ultra-flat frequency response
Able to process DSD64 and DSD128 formats as well as PCM up to 192kHz / 24bit
Multiple digital inputs - 2 x coax, 2 x optical, and asynchronous USB
Outstanding linearity
Outstanding channel separation
Specifications:
Sample rate converter: SRC4392 up-sampling data to 192 kHz
Digital to Analogue converter: PCM1795 32-bit / 192 kHz Multi-bit Sigma-Delta type
Output Voltage: 2 Vrms single-ended (RCA); 4 Vrms balanced (XLR)
Total Harmonic Distortion & Noise: < 0.003% (PCM); < 0.006% (DSD)
Frequency Response: - 3 dB, 2 Hz to 90 kHz (PCM); - 3 dB, 2 Hz to 40 kHz (DSD)
Channel Separation: - 110 dB

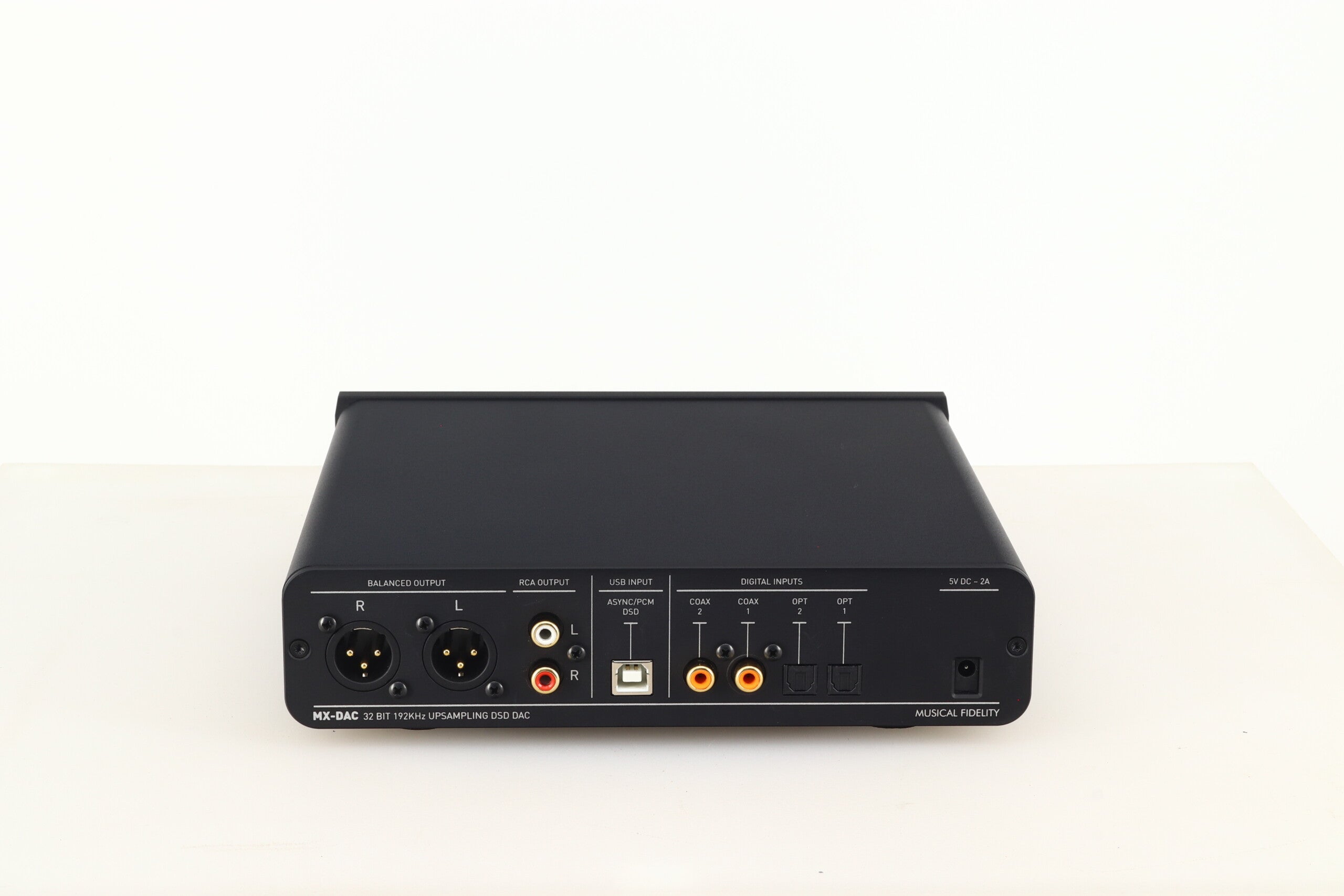

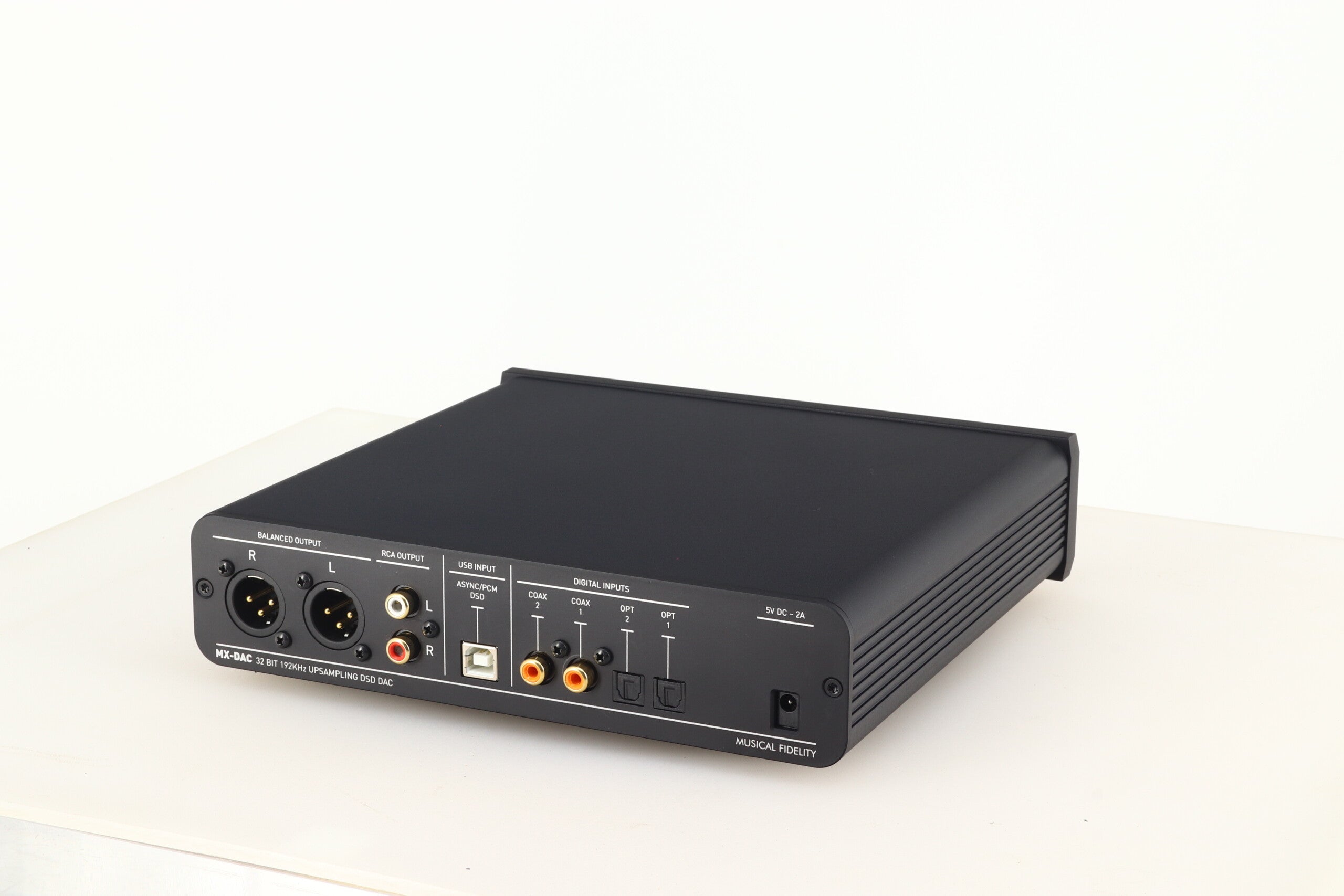

Inputs:
2x RCA coaxial connector SPDIF 32-192 kbps (16-24 bit stereo PCM)
2x TOSLINK optical connector 32-192 kbps (16-24 bit stereo PCM)
1x USB type ‘B’ connector, Asynchronous data stream at up to 24-bit/192kHz PCM as well as DSD64 and DSD128

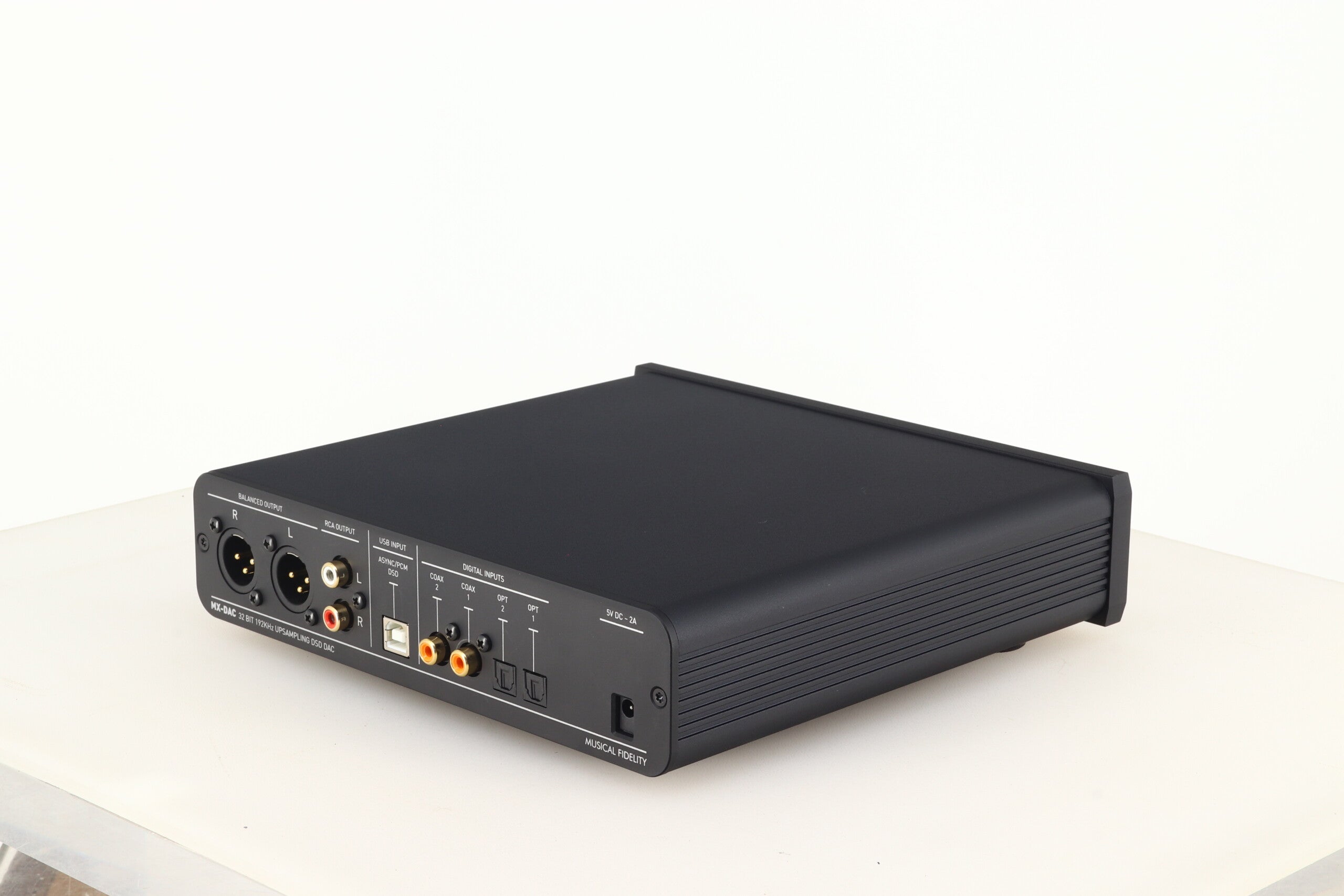

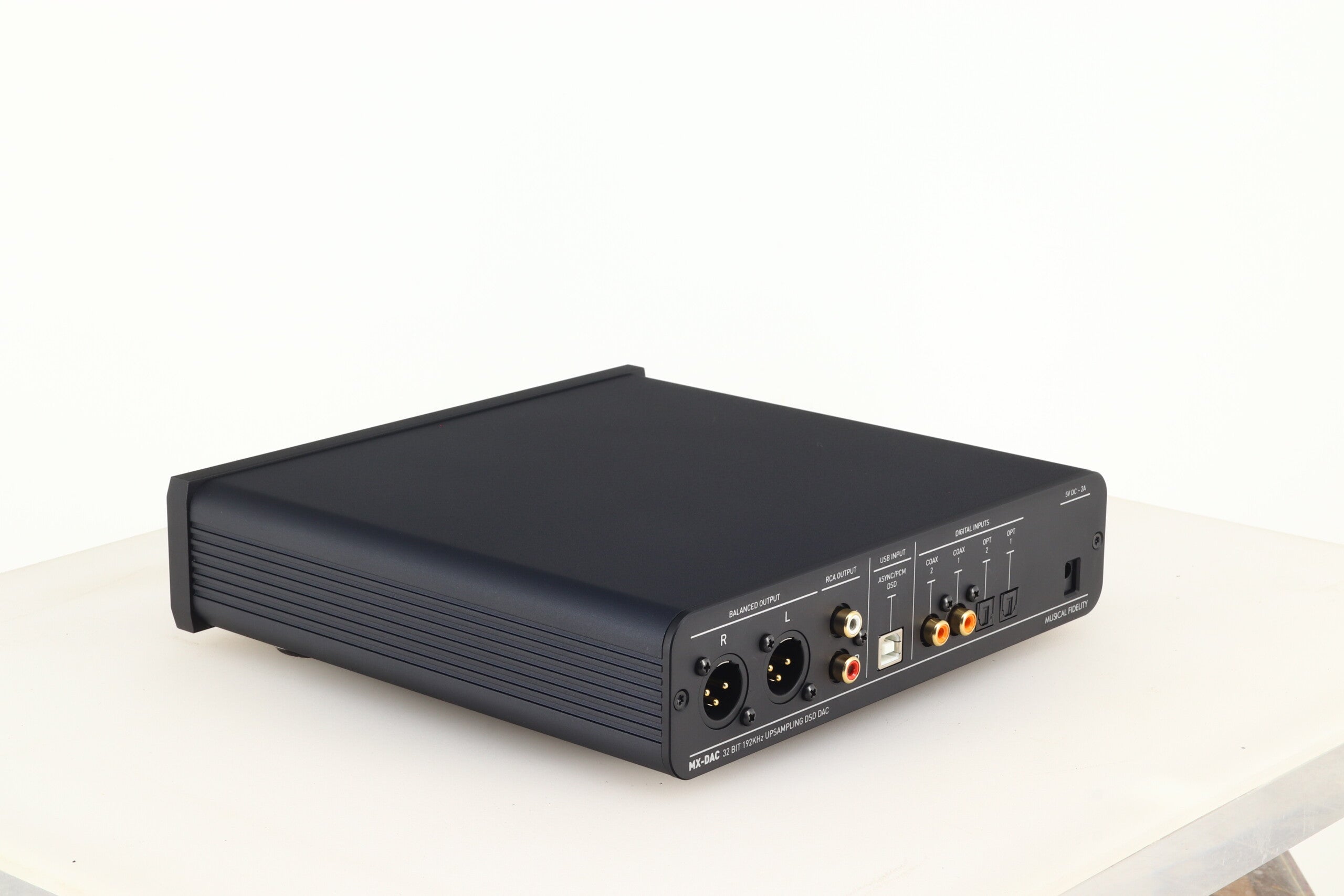

Outputs:
1x line level RCA (single-ended)
1x XLR Male sockets (balanced)
Outboard Power Supply: 5 V / 2 A DC
Mains Voltage: 90 - 250 V AC, 50/60 Hz
Power Consumption: < 1 W (max); < 0.25 W (standby)
Dimensions: 220 (W) x 215 (D) x 53 (H) mm
Weight: 1.9 kg
