Musical Fidelity A3²⁴ 192k Digital Analogue Converter

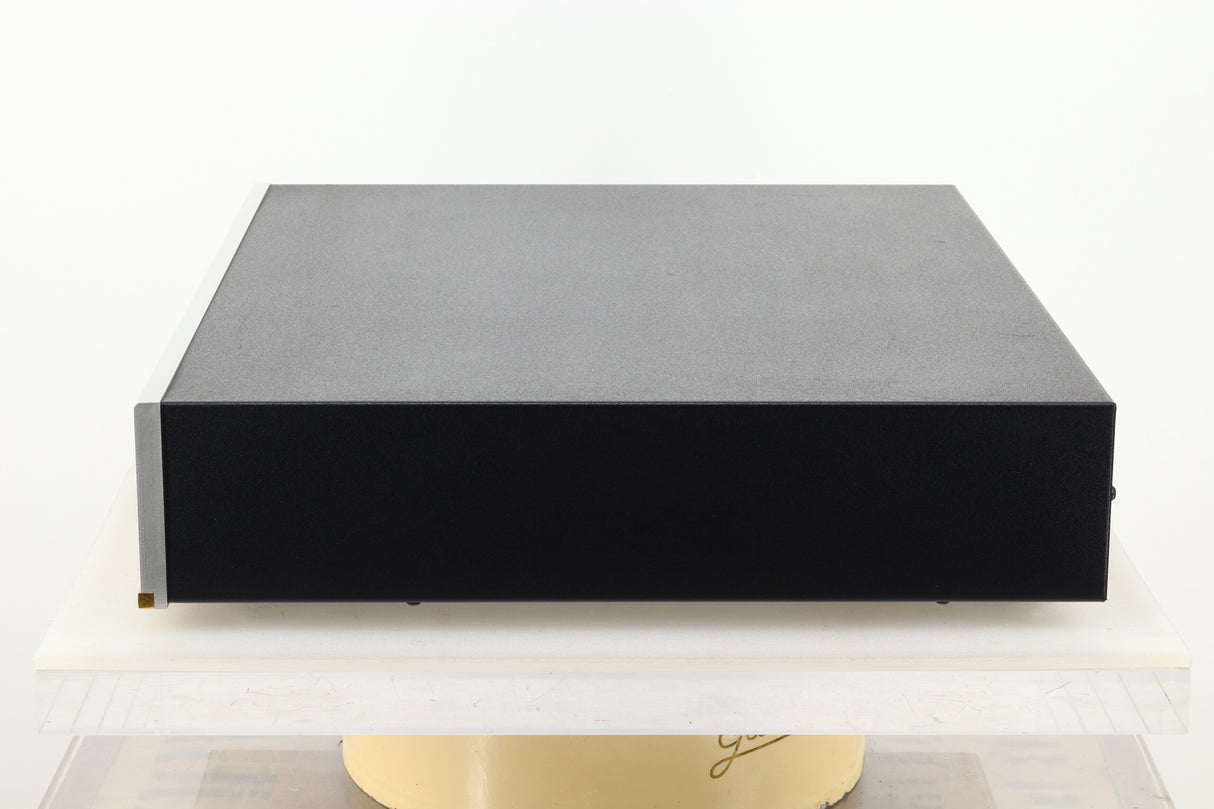

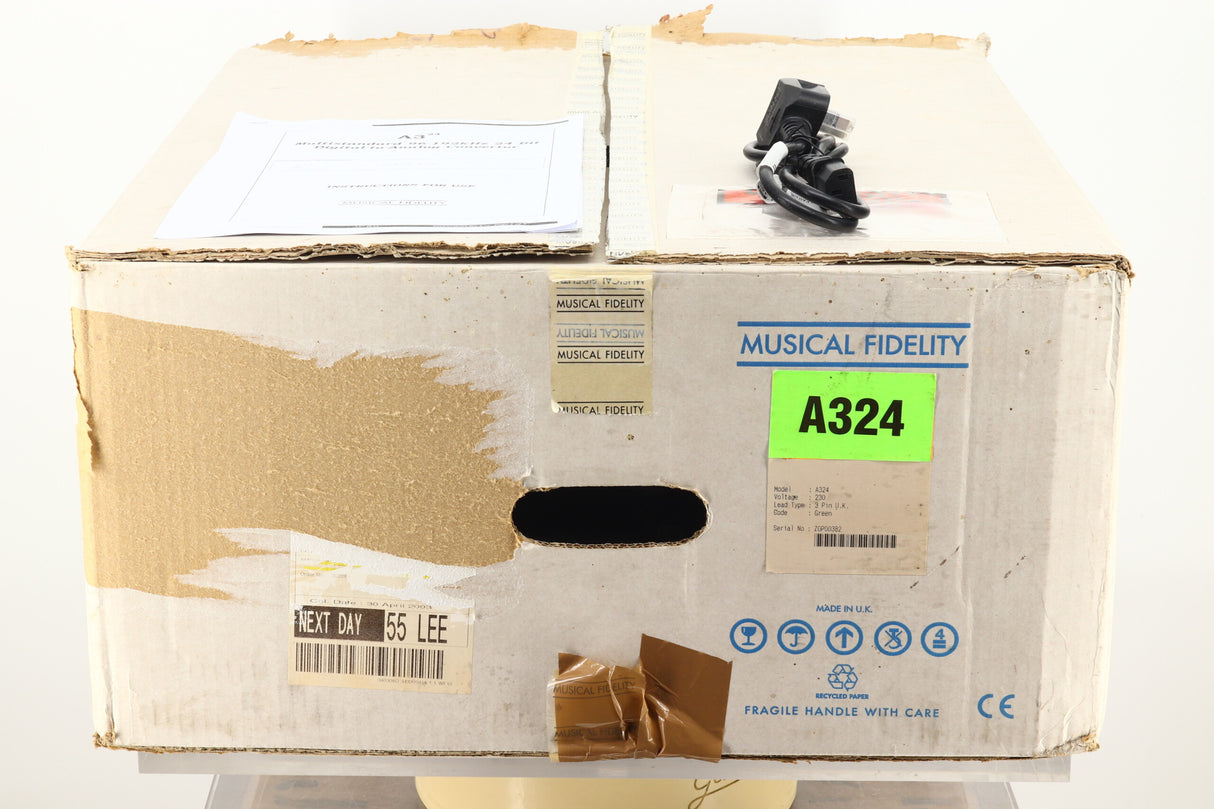

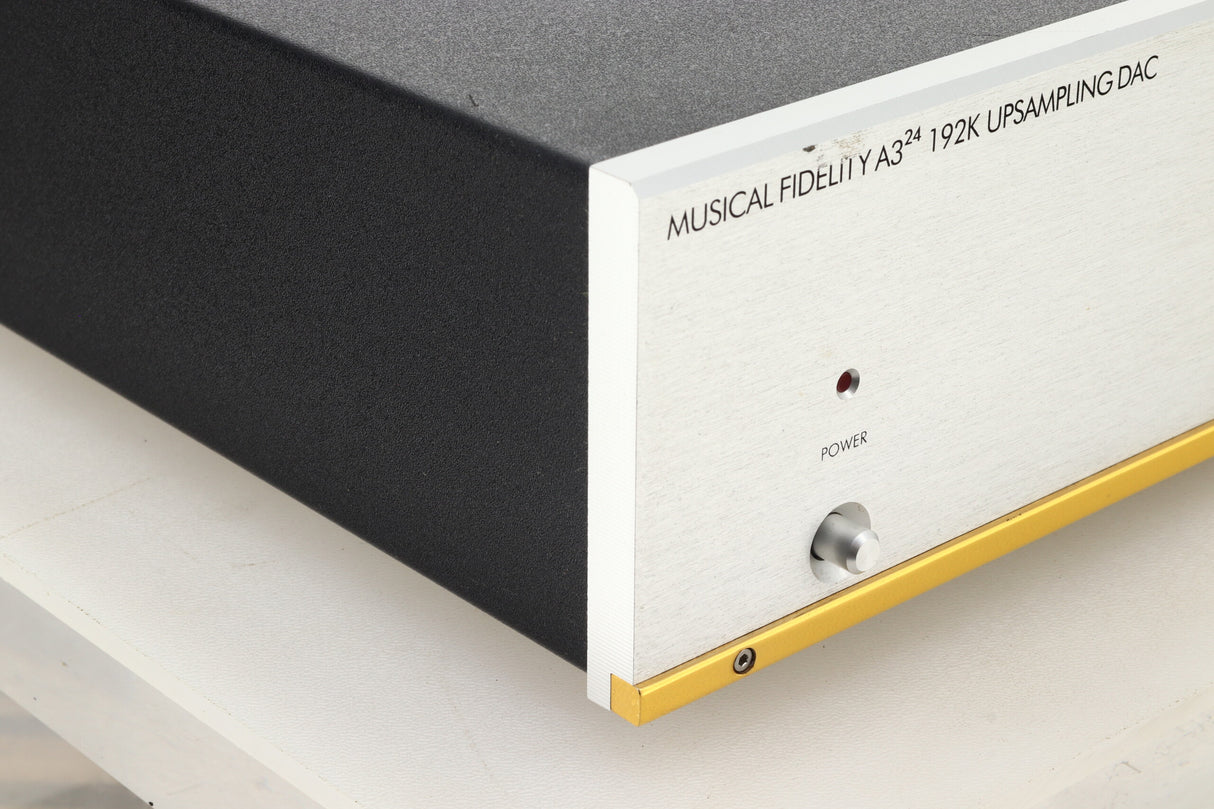

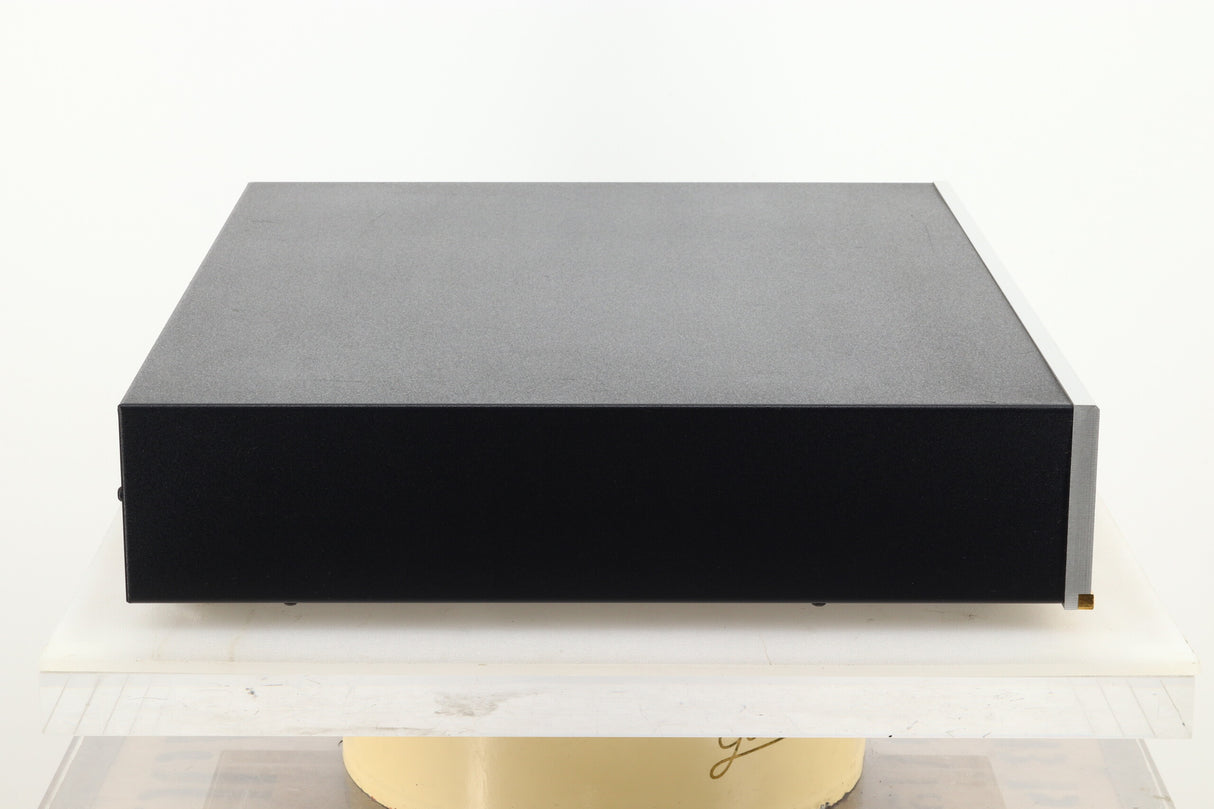

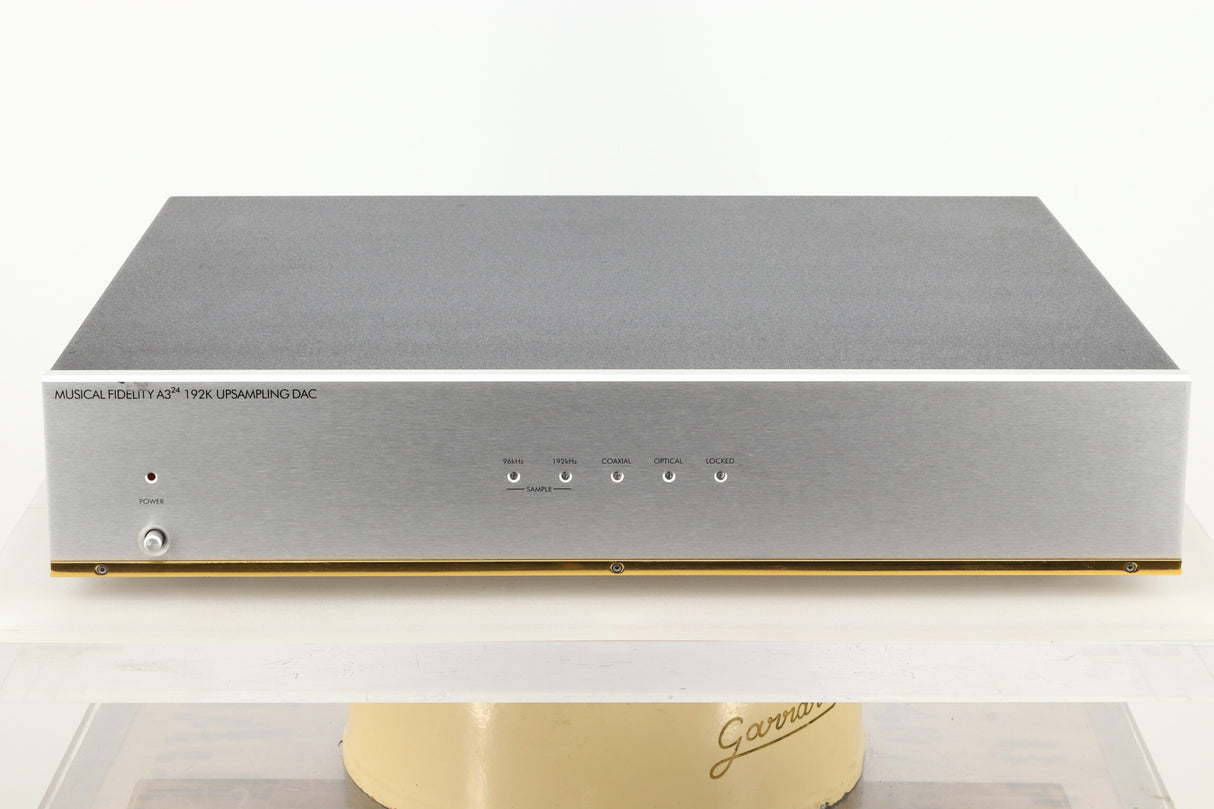

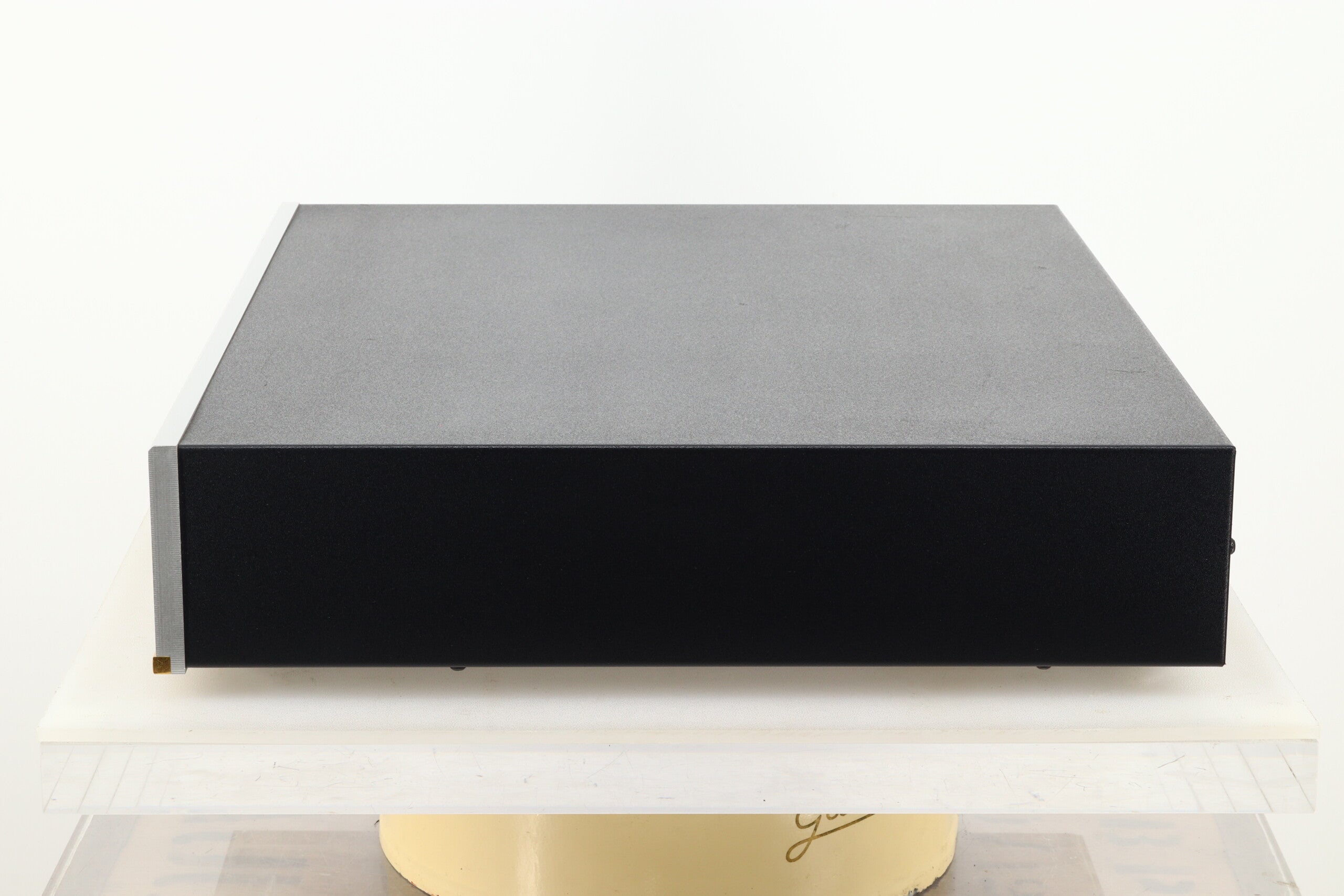

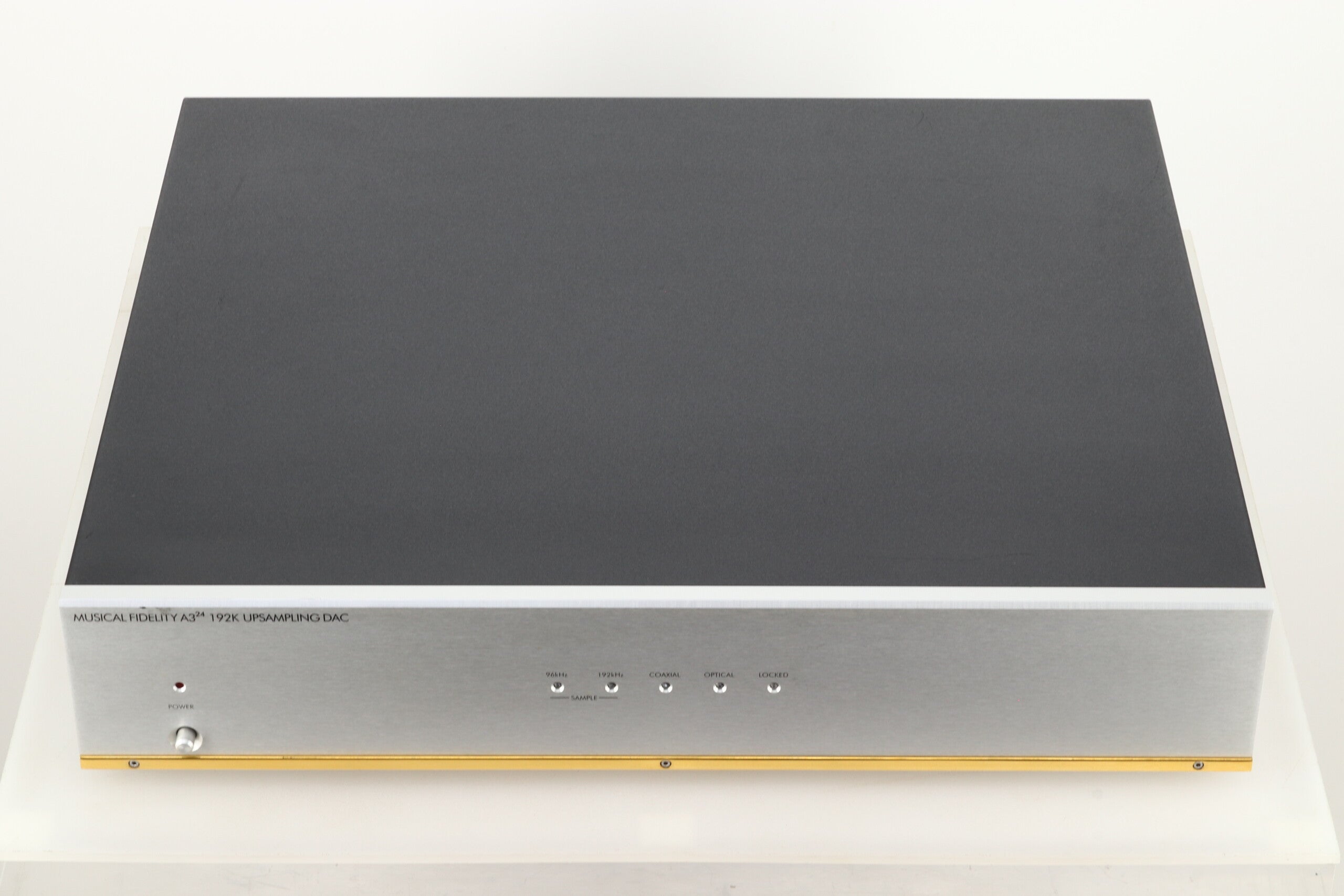

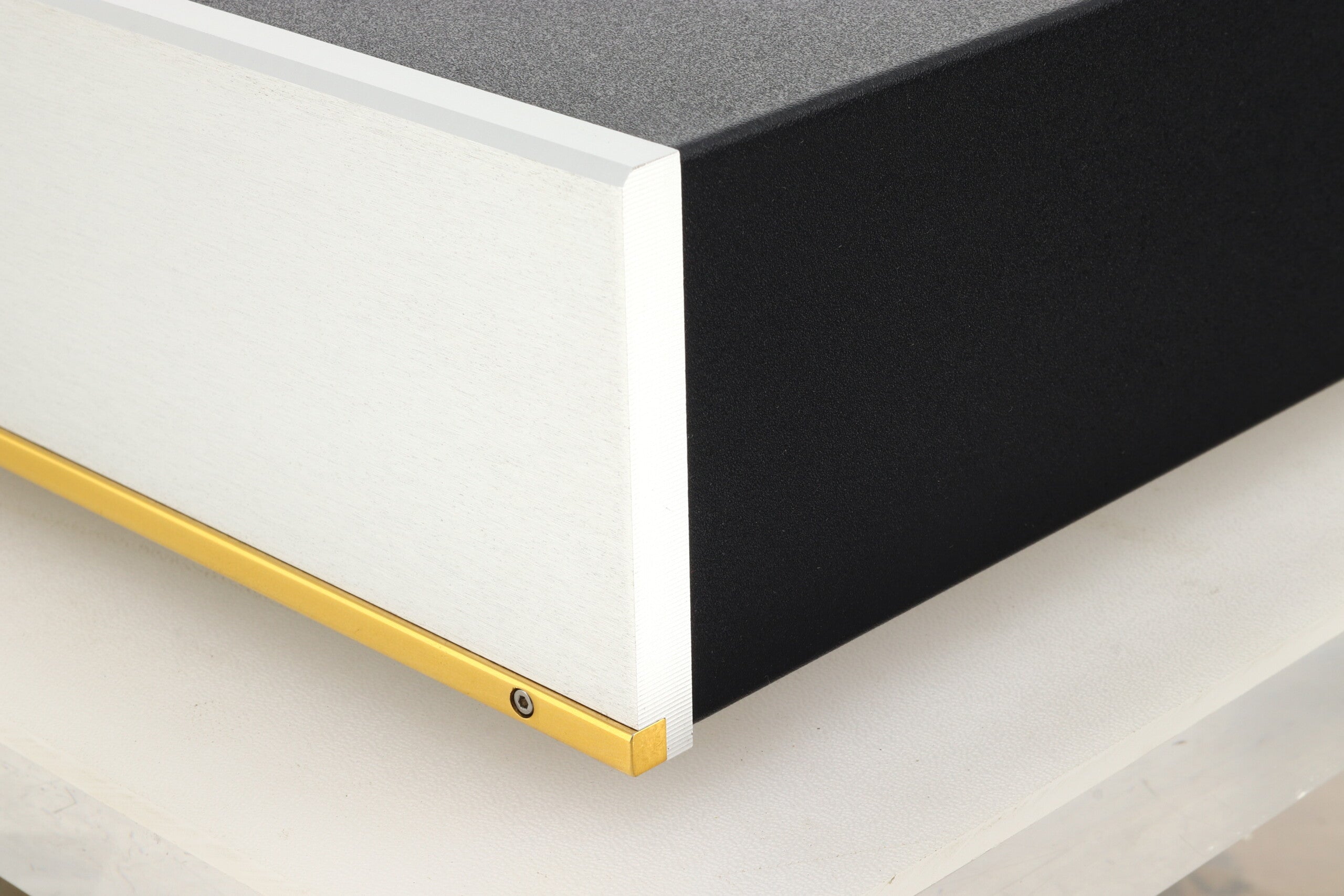

Here we have a classic digital to analogue converter from one of the first companies to market such a product - Musical Fidelity. It is in good condition noting a couple of minor marks - please view the photographs. It will be supplied in original factory packaging along with manual, mains cable and our standard three month warranty.
Musical Fidelity Said….
The A3-24 DAC will convert digital data from any CD, SACD or DVD-audio source to analogue audio, but not data from AC3, Minidisc, or MP3 formats.
However, the digital output socket will loop any selected digital source for external processing if required.
The A3-24 DAC has two inputs, one an optical “TOSlink” and the other an S/PDIF coaxial RCA socket. Either one is automatically selected by the presence of a digital signal, but if both are accidentally connected at the same time, priority is given to the first of the two inputs presented.
Specifications:
DAC Architecture: 24-bit Delta-Sigma (Bitstream), Dual differential, 8x oversampling, 96/192 kHz switchable
Sampling Frequencies: 8 to 108 kHz
Data Types: 16, 20, 24-bit word lengths

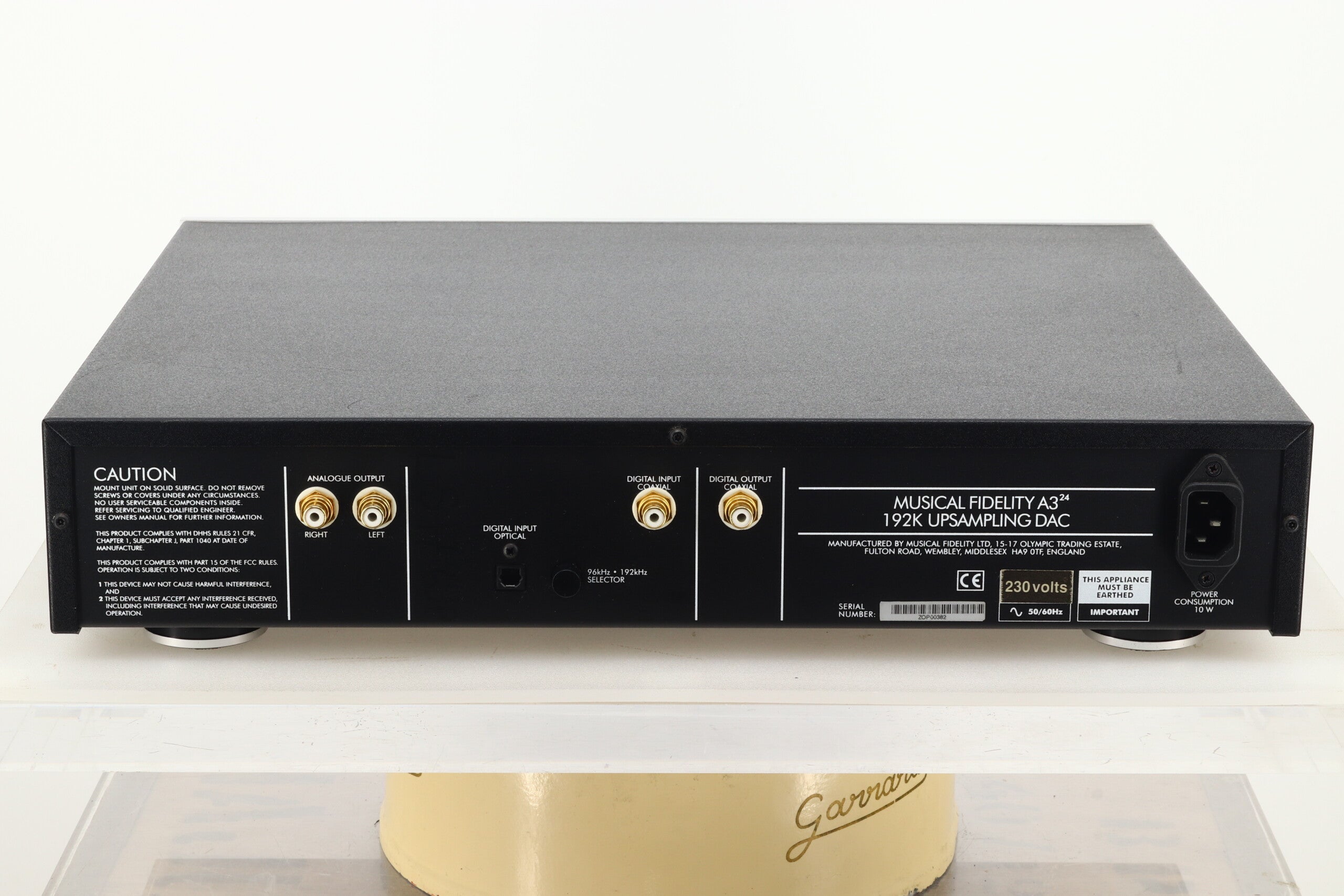

Inputs: RCA (75 Ω), TOSlink optical

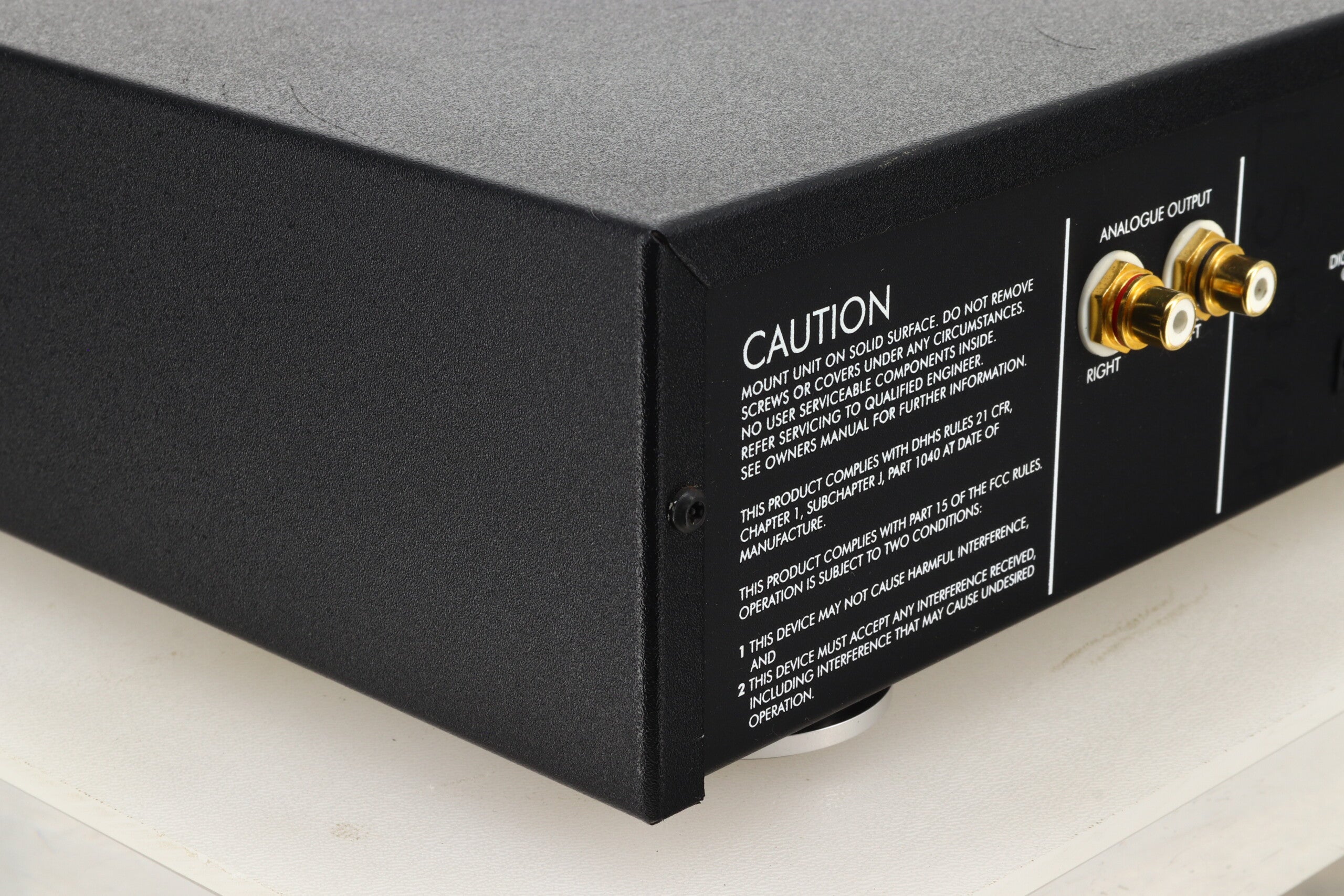

Outputs: RCA left and right analogue audio, RCA digital loop out
Output Impedance: 50 Ω
Frequency Response: 10 Hz to 22 kHz ± 0.0 dB
Signal-to-Noise Ratio: 113 dB ("A" weighted)
Total Harmonic Distortion: < 0.005% (10 Hz to 22 kHz)
Total Correlated Jitter: < 155 pS
Channel Separation: > 100 dB (20 Hz to 20 kHz)
Linearity: < 0.2 dB down to - 100 dB
Audio Output at Digital 0 dB Level: 2.17 V RMS @ 1 kHz nominal

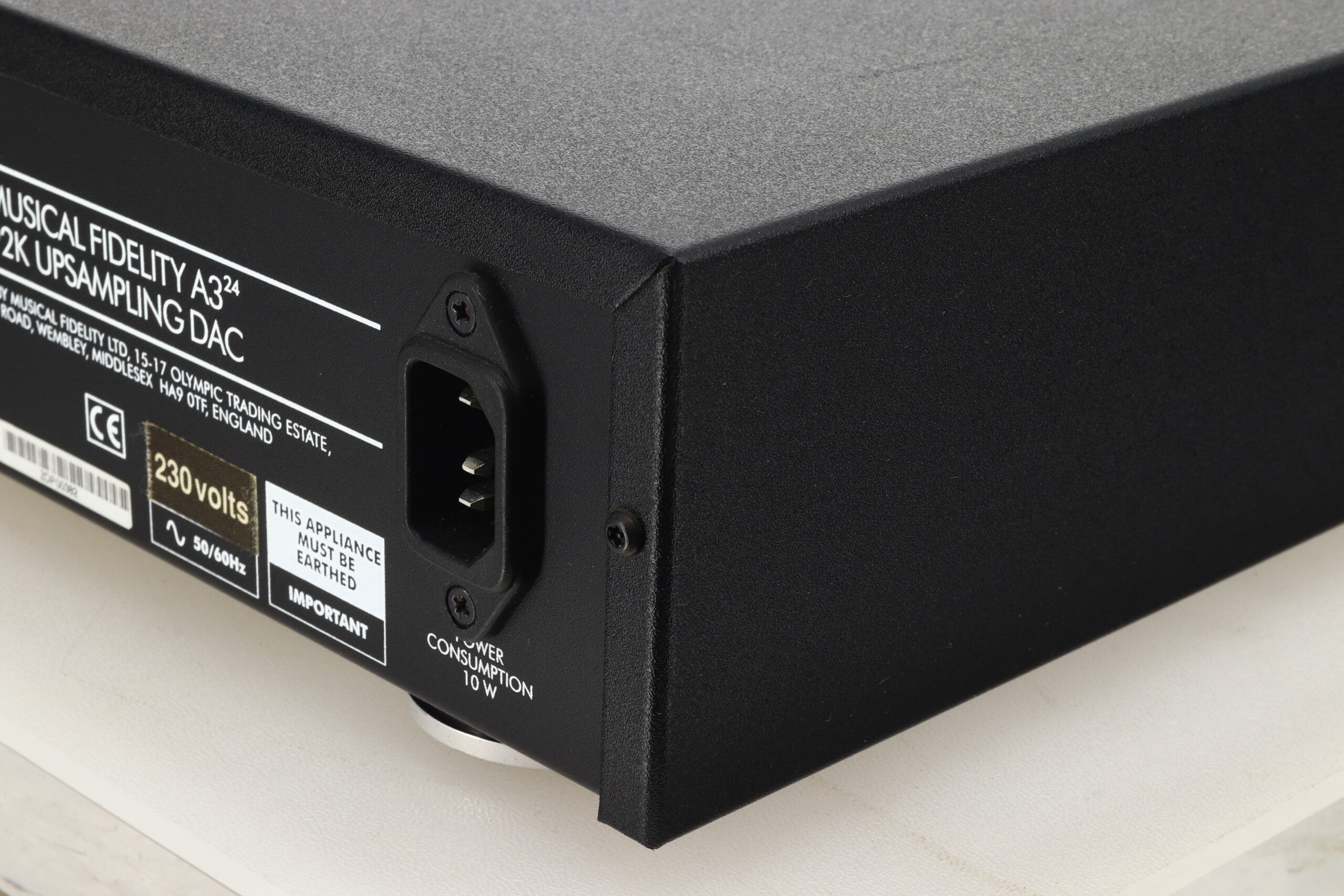

Power Requirements: 100 / 115 / 230V AC, 50 / 60Hz, 10 Watts
Dimensions: 440 (W) x 375 (D) x 90 (H) mm
Weight: 10.0 kg
