Lyngdorf TDAI-1120 Integrated Streaming System

Lyngdorf TDAI-1120 provides the ultimate in flexibility. Its small design footprint allows it to be easily placed anywhere in the home, and the vast feature set offers a great variety of streaming options. All the user-friendly features you could ask for and paired with Lyngdorf Audio’s world-famous digital amplification technology and patented RoomPerfect™ room correction for the ultimate listening experience.
Connecting the TDAI-1120 to the HDMI (ARC) output of a television, will turn the TDAI-1120 into the best sound system possible for your movies. With CEC and eARC lip-sync functionality the TDAI-1120 can connect perfectly with tomorrows televisions and receive the on-off and volume commands from your television remote.

Description: 2-channel streaming amplifier
Power rating: 2 x 120 W RMS @ 4Ohm / 2 x 60 W RMS @ 8Ohm
Standby power consumption: < 0.5W
Max output current: 30A
Audio specifications:
Frequency Response: ±0,5dB from 20 to 20,000 Hz,
Total Harmonic Distortion: 0.05% max from 20 to 20,000 Hz
THD-N 1w/8ohm 0,04%, THD-N 1w/4ohm 0,04%

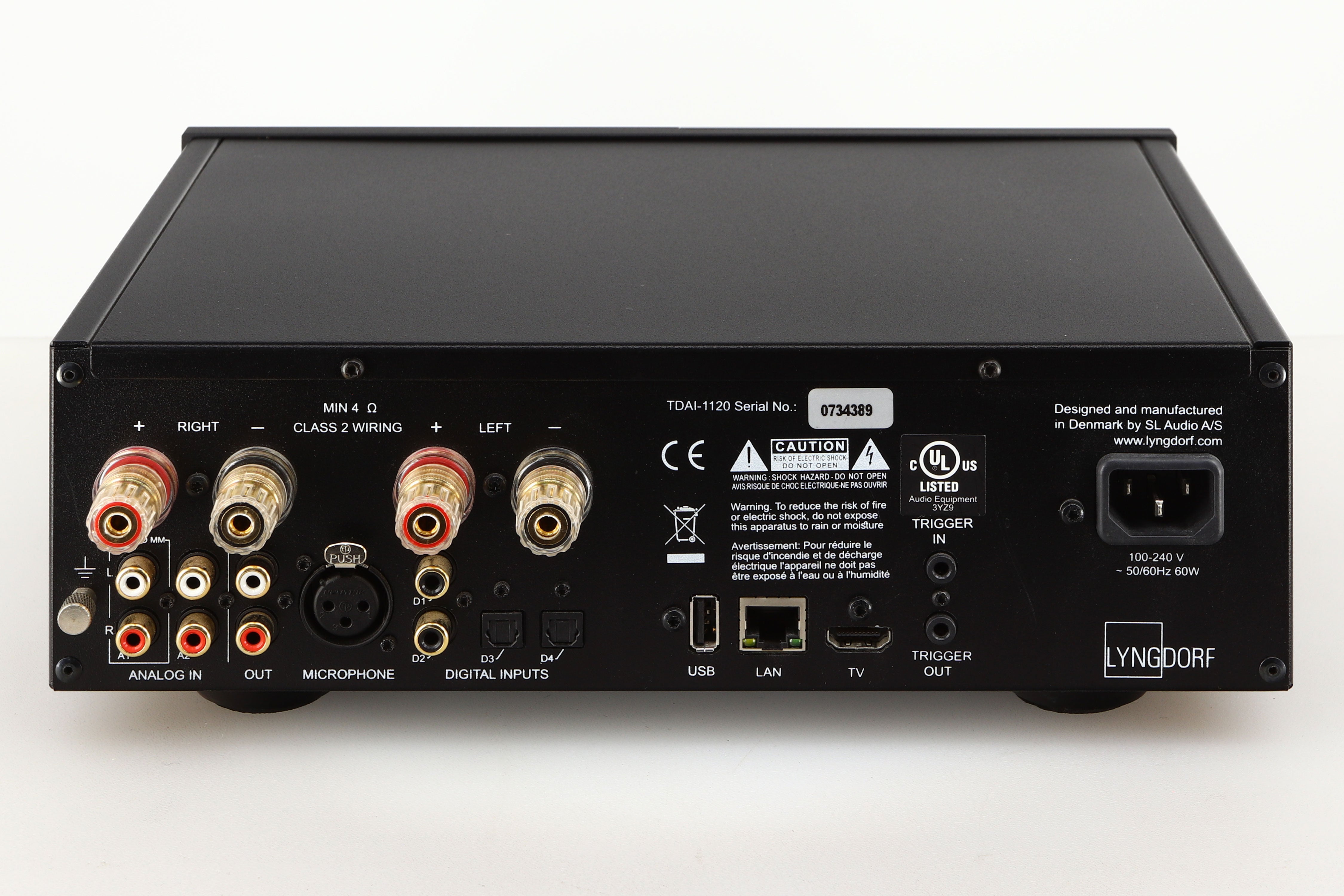

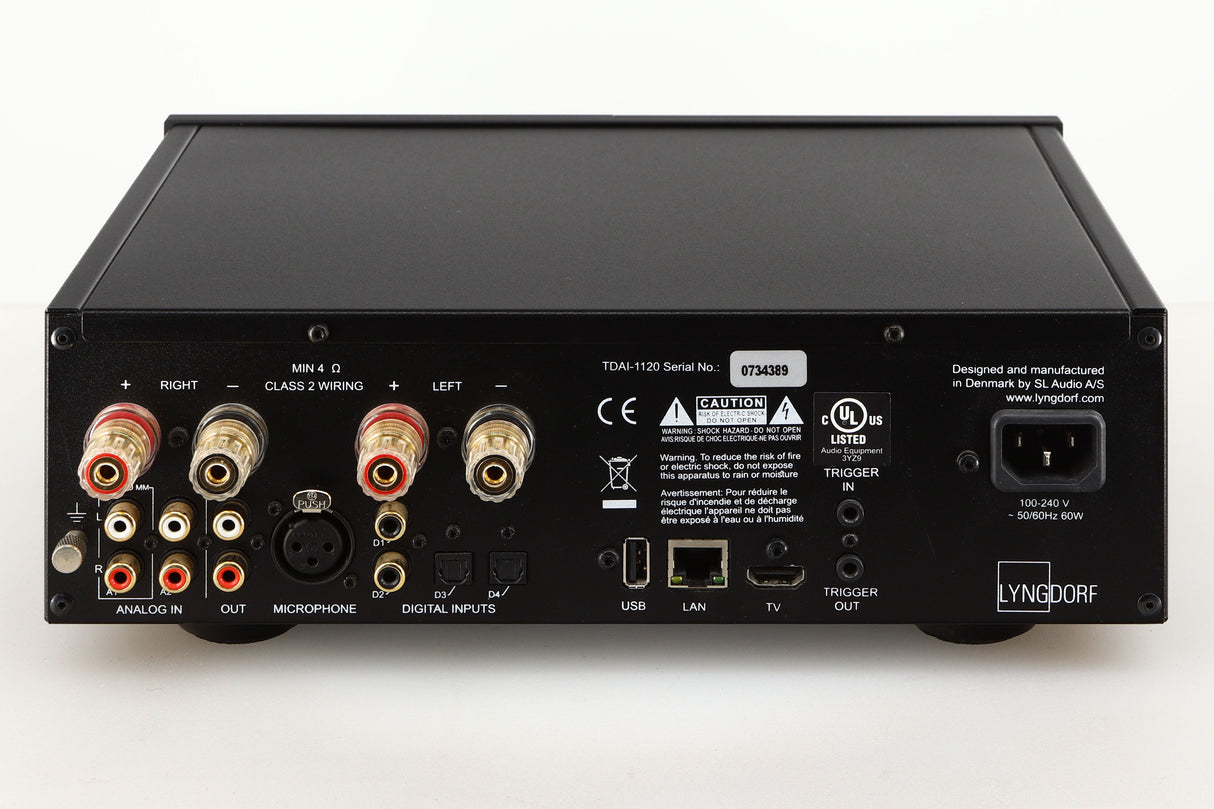

Digital inputs (Asynchronous): 2 x Coaxial (≤192kHz/24bit) 2 x Optical (≤96 kHz/24bit) 1 x HDMI eARC (≤192 kHz/24 bit)
Analog inputs: 1 x Phono Single Ended RCA (RIAA / 47kOhm 100pF), 1 x Analog Single Ended RCA (Max level: 4.0V = 0dBFS) 1 x Microphone input (XLR) for RoomPerfect™ calibration
Analog output: 1 x Stereo Analog RCA (75ohm-Max output level 4 Vrms)
EQ: RoomPerfect™, Pre-Equalizer, ICC, 32 x adjustable voicings holding ≤8 filters with adjustable gain and Q, Subsonic filter (24 dB/oct at 18 Hz)
Media player: Internet Radio (vTuner, airable), Spotify Connect, TIDAL Connect including MQA decoding, Qobuz Connect, Roon Ready, Google Cast, Apple AirPlay2, DLNA Support (UPnP/see DLNA formats), Local file playback (USB), Bluetooth (BLE)
Wireless connections: Bluetooth connectivity, Wi-Fi (802.11 n)
Interfaces:
Intuitive input selector, Web-interface for setup and media player, Remote application for IOS and Android, IP control, CEC (HDMI), 1 x trigger input, 1 x trigger output, 1 x RJ45 Ethernet LAN connector, 1 x USB connectors (Type A)
Remote control: Infrared

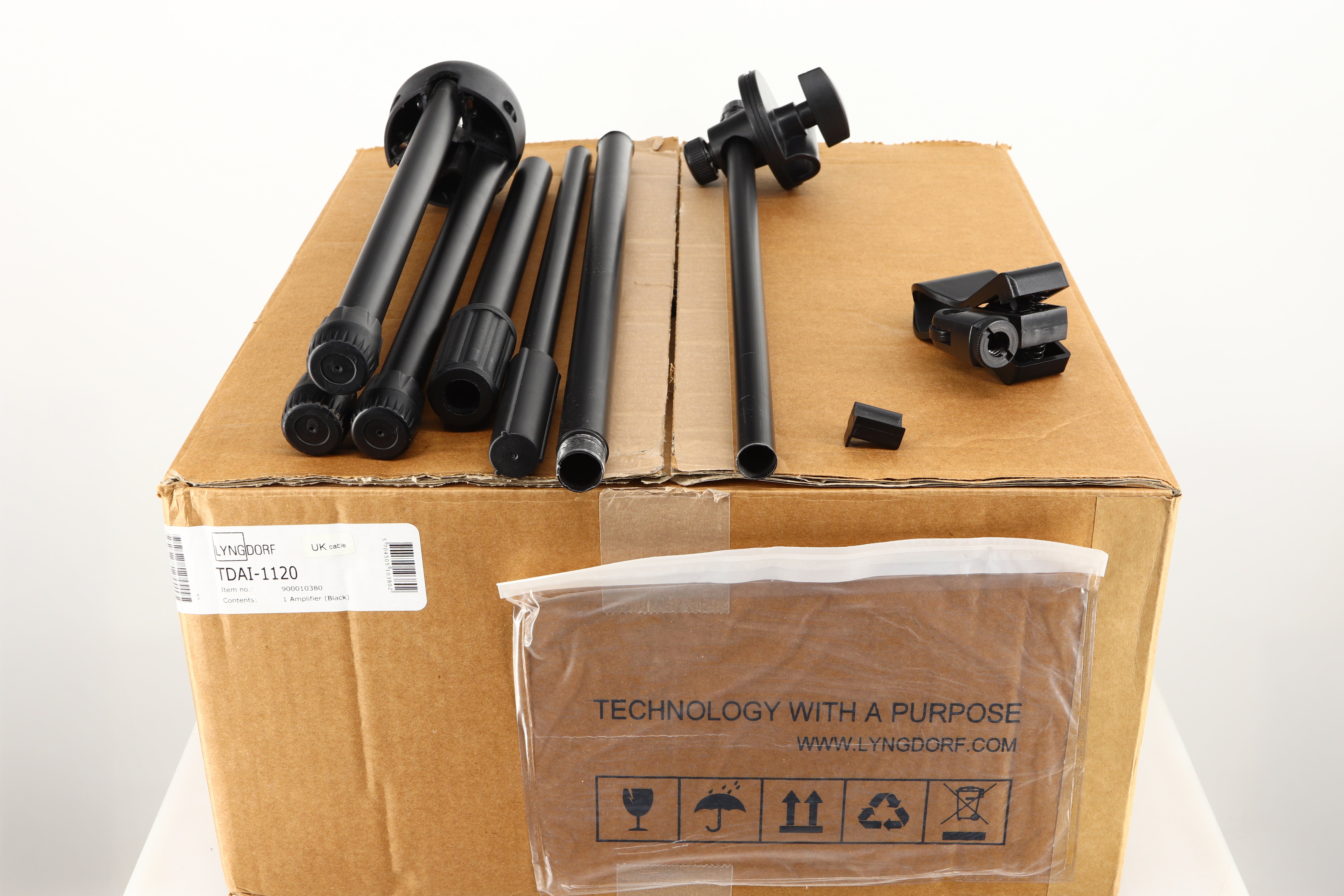

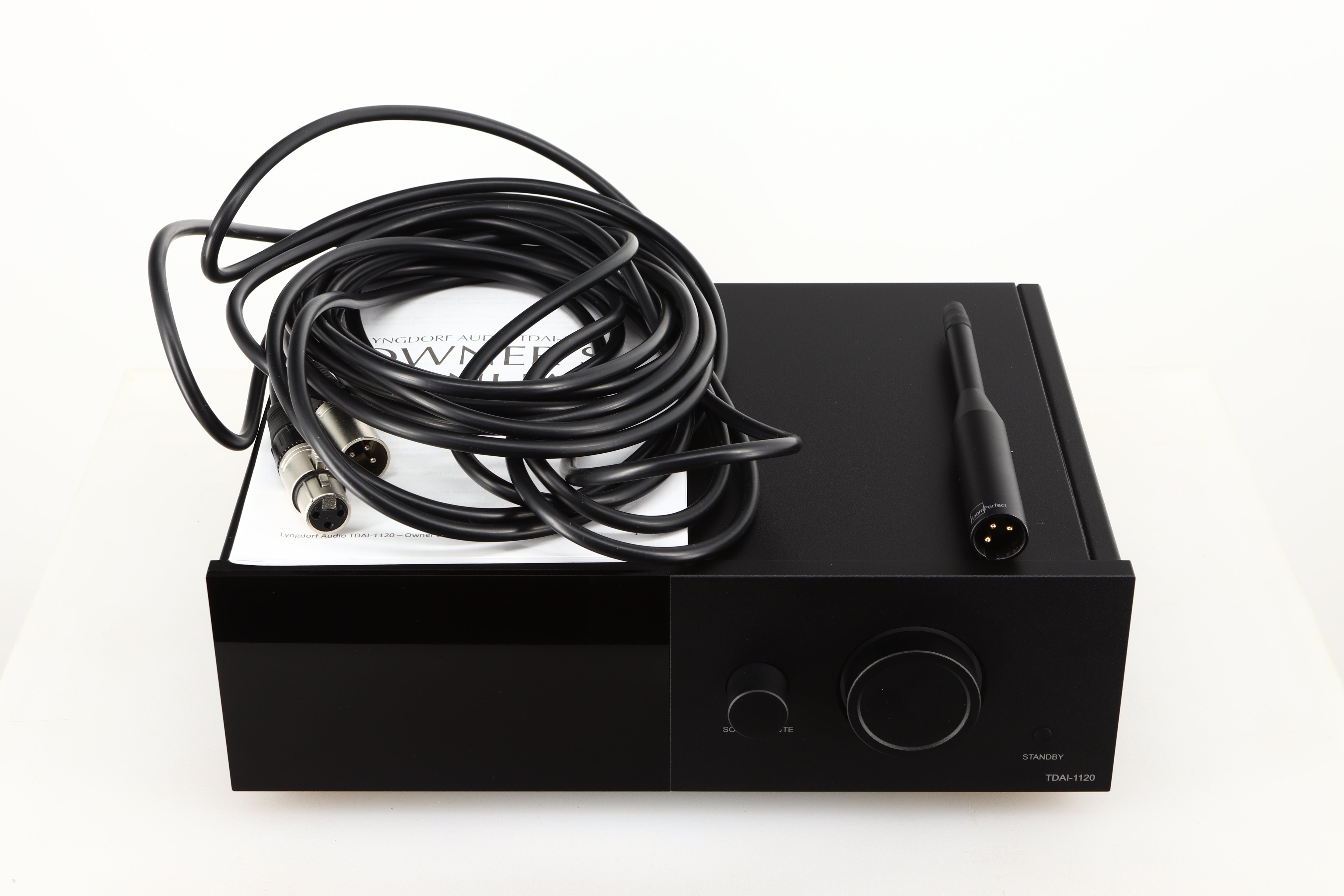

Accessories included: RoomPerfect™ microphone, Microphone stand, Microphone cable
Optional accessory:
IR remote control, rack mounting kit
Placement options: Freestanding
Heat dissipation value: 170 BTU
Dimensions (H x W x D): 10.1 x 30 x 26 cm (including connectors), 3.98 x 11.8 x 10.3 inches (including connectors)
Weight: 3,3 kg / 7.3 lb Finish: Anodized aluminum, matte black
