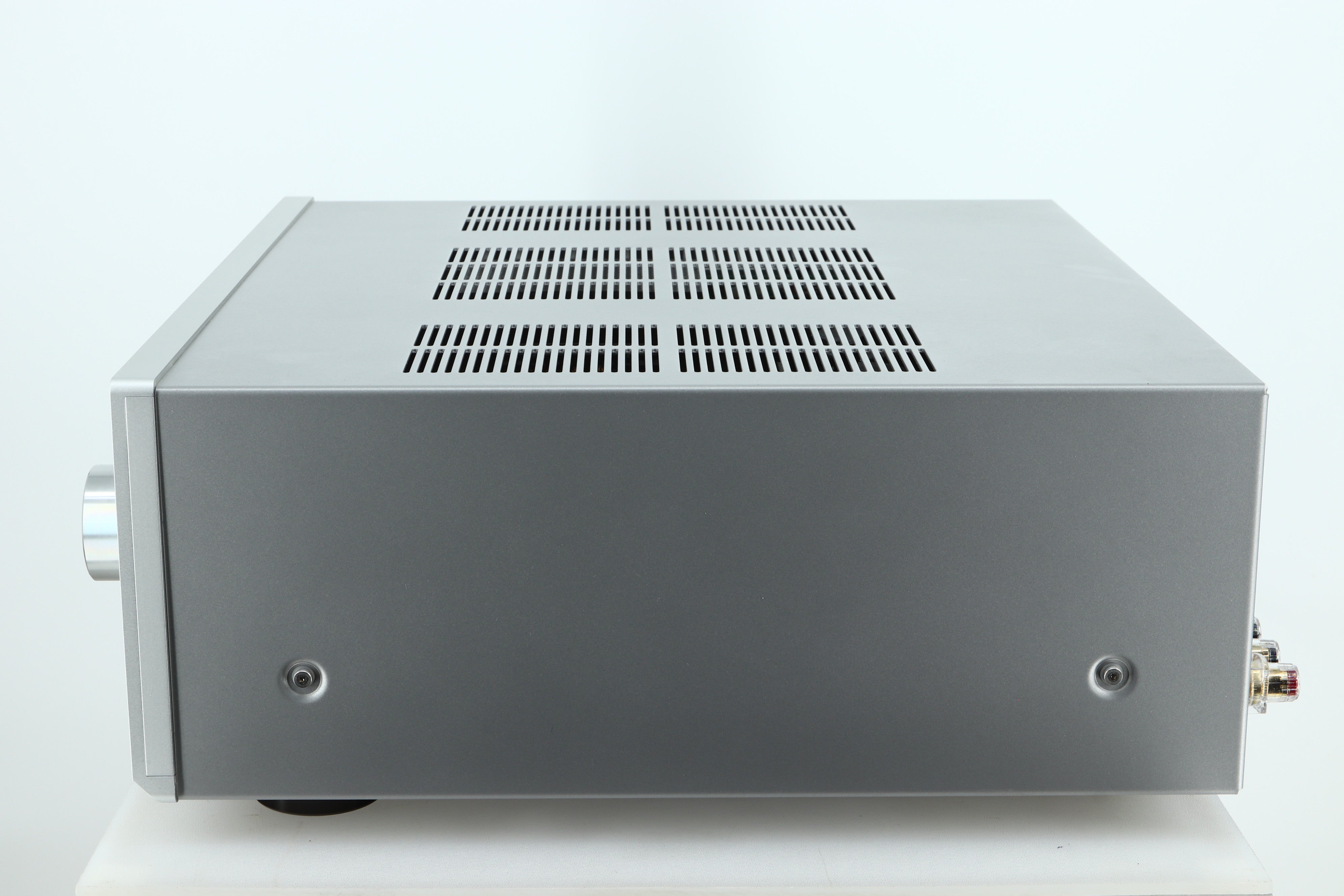

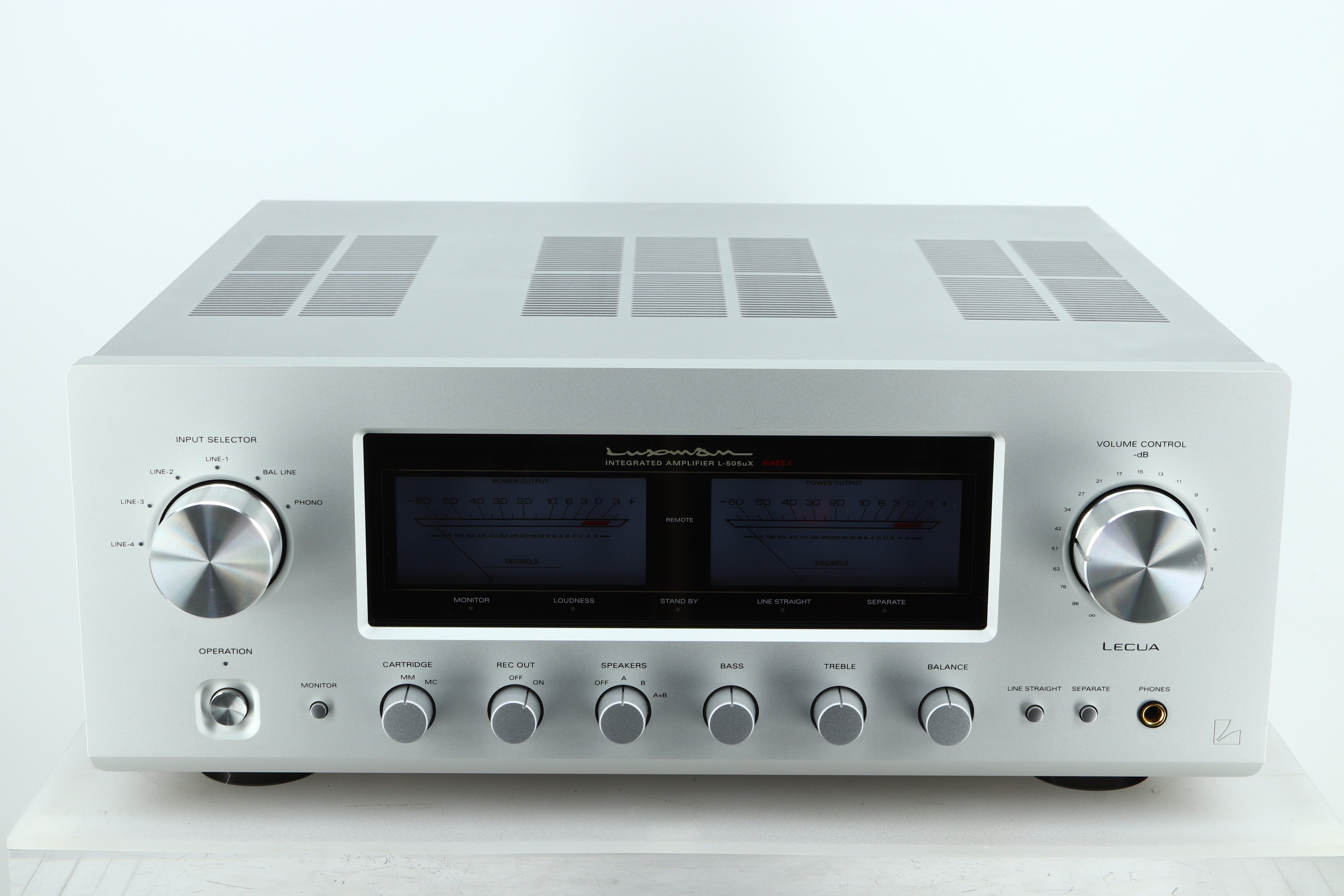

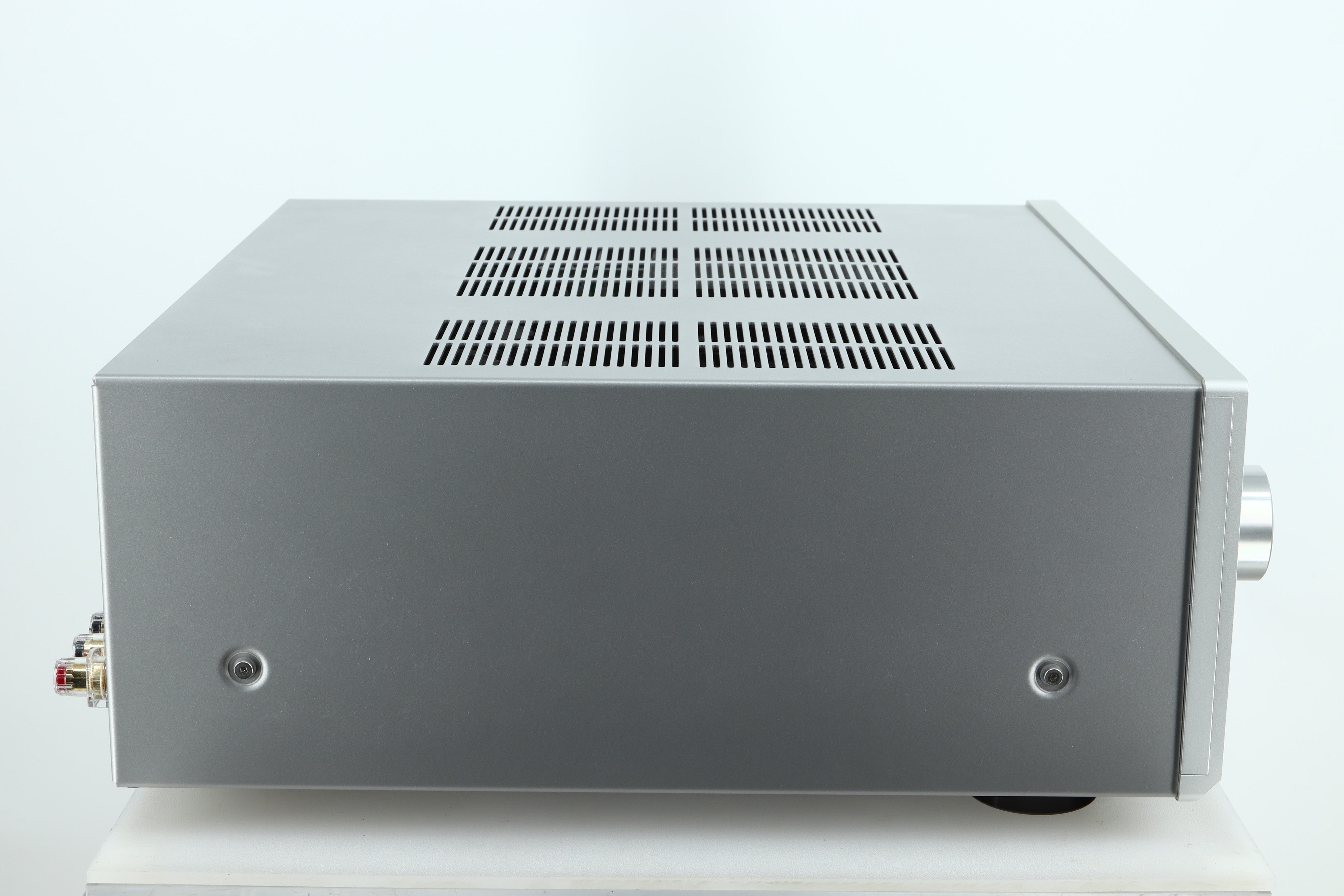

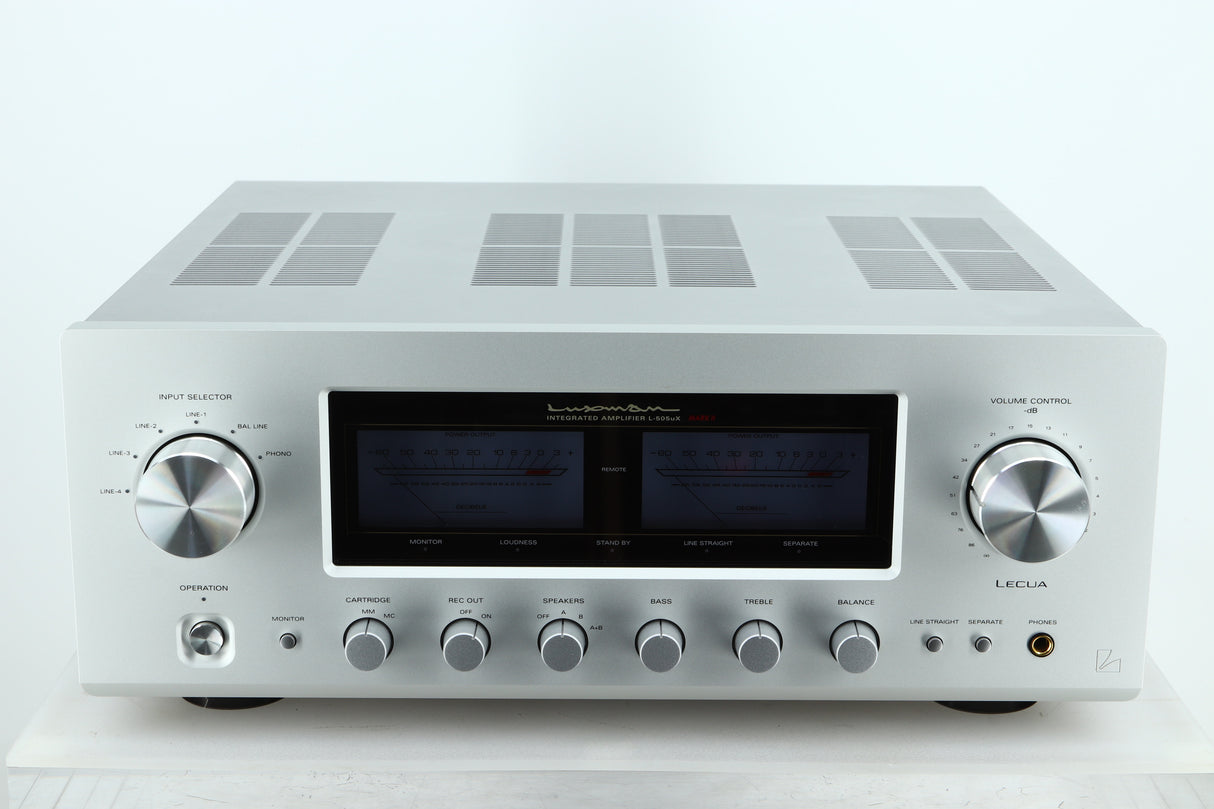

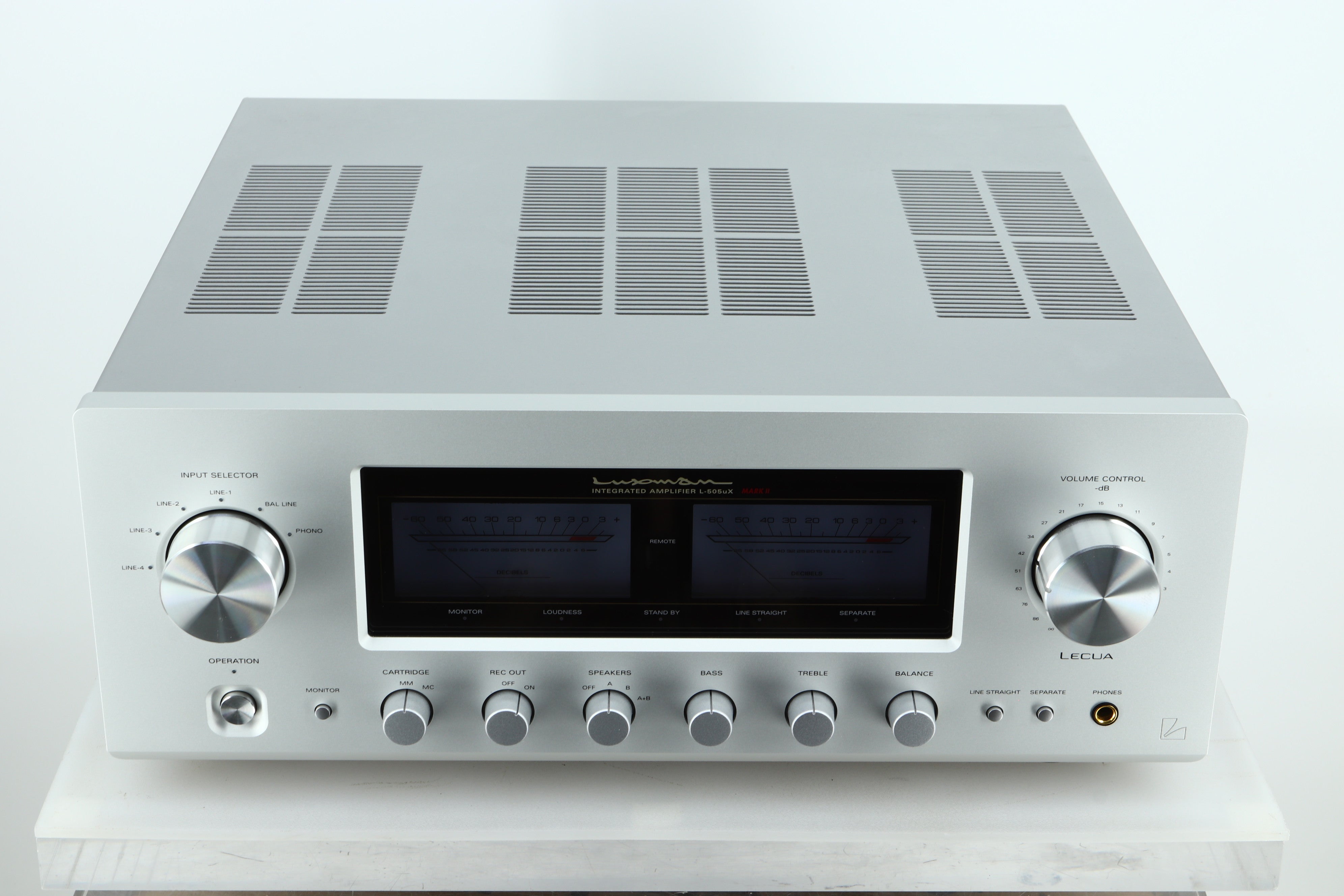

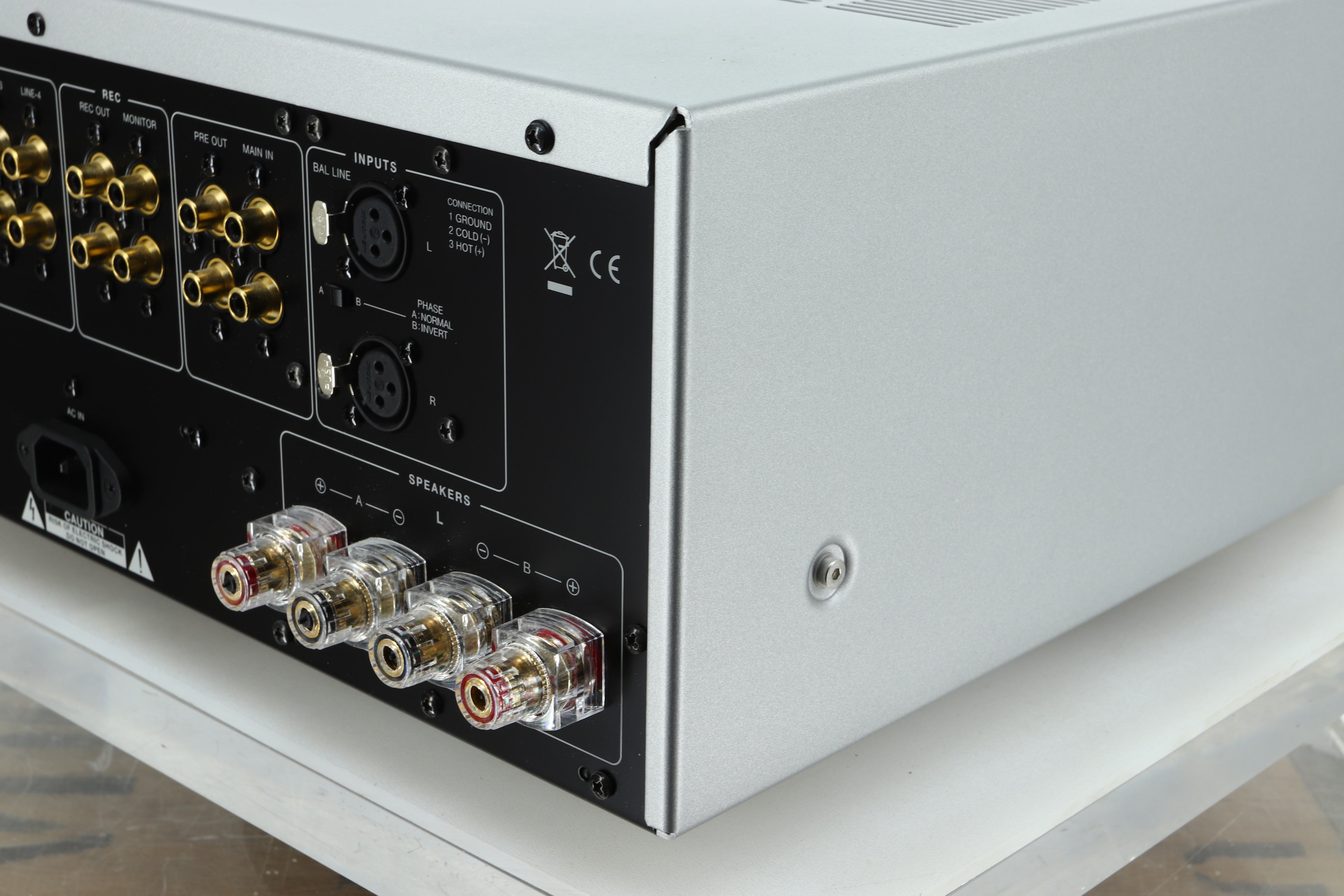

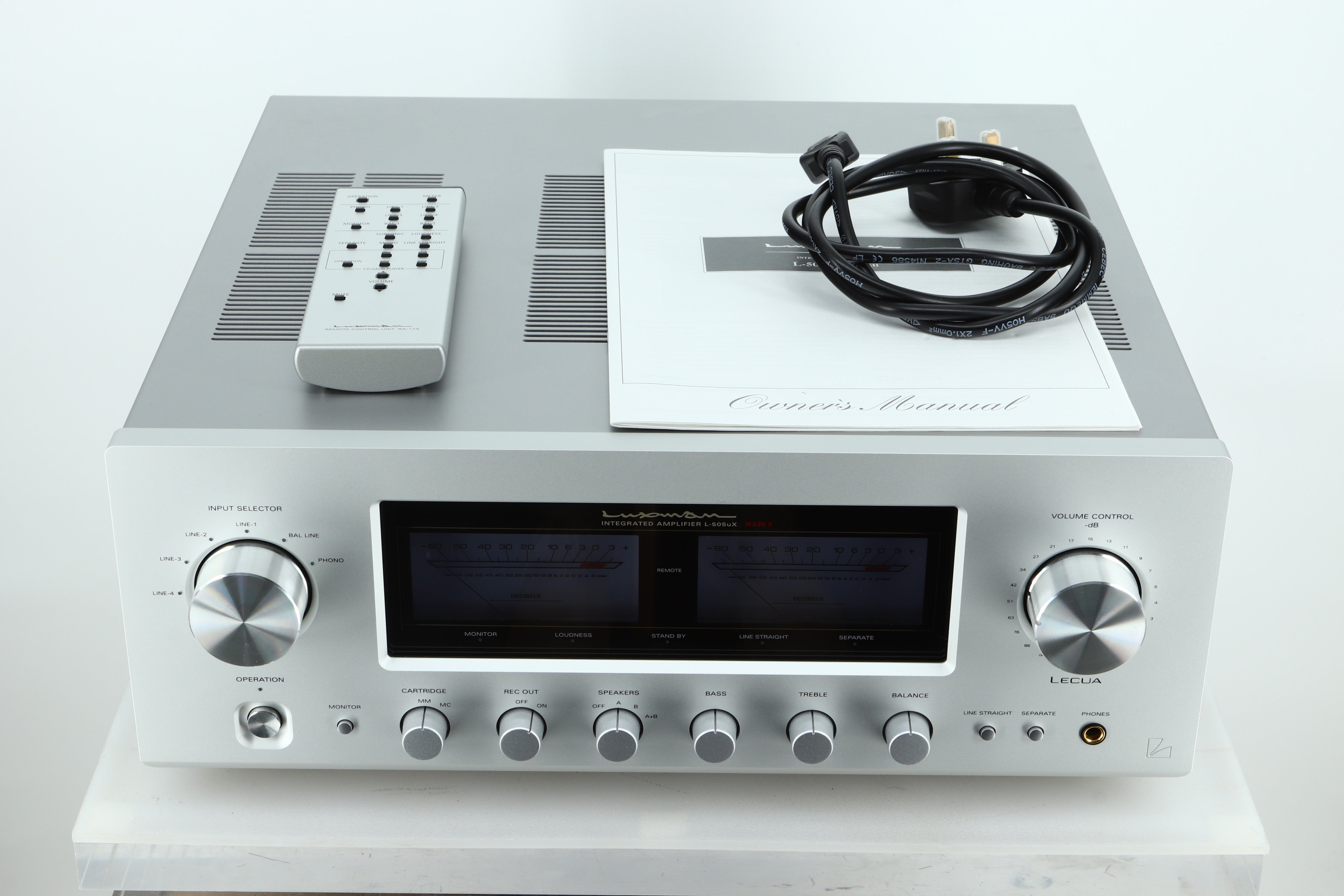

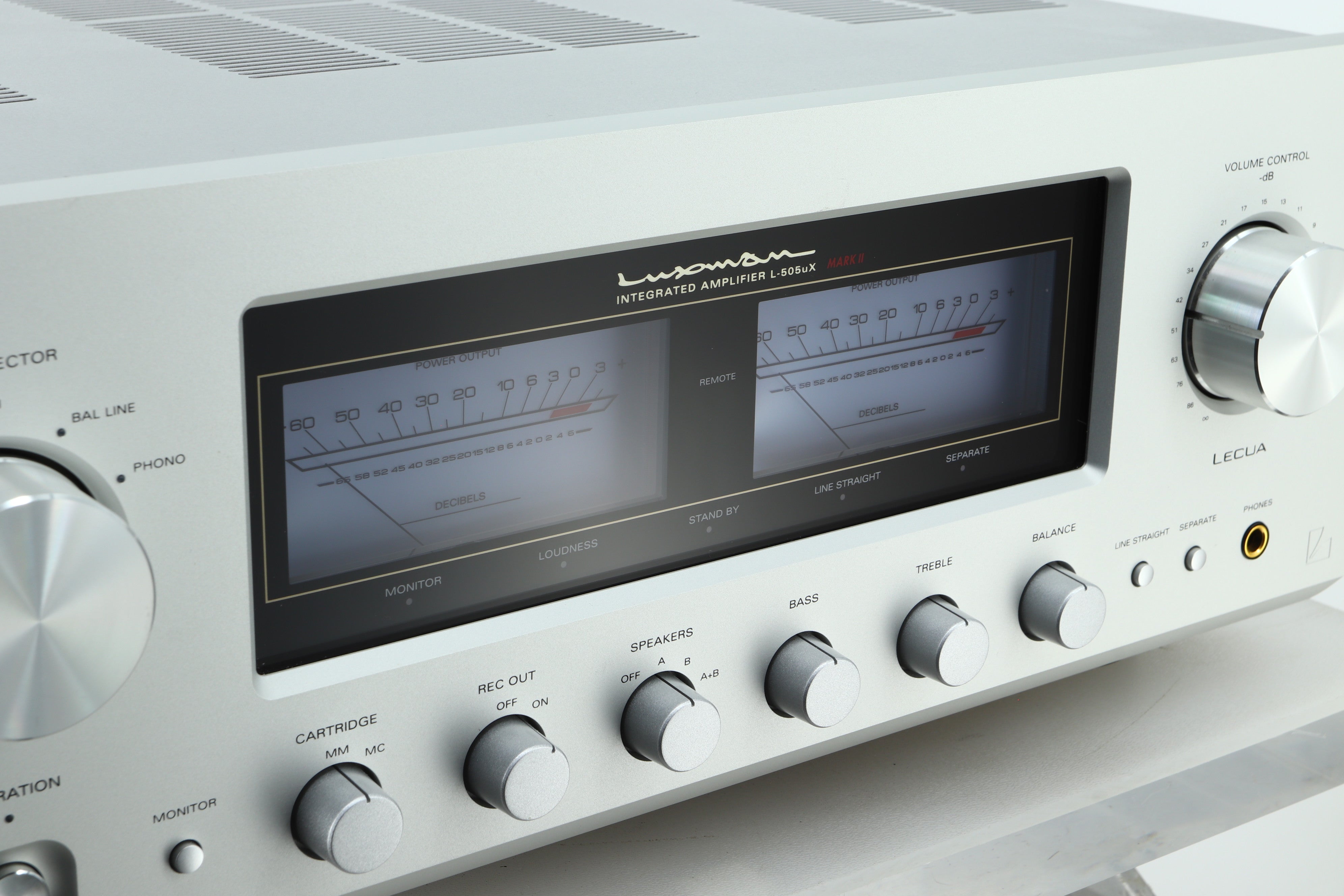

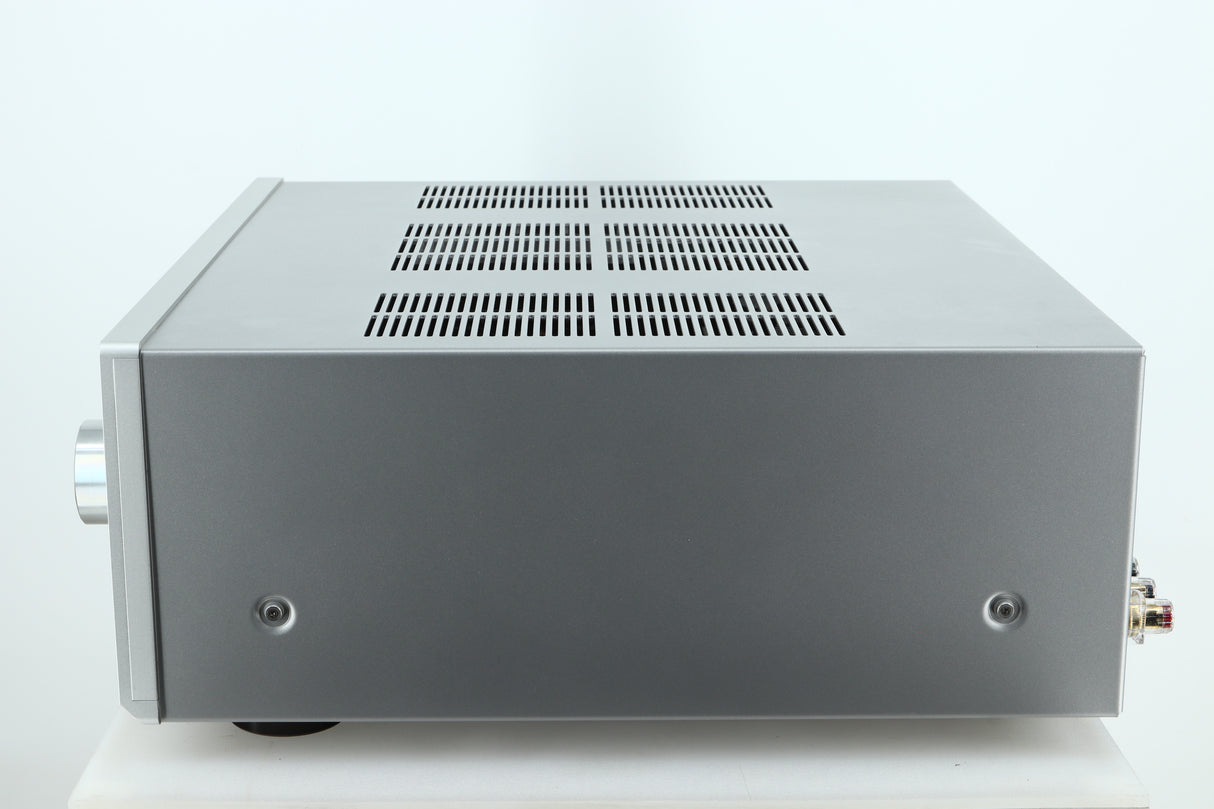

Luxman L-505uX MkII Integrated Amplifier

The Luxman L-505uXII integrated amplifier is the successor to the popular L-505uX that has been at the forefront of pre-amplifier design since it's launch in 2011. Utilising an abundance of proprietary technologies, such as Luxman's Version 4.0 ODNF (Only Distortion Negative Feedback), as well as LECUA (Luxman Electronically Controlled Ultimate Attenuator), this product is a truly multifunctional integrated amplifier. As Luxman's latest high-end model, the L-505uXII continues the evolution of the L-505 series, which has attracted many fans of audio quality and earned a great reputation. As an amplifier which exudes sophistication and authenticity beyond its class, the L-505uXII represents the latest in a long line of exemplary models.

Rated output 100W + 100W (8Ω), 150W + 150W (4Ω)
Input sensitivity/input impedance PHONO (MM): 2.5mV/47kΩ
PHONO (MC): 0.3mV/100Ω
LINE: 180mV/47kΩ
BAL.LINE: 180mV/55kΩ
MAIN-IN: 1V/47kΩ
Output voltage REC OUT: 180mV, PRE-OUT: 1V
Frequency response PHONO: 20Hz to 20kHz (within -3dB)
LINE: 20Hz to 100kHz (within -3dB)
Total harmonic distortion 0.009% or less (8Ω, 1kHz)
0.09% or less (8Ω, 20Hz to 20kHz)
S/N ratio (IHF-A) PHONO (MM): 91dB or more
PHONO (MC): 75dB or more
LINE: 104dB or more
Volume adjustment LECUA Amplification circuit ODNF 4.0
