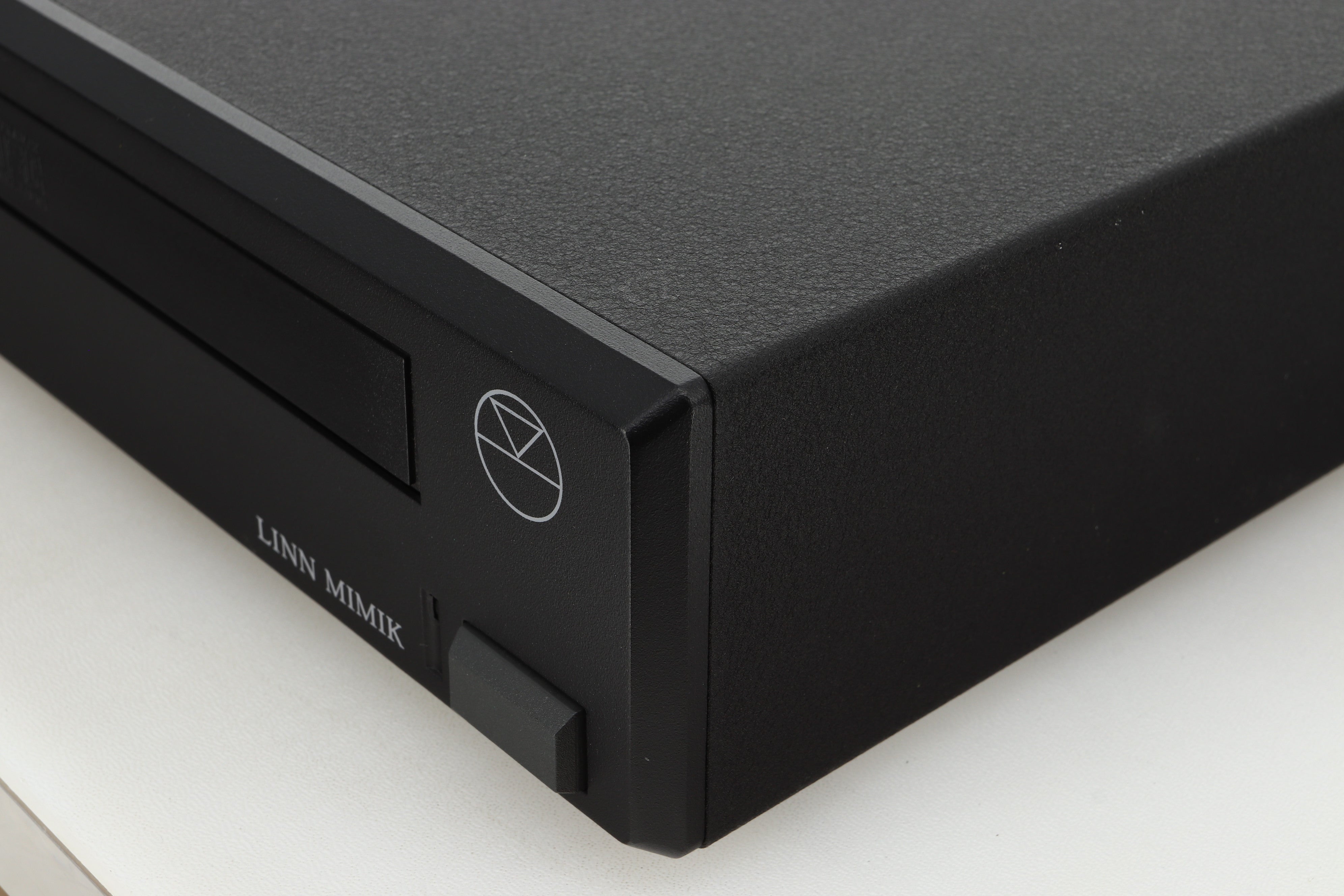

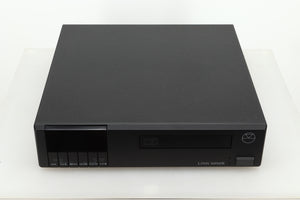

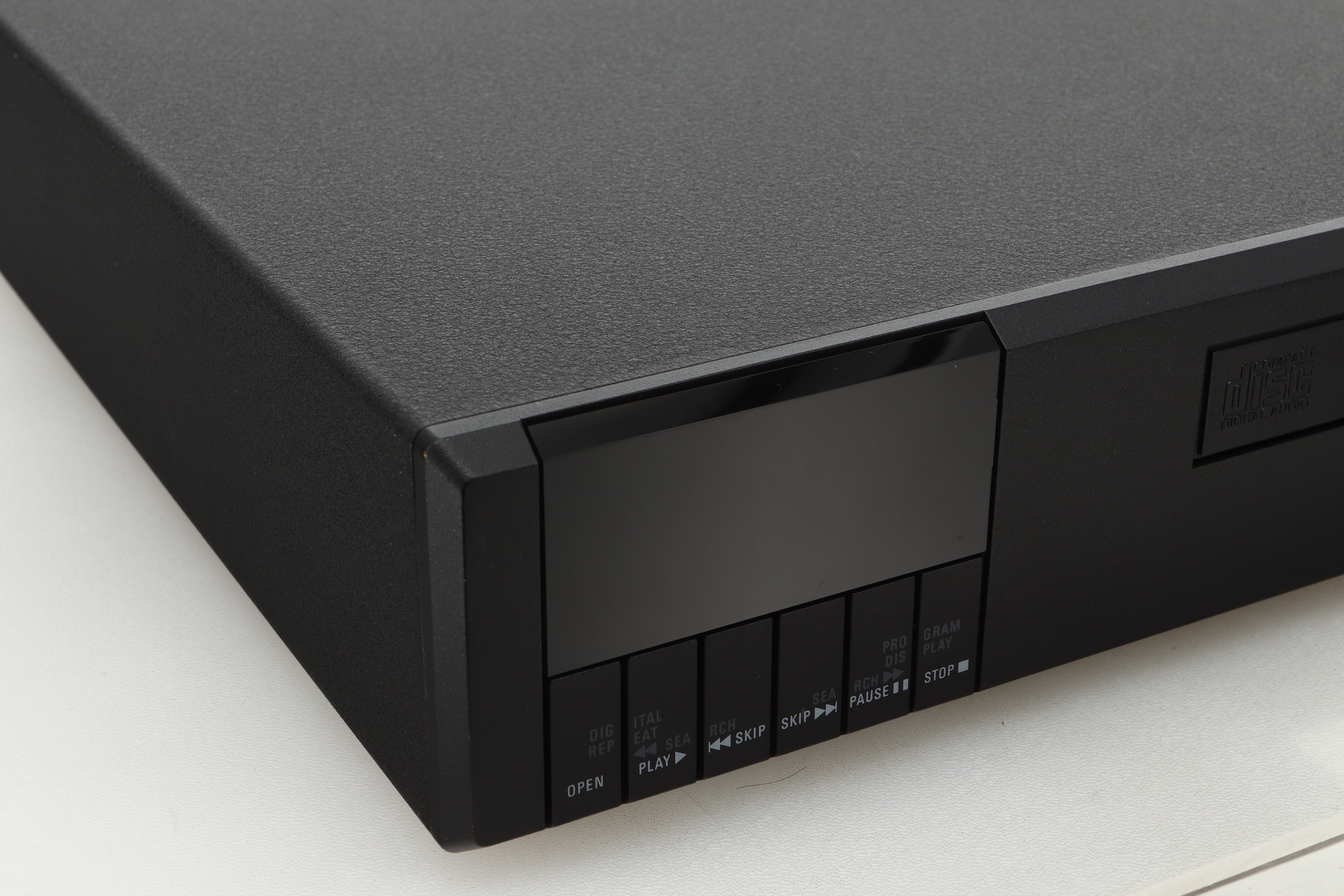

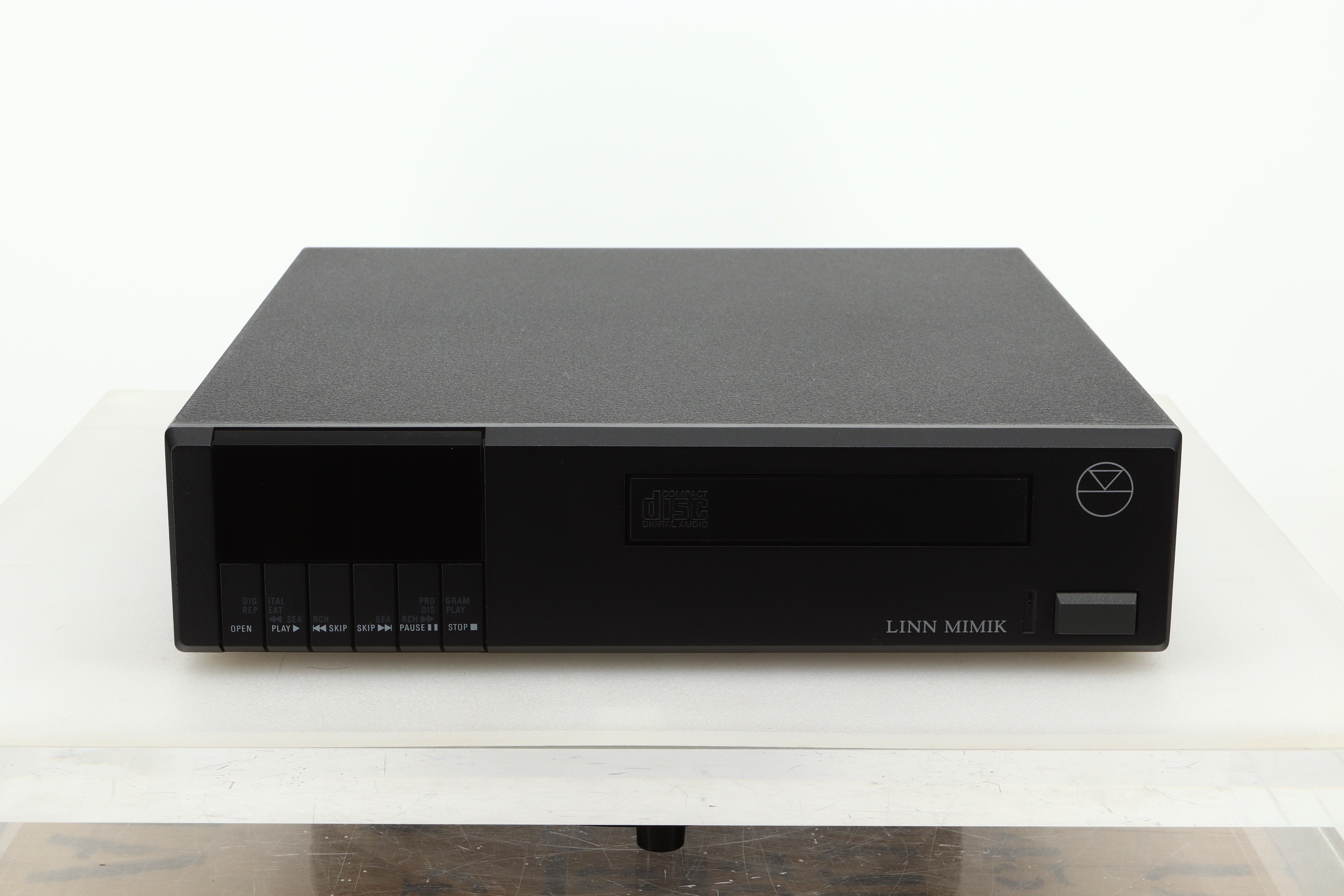

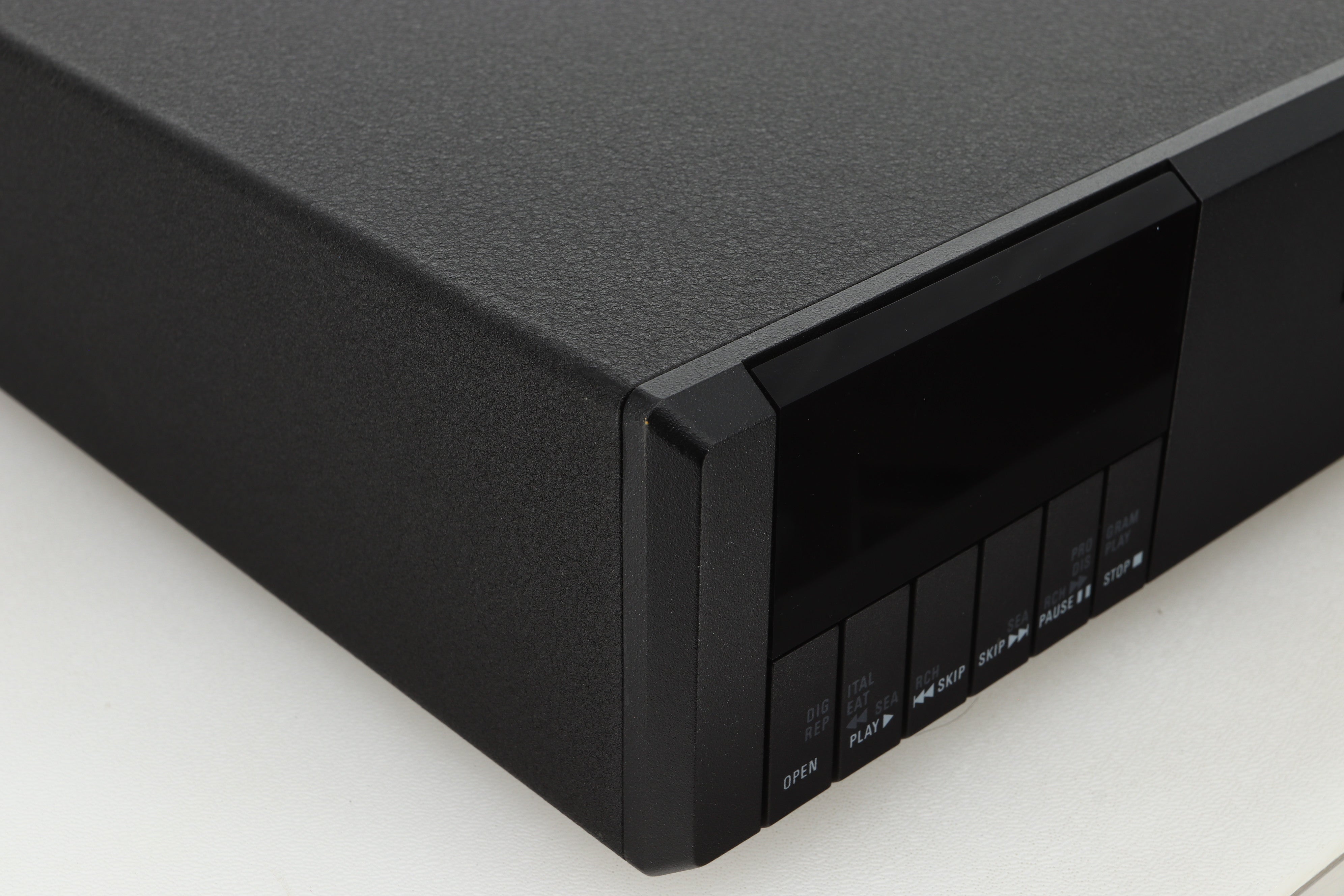

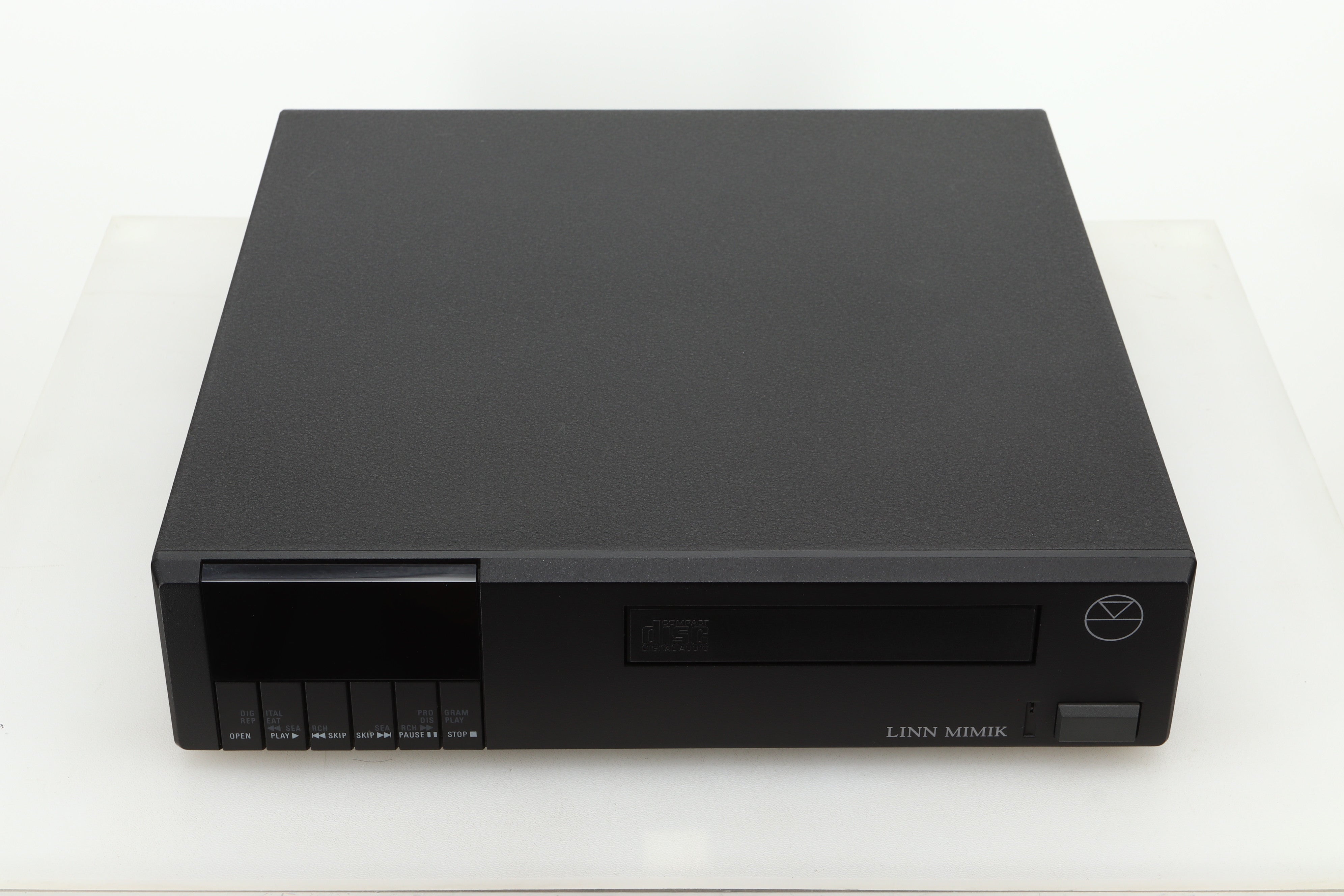

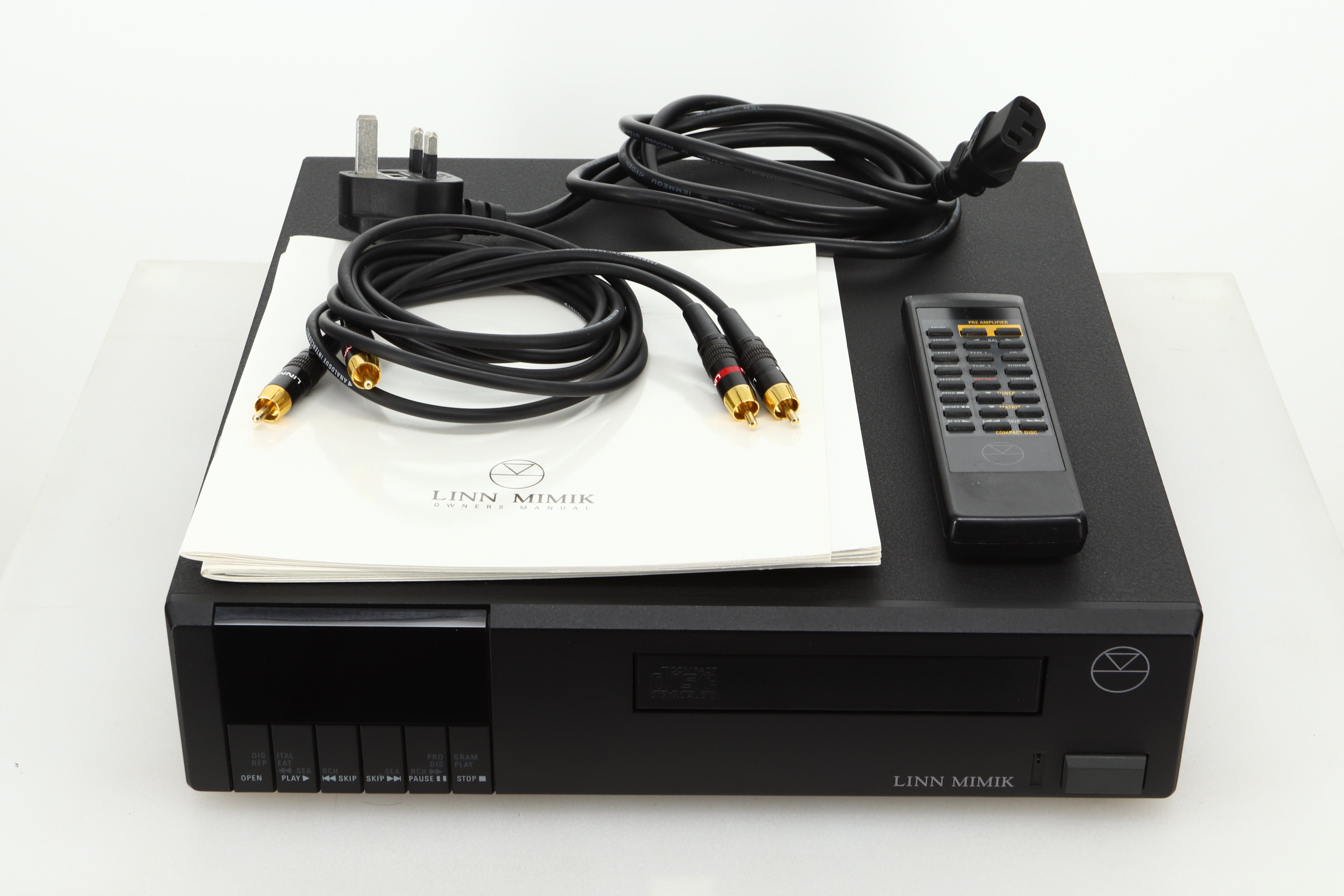

Linn Mimik Compact Disc Player

The Linn Mimik uses the very latest CD pickup and decoding technology to deliver superb audio performance and tracking ability.
The internal DAC module used in the Mimik employs delta-sigma conversion technology, which necessitates an extremely high quality clock signal. This clock signal is provided by a dedicated low phase noise oscillator which feeds the DAC and decoder chip independently, keeping the signal free of any mechanism-induced noise modulation.
The Mimik has two sets of stereo audio outputs provided for connection to your pre-amplifier and direct connection to another system such as a multi-room application.
The Mimik has a high-quality digital audio output which allows it to be connected to the Linn Numerik D/A convertor at any time in the future, providing even greater sound quality.

Features

Non-degradable solid-state switching and microprocessor control
Delta-sigma converter for accurate data conversion
Reliable, shock-resistant transport, and easily replaceable laser pickup assembly
Advanced error correction to tolerate imperfect disc quality
Industry standard digital audio interface to work with external D-A Converter
Two audio outputs for primary system and distributed sound

Remote Input -
Maximum DC Current Source: 20 mA (short circuit protected)
Sensitivity: 5 mA differential signal current
Bias Voltage: 7 V (to power remote IR sensor)

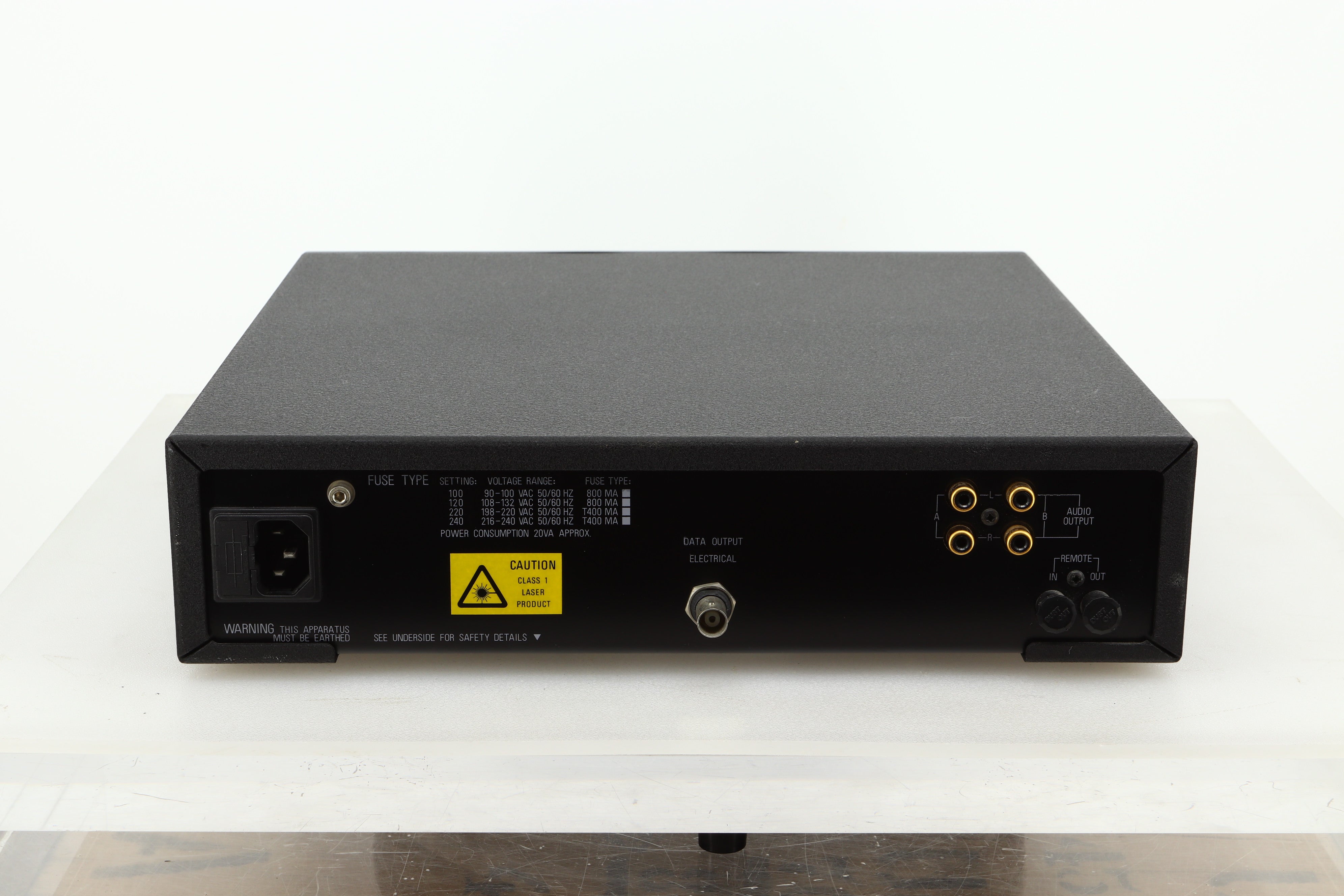

Remote Output -
Connector: RCA phono
Level: 6 mA output signal current

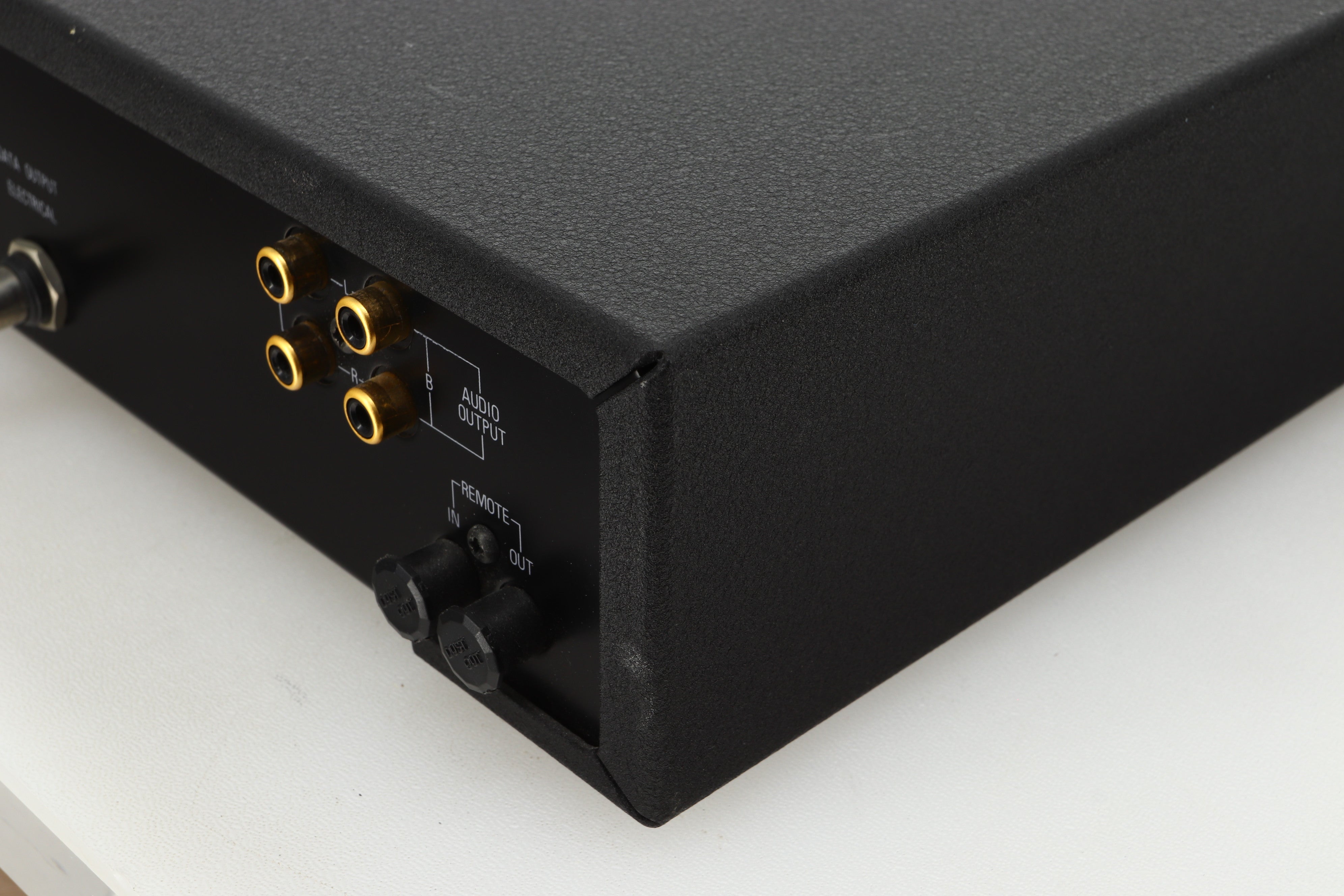

Audio Output -
2 stereo audio outputs
Connector: RCA phono
Output level: 2.0 Vrms (peak code)
Output impedance: 100 Ω
Minimum load: 1 kΩ
Digital Output -
S/P-DIF Digital Audio Electrical Output
Connector: 75 Ω BNC
Level: 0.5 V pp (75 Ω)

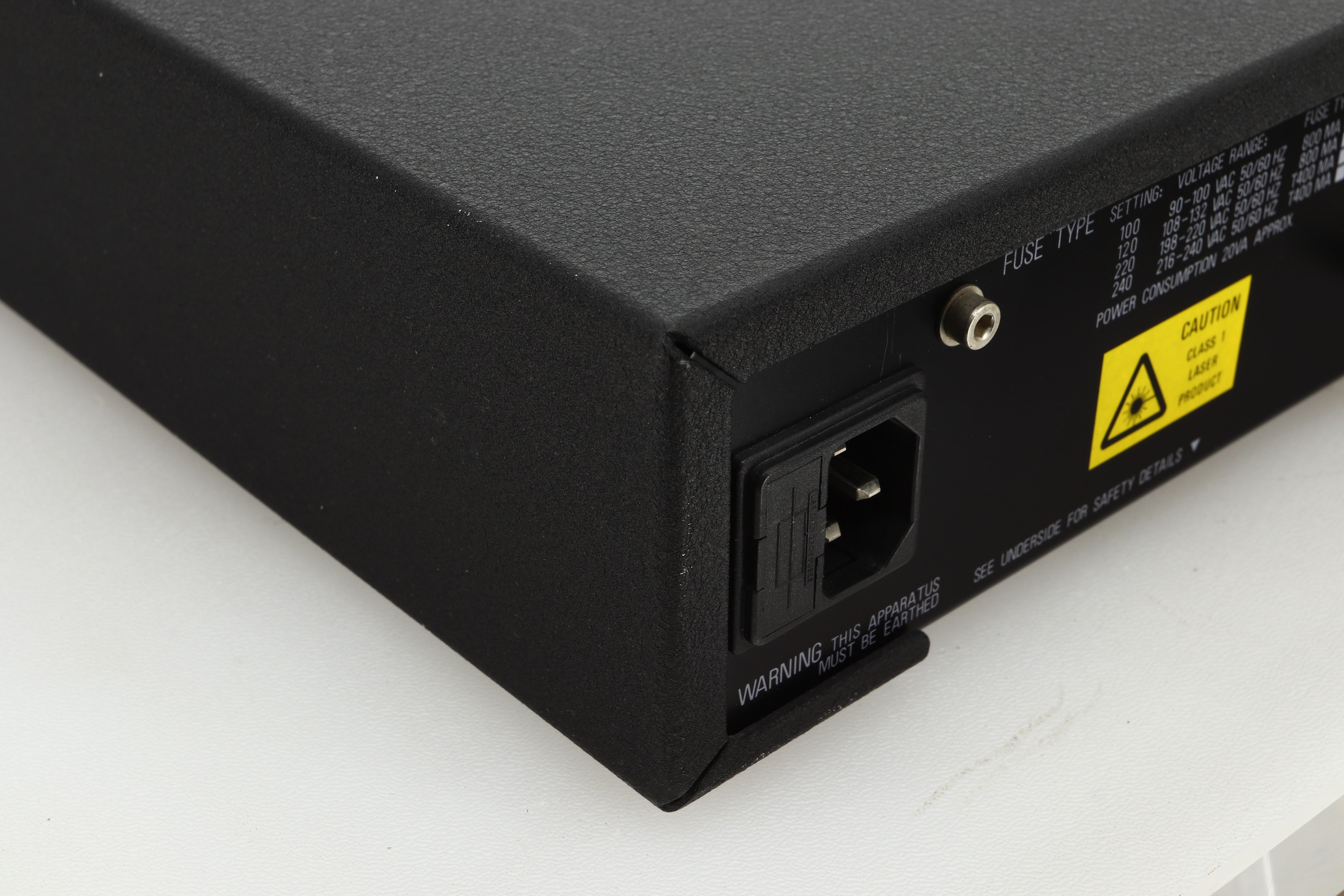

Mains Supply: 100 V - 120 V; 220 V - 240 V
Power Consumption: < 20 W
Dimensions: 320 (W) x 325 (D) x 80 (H) mm
Weight: 3.8 kg
