Linn LP12 Turntable - Afromosia / SME 3009 Series II Improved Tonearm

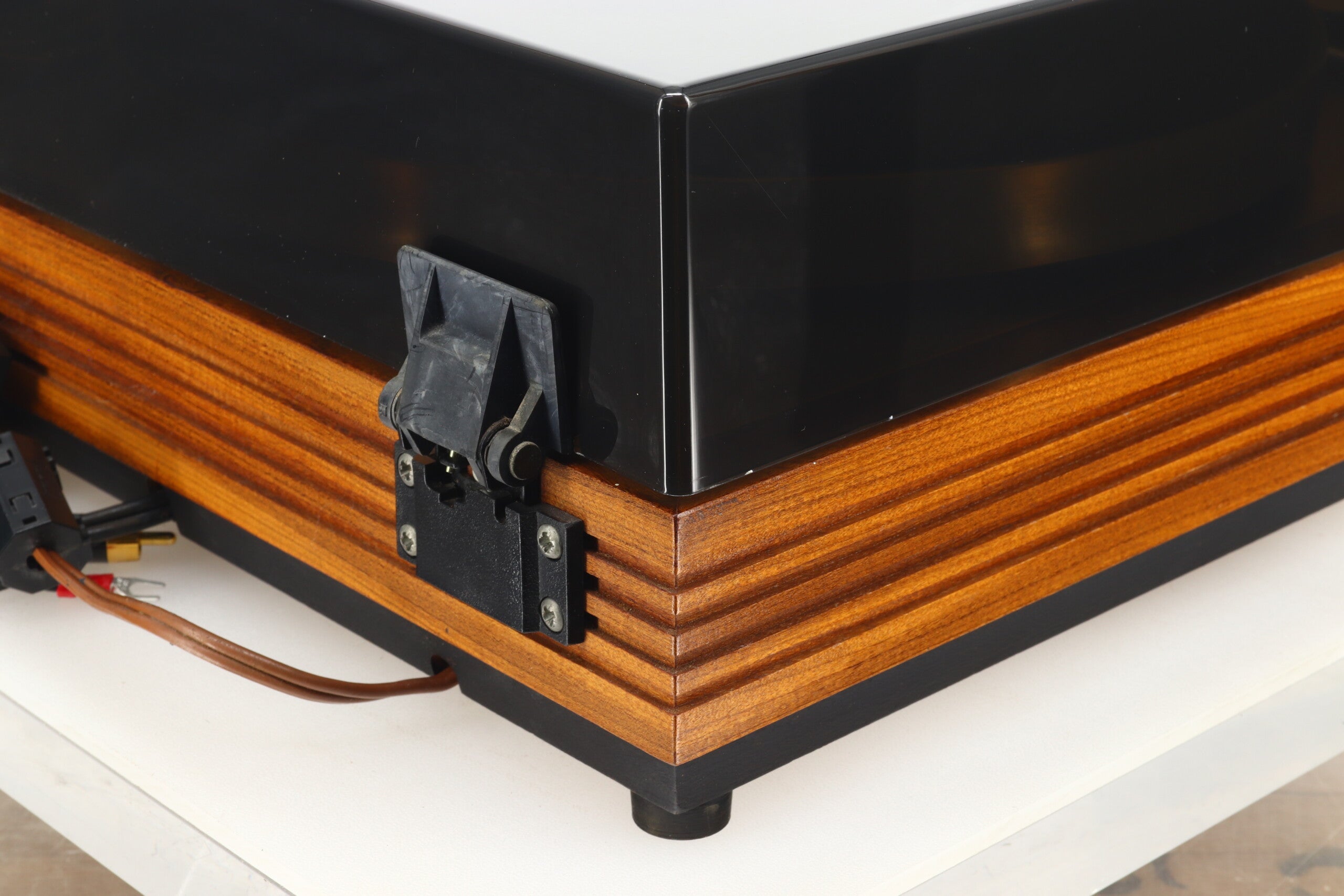

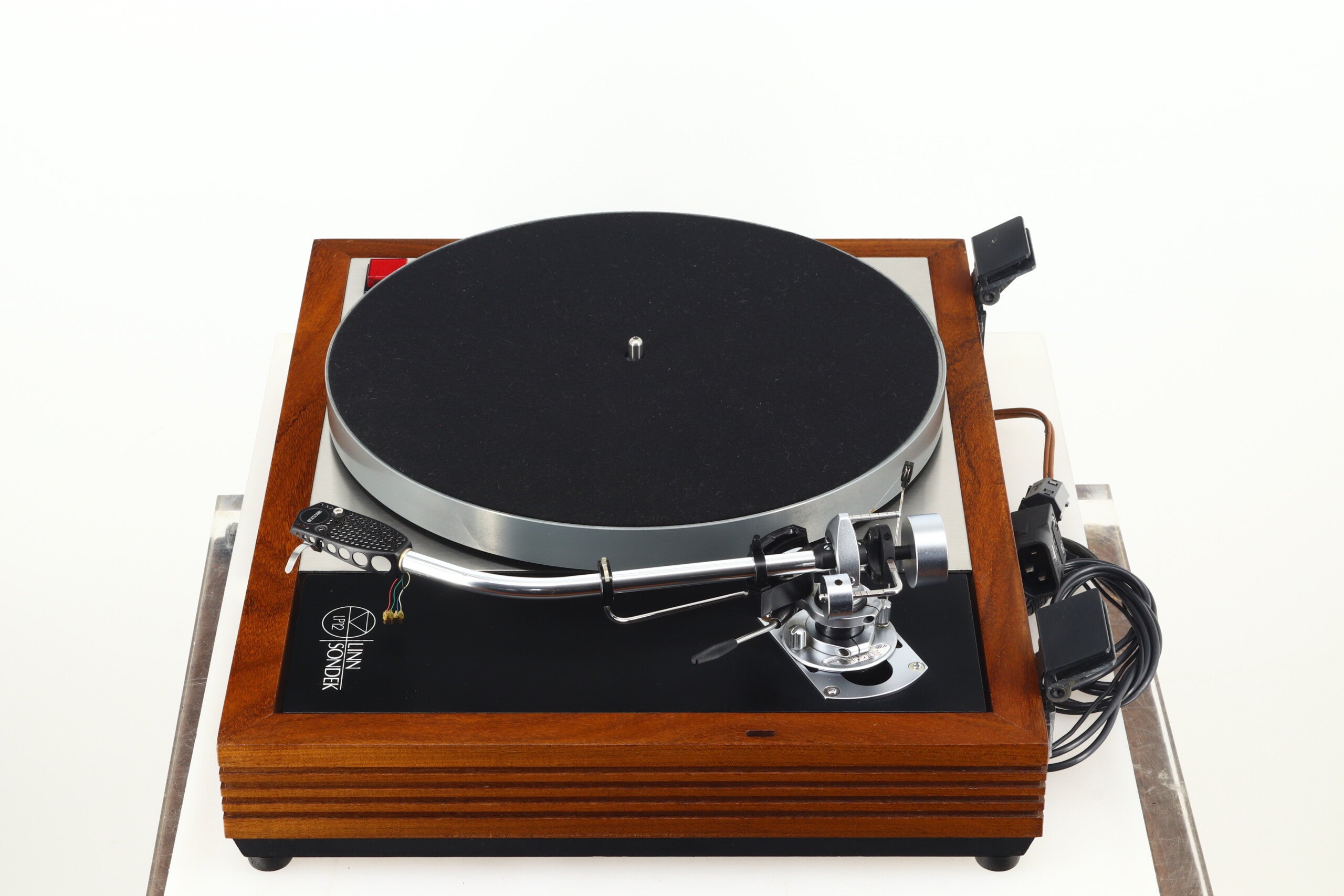

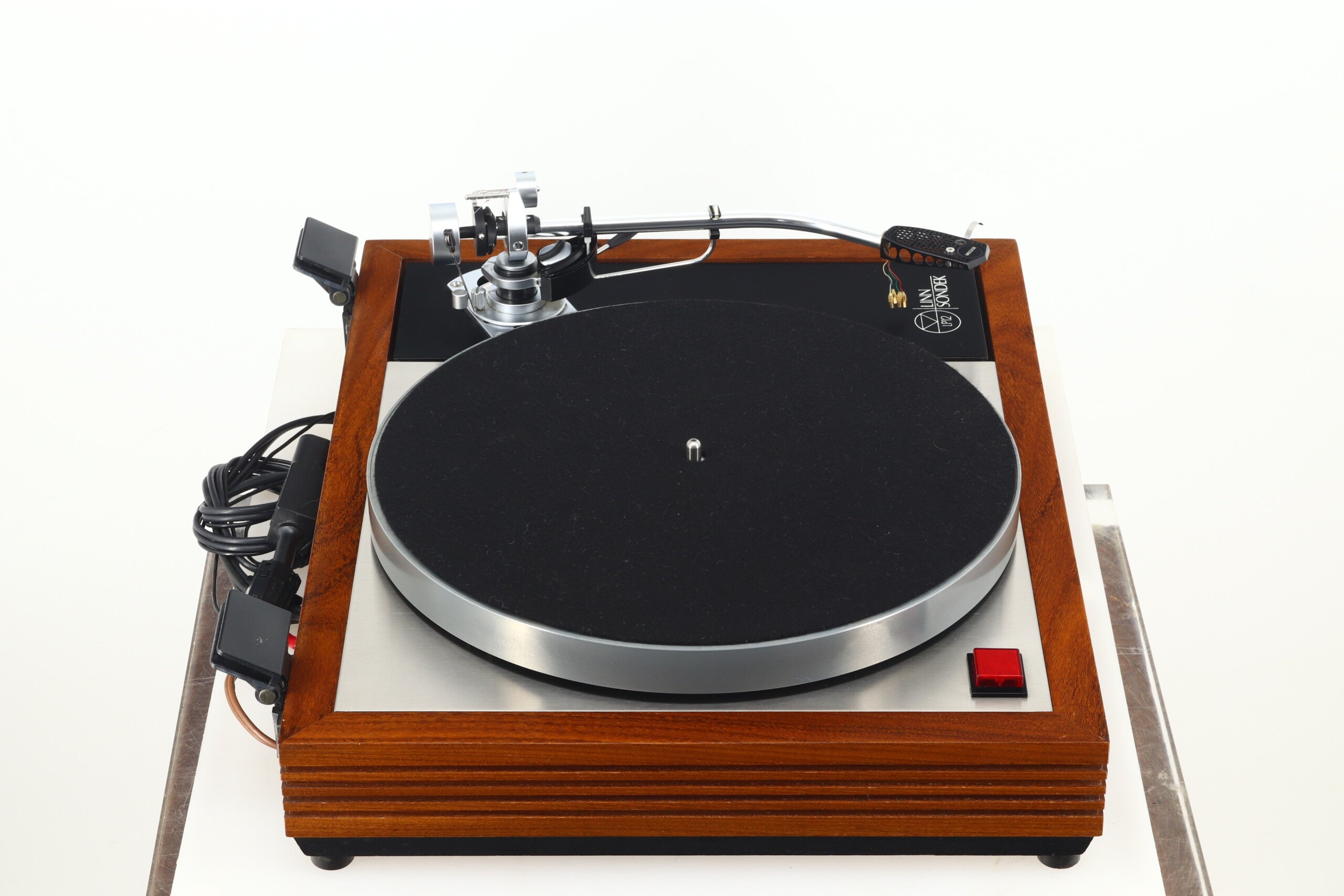

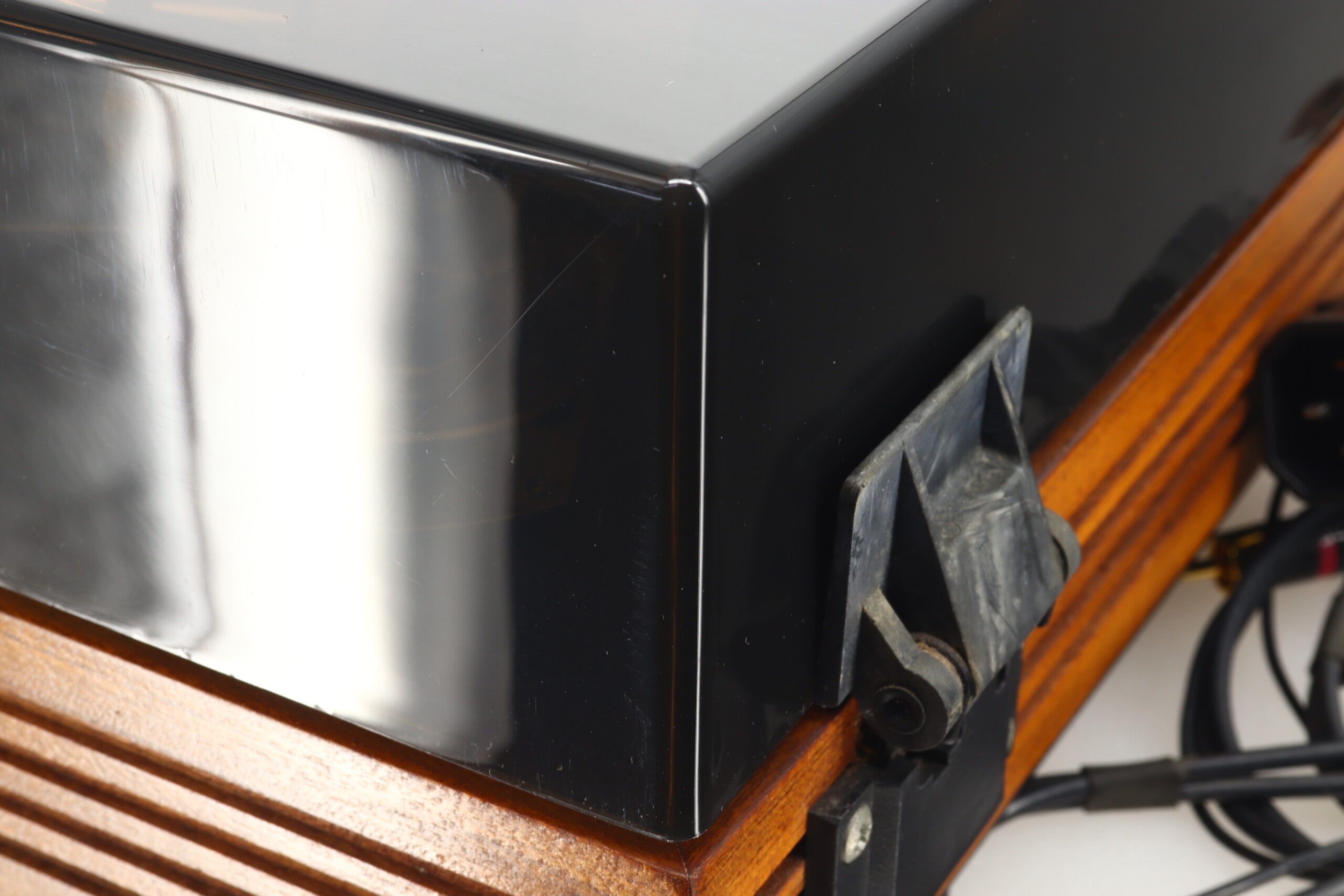

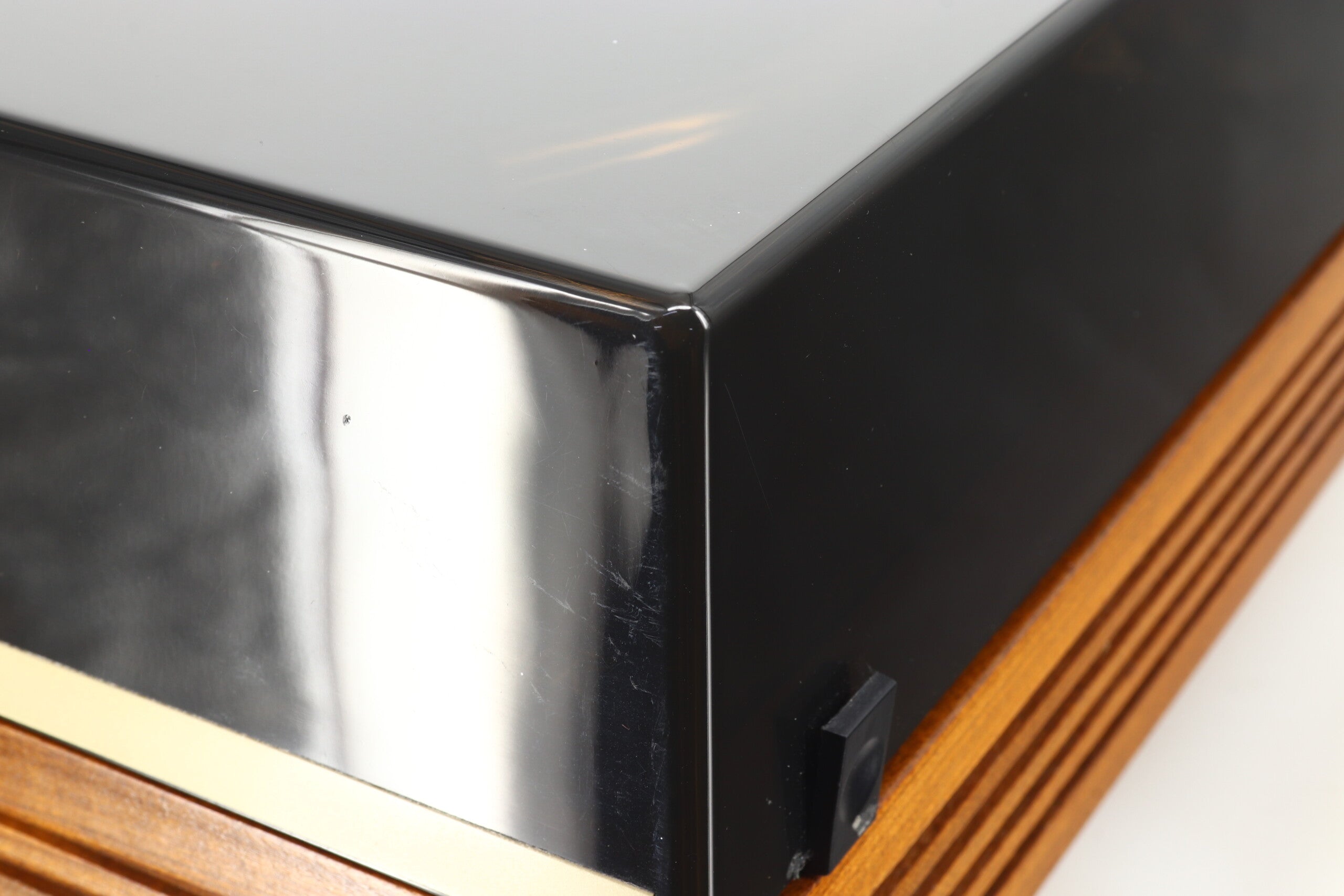

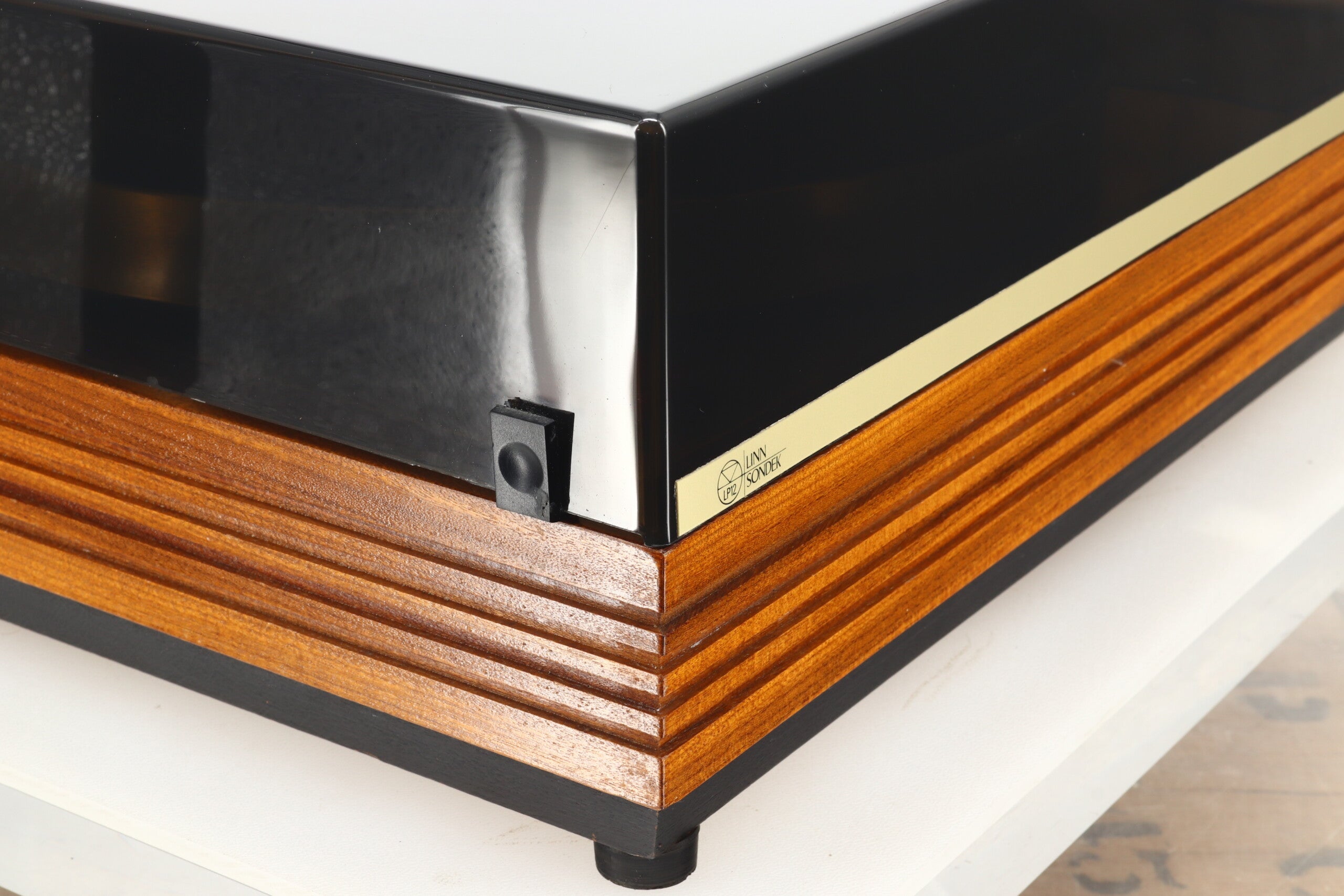

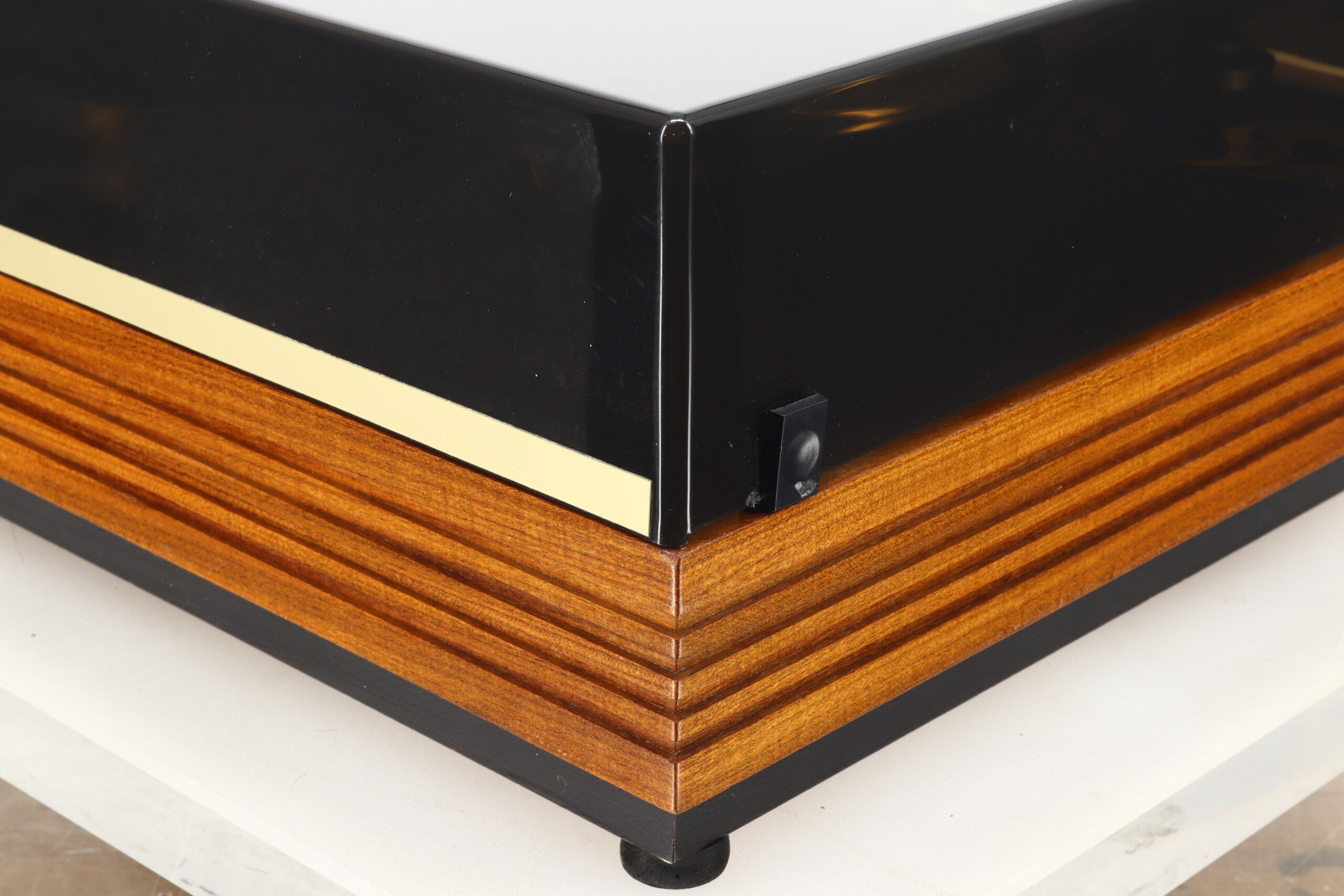

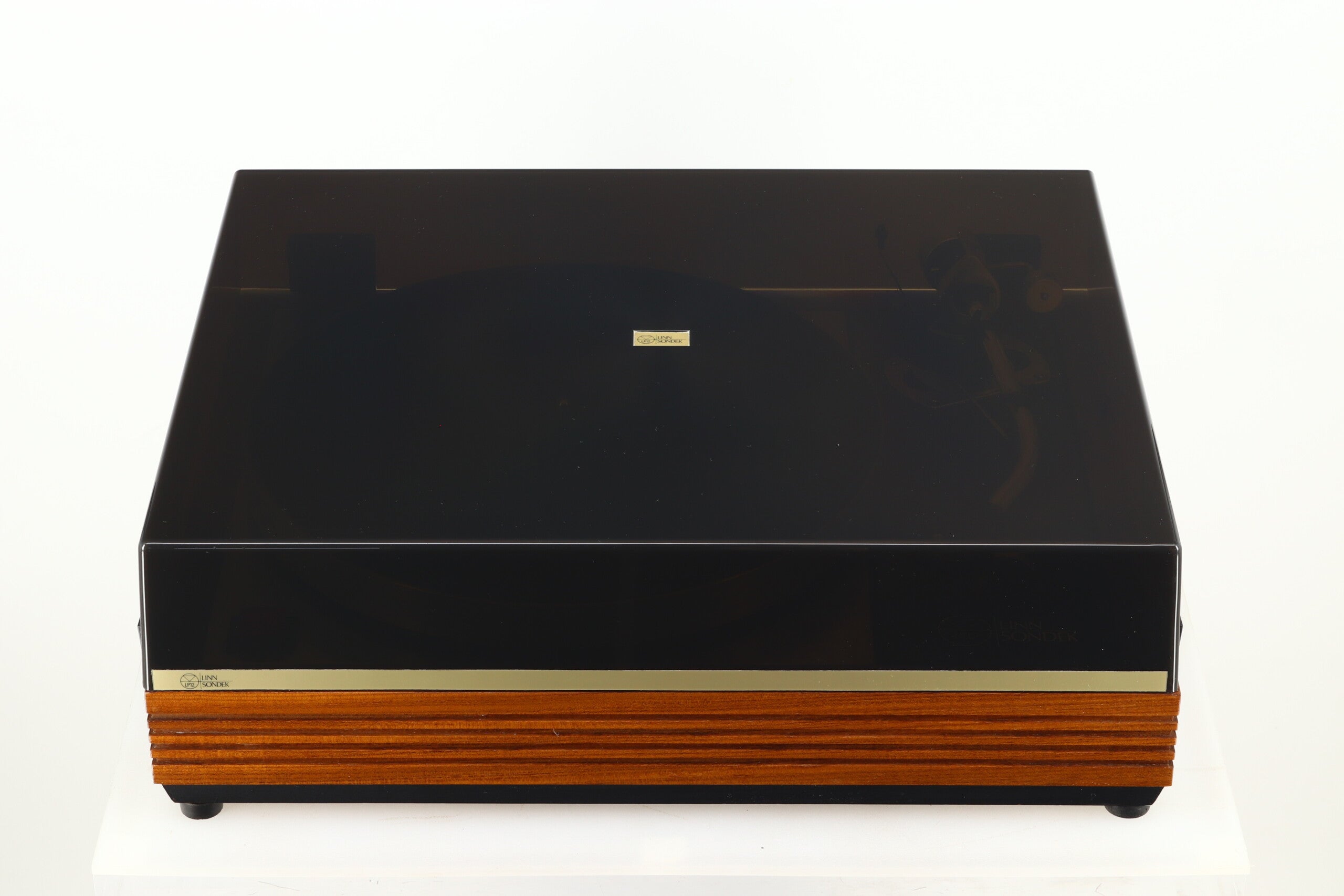

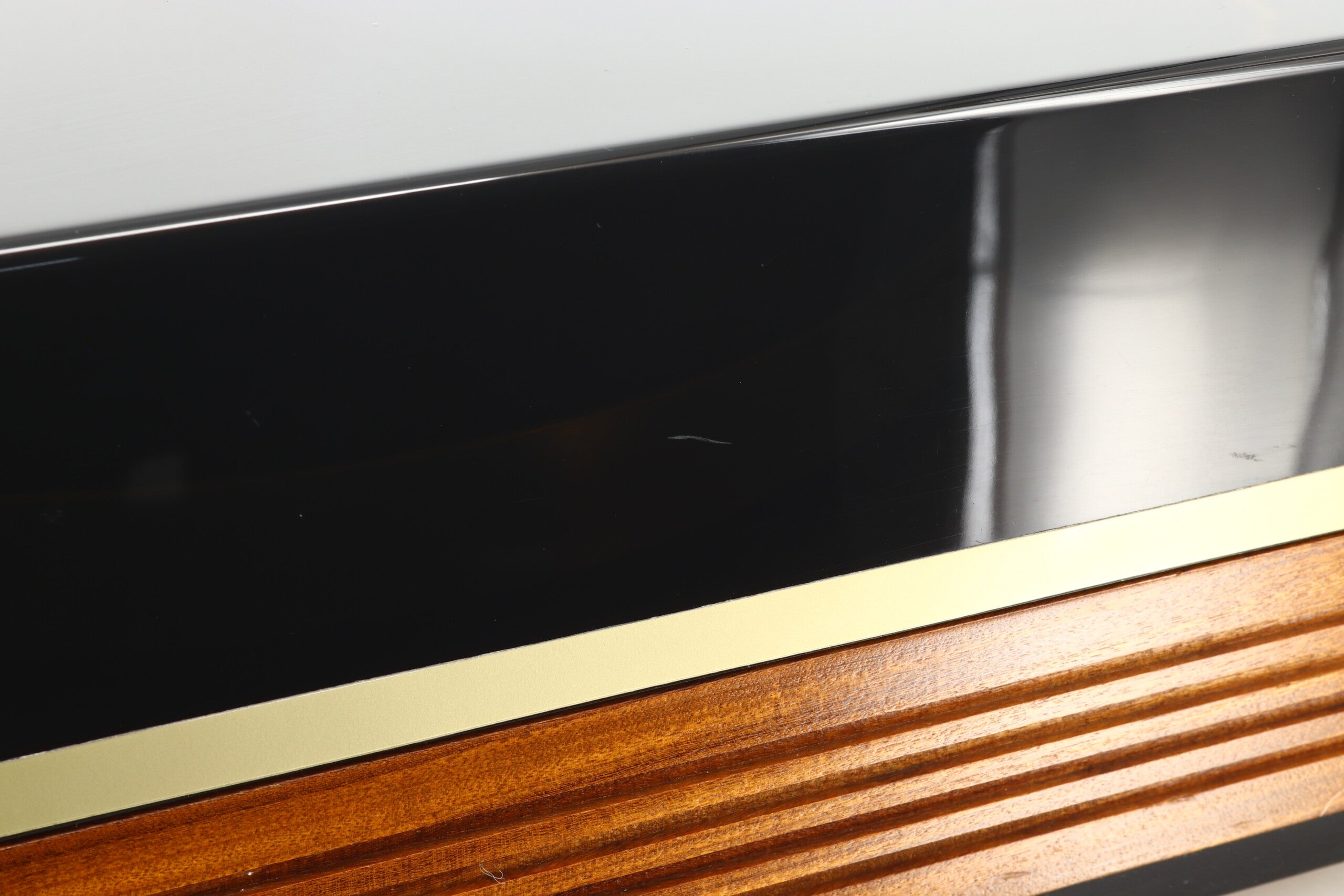

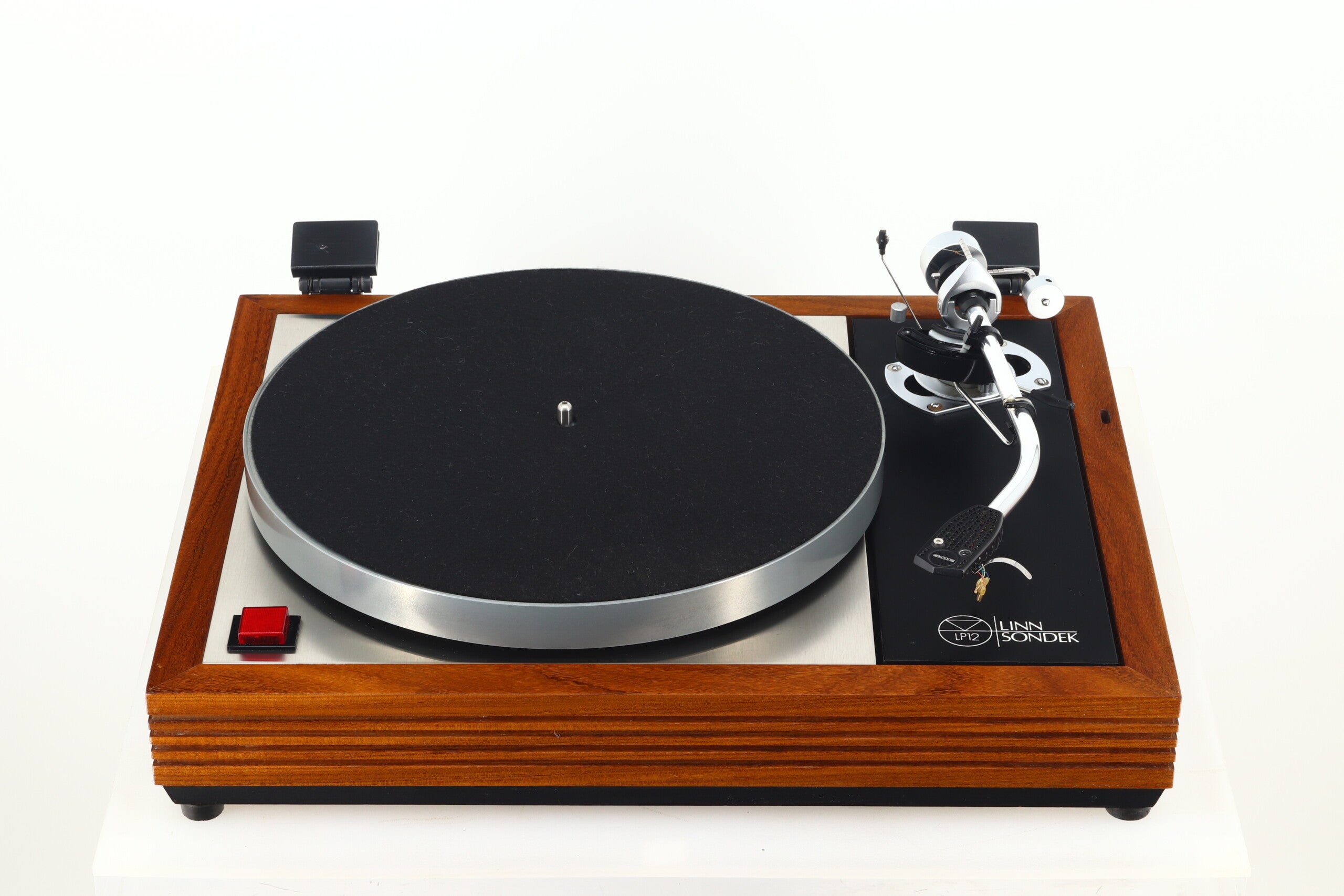

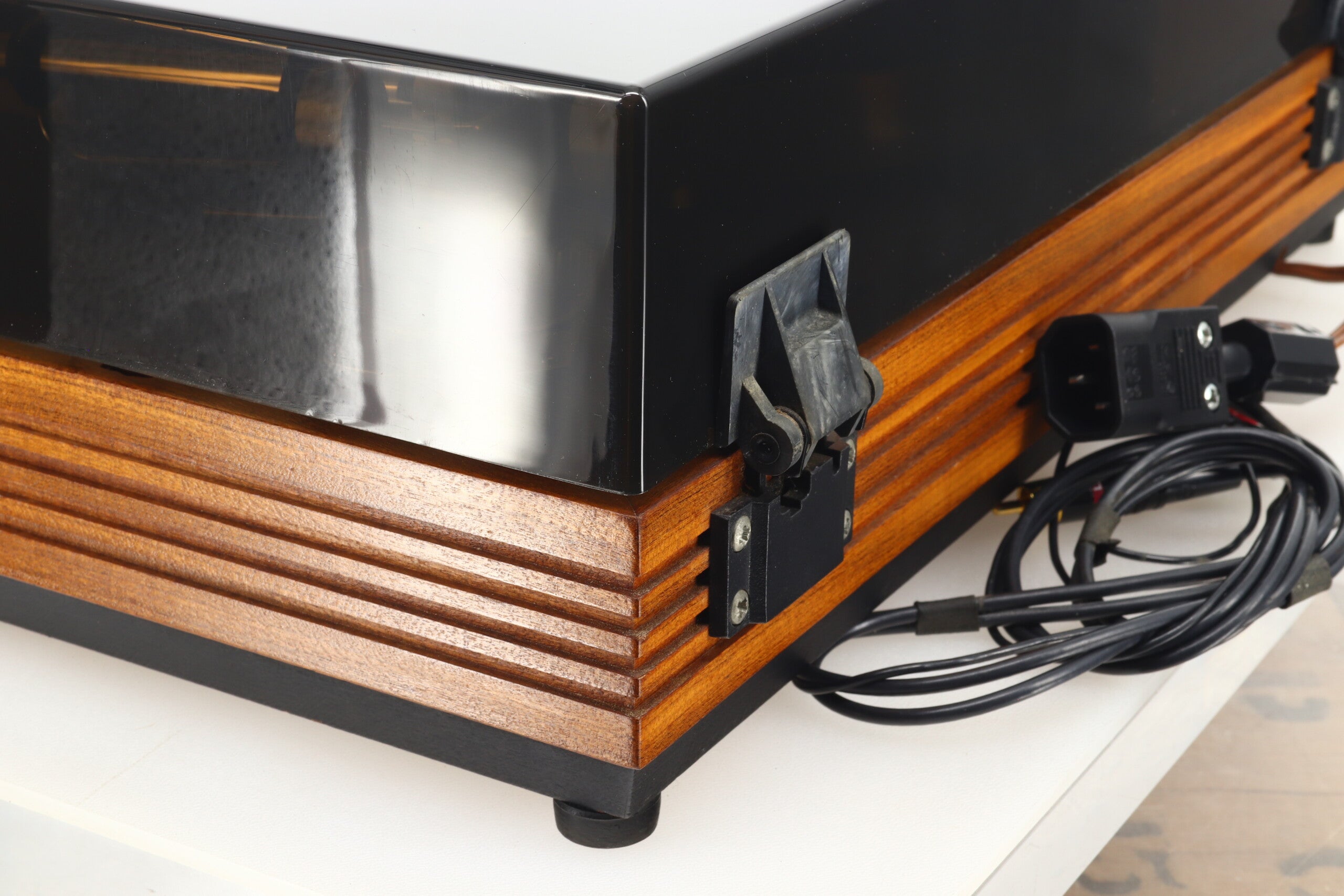

The classic Linn Sondek LP12 turntable is one of the oldest and most important audio components there is, and the fact that it still in production today, albeit with a few modifications along the way, says something about that original design. With well over 100,000 units produced in its over 50-year history it has become something of a legend to many audiophiles across the world. Our example is in the Afromosia finish, with an SME 3009 Series II Improved tonearm fitted. It is in good working order but would of course benefit from a full service and set up. The plinth is in good condition for its year, noting a couple of minor blemishes, and there is a little light marking to the lid. It will be supplied professionally packaged in a brand new set of Linn packing along with our normal three month warranty,
Linn Say…
Linn Sondek LP12 Turntable
Linn Products have always stated that the turntable is the most important part of a high fidelity system. If you don’t get a good signal off the record then it doesn’t matter how good the rest of your system is, the sound will be bad. When upgrading your system there is a strict hierarchy to observe. After the turntable, the next most important component is the arm, followed by the cartridge. Once the turntable system has been optimised, the next component to choose is the amplifier. Finally, the last link in the chain is the loudspeaker
The Linn Sondek LP12 reference transcription turntable has been setting the standards by which others are judged for over 30 years. Each component of the Sondek LP12 has been painstakingly developed to optimise information retrieval, because information lost at the source is lost forever, regardless of the amplifier or loudspeaker quality. Linn is involved in every stage of the record and playback process. We can therefore check the signal at each step of the hi-fi chain, which is why we know what makes the Sondek LP12 a very special turntable: its perfect speed accuracy at 33rpm and 45rpm, its immunity against acoustical feedback, its low noise main bearing with mirror finish, and our legendary precision manufacturing, all of which ensure the pitch accurate faithful reproduction of the original source.
Features:
Extremely low-noise patented main bearing
Perfectly balanced high inertia platter
Strong, solid kiln-dried wood plinth
Heavy gauge non-magnetic, brushed satin, stainless steel plate
Highly efficient 3 point spring damped suspension
24-pole precision synchronous low noise, high torque motor
Precision pulley and Neoprene flat belt
Specifications:
Introduced: 1972
Type: Belt drive analogue turntable with 3-point suspension
Platter: 2 pieces, made of non-magnetic Mazak 8. Production tolerance 0.025 mm, optimal weight distribution
Platter mat: Felt
Main bearing: 1-Point bearing, mirror finish, oil bath
Suspension: 3-Point-Subchassis, 3 adjustable precision springs
Motor: High torque 24-Pole Synchronous motor, fully screened and mechanically decoupled from main bearing
Drive: Neoprene flat belt, concentric precision pulley (0.01 mm)
Speed accuracy: 0.03%
Speeds: 33 rpm, 45 rpm
Power consumption: 13W
Dimensions: 445 (W) x 356 (D) x 140 (H) mm – Approximately 70 mm required at rear and 250 mm above the unit to permit opening of lid
Weight 10.0 kg
SME Said….
SME Model 3009 Series II Improved precision pick-up arms combine latest design features with the same high quality engineering and finish that made their predecessors famous for more than a decade. Each arm is meticulously built and tested and will meet its specification reliably through many years of service. Skilful design and choice of materials combine high mechanical strength with low inertia and friction ensuring full suitability for professional as well as domestic application. Technically correct and aesthetically satisfying the SME has been called “The best pick-up arm in the world” and we believe you will find this to be true.
Sensitivity and strength combine with versatility to ensure the continuing popularity of the Series II Improved design which is available In two versions.
Model 3009/S2 is the standard arm having a typical pivot to stylus distance of 231.2 mm. Average effective mass is 12.5 grams. It is the one most frequently used and has a detachable headshell, which is interchangeable with others of similar pattern.
Model 3009 is generally similar, but the headshell is non-detachable, saving weight and reducing the average effective mass to 9.5 grams. This can provide better matching for high compliance cartridges by raising the system resonance above the critical 5 – 8 Hz region in which excitation by record warp occurs.
Both models have a polished bright-anodised aluminium tone arm 9.5 mm diameter with a wall thickness of 0.56 mm. A fibrous lining assists the dissipation of acoustic information.
The S2 headshell is pressed from aluminium alloy, rationally perforated for lightness and strength.
Series II Improved arms are compact and easily adjustable. Their balance range can be widened if desired with one or another of the accessory weights offered for the purpose.
Straightforward design makes them a popular choice with enthusiasts and professional users throughout the world. Each arm is meticulously built and tested and will meet its specification reliably for many years.
Features & Specifications:
Low friction pivots. Vertical axis: high-precision, fully protected ballraces. Horizontal axis: 0.005” radius knife-edges rolling in planished chrome seating’s. Less than 0.02 gram applied at the stylus will deflect the arm
Low inertia. Fixed elements of the balance system are light. Movable elements are heavy and close to the fulcrum
Precise tracking force up to 1.5 grams applied without a tracking force gauge
Bias adjustable to correspond with tracking force
Base slides on bedplate for tracking adjustment with protractor
Fluid damped lowering and raising control.
Audio Cable: 1.22 m RCA Phono plugs
Dimensions:
Nominal Length: 231.2 mm (pivot to stylus)
Distance From Bedplate Centre To Turntable Centre: 215.4 mm
Tracking adjustment: ± 12.7 mm
Overall Height: 60.3 - 79.3 mm
