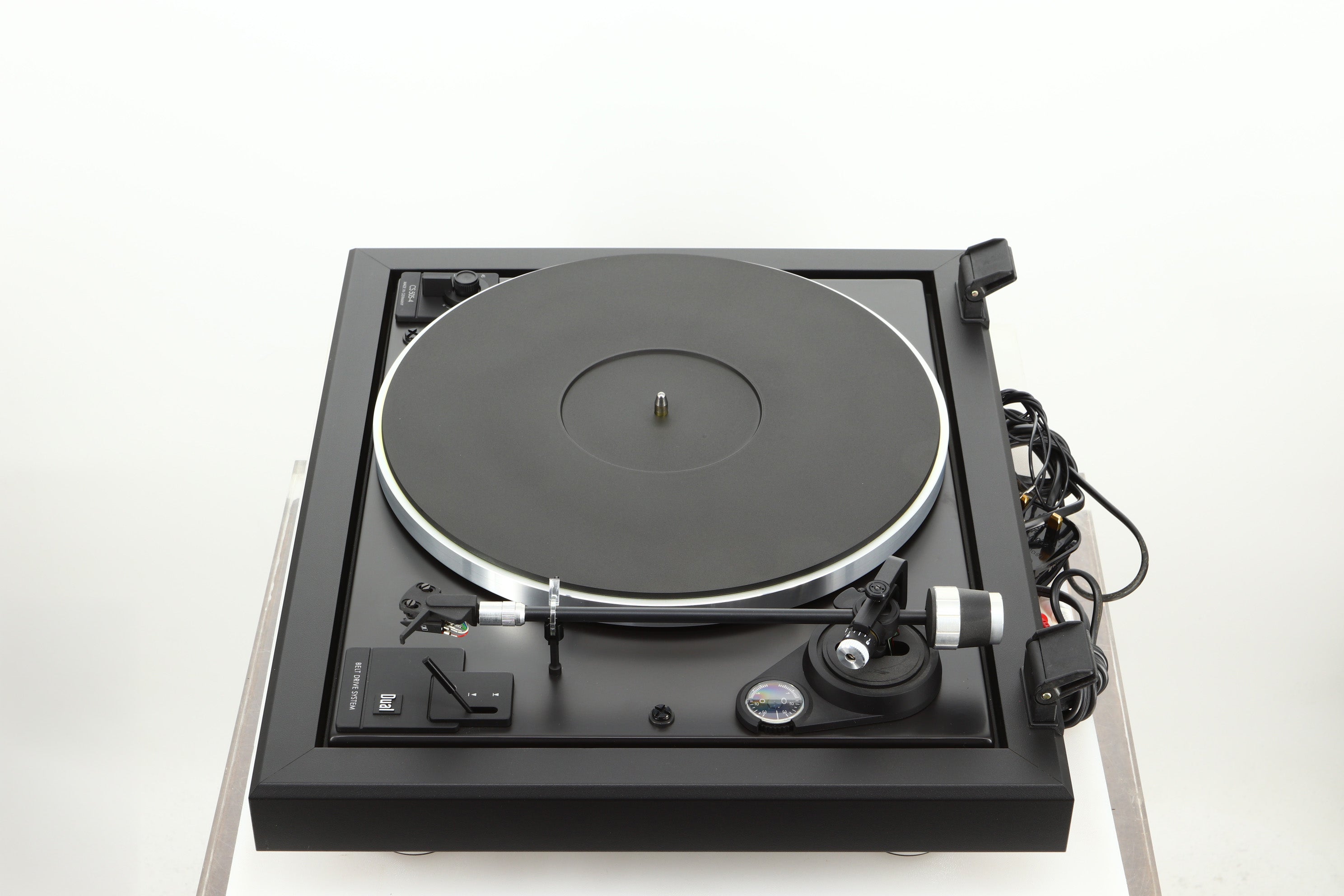

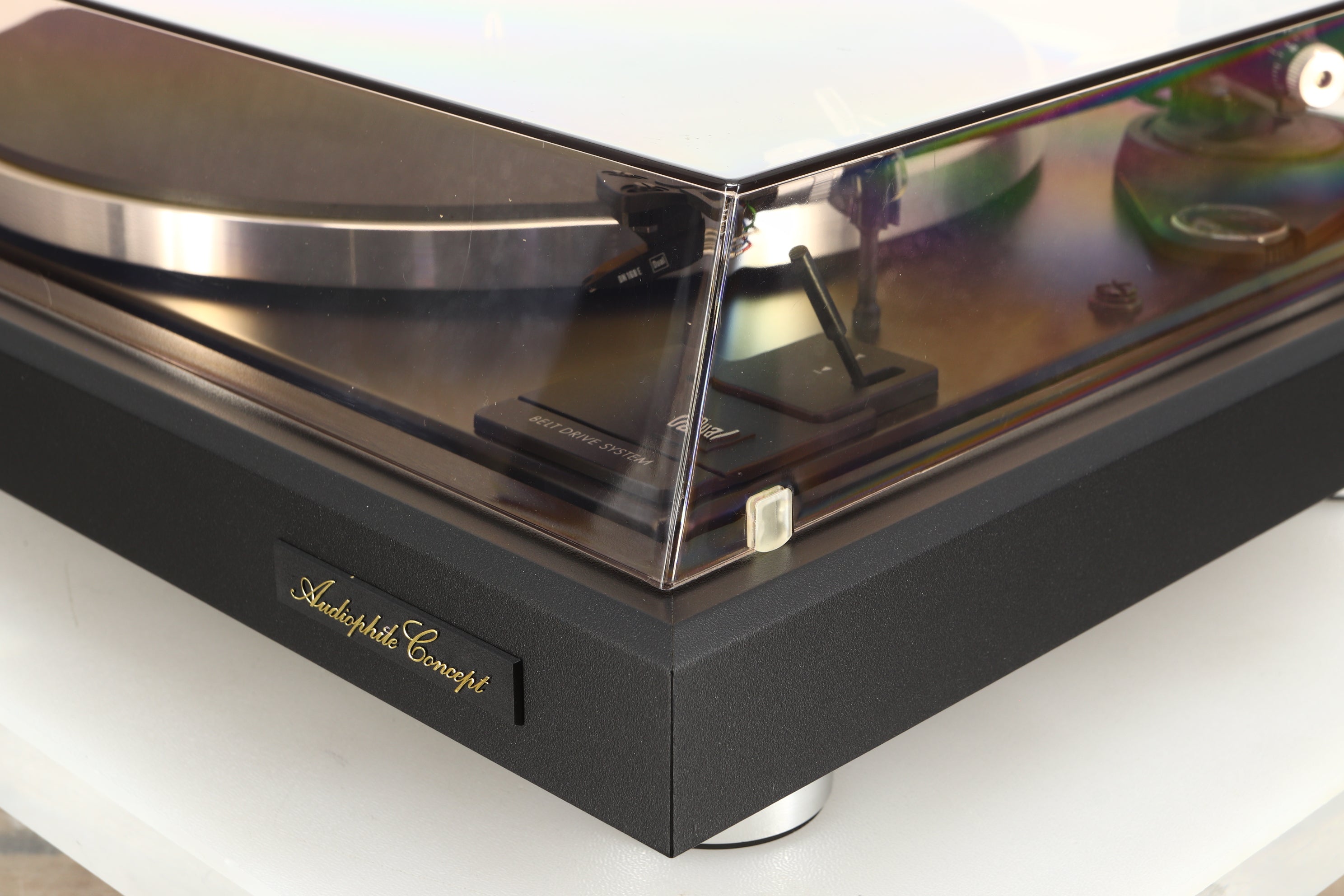

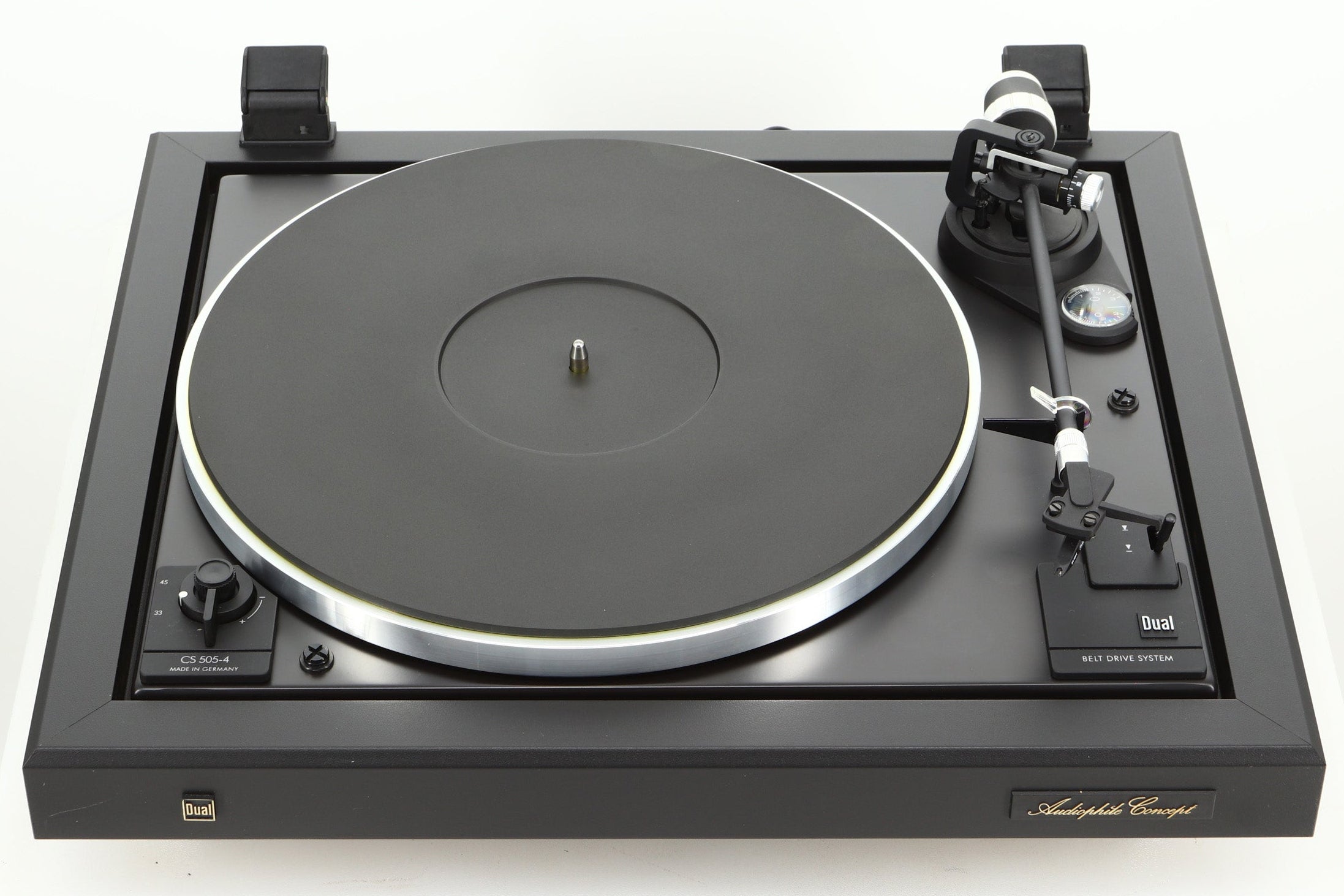

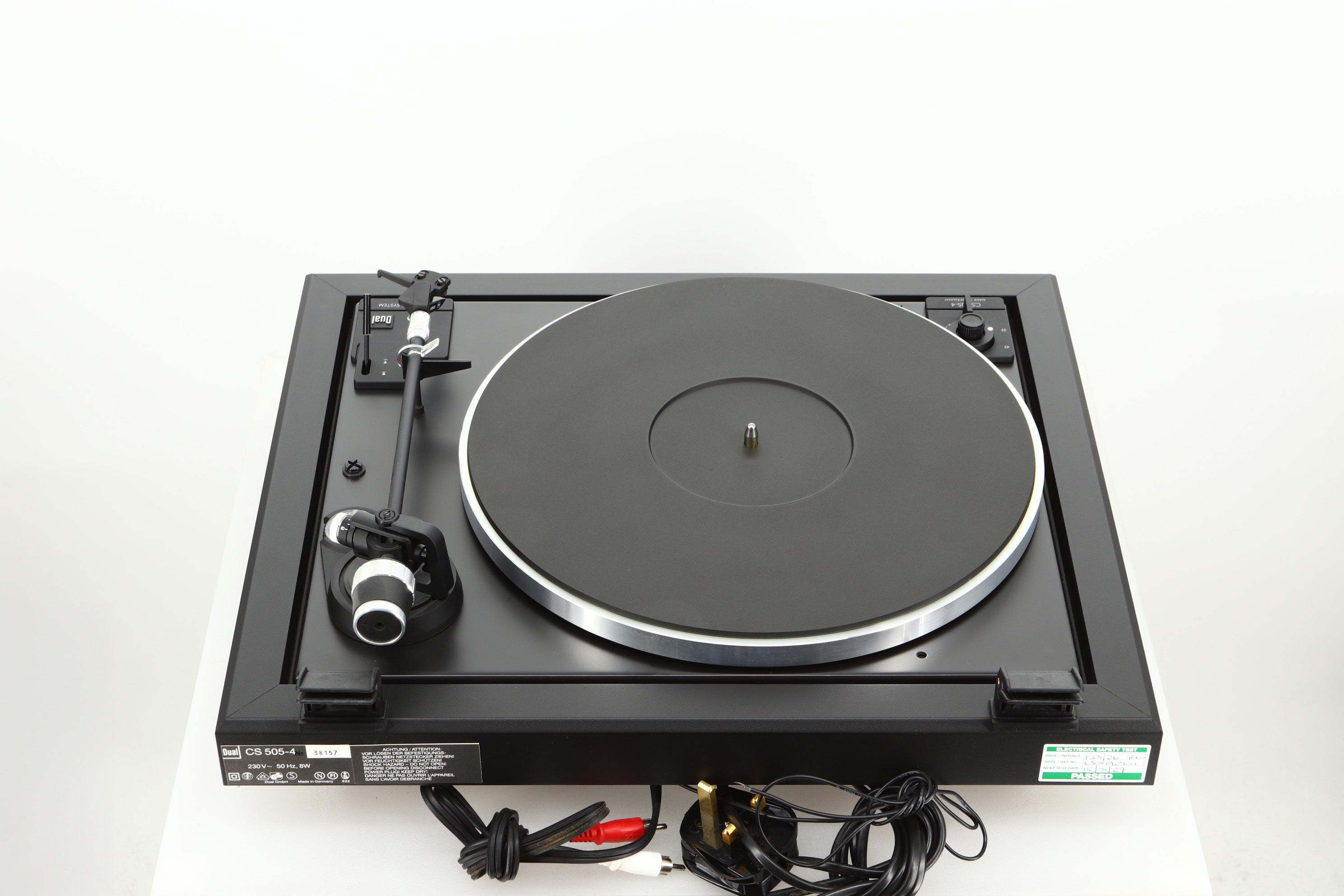

Dual CS 505-4 Turntable - Black

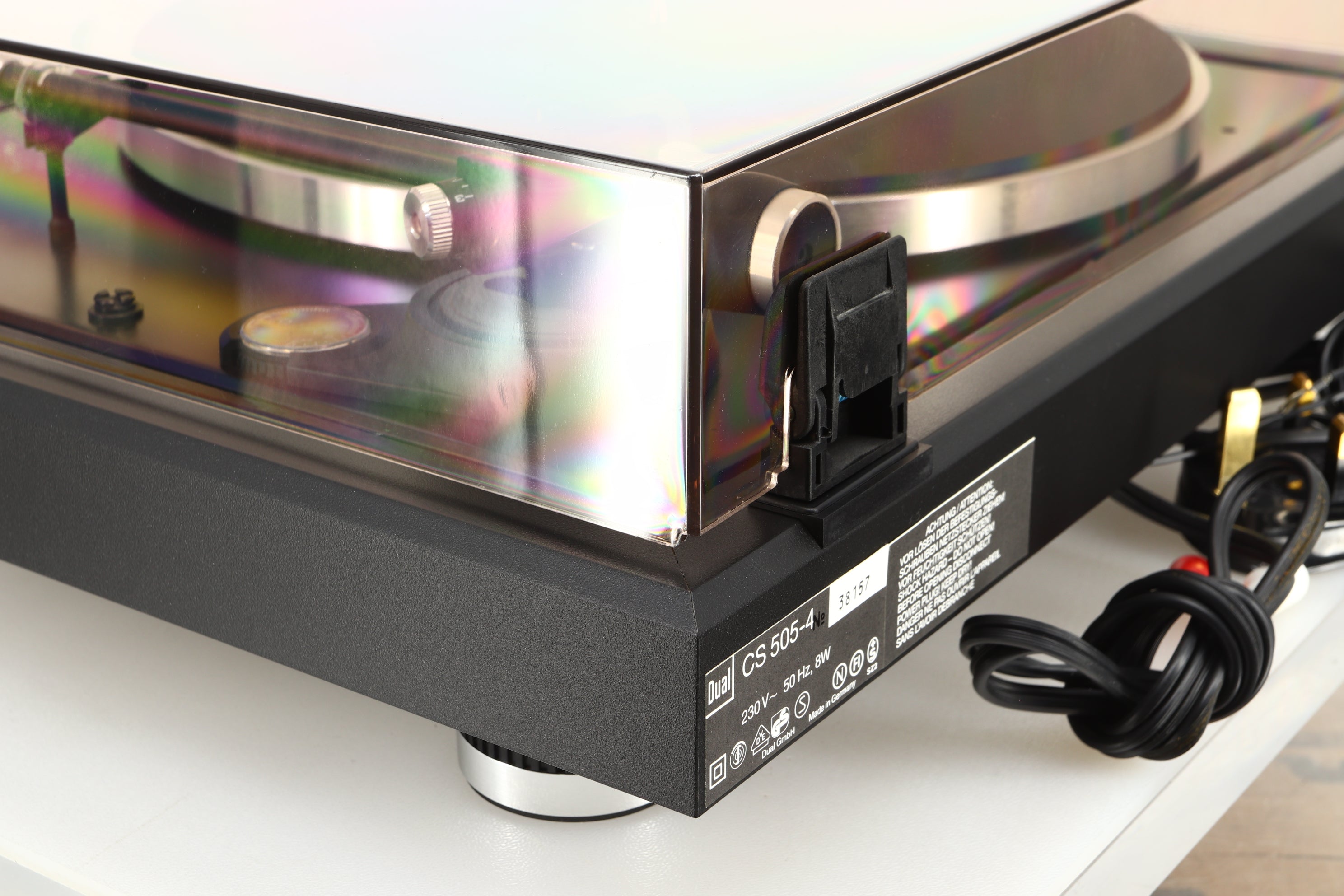

Serial Number: 38157
Packaging & Accessories:
Dual CS 505-4 Turntable - Black is backordered and will ship as soon as it is back in stock.

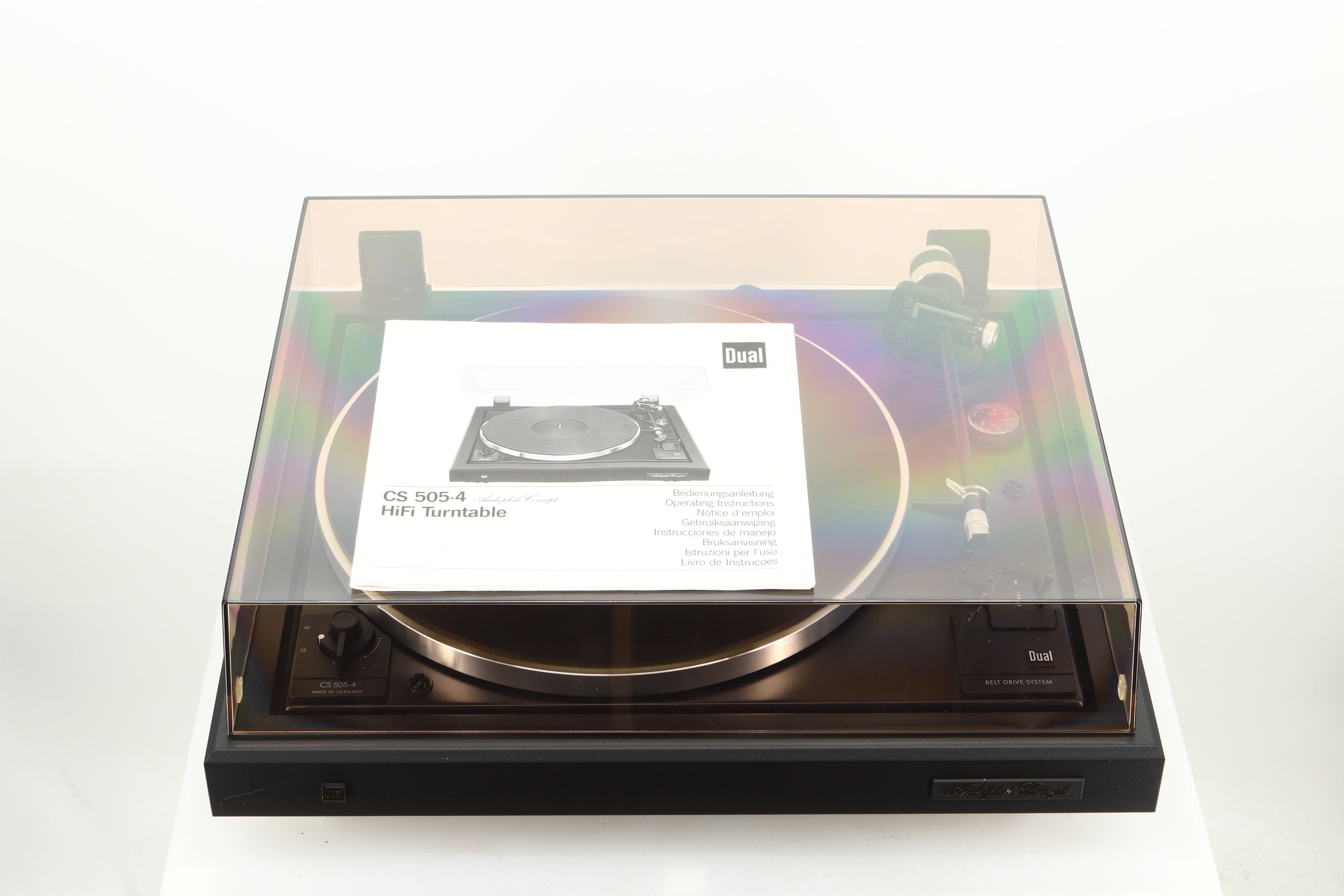

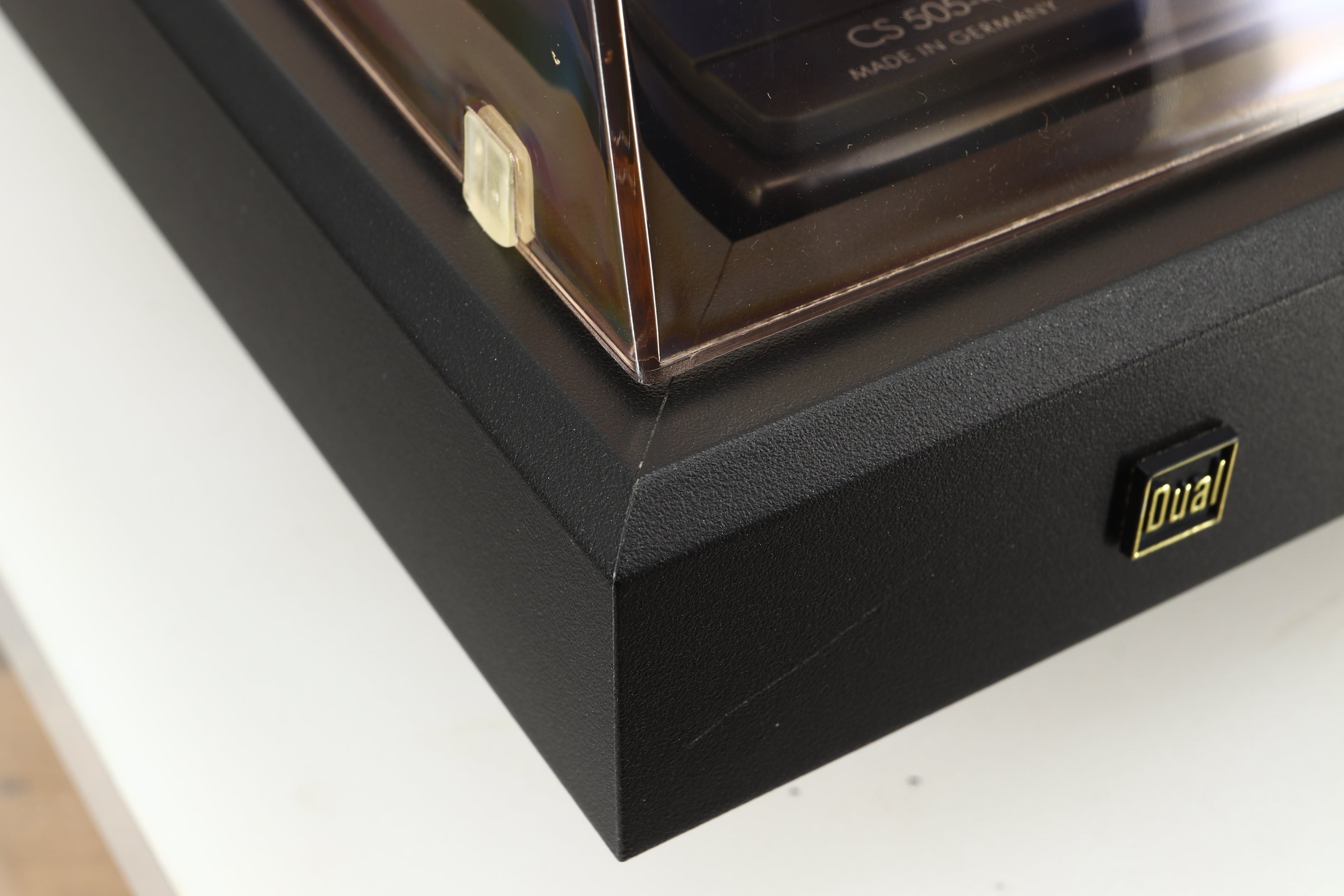

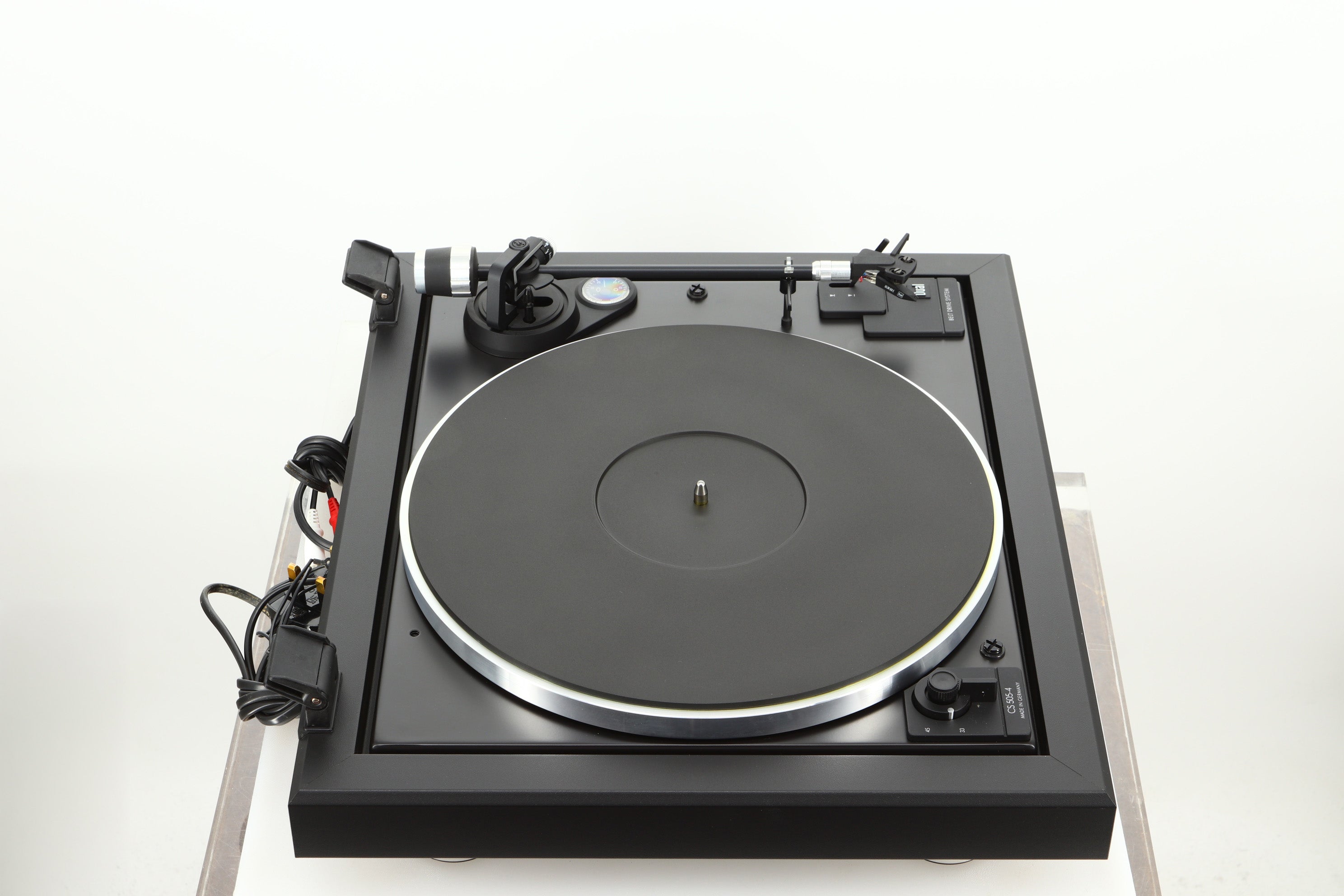

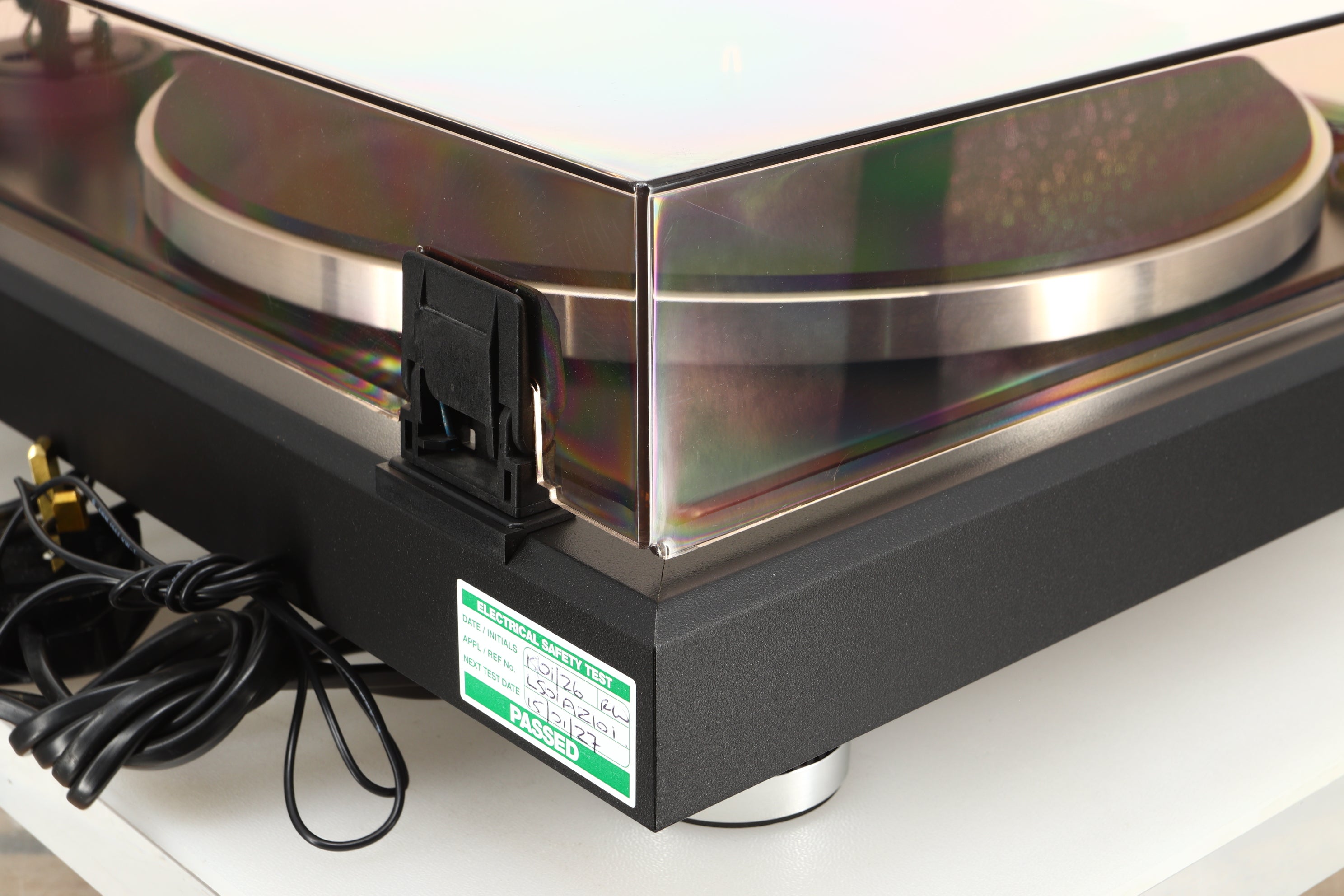

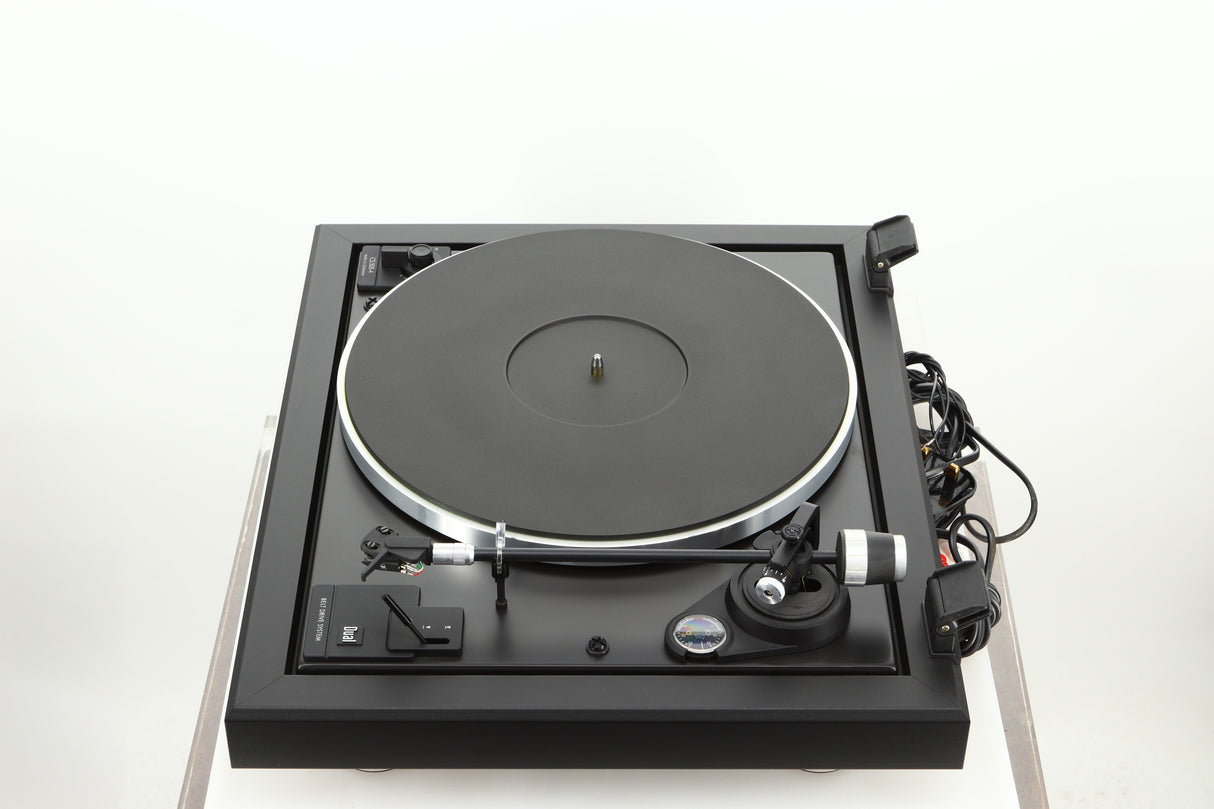

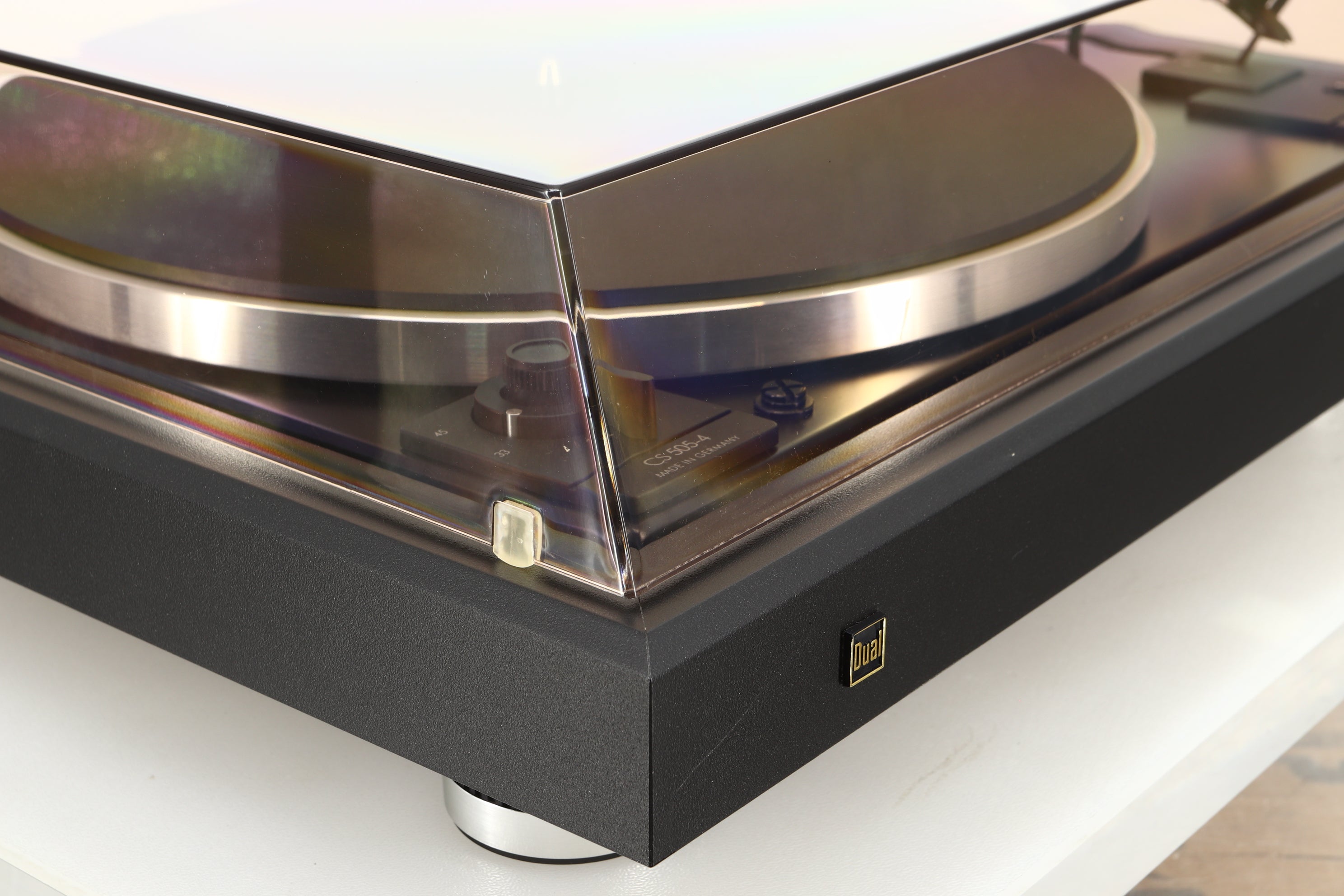

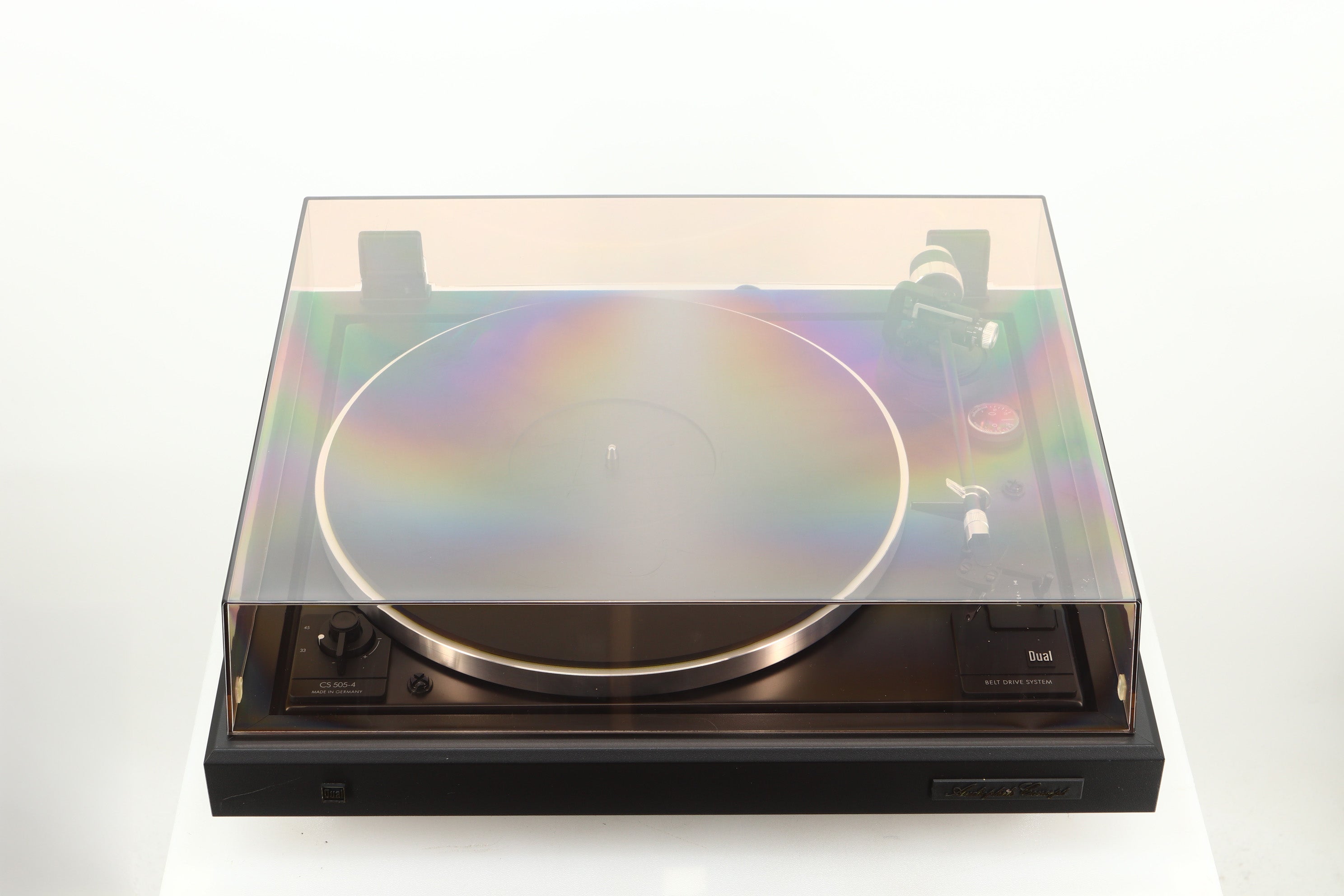

Here we have a great turntable from specialist German company Dual. The 505 series was first introduced around 1980 to great critical acclaim and was seen by many as the first proper turntable for those starting out on the music and hi-fi journeys. Our example of the CS 505-4 is in good fully working condition with a few small cosmetic marks and will come suitably packaged with our usual three month warranty. Please note this warranty does not cover the fitted cartridge.
Couldn't load pickup availability
Dual Says
Dual Says
Features
Belt drive semi-automatic turntable
Independently sprung sub-chassis within solid wood console

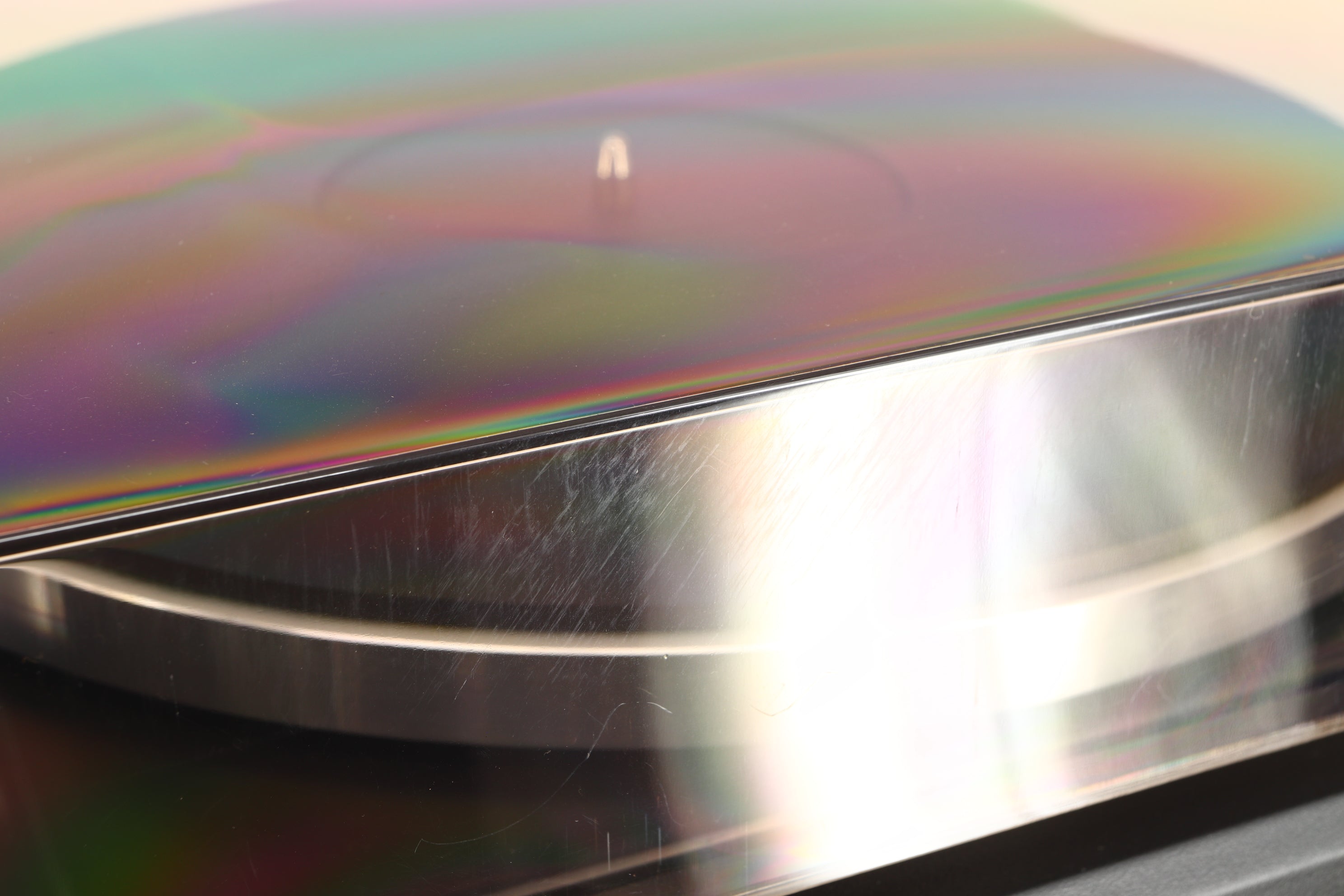

Aluminium turntable with antistatic felt cover
DC servo motor system
Auto-stop at end of disc
Precision Ultra Low Mass (ULM) tonearm
Damped tone arm lift
Carbon fibre headshell with adjustable anti-skate and counterweight
Specifications
Specifications
Mains Power: 110-125 V / 220- 240 V, 50 or 60 Hz
Belt Drive: Dual SM 100-1, 16-Pole-Synchronous Motor
Power Consumption: 8 Watt; On 230 V 50 Hz, 30 mA
Platter: 1.2 kg, 304 mm, Non-Magnetic
Platter Speeds: 33.3, 45 rpm
Pitch Control: 6% Adjustment Range At 33.3 rpm
Wow And Flutter: DIN: ± 0.06% WRMS; ± 0.035%
Signal-To-Noise Ratio: 52 dB unweighted; 75 dB weighted
Power supply voltage: 230 V ~ 50 Hz
Dimensions: 440 (W) x 370 (D) x 147 (H) mm
Effective Tonearm Length: 221 mm
Offset Angle: 24° 30′
Tangential Tracking Error: 0.15°/cm
