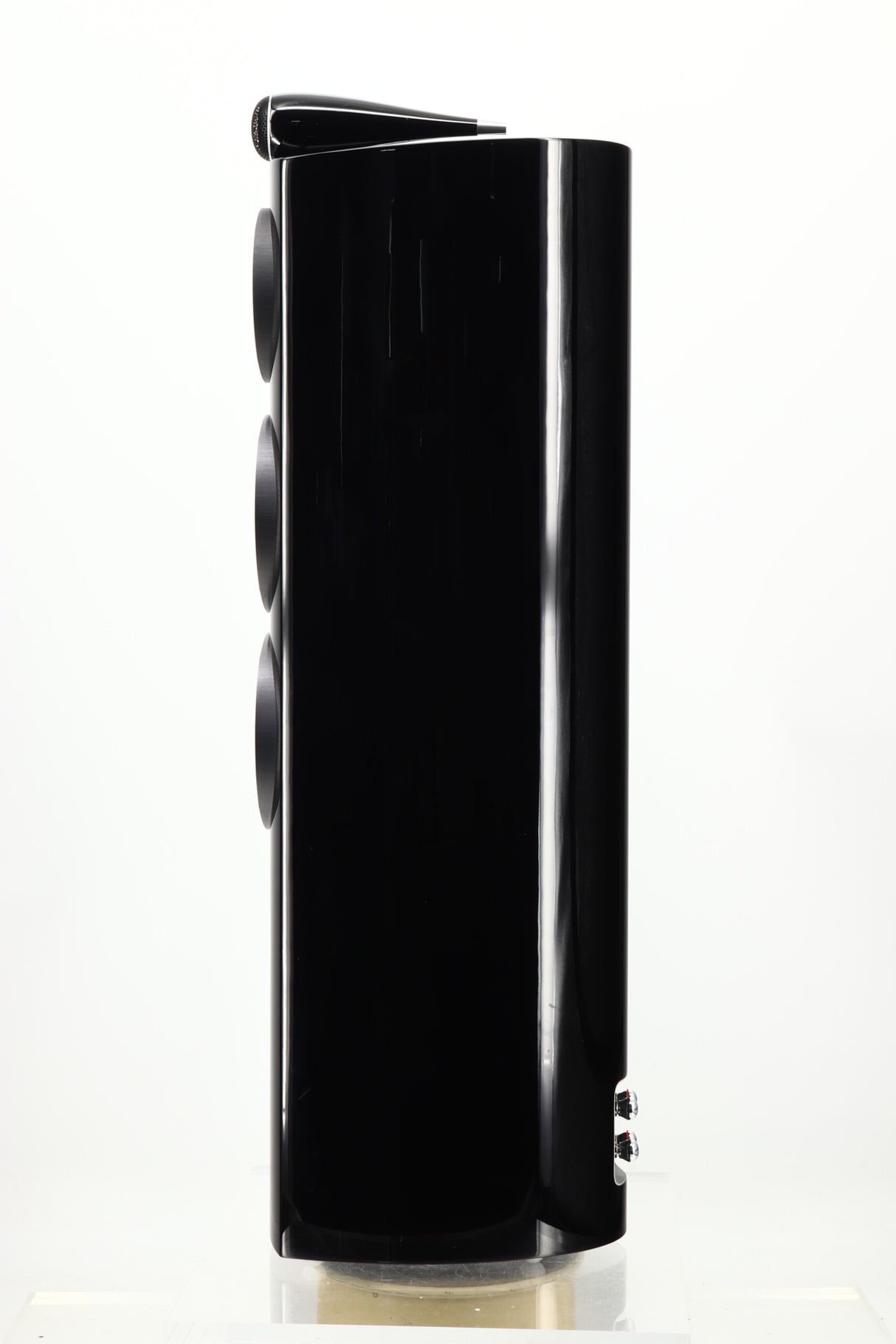

B&W 804 D3 Floorstanding Speakers – Gloss Black

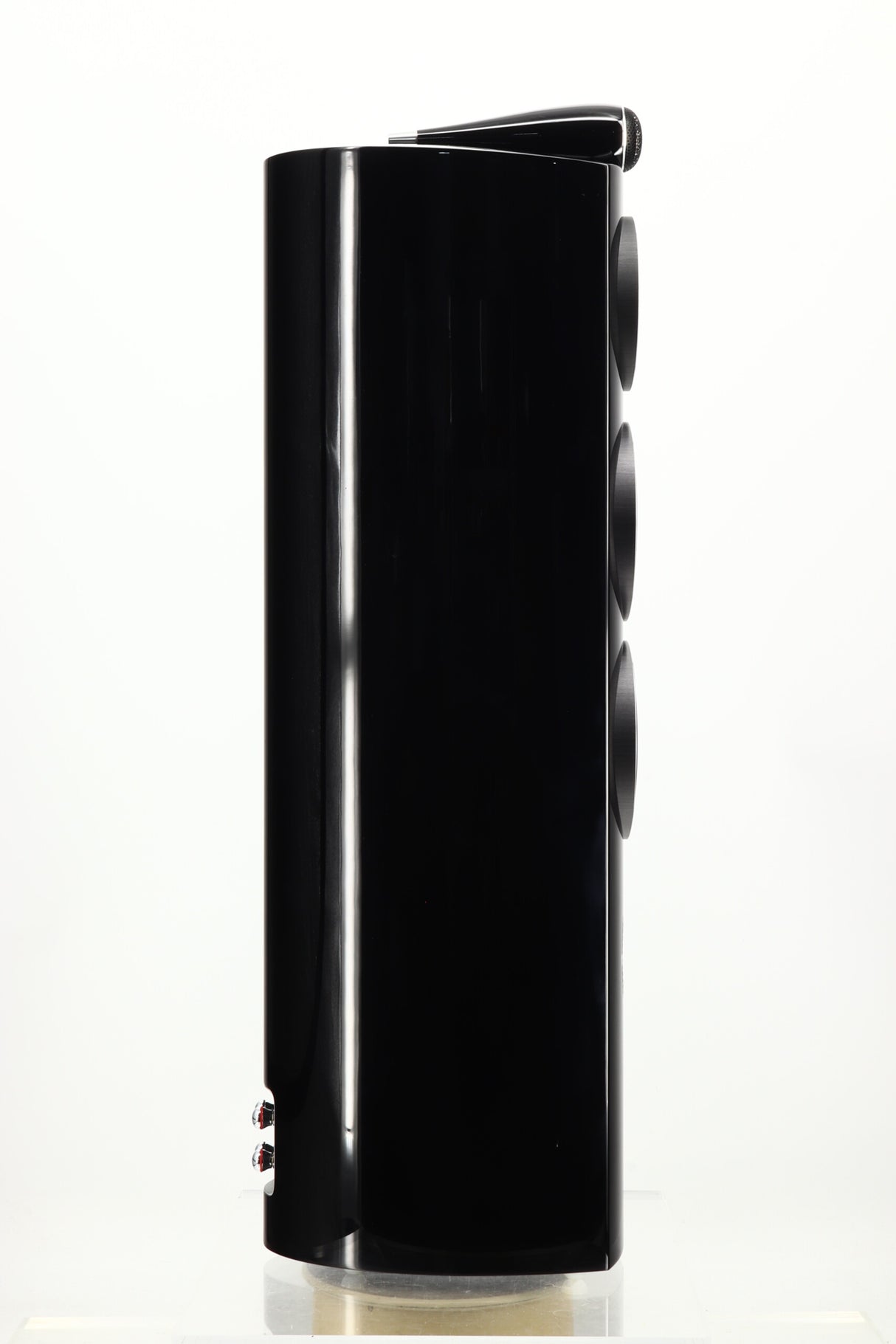

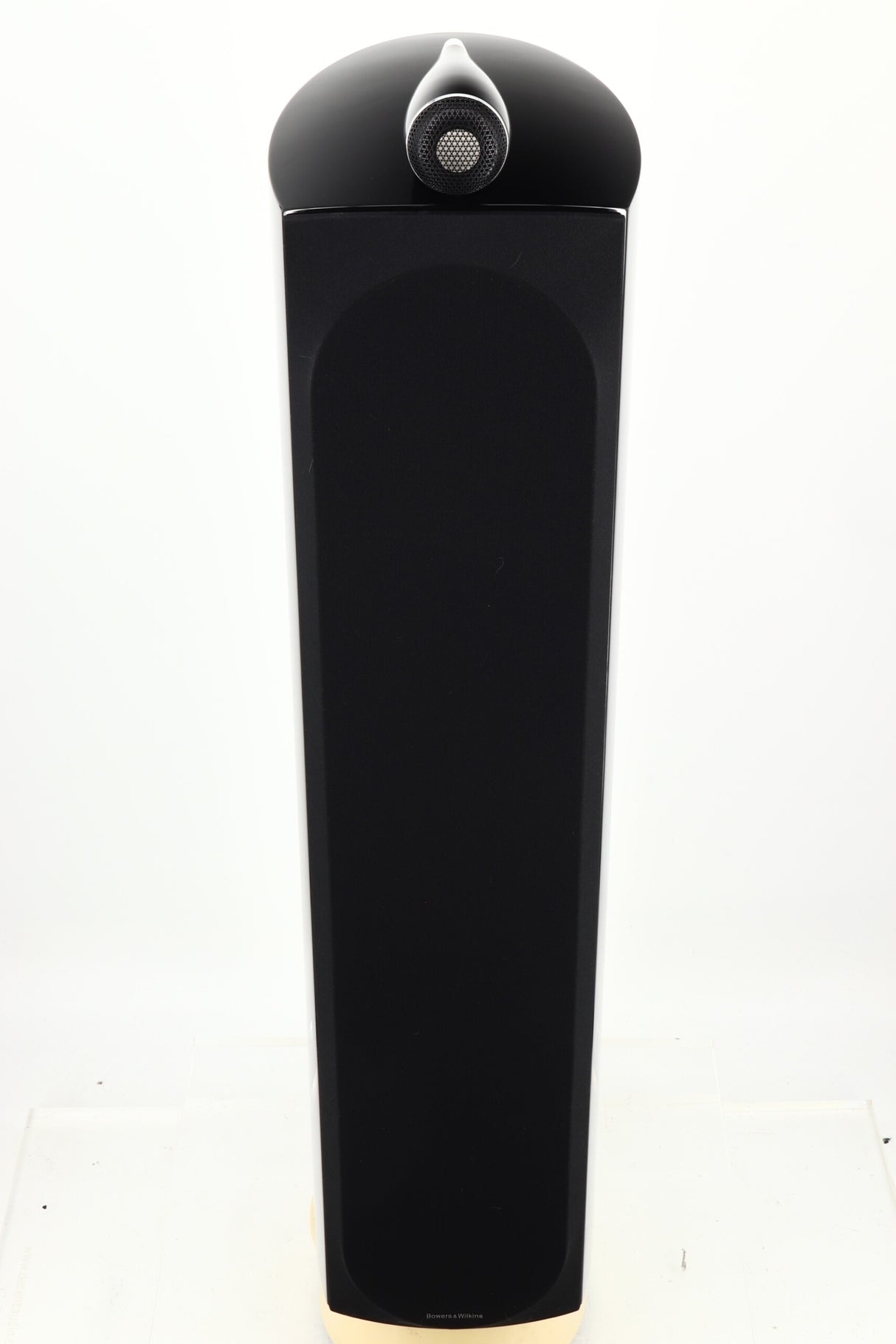

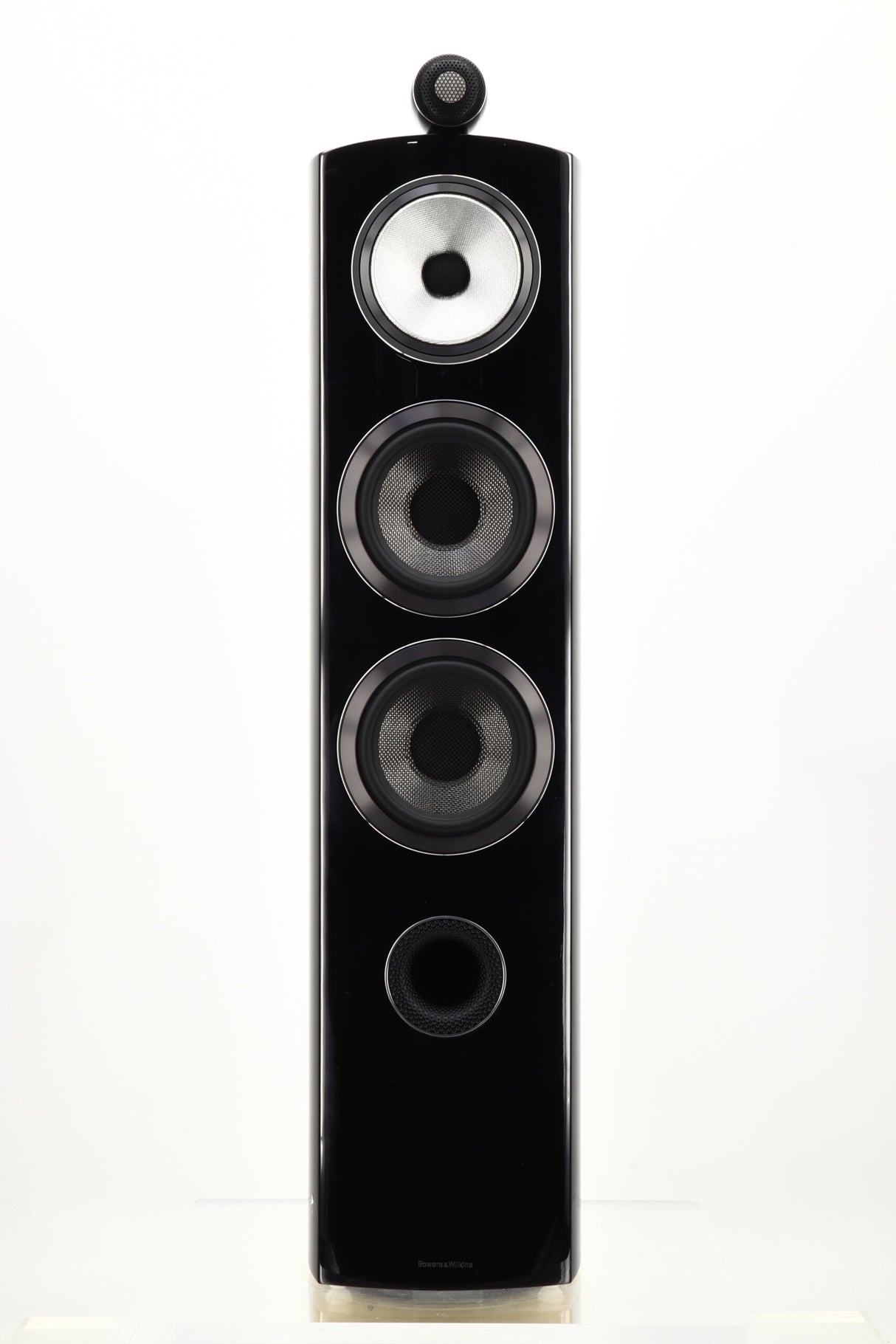

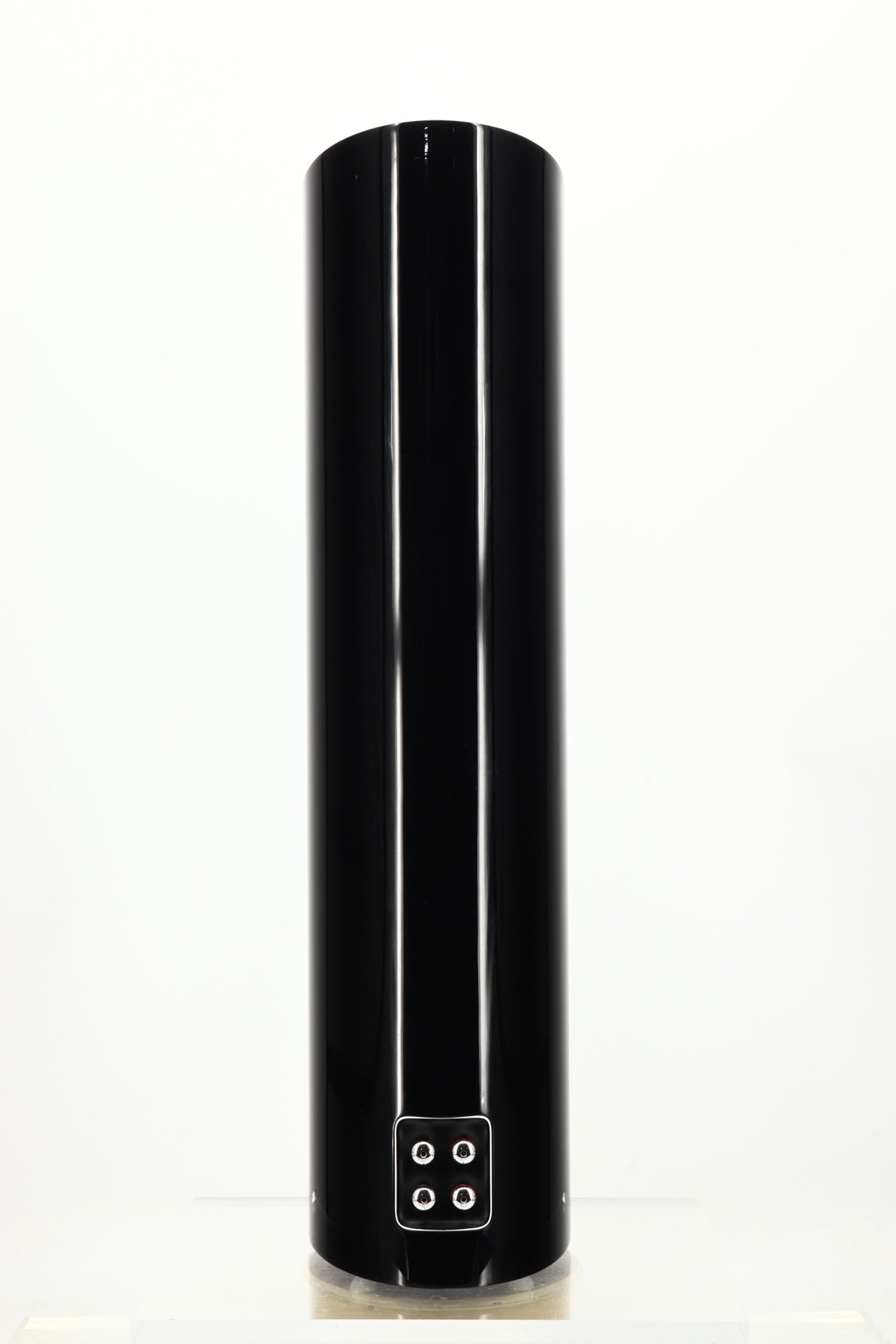

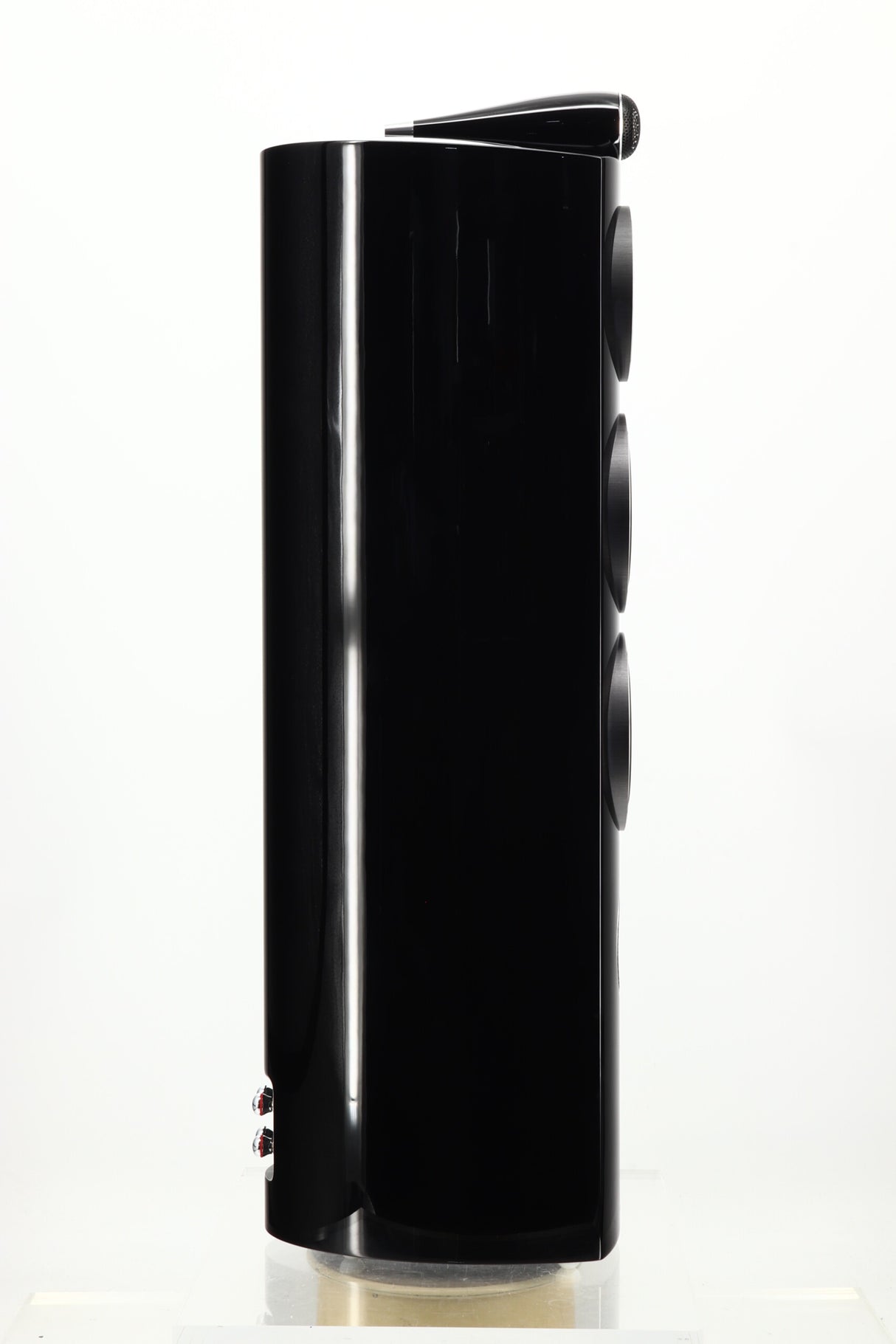

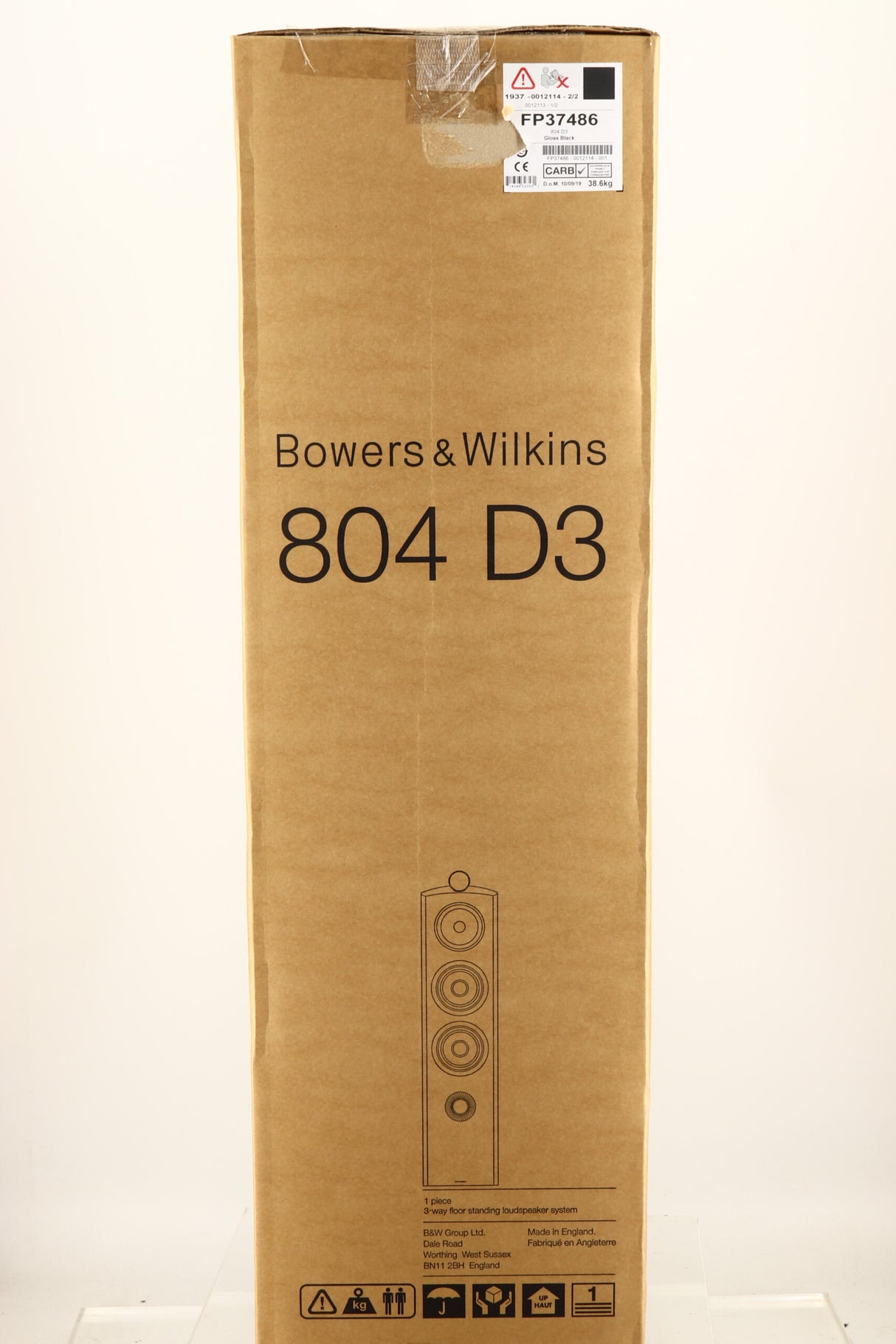

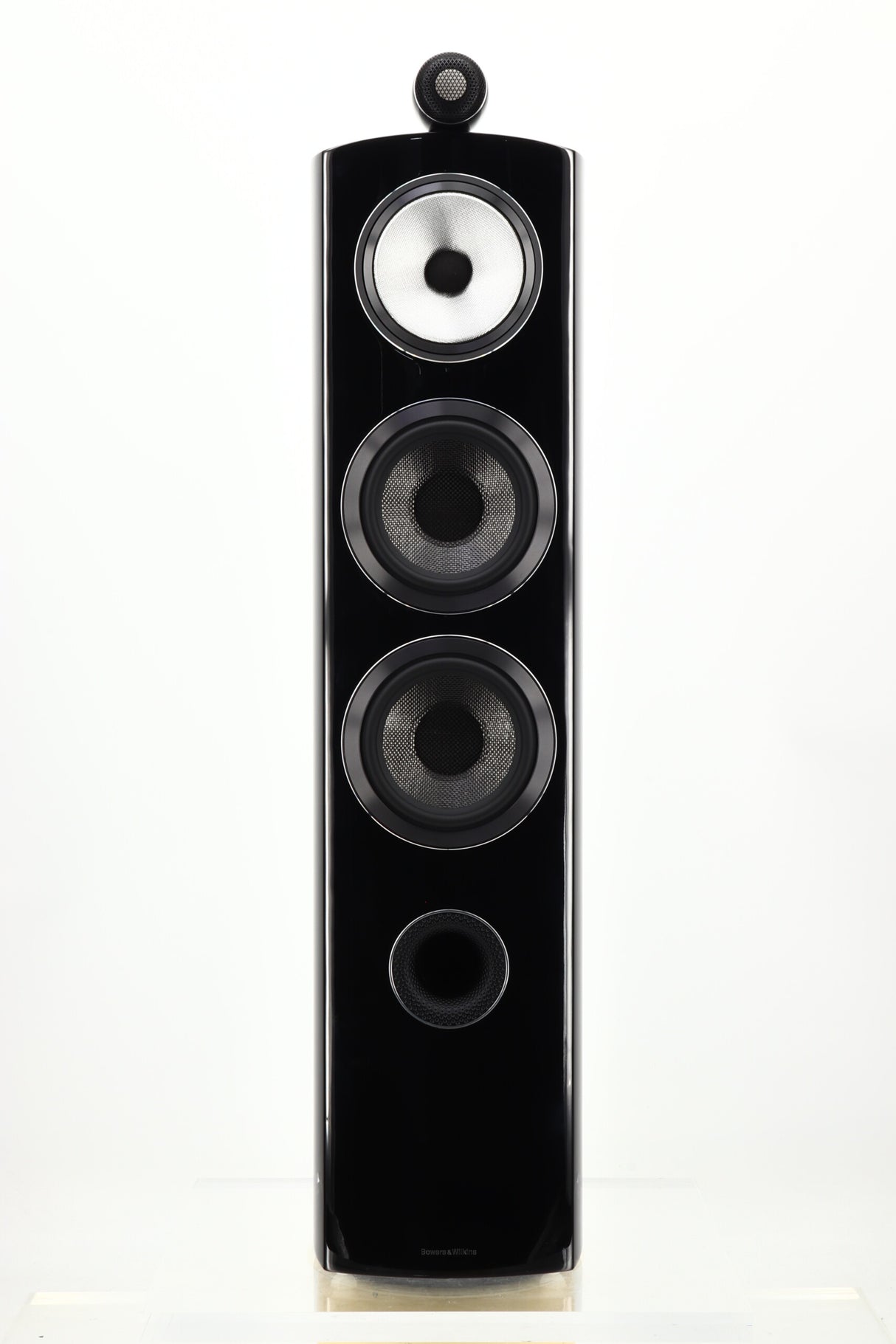

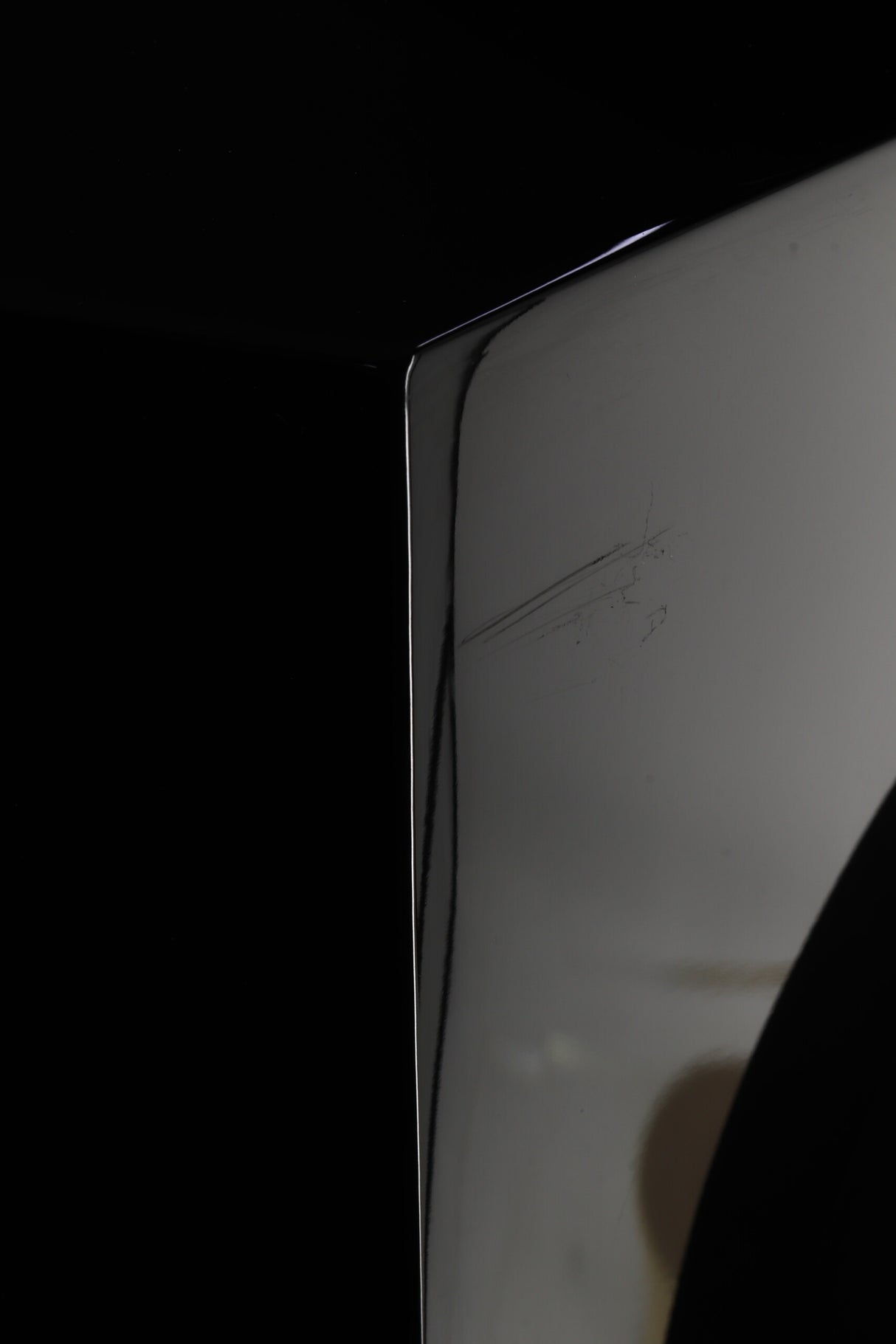

A very good example of the 804 D3 floorstanding loudspeaker from British company B&W, finished in Black. Only a minor blemish on the top front of one speaker stop them being classed as excellent – please see photographs. They will come supplied in original factory packaging with grilles, spikes and of course you’ll also get our normal 3 month warranty.
Bowers & Wilkins Say….
For some people, it’s enough just to hear music.
But some of us want more. We want to experience it – in its purest, most unadulterated form. To savour every nuance and detail. To feel as close to a musical performance as if we were there, with the artist at the moment it was recorded. At Bowers & Wilkins, we’ve been pursuing this dream for half a century. And now we’ve made our biggest leap forward yet. Welcome to the 800 Series Diamond.
Change – It’s what we do at Bowers & Wilkins. Our approach to acoustic design and engineering has always been driven by relentless innovation – by questioning what went before, in order to make things better. With the 800 Series Diamond, our approach was no different. But this time, we’ve gone further than ever before. And the result is something truly radical.
The 800 Series isn’t just another speaker range. For decades, it’s served as the benchmark for high-end audio performance. So how do you improve on the best? Answer: you start from the beginning. So when we set out to create the new 800 Series Diamond, we went back to the drawing board, embarking on one of the most ambitious research and development projects we have ever undertaken.
We’ve introduced a few changes. Eight hundred and sixty-eight of them, to be exact.
Using new computer modelling techniques, we examined every single element of the speaker, searching for the smallest weaknesses so we could understand how to overcome them. As a result, almost every component of every speaker has been reimagined from the ground up, from drive unit materials all the way to the position of screw fixings. The new 800 Series Diamond isn’t an evolution. It’s a revolution.
We believe the way you hear music matters. And if you care about hearing music the way it was intended, this range was designed for you. Whether you’re a recording engineer or a home audio enthusiast, you’ll find a model to suit your listening requirements. Introducing the world’s most advanced loudspeaker range.
Wolf in sheep’s clothing It might have a more traditional appearance than other speakers in the range, but don’t let that fool you. The 804 D3 delivers incredible acoustic transparency, thanks to unique 800 Series Diamond features such as our Continuum cone and augmented Matrix bracing system. So while its looks may be conventional, its performance is anything but.
Welcome to the future. The 800 Series Diamond is a game-changer in terms of technological innovation. From drive units to cabinet geometry, every major component has been rethought and reinvented. And the rulebook for loudspeaker design has been ripped up and rewritten in the process. The future of loudspeaker technology starts here.
Solid body tweeter Vibration is the enemy of good sound. To minimise vibrations, you need components that are as stiff as possible. For the 800 Series Diamond, we created our stiffest tweeter enclosure yet. The tweeter assembly for the new range is housed in a solid piece of aluminium, while an improved gel decoupling system isolates the tweeter from the effects of cabinet resonance. The result? Pin-sharp acoustic detail, and new levels of insight into a musical performance.
Continuum cone For decades, we thought that nothing could beat Aramid Fibre as a midrange cone material. But now, following eight years of intensive development, we’ve finally come up with something even better. Thanks to its composite construction, the Continuum cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance. And a giant leap forward for loudspeaker design.
Aerofoil cone Sometimes, new technologies allow us to achieve things in engineering that wouldn’t have been possible a few years ago. The Aerofoil bass cone is a perfect example. By using advanced computer modelling and a new syntactic core material, we’ve been able to produce a cone of varying thickness, with maximum stiffness where it’s needed most. This optimised shape means the cone displays pistonic behaviour further up the audible range, producing bass that’s precise, controlled and utterly lifelike.
Features:
Diamond Tweeter
Continuum Cone FST
Aerofoil cone bass units
Flowport
Optimised Matrix
Solid body tweeter
Anti-Resonance plug
Tweeter on top
Specifications:
Description: 3-way vented-box system
Drive Units: 1 × ø 25 mm diamond dome high-frequency; 1 × ø 130 mm Continuum cone FST midrange; 2 × ø 165 mm Aerofoil cone bass units
Frequency Range: 20 Hz to 35 kHz
Frequency Response: 24 Hz to 28 kHz (+/-3 dB from reference axis)
Sensitivity: 89 dB (1 m on axis at 2.83 Vrms)
Harmonic Distortion: 2nd and 3rd harmonics (90 dB, 1 m on axis); < 1 % 70 Hz – 20 kHz; < 0.3 % 120 Hz – 20 kHz
Nominal Impedance: 8 Ω; minimum 3.0 Ω
Recommended Amplifier Power: 50 W – 200 W into 8 V on unclipped programme
Max. Recommended Cable Impedance: 0.1 Ω
Dimensions: 1019 (H) x 238 (W) x 345 (D) mm
Weight: 33.0 kg
