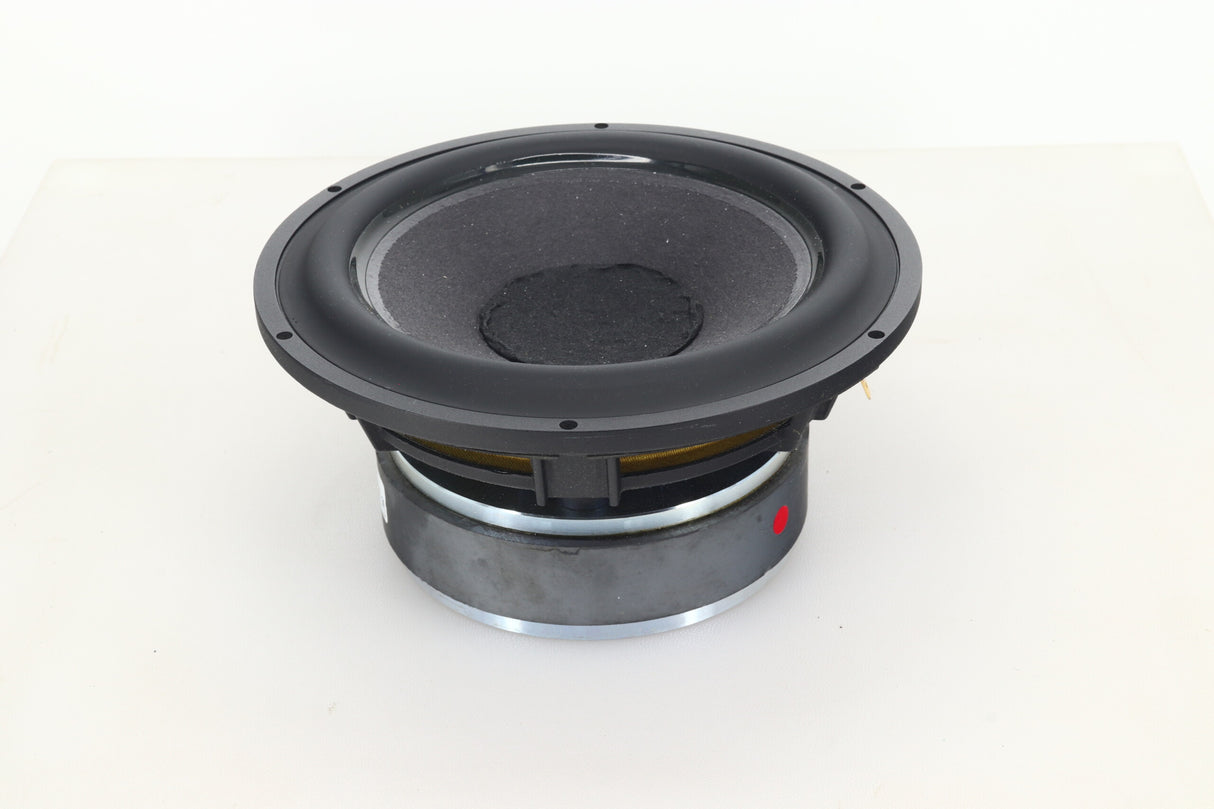

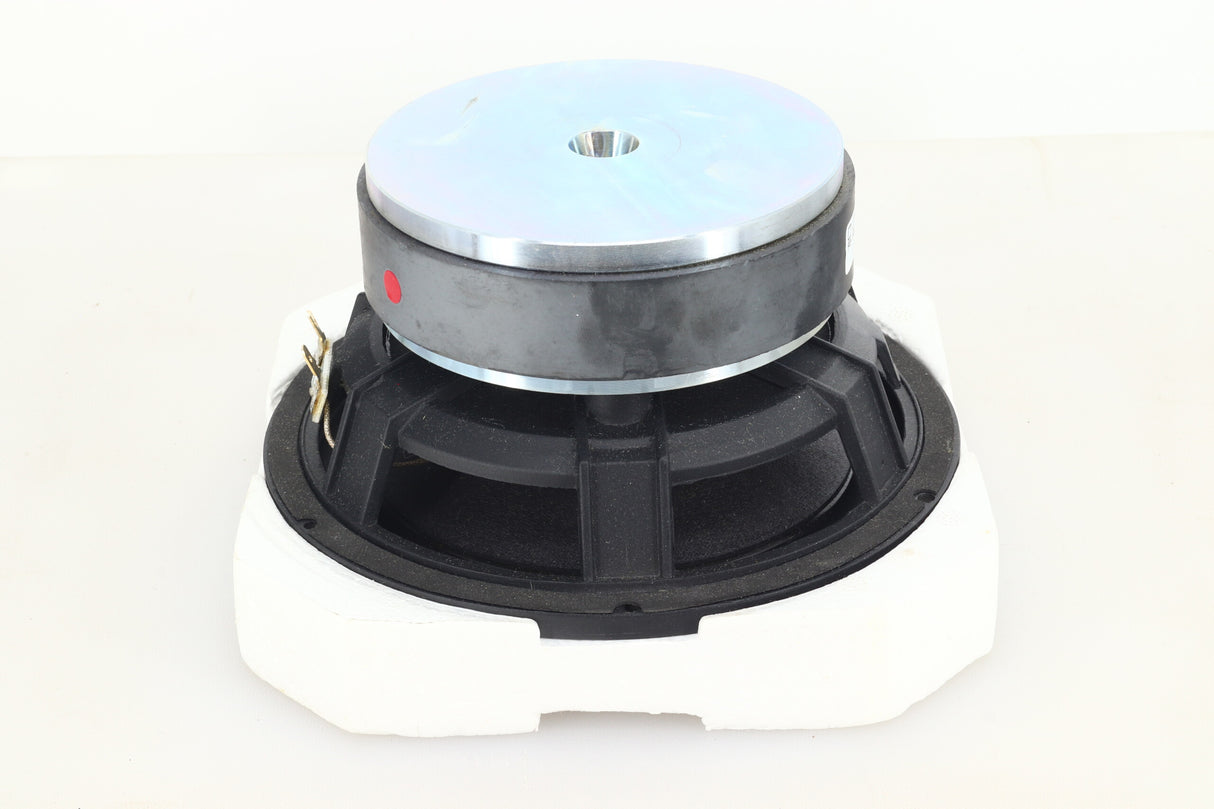

Usher 8948A 7" Driver

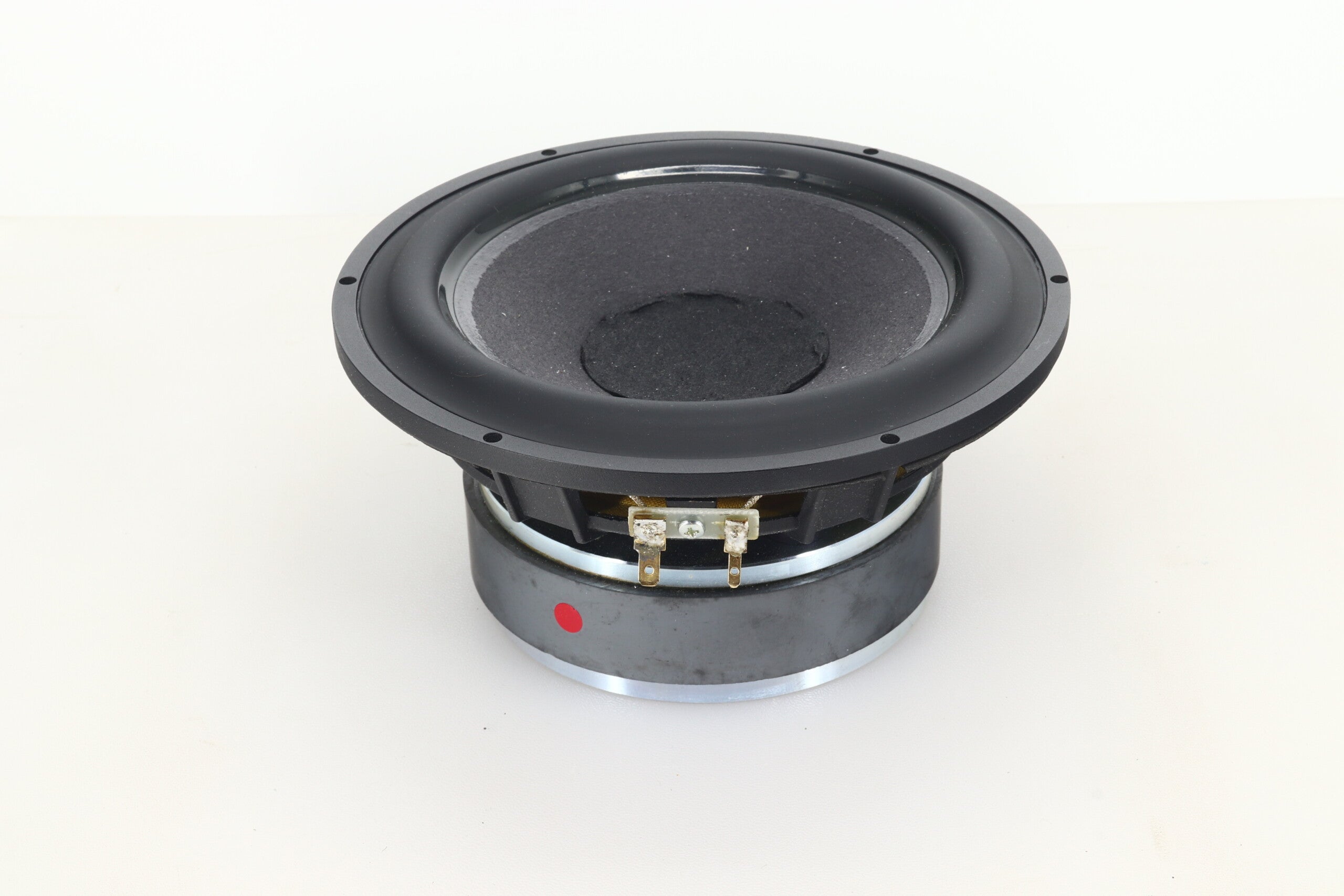

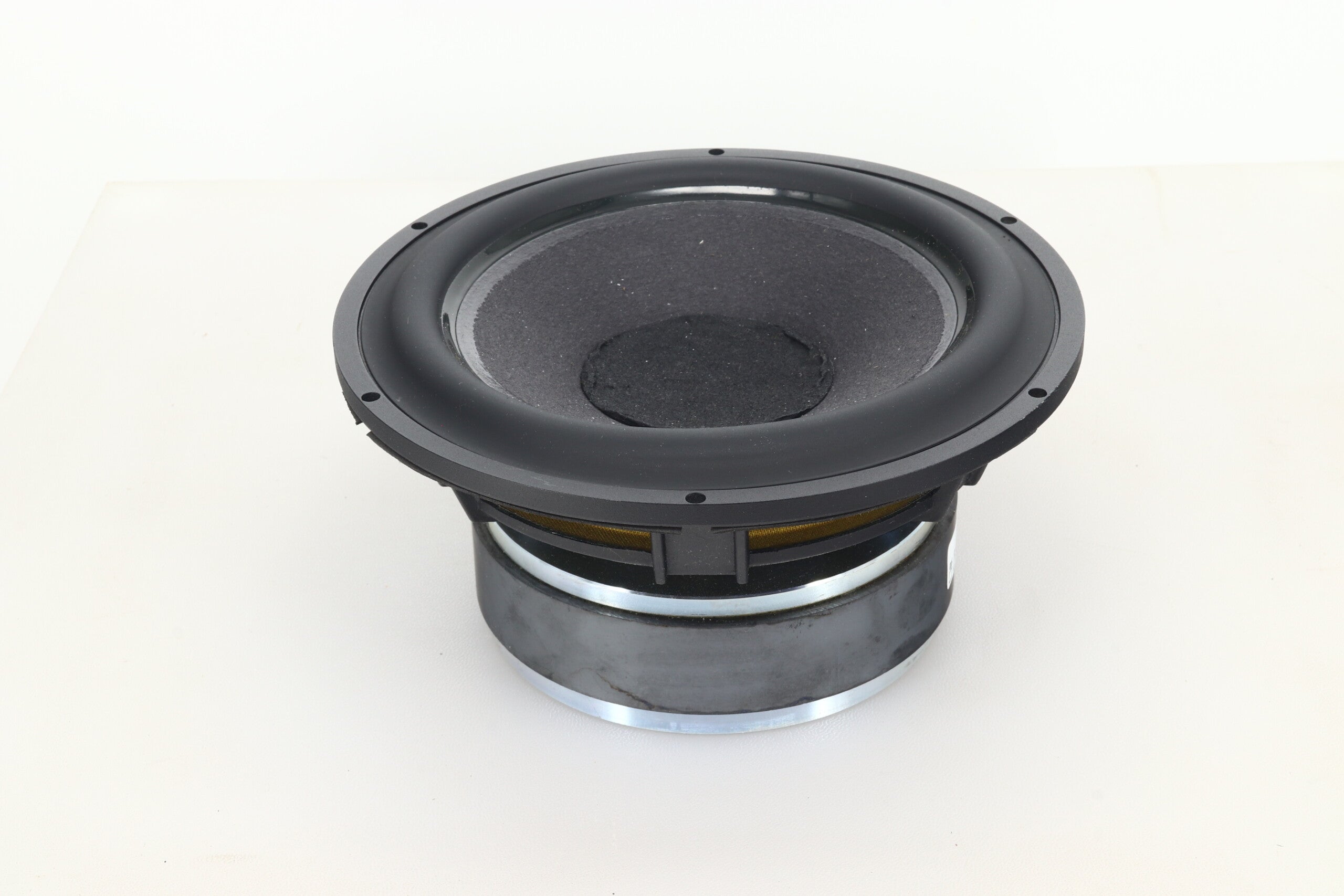

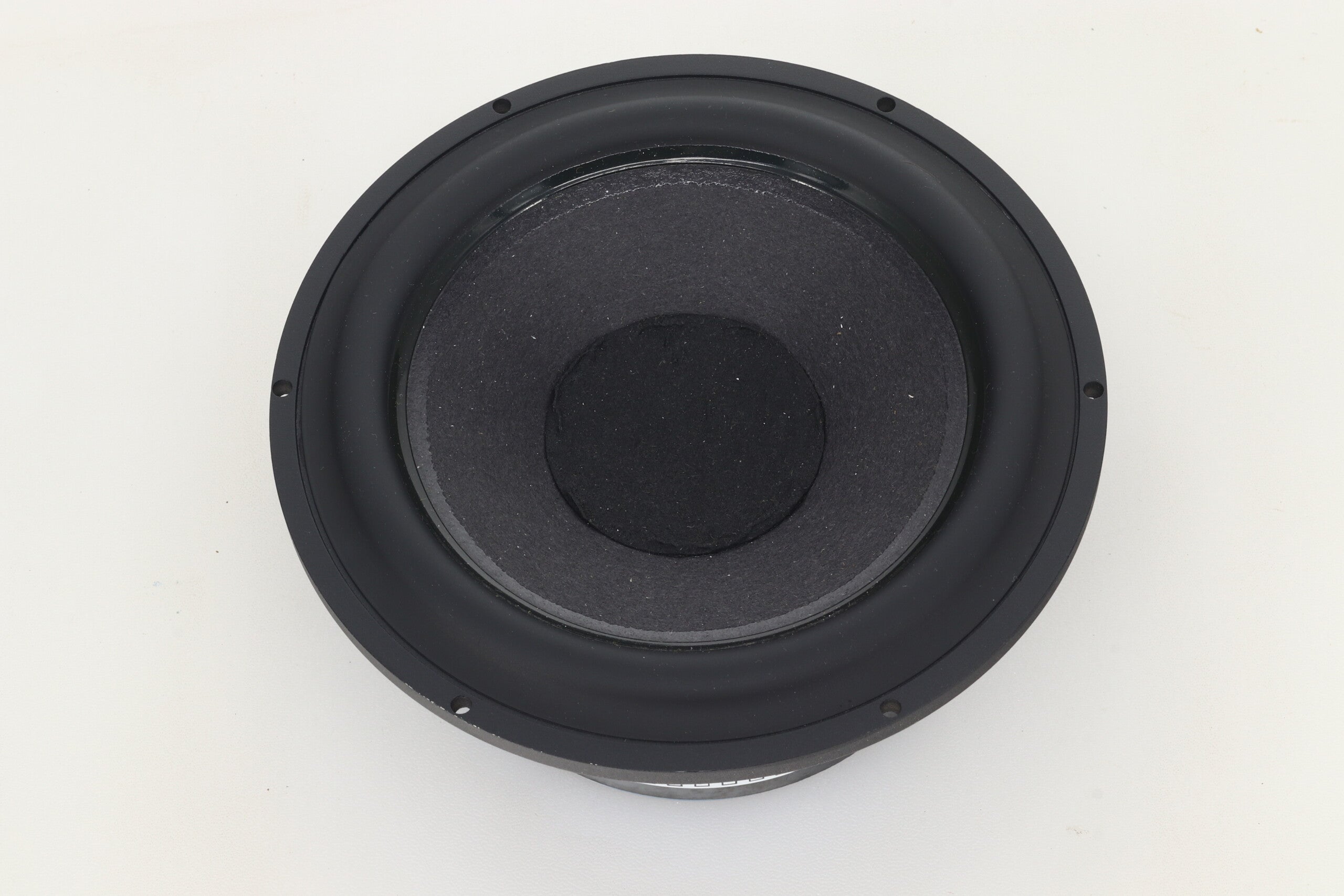

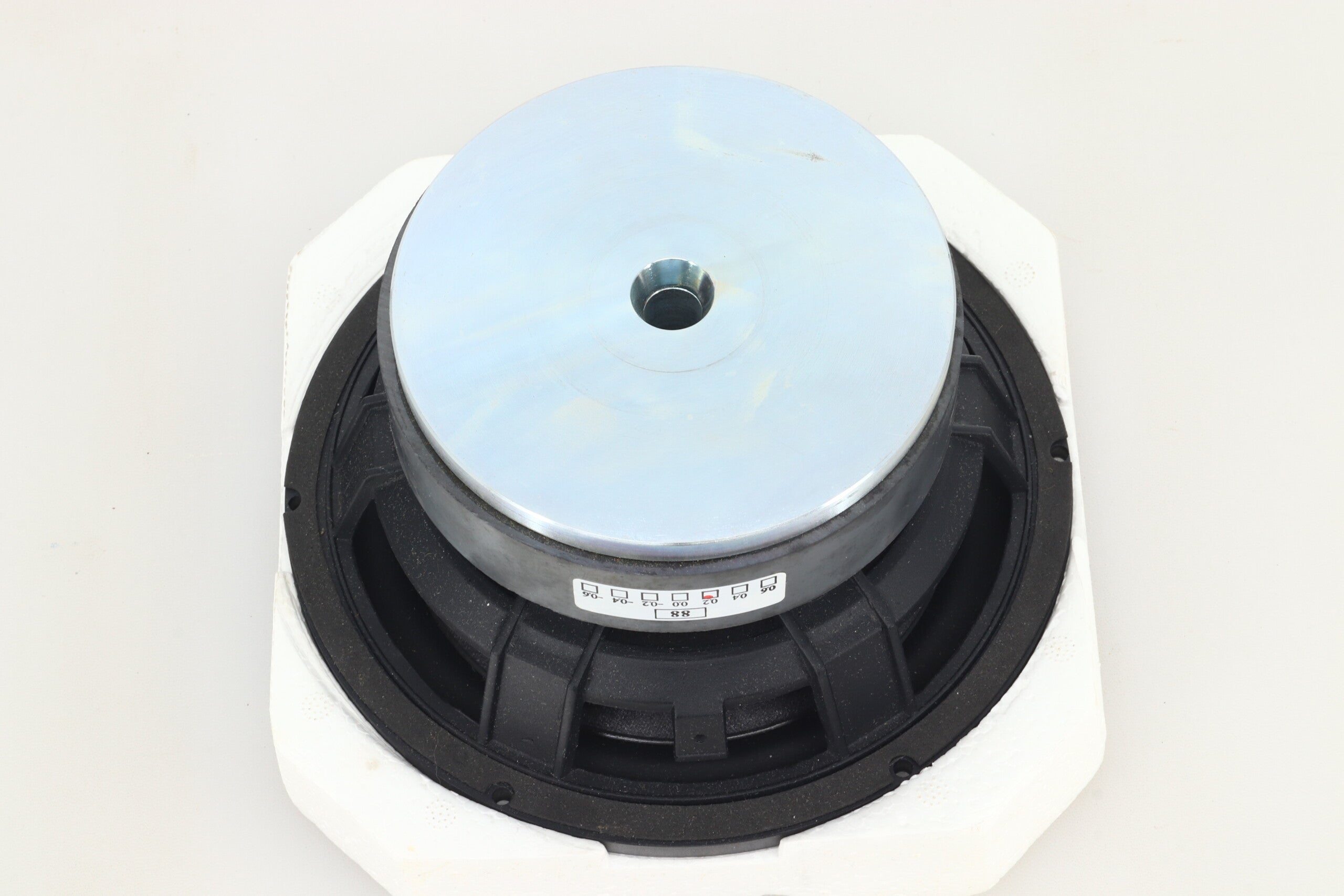

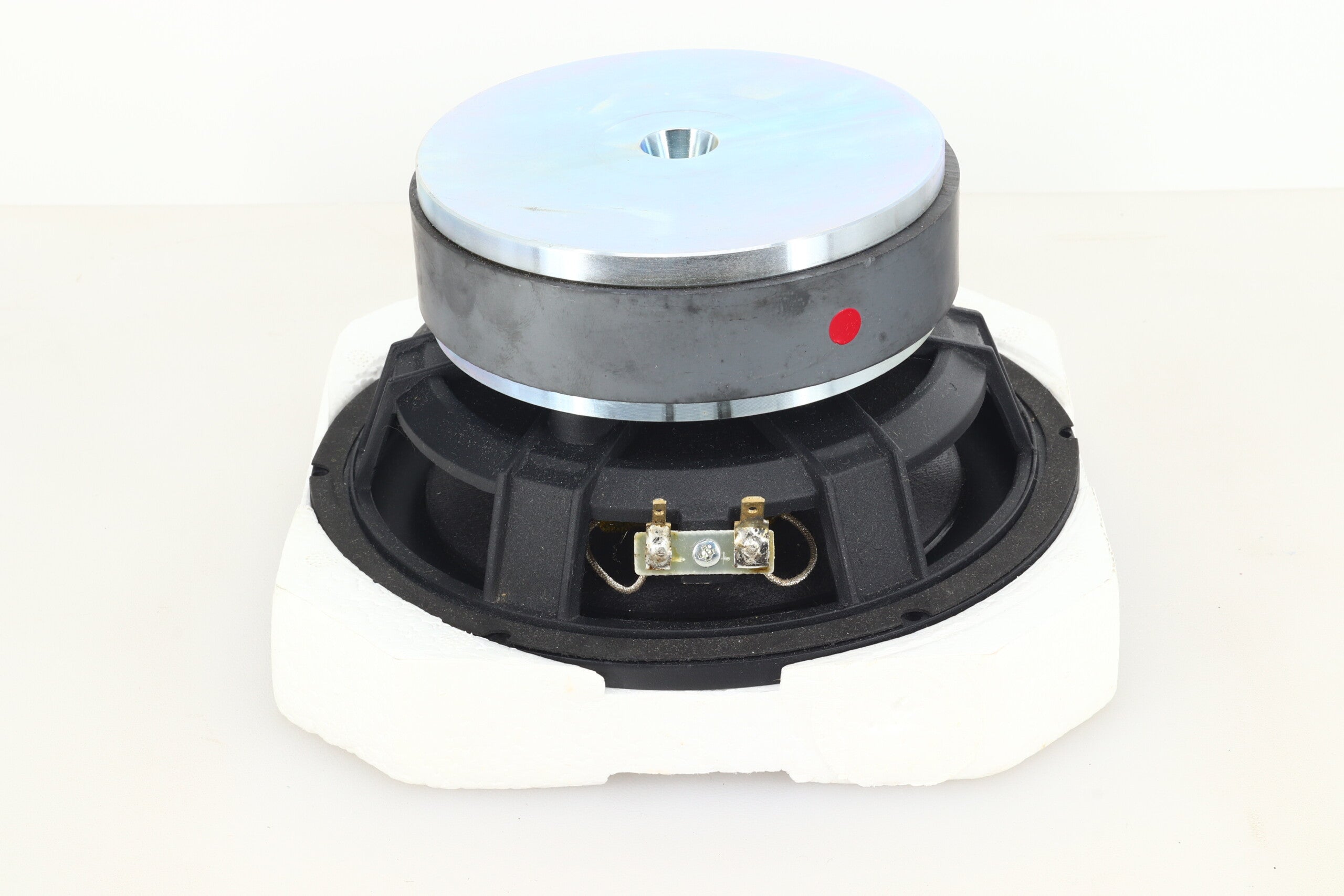

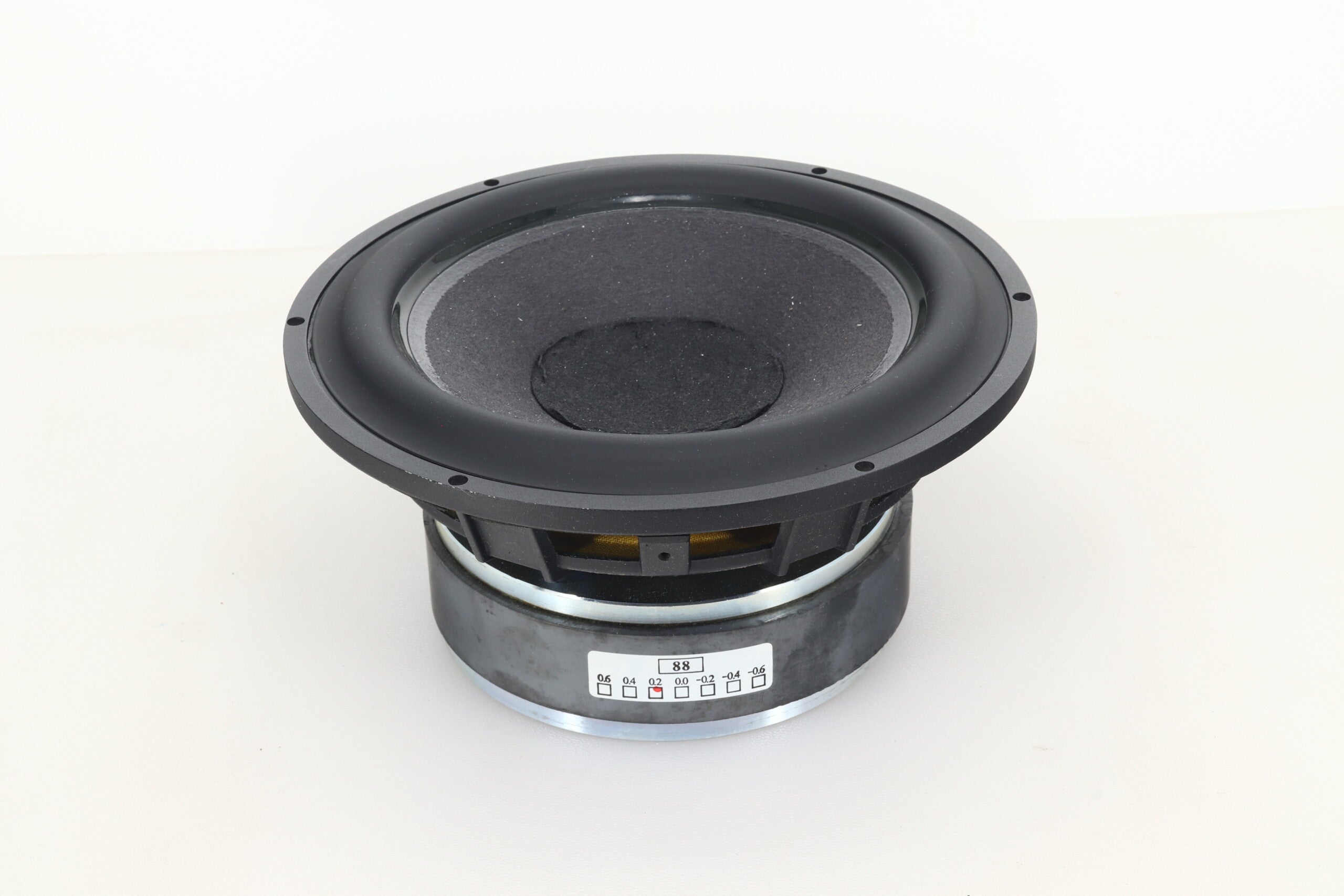

Here we have an Usher 8948A Woofer (7 Inch Driver)
Good condition and boxed.

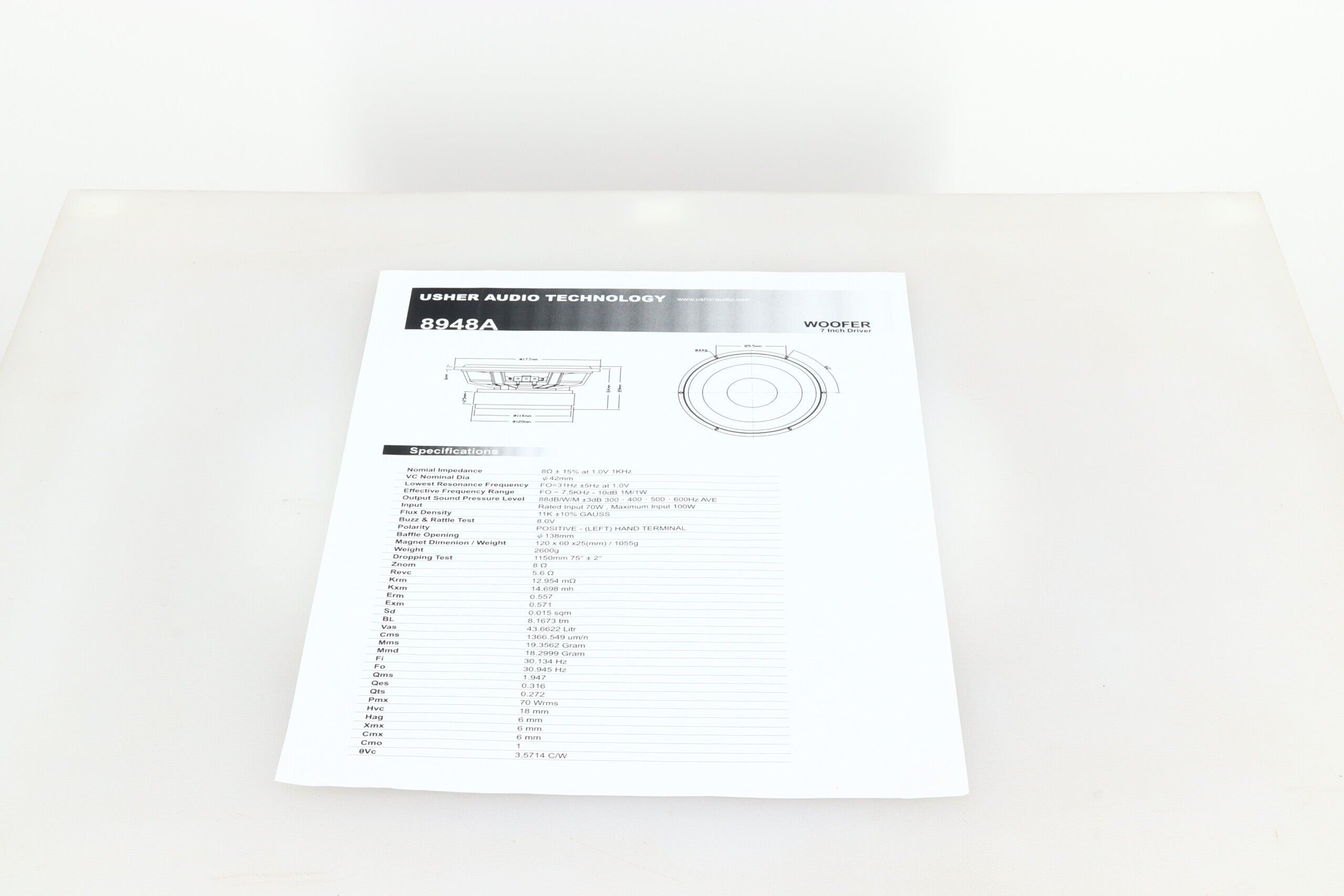

Usher Specifications:<br>
Nominal Impedance: 8 Ω ± 15 % at 1.0 V 1 kHz<br>
VC Nominal Dia: Ψ 42 mm<br>
Lowest Resonance Frequency: FO = 31 Hz ± 5 Hz at 1.0 V<br>
Effective Frequency Range: FO ~ 7.5 kHz – 10 dB 1 M/1 W<br>
Output Sound Pressure Level: 88 dB/W/M ± 3 dB 300, 400, 500, 600 Hz AVE<br>
Input: Rated Input 70 W, Maximum Input 100 W<br>
Flux Density: 11 K ± 10% Gauss<br>
Buzz & Rattle Test: 8.0 V<br>

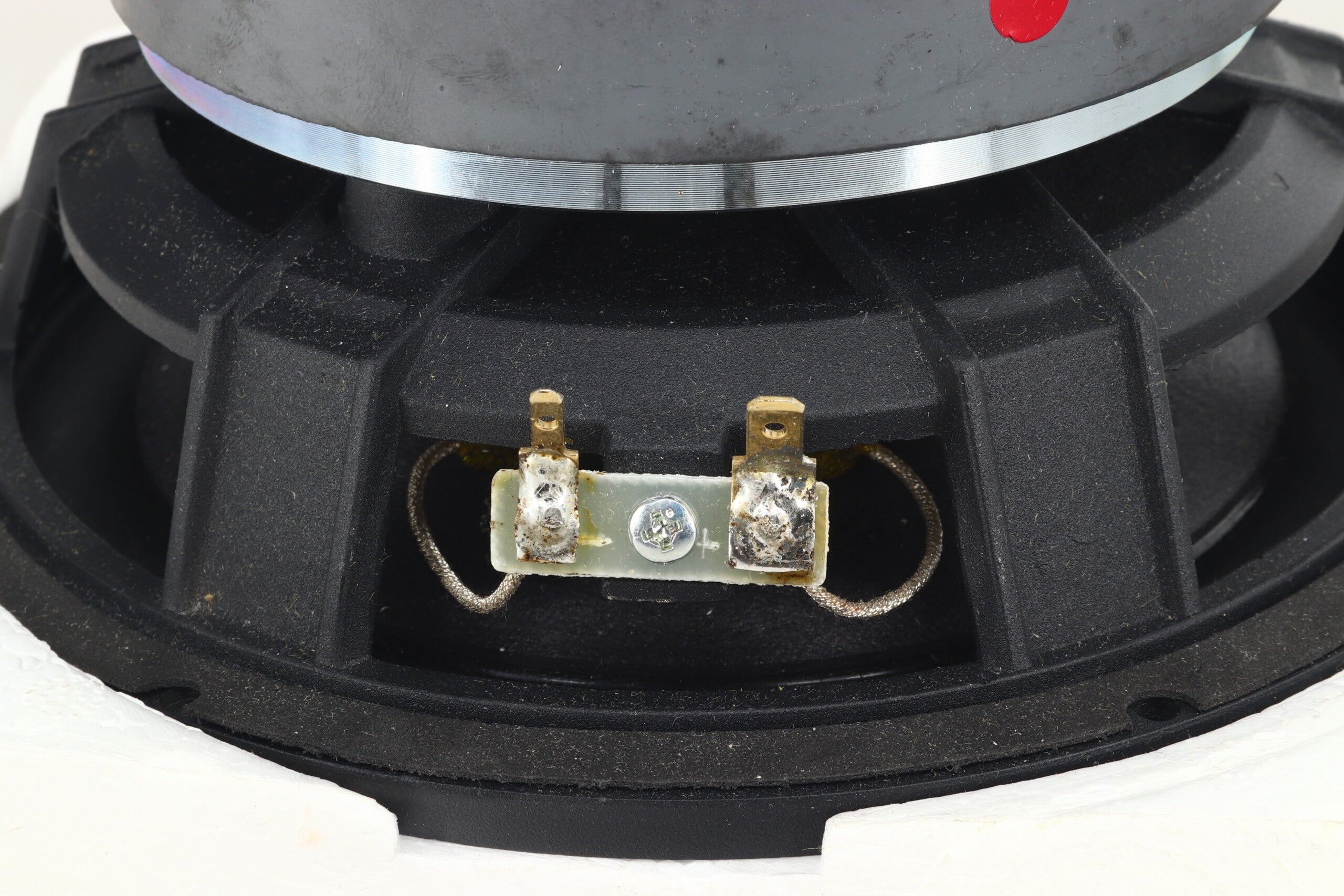

Polarity: Positive – (Left) Hand Terminal<br>
Baffle Opening: Ψ 138 mm<br>

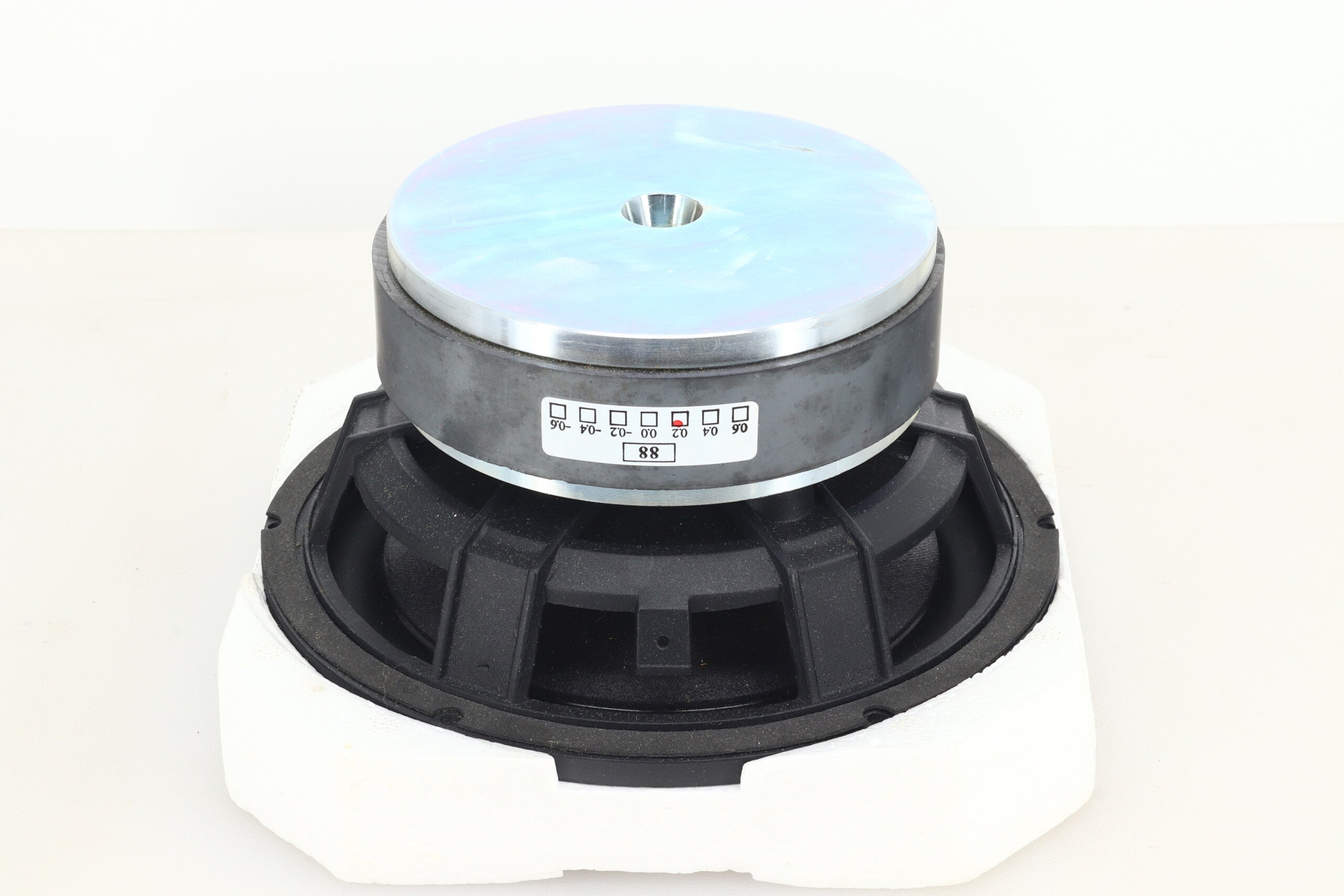

Magnet Dimension / Weight: 120 x 60 x 25 (mm) / 1055 g<br>
Weight: 2600 g<br>
Dropping Test: 1150 mm 75° ± 2°<br>
ZNOM: 8 Ω<br>
REVC: 5.6 Ω<br>
KRM: 12.954 mΩ<br>
KXM: 14.698 MH<br>
ERM: 0.557<br>
EXM: 0.571<br>
SD: 0.015 sqm<br>
BL: 8.1673 tm<br>
VAS: 43.6622 Litre<br>
CMS: 1366.549 um/n<br>
MMS: 19.3562 g<br>
MMD: 18.2999 g<br>
FI: 30.134 Hz<br>
FO: 30.945 Hz<br>
QMS: 1.947<br>
QES: 0.316<br>
QTS: 0.272<br>
PMX: 70 W rms<br>
HVC: 18 mm<br>
HAG: 6 mm<br>
XMX: 6 mm<br>
CMX: 6 mm<br>
CMO: 1<br>
ΘVC: 3.5714 C/W<br>
