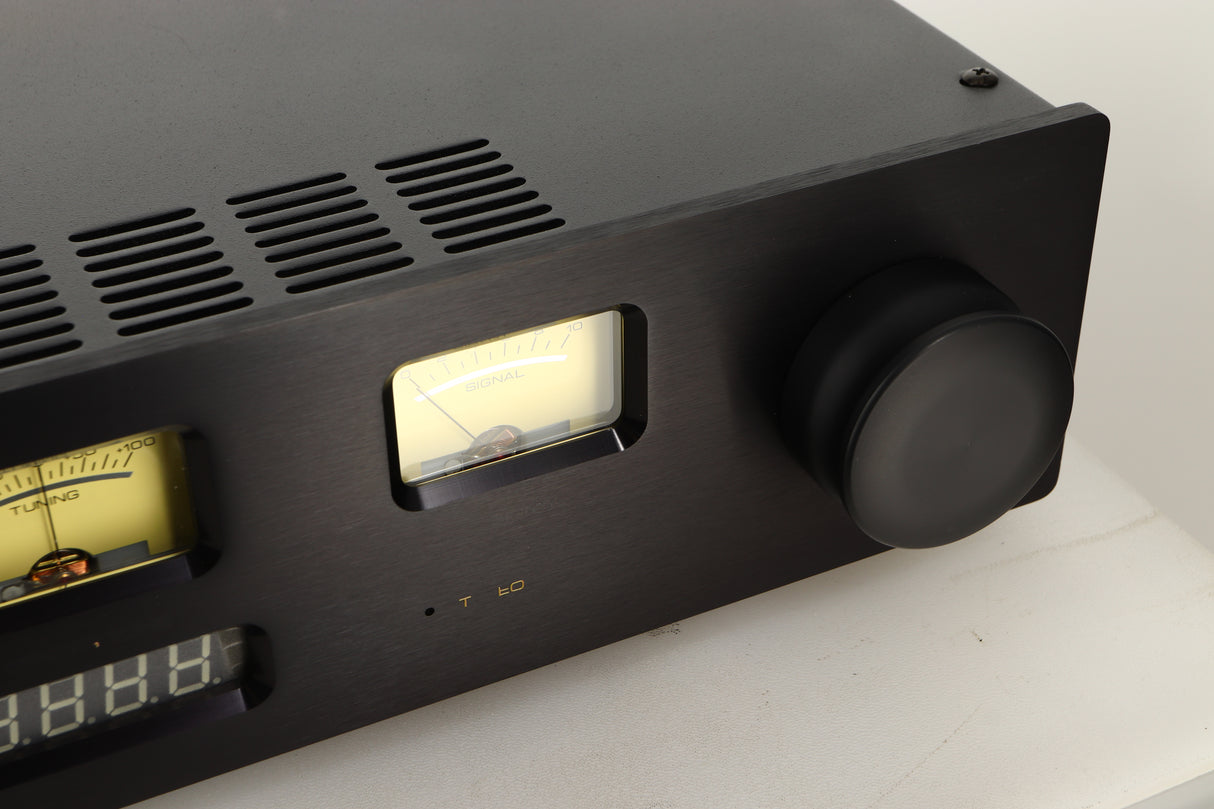

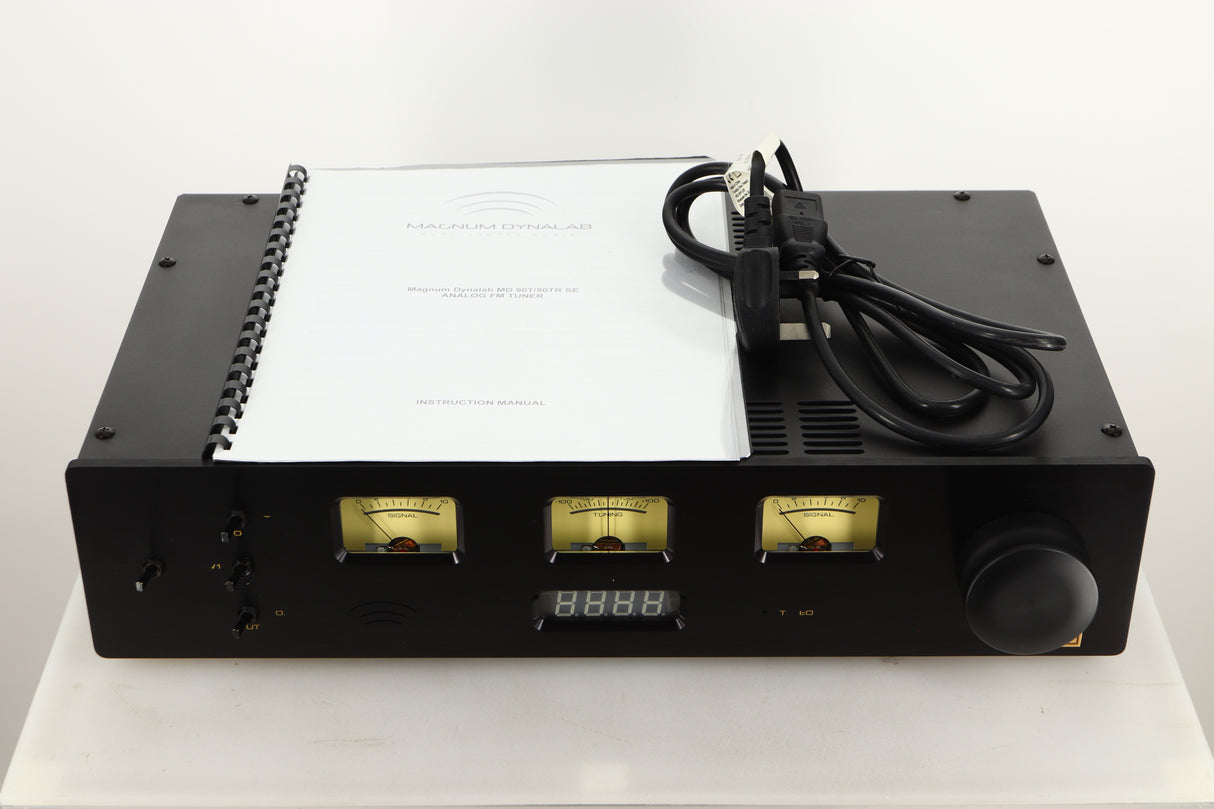

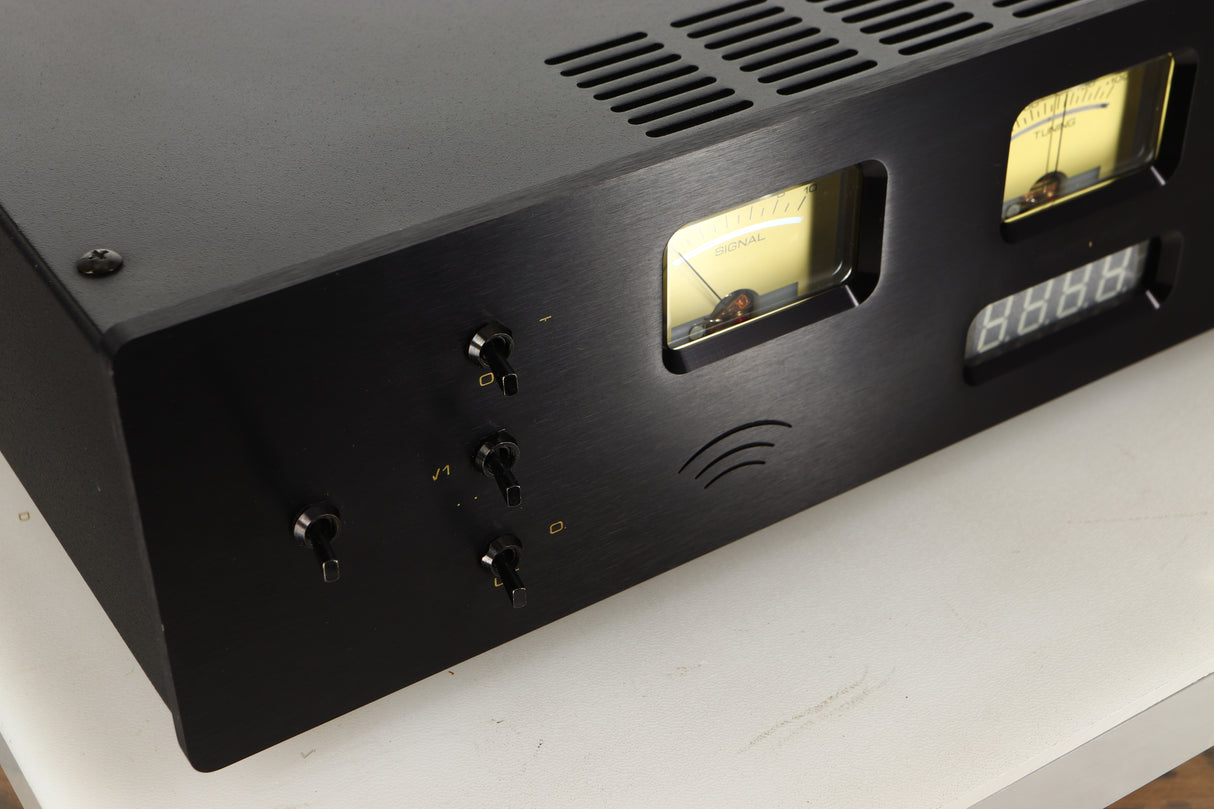

Magnum Dynalab MD90T SE Tuner

The FT101 was first Magnum Dynalab Analogue FM tuner and it launched the brand in 1985. It redefined sonically what FM could be. The FT101A was a further refined improvement on the original and the MD90 as the replacement sets a new standard for FM quality.
Even though the MD90 is our entry level tuner it is used throughout North America by radio stations to monitor their broadcasts and for remote relays of FM signals.
The 90T launched Magnum Dynalab into a whole new world of audio performance when Zdenko Zivkovic developed our first triode tube audio board for this model. The difference was breathless and still is. All of our top tuners feature triode tube output stages. The 90T has become our top selling tuner.
The MD90TSE replaced the 100T in our line with the same features.
It has the same features as the 90T, plus …
Upgraded audio section with Solen polypropylene capacitors plus by-pass caps
Brass flywheel and brass clutch precision tuning mechanism

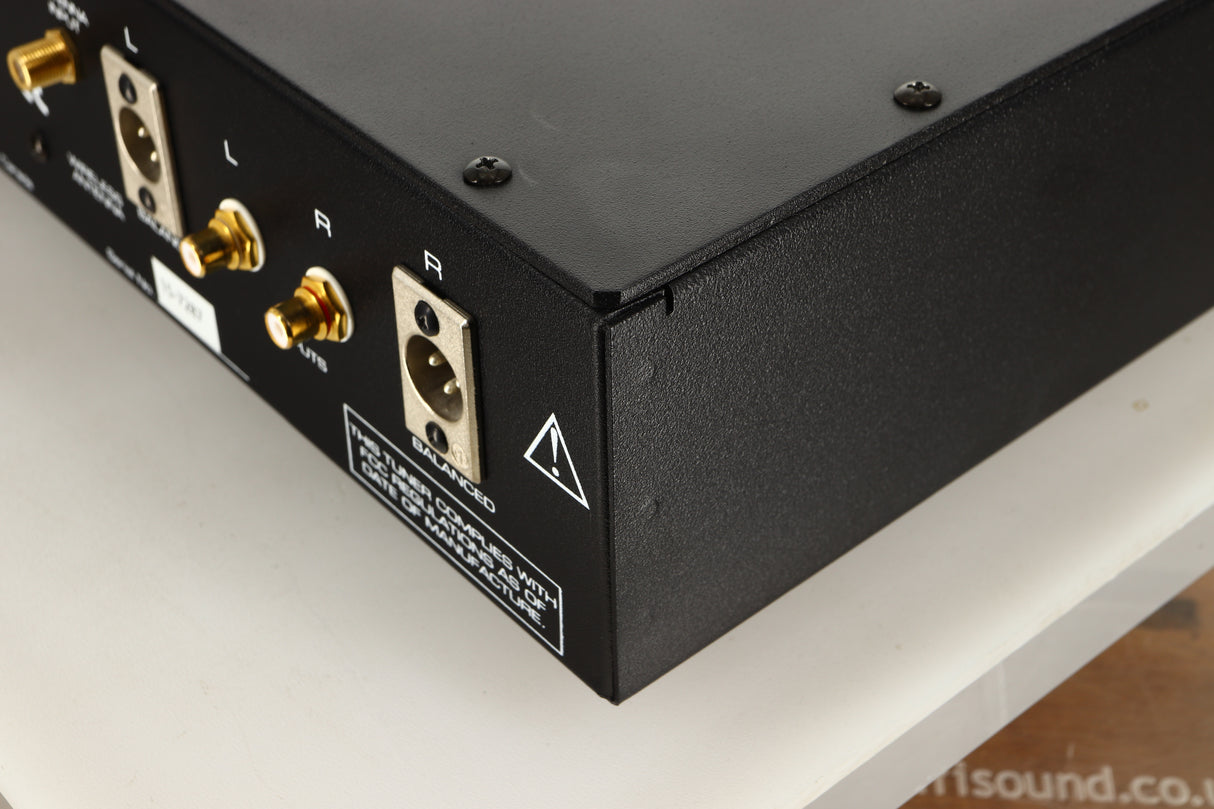

Balanced output

Usable Sensitivity: 0.7 μV, 9.0 dBf (Mono)
50 dB Quieting: 2.0 μV, 9.9 dBf (Mono); 2.3 μV 25.0 dBf (Stereo)
Capture Ratio: 1.5 dB
Image Rejection: 110.0 dB
Signal To Noise Ratio: 80.0 dB
Alternate Channel: 40.0 dB (Wide); 70.0 dB (Narrow)
Adjacent Channel: 3.0 dB (Wide); 35.0 dB (Narrow)
THD: 0.10 % (Mono); 0.18 % (Stereo)
Stereo Separation: 50.0 dB
AM Suppression: 70.0 dB
SCA Rejection: 80.0 dB
IF Rejection: 80.0 dB
19 kHz and 38 kHz Component Rejection: 75.0 dB
Audio Frequency Response: 15 Hz - 17 kHz (± 1 dB)

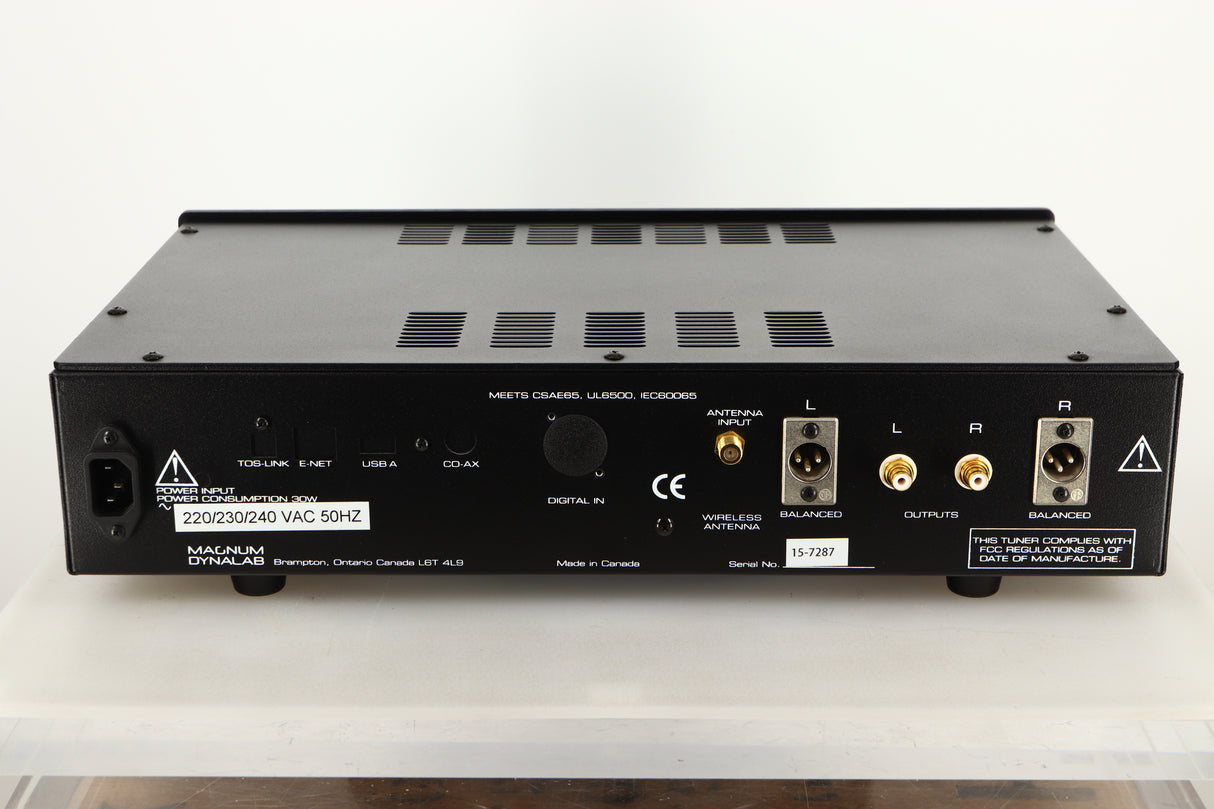

Balanced Audio Output: 2.2 V (600 Ω)
Line Audio Output: 1.0 V (RCA)

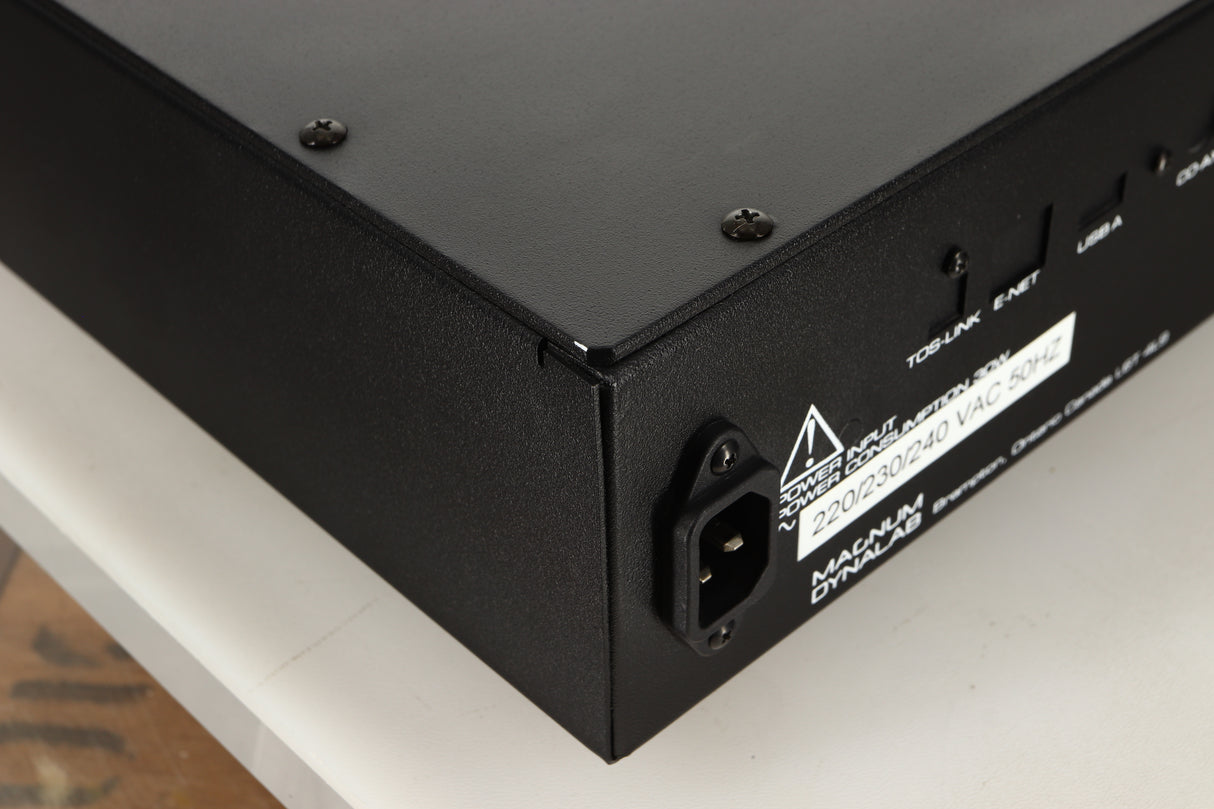

Line Power: 110/220/230/240 VAC
Dimensions: 483 (W) x 381 (D) x 114.3 (H) mm
Weight: 7.96 kg
Power Consumption: 50 W/100 W (Typical/Maximum)
