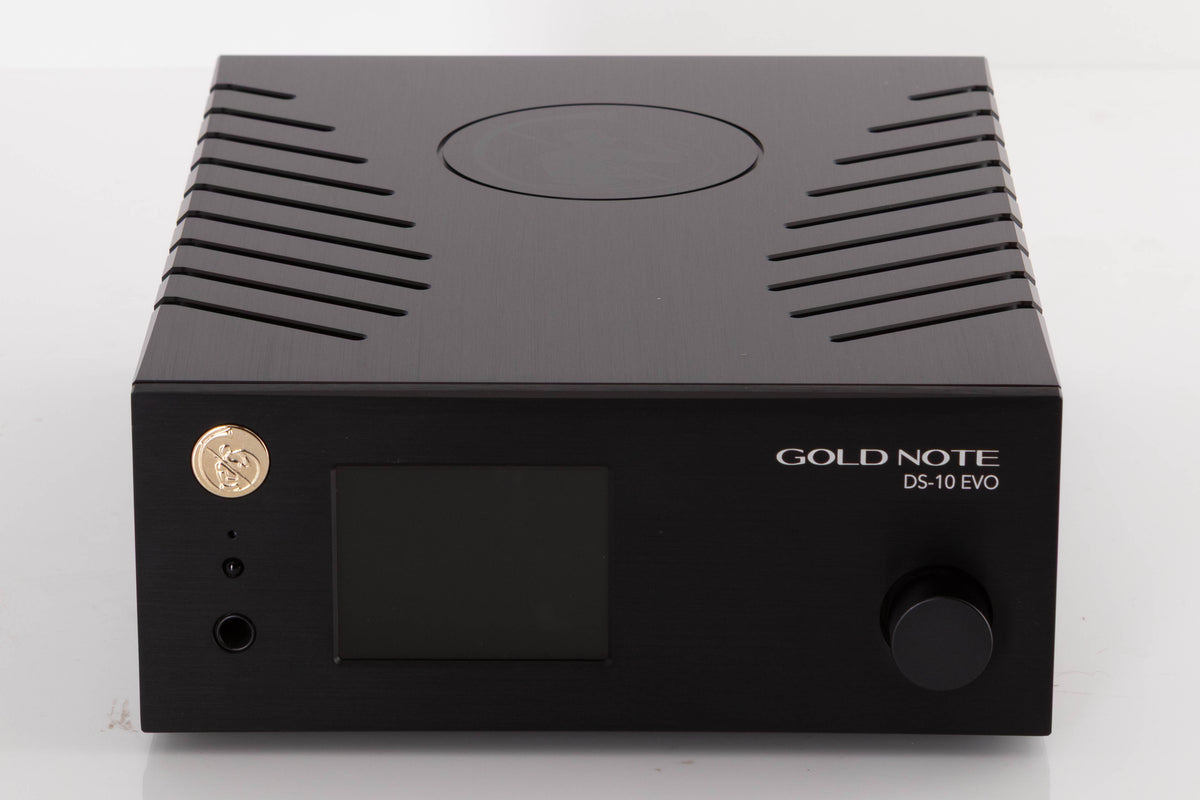

Gold Note DS-10 Evo Streaming Digital Analogue Converter - Black

The New Frontiers Of Digital Music
The DS-10 EVO is a versatile and innovative streaming DAC, equipped with a state-of-the-art D/A converter, a line preamplifier and a headphone amplifier. In addition to its numerous connectivity options, it also features high-definition Bluetooth and a professional headphone output. The DS-10 EVO supports high-resolution files, such as MQA and DSD (up to DSD512 over USB), to provide an unparalleled digital music listening experience. The DS-10 EVO’s technology is housed in a compact aluminium chassis, making this unit the perfect addition to any modern High-End audio system.
With the DS-10 EVO, you can stream music via Roon, Airplay, Tidal, MQA, Qobuz, Spotify, vTuner and Deezer, access a collection of digital music stored locally on a NAS or USB flash drive, or from a smartphone or tablet, via the GN Control app (available for free on iOS and Android) and directly from the Tidal application thanks to the implementation of Tidal Connect. Furthermore, the DS-10 EVO is Roon Ready and compatible with all UPnP/DLNA and Airplay 2.0 services. It can be connected to the network using Wi-Fi or Ethernet port and, at the same time, to a power amplifier or active speakers to explore the limitless possibilities of high-resolution music.
The DS-10 EVO features a unique function that sets it apart from any other DAC, making it extremely flexible: it is possible to modify the DAC profile to adapt it to the music being played, without degrading the audio signal and maintaining the highest quality, by acting on the de-emphasis parameters, on the low-pass digital filters and the DSD filter. These parameters can be adjusted in real-time during playback, quickly and intuitively thanks to the dedicated menu and the TFT display.

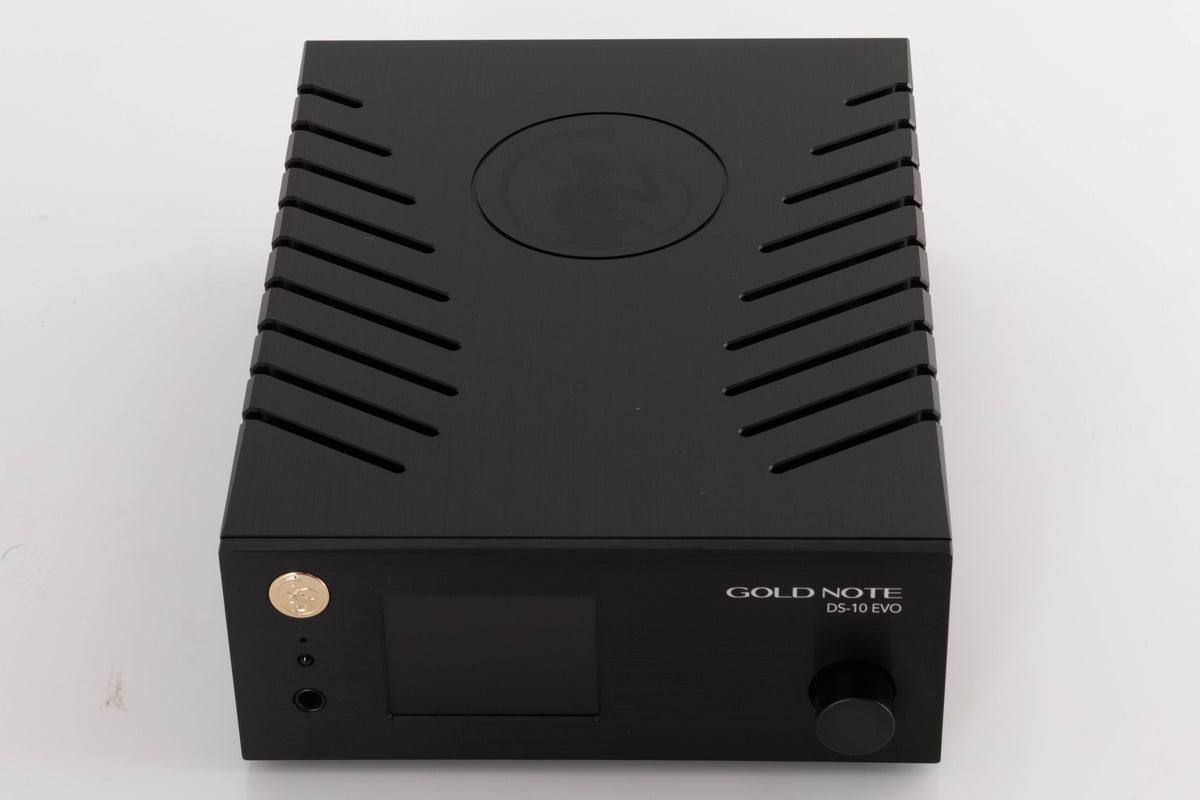

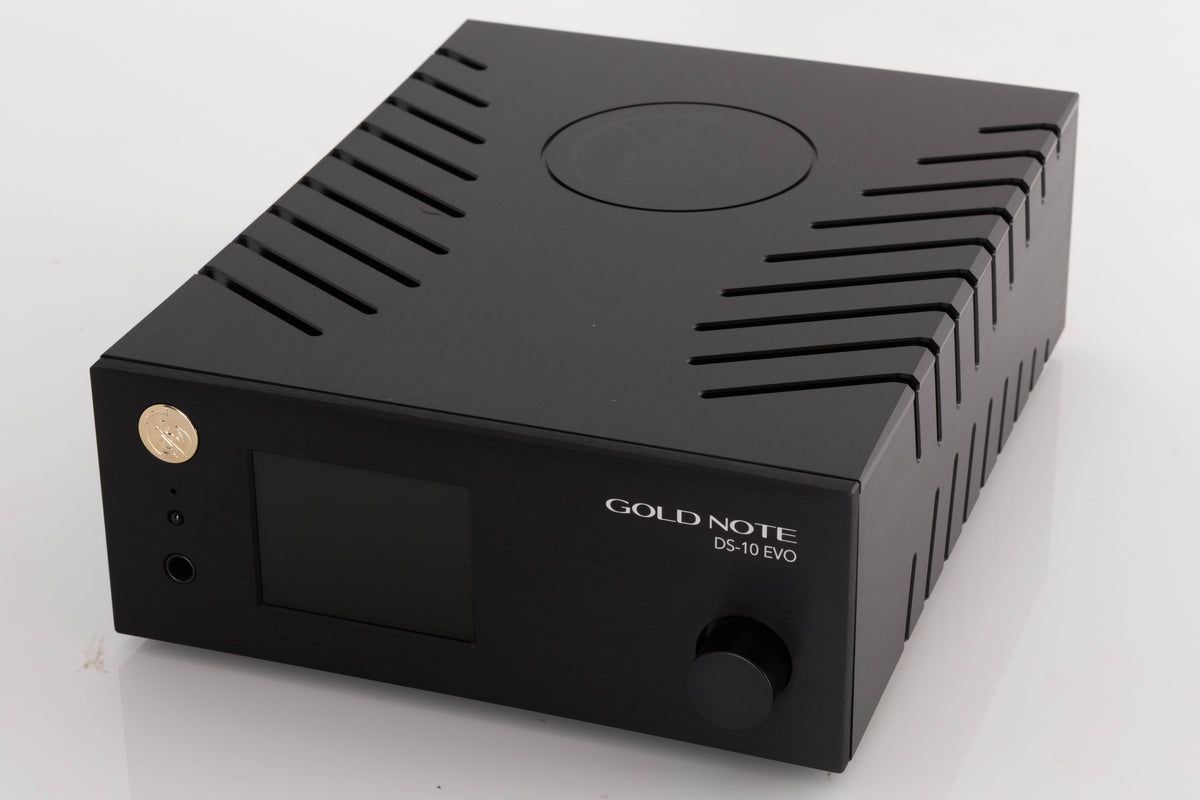

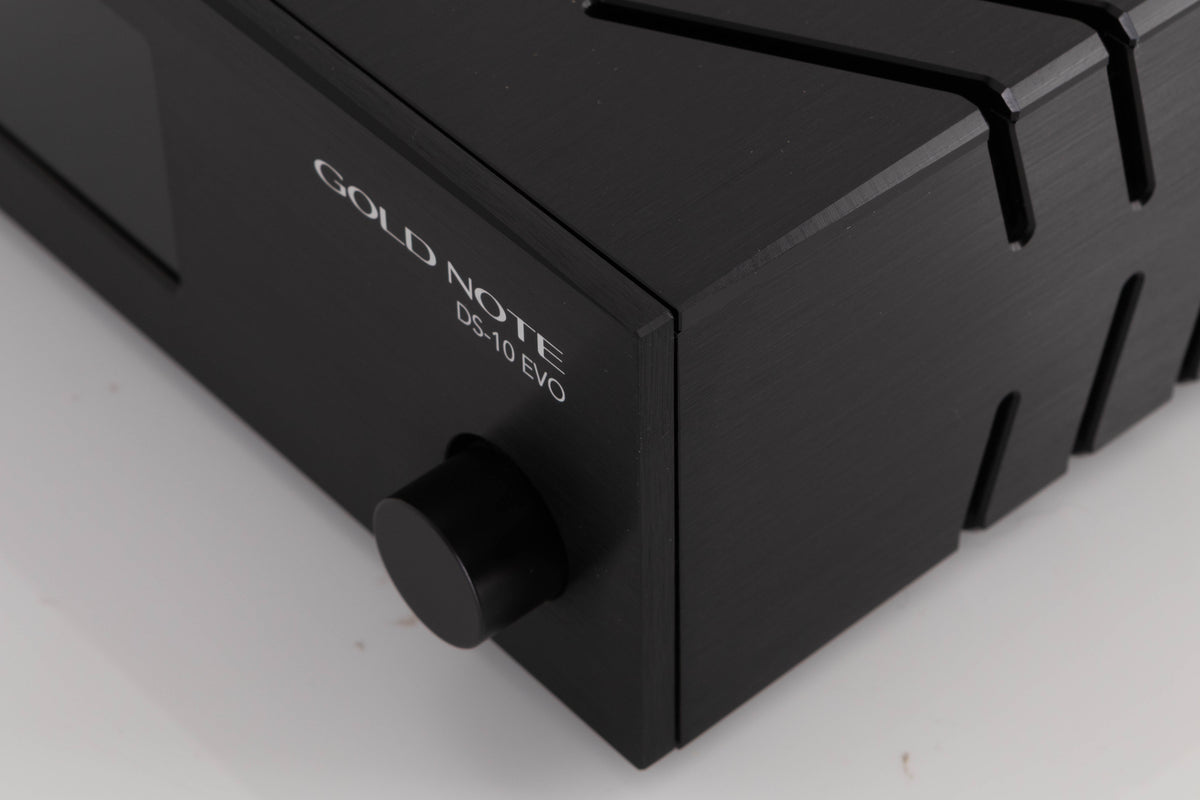

On the 2.8” TFT display, it is possible to quickly view all the available functions and manage them via the SKC (Single Knob Control) knob located on the front panel, the Gold Note remote control or the dedicated GN Control App.
GN Control shows on a smartphone or tablet all the information regarding the track being played, such as the format and resolution, while the user experience is super intuitive thanks to a cutting-edge interface and the possibility of performing firmware updates directly from the internet.
Roon Ready devices have integrated Roon streaming technology and are certified by Roon Labs to provide the highest level of quality and performance in high-resolution streaming.
Roon Ready
Being Roon Ready means that Gold Note uses Roon streaming technology, for an incredible user interface, simple setup, rock-solid daily reliability, and the highest levels of audio performance, without compromise.
Tidal Connect
With Tidal Connect you can stream music directly from the Tidal app (available on iOS and Android).
Audirvana
Plays with Audirvana products are certified to play music from Audirvana over USB or network with the best level of integration and audio performance.
Qobuz Connect
With Qobuz Connect you can stream music directly from the Qobuz app (available on iOS and Android).

D/A Converter Chip: AKM AK4493
Frequency Response: 20 Hz - 20 kHz, ± 0.1 dB
Total Harmonic Distortion: 0.001% max
Signal To Noise Ratio: 125 dB
Dynamic Range: 120 dB
High Quality Streaming:
Roon Ready, Airplay, MQA, Qobuz Connect, Deezer, Spotify Connect, Tidal, Tidal Connect, vTuner, My Live Internet Radio
Supported Audio Formats:
Up to PCM 32bit/384kHz; DSD512; AIFF; ALAC; WAV; FLAC; MP3; Apple Lossless; OGG; Monkey’s
Supported Media Servers: All UPnP; DLNA; Roon

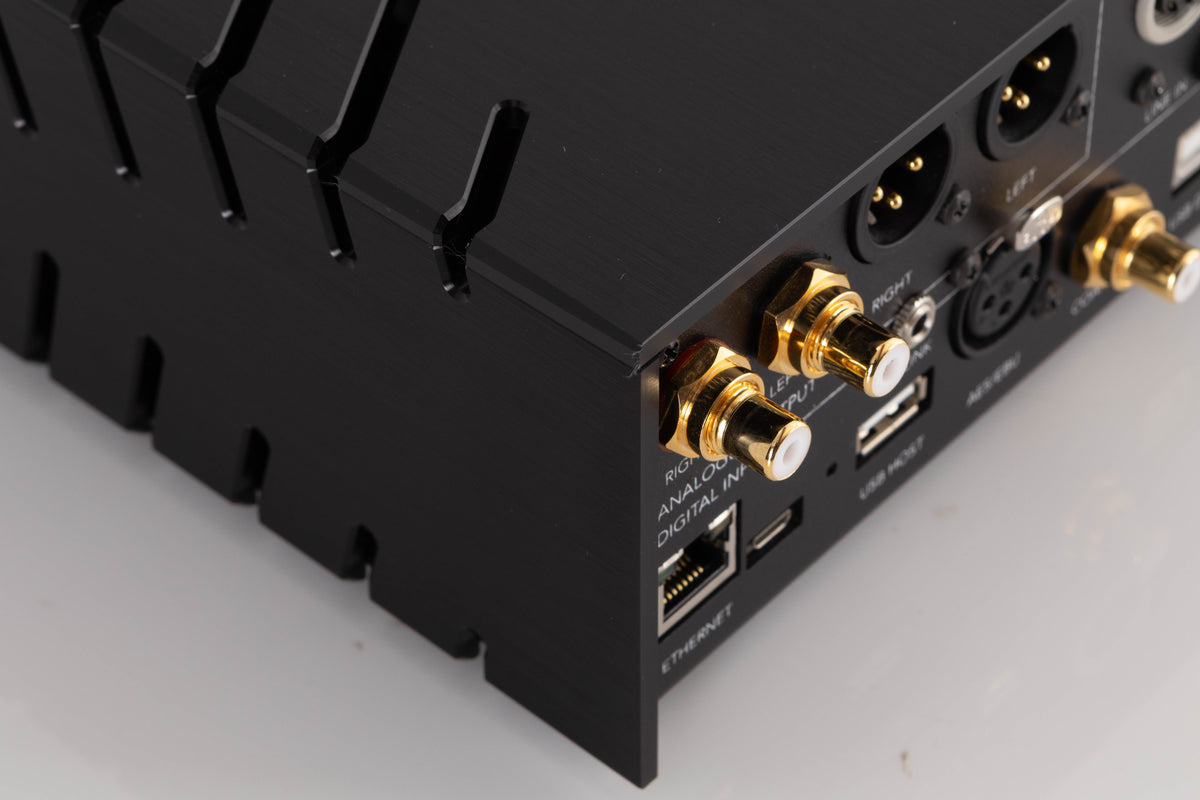

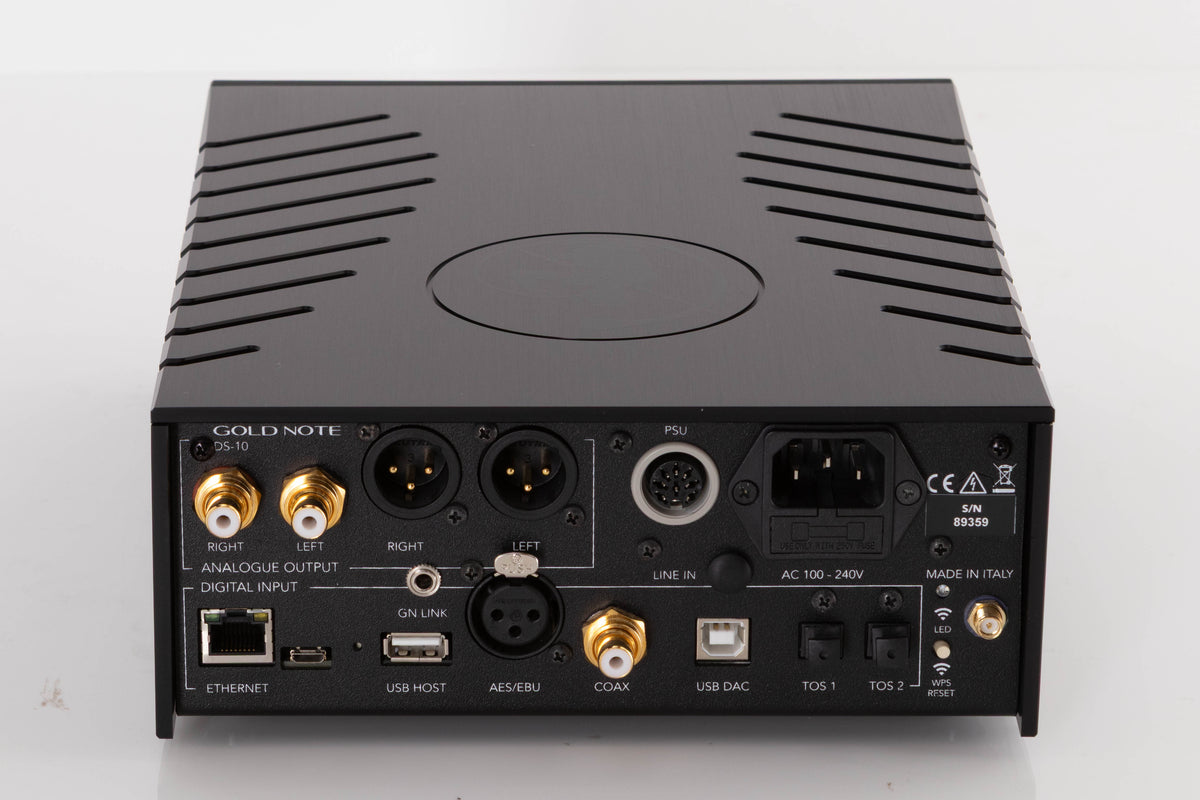

Digital Inputs:
1 x RCA coaxial PCM up to 24-bit/192 kHz
1 x AES/EBU balanced PCM up to 24-bit/192 kHz
2 x TOS-Link PCM up to 24-bit/192 kHz
1 x USB-B asynchronous up to DSD512 and PCM up to 32-bit/384 kHz
1 x USB-A port DSD256 and PCM up to 32-bit/384 kHz, formatted in FAT32/NTFS (32 Gb max for pen drives)
Analogue Input:
1 x 3.5mm mini-jack (input impedance 10 kΩ)
Audio Outputs DAC:
1 x unbalanced RCA 2 Vrms
1 x balanced XLR 2 Vrms
Audio Outputs Preamp:
1 x unbalanced RCA
1 x balanced XLR

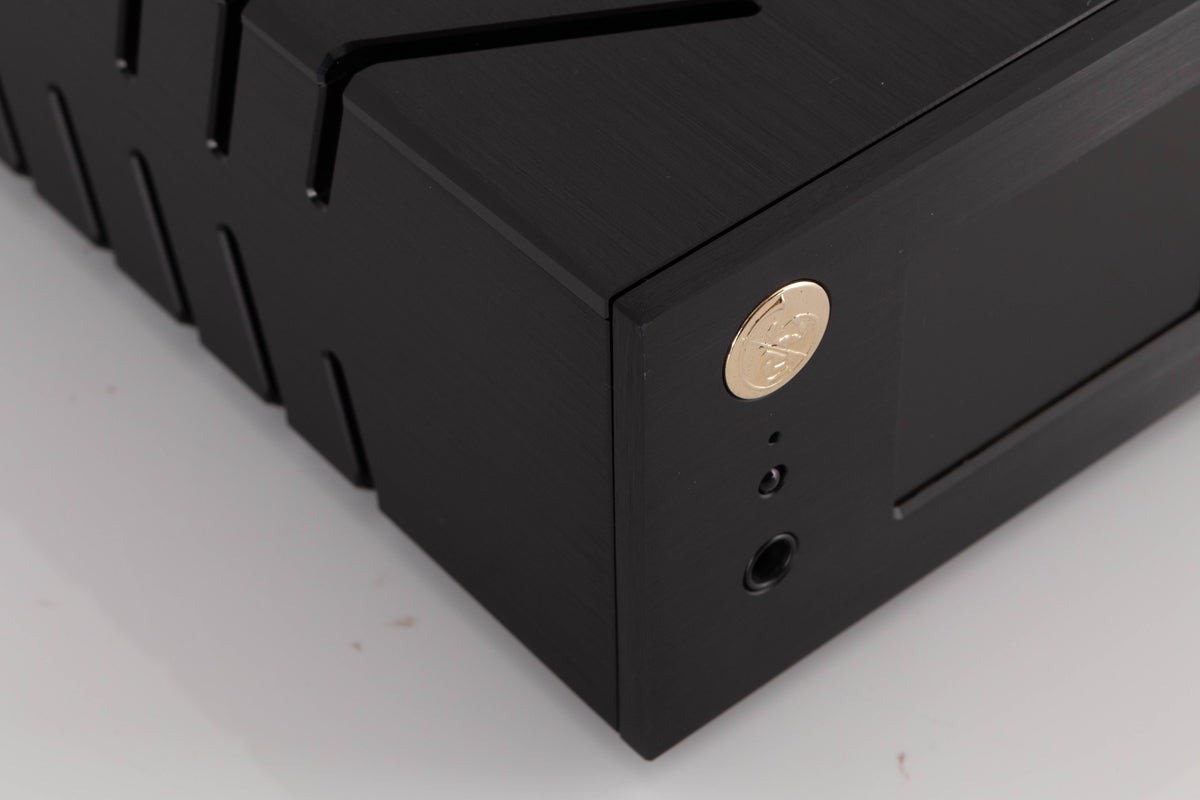

1 x headphone 6.3 mm jack on front panel (double gain)
Output Impedance: 50 Ω
Power Supply: 100 - 240 V / 50 - 60 Hz
Power Consumption: 35 W
Dimensions: 200 (W) x 260 (D) x 80 (H) mm
Weight: 4.0 kg
